Overview
Key Features

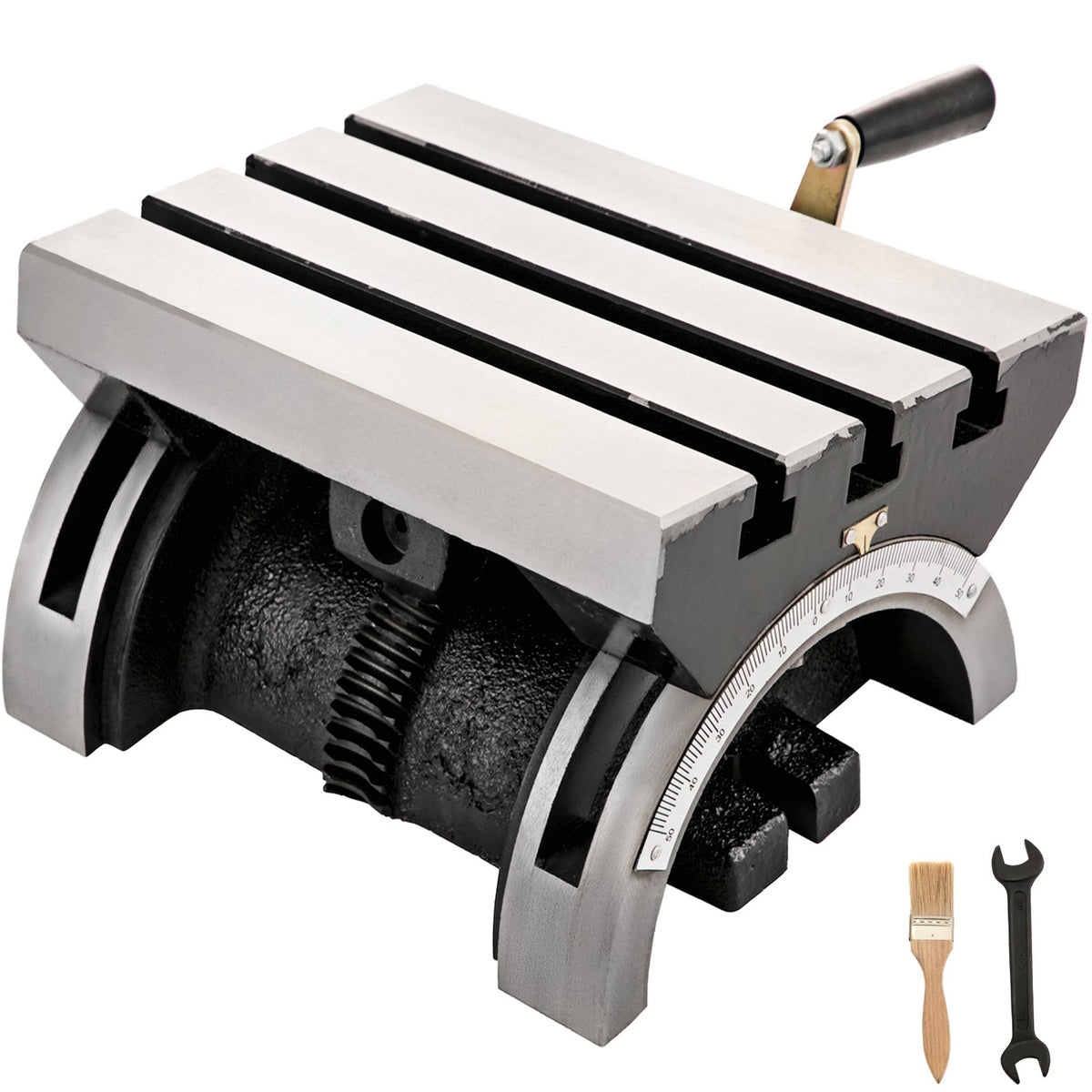

- 【HEAVY DUTY CONSTRUCTION】- Made of heavy duty cast iron that resists corrosion and rust, this tilting milling table stands up to tough shop environments and is built for long service.
- 【HIGH QUALITY WORKING GEAR】- Adjustable angle countertops are fitted with 3 precision-machined T-slots (10 mm on the 7 x 5 in table, 12 mm on the 10 x 7 in table) so you can clamp a wide range of workpieces and tools with more room for processing.
- 【ADJUSTABLE ANGLE PLATE】- with a crank handle, you can adjust the angle as you need. Range from 0-45 degrees on the 7 x 5 in table and 0-40 degrees on the 10 x 7 in table (both sides), with a clear graduated dial that helps you set the angle precisely, giving you more flexibility in use.
- 【PRECISE AND BETTER FINISH】- The whole adjustable angle plate surface is finely ground and chamfered for an accurate, smooth machining result.
- 【CONVENIENT CLEANING & ASSEMBLY】- A cleaning brush and a hand wrench are included, so keeping the table clean and installing it is easy. The plate can be locked at any angle with the screws at each end.
Specifications
| Brand | VEVOR |
|---|---|
| Product Type | Hardware > Tools > Milling Machines > Vertical Milling Machines |
| Table Size | 7 x 5 in / 178 x 125 mm or 10 x 7 in / 250 x 180 mm (pick your Workbench Size) |
| Tilting Range | 0-45 degrees both sides on the 7 x 5 in table; 0-40 degrees both sides on the 10 x 7 in table |
| T-Slots | 3 slots - 10 mm wide on the 7 x 5 in table, 12 mm wide on the 10 x 7 in table |
| Material | Cast Iron |
| Overall Dimension | 7 x 5 x 3.5 in / 178 x 125 x 89 mm on the 7 x 5 in table; 10 x 7 x 5 in / 250 x 180 x 133 mm on the 10 x 7 in table |
| In the Box | 1 x tilting milling table, 1 x hand wrench, 1 x cleaning brush |
| Workbench Size | 178 x 125 mm / 250 x 180 mm |
| Available Options | Workbench Size: 178 x 125 mm, 250 x 180 mm |
