VEVOR Metal Plate Shear - Select Your Configuration

Low stock

$58.90 USD

Sale Sold out

Product Size 5 inch 8 inch 12 inch 32 inch

SKU:SDJBQ5YC14ZD7IUX8V0

Product details

What to know before you buy

Core information, use cases, and key selling points for this item.

About this item

Product overview

VEVOR Metal Plate Shear - Select Your Configuration

Compare exact SKUs

SKU	Selection	Specifications
SDJBQ5YC14ZD7IUX8V0	Product Size: 5 inch	Handle Length: 15.74 in / 400 mm; Shear Plate Tensile Strength: ≤235Mpa; Sample Specifications: Q235, 6 mm x 70 mm Steel Strip; Max. Shearing Round Steel Diameter: φ0.43 in / 11 mm,Surface Treatment & Color: Painted, Blackened Treatment, Blue; Blade Clearance: <0.07 mm (Cuts Paper); Product Weight: 22.5 lbs / 10.2 kg; Max. Shearing Plate Thickness: 0.24 in / 6 mm; Product Dimensions: 9.4 x 3.9 x 24.8 in / 240 x 100 x 630 mm; Max. Shearing Length: 4.33 in / 110 mm; Operating Method: Tabletop Bolt Fixation, Manual Edge Folding; Main Material: Q235, T10
SDJBQ8YC14ZDAY6I2V0	Product Size: 8 inch	Primary Material: Q235,T10; Handle Length: 23.62"/600mm; Shear Plate Tensile Strength: ≤235Mpa; Sample Specifications: Q235, 6mm x 70mm Steel Strip; Max. Shearing Round Steel Diameter: φ0.44"/13mm,Surface Treatment & Color: Painted, Blackened Treatment, Blue; Blade Clearance: <0.07mm (Cuts Paper); Product Weight: 33.73lbs / 15.3Kg; Max. Shearing Plate Thickness: 0.24" / 6mm; Product Dimensions: 17.8x3.94x28.3"/350x100x720mm; Max. Shearing Length: 7.48" / 190mm; Operating Method: Tabletop Bolt Fixation, Manual Edge Folding
SDJBQ12YC14Z3EIXQV0	Product Size: 12 inch	Primary Material: Q235,T10; Handle Length: 31.5"/800mm; Shear Plate Tensile Strength: ≤235Mpa; Sample Specifications: Q235, 6mm x 70mm Steel Strip; Max. Shearing Round Steel Diameter: φ0.44"/13mm,Surface Treatment & Color: Painted, Blackened Treatment, Blue; Blade Clearance: <0.07mm (Cuts Paper); Product Weight: 52lbs / 23.6Kg; Max. Shearing Plate Thickness: 0.24" / 6mm; Product Dimensions: 17.7x3.94x44.5"/450x100x1130mm; Max. Shearing Length: 10.6" / 270mm; Operating Method: Tabletop Bolt Fixation, Manual Edge Folding
SDJBQ31YC15MHUSH7V0	Product Size: 32 inch	Primary Material: Q235, T10; Handle Length: 9"/230mm; Shear Plate Tensile Strength: ≤235Mpa; Sample Specifications: Q235, 6mm x 70mm Steel Strip,Surface Treatment & Color: Painted, Blackened Treatment, Blue; Blade Clearance: <0.07mm (Cuts Paper); Product Weight: 92.15lbs / 41.8Kg; Max. Shearing Plate Thickness: 0.06" / 1.5mm; Product Dimensions: 53.15x8.66x41.34"/1350x220x1050mm; Max. Shearing Length: 31.5"/800mm; Operating Method: Floor Bolt Fixation, Manual Cutting

Details by SKU

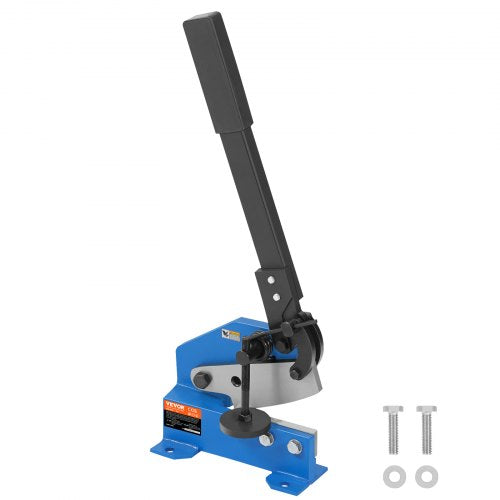

SDJBQ5YC14ZD7IUX8V0 - 5 inch

Maximum Cutting Capacity: Length: 4.33 in / 110 mm, Thickness: 0.24 in / 6 mm, Round steel diameter: 0.43 in / 11 mm. Steel plates, flat steel, and steel rods can all be easily cut. One machine for various cutting and opening tasks

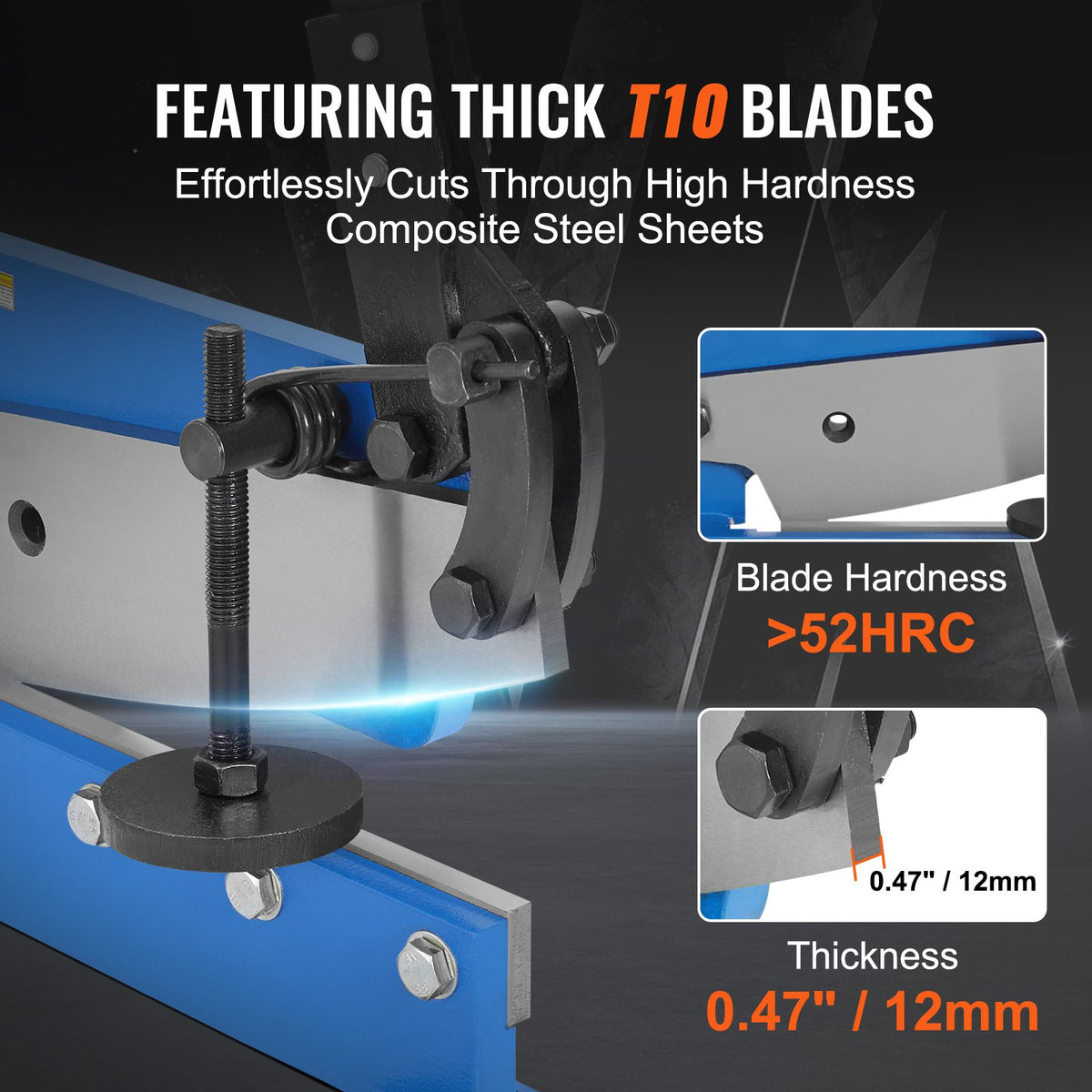

T10 Steel Blades: Blade hardness: >52HRC, Thickness: 0.47 in / 12 mm. It can easily handle various hard metal sheets, such as low-carbon steel, steel bars, aluminum plates, aluminum alloy plates, composite steel plates, color-coated steel plates
Smooth Cutting Edges: <0.0027 in blade gap. It passes the paper-cutting test, achieving smooth and complete paper edges. When cutting steel materials, it ensures smooth, burr-free edges, preventing material waste or damage
Long Handle, Effortless Cutting: The long handle allows you to exert greater force with less effort, significantly reducing the fatigue of cutting. Whether you need to cut heavy or hard materials, this shearing machine makes it easy for you
Sturdy Construction: The base is thickened to 0.24 in / 6 mm, providing a stable support with excellent grip, avoiding shifting during material cutting. You can work with confidence without worrying about instability

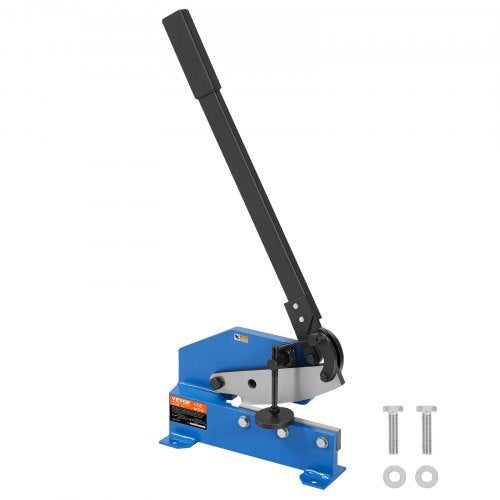

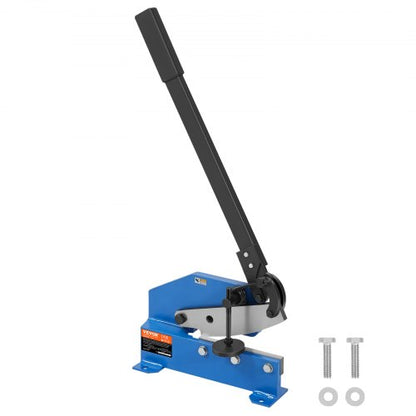

SDJBQ8YC14ZDAY6I2V0 - 8 inch

Maximum material cutting size: Length: 7.48" / 190mm, Thickness: 0.24" / 6mm, Round steel diameter: 0.44" / 13mm. Steel plates, flat steel, and steel rods can all be easily cut. One machine for various cutting and opening tasks, saving you the burden of carrying multiple heavy tools.
Utilizes T10 steel blades: Blade hardness: >52HRC; Thickness: 0.47" / 12mm. It can easily handle various hard metal sheets, such as low-carbon steel, steel bars, aluminum plates, aluminum alloy plates, electro-galvanized plates, tin-plated plates, composite steel plates, color-coated steel plates. This versatility makes your work more convenient.
Smooth cutting edges: <0.0027" blade gap. It passes the paper-cutting test, achieving smooth and complete paper edges. When cutting steel materials, it ensures smooth, burr-free edges, preventing material waste or damage.
Long handle, effortless cutting: The design of the long handle allows you to exert greater force with less effort, significantly reducing the difficulty and fatigue of cutting. Whether you need to cut heavy or hard materials, this shearing machine makes it easy for you and greatly improves your work efficiency.
Sturdy body: The base is thickened to 0.24" / 6mm, providing a stable and heavy base with excellent grip, ensuring stability and preventing shifting during material cutting. This gives you the confidence to work without worrying about the machine's instability affecting your actions.

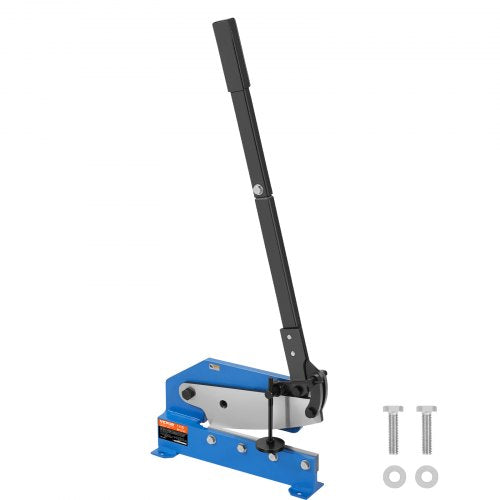

SDJBQ12YC14Z3EIXQV0 - 12 inch

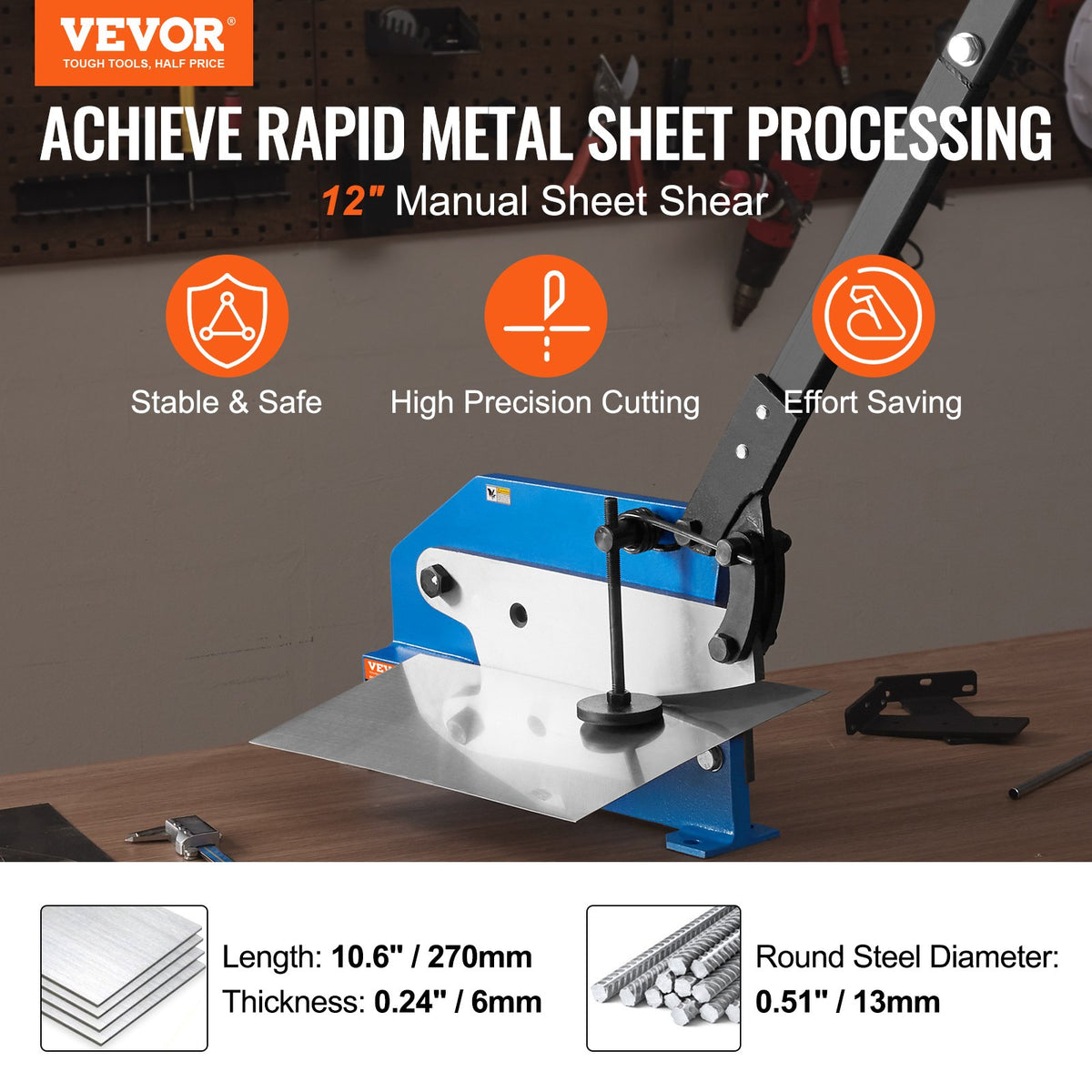

Maximum material cutting size: Length: 10.6" / 270mm Thickness: 1/4" (6mm) Round Steel Diameter: φ13mm / 0.44", ideal for steel plates, flat steel, and steel rods, capable of effortlessly. cutting steel plates and smoothly processing steel bars, eliminating the need to carry multiple heavy tools.

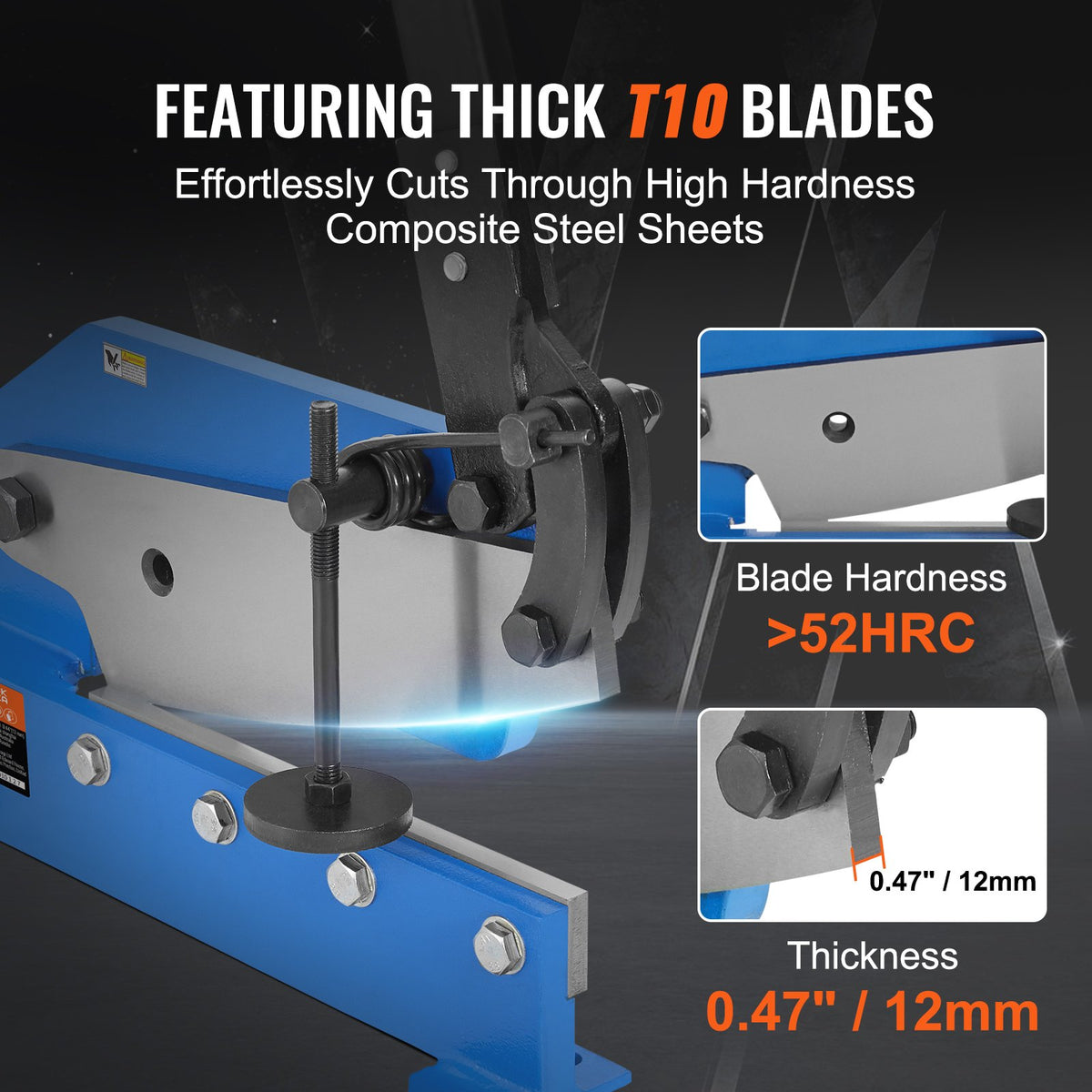

Utilizes T10 steel blades: Blade hardness: >52HRC; Thickness: 0.47"" / 12mm. It can easily handle various hard metal sheets, such as low-carbon steel, steel bars, aluminum plates, aluminum alloy plates, electro-galvanized plates, tin-plated plates, composite steel plates, color-coated steel plates. This versatility makes your work more convenient.
Smooth cutting edges: <0.0027"" blade gap. It passes the paper-cutting test, achieving smooth and complete paper edges. When cutting steel materials, it ensures smooth, burr-free edges, preventing material waste or damage.
Long handle, effortless cutting: The design of the long handle allows you to exert greater force with less effort, significantly reducing the difficulty and fatigue of cutting. Whether you need to cut heavy or hard materials, this shearing machine makes it easy for you and greatly improves your work efficiency.
Sturdy body: The base is thickened to 0.24"" / 6mm, providing a stable and heavy base with excellent grip, ensuring stability and preventing shifting during material cutting. This gives you the confidence to work without worrying about the machine's instability affecting your actions.

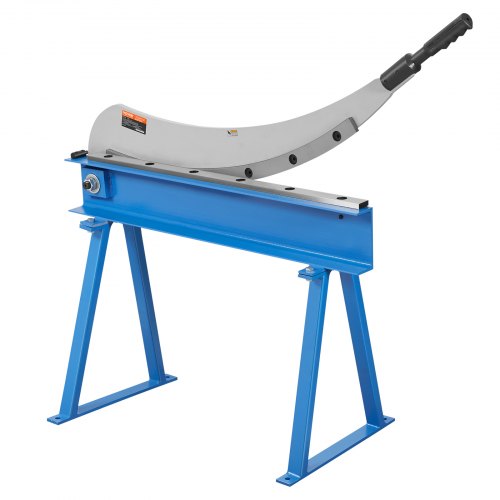

SDJBQ31YC15MHUSH7V0 - 32 inch

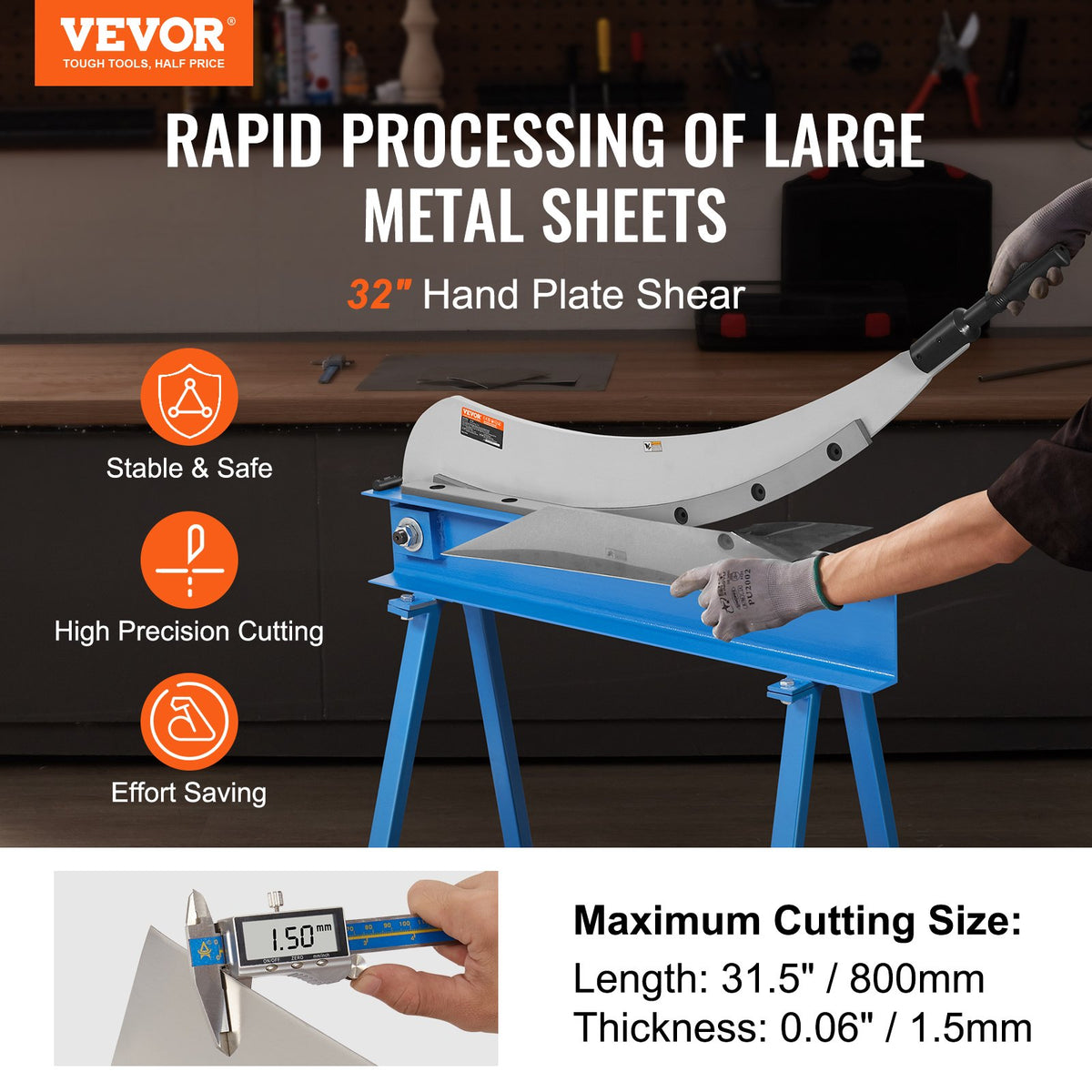

32" Long Blade Steel Plate Cutting Machine: Maximum Cutting Size: Length: 32" / 800mm Thickness: 0.06" / 1.5mm. can cut larger size materials. Can easily cope with cutting large sized sheet metal. Can cut large size material at one time, no need to cut multiple times, which greatly improves your working efficiency.

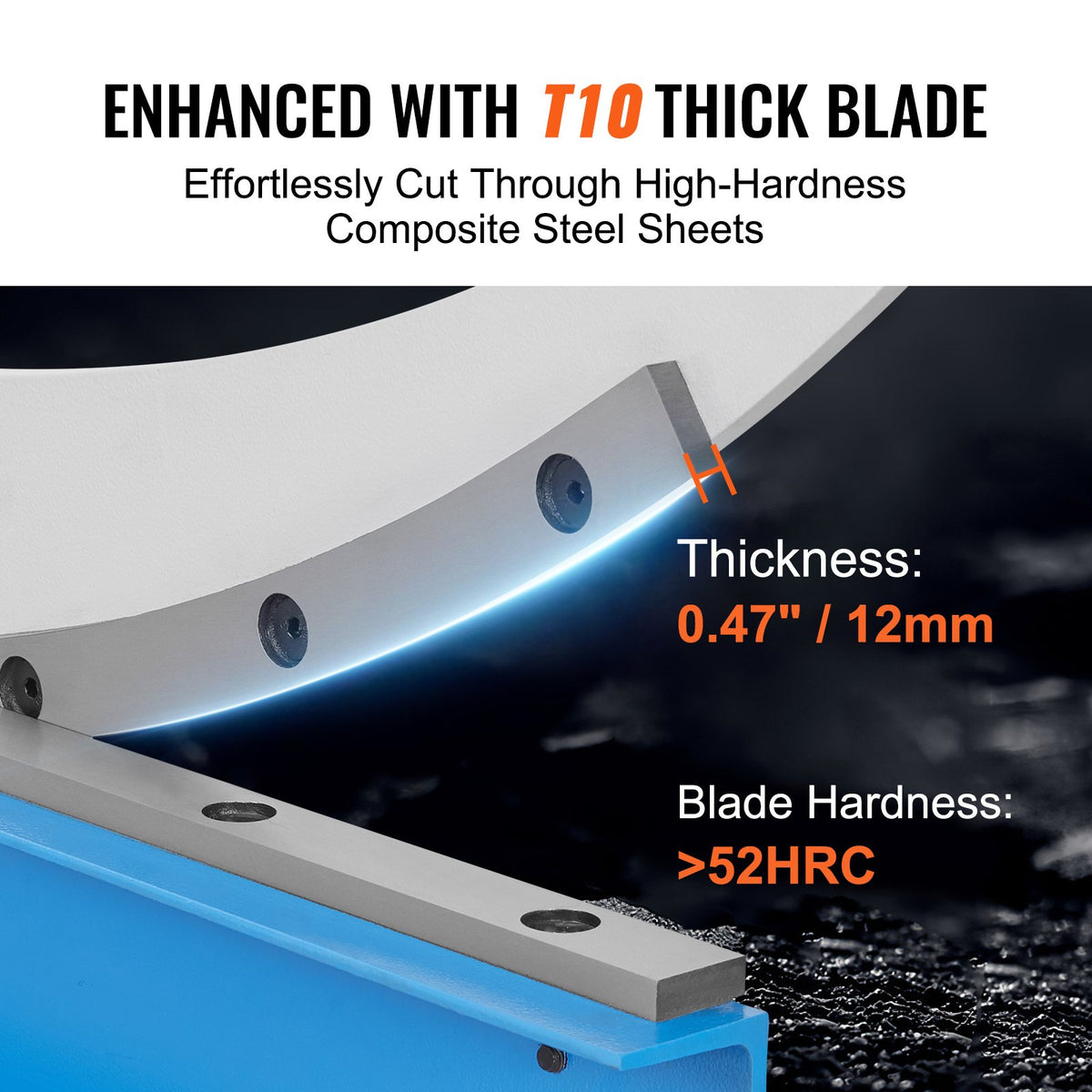

Adopt T10 steel blade: Blade hardness: >52HRC; Thickness: 0.47" / 12mm, all kinds of hard metal plates can be easily coped with. For example, mild steel plate, aluminum plate, aluminum alloy plate, electro galvanized plate, tinned plate, composite steel plate, color coated steel plate, this versatility makes it more convenient for you when working.
Smooth cutting edges: <0.0027"Edge clearance, through the paper cutting test, paper can also cut a completely smooth edge. Cutting steel plate material, more can realize the edge smooth without burr, avoid material is wasted or destroyed.
Long Handle & Save Power: The long handle design allows you to generate more power with less effort, greatly reducing the difficulty and fatigue of cutting. Whether you need to cut thick or hard materials, this plate cutter makes it easy for you and greatly improves your work efficiency.
Solid Body: Sturdy steel frame, preventing the use of the process of shaking, stable and safe, so that you have more confidence in cutting materials, do not need to affect their movements because of will be on the machine instability factors.
