Overview
Product overview

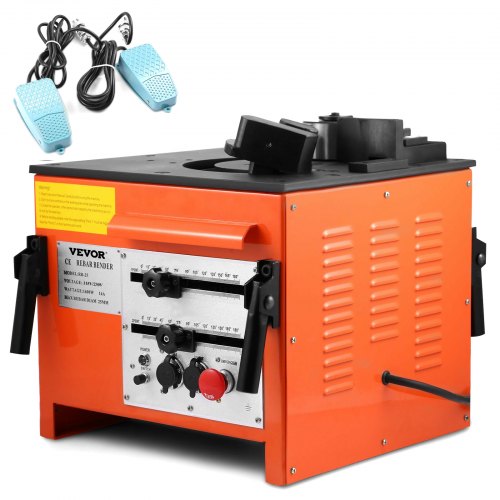

Prepare repeatable rebar bends with a 1700W electric bending machine. It supports listed Grade 60 rebar sizes from 6 to 25 mm and offers two slide-type angle selectors with preset angle locks.
Key features
- Adjustable bending angle from 0 to 180 degrees
- Two angle selectors and preset locks for repeat bends
- Foot-pedal control
- Iron machine body with corner transport handles
Specifications
| Power | 1700 W |
|---|---|
| Voltage | 110 V |
| Frequency | 60 Hz |
| Listed current | 14 A |
| Rebar range | 6–25 mm (#2–#8), Grade 60 |
| Maximum rebar hardness | HRC30 |
| Bending angle | 0–180° |
| Bending radius | 40 mm (1.57 in) |
| Dimensions (L x W x H) | 45 x 50 x 51 cm (17.72 x 19.69 x 20.08 in) |
| Listed noise | 92 dB(A) |
| SKU | RB-25GJWQJ0000001V1 |
Included items
- Electric rebar bending machine
- Foot-pedal control switch
Important notes
- For the two angle selectors, the angle at point 1 must be greater than the angle at point 2 for normal operation.
Frequently asked questions
What rebar range is listed?
The listed range is 6–25 mm (#2–#8) Grade 60 rebar, with a maximum hardness of HRC30.
What bending angles can be set?
The listed bending range is 0–180 degrees. Two selectors and preset locks support repeat angle settings.
What electrical supply is specified?
The source specifies 110 V, 60 Hz, 1700 W and 14 A.
