About this item
Product overview
Compare VEVOR pickup truck rack configurations by width, material and mounting method. Choose the rack that matches your truck bed and cargo before ordering.
Choose by mounting method
The steel full-width option uses J-bolts. The aluminum options use C-clamps. The adjustable side-mount steel option uses bolts and its installation diagram calls for drilling. Do not assume all configurations install in the same way.

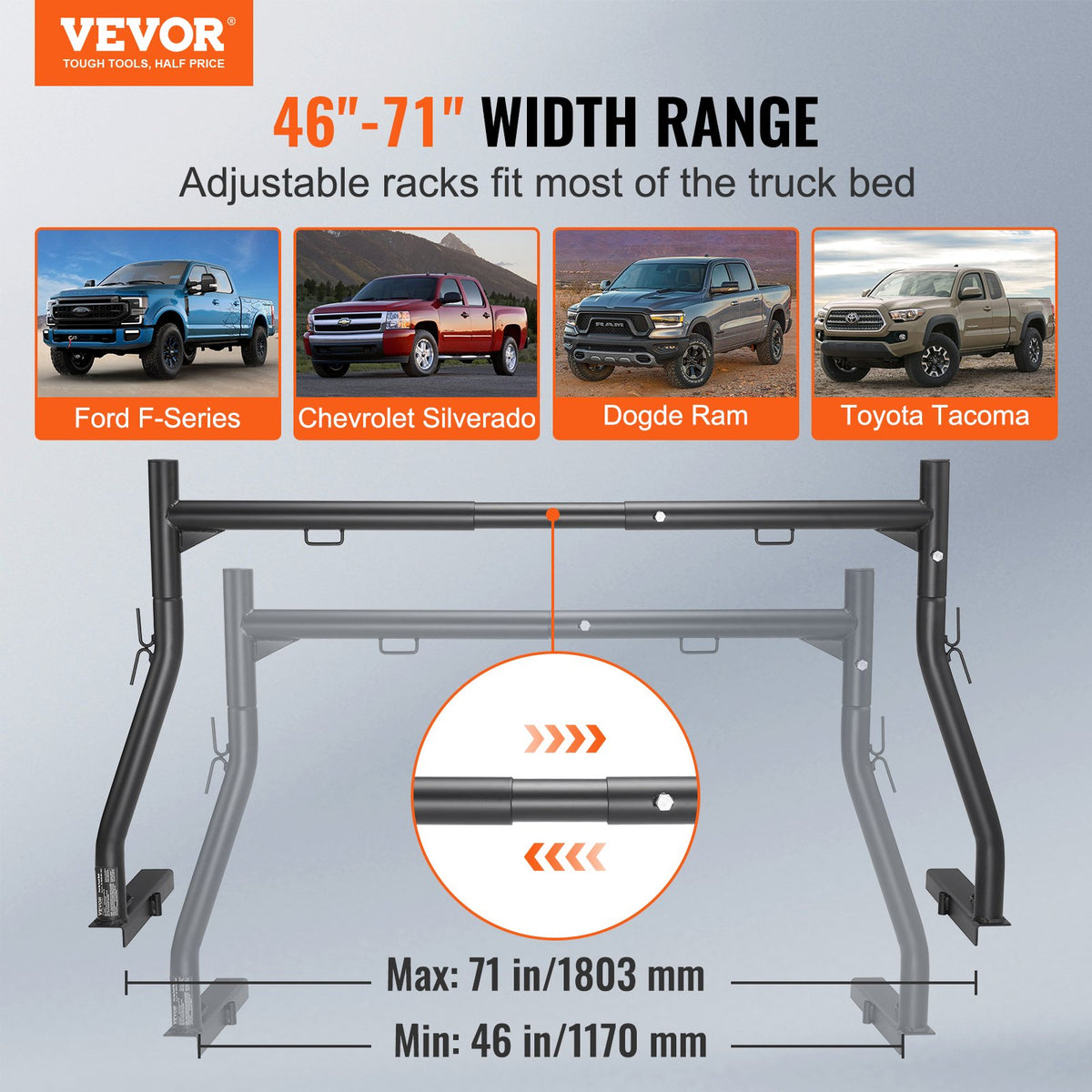

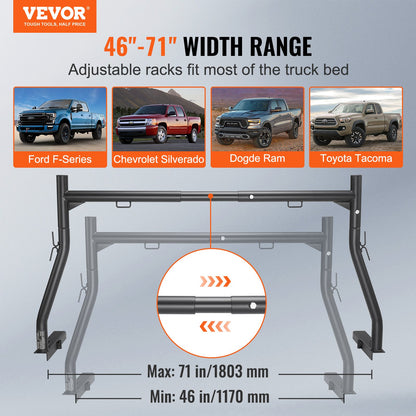

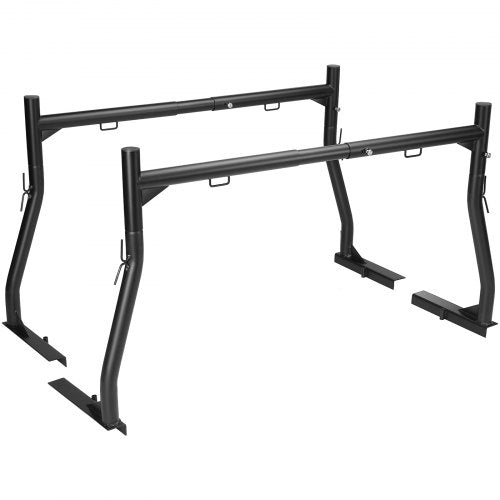

Adjustable-width steel rack
SKU PKHJHJGXLSB511V0SV0
| Material | Alloy Steel |
|---|---|
| Width Range | 46"-71"/1170-1803 mm |
| Tube Diameter | 2 in/50 mm |
| Loading Capacity | 800 lbs/363 kg |
| Mounting Type | J-bolt |
| Quantity | 2 PCS |
| Item Weight | 48.5 lbs/22 kg |
Width adjusts from 46 to 71 inches. Reinforced crossbars, triangular gussets and rope hooks support cargo organization.
Included items
Two racks, four J-bolts, one open-end wrench and two ratchet straps.
Fit restrictions
This configuration is not suitable with tool boxes or side boxes, utility track systems, camper shells or tonneau covers. Honda Ridgeline and Chevrolet Avalanche are excluded by the fit guide.

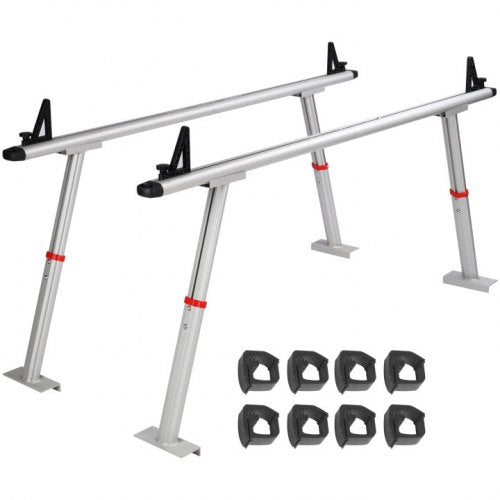

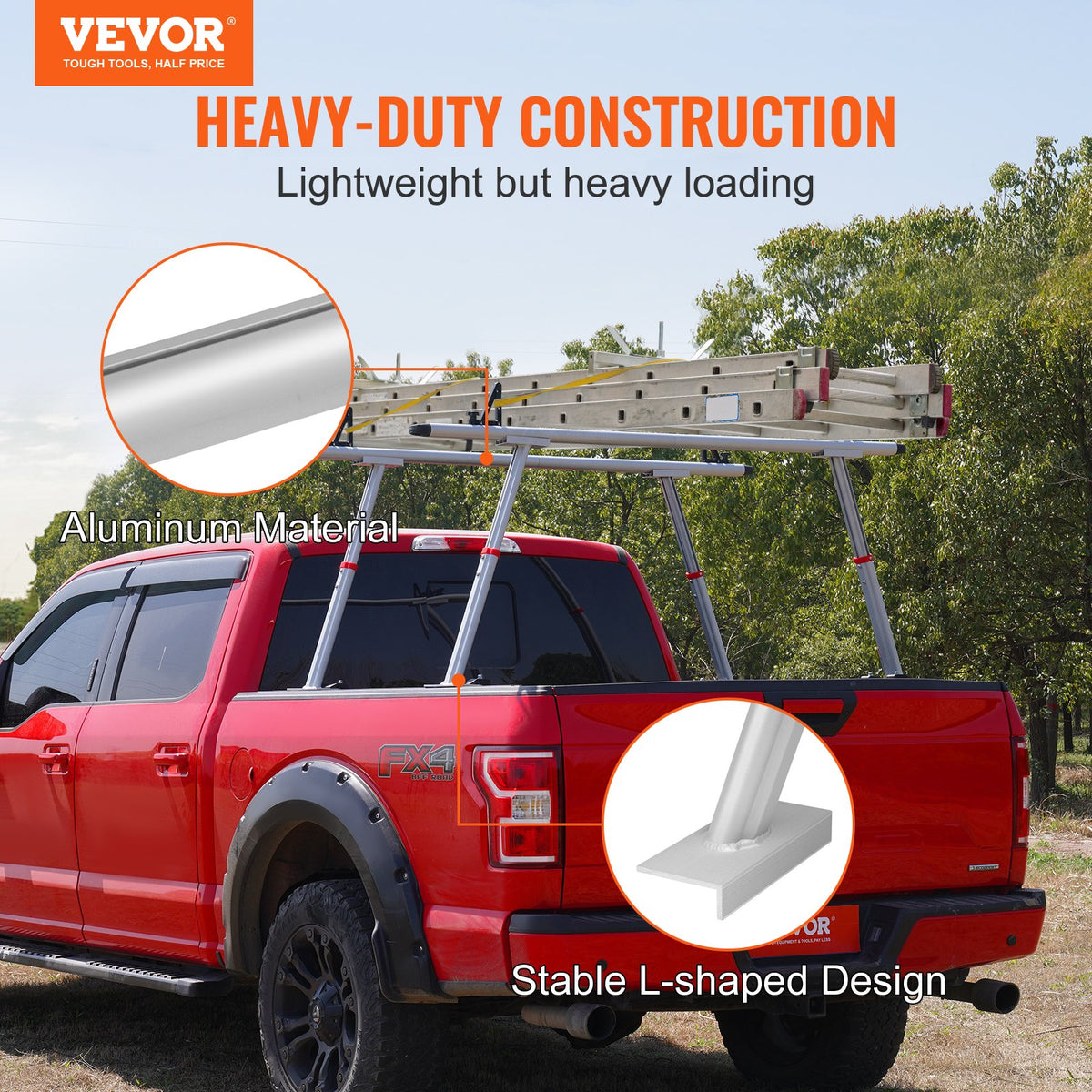

Adjustable-height aluminum rack
SKU PKHJLXJB71INCO9JWV0
| Material | Aluminum |
|---|---|
| Width | 71 in/1803 mm |
| Tube Diameter | 1.6 in/40 mm |
| Mounting Type | C-clamps |
| Quantity | 2 PCS |
| Item Weight | 34 lbs/15.4 kg |
The 71-inch-wide rack has adjustable height and four tie-down adjustments. This configuration is not compatible with Ford Maverick models.
Included items
Two racks, eight C-clamps and one open-end wrench.
Fit restrictions
This configuration is not suitable with tool boxes or side boxes, utility track systems, camper shells or tonneau covers. Honda Ridgeline and Chevrolet Avalanche are excluded by the fit guide.

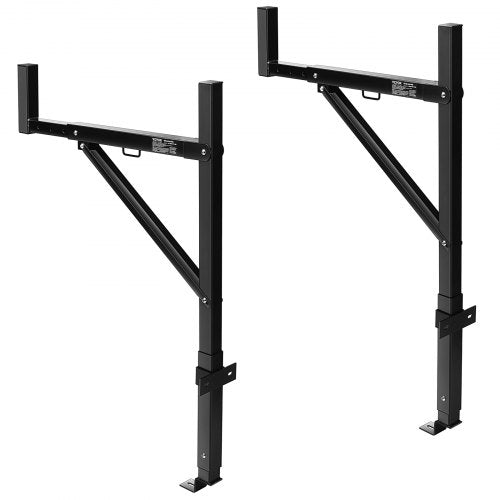

Side-mount adjustable steel rack
SKU PKHJHJGYZTB19IY13V0
| Material | Alloy Steel |
|---|---|
| Width Range | 19"-34"/490-870 mm |
| Adjustable crossbar height | 38.6"-43.6"/980-1108 mm |
| Tube Diameter | 2 in/50 mm |
| Loading Capacity | 250 lbs/113 kg |
| Quantity | 2 PCS |
| Item Weight | 34.17 lbs/15.5 kg |

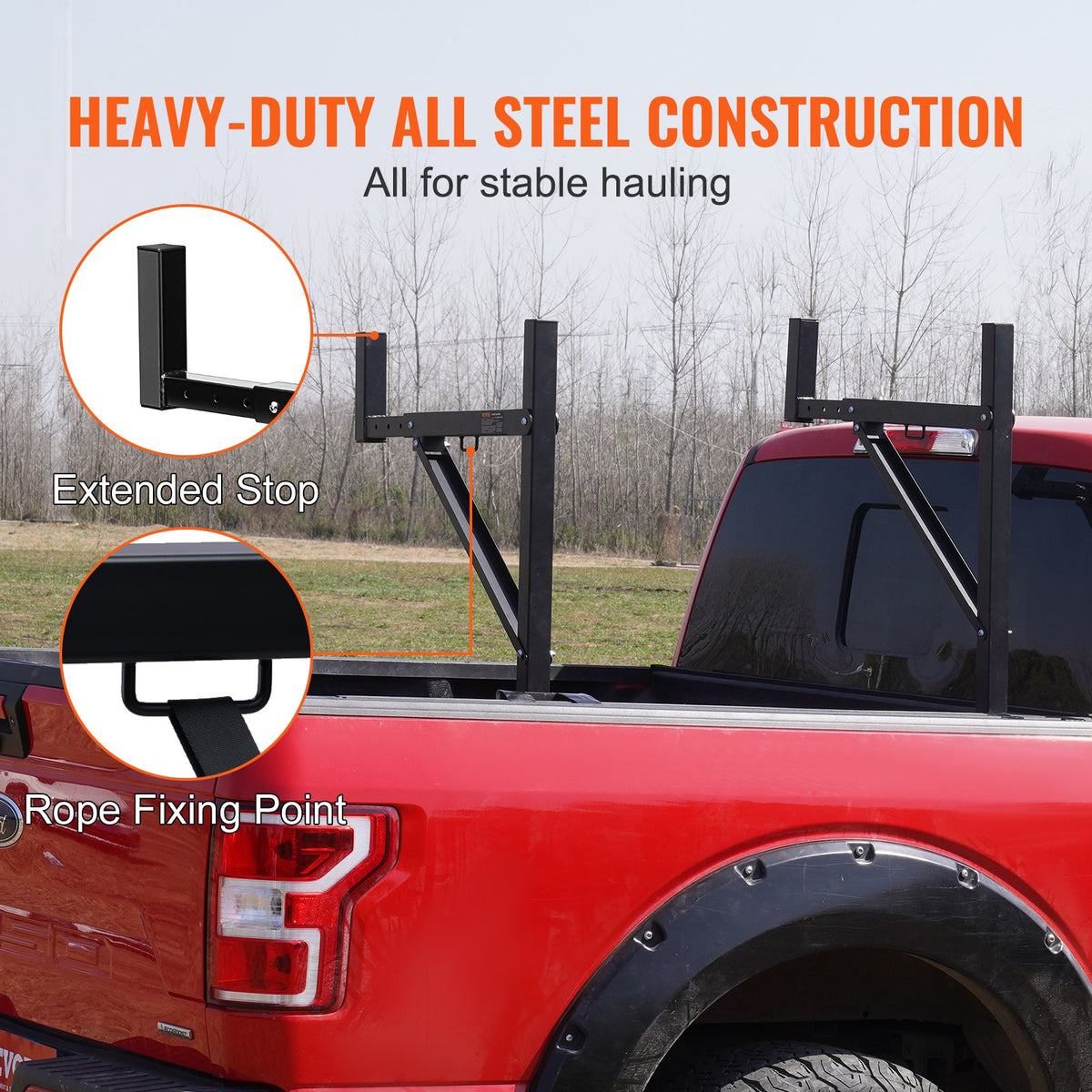

Width adjusts from 19 to 34 inches and crossbar height from 38.6 to 43.6 inches. The design includes tie-down anchors and extended stops.
Included items
Two racks, one hex wrench and one open-end wrench.

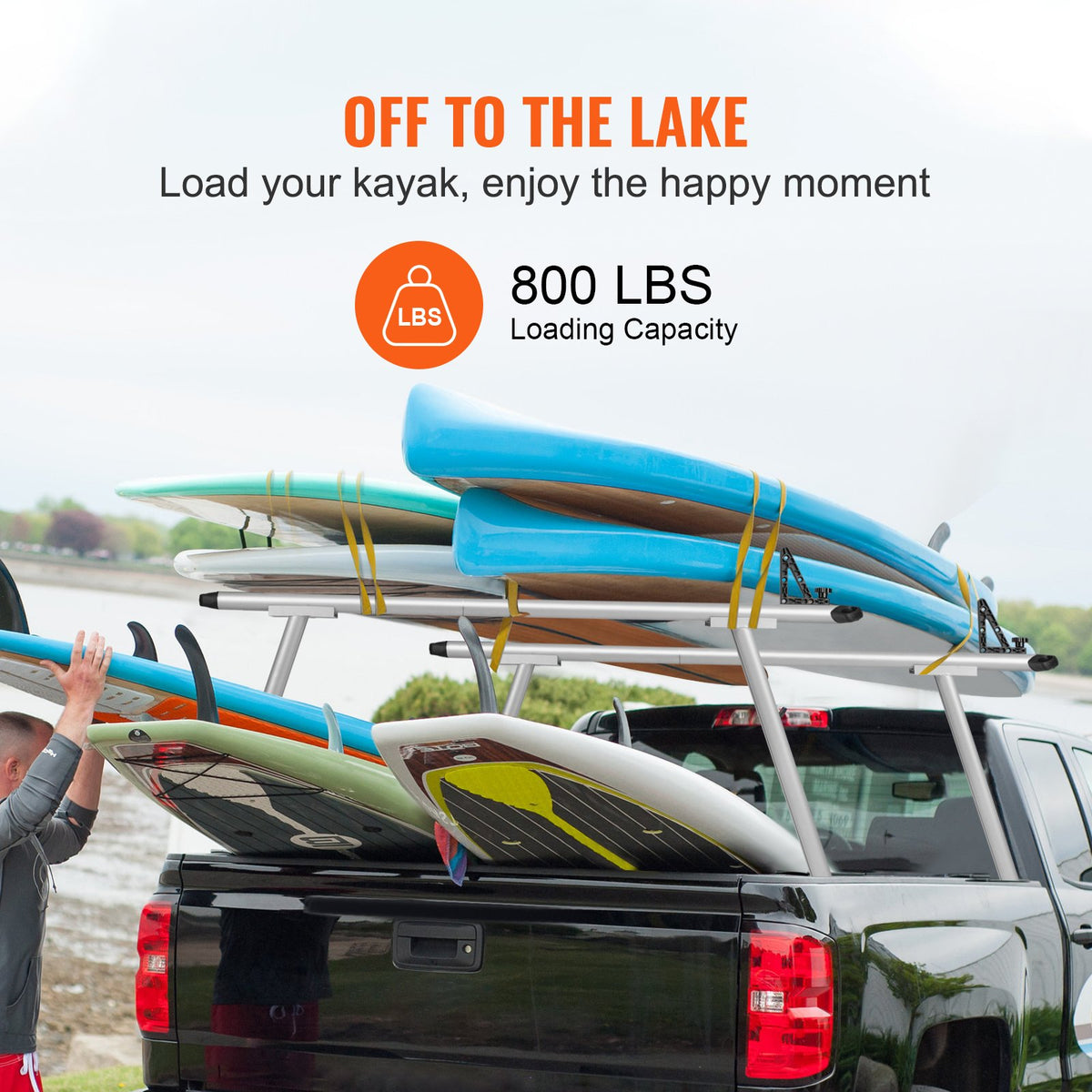

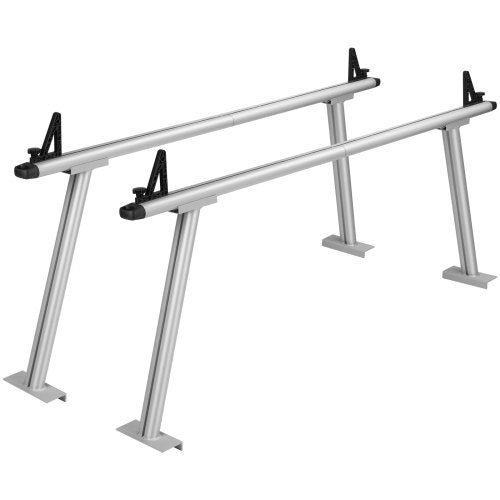

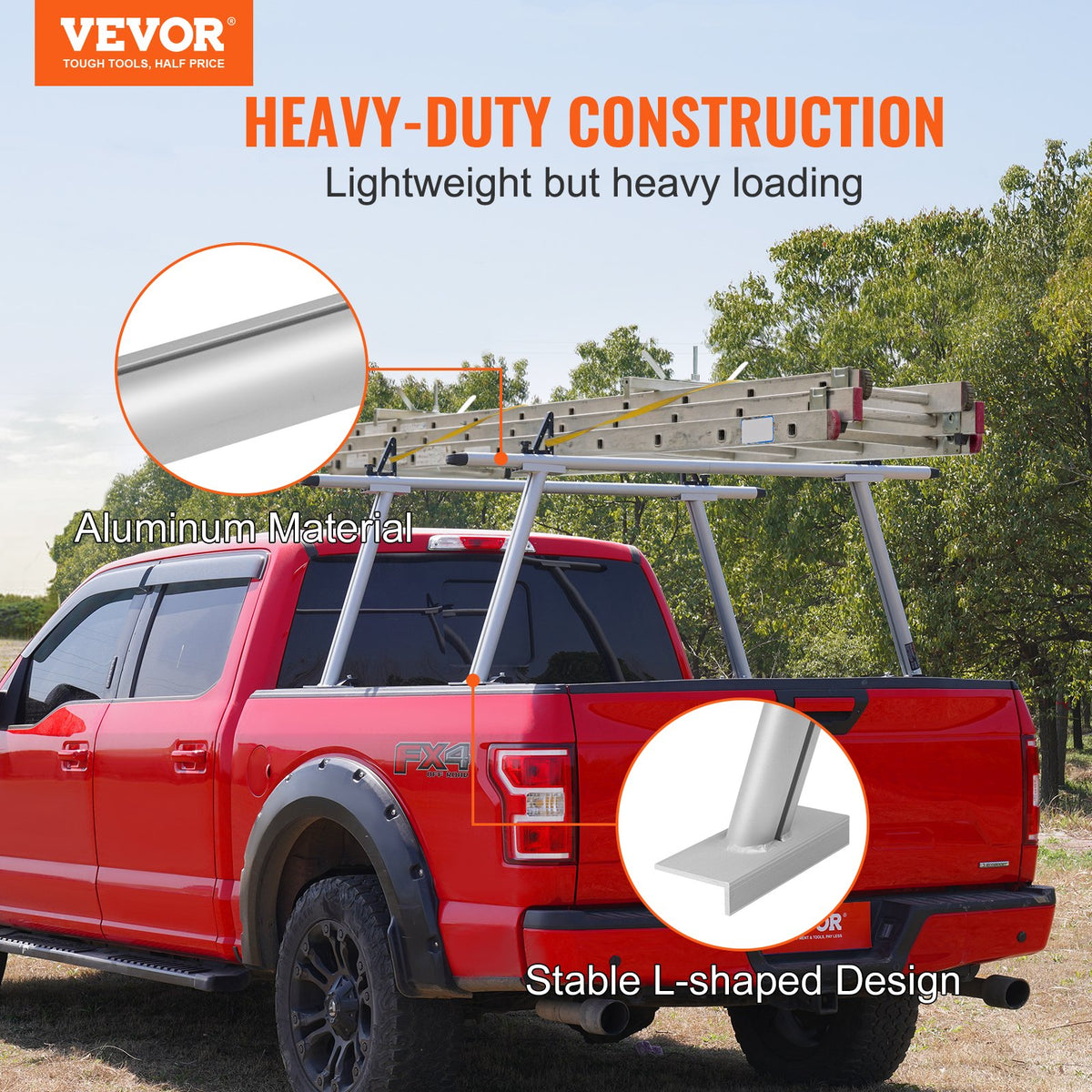

Fixed-height aluminum rack
SKU PKHJLXJB71INCA3EAV0
| Material | Aluminum |
|---|---|
| Width | 71"/1803 mm |
| Height | 32.15"/816.64 mm |
| Tube Diameter | 1.6 in/40 mm |
| Loading Capacity | 800 lbs/363 kg |
| Mounting Type | C-clamps |
| Quantity | 2 PCS |
| Item Weight | 28.7 lbs/13 kg |
The 71-inch-wide aluminum rack has steel base brackets and C-clamp mounting.
Included items
Two racks, eight C-clamps and one open-end wrench.
Fit restrictions
This configuration is not suitable with tool boxes or side boxes, utility track systems, camper shells or tonneau covers. Honda Ridgeline and Chevrolet Avalanche are excluded by the fit guide.
Installation and cargo checks
Measure your bed and inspect the mounting areas before ordering. Follow the installation instructions for the exact SKU, tighten its mounting hardware as directed and secure cargo to the appropriate tie-down points. Check both the rack and vehicle limits before loading.
Frequently asked questions
Does every configuration install without drilling?
No. The J-bolt and C-clamp configurations use clamp-on mounting. The side-mount steel configuration has a drilling step in its installation diagram.
Can I keep a tonneau cover with the clamp-on racks?
The fit guides for these clamp-on configurations exclude tonneau covers and camper shells.
How many racks are included?
Each configuration includes two racks. Mounting hardware and tools differ by SKU.
Do all configurations have the same capacity?
No. Compare the specifications for the selected SKU and the limits of your vehicle.
