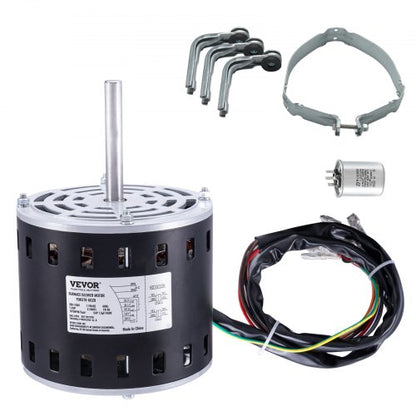

VEVOR Furnace Blower Motor - Select Your Configuration

In stock

$105.90 USD

Sale Sold out

Power 1/2 HP 1/3 HP 3/4 HP

SKU:MSFGJDJG12HP5HTVLV7

Product details

What to know before you buy

Core information, use cases, and key selling points for this item.

About this item

Product overview

Choose the exact VEVOR configuration listed below. Specifications and package contents are recorded per SKU.

Compare exact SKUs

SKU	Selection	Specifications
MSFGJDJG12HP5HTVLV7	Power: 1/2 HP	Shaft Length: 3.4"; Horsepower: 1/2HP; Voltage: 208-230V; Frequency: 60Hz; Shaft Diameter: 0.5"; Rated Current: 2.7A; Number of Speeds: 5; Rotation: CW / CCW; Rotation Speed: 1075RPM; Frame Size: 48
MSFGJDJG13HP48KZGV7	Power: 1/3 HP	Shaft Length: 5.2"; Horsepower: 1/3HP; Voltage: 110-120V; Frequency: 60Hz; Shaft Diameter: 0.5"; Rated Current: 4.4A; Number of Speeds: 4; Rotation: CW / CCW; Rotation Speed: 1075RPM; Frame Size: 48
MSFGJDJG34HP581QQV6	Power: 3/4 HP	Shaft Length: 4.8"; Horsepower: 3/4HP; Voltage: 208-230V; Frequency: 60Hz; Shaft Diameter: 0.5"; Rated Current: 3.85A; Number of Speeds: 5; Rotation: CW / CCW; Rotation Speed: 1075RPM; Frame Size: 48

Details by SKU

MSFGJDJG12HP5HTVLV7 - Power: 1/2 HP

Ensure the horsepower(HP) and the specifications on the nameplate for a precise match. It is important to match the required horsepower and specifications for your motor. Installing a lower horsepower motor can result in overheating and improper functioning. While the replacement parts are compatible with major brands, always verify the fitment with your specific application.
1/2HP Furnace Blower Motor: This motor has a power rating of 1/2 HP and operates at 1075 RPM with 5 different speeds. It requires a Full Load Amps of 2.7A and operates on a power supply of 208/230V. It is designed for direct-drive blower motors used in residential and light commercial indoor furnaces, air handlers, and packaging systems.
Frame Type: The motor belongs to the 48 Frame Size category and features a 0.5" shaft diameter with a shaft length of 3.4". It operates with strong and powerful performance, running at high speed while maintaining low noise levels.
Safety and Durability: The motor is housed in a sturdy metal casing that exhibits high strength and corrosion resistance. This robust construction effectively protects the engine, ensuring a longer service life.
Convenient Accessories Included: The motor comes with convenient accessories, including the CBB65 7.5μF/450V capacitor. This capacitor helps prevent issues such as a shortened lifespan, overheating, and motor startup failure caused by an old capacitor. Additionally, an 11-inch hold hoop is provided as an installation bracket, reducing the need for additional mounting hardware purchases.

MSFGJDJG13HP48KZGV7 - Power: 1/3 HP

Ensure the horsepower(HP) and the specifications on the nameplate for a precise match. It is important to match the required horsepower and specifications for your motor. Installing a lower horsepower motor can result in overheating and improper functioning. While the replacement parts are compatible with major brands, always verify the fitment with your specific application.
1/3HP Furnace Blower Motor: This motor has a power rating of 1/3HP and operates at 1075 RPM with 4 different speeds. It requires a Full Load Amps of 4.4A and operates on a power supply of 110-120V. It is designed for direct-drive blower motors used in residential and light commercial indoor furnaces, air handlers, and packaging systems.
Frame Type: The motor belongs to the 48 Frame Size category and features a 0.5" shaft diameter with a shaft length of 5.2". It operates with strong and powerful performance, running at high speed while maintaining low noise levels.
Safety and Durability: The motor is housed in a sturdy metal casing that exhibits high strength and corrosion resistance. This robust construction effectively protects the engine, ensuring a longer service life.
Convenient Accessories Included: The motor comes with convenient accessories, including the CBB65 5μF/370V capacitor. This capacitor helps prevent issues such as a shortened lifespan, overheating, and motor startup failure caused by an old capacitor. Additionally, an 11-inch hold hoop is provided as an installation bracket, reducing the need for additional mounting hardware purchases.

MSFGJDJG34HP581QQV6 - Power: 3/4 HP

Ensure the horsepower(HP) and the specifications on the nameplate for a precise match. It is important to match the required horsepower and specifications for your motor. Installing a lower horsepower motor can result in overheating and improper functioning. While the replacement parts are compatible with major brands, always verify the fitment with your specific application.
3/4HP Furnace Blower Motor: This motor has a power rating of 3/4 HP and operates at 1075 RPM with 5 different speeds. It requires a Full Load Amps of 3.85A and operates on a power supply of 208-230V. It is designed for direct-drive blower motors used in residential and light commercial indoor furnaces, air handlers, and packaging systems.
Frame Type: The motor belongs to the 48 Frame Size category and features a 0.5" shaft diameter with a shaft length of 4.8". It operates with strong and powerful performance, running at high speed while maintaining low noise levels.
Safety and Durability: The motor is housed in a sturdy metal casing that exhibits high strength and corrosion resistance. This robust construction effectively protects the engine, ensuring a longer service life.
Convenient Accessories Included: The motor comes with convenient accessories, including the CBB60 10μF/450V capacitor. This capacitor helps prevent issues such as a shortened lifespan, overheating, and motor startup failure caused by an old capacitor. Additionally, an 11-inch hold hoop is provided as an installation bracket, reducing the need for additional mounting hardware purchases.
