VEVOR Coring Tools - Select Your Configuration

In stock

$274.90 USD

Sale Sold out

Type Stand-Mount

Max Drilling Diameter 8 in 10 in 11.8 in

Number of Drill Bits 1 Drill Bit (4.25 in) No Drill Bits Included 1 Drill Bit (5 in) 10 Drill Bits (1, 2, 3, 4, 5, 6, 7, 8, 9, 10 in) 8 Drill Bits (1, 2, 3, 4, 5, 6, 7, 8 in)

SKU:LSJGSZKJY8425ZBUGV1

Product details

What to know before you buy

Core information, use cases, and key selling points for this item.

About this item

Product overview

Choose the exact VEVOR configuration listed below. Specifications and package contents are recorded per SKU.

Compare exact SKUs

SKU	Selection	Specifications
LSJGSZKJY8425ZBUGV1	Type: Stand-Mount; Max Drilling Diameter: 8 in; Number of Drill Bits: 1 Drill Bit (4.25 in)	Speed: 750RPM; No-load Power: 1680W; Drilling Method: Wet and Dry Drilling; Arbor Size: 1-1/4" x 7 UNC & 5/8" x 11 UNC; Item Model Number: Z1Z-9230; Drilling Depth: 23.62 in / 60 cm Max; Rated Power: 2500W; Drilling Diameter: 8 in / 20 cm Max; Net Weight: 54.67 lbs / 24.8 kg; Product Size: 36.41 x 15.15 x 14.64 in / 92.5 x 38.5 x 37.2 cm
LSJGSZKJYCW104M3IV1	Type: Stand-Mount; Max Drilling Diameter: 10 in; Number of Drill Bits: No Drill Bits Included	Speed: 750RPM; No-load Power: 1350W; Drilling Method: Wet Drilling; Arbor Size: 1-1/4" Thread; Item Model Number: Z1Z-9260; Drilling Depth: 23.62 in / 60 cm Max; Rated Power: 2500W; Drilling Diameter: 10 in / 26 cm Max; Net Weight: 61.5 lbs / 27.9 kg; Product Size: 36.61 x 10.11 x 20.47 in / 93 x 25.7 x 52 cm
LSJGSZKJ300M6MPPHV1	Type: Stand-Mount; Max Drilling Diameter: 11.8 in; Number of Drill Bits: 1 Drill Bit (5 in)	Drilling Speed: 570r/min; Item Modol Number: (8260H)Z1Z-9260; Arbor Size: UNC1 1/4-7; Drilling Diameter: Φ0.8-11.8 in / Φ20-300 mm; Net Weight: 62.4 lbs / 28.3 kg; Max Load Power: 3500W; Product Size: 13.4 x 8.3 x 36.4 in / 340 x 210 x 925 mm
LSJGSZKJ10YC1YW6Y001V1	Type: Stand-Mount; Max Drilling Diameter: 10 in; Number of Drill Bits: 10 Drill Bits (1, 2, 3, 4, 5, 6, 7, 8, 9, 10 in)	No-Load Power: 1500W; Stroke: 19.7 in/500 mm; Brick Drilling Capacity: 0.8-10 in/20-254 mm; Concrete Drilling Capacity: 0.8-10 in/20-254 mm; Output Shaft Size: UNC1 1/4-7 External Thread; Max Load Power: 2500W; Net Weight (Machine Only): 50.7 lbs/23 kg (With Stand); Net Weight (Including Accessories): 156.1 lbs/70.8 kg; Type: Vertical Stand Type; Included Drill Bits: 10 Pieces; Max Drill Bit Diameter: Φ10.2 in/260 mm (No Interference with Stand); Water Inlet Size: Barbed Fitting, OD 0.3 in/8.6 mm; Item Model Number: CF-9255C; No-Load Speed: 2-Speed Adjustable—800 RPM (1st), 470 RPM (2nd); Product Dimensions (L x W x H): 19.3 x 6.2 x 35.2 in/490 x 157 x 895 mm
LSJGSZKJ8YC8FWHUM001V1	Type: Stand-Mount; Max Drilling Diameter: 8 in; Number of Drill Bits: 8 Drill Bits (1, 2, 3, 4, 5, 6, 7, 8 in)	No-Load Power: 1500W; Stroke: 15.7 in/400 mm; Brick Drilling Capacity: 0.8-8 in/20-200 mm; Concrete Drilling Capacity: 0.8-6.3 in/20-159 mm; Output Shaft Size: UNC1 1/4-7 External Thread; Max Load Power: 3000W; Net Weight (Machine Only): 34.8 lbs/15.8 kg (With Stand); Net Weight (Including Accessories): 97.9 lbs/44.4 kg; Type: Vertical Stand Type; Included Drill Bits: 8 Pieces; Max Drill Bit Diameter: Φ7.9 in/200 mm; Water Inlet Size: Barbed Fitting, OD 0.3 in/8.6 mm; Item Model Number: Z1Z-CF-9200; No-Load Speed: 800 RPM Fixed Speed; Product Dimensions (L x W x H): 12.6 x 7.5 x 29.5 in/320 x 190 x 750 mm

Details by SKU

LSJGSZKJY8425ZBUGV1 - Type: Stand-Mount; Max Drilling Diameter: 8 in; Number of Drill Bits: 1 Drill Bit (4.25 in)

8-inch Max Wet & Dry Drilling: Adapts up to 8-inch drill bits. Our standup core drilling machine with stand can perform wet and dry two modes drilling, and you can feel assured of accuracy when boring holes in a variety of surfaces with a 8 in / 20 cm diameter hole capacity. Attention: a industrial-grade 4.25in core bit is only included.
Capable Coring Efficiency: A 2500W powerful motor and 750RPM high-speed gearbox are intentionally taken to complete diversified drilling projects, allowing the operator to adjust based on the specific material being drilled. Max Drilling Depth: 23.62 in / 60 cm. Output Arbor Sizes: External Thread 1-1/4" x 7 UNC, Internal Thread 5/8" x 11 UNC.
Expertly Designed for Security: Our diamond core drill rig integrates a secure clutch with an overload protection device to work by automatically tripping when the drill bit becomes stuck or encounters resistance beyond a certain level, further reducing the risk of operator damage and injury during the operations.
Effortless Drilling: Our concrete core drill has a rustproof steel forged output shaft to bear more pressure, an upgraded one-touch water pipe connector for a stable water supply, and a thickened guide rail to stabilize the machine and reduce shaking.
Built for Heavy-Duty Concrete Drilling: Easy to maneuver in drilling reinforced concrete, red brick, marble, and other materials. Our wet&dry diamond core drilling rig will surely meet professional demands and is for more than just home use, and you can quickly install air conditioners, kitchen pipes, stair railings, repair highways, etc.

LSJGSZKJYCW104M3IV1 - Type: Stand-Mount; Max Drilling Diameter: 10 in; Number of Drill Bits: No Drill Bits Included

10-inch Wet Drilling: Our standup core drilling machine with stand can perform wet drilling, and you can feel assured of accuracy when boring holes in a variety of surfaces with a 10 in / 26 cm diameter hole capacity. Note: The drilling bit is not included.
Capable Coring Efficiency: A 2500W powerful motor and 750RPM high-speed gearbox are intentionally taken to complete diversified drilling projects, allowing the operator to adjust based on the specific material being drilled. Max Drilling Depth: 23.62 in / 60 cm. Arbor Size: 1-1/4" Thread.
Expertly Designed for Security: Our diamond core drill rig integrates a secure clutch with an overload protection device to work by automatically tripping when the drill bit becomes stuck or encounters resistance beyond a certain level, further reducing the risk of operator damage and injury during the operations.
Effortless Drilling: Our concrete core drill has a rustproof steel forged output shaft to bear more pressure, an upgraded one-touch water pipe connector for a stable water supply, and 2 caster wheels for you to move on various surfaces flexibly.
Built for Heavy-Duty Concrete Drilling: Easy to maneuver in drilling reinforced concrete, red brick, marble, and other materials. Our wet diamond core drilling rig will surely meet professional demands and is for more than just home use, and you can quickly install air conditioners, kitchen pipes, stair railings, repair highways, etc.

LSJGSZKJ300M6MPPHV1 - Type: Stand-Mount; Max Drilling Diameter: 11.8 in; Number of Drill Bits: 1 Drill Bit (5 in)

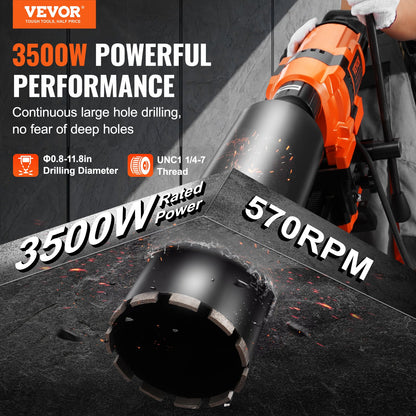

Powerful Core Drilling Efficiency: Equipped with a 3500W motor, this core drill machine handles hole sizes from Φ0.8-11.8 in / Φ20-300 mm effortlessly. Whether you're drilling large or small holes, it ensures efficient and precise results every time.
Wet & Dry Cutting Capabilities: Our core drill rig supports both dry and wet cutting modes. Dry cutting is ideal for fast drilling in dry environments or high-efficiency scenarios, while wet cutting effectively reduces dust and heat, providing enhanced safety and comfort during operation.

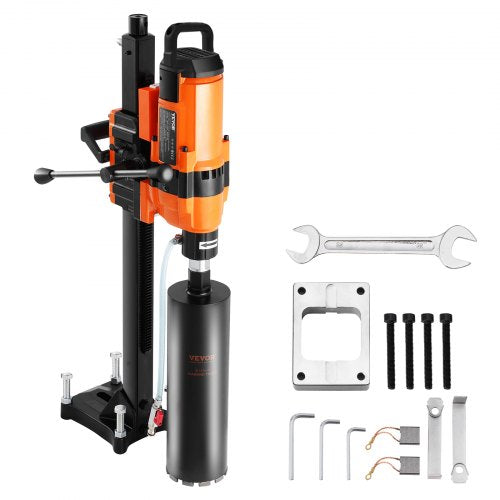

Professional Accessories Included: The core drilling machine comes with a Φ5 in / Φ127 mm drill bit, allowing quick completion of large-diameter drilling tasks. It includes two carbon brushes and a double-ended wrench for convenient and quick maintenance.
Portable Handle Design: The ergonomic handle design of the coring drill makes transportation easier and more convenient. It enhances the comfort of carrying the tool and reduces the risk of bumps during transport, ensuring smooth and secure handling every time.
Engineered for Precision Drilling: The diamond concrete core drill is designed for easy operation when drilling through reinforced concrete, red brick, marble, and more. It is particularly suited for large-scale professional projects, such as installing air conditioners, kitchen pipes, stair railings, and even highway repairs.

LSJGSZKJ10YC1YW6Y001V1 - Type: Stand-Mount; Max Drilling Diameter: 10 in; Number of Drill Bits: 10 Drill Bits (1, 2, 3, 4, 5, 6, 7, 8, 9, 10 in)

Powerful & Fast Drilling: This core drill boasts a robust 2500W motor and dual-speed settings (470 RPM/800 RPM), delivering fast, efficient drilling. It handles holes up to 10 in (260 mm) with a 1/4-7 in threaded output shaft—ideal for tough tasks
Superior Hole Quality: Our diamond core drilling machine features both wet and dry drilling. The wet drilling option flushes out debris and cools the bit with water, reducing dust and improving hole smoothness—great for indoor renovation work
Enhanced Security & Stability: The built-in clutch automatically stops the drill when it hits hard resistance to save you and the core drill machine. Plus, the water-seal-free design avoids common water seal failures and keeps your workflow steady
Built to Last: Crafted with a lightweight yet tough aluminum body, this core drill rig resists wear and tear. It has wheels for easier transport. The PVC water hose is crack-resistant, and the steel output shaft delivers consistent accuracy
Professional Kit: This concrete core drill includes ten premium drill bits (1 in, 2 in, 3 in, 4 in, 5 in, 6 in, 7 in, 8 in, 9 in, 10 in) that cut through reinforced concrete, brick, marble, and more. It is ideal for all your drilling needs

LSJGSZKJ8YC8FWHUM001V1 - Type: Stand-Mount; Max Drilling Diameter: 8 in; Number of Drill Bits: 8 Drill Bits (1, 2, 3, 4, 5, 6, 7, 8 in)

Powerful & Fast Drilling: This core drill is equipped with a robust 3000W motor and spins at 800 RPM, delivering fast, efficient drilling. It handles holes up to 8 in (200 mm) with a 1/4-7 in threaded output shaft—ideal for heavy-duty tasks

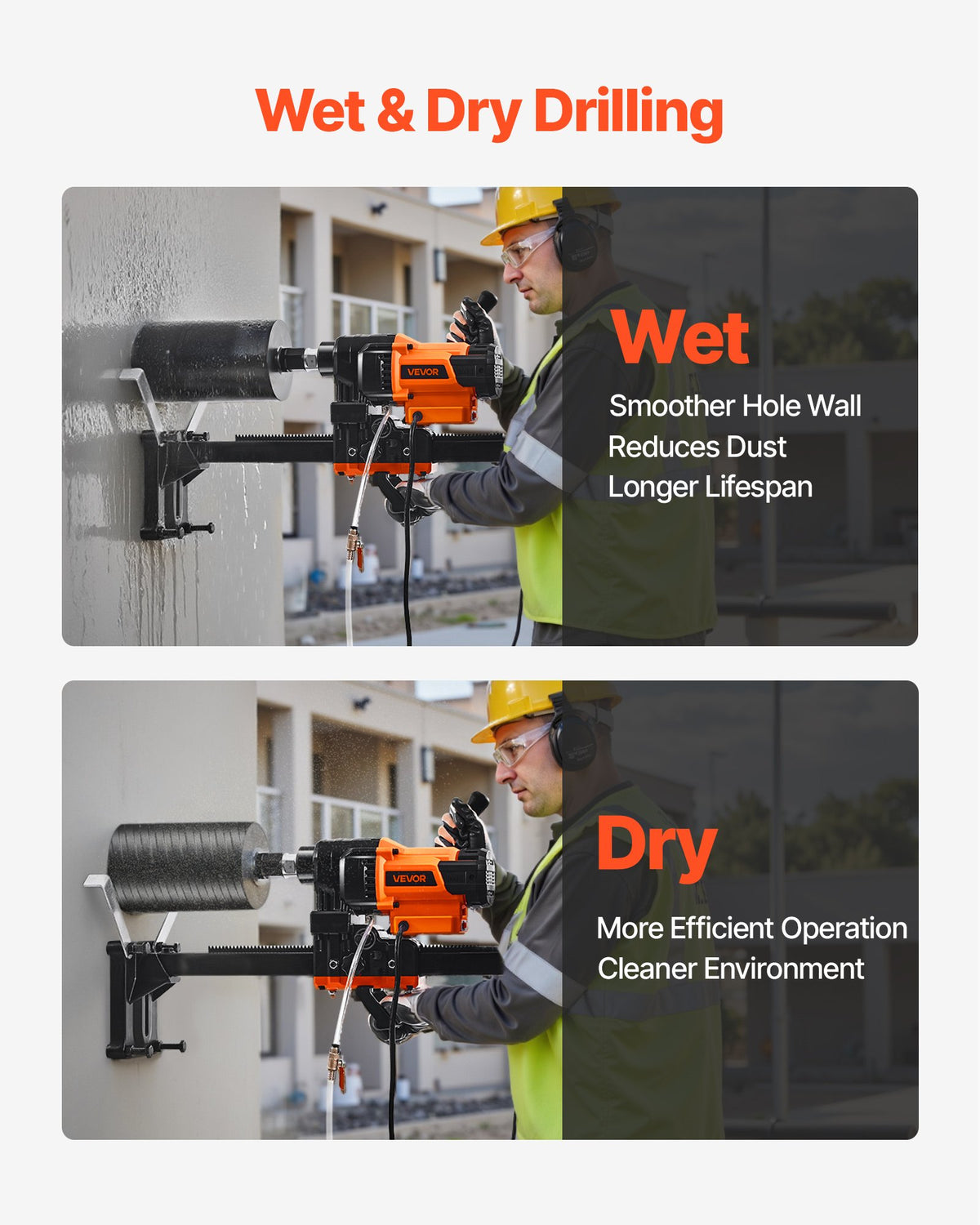

Superior Hole Quality: Our diamond core drilling machine features both wet and dry drilling. The wet drilling option flushes out debris and cools the bit with water, reducing dust and improving hole smoothness—great for indoor renovation work
Enhanced Security & Stability: The built-in clutch automatically stops the drill when it hits hard resistance to save you and the core drill machine. Plus, the water-seal-free design avoids common water seal failures and keeps your workflow steady
Built to Last: Crafted with a lightweight yet tough aluminum body, this core drill rig resists wear and tear while keeping fatigue low. The reinforced PVC water hose is crack-resistant, and the steel output shaft delivers consistent accuracy
Professional Kit: Comes fully loaded. This concrete core drill includes eight premium drill bits (1 in, 2 in, 3 in, 4 in, 5 in, 6 in, 7 in, 8 in) that cut through reinforced concrete, brick, marble, and more. It is ideal for all your drilling needs
