Overview
Key Features

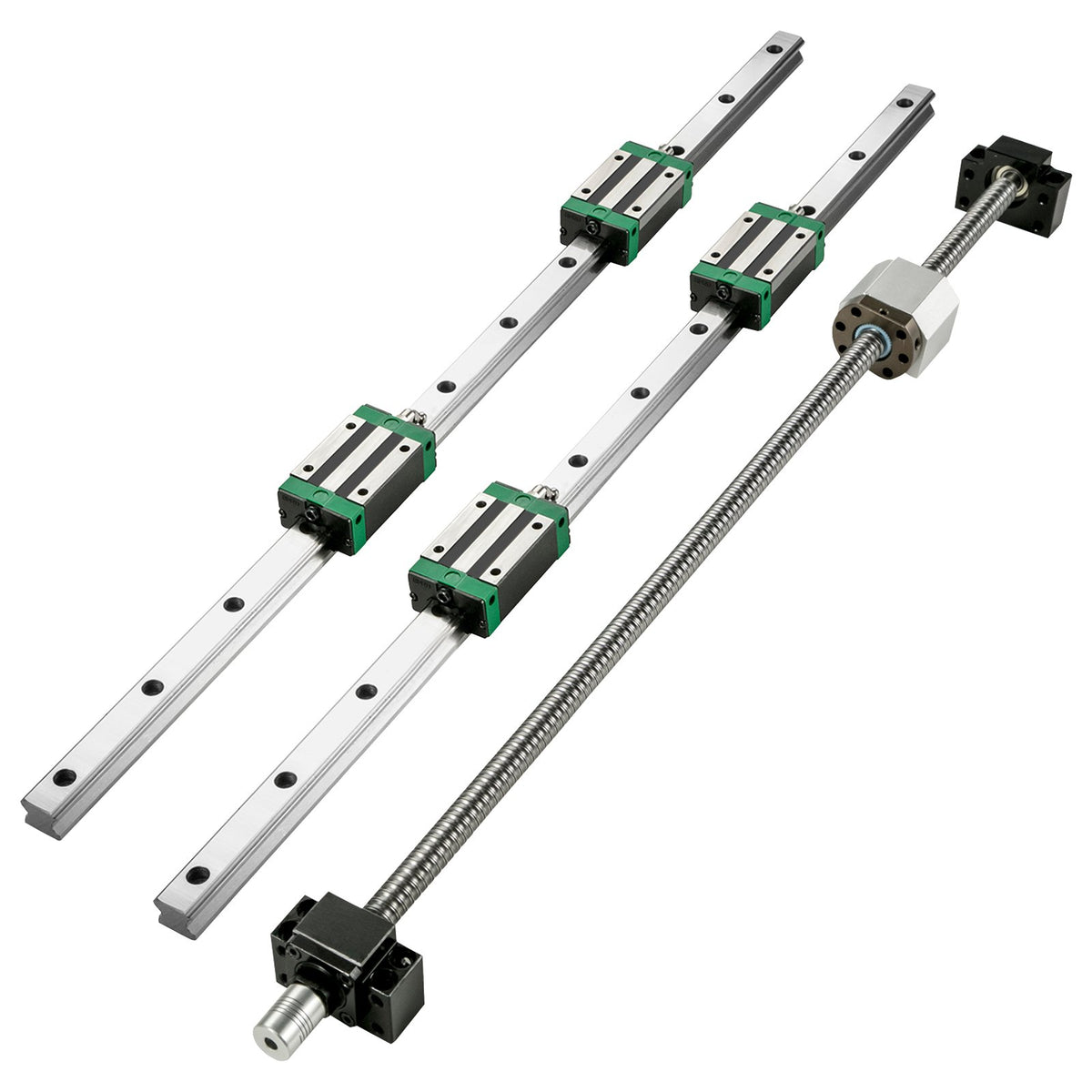

- HGR20 Linear Guide Rail Set: Every set includes 2 pieces of HGR20 linear guide rail, 4 sliding blocks, 1 anti-reverse RM1605 ballscrew with ball nut, 1 BF12 / BK12 end support and 1 plum coupling. The rail and ballscrew lengths match the Rail Length you choose above.
- High-Quality Steel Material: Linear guides are made of carbon steel, linear bearings are made of GCr15 bearing steel. Surface chrome plating treatment beautiful anti-rust, hardness can as high as HRC62, more durable.
- Premier Linear Guiding System: Motor-driven guide rail achieves high precision linear motion. They are designed to achieve high precision linear motion and low friction coefficient.
- Effortless to Install: Steel support rail with pre-drilled holes for ease of mounting. Stainless steel Linear optical axis guide bearings linear movement. Easy to install, no need for maintenance.
- Versatile Application: The CNC linear rail is widely used in automatic equipment, precision measuring equipment, and many other machines that need precision linear movement.
Specifications
| Brand | VEVOR |
|---|---|
| Product Type | Hardware > Tools > Milling Machines > Vertical Milling Machines |
| Rail Type | HGR20 square linear guide rail, 2 rails + 4 blocks per set |
| Rail Length Options | 1000 mm / 1500 mm / 2000 mm |
| Ballscrew | 1 x RM1605 anti-reverse ballscrew, length matched to the chosen rail length |
| End Support | BF12 / BK12 |
| Coupling | Plum coupling included, size depends on the model |
| Block Dimensions (L x W x H) | 2.8 x 1.6 x 1.3 in / 7.3 x 4.2 x 3.4 cm |
| Mounting Screw | M4 x 16 mm |
| Allowable Static Torque | 0.17 kN.m |
| Static Load Rating | 25.31 (as rated by the manufacturer) |
| Material | GCr15 bearing steel blocks and bearings; carbon steel rails, chrome plated, hardness up to HRC62 |
| Available Options | Rail Length: 1000 mm, 1500 mm, 2000 mm |
