VEVOR Precision Lathe Chuck - Select Your Configuration

In stock

$55.98 USD

Sale Sold out

Chuck Size 5 Inch 6 Inch 10 Inch 8 Inch 3 Inch

Jaw Count 4 Jaw 3 Jaw

SKU:KPK72-12500000001V0

Product details

What to know before you buy

Core information, use cases, and key selling points for this item.

About this item

Product overview

Choose the exact VEVOR configuration listed below. Specifications and package contents are recorded per SKU.

Compare exact SKUs

SKU	Selection	Specifications	Package contents
KPK72-12500000001V0	Chuck Size: 5 Inch; Jaw Count: 4 Jaw	Chuck Body Material: Cast Iron; Color: Silver; Jaws Material: 40CR Steel; Bevel Gear Material: 40CR Steel; Pinions Material: 20CR Steel; Chuck Diameter: 4.92" / 125 mm; Center Hole: 1.2" / 30 mm; Circle Diameter: 4.3" / 108 mm; Internal Jaw Clamping Range: 0.276"-2.244" / 7-57 mm; External Jaw Clamping Range: 1.89"-4.92" / 48-125 mm; Tolerance: ≤ 0.003" / 0.07 mm; Accuracy: 0.002" / 0.051 mm; Maximum Speed: 3000 RPM; Item Weight: 10.9 lbs / 4.92 kg; Package Dimensions (L x W x H): 5.9" x 5.5" x 3.93" / 15 x 14 x 10 cm	1 x Lathe Chuck; 4 x Mounting Screws; 1 x Chuck Key
SZKP6YC3G000P8W20V0	Chuck Size: 6 Inch; Jaw Count: 3 Jaw	Clamping Range: 0.138-2.36"/3.5-60 mm; Jaw: 3-Jaw, 20Cr, ≥53HRC; Chuck O.D: 6 in / 160 ± 5 mm; Fixed Thread: 3-M8; Scroll: 40Cr, ≥45HRC; Item Model Number: K11-160; Surface Treatment: ＜Ra0.8, Oil Coated; External Jaw Clamping Range: 2.2-6.3"/56-160 mm; Net Weight: 17.8 lb / 8.1 kg; Main Material: HT300; Bore: φ45 mm; Product Size: φ160 x 140 mm
SZKP10YC3G00YQFFEV0	Chuck Size: 10 Inch; Jaw Count: 3 Jaw	Clamping Range: 0.236-4.331"/6-110 mm; Jaw: 3-Jaw, 20Cr, ≥53HRC; Chuck O.D: 10 in / 250 ± 5 mm; Fixed Thread: 3-M10; Scroll: 40Cr, ≥45HRC; Item Model Number: K11-250; Surface Treatment: ＜Ra0.8, Oil Coated; External Jaw Clamping Range: 3.15-9.84"/80-250 mm; Net Weight: 49.1 lb / 22.3 kg; Main Material: HT300; Bore: φ80 mm; Product Size: φ252 x 190 mm
SZKP8YC3G000VDWGDV0	Chuck Size: 8 Inch; Jaw Count: 3 Jaw	Clamping Range: 0.157-3.346"/4-85 mm; Jaw: 3-Jaw, 20Cr, ≥53HRC; Chuck O.D: 8 in / 200 ± 5 mm; Fixed Thread: 3-M10; Scroll: 40Cr, ≥45HRC; Item Model Number: K11-200; Surface Treatment: ＜Ra0.8, Oil Coated; External Jaw Clamping Range: 2.76-8"/70-200 mm; Net Weight: 27.1 lb / 12.3 kg; Main Material: HT300; Bore: φ65 mm; Product Size: φ200 x 160 mm
SZKP3YC4GKZ0TVAS3V0	Chuck Size: 3 Inch; Jaw Count: 4 Jaw	Outer Diameter: 3 in / 80 mm; Product Type: 4-Jaw, Internal Jaw, Step Jaw; Inner Diameter: 0.86 in / 22 mm; Item Model Number: K72 80; Item Dimensions: φ3.15 x 2.56 in/ φ80 x 65 mm; Internal Jaw Clamping Range: 0.1-3.15 in / 5-80 mm; External Jaw Clamping Range: 1.18-3.15 in / 30-80 mm; Net Weight: 3.86 lbs / 1.75 kg; Main Material: HT300
SZKP3YC3GKZ0S8BRGV0	Chuck Size: 3 Inch; Jaw Count: 3 Jaw	Outer Diameter: 3 in / 80 mm; Product Type: 3-Jaw, Internal Jaw, Step Jaw; Inner Diameter: 0.63 in / 16 mm; Item Model Number: K11 80; Item Dimensions: φ3.15 x 2.63 in / φ 80 x 67 mm; Internal Jaw Clamping Range: 0.08-2.48 in /2-63 mm; External Jaw Clamping Range: 1-2.76 in / 25-70 mm; Net Weight: 3.97 lbs / 1.8 kg; Main Material: HT300
SZKP10YC4GKZ7LKI4V0	Chuck Size: 10 Inch; Jaw Count: 4 Jaw	Outer Diameter: 10 in / 250 mm; Product Type: 4-Jaw, Internal Jaw, Step Jaw; Inner Diameter: 3.15 in / 80 mm; Item Model Number: K72 250; Item Dimensions: φ9.84 x 4.72 in / φ250 x 120 mm; Internal Jaw Clamping Range: 0.6-9.84 in / 15-250 mm; External Jaw Clamping Range: 3.15-9.84 in / 80-250 mm; Net Weight: 44.42 lbs / 20.15 kg; Main Material: HT300

Details by SKU

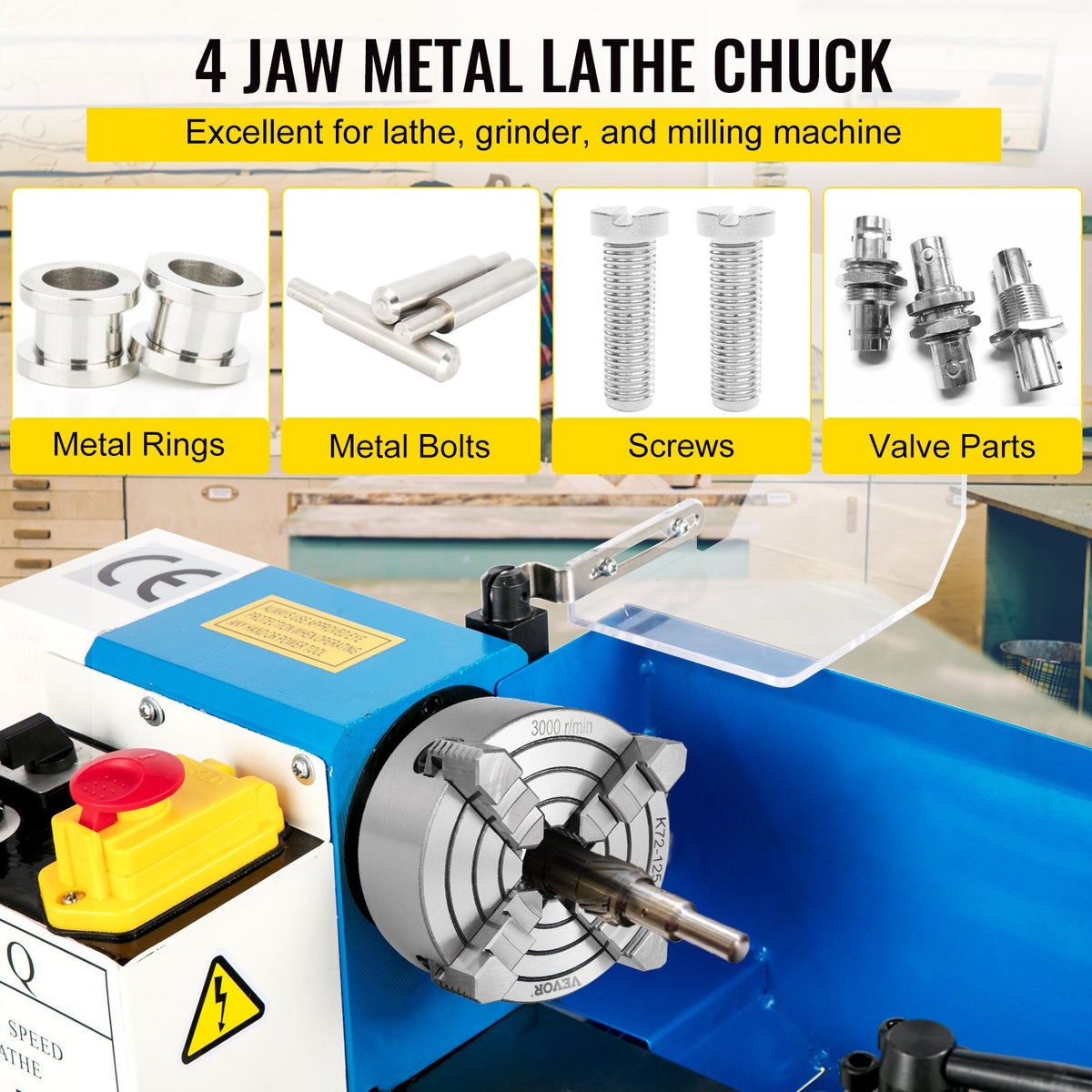

KPK72-12500000001V0 - Chuck Size: 5 Inch; Jaw Count: 4 Jaw

Premium Material: Diameter: 5 inch / 125 mm. The 4-jaw mini lathe chuck body is made of cast iron that has passed rigorous quality tests. It has high strength and toughness, compression resistance and durability, and long service life.
Reversible Jaw Set: The lathe chuck is equipped with 3 inward stepped jaws that can be stepped inward or outward to hold raw materials of different shapes. The high precision design of the chuck bevel gear guarantees the accuracy of the chuck operation.
Enhanced Flexibility: The T shape chuck key of the lathe part allows the installation of various workpieces. And effortless operation reduces changeover time for your convenience. Internal Jaw Clamping Range: 0.276"-2.244" / 7-57 mm. External Jaw Clamping Range: 1.89"-4.92" / 48-125 mm.
High Precision: The 4-jaw lathe chuck works accurately, bearing tolerance is of ≤ 0.003 inch / 0.07 mm to ensure satisfying metal processing. The accessory screws make the scroll chuck highly adaptable and can be used with the same series of jaws as the chuck.
Remarkable Versatility: This 4-jaw independent metal lathe chuck has a compact construction. It is suitable for installation on multiple kinds of metal lathe chuck and clamping workpieces of various shapes.

SZKP6YC3G000P8W20V0 - Chuck Size: 6 Inch; Jaw Count: 3 Jaw

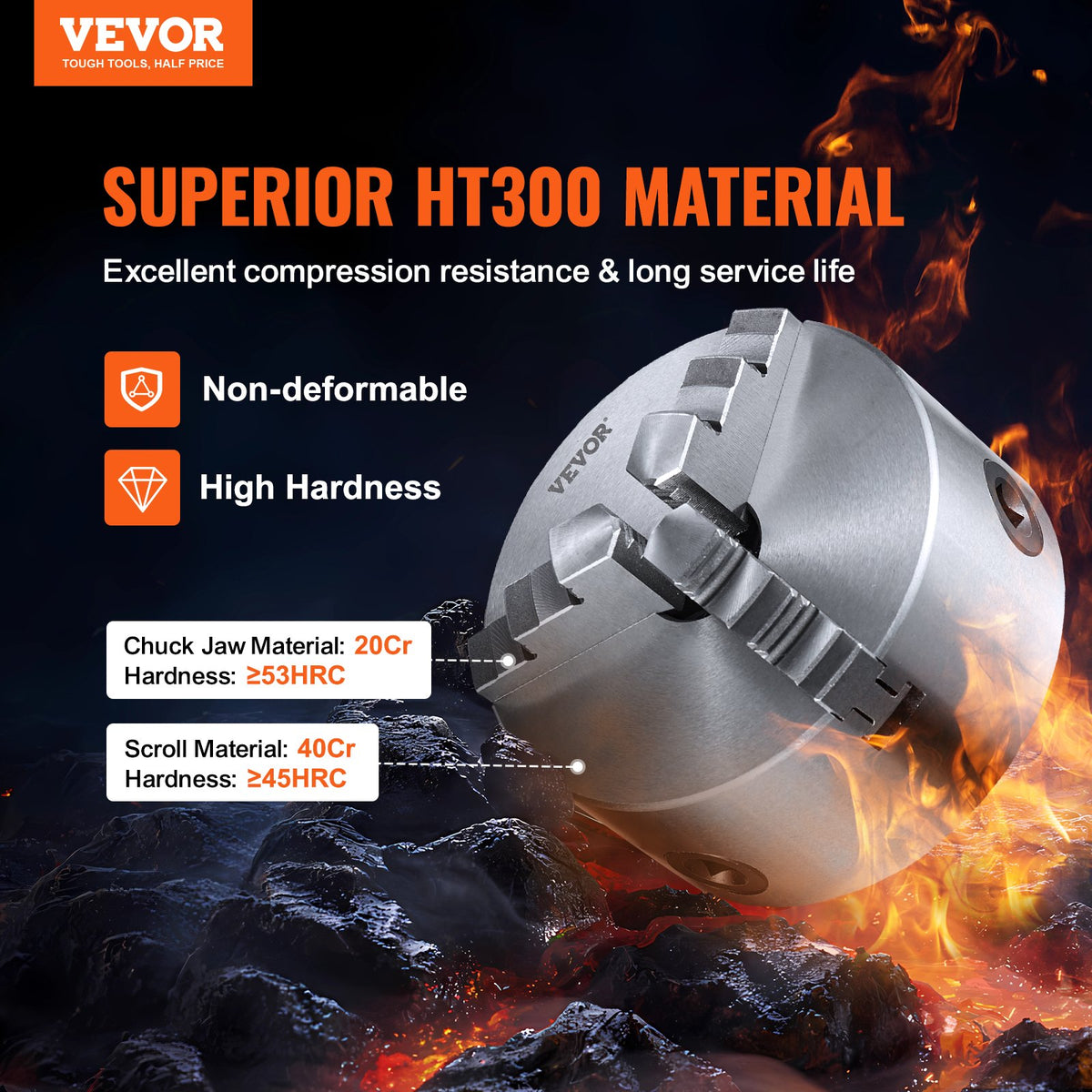

Superior HT300 Material: Our 3-jaw lathe chuck is constructed from HT300 material, 20Cr steel chuck jaw with 53HRC hardness, and 40Cr steel scroll with 45HRC hardness. The lathe chuck is quenching hardened for superior hardness and rust resistance, providing outstanding working performance and reliability for both small and large workpieces.

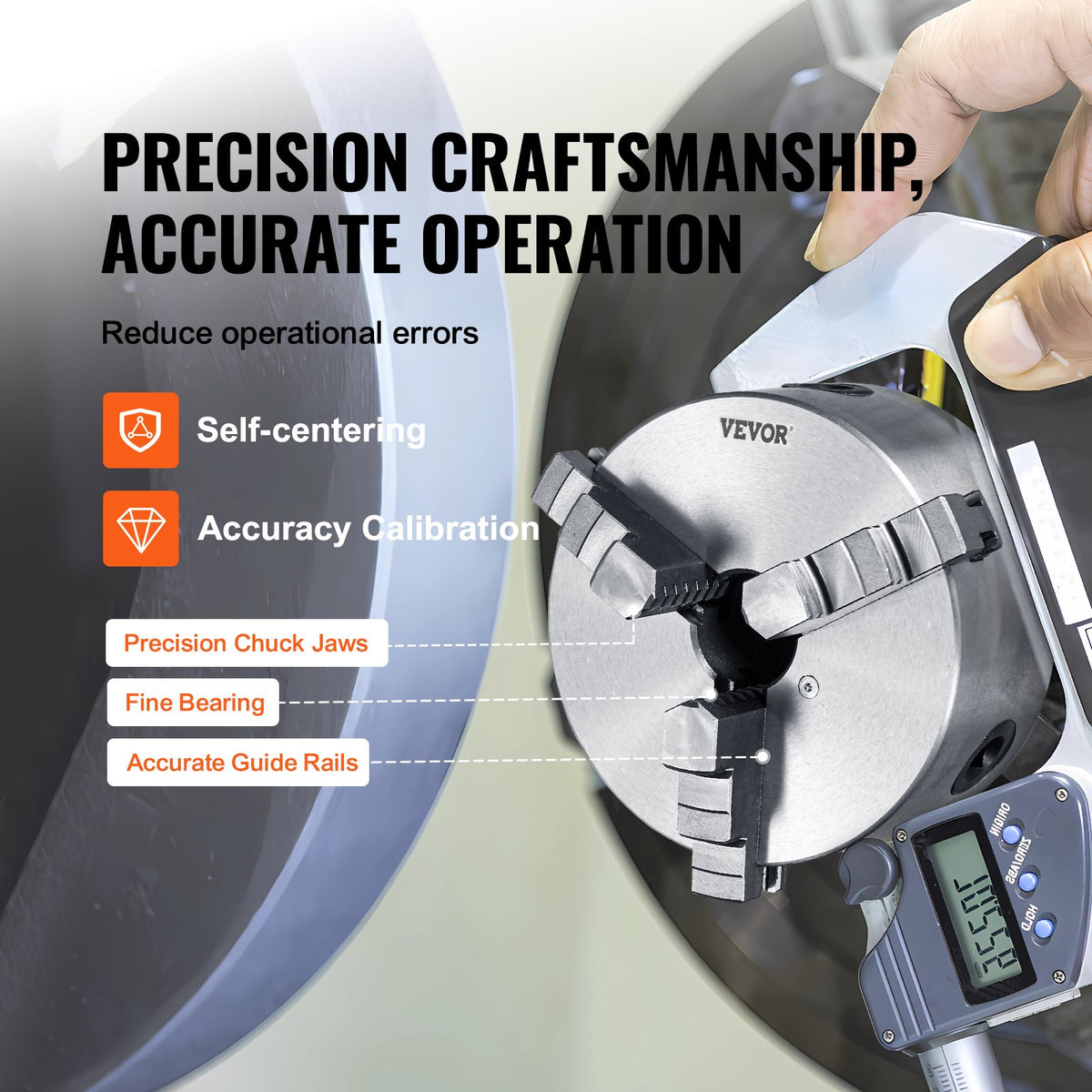

High Precision: A high-precision machining process is adopted to ensure the structural stability and machining accuracy of the 3-jaw chuck. The self-centering lathe part contains a delicate bevel gear and three pinion gears, which help to achieve precise machining progress. Bearing tolerance is ≤0.05 mm / 0.002 in.
Internal & External Jaw: The 3-jaw self-centering lathe chuck is equipped with an internal jaw and external jaw to expand its clamping range, and the external jaws are capable of clamping larger-sized industrial parts. Clamping Range: 0.14- 6.3 in/3.5-160 mm. All you need to do is rotate it using the T-key and adjust it to fit your workpiece size and shape.
Simple & Easy Operation: The 3-jaw lathe chuck features a simple and compact structure, pursuing the best balance of function and reliability. The built-in self-centering function allows you to use it without repeated calibration. All you need to do is install it in the right order and use it with peace of mind.
Applicable to Various Lathes: Our self-centering lathe chuck is highly adaptable to meet your usage requirements, whether you are working in metal machining, drilling, or milling. By using our lathe chuck, you can improve machining efficiency and operational flexibility, achieving accurate and consistent results.

SZKP10YC3G00YQFFEV0 - Chuck Size: 10 Inch; Jaw Count: 3 Jaw

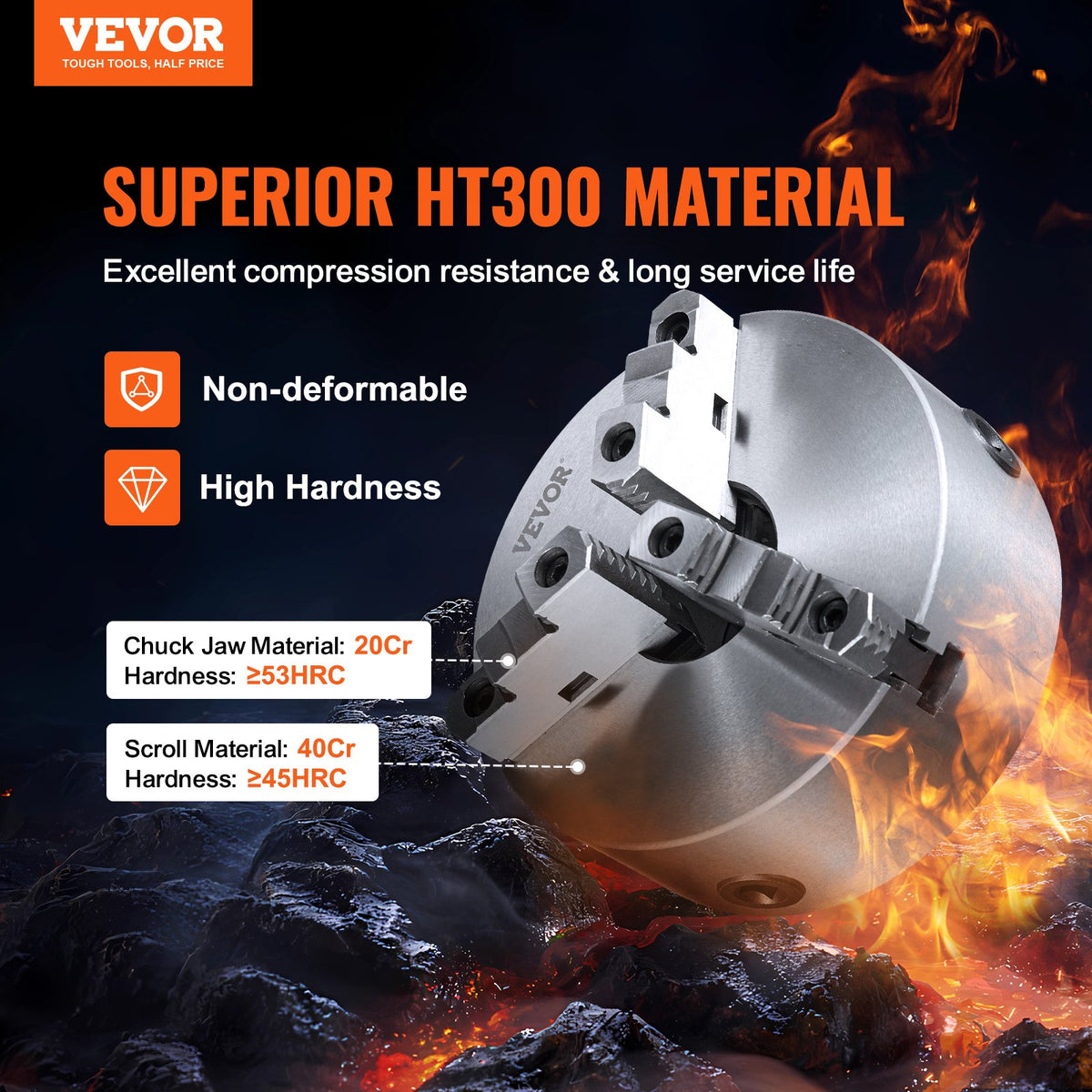

Superior HT300 Material: Our 3-jaw lathe chuck is constructed from HT300 material, 20Cr steel chuck jaw with 53HRC hardness, and 40Cr steel scroll with 45HRC hardness. The lathe chuck is quenching hardened for superior hardness and rust resistance, providing outstanding working performance and reliability for both small and large workpieces.

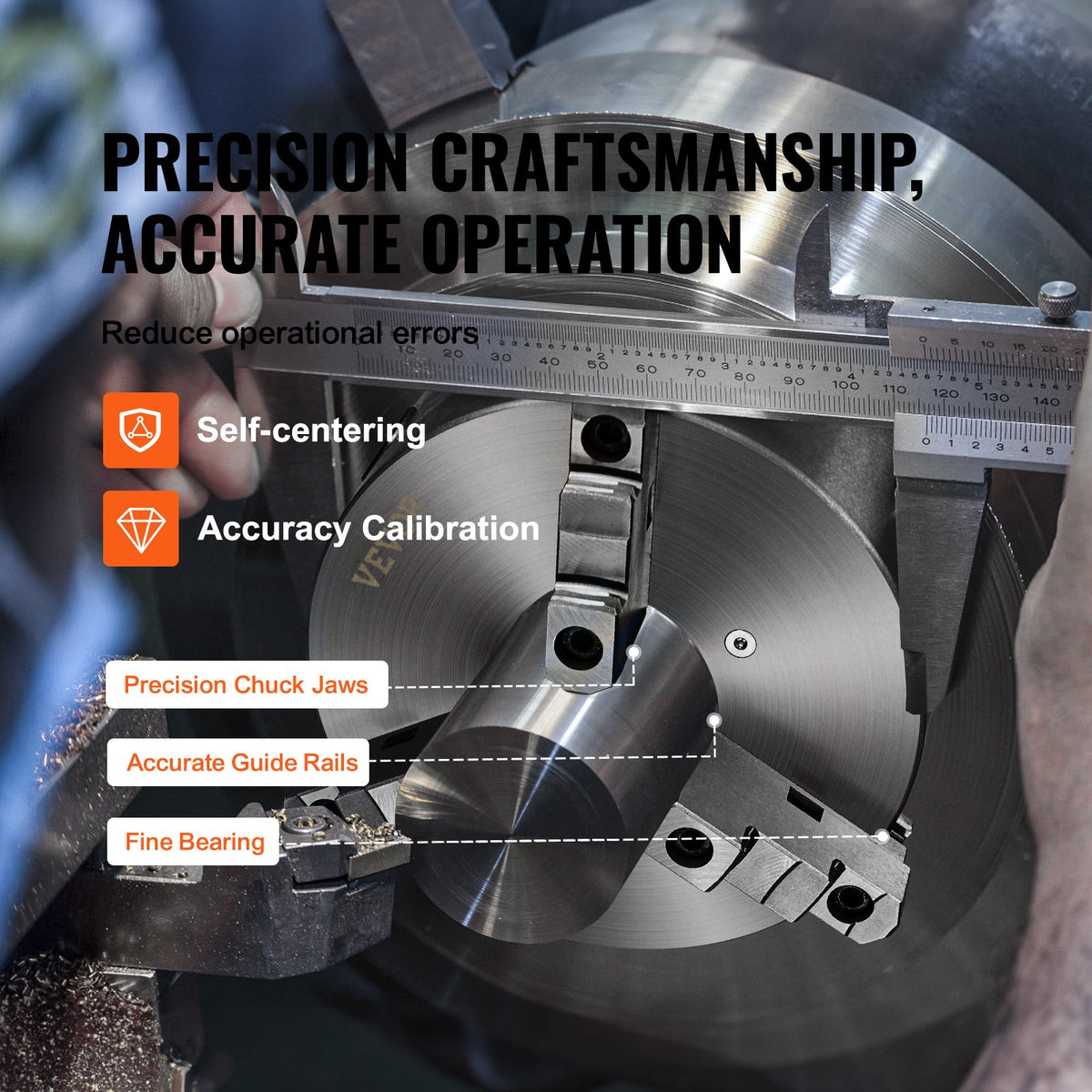

High Precision: A high-precision machining process is adopted to ensure the structural stability and machining accuracy of the 3-jaw chuck. The self-centering lathe part contains a delicate bevel gear and three pinion gears, which help to achieve precise machining progress. Bearing tolerance is ≤0.05 mm / 0.002 in.
Dual-Use Jaw: The chuck jaws can be used as both internal jaw and external jaw. The external jaws are capable of clamping larger-sized industrial parts. 0.16-8 in/4-200 mm clamping range provides precise clamping and securing of various industrial components.
Simple & Easy Operation: The 3-jaw lathe chuck features a simple and compact structure, pursuing the best balance of function and reliability. The built-in self-centering function allows you to use it without repeated calibration. All you need to do is install it in the right order and use it with peace of mind.
Applicable to Various Lathes: Our self-centering lathe chuck is highly adaptable to meet your usage requirements, whether you are working in metal machining, drilling, or milling. By using our lathe chuck, you can improve machining efficiency and operational flexibility, achieving accurate and consistent results.

SZKP8YC3G000VDWGDV0 - Chuck Size: 8 Inch; Jaw Count: 3 Jaw

Superior HT300 Material: Our 3-jaw lathe chuck is constructed from HT300 material, 20Cr steel chuck jaw with 53HRC hardness, and 40Cr steel scroll with 45HRC hardness. The lathe chuck is quenching hardened for superior hardness and rust resistance, providing outstanding working performance and reliability for both small and large workpieces.
High Precision: A high-precision machining process is adopted to ensure the structural stability and machining accuracy of the 3-jaw chuck. The self-centering lathe part contains a delicate bevel gear and three pinion gears, which help to achieve precise machining progress. Bearing tolerance is ≤0.05 mm / 0.002 in.
Dual-Use Jaw: The chuck jaws can be used as both internal jaw and external jaw. The external jaws are capable of clamping larger-sized industrial parts. 0.16-8 in/4-200 mm clamping range provides precise clamping and securing of various industrial components.
Simple & Easy Operation: The 3-jaw lathe chuck features a simple and compact structure, pursuing the best balance of function and reliability. The built-in self-centering function allows you to use it without repeated calibration. All you need to do is install it in the right order and use it with peace of mind.
Applicable to Various Lathes: Our self-centering lathe chuck is highly adaptable to meet your usage requirements, whether you are working in metal machining, drilling, or milling. By using our lathe chuck, you can improve machining efficiency and operational flexibility, achieving accurate and consistent results.

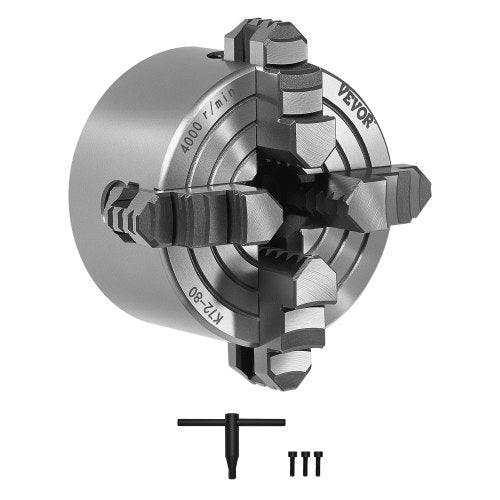

SZKP3YC4GKZ0TVAS3V0 - Chuck Size: 3 Inch; Jaw Count: 4 Jaw

Outstanding Hardness: Crafted from premium HT300 cast iron, this lathe chuck features jaws with a hardness of ≥53 HRC and a scroll plate hardness of ≥45 HRC. Quench-hardened for enhanced durability, it ensures excellent hardness and rust resistance, ensuring a long-lasting service life
Precision Machining: Built for high-precision applications, this lathe chuck features a short column connection. Each component is hardened for long-term performance. This 4-jaw lathe chuck easily adapts to various shapes with powerful clamping force

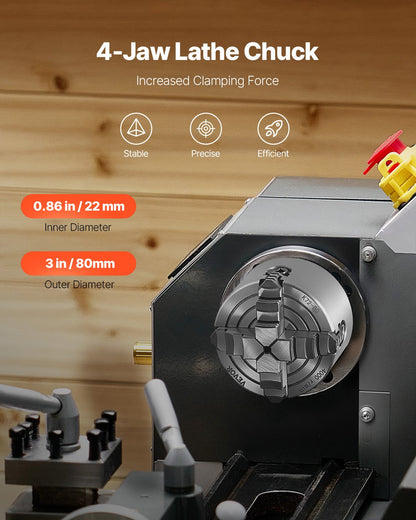

3-Inch 4-Jaw Lathe Chuck: With a 0.86 in (22 mm) inner diameter and 3 in (80 mm) outer diameter, this lathe chuck clamps workpieces ranging from 0.1-3.15 in (5-80 mm), making it ideal for a wide variety of workpiece sizes
Hassle-Free Operation: Featuring a simple, compact design, this lathe chuck balances functionality and reliability. Equipped with a T-shaped tool, installation of our lathe chuck is a breeze. Just follow the correct sequence for a seamless setup
Ideal for Most Lathes: Whether you're working with metal, drilling, or milling, our lathe chuck will enhance your machining efficiency and flexibility. It helps you achieve precise and consistent results every time

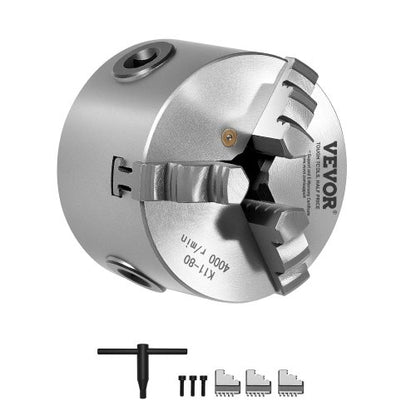

SZKP3YC3GKZ0S8BRGV0 - Chuck Size: 3 Inch; Jaw Count: 3 Jaw

Outstanding Hardness: Crafted from premium HT300 cast iron, this lathe chuck features jaws with a hardness of ≥53 HRC and a scroll plate hardness of ≥45 HRC. Quench-hardened for enhanced durability, it ensures excellent hardness and rust resistance, ensuring a long-lasting service life

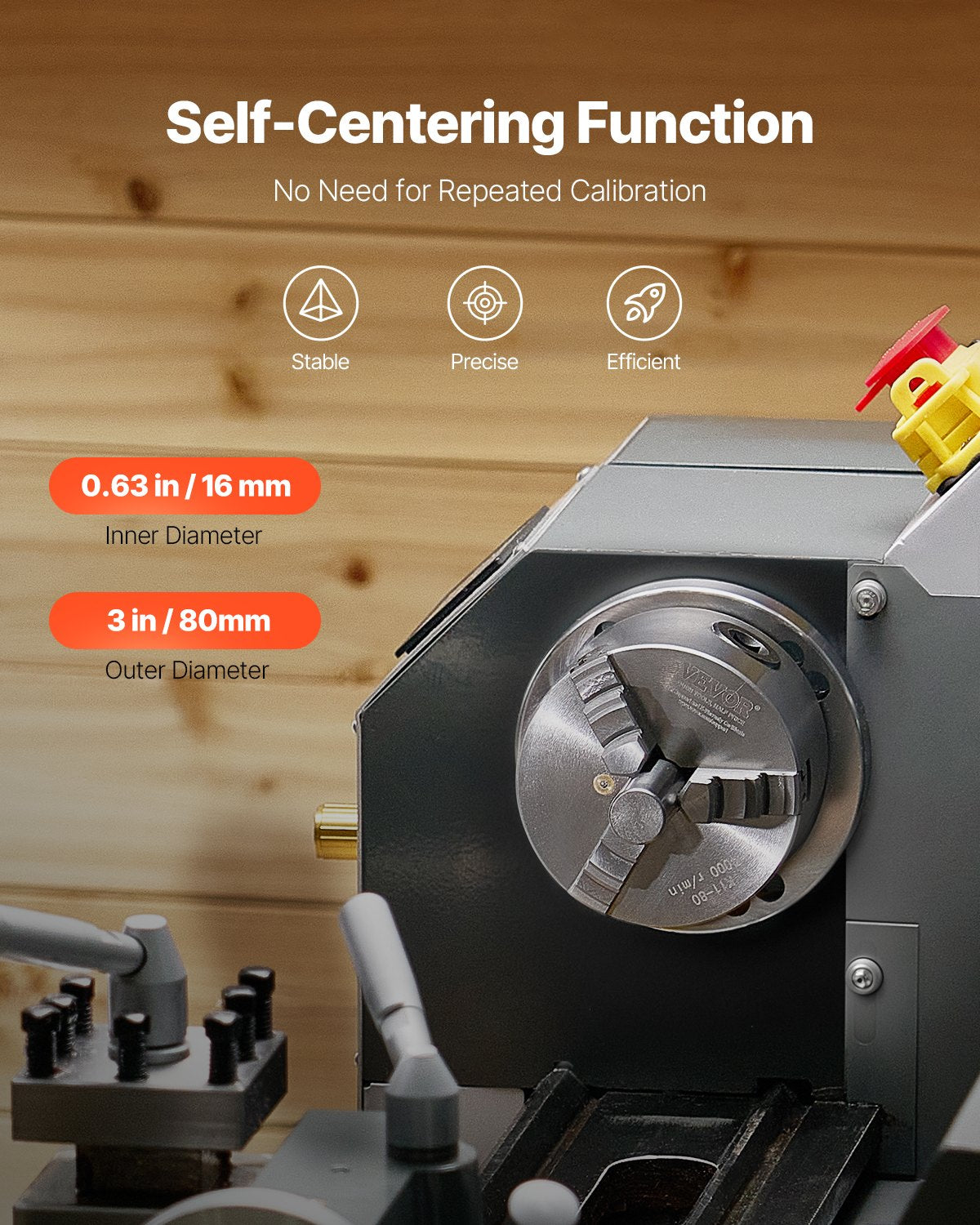

Self-Centering Function: The built-in self-centering feature allows for hassle-free use without repeated calibration. It ensures precise control over clamping accuracy, maintaining the stability and high precision of the lathe chuck for flawless performance
3-Inch 3-Jaw Lathe Chuck: With a 0.63 in (16 mm) inner diameter and 3 in (80 mm) outer diameter, this self centering lathe chuck clamps workpieces ranging from 0.08-2.48 in (2-63 mm), making it ideal for a wide variety of workpiece sizes
Hassle-Free Operation: Featuring a simple, compact design, this lathe chuck balances functionality and reliability. Equipped with a T-shaped tool, installation of our lathe chuck is a breeze. Just follow the correct sequence for a seamless setup
Ideal for Most Lathes: Whether you're working with metal, drilling, or milling, our lathe chuck will enhance your machining efficiency and flexibility. It helps you achieve precise and consistent results every time

SZKP10YC4GKZ7LKI4V0 - Chuck Size: 10 Inch; Jaw Count: 4 Jaw

Outstanding Hardness: Crafted from premium HT300 cast iron, this lathe chuck features jaws with a hardness of ≥53 HRC and a scroll plate hardness of ≥45 HRC. Quench-hardened for enhanced durability, it ensures excellent hardness and rust resistance, ensuring a long-lasting service life
Precision Machining: Short column connection for high accuracy, and wear-prone parts are specially hardened for high durability. With single-action adjustment center, this lathe chuck easily adapts to various shapes with powerful clamping force
10-Inch 4-Jaw Lathe Chuck: With a 3.15 in (80 mm) inner diameter and 10 in (250 mm) outer diameter, this lathe chuck clamps workpieces ranging from 0.6-9.84 in (15-250 mm), making it ideal for a wide variety of workpiece sizes
Hassle-Free Operation: Featuring a simple, compact design, this lathe chuck balances functionality and reliability. Equipped with a T-shaped tool, installation of our lathe chuck is a breeze. Just follow the correct sequence for a seamless setup
Ideal for Most Lathes: Whether you're working with metal, drilling, or milling, our lathe chuck will enhance your machining efficiency and flexibility. It helps you achieve precise and consistent results every time
