Overview
Product overview

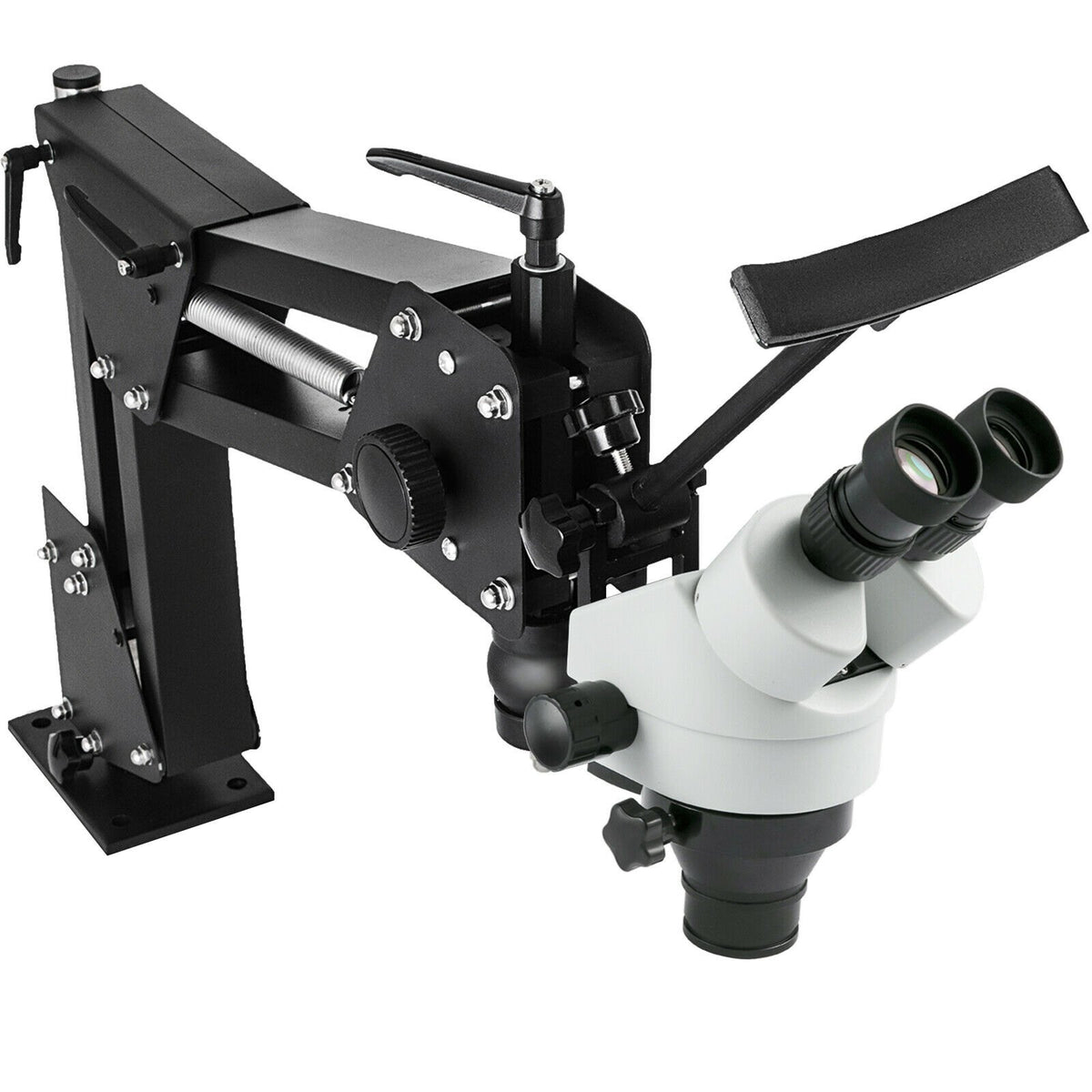

Examine stones and settings during jewelry and micro-inlay work with a binocular microscope offering 7X–45X total magnification. Continuous zoom lets you adjust the view as you work.
The hard aluminum alloy spring bracket stand supports height and viewing-angle adjustment. A headrest and articulated joints help position the microscope at the bench.
Key features
- 7X–45X total magnification with 0.7X–4.5X continuous zoom
- WF10X / 20 mm eyepieces and a 0.5X objective lens
- 95–300 mm working distance
- Adjustable binocular pupil distance of 54–76 mm
- Spring bracket stand with headrest and adjustable joints
Specifications
| Stand material | Hard aluminum alloy |
|---|---|
| Total magnification | 7X–45X |
| Continuous zoom | 0.7X–4.5X |
| Objective lens | 0.5X / 165 mm |
| Eyepiece | WF10X / 20 mm |
| Working distance | 95–300 mm (3.7–11.8 in) |
| Field of view | 5.1–33 mm (0.2–1.3 in) |
| Binocular pupil distance | 54–76 mm (2.13–2.99 in) |
| Bracket hole | 85 mm (3.35 in) |
| Height adjustment range | 60 mm (2.36 in) |
| Product dimensions (L x H) | 27 x 21 in (68.58 x 53.34 cm) |
| SKU | WXQJWXTHZJ0000001V0 |
Frequently asked questions
What magnification does this microscope offer?
Total magnification is 7X–45X, with a continuous zoom range of 0.7X–4.5X.
What working distance is listed?
The working distance is 95–300 mm (3.7–11.8 in).
Can the viewing position be adjusted?
Yes. The spring bracket stand has articulated joints for changing height and viewing angle, plus adjustable binocular pupil distance.
