Overview
Key Features

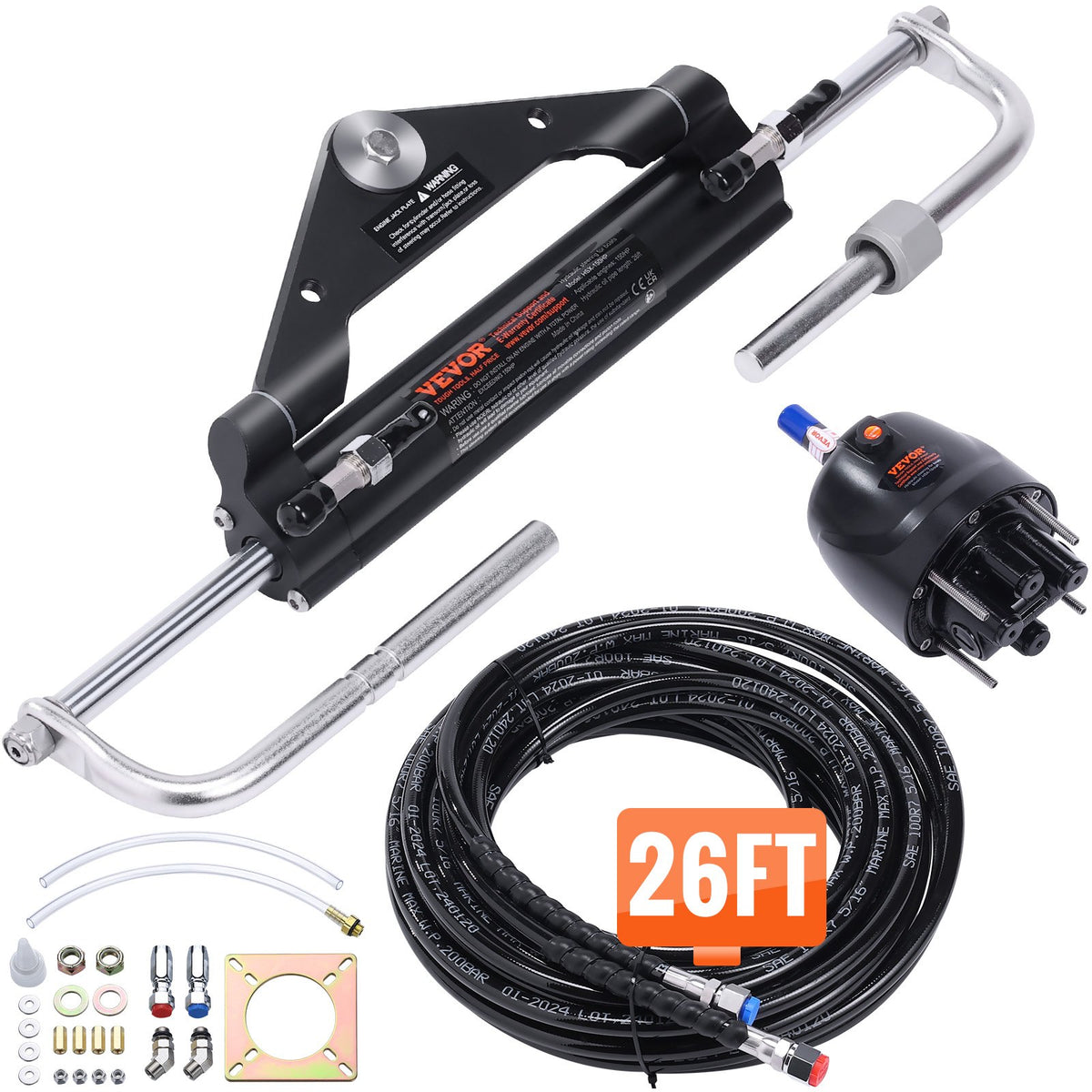

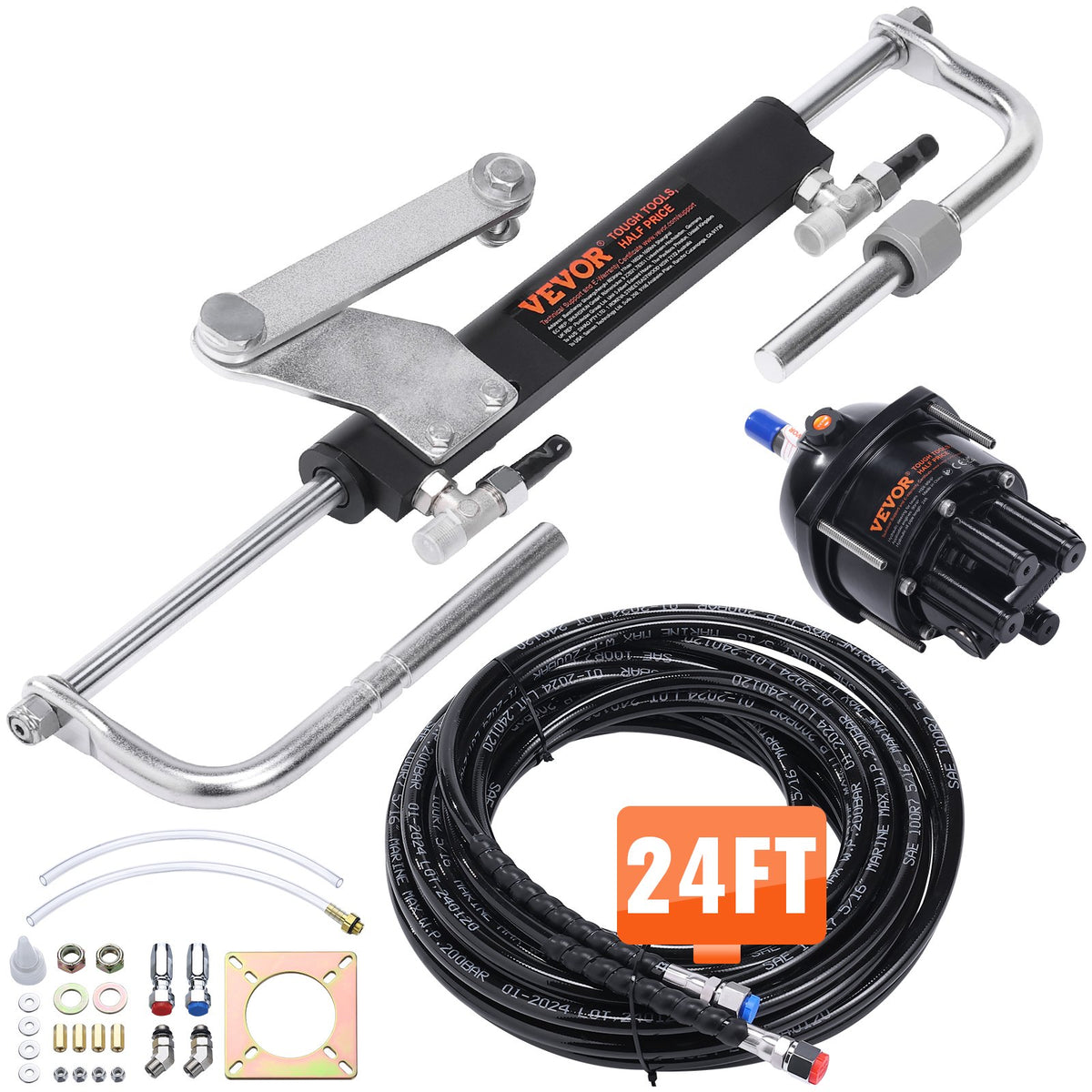

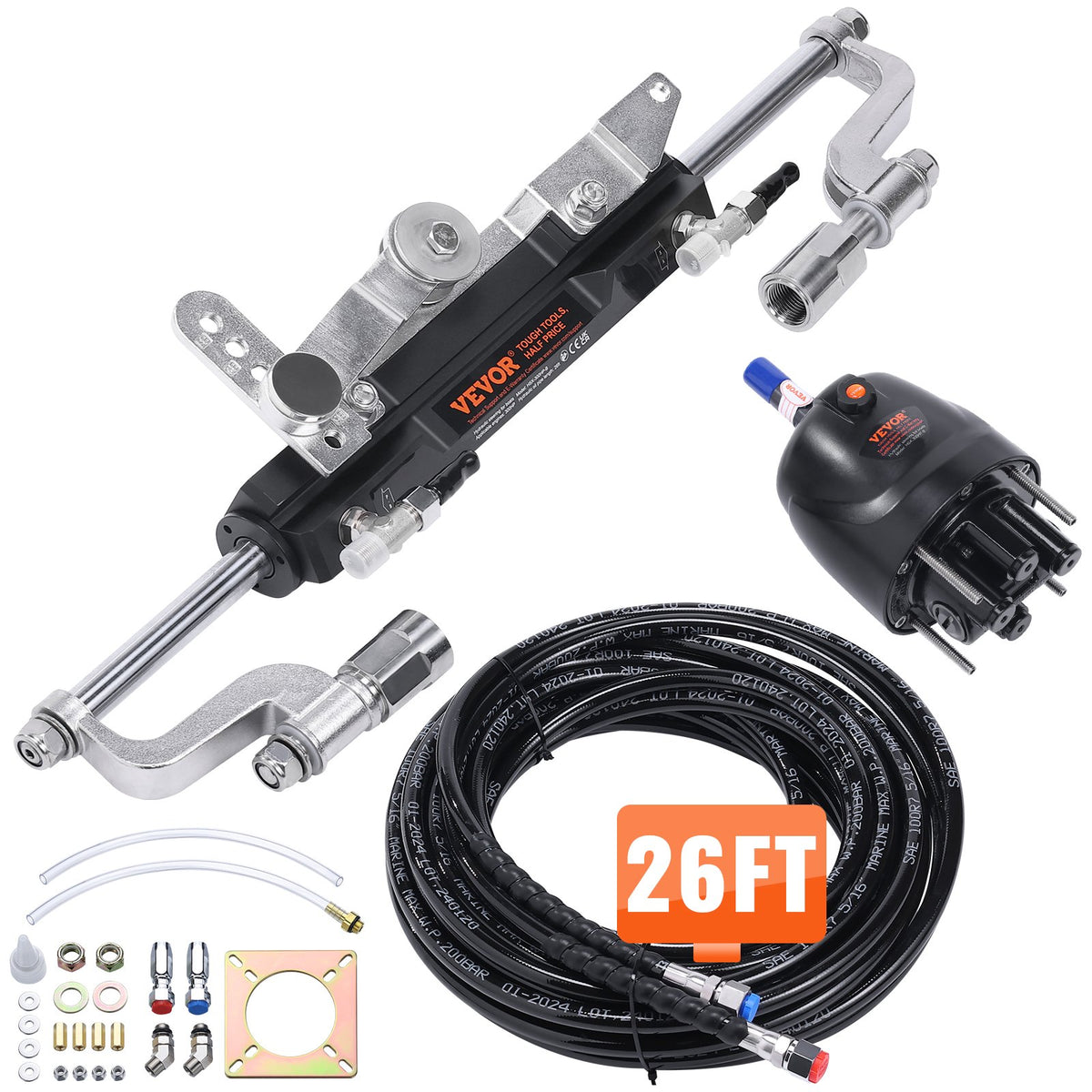

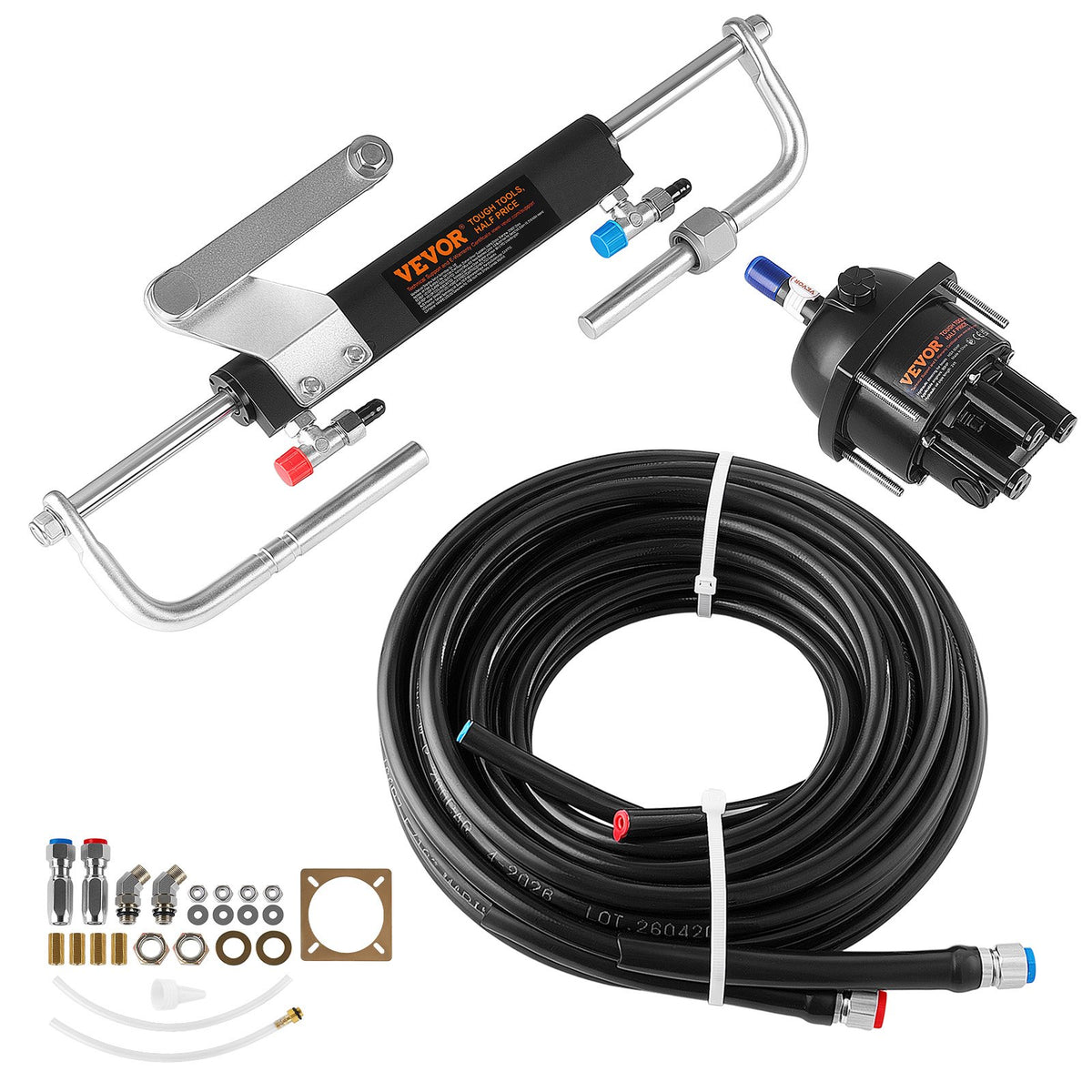

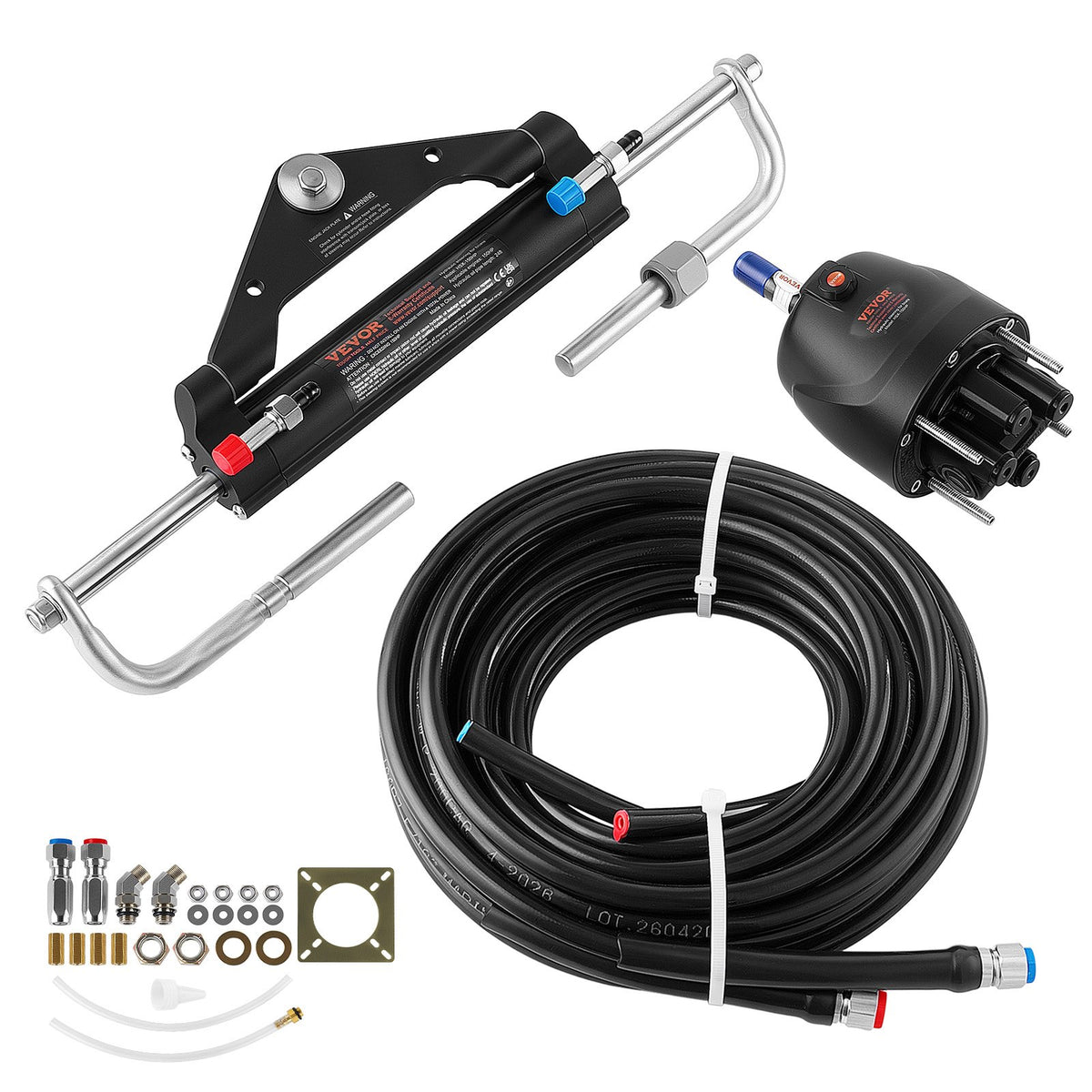

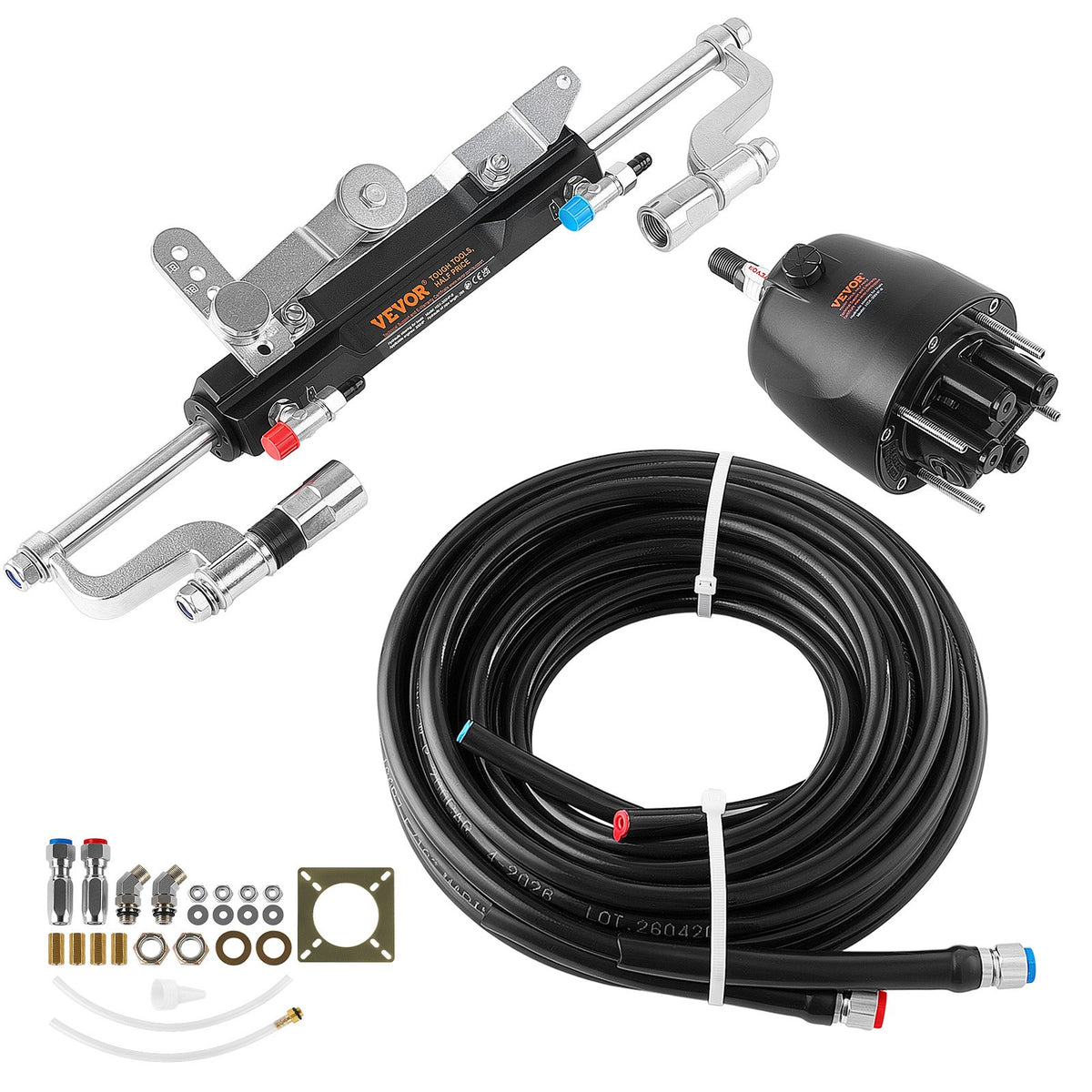

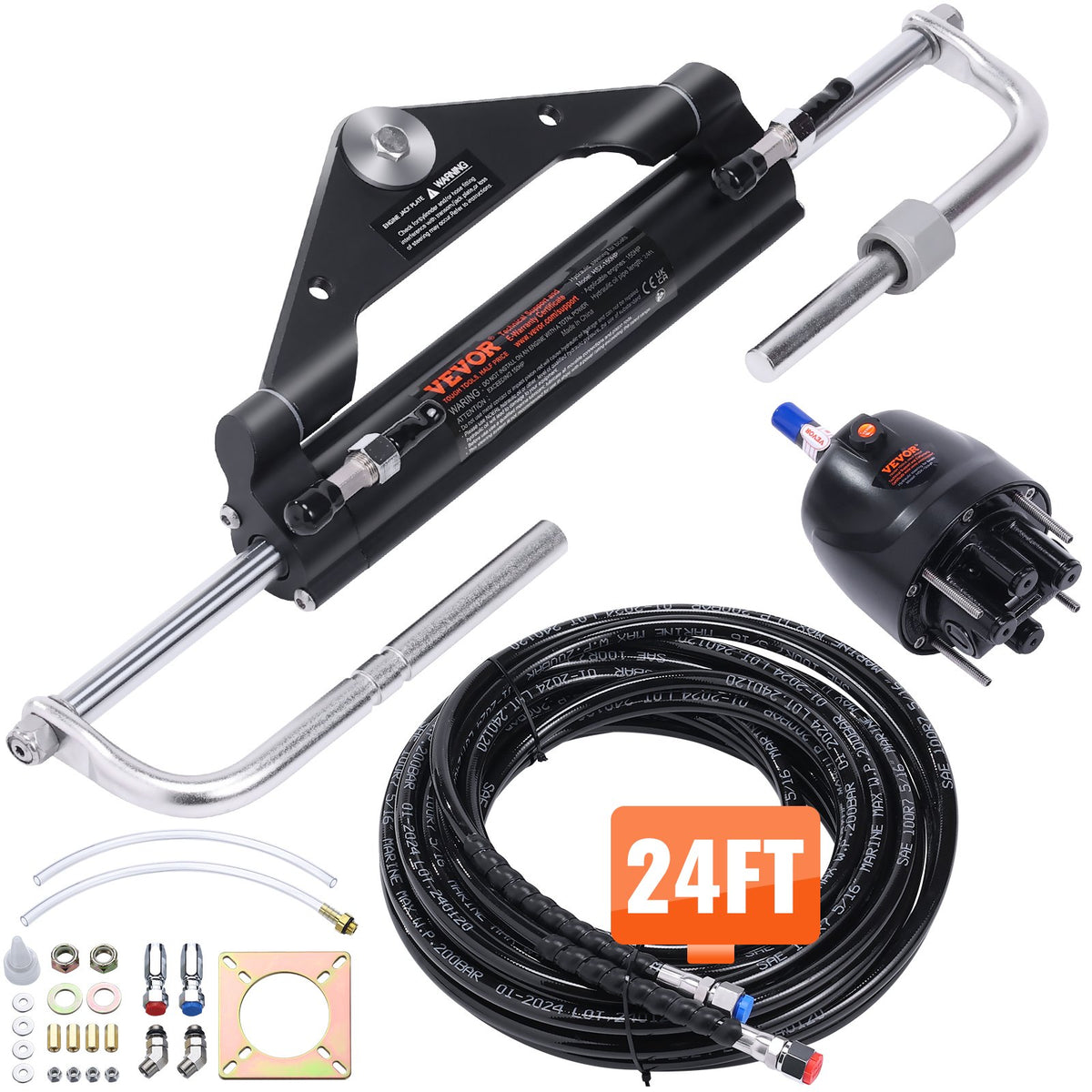

- Hydraulic Steering Kit: Our boat hydraulic steering system includes a hydraulic steering cylinder, a low-friction hydraulic pump, high-pressure hoses in the length you choose, and a complete set of accessories. It's the perfect replacement for aging or damaged hydraulic steering systems. Enjoy unmatched control and stability on your maritime journeys！
- Two-Way Locking Valve: Our advanced hydraulic pump features a built-in dual-directional valve, replaceable shaft seals, a relief valve, and an air pocket. This not only enhances reliability, security, and durability but also reduces long-term operational and maintenance costs while optimizing overall system efficiency and performance. Upgrade now for peace of mind on your maritime adventures.
- Hydraulic Hoses: Reinforced with thick nylon tubing, built to withstand the working pressure of your system, our hydraulic hoses are built to withstand heavy loads without risking rupture or leakage, ensuring swift and dependable response to every steering maneuver. Equipped with quick-fit fittings, these hoses offer effortless installation flexibility across various vessel types. Dominate the waters with precision and ease.
- High-Performance Steering Cylinder: Our hydraulic steering cylinder boasts an impressive output force matched to the configuration you choose, and is perfect for most splash wells, ensuring optimal engine operation without space constraints. Its sturdy structure and efficient seals allow it to withstand harsh environments with ease. Gear up for precise steering control and durability that stands the test of time.
- Engineered for Versatility: Our marine hydraulic steering system is compatible with outboard motors up to 90 HP, 150 HP or 300 HP depending on the configuration, and seamlessly integrates with a range of top brands, including Yamaha, Suzuki, Honda, Mercury, Nissan, and Tohatsu. Our outboard hydraulic steering kit ensures smooth and precise steering control for an exceptional boating experience.
Specifications
| Brand | VEVOR |
|---|---|
| Product Type | Vehicles & Parts > Vehicle Parts & Accessories > Watercraft Parts & Accessories > Watercraft Steering Parts > Watercraft Steering Cables |
| System Type | Hydraulic Outboard Steering Kit (Helm Pump + Steering Cylinder + High-Pressure Hoses) |
| Applicable Engine Horsepower | Up to 90 HP, 150 HP or 300 HP, depending on configuration |
| Hose Length | 20 ft, 24 ft or 26 ft, depending on configuration |
| Working Pressure | 2.5 MPa / 363 PSI |
| Steering Cylinder Output Force | 232 kgf / 400 kgf / 470 kgf, depending on configuration |
| Hydraulic Cylinder Capacity | 73 ml / 117 ml / 141 ml, depending on configuration |
| Item Model Number | HSX-90HP / HSX-150HP / HSX-300HP-B (HSX-90 HP / HSX-150 HP / HSX-300 HP for the compact-pump version) |
| Application | Single-Station, Single-Engine Outboard Boats |
| Available Options | Configuration: 150 HP, 20 ft, Compact Pump Body, 150 HP, 20 ft, Fixed-Length Hoses, 150 HP, 24 ft, Compact Pump Body, 150 HP, 24 ft, Fixed-Length Hoses, 150 HP, 26 ft, Fixed-Length Hoses, 300 HP, 26 ft, Compact Pump Body, 300 HP, 26 ft, Fixed-Length Hoses, 90 HP, 24 ft, Compact Pump Body, 90 HP, 24 ft, Fixed-Length Hoses |
