Overview
Product overview

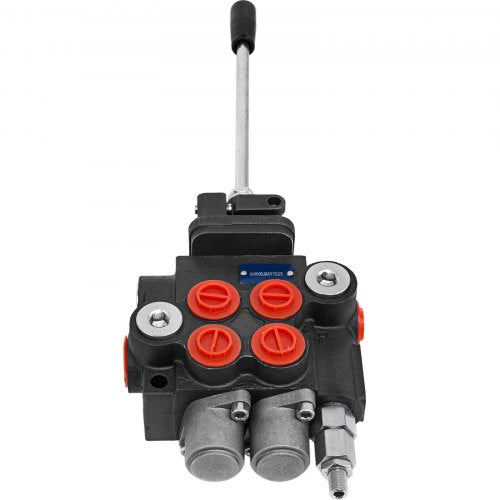

Operate compatible double-acting cylinders with this two-spool hydraulic joystick control valve. Its cast-iron body uses G 1/2 BSPP inlet and outlet connections.
Key features
- Two spools for double-acting cylinder control
- Spring-return operation brings the spools back to neutral
- Cast-iron valve body
- G 1/2 O-ring inlet and outlet ports
Specifications
| Spool count | 2 |
|---|---|
| Cylinder type | Double-acting |
| Interface | BSPP |
| Inlet and outlet ports | G 1/2 O-ring |
| Maximum flow | 11 GPM |
| Relief-valve range | Up to 3600 PSI |
| Body material | Cast iron |
| Return action | Spring return to neutral |
| SKU | KZF2S11GPMYYDG001V0 |
Frequently asked questions
What cylinder type is it designed to control?
It is designed for double-acting hydraulic cylinders.
Which port interface is listed?
The listed interface is BSPP, with G 1/2 O-ring inlet and outlet ports.
Do the spools return to neutral?
Yes. The spools have spring-return operation.
