Overview
Product overview

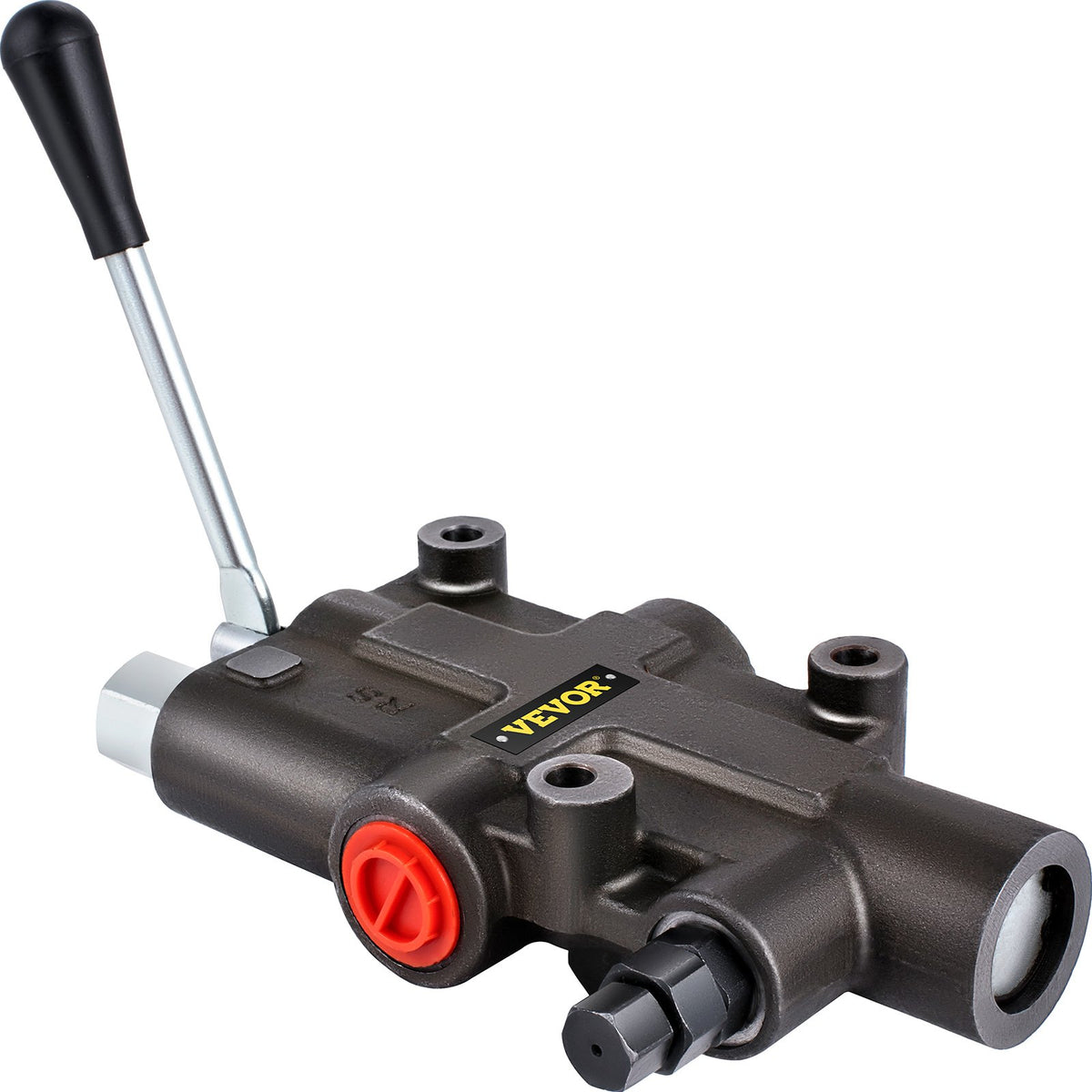

This manual, single-spool hydraulic directional valve controls oil flow in compatible open-center hydraulic systems. The aluminum-and-iron body combines a spring-return spool with an internal check valve and adjustable relief valve.
Key features
- Single-spool manual control
- Spring return to the neutral position
- Open-center system
- Internal check valve and adjustable relief valve
- Aluminum-and-iron construction
Specifications
| Spool count | 1 |
|---|---|
| Operation | Manual |
| Center system | Open |
| Interface | NPT |
| P, A and B ports | 1/2 in |
| T and N ports | 3/4 in |
| Maximum operating pressure | 3625 PSI |
| Maximum flow | 21 GPM |
| Material | Aluminum and iron |
| SKU | KZFHFJK121GPMZAYGV0 |
Frequently asked questions
Is this an open-center valve?
Yes. The specified center system is open.
What are the listed port sizes?
The P, A and B ports are 1/2 in. The T and N ports are 3/4 in. The listed interface is NPT.
Does the spool reset after use?
The spring-return spool returns to the neutral position.
