VEVOR Welding Positioner, 66 lbs / 110 lbs / 22 lbs / 661 lbs / 441 lbs / 1102 lbs

In stock

$305.88 USD

Sale Sold out

Load Capacity 66 lbs 110 lbs 22 lbs 661 lbs 441 lbs 1102 lbs

SKU:HJBWJX10KG20A453NV1

Product details

What to know before you buy

Core information, use cases, and key selling points for this item.

About this item

Product overview

VEVOR Welding Positioner - Select Your Configuration

Compare exact SKUs

SKU	Selection	Specifications
HJBWJX30KG80ONXXLV1	Load Capacity: 66 lbs	Speed: 1-12 RPM; Working Table Tilting Angle: 0-90°; Turntable Diameter: 12.4'' / 315mm; Item Model Number: HD-30; Motor Power: 80W; Chuck Diameter: Clamping Range 10-210 mm, Holding Range 80-190 mm; Product Dimensions: 18.7'' x 24.1'' x 37.8'' / 475 x 613 x 960 mm; Net Weight: 85.5 lbs / 38.8 kg; Horizontal/Vertical Load Capacity: 66.1lbs/30 kg ; 33.1lbs / 15kg
HJBWJX50KG12BUA9MV1	Load Capacity: 110 lbs	Speed: 0.5-6 RPM; Working Table Tilting Angle: 0-90°; Turntable Diameter: 12.4'' / 315mm; Item Model Number: HD-50; Motor Power: 120W; Chuck Diameter: Clamping Range 10-210 mm, Holding Range 80-190 mm; Product Dimensions: 25.7'' x 19.8'' x 35.2'' / 652 x 502 x 895 mm; Net Weight: 85.0 lbs / 38.6 kg; Horizontal/Vertical Load Capacity: 55lbs/25 kg ; 110lbs / 50kg
HJBWJX10KG20A453NV1	Load Capacity: 22 lbs	Speed: 1-12 RPM; Working Table Tilting Angle: 0-90°; Turntable Diameter: 8.1'' / 205mm; Item Model Number: HD-10; Motor Power: 20W; Chuck Diameter: Clamping Range 2-58mm, Holding Range 22-50mm; Product Dimensions: 12.6'' x 10.6'' x 11.1'' / 319 x 270 x 282 mm; Net Weight: 23.4 lbs / 10.6 kg; Horizontal/Vertical Load Capacity: 22lbs/10 kg ; 11lbs / 5kg

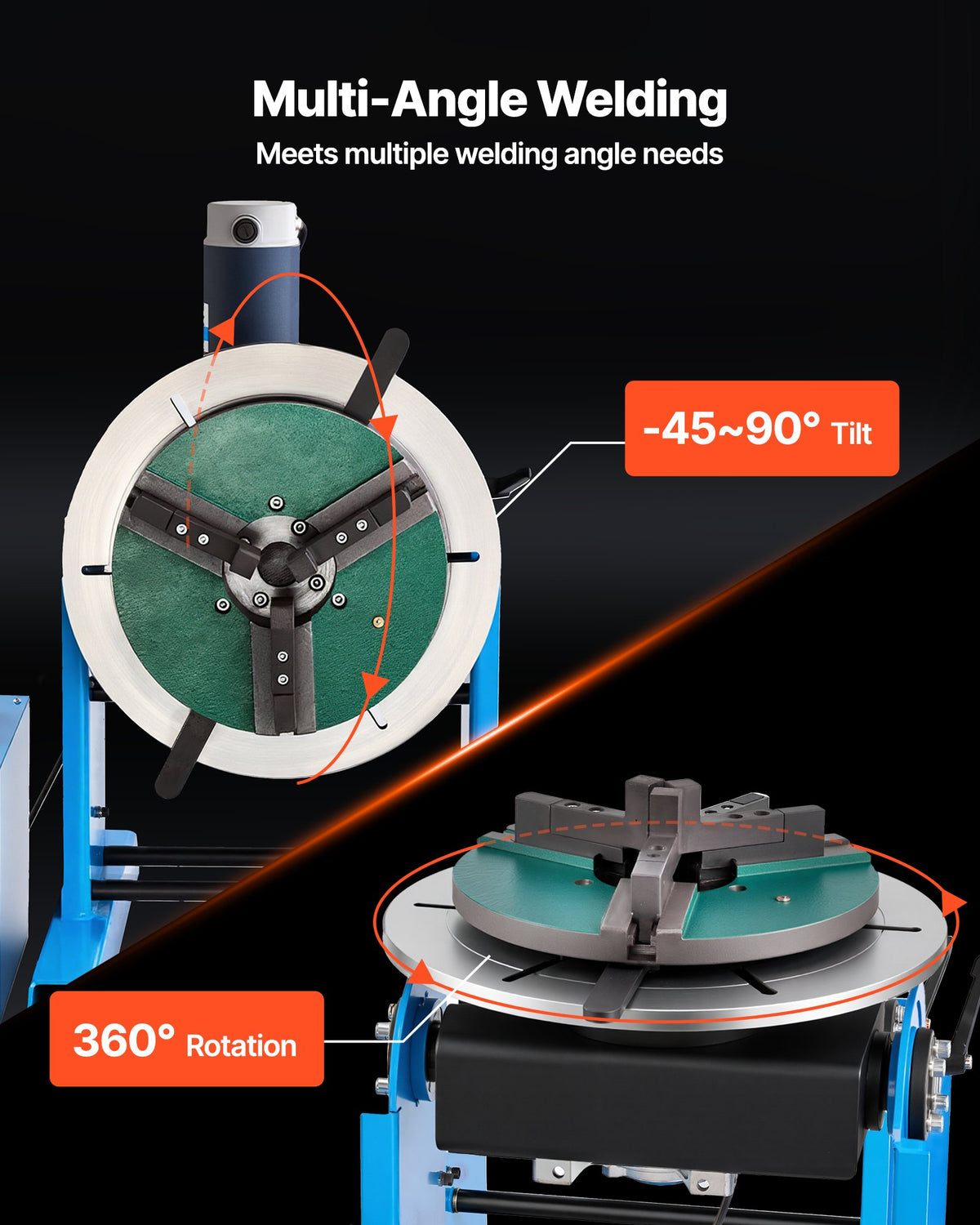

HJBWJX200W30SXGU0001V1	Load Capacity: 661 lbs	Angle Adjustment: -45° to 90° tilt; 360° rotation; Load Capacity (Horizontal/Vertical): 661 lbs / 300 kg; 331 lbs / 150 kg; Item Model Number: HD-300; Motor Power: 200 W; Product Dimensions: 22.8 x 27.6 x 24.6 in / 580 x 700 x 625 mm; Net Weight: 160.1 lbs / 72.6 kg; Main Material: Carbon Steel; Rotation Speed: 0.2–2.5 RPM

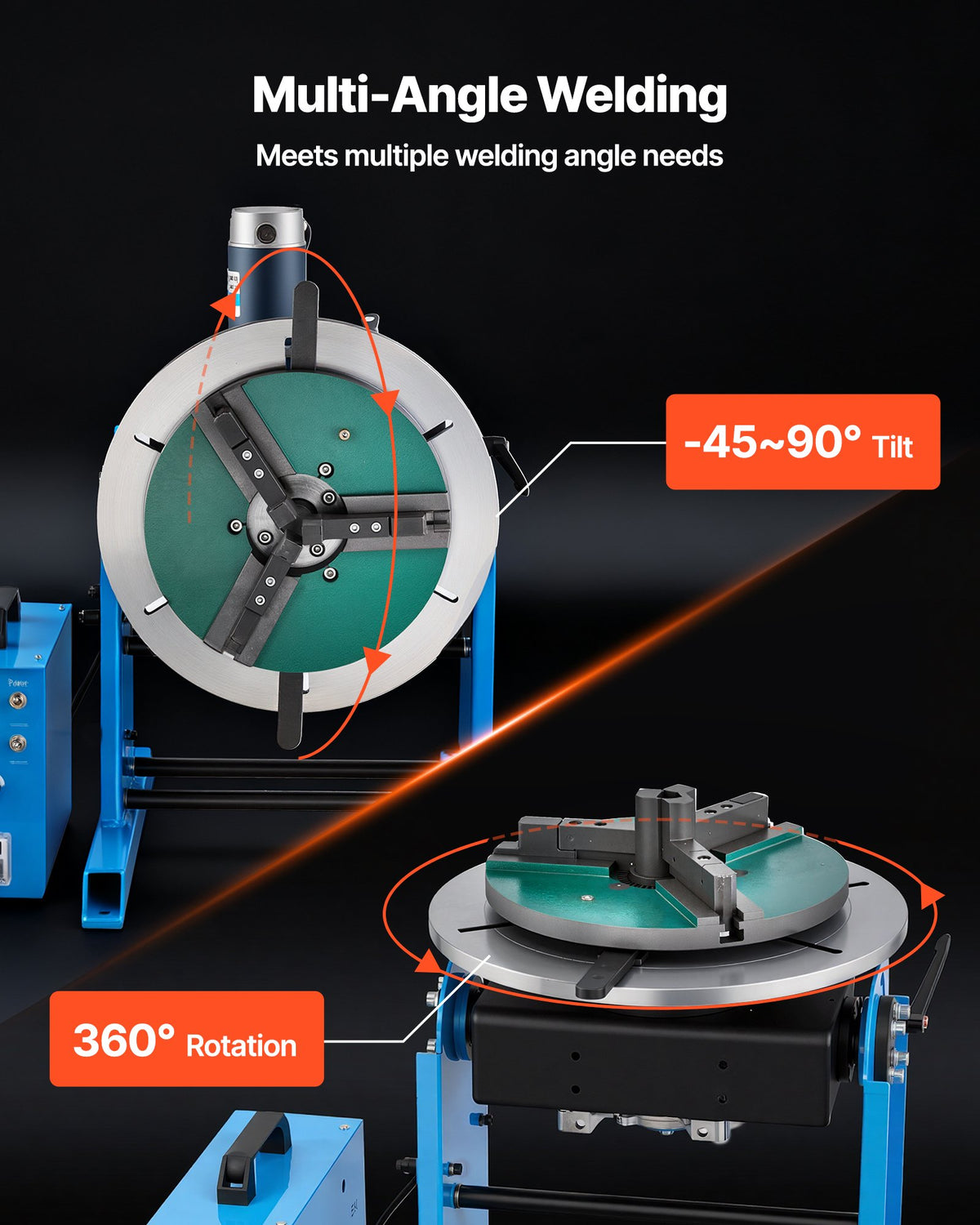

HJBWJX140W20THD38001V1	Load Capacity: 441 lbs	Angle Adjustment: -45° to 90° tilt; 360° rotation,Item Model Number：CNC-100:; Load Capacity (Horizontal/Vertical): 441 lbs / 200 kg; 220 lbs/ 100 kg; Motor Power: 120 W; Product Dimensions: 25.7 x 19.8 x 35.2 in /652 x 502 x 895 mm; Net Weight: 85.1 lbs /38.6 kg; Main Material: Carbon Steel; Rotation Speed: 0.5–5 RPM

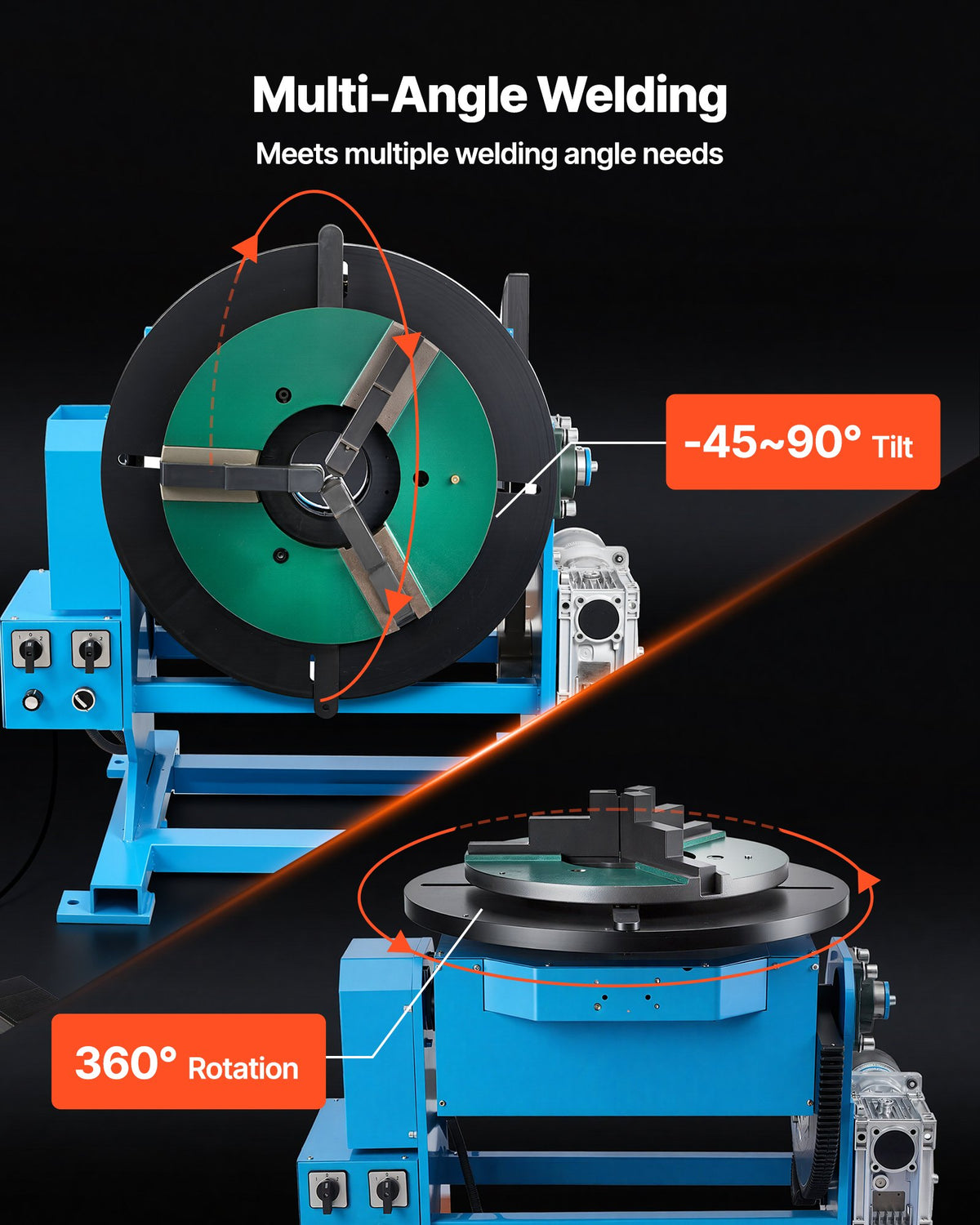

HJBWJX375W5009VCI001V1	Load Capacity: 1102 lbs	Angle Adjustment: -45° to 90° tilt; 360° rotation; Load Capacity (Horizontal/Vertical): 1102 lbs / 500 kg; 551 lbs / 250 kg; Item Model Number: HD-600; Motor Power: 400 W; Product Dimensions: 32.7 x 25.6 x 30.7 in / 830 x 650 x 780 mm; Net Weight: 432.9 lbs / 196.4 kg; Main Material: Carbon Steel; Rotation Speed: 0.2–2 RPM

Details by SKU

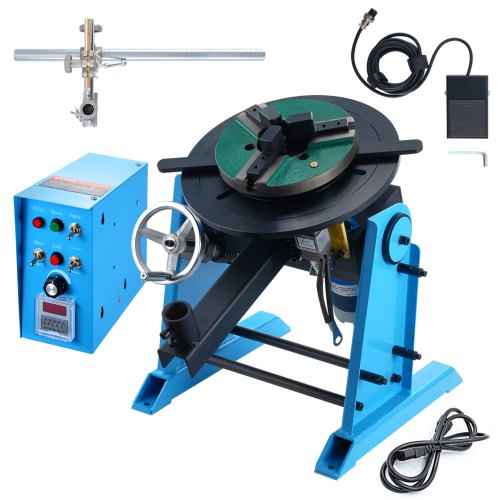

HJBWJX30KG80ONXXLV1 - 66 lbs

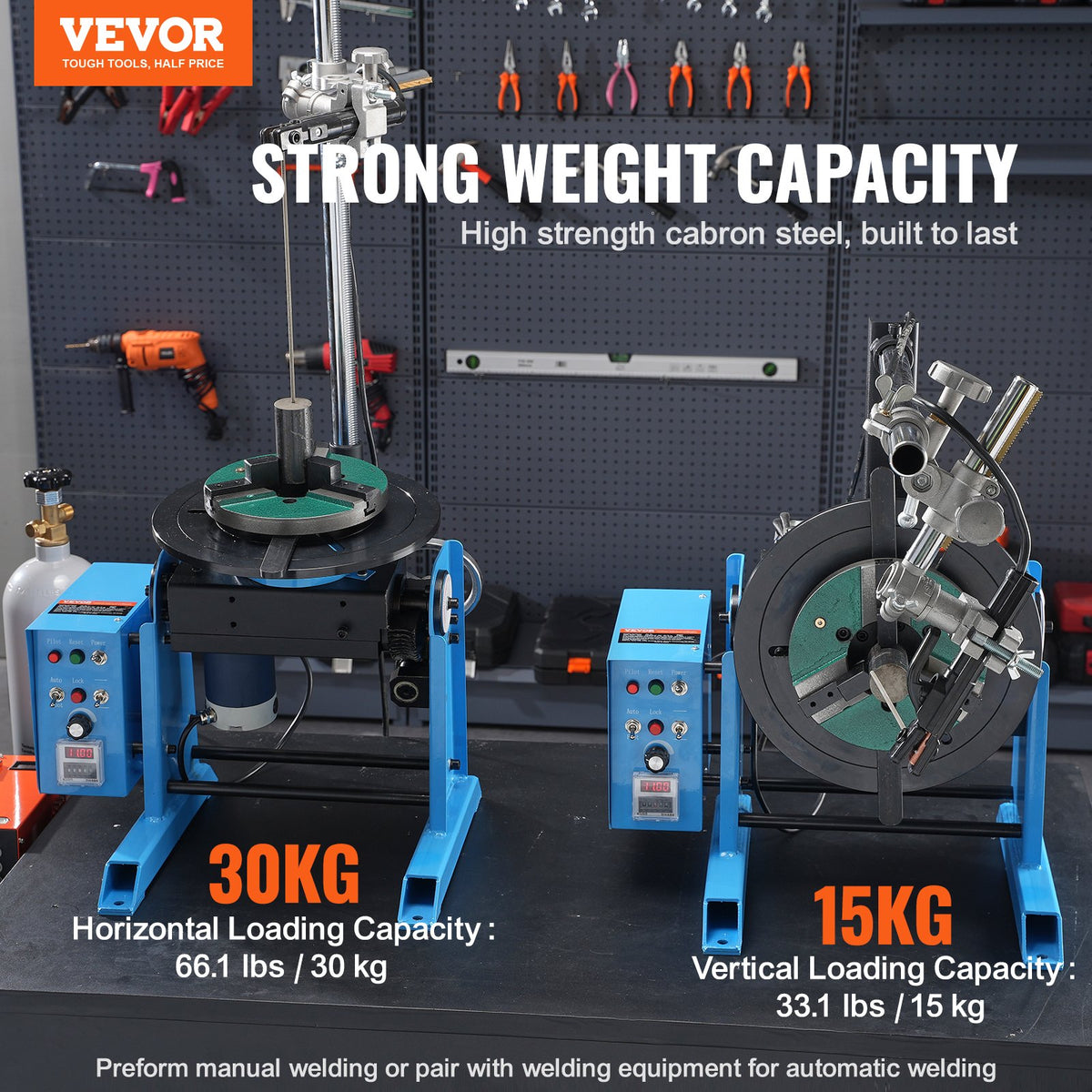

Smooth Rotation: VEVOR rotary welding positioner boasts 80W high quality motor that runs at 1-12 rpm low speed for stable and smooth operation. With a load capacity of up to 33.1 lbs/15kg (vertical) or 66.1lbs/30 Kg (horizontal), it offers excellent stability and supports efficient, precise welding.

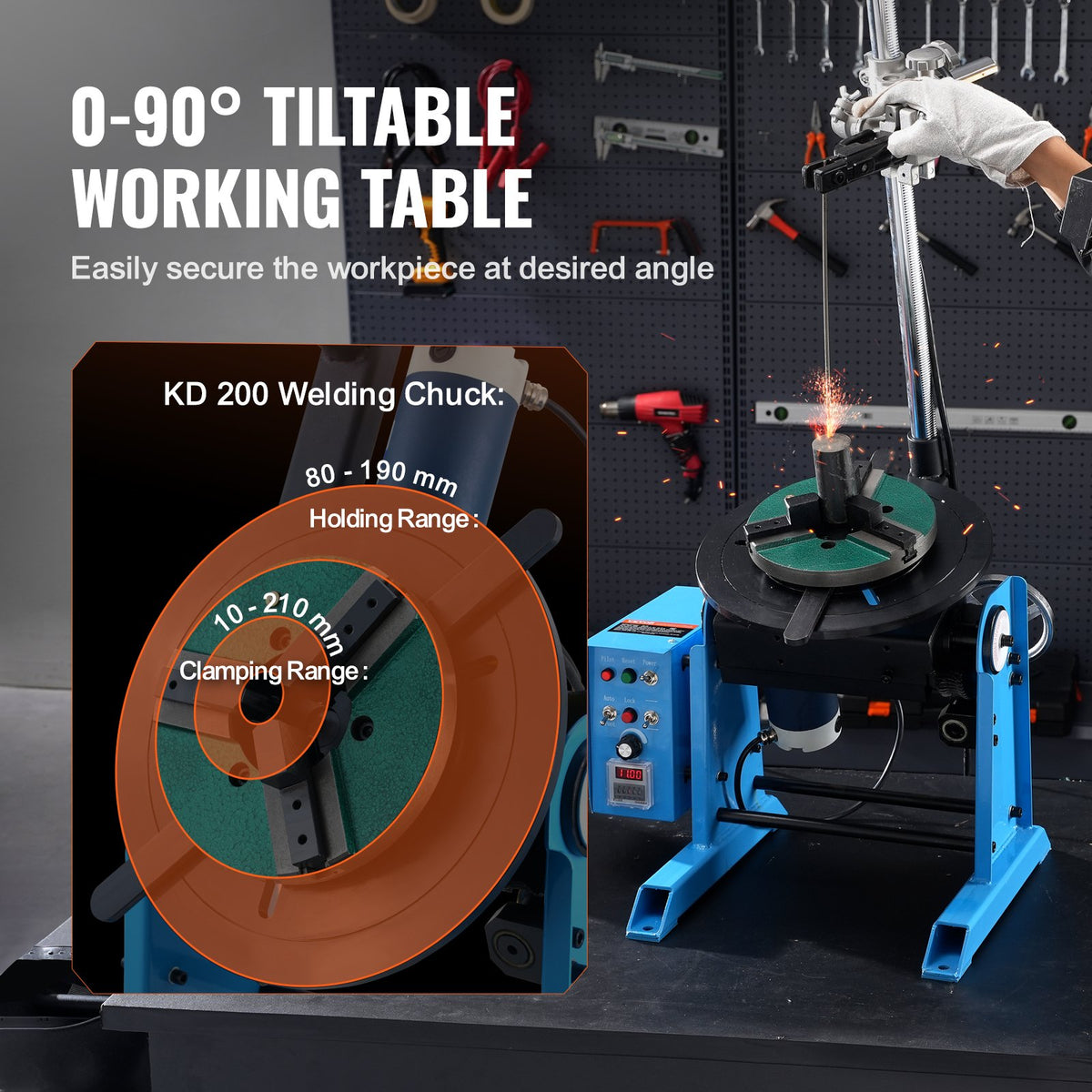

0-90° Tiltable Worktable: The welding positioner turntable table can be tilted from 0-90° and securely fixed at desired angle with the hand wheel. Plus, the worm gear turning structure with self-locking function can accurately position and maintain the correct location of welding workpiece.
Precise & Stable Positioning: Equipped with a 315mm KD200 three-jaw chuck, featuring 10-210mm clamping range and 80-190m supporting range, it effectively prevents the weldment pieces from moving and falling. Also includes a welding gun stand holder to secure the welding gun in place.
Easy to Operate & Control: The welder positioning turntable table offers 1-12 rpm stepless speed adjustment. You can easily control the rotation speed with the user-friendly control box. The convenient foot pedal switch also allows for easy control of table's 360 degrees rotation.
Wide Applications: Our positioning turntable is versatile for cutting, grinding, assembly, and testing. It can be fixed on the workbench or specific tooling for manual welding or paired with welding equipment for automatic welding. Elevate welding efficiency and precision with VEVOR!

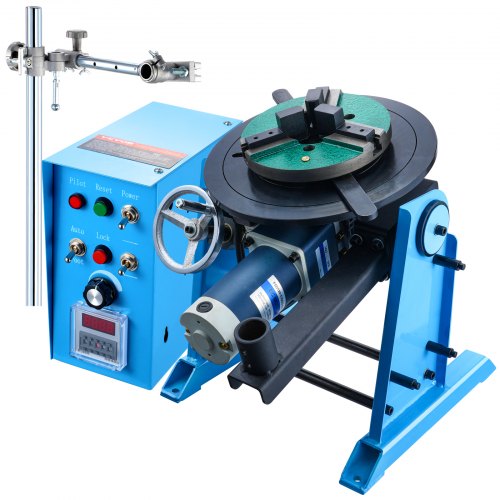

HJBWJX50KG12BUA9MV1 - 110 lbs

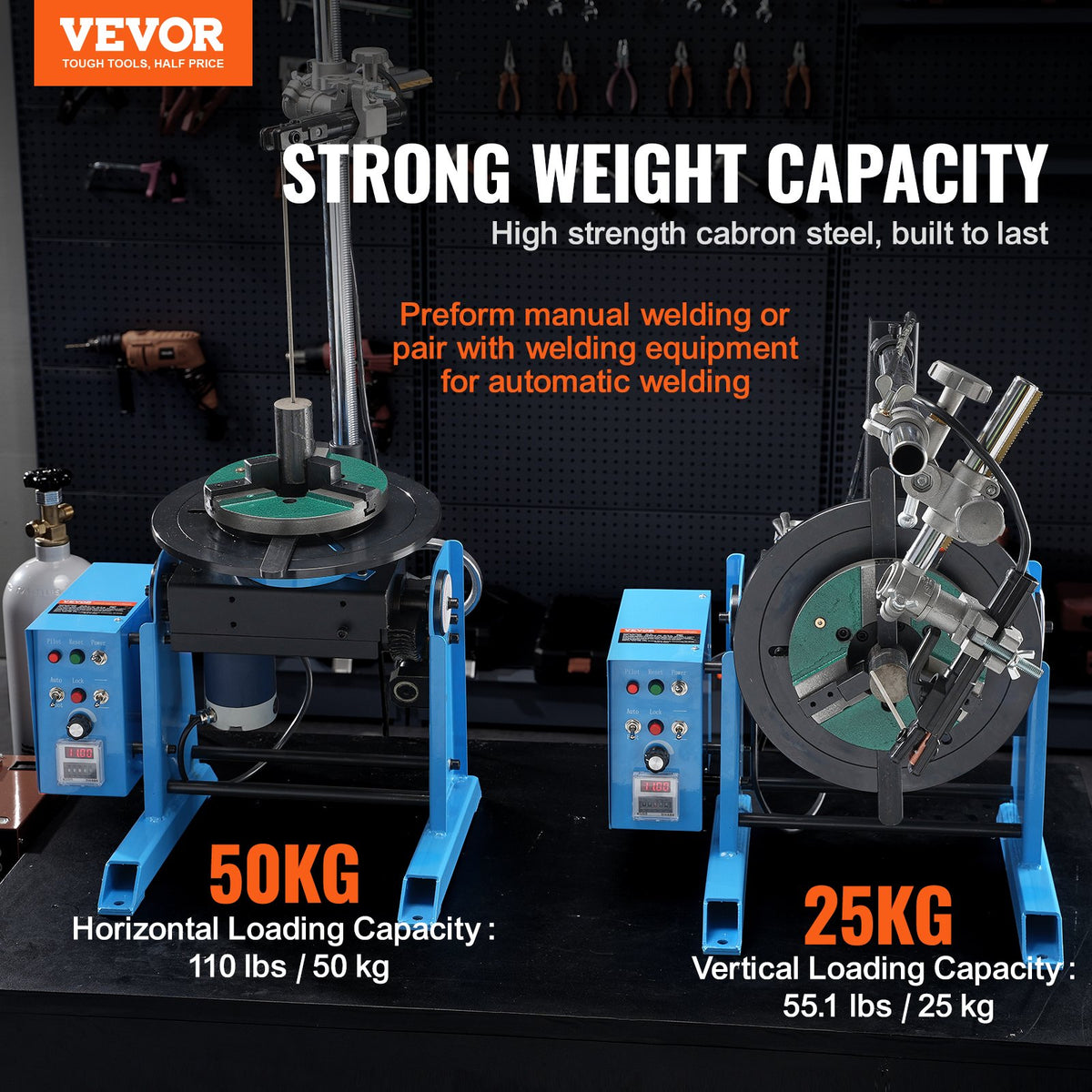

Smooth Rotation: VEVOR rotary welding positioner boasts 120W high quality motor that runs at 0.5-6 rpm low speed for stable and smooth operation. With a load capacity of up to 55lbs/25Kg (vertical) or 110lbs/50Kg (horizontal), it offers excellent stability and supports efficient, precise welding.

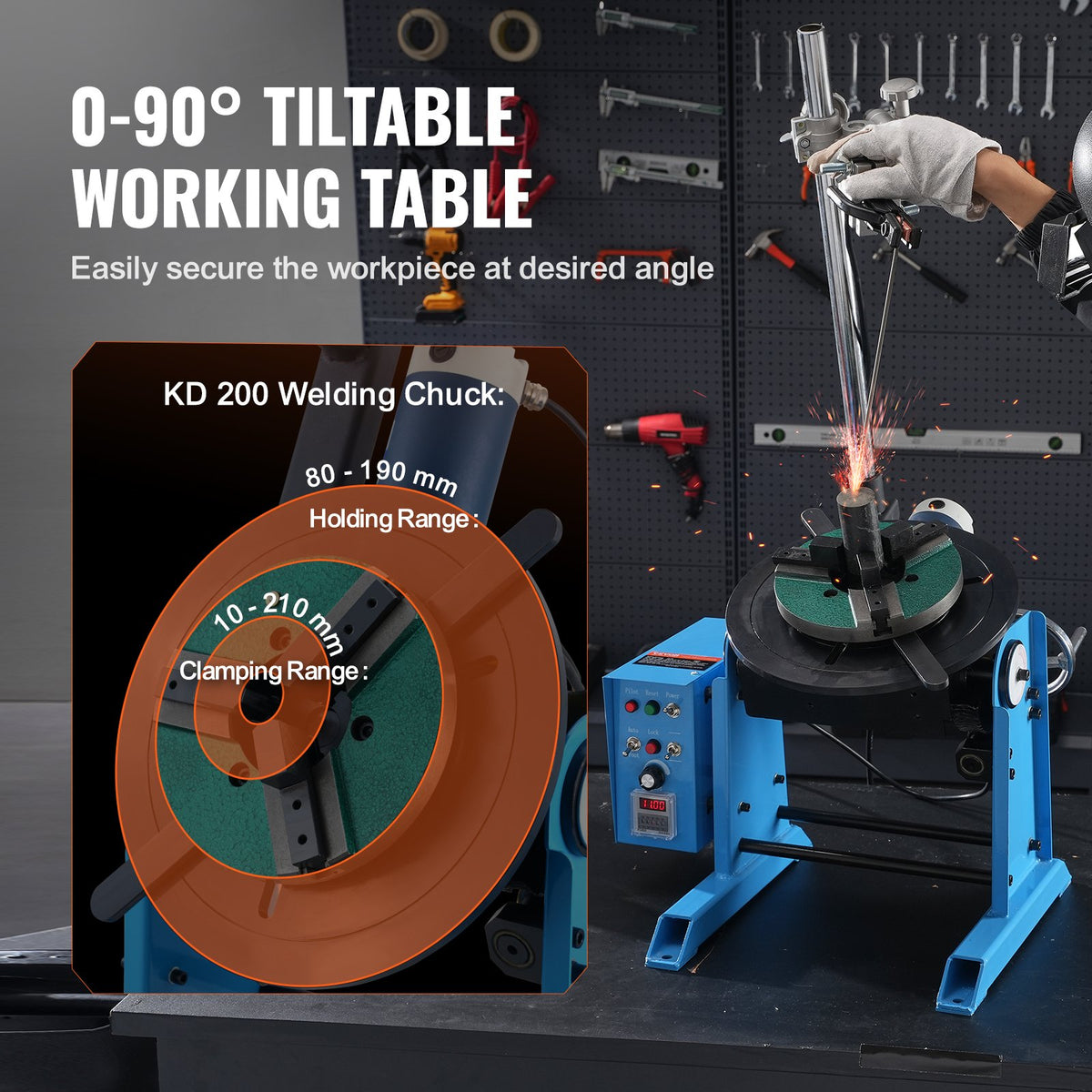

0-90° Tiltable Worktable: The welding positioner turntable table can be tilted from 0-90° and securely fixed at desired angle with the hand wheel. Plus, the worm gear turning structure with self-locking function can accurately position and maintain the correct location of welding workpiece.
Precise & Stable Positioning: Equipped with a 315mm KD200 three-jaw chuck, featuring 10-210mm clamping range and 80-190m supporting range, it effectively prevents the weldment pieces from moving and falling. Also includes a welding gun stand holder to secure the welding gun in place.
Easy to Operate & Control: The welder positioning turntable table offers 0.5-6 rpm stepless speed adjustment. You can easily control the rotation speed with the user-friendly control box. The convenient foot pedal switch also allows for easy control of table's 360 degrees rotation.
Wide Applications: Our positioning turntable is versatile for cutting, grinding, assembly, and testing. It can be fixed on the workbench or specific tooling for manual welding or paired with welding equipment for automatic welding. Elevate welding efficiency and precision with VEVOR!

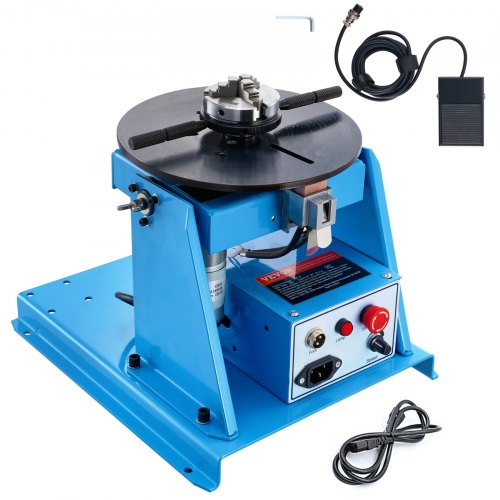

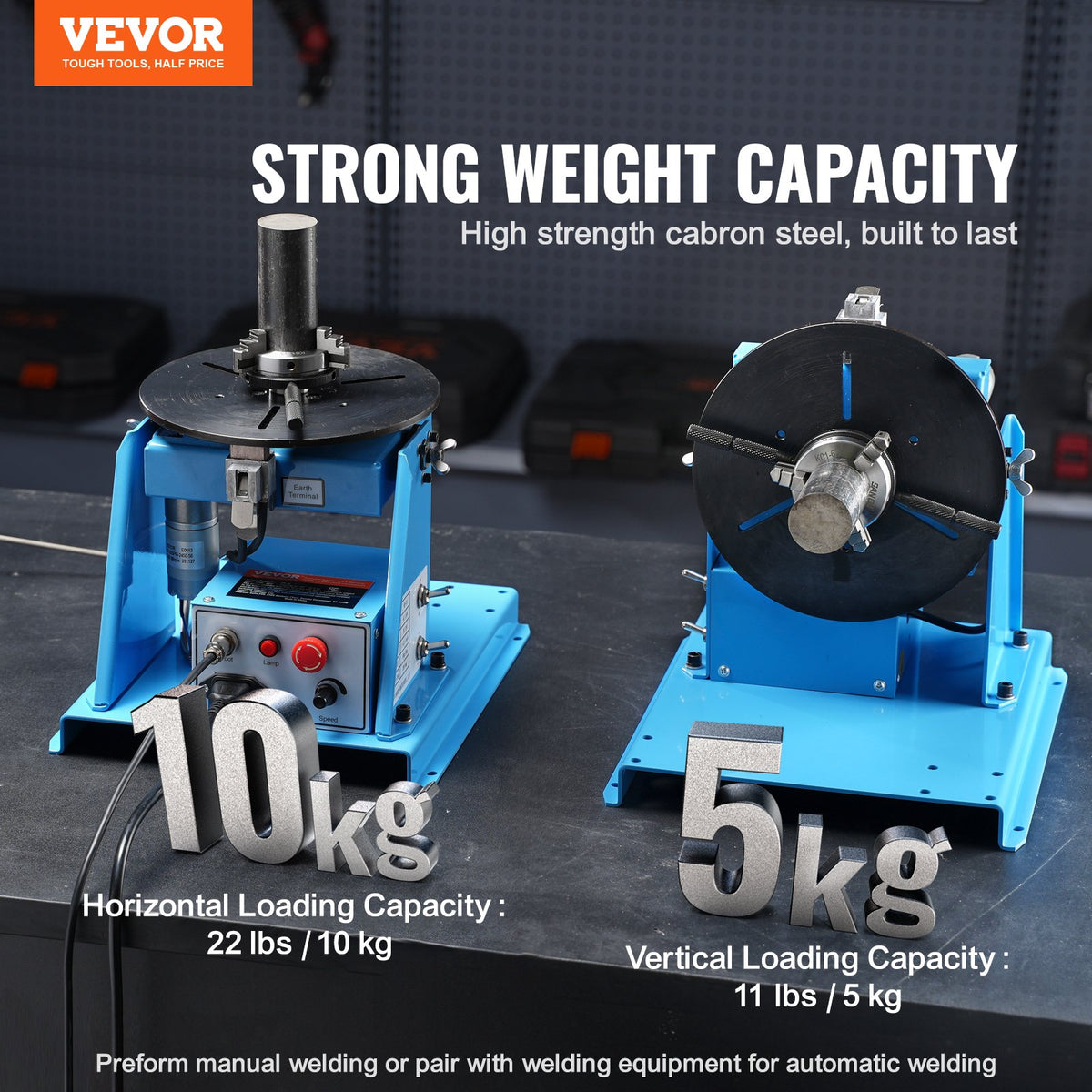

HJBWJX10KG20A453NV1 - 22 lbs

Smooth Rotation: VEVOR rotary welding positioner boasts 20W high quality motor that runs at 1-12 rpm low speed for stable operation. With a load capacity of up to 11lbs/5 Kg (vertical) or 22lbs/10 Kg (horizontal), it offers excellent stability and supports efficient, precise welding.

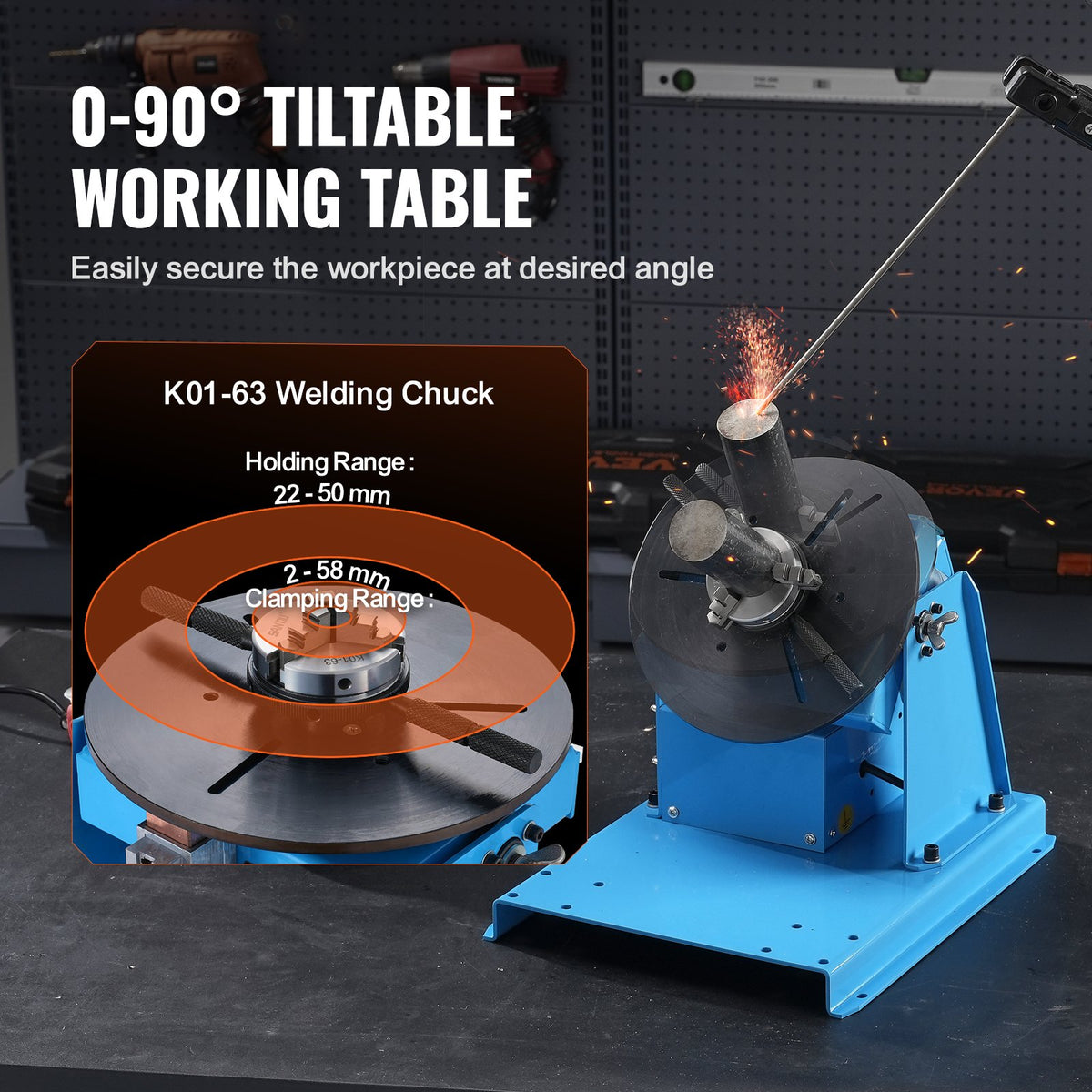

0-90° Tiltable Worktable: Our welding positioner turntable table can be tilted from 0-90° and securely fixed at desired angle with the butterfly bolt. The worm gear turning structure with self-locking function can accurately position and maintain the correct location of welding workpiece.
Precise & Stable Positioning: Equipped with a 205mm K01-63 three-jaw chuck, featuring a clamping range of 2-58mm and a supporting range of 22-50mm, it effectively prevents the weldment pieces from moving and falling, thus significantly enhancing welding accuracy.
Stepless Speed Control: The welder positioning turntable table offers 1-12 rpm stepless speed adjustment, and you can adjust the rotation speed with the speed adjustment knob. A convenient foot pedal switch also allows for easy control of table's 360 degrees rotation.
Wide Applications: Our positioning turntable is versatile for cutting, grinding, assembly, and testing. It can be fixed on the workbench or specific tooling for manual welding or paired with welding equipment for automatic welding. Elevate welding efficiency and precision with VEVOR!

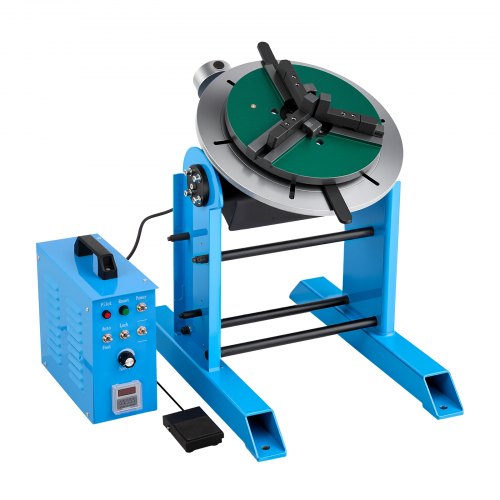

HJBWJX200W30SXGU0001V1 - 661 lbs

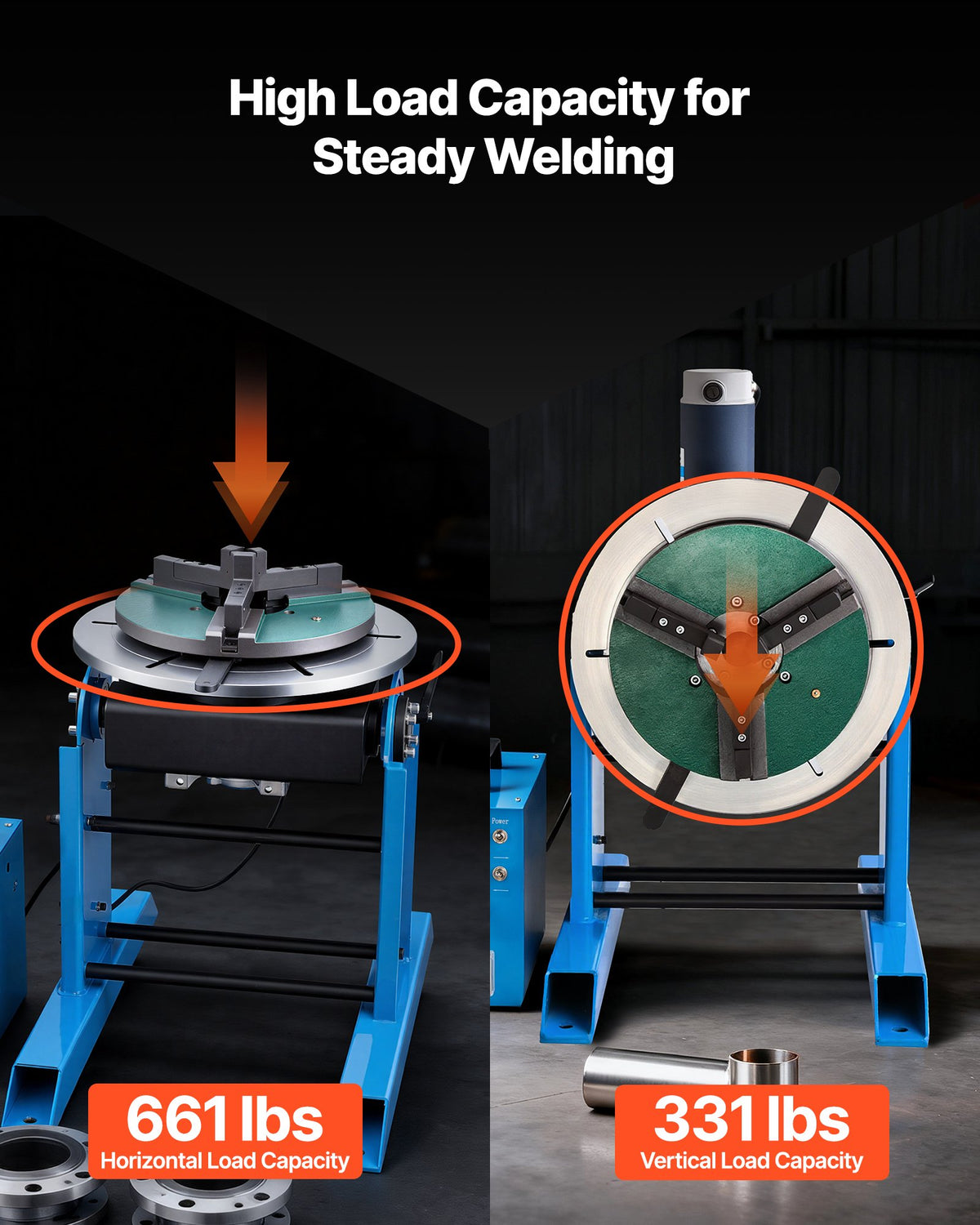

High Load Capacity: This rotary welding positioner supports up to 661 lbs horizontally and 331 lbs vertically. The premium carbon-steel construction ensures stable performance during heavy-duty welding tasks
Core Welding Support Strength: The carbon-steel frame securely holds a wide range of workpieces, delivering excellent stability in both horizontal and vertical operations. Our welding rotary table positioner is essential for achieving high-precision welds
Precision Welding Control: With a 0.2-2.5 RPM rotation range, the welding positioner turntable table delivers slow, stable rotation for high-quality, consistent welds, especially on complex parts
Flexible & Easy Control: Our positioner turntable machine features both electric control and a foot pedal switch for effortless, hands-free operation. It enhances welding efficiency while reducing operator fatigue
Wide-Range Welding Chuck: The 300A chuck provides a 0.4-15.8 in clamping range and a 3.4-10.6 in holding range, enabling our welding positioner turntable to securely hold a broad range of workpieces

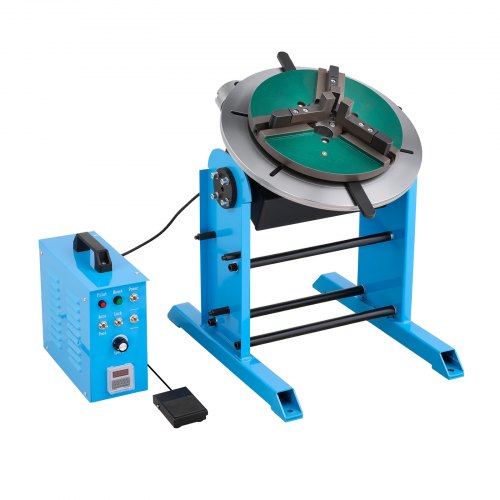

HJBWJX140W20THD38001V1 - 441 lbs

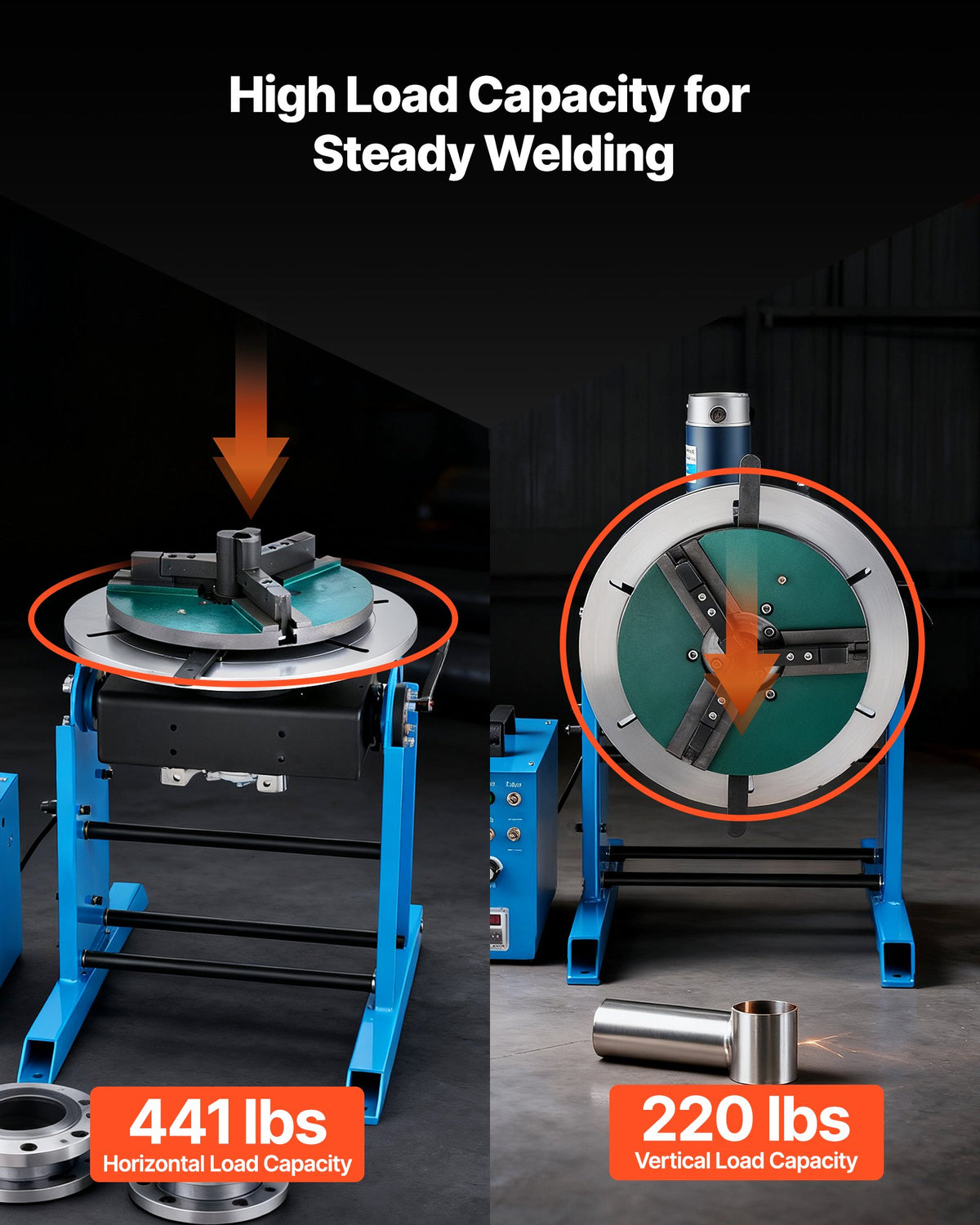

High Load Capacity: This rotary welding positioner supports up to 441 lbs horizontally and 220 lbs vertically. The premium carbon-steel construction ensures stable performance during heavy-duty welding tasks
Core Welding Support Strength: The carbon-steel frame securely holds a wide range of workpieces, delivering excellent stability in both horizontal and vertical operations. Our welding rotary table positioner is essential for achieving high-precision welds
Precision Welding Control: With a 0.5–5 RPM rotation range, the welding positioner turntable table delivers slow, stable rotation for high-quality, consistent welds, especially on complex parts
Flexible & Easy Control: Our positioner turntable machine features both electric control and a foot pedal switch for effortless, hands-free operation. It enhances welding efficiency while reducing operator fatigue
Wide-Range Welding Chuck: The 300A chuck provides a 0.4-15.8 in clamping range and a 3.4-10.6 in holding range, enabling our welding positioner turntable to securely hold a broad range of workpieces

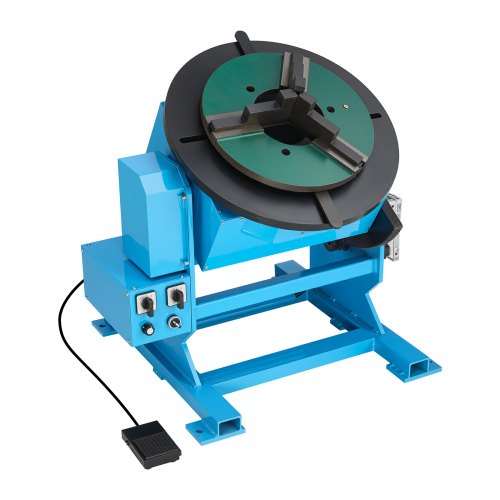

HJBWJX375W5009VCI001V1 - 1102 lbs

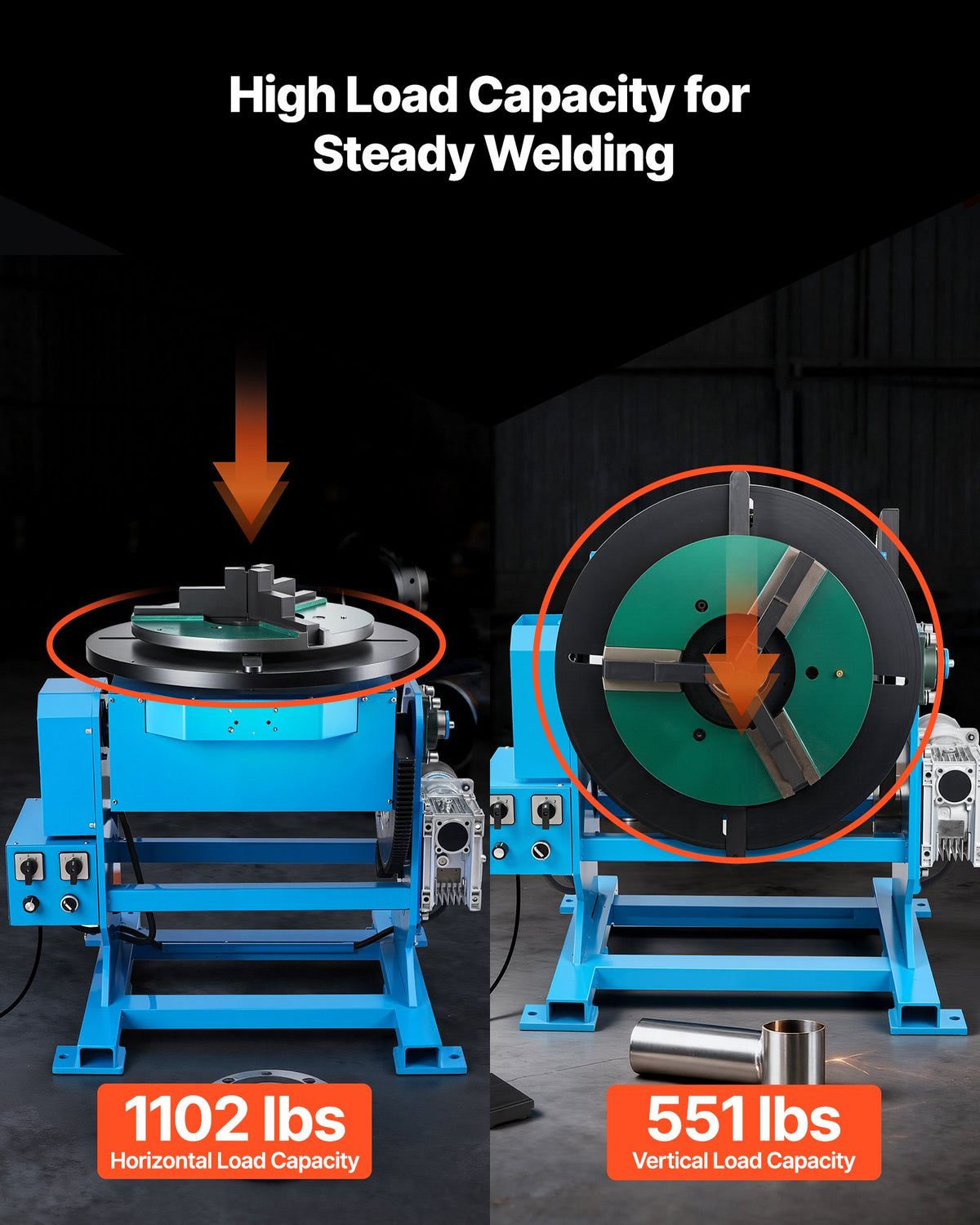

High Load Capacity: This rotary welding positioner supports up to 1102 lbs horizontally and 551 lbs vertically. The premium carbon-steel construction ensures stable performance during heavy-duty welding tasks
Core Welding Support Strength: The carbon-steel frame securely holds a wide range of workpieces, delivering excellent stability in both horizontal and vertical operations. Our welding rotary table positioner is essential for achieving high-precision welds
Precision Welding Control: With a 0.2-2 RPM rotation range, the welding positioner turntable table delivers slow, stable rotation for high-quality, consistent welds, especially on complex parts
Flexible & Easy Control: Our positioner turntable machine features both electric control and a foot pedal switch for effortless, hands-free operation. It enhances welding efficiency while reducing operator fatigue
Wide-Range Welding Chuck: The 400A chuck provides a 0.4-19.7 in clamping range and a 4.7-15.8 in holding range, enabling our welding positioner turntable to securely hold a broad range of workpieces
