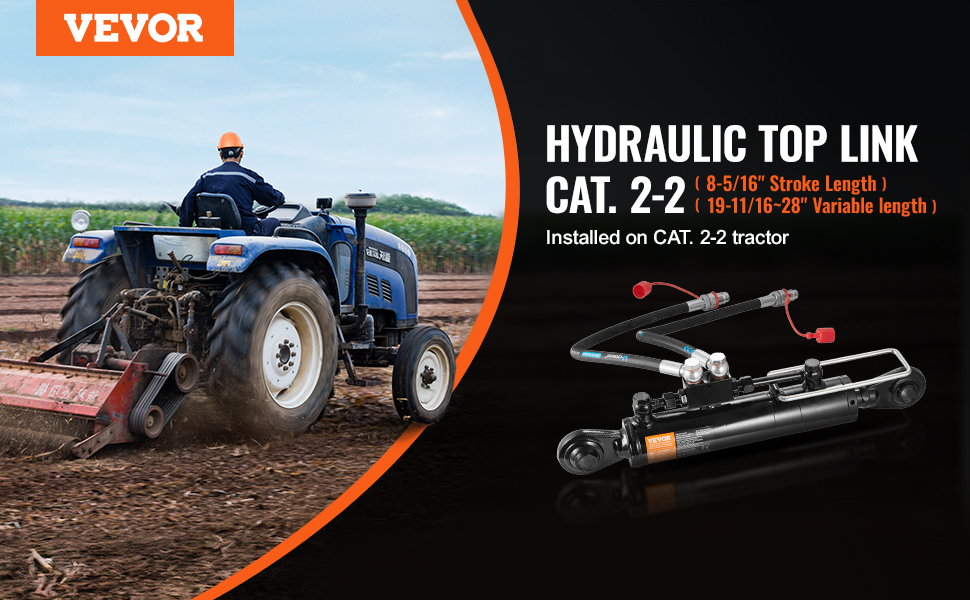

VEVOR Hydraulic Top Link Cat. 2-2(8-5/16 in, 19-11/16~28 in), Hydraulic Cylinder

Regular price $232.66 USD
Regular price Sale price $232.66 USD
Sale Sold out

In stock

Quantity
Your selected configuration

SKU: DLGYYGL8516I13QS9V0

US delivery only. Shipping availability varies by item and ZIP code. Confirm your delivery options at checkout.

Taxes are calculated at checkout after you enter your address. Shipping policy

SKU:DLGYYGL8516I13QS9V0

Free standard shipping on eligible US orders. Availability and charges depend on the item and delivery address. Shipping policy

Eligible items may be returned within 30 days of delivery. See return conditions. Return conditions

Questions about your order? vervegrow@gmail.com

Overview

Product Overview

VEVOR Hydraulic Cylinder- Powerful Performance, Precise Extension Control!

Within the maximum working pressure range of 20/18 MPa, the double-acting hydraulic cylinder can generate 4 tons of pushing force and 2.5 tons of pulling force without the need for mechanical gears/levers.

The hydraulic top link Cat.2-2 utilizing bidirectional check valves with locking blocks, it effectively enhances sealing and precision control, preventing hydraulic oil backflow. Even after the pump stops working, the hydraulic cylinder piston rod remains stable under force.

The top link made entirely of 45# steel, it is robust and heavy-duty, resistant to deformation. With added paint coating on the surface, it is corrosion-resistant and rust-resistant, ensuring durability even in harsh environments such as muddy terrain, rainy days, and outdoor high temperatures.

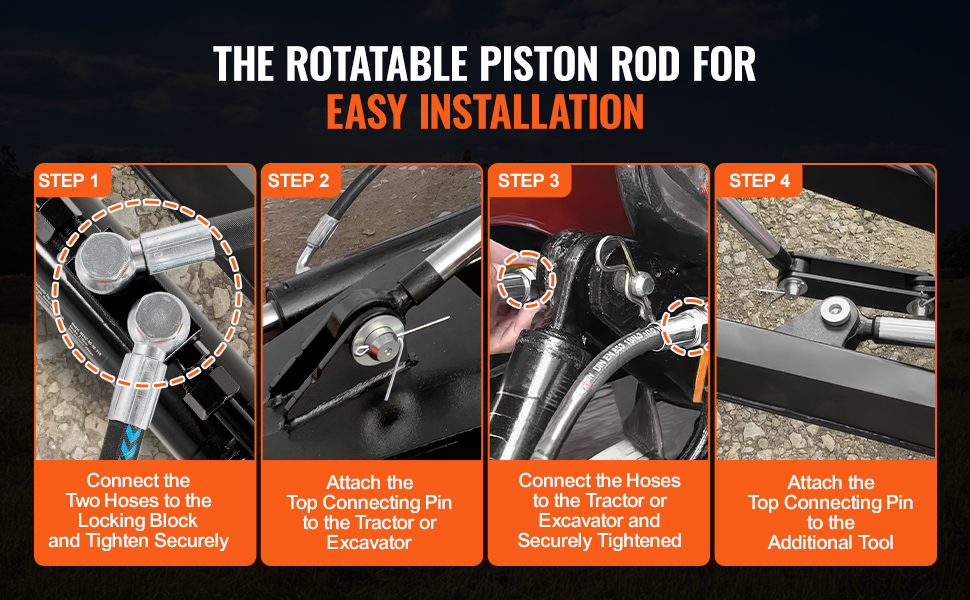

The piston rod of hydraulic top link is specially designed with a rotating feature, allowing for flexible installation on different tools. Note: Hydraulic hose fittings need to be tightened securely to prevent oil leakage.

With a connection hole diameter of 1.0 in/Φ25.5 mm, double acting hydraulic cylinder is compatible with Cat.2-2 tractors, allowing for direct installation on tractor equipment to enhance operational efficiency.

Key Features

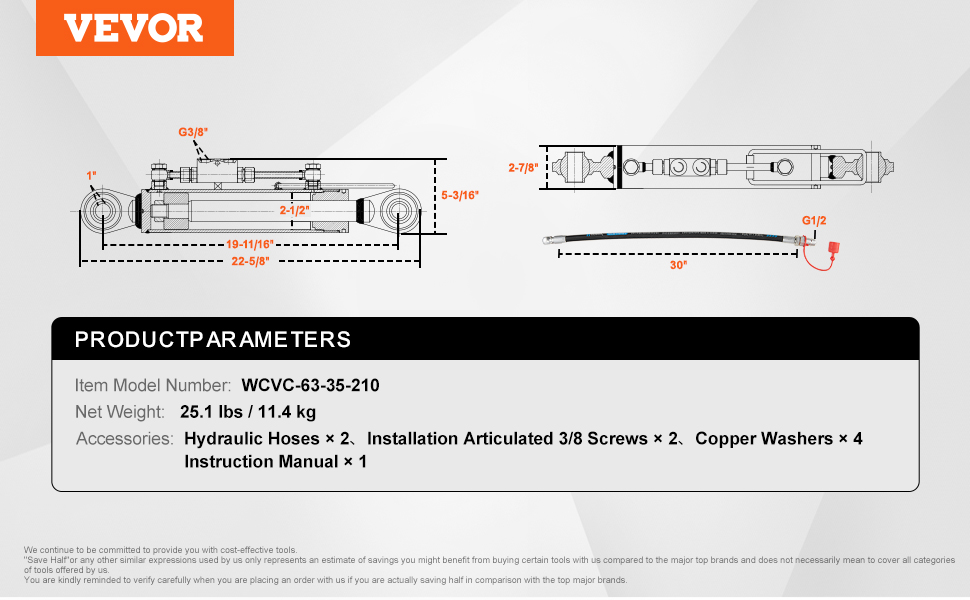

  • Adaptation for Cat. 2-2 Tractors: The hydraulic top link cat. 2-2's rod inlet/outlet diameter: 3/8 in; Min retracted length:19-11/16 in(500 mm); Stroke length: 8-5/16 in (211 mm); Hydraulic hose length: 30.1 in (765 mm). It can be directly installed on Cat. 2-2 tractors and is widely used in heavy-duty agricultural plowing, waste recycling, transportation, and other tasks.

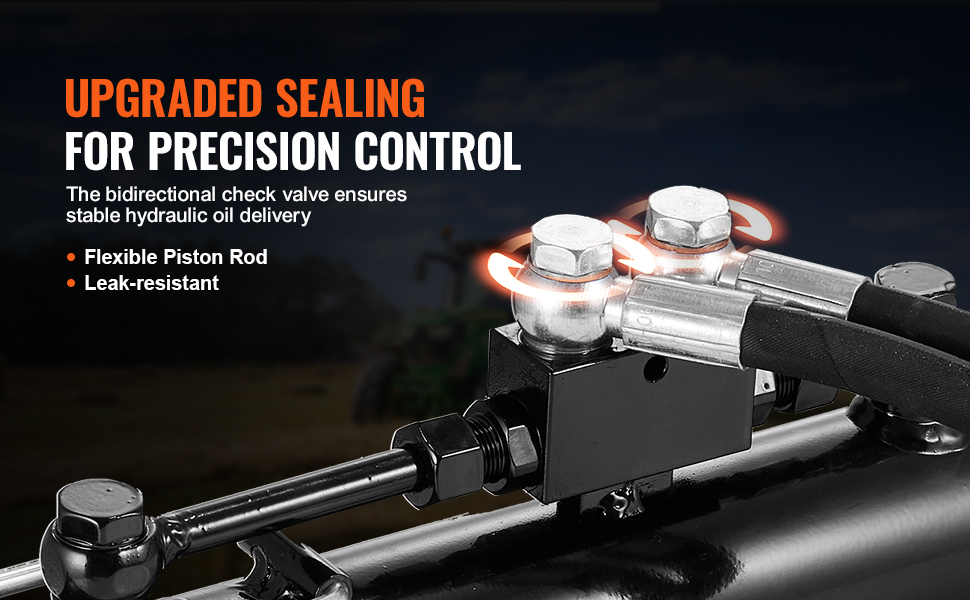

  • High-Sealing Check Valve: The hydraulic cylinder is upgraded with a high-sealing bidirectional check valve structure, ensuring minimal hydraulic oil leakage and precise control of pushing and pulling operations. Even after the pump stops working, the position of the hydraulic cylinder piston rod remains stable under force. The hydraulic cylinder can only perform pushing and pulling actions when there is a certain oil pressure.
  • Enhanced Hydraulic Power: The hydraulic top link is capable of providing 4 tons of pushing force and 2.4 tons of pulling force, and it can deliver stronger performance within a max working pressure range of 20/18 MPa (2900/2610 psi), helping you easily tackle heavy-duty tasks.
  • Heavy-Duty Construction: Top Link mainly constructed with thick 45# steel material, with a surface paint coating that effectively enhances rust resistance, wear resistance, and corrosion resistance. It is durable and can withstand harsh conditions such as mud, rain, and high temperatures, making it long-lasting and reliable.
  • Easy Installation: The rotatable piston rod of tractor loader hydraulic cylinders can meet different installation requirements, equipped with high-pressure-resistant and sturdy hydraulic hoses. You can assemble and use the product by yourself without the need to separately acquire hoses, making assembly hassle-free.

SKU Details

SKU DLGYYGL8516I13QS9V0
Condition new
Product weight(KG) 12.40000
Shipping Weight 27.34 lb
Bearing Spacing 19-11/16 to 28 in
Tractor Type Class II
Specifications

Review the product description for the specifications supplied for this item. Check the selected configuration and contact us if a specification is unclear.

What’s Included

Refer to the product description for confirmed package contents. If a complete list is not provided, contact us before ordering; items shown in lifestyle images are not automatically included.

Shipping & Returns

Free standard shipping on eligible US orders. Availability and charges depend on the item and delivery address. Shipping policy

Eligible items may be returned within 30 days of delivery. See return conditions. Return conditions

Orders are usually processed within 48 hours, excluding weekends and holidays. Processing may take longer during busy periods. Delivery is approximately 8 business days after dispatch.
