Product details
What to know before you buy
Core information, use cases, and key selling points for this item.
About this item
Product overview

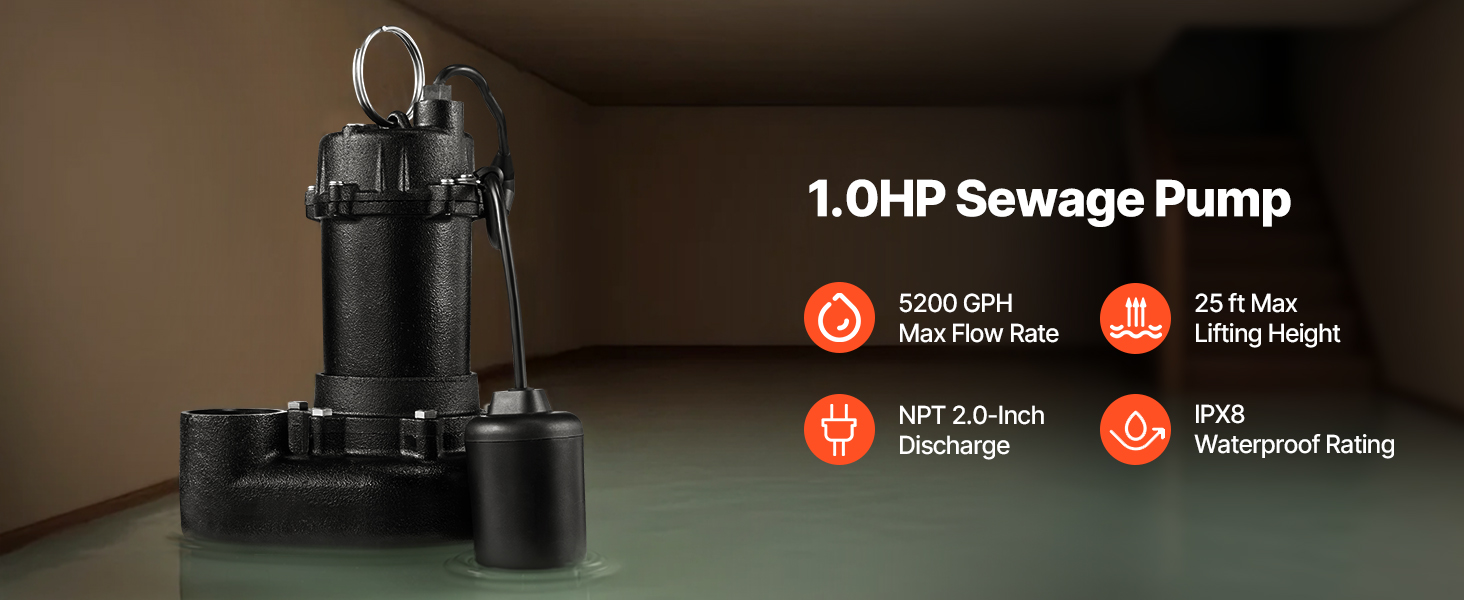

Move wastewater and rainwater with this 1 HP cast iron submersible pump. It has a maximum flow rating of 5,200 GPH and a maximum lift of 25 ft.
A tethered float switch starts and stops the pump in response to the water level. The 2 in NPT outlet and 19.7 ft power cord support installation in a suitable sump pit.
Key features
- Maximum flow rate of 5,200 GPH
- Maximum vertical lift of 25 ft
- Tethered float switch for automatic on/off operation

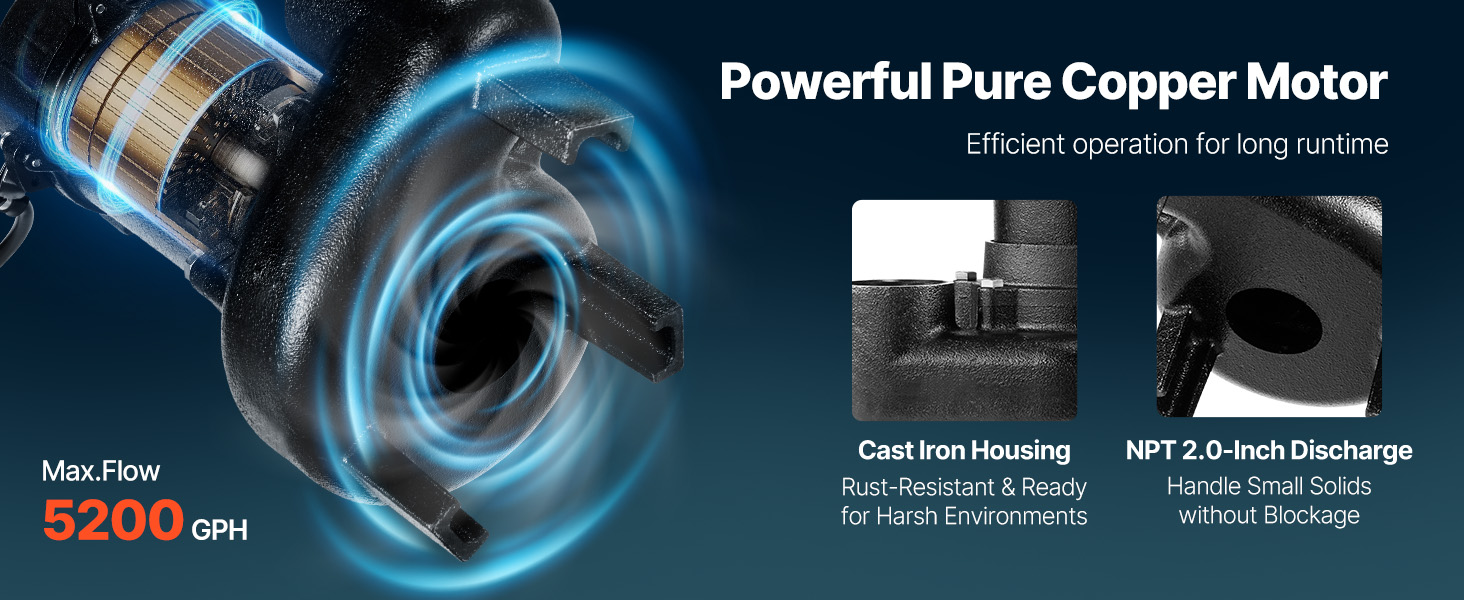

- Cast iron pump body

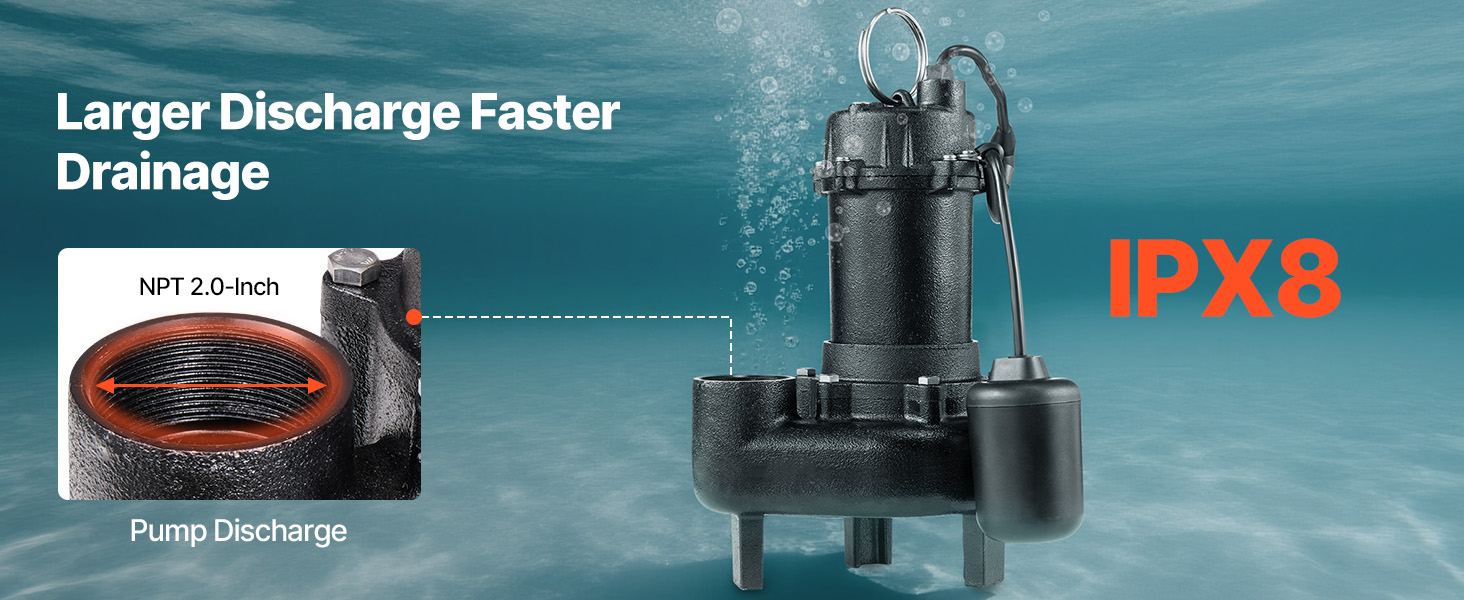

- 2 in NPT discharge connection and 19.7 ft cord

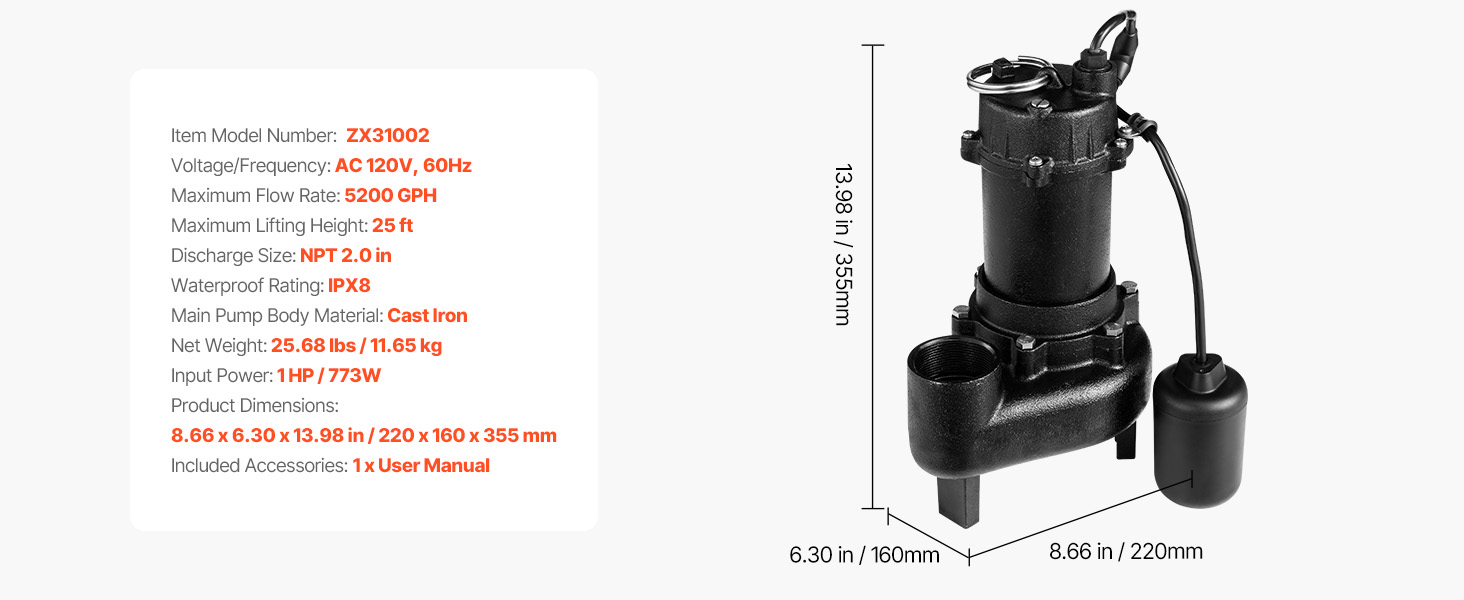

Specifications
| Model | ZX31002 |
|---|---|
| Horsepower | 1 HP |
| Voltage / frequency | AC 120 V, 60 Hz |
| Maximum flow rate | 5,200 GPH |
| Maximum head | 25 ft |
| Discharge connection | 2 in NPT |
| Maximum stated debris size | 0.1 in |
| Power cord length | 19.7 ft |
| Net weight | 25.68 lb (11.65 kg) |
| Shipping weight | 26.12 lb |
| SKU | DFQWSBZT2YC1WT6MC001V1 |
Included items
- Submersible sewage pump
- User manual
Important notes
- Use a sump pit larger than 50 x 50 cm.
- The stated maximum solid-debris size is 0.1 in.
Frequently asked questions
Does it start and stop automatically?
Yes. The tethered float switch controls operation according to the water level.
What size outlet does it have?
The discharge port has a 2 in NPT connection.
How much space is required for installation?
The original installation instructions specify a sump pit larger than 50 x 50 cm.
