VEVOR CAT40 Collet Chuck and Tool Holder Set, CNC Milling and Lathe To

Product details

What to know before you buy

Core information, use cases, and key selling points for this item.

【COMPLETE CAT40 TOOLING OPTIONS】- Choose the set that matches your spindle: 4 or 8-pack ER16 collet chucks, a 5-piece ER32 collet set, a single keyless drill chuck with wrench and pull stud, or a 35-piece holder and collet kit for a full CNC tool room.
【HARDENED ALLOY STEEL BODIES】- 40Cr / 40CrMnTi alloy steel and spring steel bodies are hardened, precision ground and polished, so they resist rust and keep their accuracy through long production runs.
【HIGH ACCURACY AND CONCENTRICITY】- Hardened and ground collet chucks hold accuracy in tenth (0.0001 in / 0.003 mm up to 0.0002 in / 0.005 mm) with TIR down to 0.0002 in / 5 μm, keeping runout low for precise milling, drilling and boring.
【BALANCED FOR HIGH SPEED】- V-flange CAT40 bodies are dynamically balanced to G2.5 for spindle speeds from 8,000 to 25,000 RPM, which keeps vibration low in high-speed machining.
【EASY ON TOOL CHANGERS】- Fully ground flange and V-groove slide easily into automatic tool changers, and the polished shanks seat cleanly in CAT40 spindles for less spindle and changer maintenance.

Brand	VEVOR
Product Type	Hardware > Tool Accessories > Drill & Screwdriver Accessories > Drill Chucks > Keyless Chucks
Taper	CAT40 (every set)
Collet Series	ER16 or ER32 or mixed ER16 / ER32 set (per option)
Material	Hardened 40Cr / 40CrMnTi alloy steel and spring steel
Accuracy	Accuracy in tenth 0.0001-0.0002 in (0.003-0.005 mm); TIR from 0.0002 in / 5 μm on collet holders
Dynamic Balance	G2.5 (per option)
Max Spindle Speed	8,000-25,000 RPM (per option)
Gage Length	2.75 in / 70 mm or 4 in / 100 mm (per option)
Draw Bar Thread	5/8 in - 11

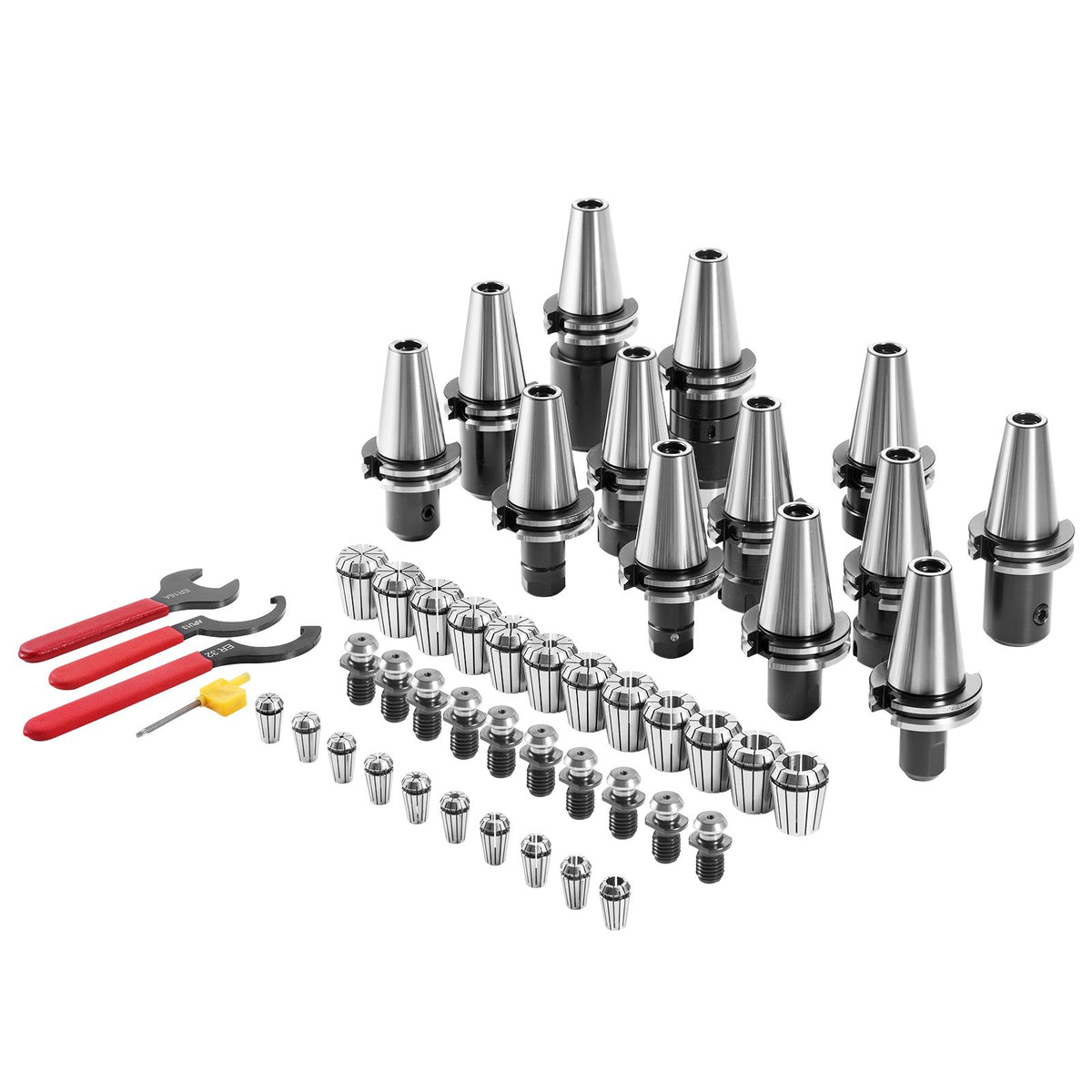

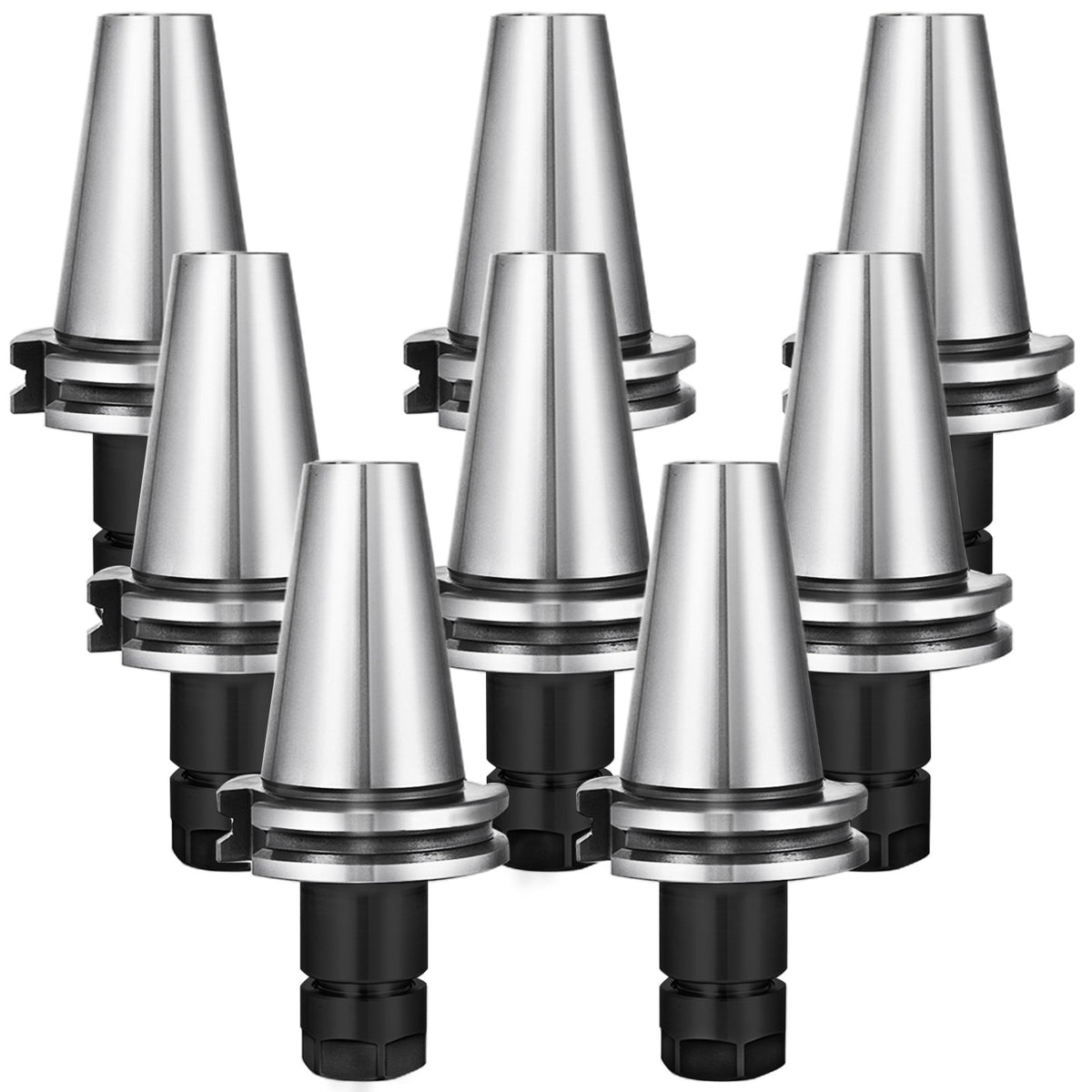

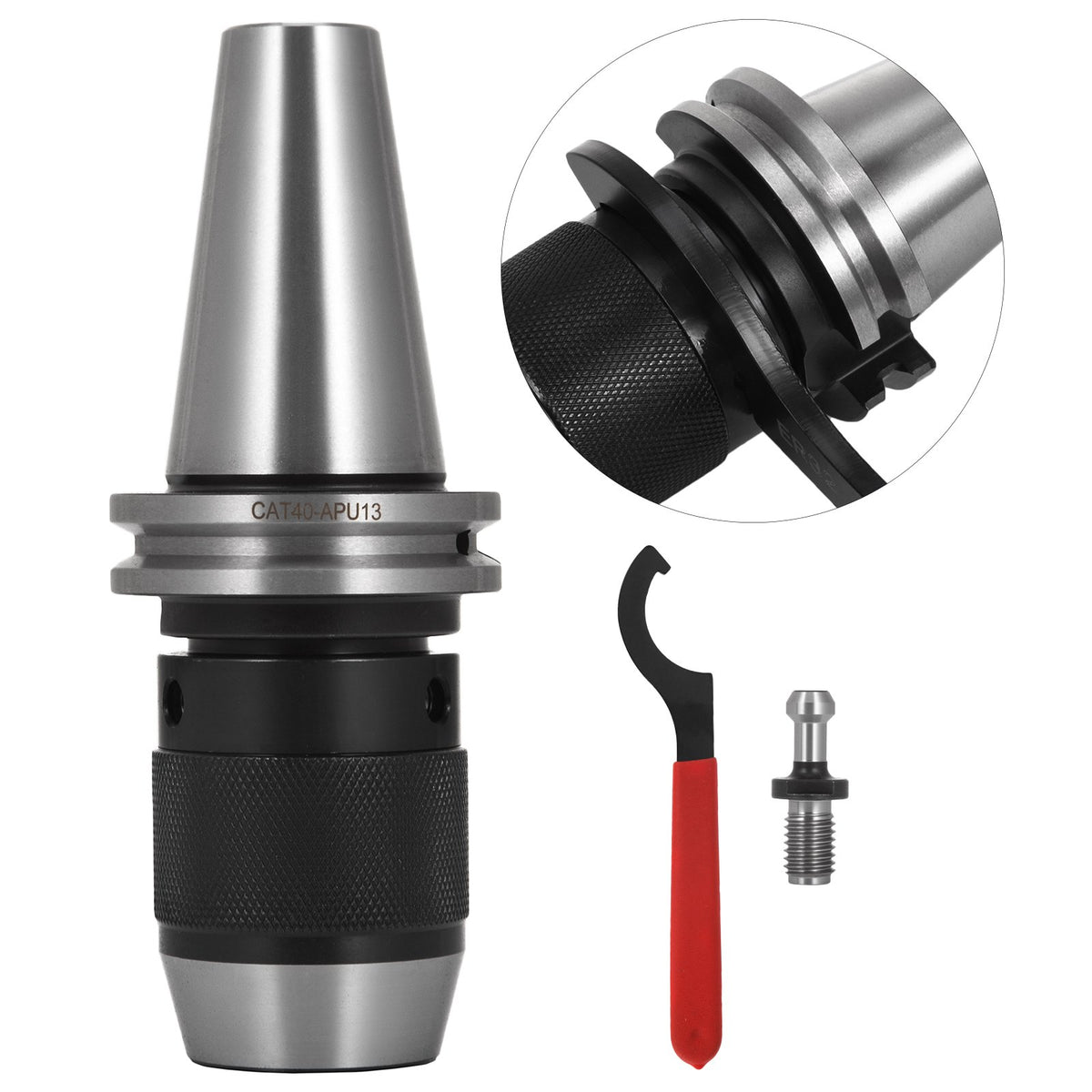

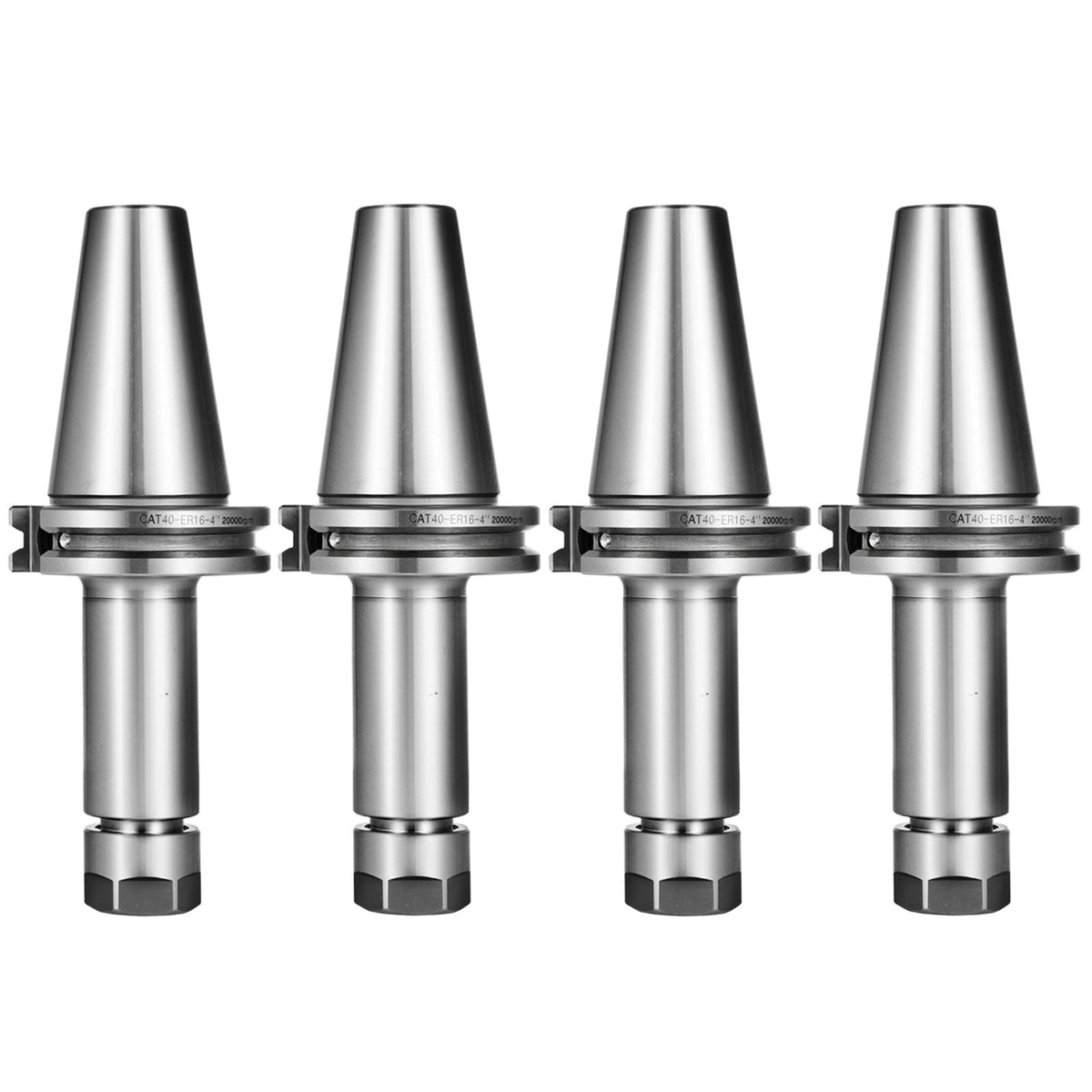

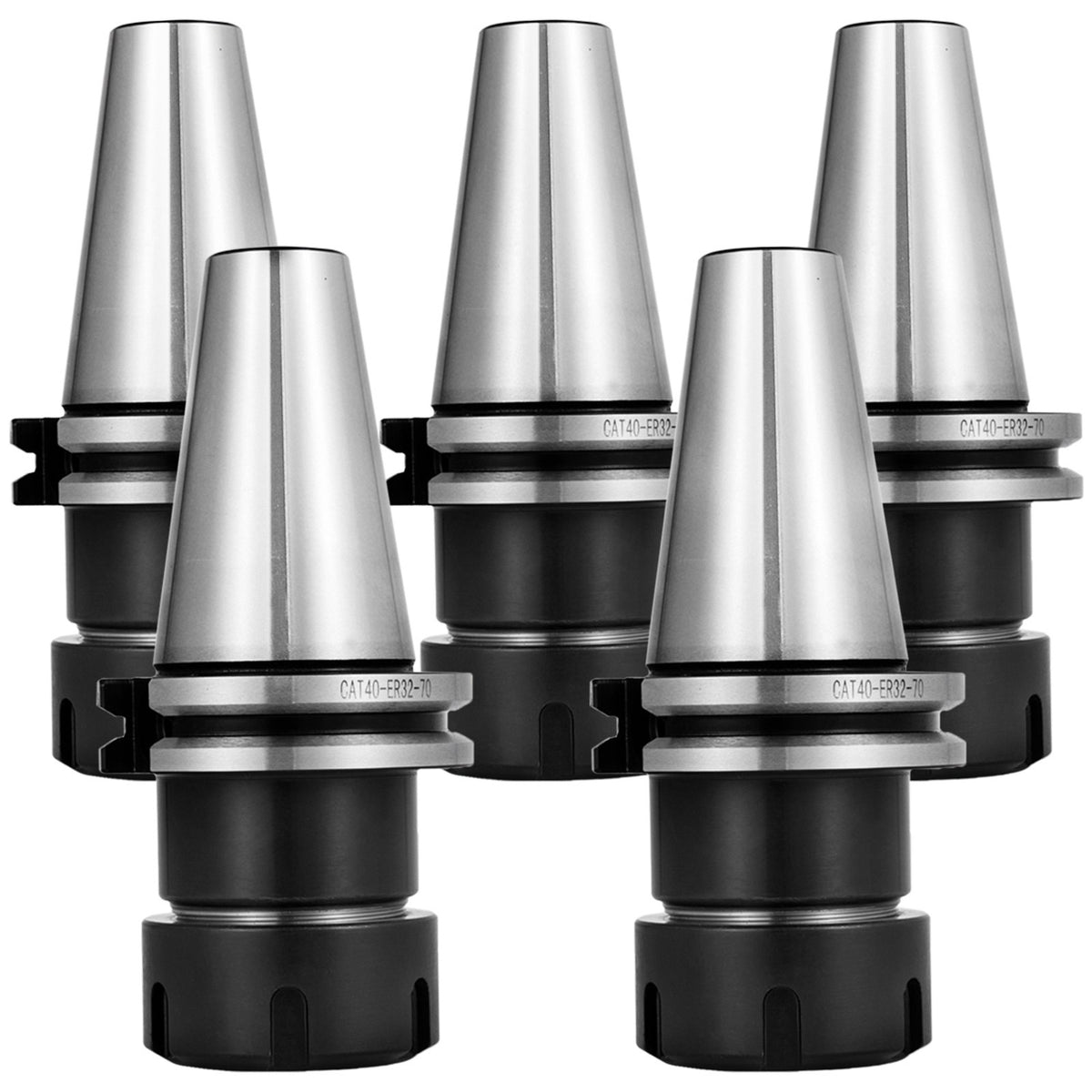

Package Content	Per option - 4 Pcs: 4 x CAT40-ER16 collet chucks (100 mm gage length); 8 Pcs: 8 x CAT40-ER16 collet chucks (70 mm gage length); 5 Pcs: 5 x CAT40-ER32 collets; 1 Pc: 1 x CAT40 keyless drill chuck (1/2 in) with a wrench and a pull stud; 35 Pcs: CAT40-SLN / ER16 / ER32 / APU / FMB holders, ER16 and ER32 collets, 10 pull studs, 3 wrenches and a labeled storage box
Available Options	Chuck Type: CAT40 Keyless Drill Chuck, CAT40-ER16 100 mm, CAT40-ER16 70 mm, CAT40-ER16/ER32 Set, CAT40-ER32; Number of Pieces: 1 Pc, 35 Pcs, 4 Pcs, 5 Pcs, 8 Pcs
