Bench vises for holding your work
Choose a VEVOR bench vise by the workpiece size, required jaw opening and mounting space. Jaw width, opening and throat depth describe different clearances. Compare the exact configuration below rather than selecting by width alone.
Compare the configurations

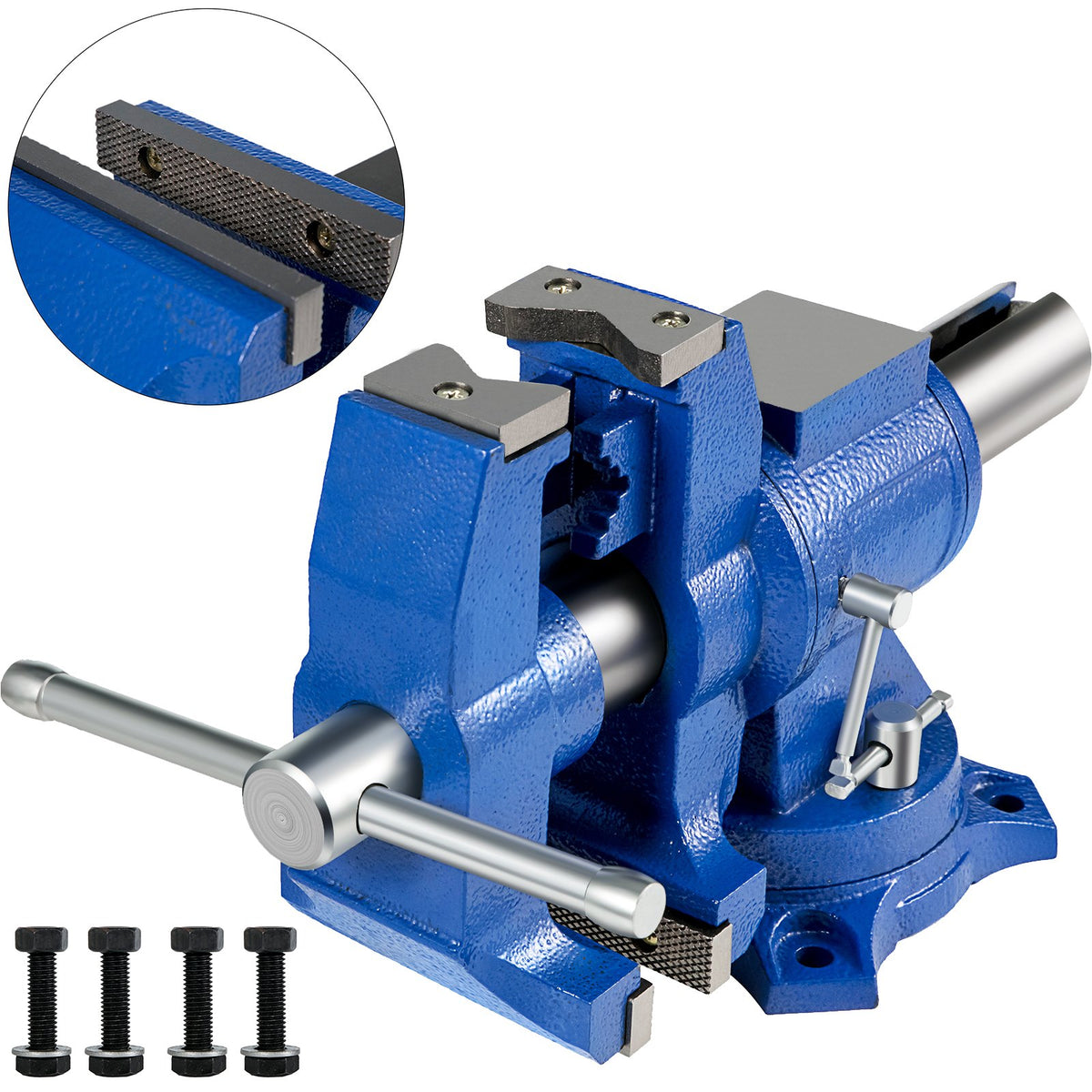

Blue bench vise
SKU: DGNTQQMZT94660001V0
| Specification | This vise |
|---|---|
| Material | Ductile Cast Iron |
| Jaws Opening | 5'' / 127 mm |
| Throat Depth | 3'' / 76 mm |
| Clamping Force | 30 kN |
| Hardness | 46 - 52 HRC |
| Net Weight | 20 kg |
| Item Dimensions(L x W x H) | 17.7'' x 7'' x 9.8'' / 45 x 18 x 25 cm |
Included: One bench vise and four mounting screws.

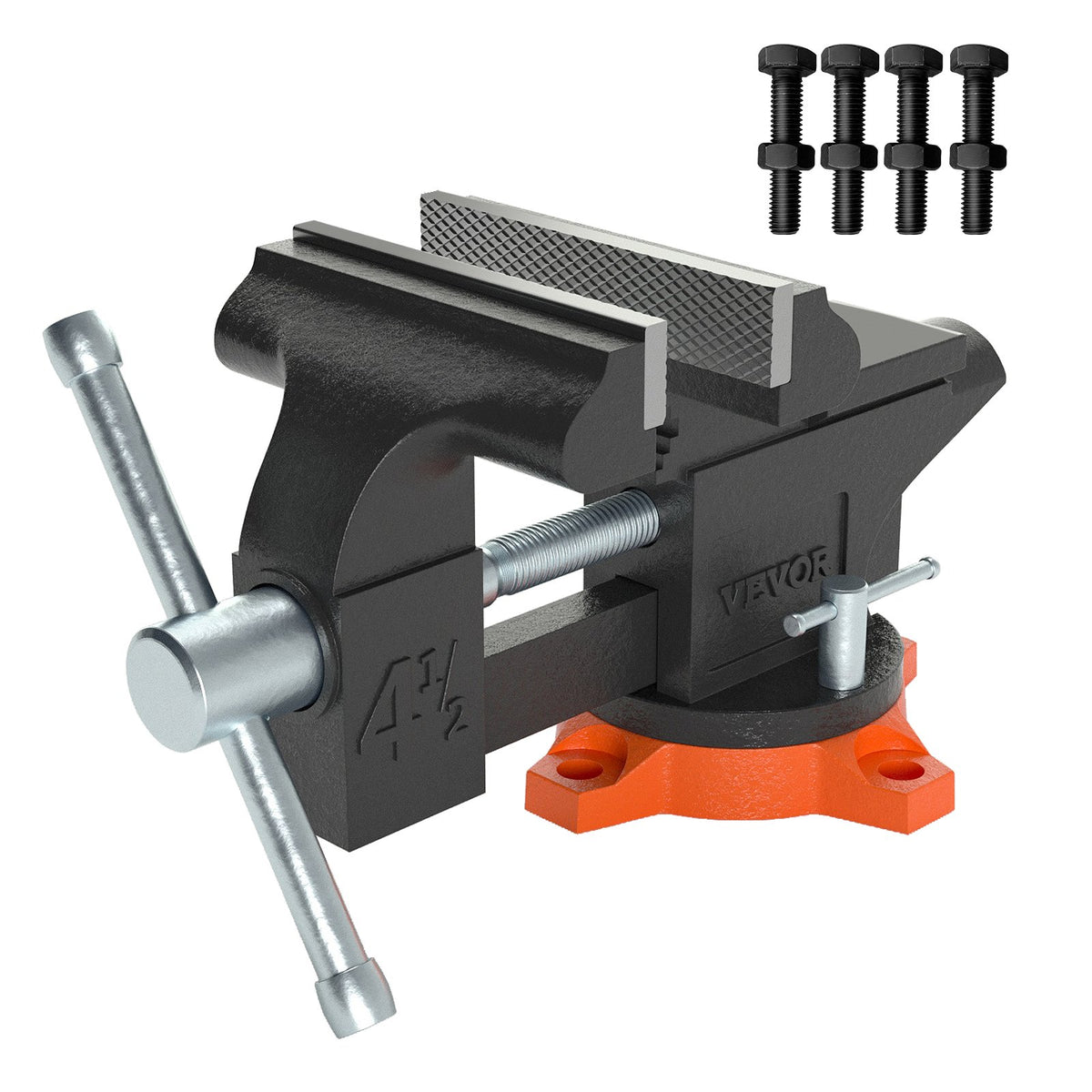

4.5-inch bench vise
SKU: DGNTQDXZSYC45IU5AV0
| Specification | This vise |
|---|---|
| Model | 4.5 Bench Vise |
| Jaw Width | 4.5" / 11.5 cm |
| Jaw Opening | 3.3" / 8.5 cm |
| Throat Depth | 2.3" / 5.9 cm |
| Pipe Clamping Diameter | 0.6"-1.8" / 1.5-4.5 cm |
| Swivel Base | 240 Degree |
| Anvil Size (L x W) | 1.9" x 1.7" / 4.8 x 4.3 cm |
| Net Weight | 4.6 kg |
| Item Dimensions (L x W x H) | 9.5" x 4.6" x 5.7" / 24 x 11.7 x 14.6 cm |
Included: One vise, four mounting bolts with nuts and manual.

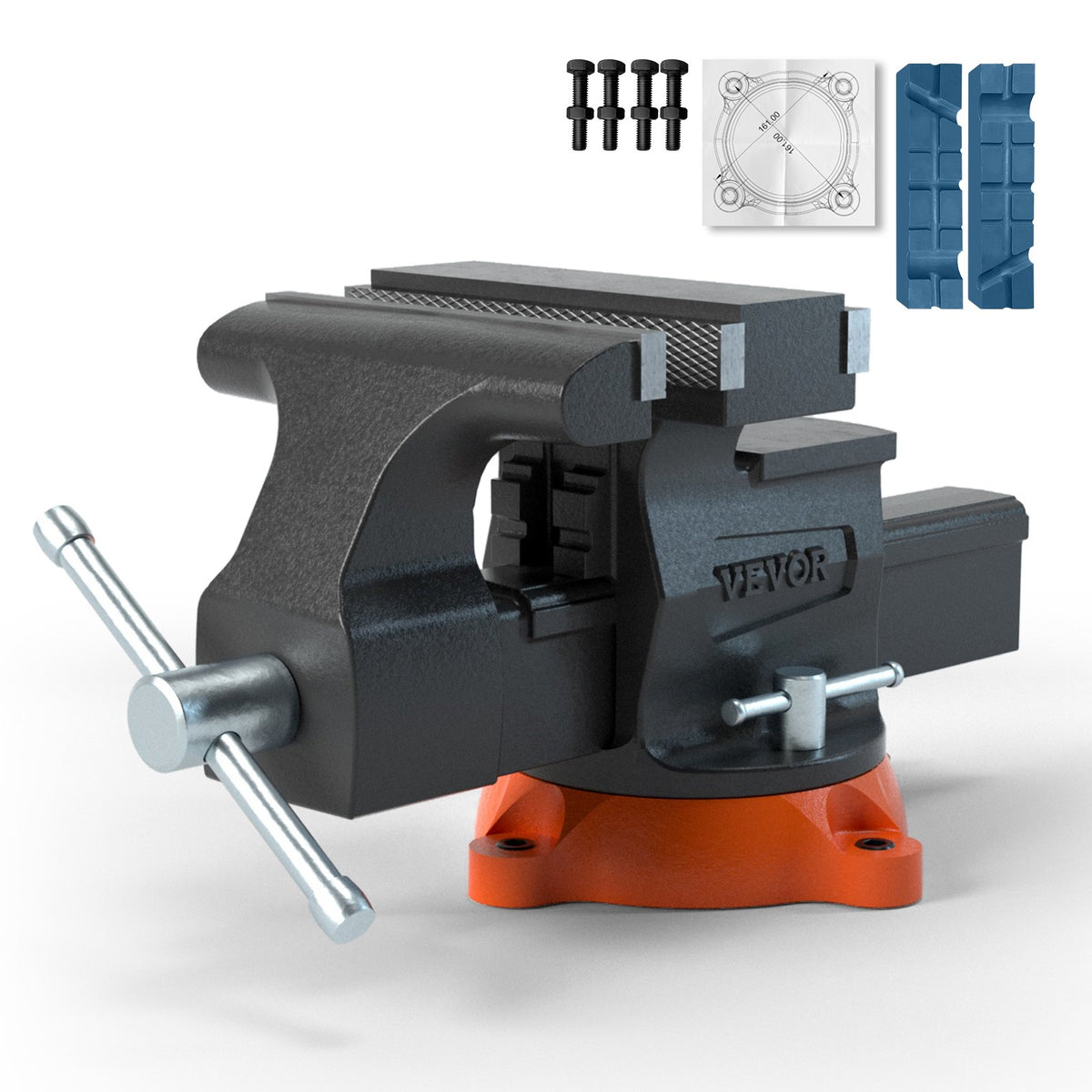

6.5-inch bench vise
SKU: DGNTQDXZSYC65J49IV0
| Specification | This vise |
|---|---|
| Model | 6.5 Bench Vise |
| Jaw Opening (Forward) | 6.5" / 16.5 cm |
| Jaw Opening (Reverse) | 9.3" / 23.5 cm |
| Throat Depth | 3.5" / 8.8 cm |
| Material | Ductile Iron |
| Pipe Clamping Diameter | ø0.6"-2.8" / ø1.5-7 cm |
| Swivel Base | 360 Degree |
| Anvil Size (L x W) | 2.8" x 3" / 7.2 x 7.7 cm |
| Net Weight | 12.9 kg |
| Item Dimensions (L x W x H) | 14.4" x 6.5" x 7.4" / 36.5 x 16.5 x 18.9 cm |
| Maximum clamping force | 20 kN |
Included: One vise, four mounting bolts with nuts and magnetic jaw pads.

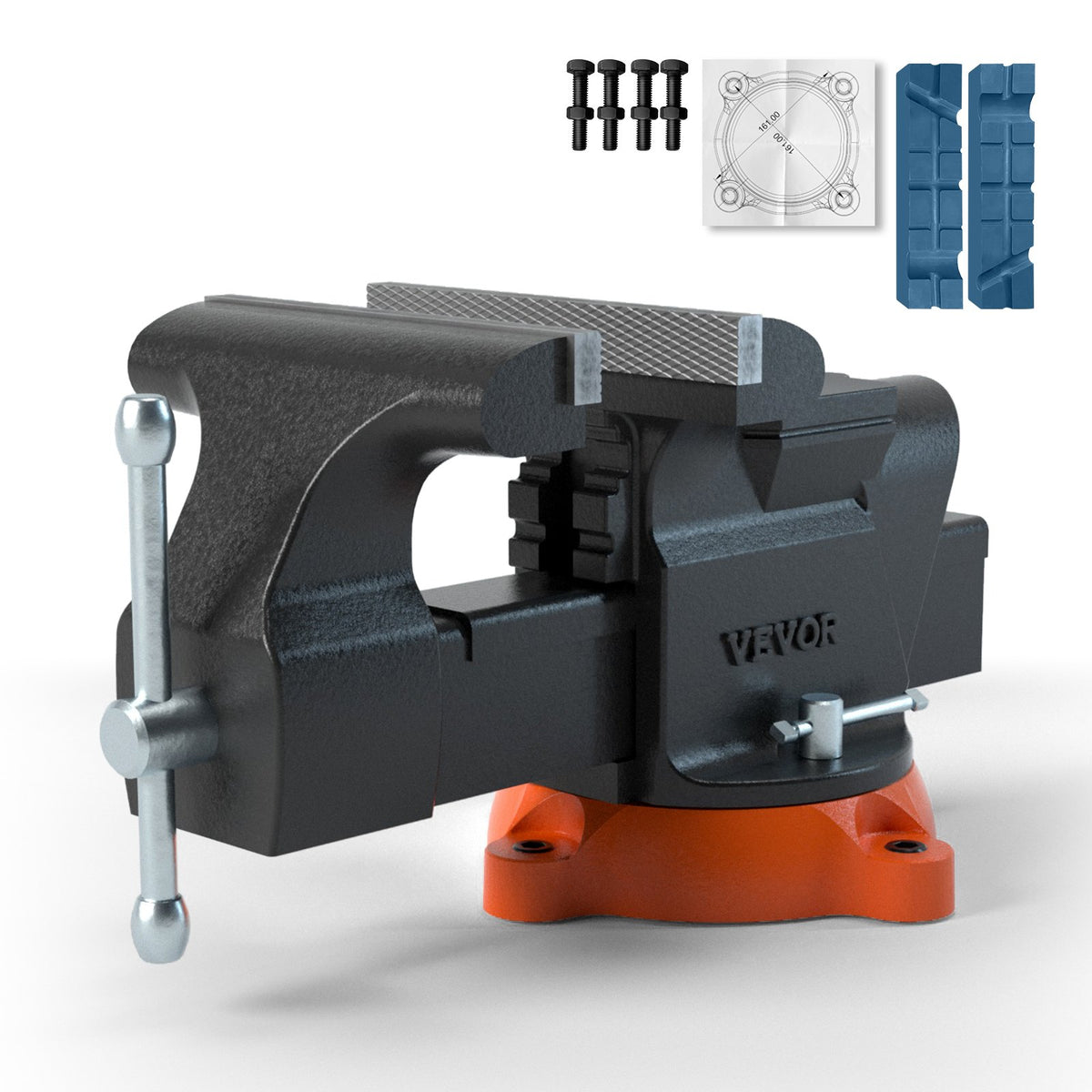

6-inch bench vise
SKU: DGNTQDXZSYCQ6QSMGV0
| Specification | This vise |
|---|---|
| Model | 6 Bench Vise |
| Jaw Width | 6" / 15.2 cm |
| Jaw Opening | 5.9" / 15 cm |
| Throat Depth | 3.5" / 8.8 cm |
| Material | Ductile Iron |
| Pipe Clamping Diameter | ø0.6"-2.9" / ø1.5-7.4 cm |
| Swivel Base | 360 Degree |
| Anvil Size (L x W) | 2.9" x 3" / 7.3 x 8 cm |
| Net Weight | 11.3 kg |
| Item Dimensions (L x W x H) | 14.4" x 6" x 7.4" / 36.5 x 15.1 x 18.9 cm |
| Maximum clamping force | 20 kN |
Included: One vise, four mounting bolts with nuts, magnetic jaw pads and manual.
Choosing and mounting a vise
Compare the workpiece thickness with the jaw opening and the required grip position with the throat depth. For pipe, use the configuration-specific pipe diameter range. Check the overall dimensions and mounting arrangement against your workbench, then follow the supplied instructions for installation.
For the 6.5-inch model, forward and reverse jaw openings describe different setups. The clamping-force figures are not product weights or lifting capacities. Net weights shown above are not shipping weights.
Frequently asked questions
Does jaw width mean the maximum opening?
No. Jaw width is the size across the jaw face; jaw opening is the gap available to hold a workpiece. Both are listed separately where applicable.
Do all models rotate the same way?
No. The 4.5-inch model lists a 240-degree base, while the 6- and 6.5-inch single-swivel models list a 360-degree base. Match the exact SKU to the setup you require.
Are magnetic jaw pads included with every vise?
No. They are listed for the 6- and 6.5-inch single-swivel kits. Refer to the included-items entry for the selected configuration.
Can I compare the clamping force with the vise weight?
No. Kilonewtons measure force; kilograms describe the listed product mass. Use each specification for its stated purpose.
