Overview
Product overview

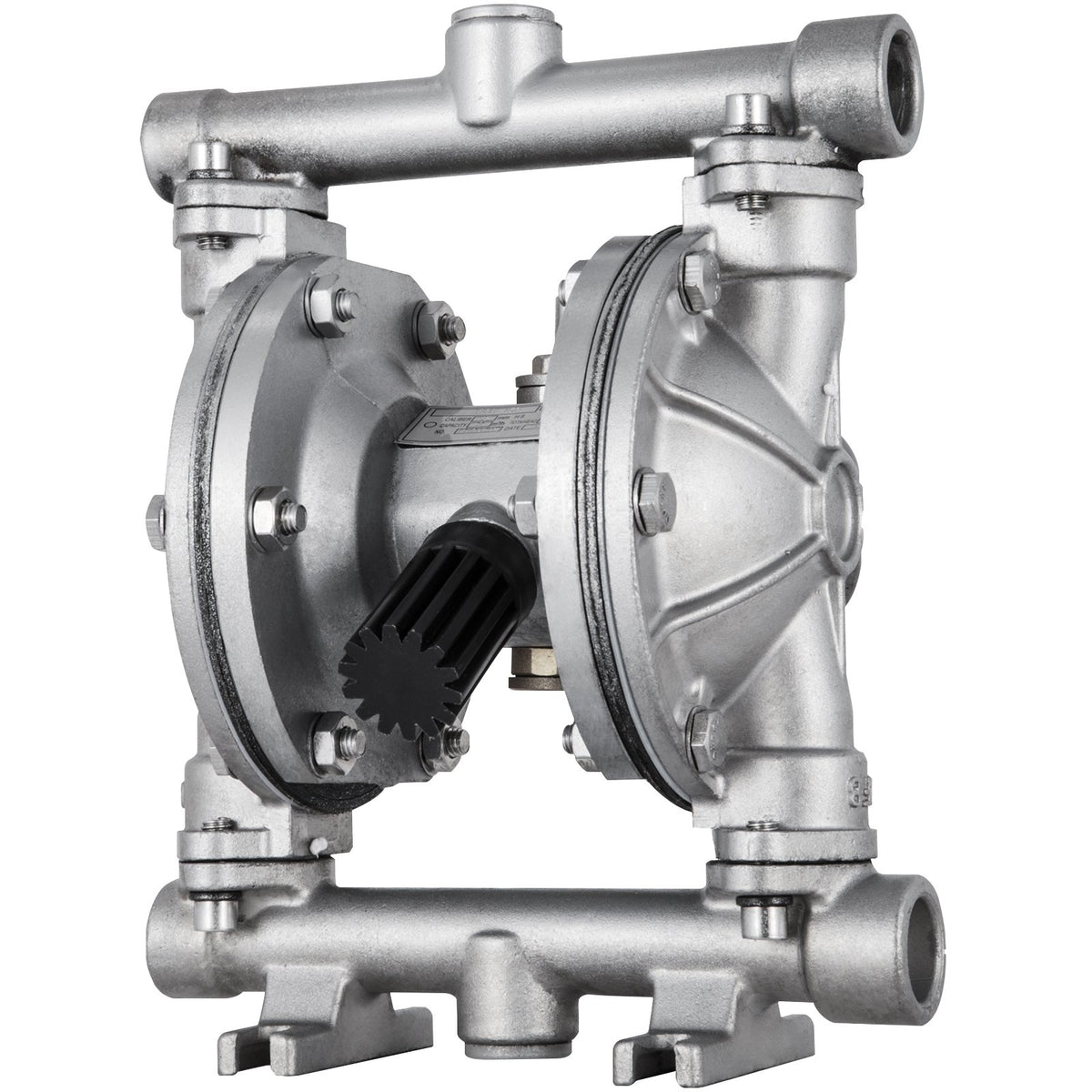

Transfer compatible liquids using compressed air with this stainless-steel double diaphragm pump. The pump has PTFE diaphragms and a bolted housing.
The fluid inlet and outlet are 1/2 in, and the air inlet is 1/4 in FNPT. An externally accessible air-distribution system and modular stainless-steel air valve support maintenance access.
Key features
- Air-operated double diaphragm design
- PTFE diaphragms
- Stainless-steel housing and modular air valve
- 1/2 in fluid inlet and outlet
- 1/4 in FNPT air inlet
- Externally accessible air-distribution system
Specifications
| Pump type | Air-operated double diaphragm |
|---|---|
| Housing material | Stainless steel |
| Diaphragm material | PTFE |
| Fluid inlet / outlet | 1/2 in |
| Air inlet | 1/4 in FNPT |
| Listed flow rate | 8.8 GPM |
| Listed pressure | 120 PSI |
| Maximum head lift | 196.85 ft (60 m) |
| SKU | YBGMBQBK-15P00001V0 |
Included items
- Air-operated double diaphragm pump
Frequently asked questions
What powers this pump?
It is powered by compressed air.
What are the connection sizes?
The fluid inlet and outlet are 1/2 in. The air inlet is 1/4 in FNPT.
What materials are used?
The pump has a stainless-steel housing and PTFE diaphragms.
