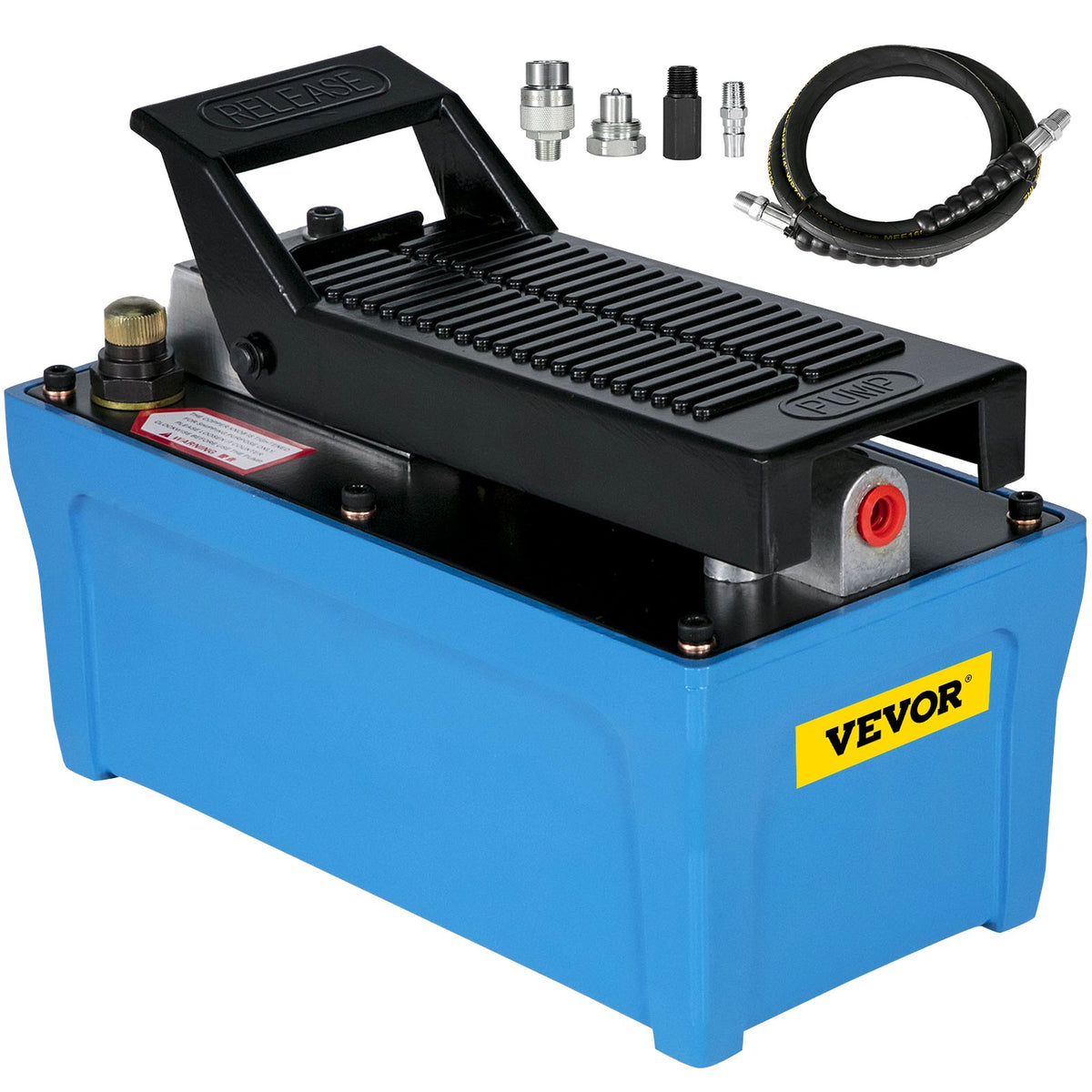

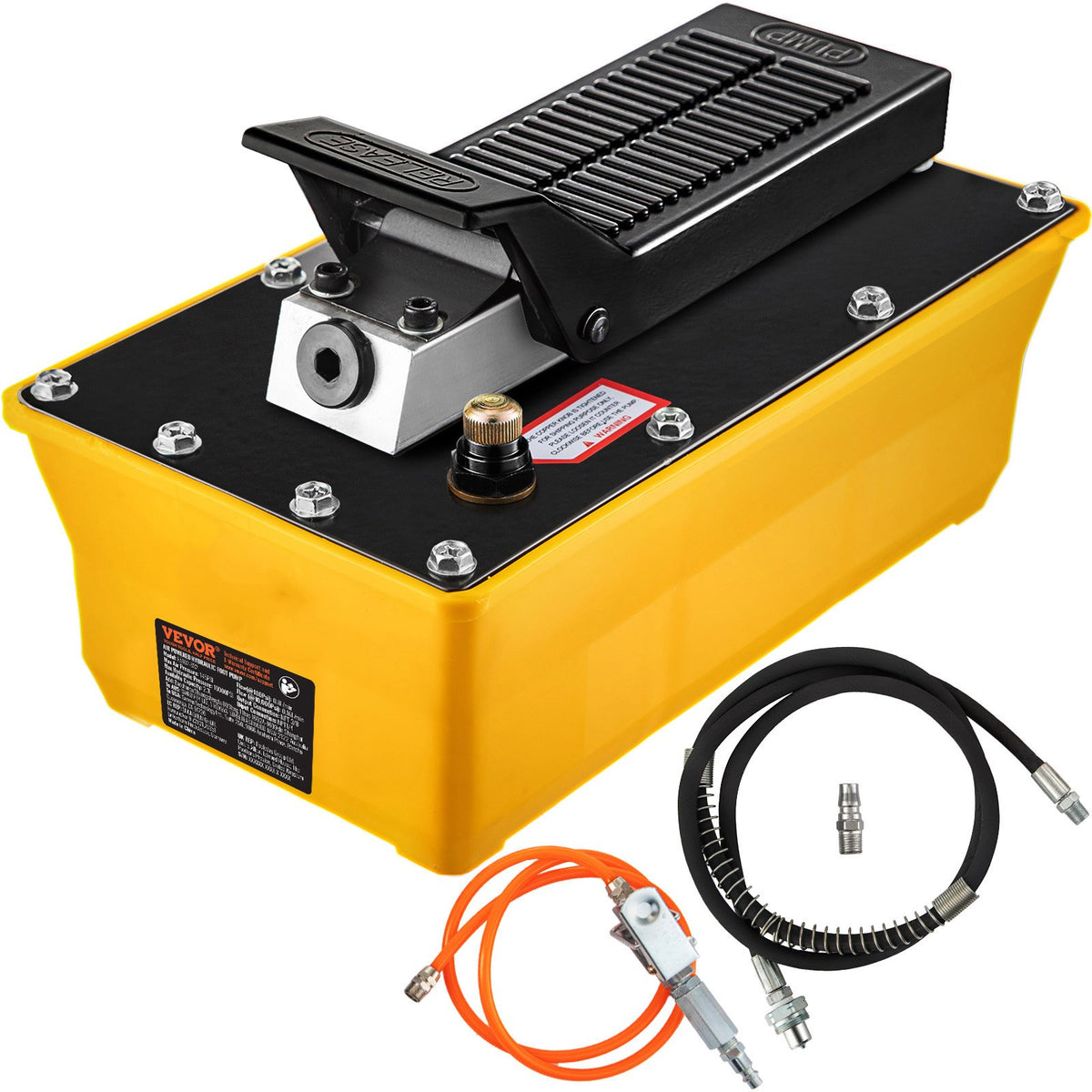

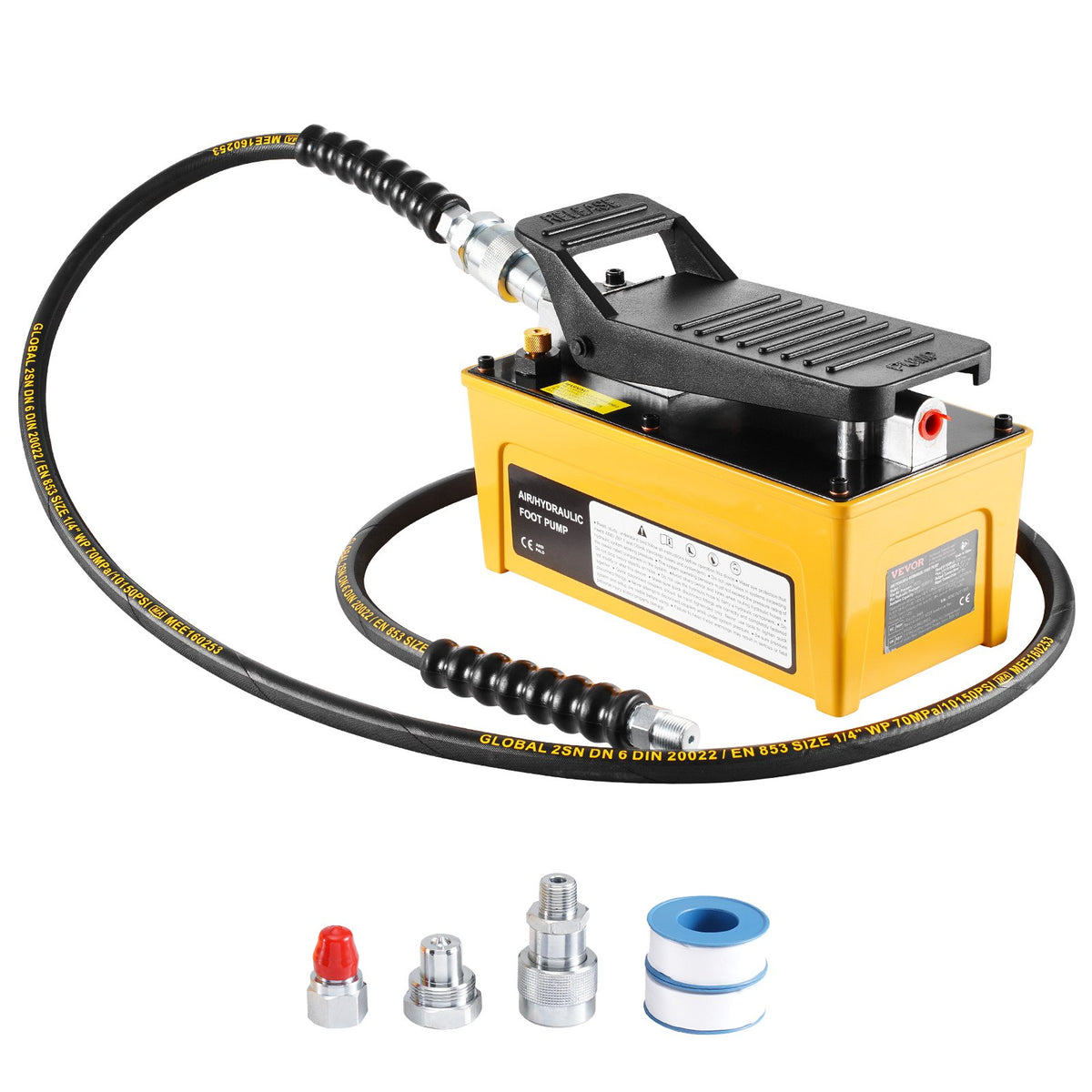

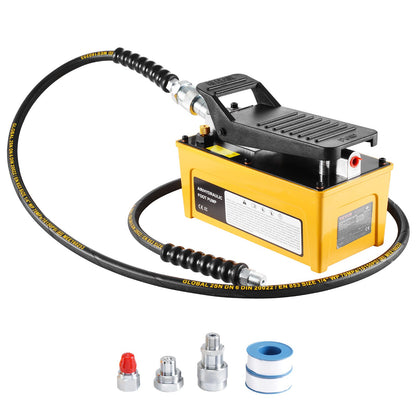

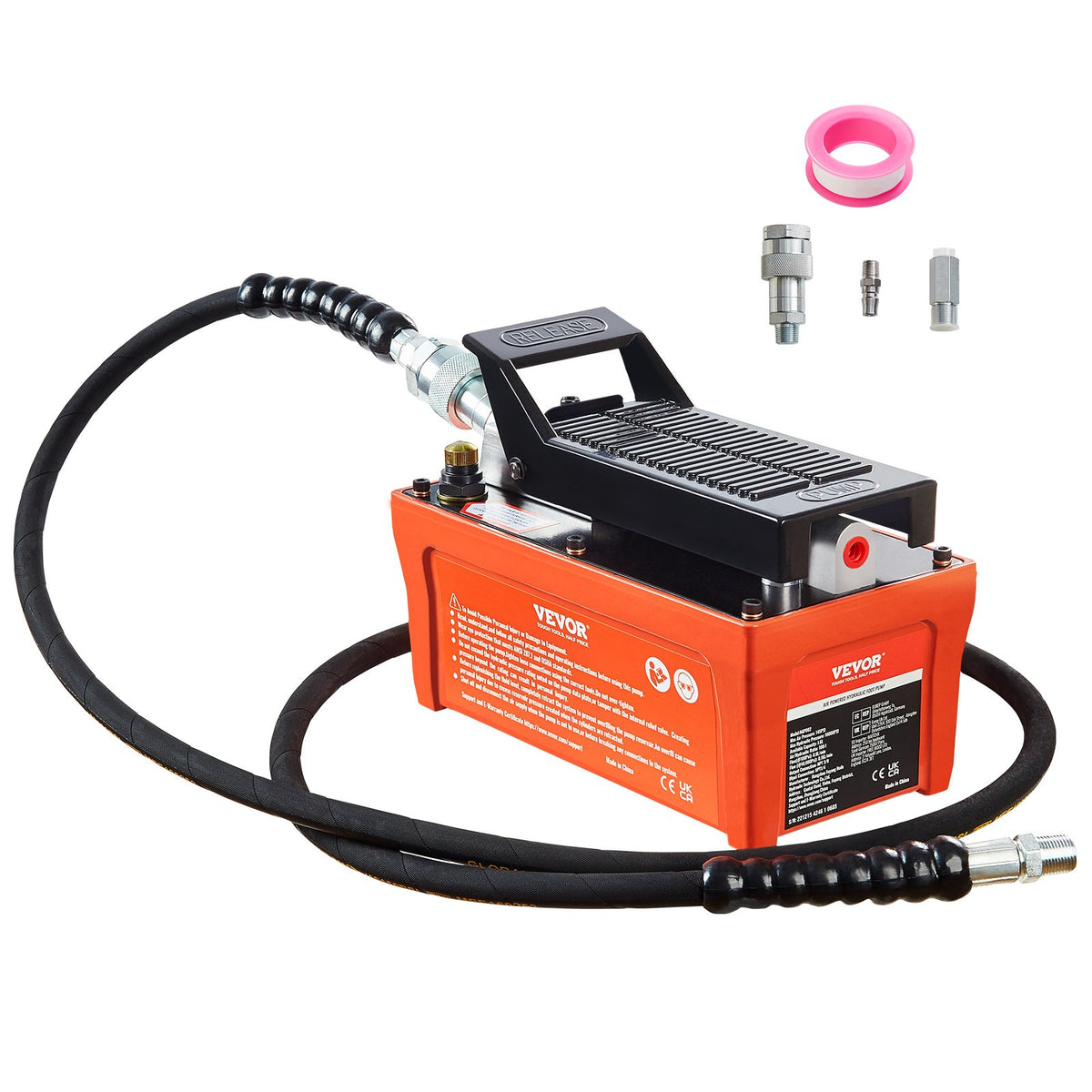

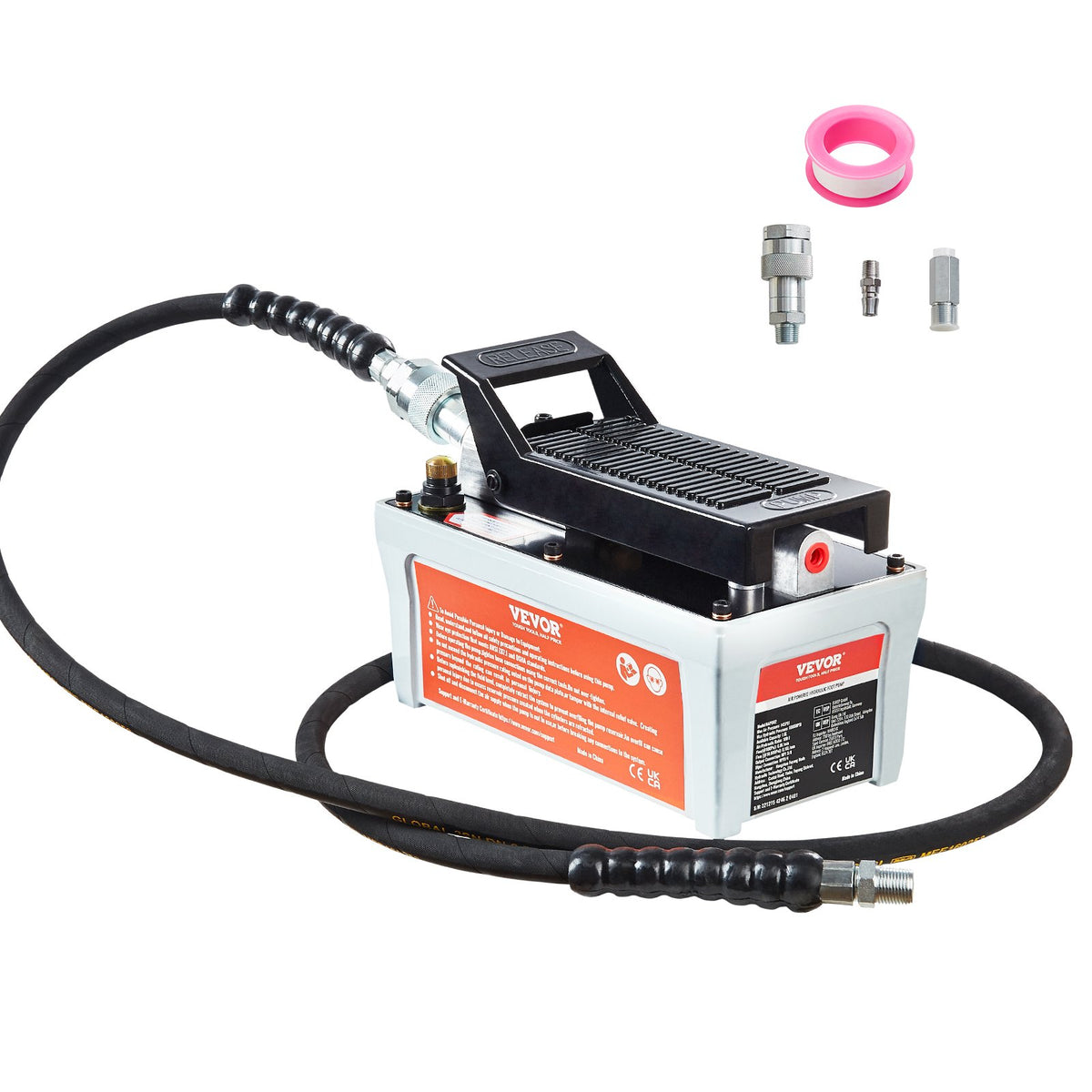

VEVOR Air Hydraulic Pump, 10,000 PSI Air Over Hydraulic Foot Pump with 1.6-2.3 L Reservoir, Foot Pedal or Remote Control, for Auto Body Frame Machines, Hydraulic Presses and Rigging

In stock

Regular price $113.39 USD
Regular price Sale price $113.39 USD
Sale Sold out
Color
Fuel Tank Capacity
Control
Quantity

SKU:QDYYBHSBD2.3L9FR9V0

Product details

What to know before you buy

Core information, use cases, and key selling points for this item.

About this item

Key Features

  • Fundamental Parameters: The hydraulic foot pump has a maximum working pressure of 10,000 PSI, which can be used for all 10-ton applications. Output oil hole: 3/8NPTF connection; Intake: 1/4NPT connection; Oil Output Pressure: 70mpa; Pressure Range: 0.7-1MPa.

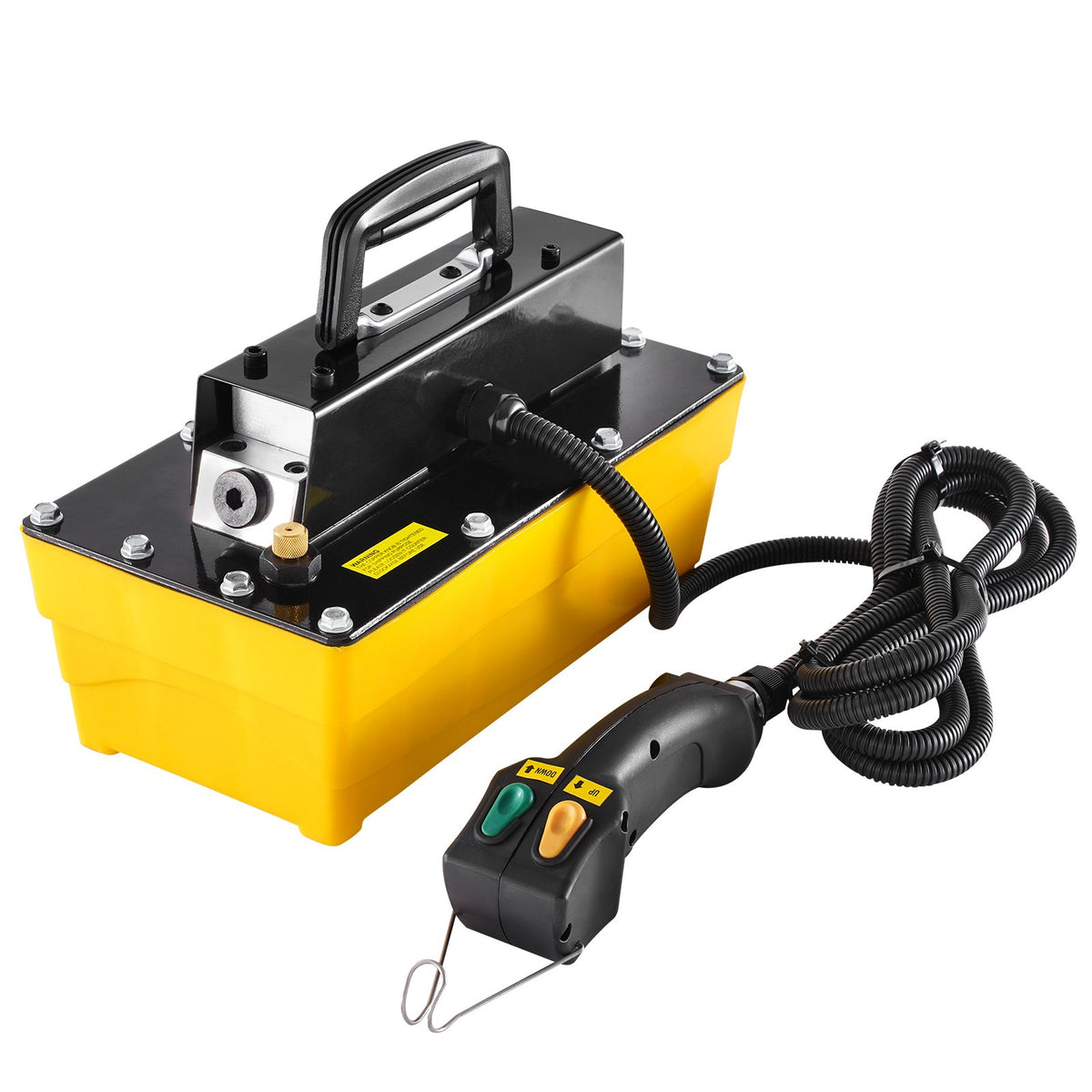

  • Hands-Free Operation: The air hydraulic pump uses a user-friendly foot-actuated treadle to pump and release the load hands-free, saving the operator's time and effort with strong power and high output pressure. The remote-control model adds a 3 m hand controller for the same hands-free control at a distance.
  • Sturdy & Compact Construction: This air hydraulic foot pump features an aviation aluminum pump core and a durable shell to handle tough industrial applications. The 1.6 L or 2.3 L oil tank offers a larger capacity for high performance.
  • Oil Pipe & Spray Gun: This hydraulic air pump is equipped with a 6.56 ft / 2 m high-pressure oil pipe that features double protection of embedded steel wires and a thickened outer layer. The oil port is made of cast steel, durable and reliable. The hose-and-spray-gun version also includes a spray gun.
  • 10,000 PSI for Wide Application: This hydraulic pump is designed to be used with single-acting cylinders only, efficiently operates many industrial and construction single-acting ram applications. It is a great unit for use with a wide variety of rams, presses, and hydraulic pullers operating at up to 10,000 PSI.

Specifications

Brand VEVOR
Product Type Plumbing > Hydraulic Pumps > Air Hydraulic Pump
Maximum Output Pressure 10,000 PSI
Action Single Acting
Input Air Pressure 0.7-1 MPa / 110-145 PSI
Air Inlet NPT 1/4 in
Oil Outlet NPT 3/8 in
Available Options Color: Blue, Gray, Orange, Yellow; Fuel Tank Capacity: 1.6 L, 2.3 L; Control: Foot Pedal, Remote Control
