Overview
Product overview
Create vinyl graphics and heat-transfer projects with the VEVOR 8-in-1 heat press and 53-inch-class cutting plotter. The cutter accepts a maximum 53.1-inch paper feed and provides a 49.6-inch maximum cutting width.
The heat press has a 360° swing-away arm that moves the heating element to the side. Both machines use digital controls, and the press includes an audible alarm for the set heating cycle.
Key features
- 8-in-1 heat press paired with a 53-inch-class vinyl cutter
- 360° swing-away press arm moves the heating element away from the work area

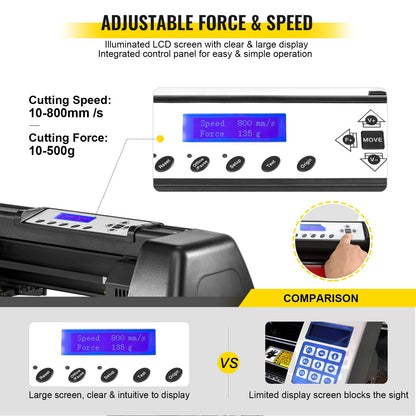

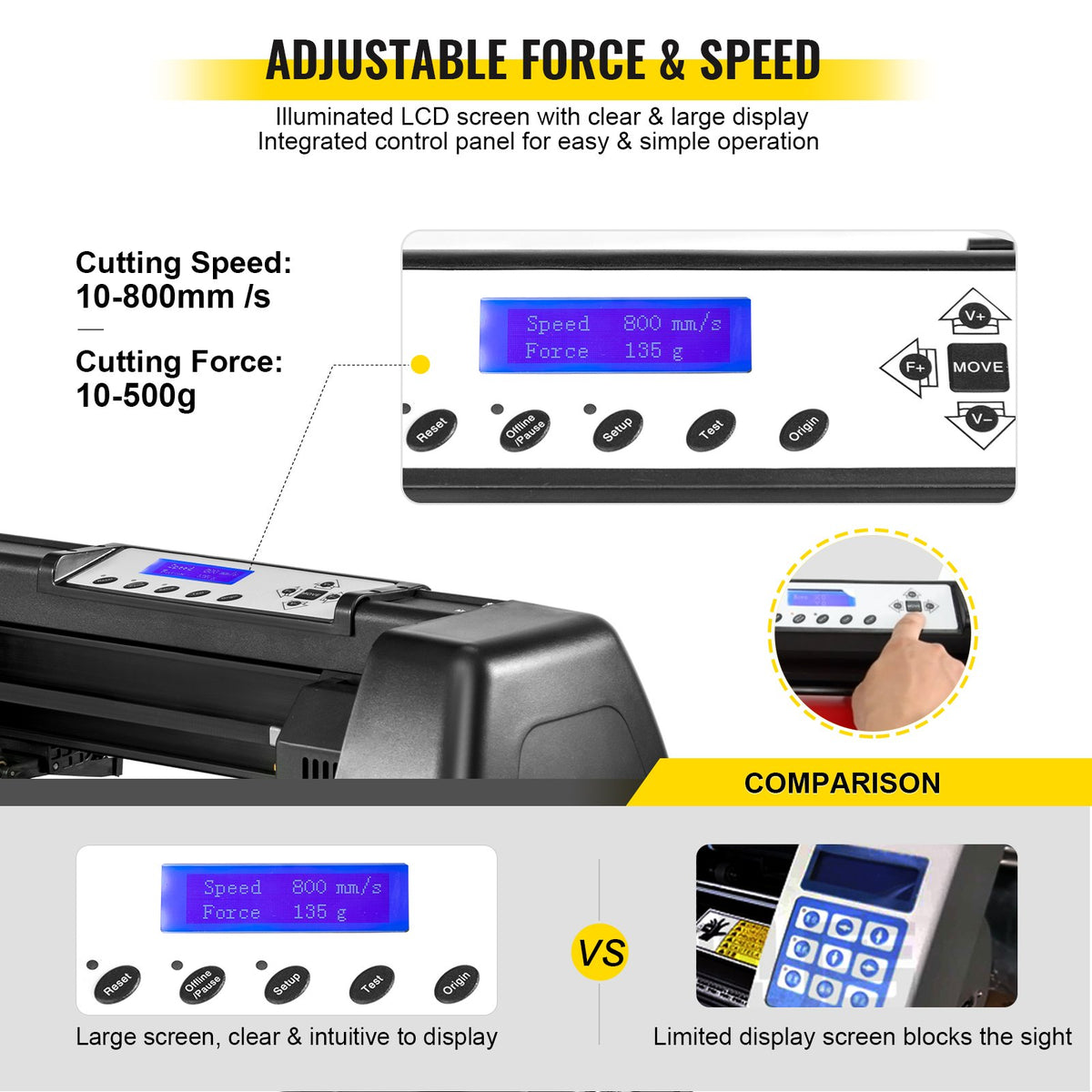

- Illuminated LCD cutter display and digital heat press controls
- Cutting force adjusts from 10 to 500 g
- Cutting speed adjusts from 10 to 800 mm/s
- USB and COMPIM interfaces with DM/PL and HP/GL language support
Specifications
| Brand | VEVOR |
|---|---|
| Press type | 8-in-1 heat press |
| Press arm rotation | 360° |
| Cutter nominal size | 53 in |

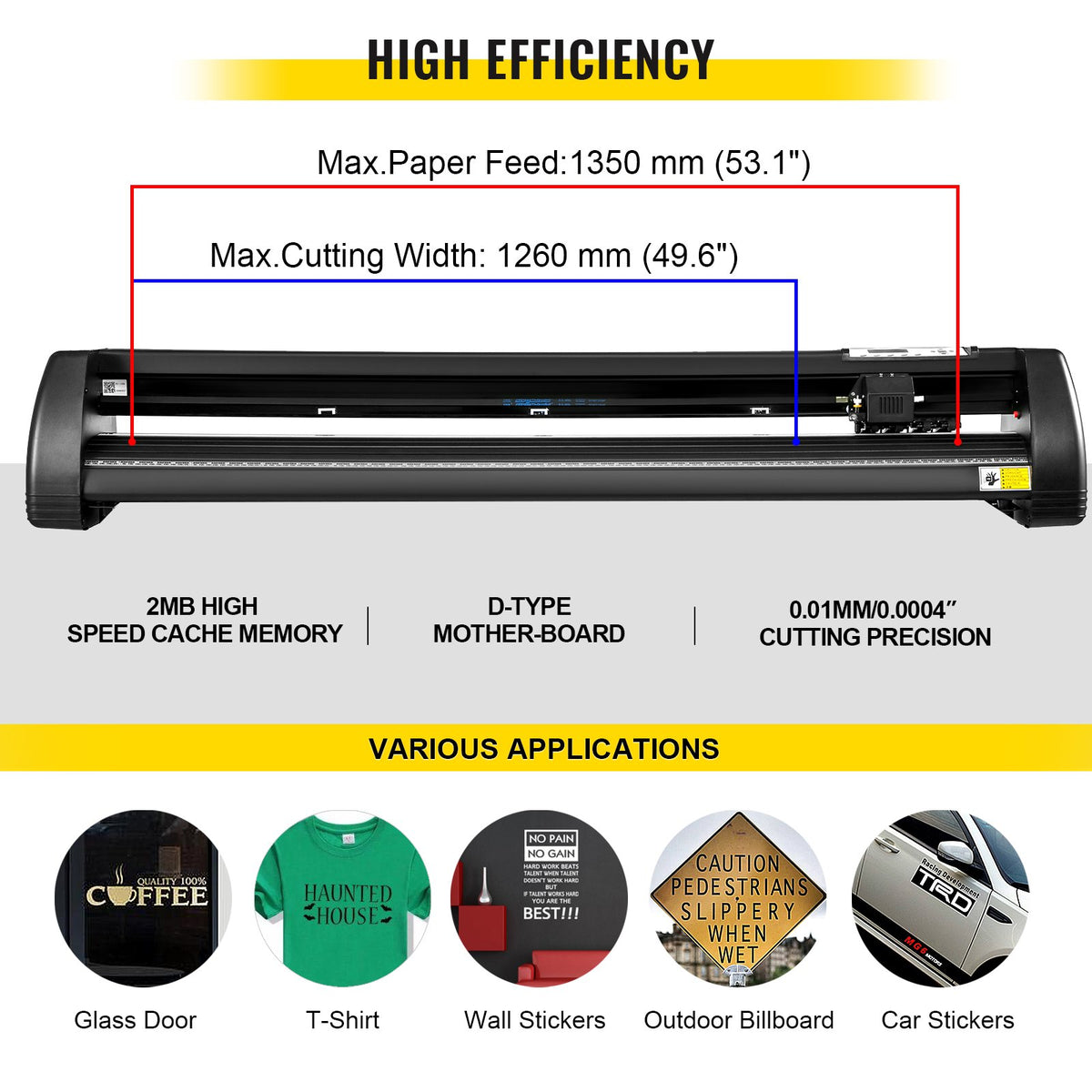

| Maximum paper feed | 53.1 in / 1350 mm |
| Maximum cutting width | 49.6 in / 1260 mm |
| Cutting force | 10–500 g |
| Cutting speed | 10–800 mm/s |
| Cache memory | 2 MB |
| Stated repetition accuracy | 0.0004 in / 0.01 mm |
| Connections | USB and COMPIM |
| Supported languages | DM/PL and HP/GL |
| Listed operating systems | Windows XP/Vista/7/8/10, 32-bit and 64-bit; Pentium-based PC or compatible |
| Mac compatibility | Not compatible |
| SKU | FM1181THJKZJ-1350V1 |
Included items

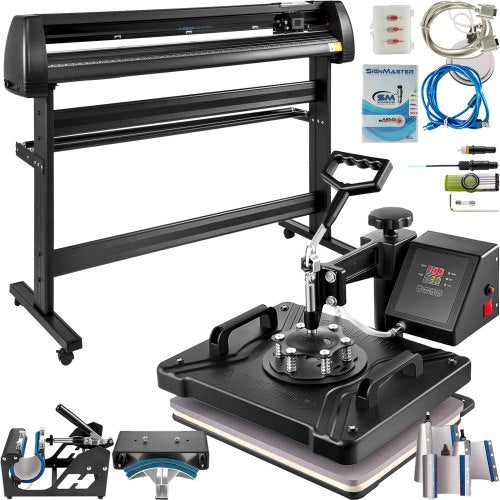

- 1 8-in-1 heat press
- 1 vinyl cutter with floor stand
Important notes
- Not compatible with Mac systems.
Frequently asked questions
Is the cutting width 53 inches?
The nominal cutter size is 53 inches. Its maximum paper feed is 53.1 inches, and its maximum cutting width is 49.6 inches.
Does the press swing away?
Yes. Its arm rotates 360° so the heating element can move to the side.
Which computer systems are listed?
The source lists Windows XP, Vista, 7, 8 and 10 in 32-bit and 64-bit versions. Mac systems are not compatible.
