Overview
Product overview

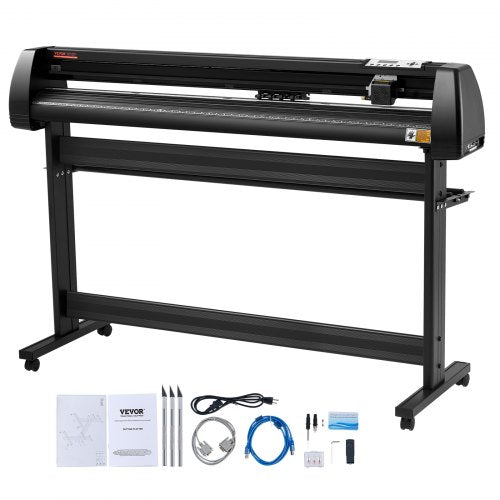

Create vinyl lettering, decals and signs with this 53-inch-class VEVOR cutter plotter. It accepts media up to 1350 mm wide and cuts up to 1260 mm across.
Key features
- Adjust cutting pressure and speed from the LCD control panel.
- Four double-spring pinch rollers support media feeding.
- USB and serial connections support compatible Windows workflows.
- Includes SignMaster software and supports DMPL and HPGL command languages.
Specifications
| Maximum paper feed | 1350 mm / 53 in |
|---|---|
| Maximum cutting width | 1260 mm / 49.6 in |
| Maximum cutting thickness | 1 mm / 0.04 in |
| Cutting pressure | 10–500 g |
| Cutting speed | 10–800 mm/s |
| Cache memory | 2 MB |
| Compatible operating systems | Windows XP, Vista, 7, 8 and 10 |
| Connections | USB and serial |
| Color | Black |
| SKU | KZJ-1350SDJC00001V1 |
Included items
- Vinyl cutter plotter with floor stand
- SignMaster software
Important notes
- Keep hands away from the blade while the machine is running.
- Confirm that your computer and intended material are compatible before ordering.
Frequently asked questions
Does it work with a Mac?
No. The source specifies Windows XP, Vista, 7, 8 and 10 and states that Mac systems are not supported.
Is the full 53-inch width available for cutting?
No. Maximum paper feed is 1350 mm, while maximum cutting width is 1260 mm / 49.6 inches.
Can cutting speed and pressure be adjusted?
Yes. Pressure adjusts from 10 to 500 g and speed from 10 to 800 mm/s.
