About this item
Product overview

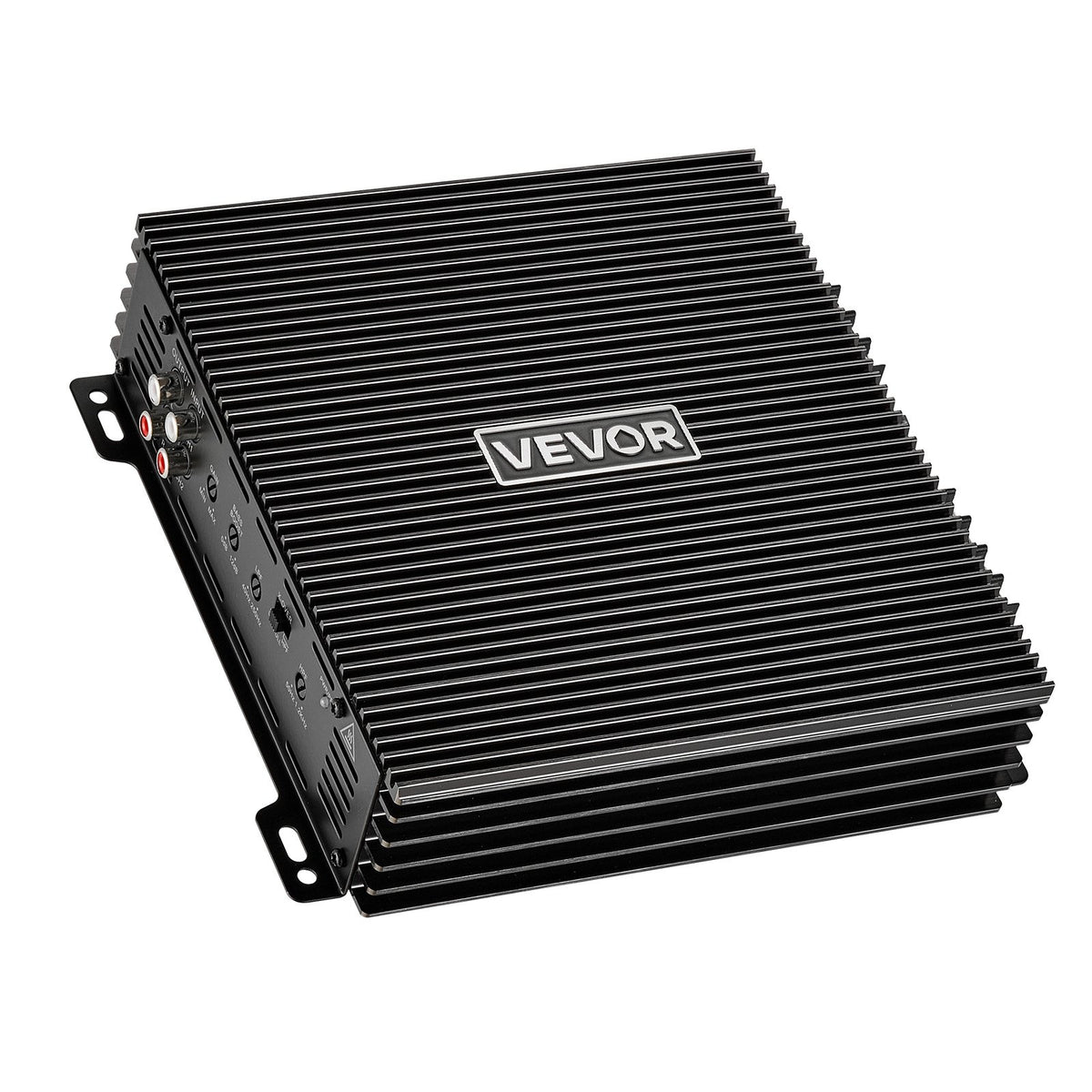

Add a 2-channel amplifier to your vehicle audio setup with the VEVOR MXAB600.2. This Class A/B model has bridgeable channels and source-rated RMS output of 2 × 150 W at 2 ohms.
The aluminum alloy housing has cooling fins, and the rated supply voltage is 14.4 V DC for a nominal 12 V automotive system. Use the listed output and impedance specifications to plan matching speakers and installation.
Key features
- 2-channel Class A/B amplifier with bridgeable channels
- Source-rated RMS output: 2 × 150 W at 2 ohms
- Stated frequency response: 10 Hz–30 kHz (-3 dB)

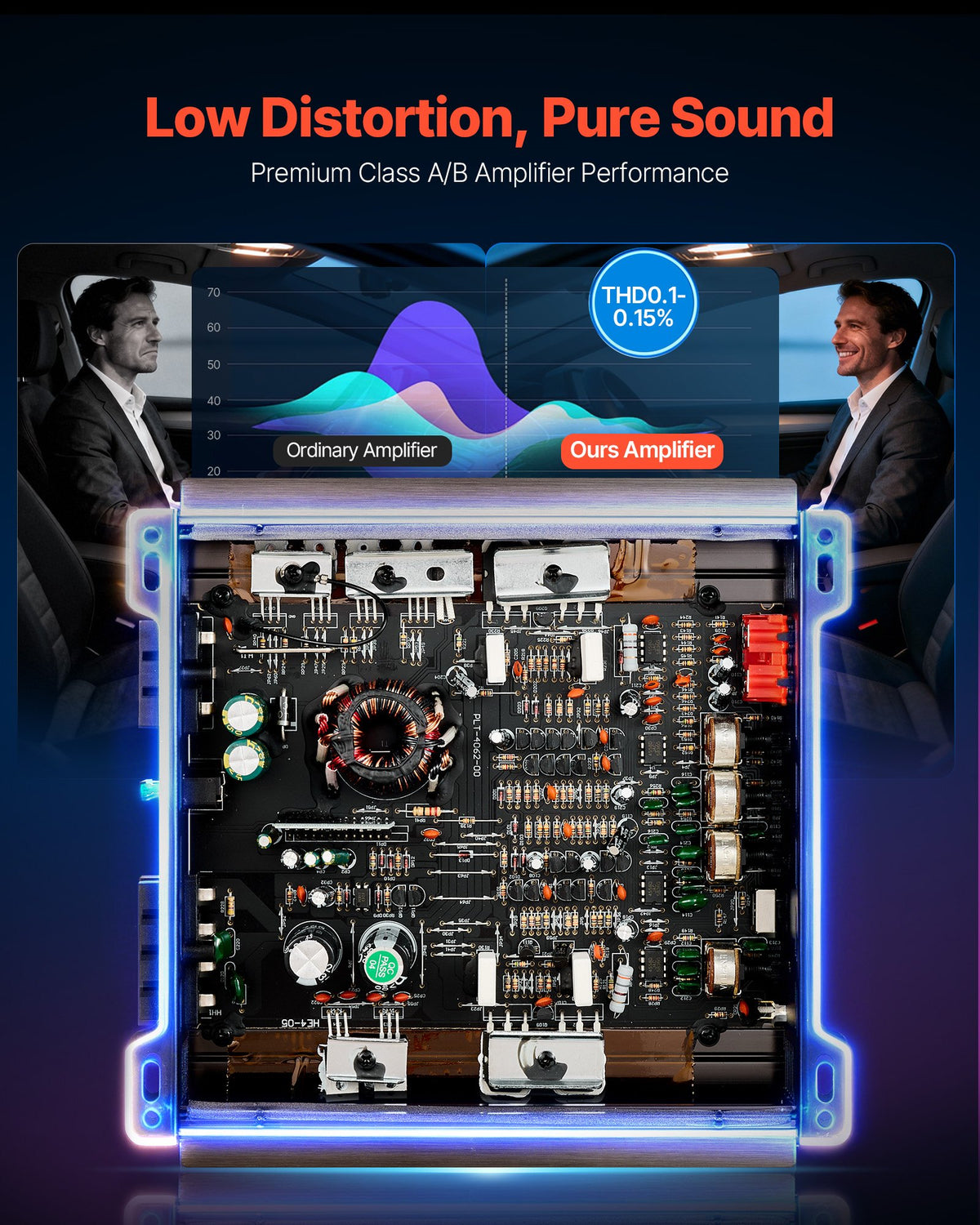

- Signal-to-noise ratio: >92 dB; total harmonic distortion: 0.1–0.15%

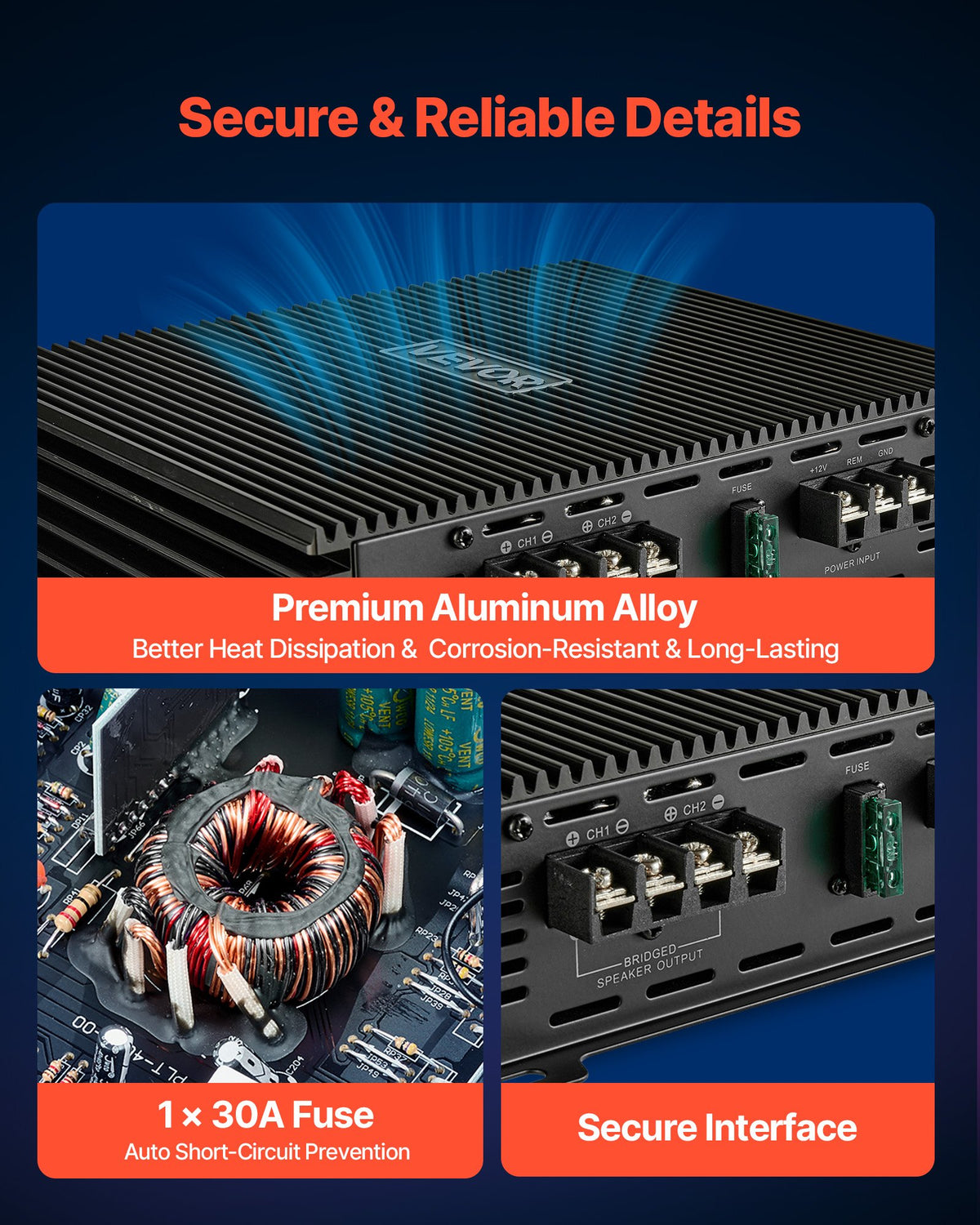

- Aluminum alloy housing with external cooling fins

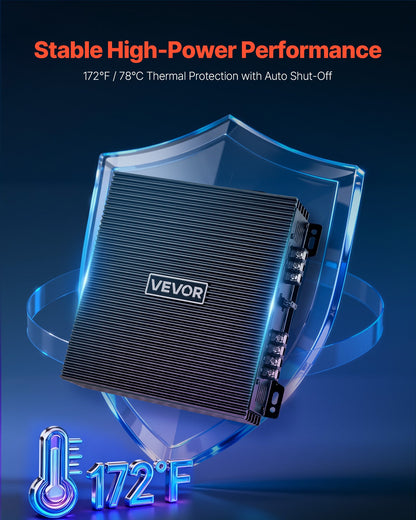

- Thermal shutoff specified at 172°F / 78°C

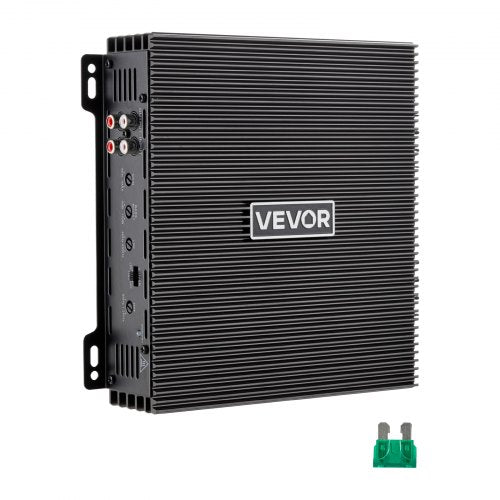

- Integrated fuse arrangement: 1 × 30 A
Specifications
| Brand | VEVOR |
|---|---|
| Model | MXAB600.2 |
| Channels | 2 |
| Amplifier class | A/B |
| Nominal vehicle system | 12 V automotive |
| Rated voltage | 14.4 V DC |
| RMS output | 2 × 150 W at 2 ohms |

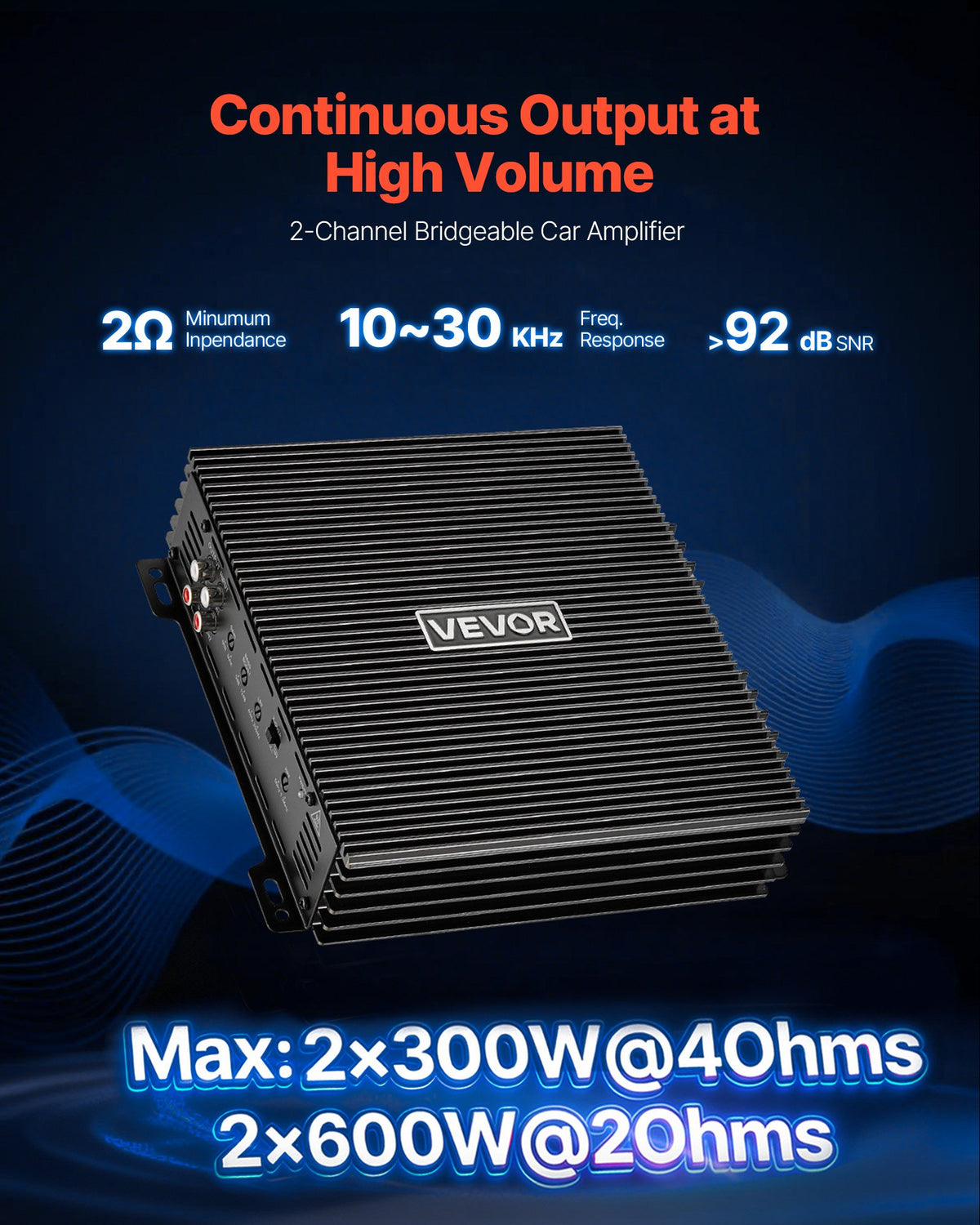

| Maximum output | 2 × 300 W at 4 ohms; 2 × 600 W at 2 ohms |
| Minimum stated impedance | 2 ohms |
| Bridgeable | Yes |
| Frequency response | 10 Hz–30 kHz (-3 dB) |
| Total harmonic distortion | 0.1–0.15% |
| Signal-to-noise ratio | >92 dB |
| Housing material | Aluminum alloy |
| Source color designation | Titanium gray |
| Dimensions | 8.6 × 8.3 × 2.1 in / 218 × 210 × 54 mm |
| Product weight (gallery) | 3.3 lb / 1.49 kg |
| Shipping weight | 3.64 lb |
| Thermal shutoff | 172°F / 78°C |
| Maximum bridged output | 1 × 1200 W at 4 ohms |
| Fuse arrangement | 1 × 30 A |
| SKU | 2TDABL2X150WJE7E1001V9 |
Included items
- 1 2-channel car amplifier
Frequently asked questions
Are the maximum and RMS power figures the same?
No. The source lists 2 × 150 W at 2 ohms as RMS output and 2 × 300 W at 4 ohms; 2 × 600 W at 2 ohms as maximum output.
Can the channels be bridged?
Yes. The stated maximum bridged output is 1 × 1200 W at 4 ohms.
What vehicle electrical system is it intended for?
It is listed for nominal 12 V automotive systems, with a rated voltage of 14.4 V DC. Check your system and installation requirements before selecting the amplifier.
