Product overview

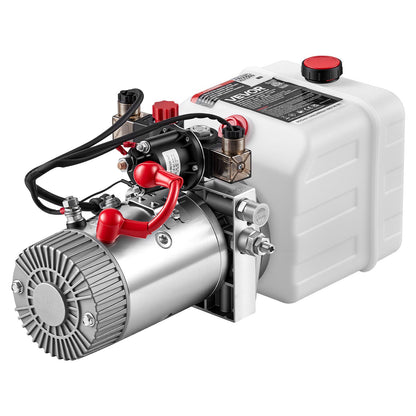

This 3-quart double-acting hydraulic power unit is designed for compatible dump trailers, liftgates and lifting equipment. It provides powered lifting and lowering. Install horizontally only.
Key features
- 12V DC, 1.6kW motor running at 2600 RPM
- 0.91 GPM stated flow rate
- 16–20 MPa working pressure; 3200 PSI maximum relief pressure
- Plastic reservoir with 3-quart capacity
- Handheld wired controller
- Pre-assembled pump unit for connection to a compatible hydraulic system
Specifications
| Reservoir capacity | 3 qt |
|---|---|
| Action | Double-acting |
| Reservoir material | Plastic |
| Supply | 12V DC |
| Motor power | 1.6 kW |
| Motor speed | 2600 RPM |
| Flow rate | 0.91 GPM |

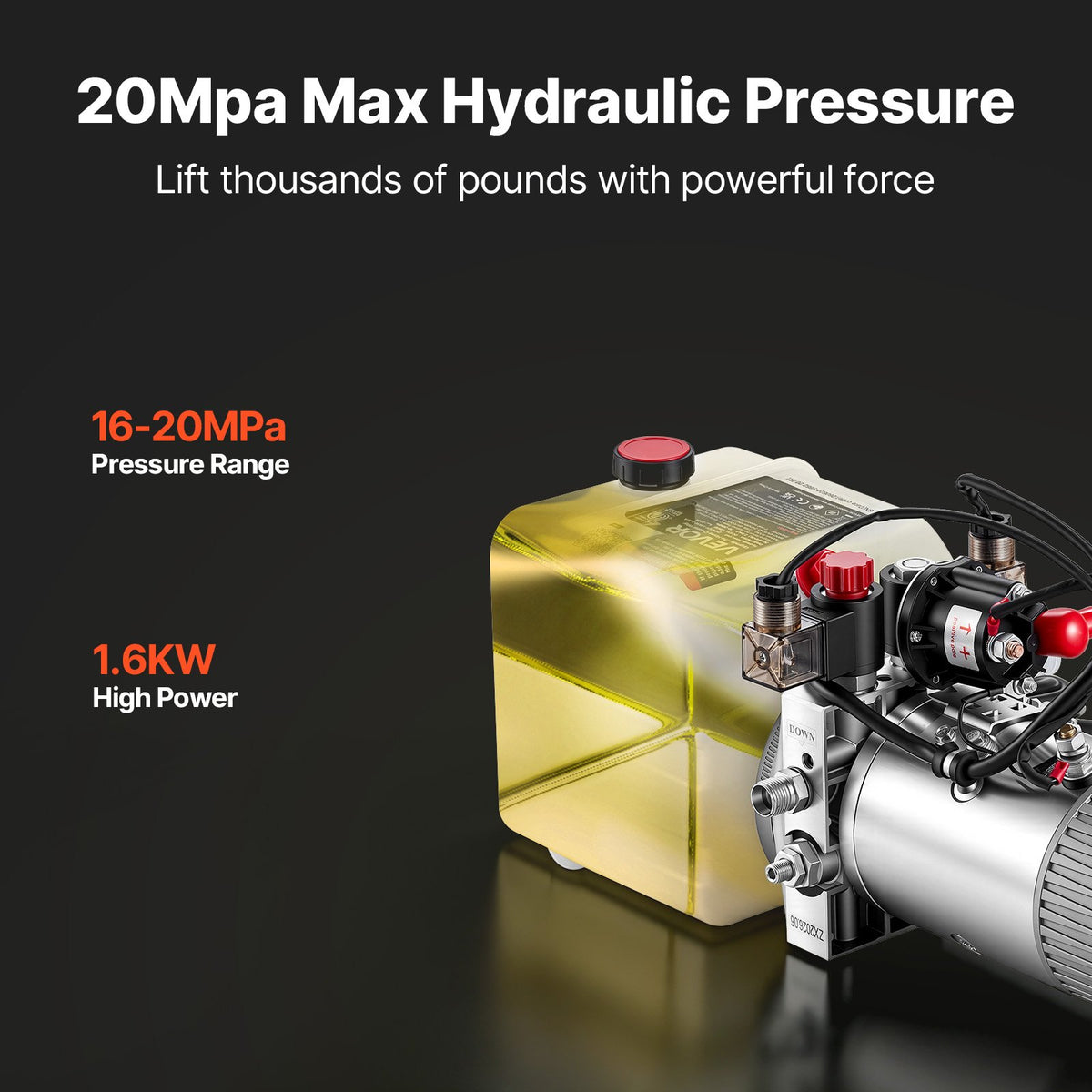

| Working pressure | 16–20 MPa |
| Maximum relief pressure | 3200 PSI |
| Duty cycle | 30 seconds on, 270 seconds off |
| Installation | Horizontal only; not for vertical mounting |
| Net weight | 24.7 lb / 11.2 kg |
| Shipping weight | 27.07 lb |
| Hydraulic oil viscosity, source guidance | 22–46 mm²/s |
| Overflow-valve pressure limit, source guidance | 20 MPa |
| SKU | 12VSZYSLXCZYIUN02001V9 |
Included items
- Hydraulic power unit
- Handheld wired controller
- Two SAE#6 connectors
- User manual
Important notes
- Horizontal installation only. Do not mount vertically.
- Use intermittently: 30 seconds of operation followed by 270 seconds off.
- Add the specified hydraulic oil and connect suitable power cables and hoses according to the instructions. Confirm compatibility with the equipment.
- 3200 PSI is the maximum relief pressure; the stated working range is 16–20 MPa.
- The original connection guide specifies hydraulic oil viscosity 22–46 mm²/s and an overflow-valve pressure limit of 20 MPa. Follow the supplied instructions for oil selection and operation.
Frequently asked questions
Can this pump be mounted vertically?
No. It is designed for horizontal installation only.
Can it run continuously?
No. The stated duty cycle is 30 seconds on followed by 270 seconds off.
How does it lower the load?
This double-acting model powers both lifting and lowering.
