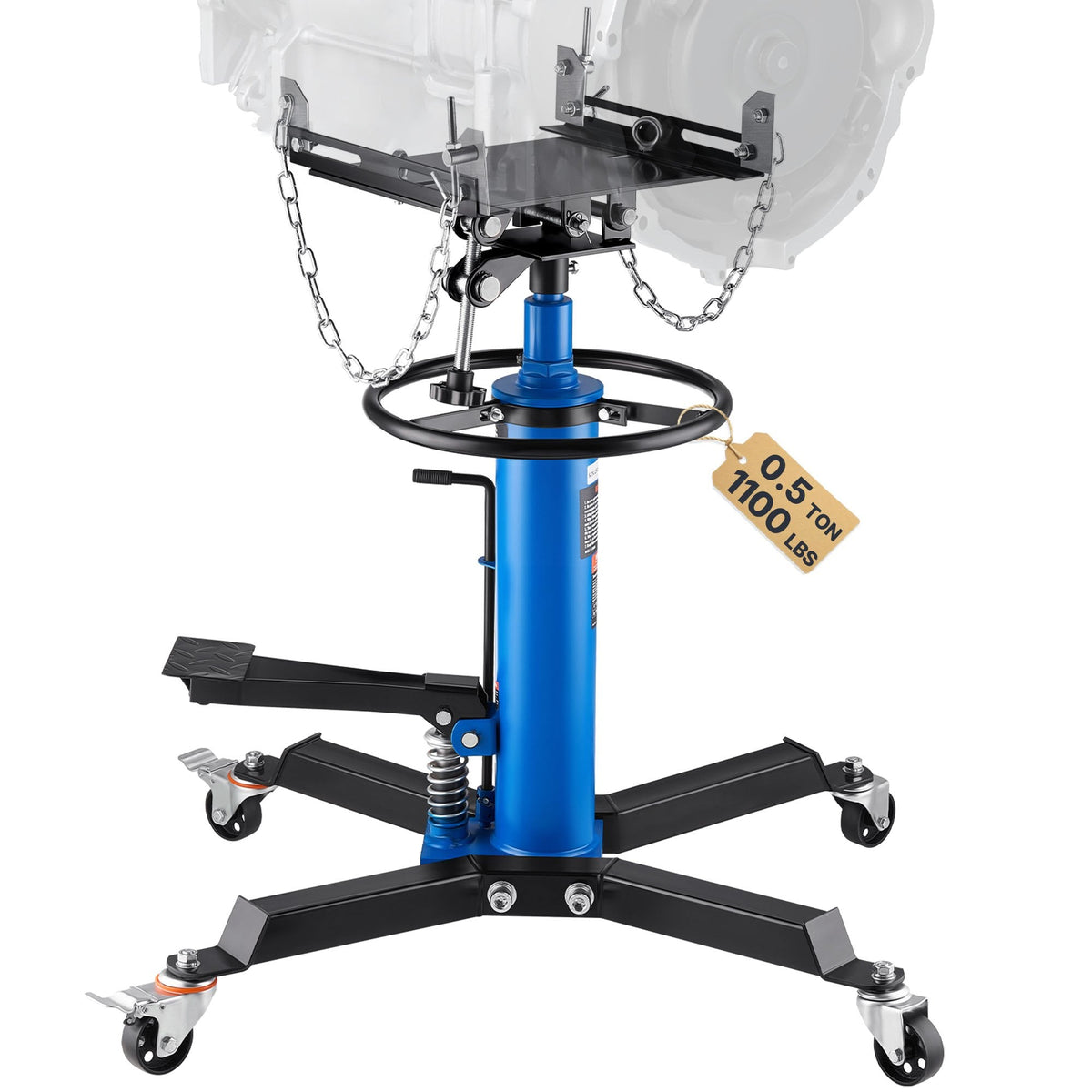

Transmission-jack capacity should be matched to the actual transmission or drivetrain component being supported, not simply chosen by the largest number available. This guide compares VEVOR high-lift telescoping jacks rated at 1100 lb, 1322 lb, and 1660 lb.
Quick answer
Choose 1100 lb / 0.5 ton for lighter passenger-vehicle transmissions when the verified component weight stays well inside the rated capacity. Choose 1322 lb when you want more capacity margin for heavier assemblies. Choose 1660 lb for the heaviest supported jobs in this product family, but note that the current standard 1660 lb variant is out of stock.
Capacity comparison
| Capacity | Approx. tons | Current inventory | Best fit |
|---|---|---|---|
| 1100 lb | 0.5 ton | 1,541 across active color variants | Typical lighter-duty transmission service |
| 1322 lb | 0.60 ton | 788 | More load margin for heavier assemblies |
| 1660 lb | 0.75 ton | 0 on current red variant | Highest-rated option in this family |
What all versions share
- Two-stage hydraulic lifting design
- Approximate 32–67 in lift range
- Foot-operated pedal
- Adjustable tilting saddle
- Four 360-degree swivel casters
- Wide steel base
- Two safety anchor chains
When 1100 lb is enough
The 1100 lb models are the most common choice in the current family and are available in multiple colors. They make sense when the transmission or supported assembly is comfortably below the jack’s rated capacity and you do not need the added margin of the larger models.
Why choose 1322 lb?
The 1322 lb option gives additional load margin without moving all the way to the 1660 lb rating. That can be useful for heavier transmissions, transfer cases, or drivetrain work where the 1100 lb capacity feels too close to the actual supported load.
What about 1660 lb?
The 1660 lb version is the highest-rated option in this family. It is intended for heavier jobs, but the current red variant is out of stock, so availability should be checked before planning around that capacity.
Capacity is not a safety margin by itself
Verify the actual transmission or drivetrain weight before use. Keep the load centered on the saddle, secure it with the supplied chains, work on a level surface, and never exceed the rated capacity. Follow vehicle service procedures and jack instructions for the specific repair.
Why the 32–67 in lift range matters
A high-lift transmission jack is intended to work under raised vehicles. The listed 32–67 in range gives flexibility for different lift heights, but the vehicle must still be securely supported on an appropriate lift or support system before drivetrain work begins.
How to choose
- Identify the transmission or component weight.
- Select a jack with sufficient rated capacity above that verified load.
- Confirm your shop lift height works with the jack’s 32–67 in range.
- Check whether saddle tilt is enough for your installation angle.
- Make sure the shop floor is smooth enough for safe caster movement.
- Use the supplied chains to secure the supported component.
Compare VEVOR Transmission Jack Options on Dekuch
FAQ
Is a higher-capacity transmission jack always better?
No. A higher capacity gives more load margin, but the best choice should still fit the actual transmission weight, shop space, and working height.
What is the lift range?
The current VEVOR family lists a high-lift range of approximately 32 to 67 inches.
Does the jack include safety chains?
Yes. The current listing includes two safety anchor chains to help secure the transmission on the saddle.
