VEVOR Guide
Deep Well Submersible Pump Guide: 0.5 vs 1 vs 1.5 vs 2 vs 3 HP

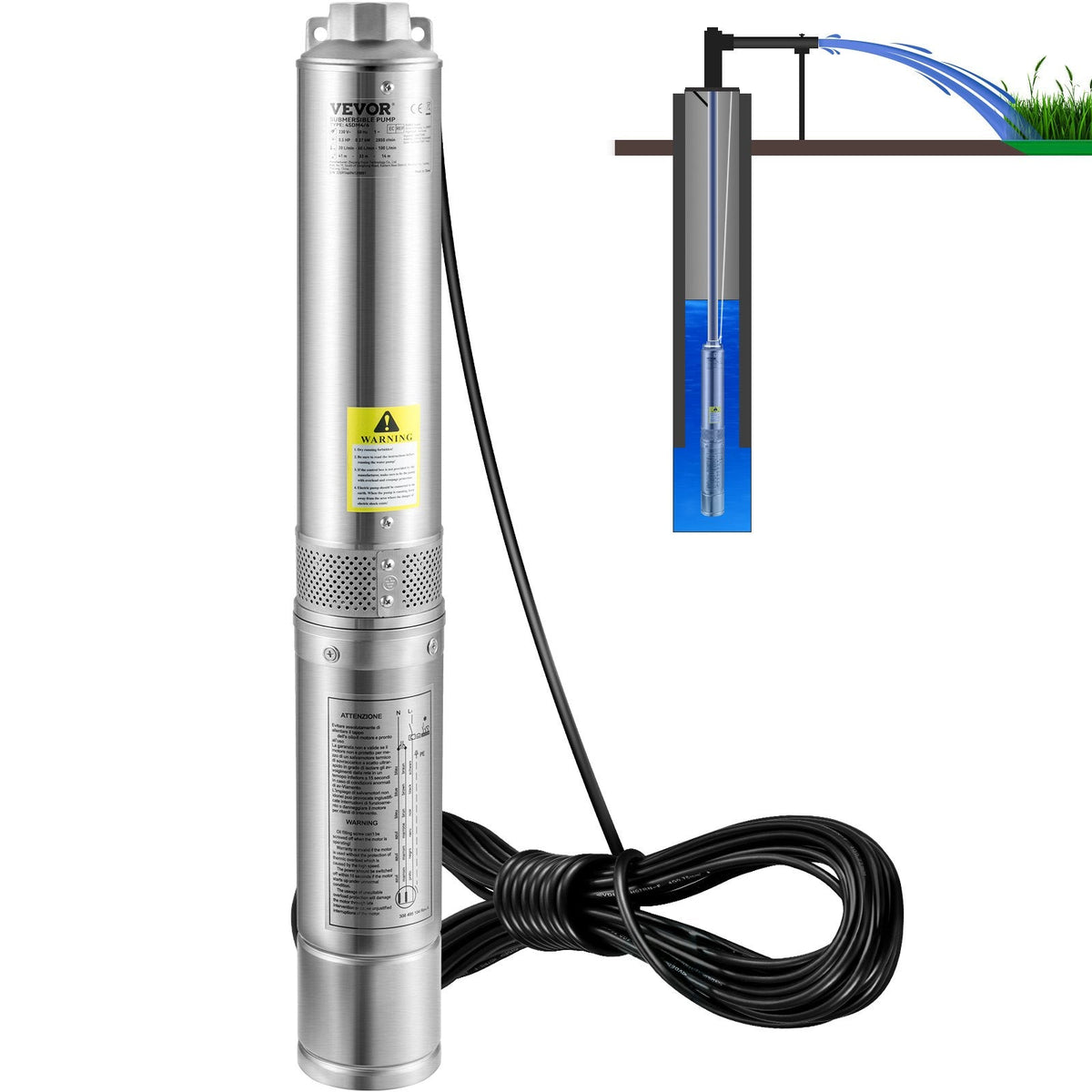

Choosing a deep well pump is not just about buying more horsepower. Well depth, required pressure, target flow, casing diameter, power supply, and control-box configuration all matter. This guide explains how VEVOR 0.5–3 HP, 230 V, 4-inch submersible well pump options differ.
Quick answer
Start with your required total dynamic head and flow, then choose the smallest pump that can meet both with margin. In this VEVOR family, horsepower ranges from 0.5 to 3 HP, max flow from 28 to 37 GPM, and max head from 167 to 640 ft, depending on the model.
What stays the same across this pump family?
- 230 V / 60 Hz power
- 4-inch pump diameter for 4-inch or larger well casing
- 1-1/4 in NPT discharge
- 33 ft electric cord
- Stainless-steel construction
- IP68 waterproof rating
- ETL certification
Horsepower range
| HP | Typical selection logic | Current configuration examples |
|---|---|---|
| 0.5 HP | Lower head and lighter household or irrigation demand | Built-in controller |
| 1 HP | Moderate residential water supply and irrigation | Built-in controller |
| 1.5 HP | Higher head or flow needs without moving to 2 HP | Built-in controller |
| 2 HP | Deeper lifts or stronger pressure requirements | Built-in or external starter box |
| 3 HP | Highest head requirements in this family | Built-in or external starter box |
Do not size a well pump by horsepower alone
Horsepower is only one input. A correct choice also depends on total lift, pressure required at the outlet, pipe friction, target GPM, drawdown, well recovery rate, and the actual performance curve of the exact pump SKU. A higher-HP model can be unnecessary or unsuitable if your system does not need the extra head.
Head vs flow: what matters?
Head describes how high the pump can lift water against gravity and system resistance. Flow describes how much water moves per minute. In this family, the listed maximums range from 167 to 640 ft of head and 28 to 37 GPM of flow depending on the model.
Maximum head and maximum flow do not occur at the same operating point, so actual performance must be checked against the exact model curve if available.
Built-in controller vs external starter box
Most variants use a built-in controller. Selected 2 HP and 3 HP models are also offered with an external starter box. An external box can make electrical servicing and component access more straightforward, while a built-in controller simplifies the pump package. Choose based on your installation and electrician's requirements.
Before you order
- Confirm well casing is at least 4 inches in diameter.
- Measure static water level and pumping water level if known.
- Estimate total dynamic head, including elevation and pressure requirement.
- Determine the flow rate you actually need.
- Confirm 230 V power is available.
- Choose built-in or external starter-box configuration where offered.
- Do not run the pump dry or at an insufficient water level.
Installation and water-quality notes
The pump includes a built-in check valve, while the listing recommends an additional check valve. The stainless-steel inlet filter helps block debris. Newly drilled wells with excessive sediment may need additional filtration. Dry running can damage the pump and should be avoided.
Compare VEVOR Deep Well Pump Configurations on Dekuch
FAQ
Is a 3 HP well pump always better than a 1 HP pump?
No. The correct pump is the one that matches your required head and flow. Oversizing can be unnecessary and may create system problems.
Will this pump fit a 4-inch well?
The pump diameter is listed as 4 inches and is intended for a 4-inch or larger well casing. Verify actual casing inside diameter and installation clearance.
What is the difference between built-in and external starter-box versions?
Built-in versions integrate the controller into the pump package, while selected 2 HP and 3 HP models use an external starter box for control components outside the well.
