About this item
Product overview
VEVOR Linear Guide Rail - Select Your Configuration
Compare exact SKUs
| SKU | Selection | Specifications | Package contents |
|---|---|---|---|
| ZXH20MM1000MMMZ3DV0 | Rail Diameter: 20mm; Rail Length: 1000 mm | Shaft Diameter: Φ20 mm; Material: High Carbon Steel & Aluminum; Model Number: SFC20-1000L; Product Dimensions(L x W x H): 39.4 x 4.7 x 2 in/1000 x 120 x 51 mm; Package Size(L x W x H): 43.3 x 5.7 x 3.1 in/1100 x 145 x 80 mm; Dynamic Load (per block): 882 N; Mounting Hole Distance B: 1.6 in/40 mm; Mounting Hole Distance A: 1.6 in/40 mm; Slide Block Size(L x W x H): 2 x 2.1 x 1.6 in/50 x 54 x 41 mm; Static Load (per block): 1370 N; Slide Block Model: SC20; Net Weight: 7.3 lbs/3.3 kg; Guide Rail Length: 39.4 in/1000 mm | |
| ZXH20MM1200MM30G9V0 | Rail Diameter: 20mm; Rail Length: 1200 mm | Shaft Diameter: Φ20 mm; Material: High Carbon Steel & Aluminum; Model Number: SFC20-1200L; Product Dimensions(L x W x H): 47.2 x 4.7 x 2 in/1200 x 120 x 51 mm; Package Size(L x W x H): 51.6 x 5.7 x 3.1 in/1310 x 145 x 80 mm; Dynamic Load (per block): 882 N; Mounting Hole Distance B: 1.6 in/40 mm; Mounting Hole Distance A: 1.6 in/40 mm; Slide Block Size(L x W x H): 2 x 2.1 x 1.6 in/50 x 54 x 41 mm; Static Load (per block): 1370 N; Slide Block Model: SC20; Net Weight: 15.7 lbs/7.1 kg; Guide Rail Length: 47.2 in/1200 mm | |
| ZXH16MM1000MMWXUNV0 | Rail Diameter: 16mm; Rail Length: 1000 mm | Shaft Diameter: Φ16 mm; Material: High Carbon Steel & Aluminum; Model Number: SFC16-1000L; Product Dimensions(L x W x H): 39.4 x 3.8 x 1.7 in/1000 x 96 x 44 mm; Package Size(L x W x H): 43.3 x 5.1 x 3.1 in/1100 x 130 x 80 mm; Dynamic Load (per block): 774 N; Mounting Hole Distance B: 1.4 in/36 mm; Mounting Hole Distance A: 1.4 in/36 mm; Slide Block Size(L x W x H): 1.7 x 2 x 1.5 in/44 x 50 x 38.5 mm; Static Load (per block): 1180 N; Slide Block Model: SC16; Net Weight: 11.2 lbs/5.1 kg; Guide Rail Length: 39.4 in/1000 mm | |
| ZXDGSFCTZ25M5IAZ8001V0 | Rail Diameter: 25mm; Rail Length: 1000 mm | Rail Length: 39.4 in/1000 mm; Static Motion Load Capacity: 1570 CON/93 kg; Slide Block Type: SC25; Straightness: 5 mΩ/100 mm; Item Model Number: SFC25 1000L; Dynamic Motion Load Capacity: 980 CN/67 kg; Quantity: 2 pcs; Surface Finish: 0.1–0.22 μm; Material: High Carbon Steel & Aluminum; Diameter: Ø 0.98 in/25 mm |
Details by SKU
ZXH20MM1000MMMZ3DV0 - 20mm; 1000 mm

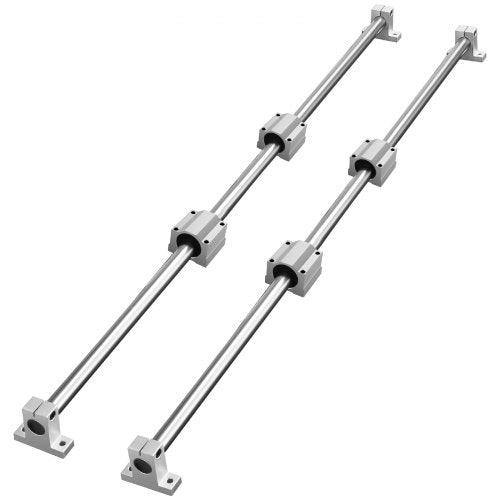

- SFC Linear Guide Rail Set: SFC20-1000 mm Linear motion guide rail includes 2 x 39.4 in/1000 mm length SFC20 linear shafts, 4 x SC20 slide blocks and 4 x rail supports. Dynamic Load Per Block: 882 N, Static Load Per Block: 1370 N.

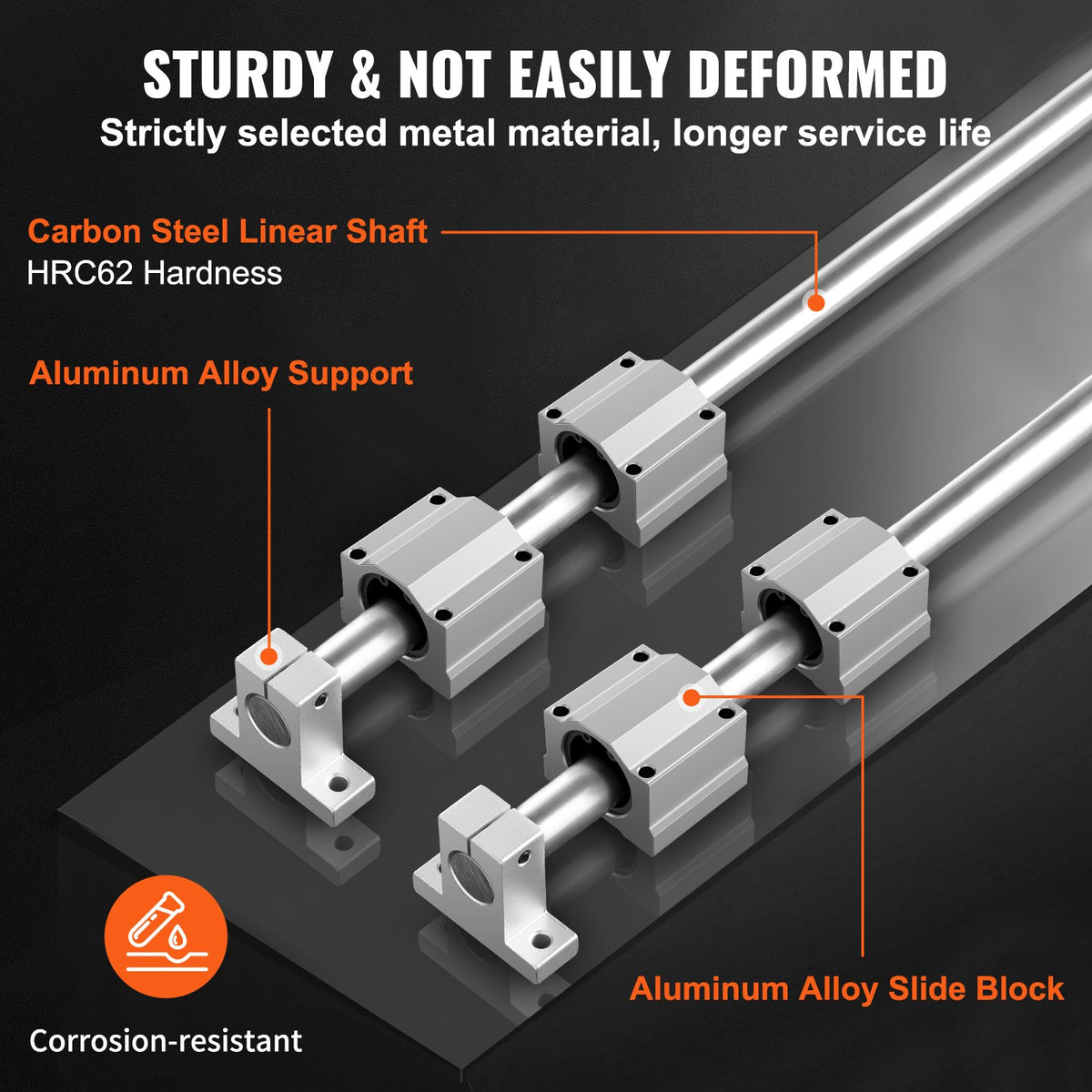

- Durable & Long-lasting: The linear rail is made of carbon steel and aluminum with a chrome-plated surface for rust resistance and high durability. Built-in 4 aluminum slide blocks and ball bearings for smooth and unobstructed sliding.
- Low Noise Sliding: Aluminum fully sealed SC slide blocks and carbon steel linear shaft are perfectly paired. The built-in ball bearing provides low friction movement and is smooth and not tilted, allowing you to control more labor-saving.
- High Precision: Precise circular shaft dimensions and straightness, ensuring high accuracy, repeatability, and stability in its motion. The sturdy aluminum base and slide block have accurate mounting holes, making it easy for users to perform reliable installation and connection.
- Wide Application: The SFC linear rail set is versatile and suitable for all kinds of high-load automation equipment and DIY project, such as router/mill/lathe sleds, 3D printers, laser engravers, CNC machines, trainer rocker plates, etc.
ZXH20MM1200MM30G9V0 - 20mm; 1200 mm

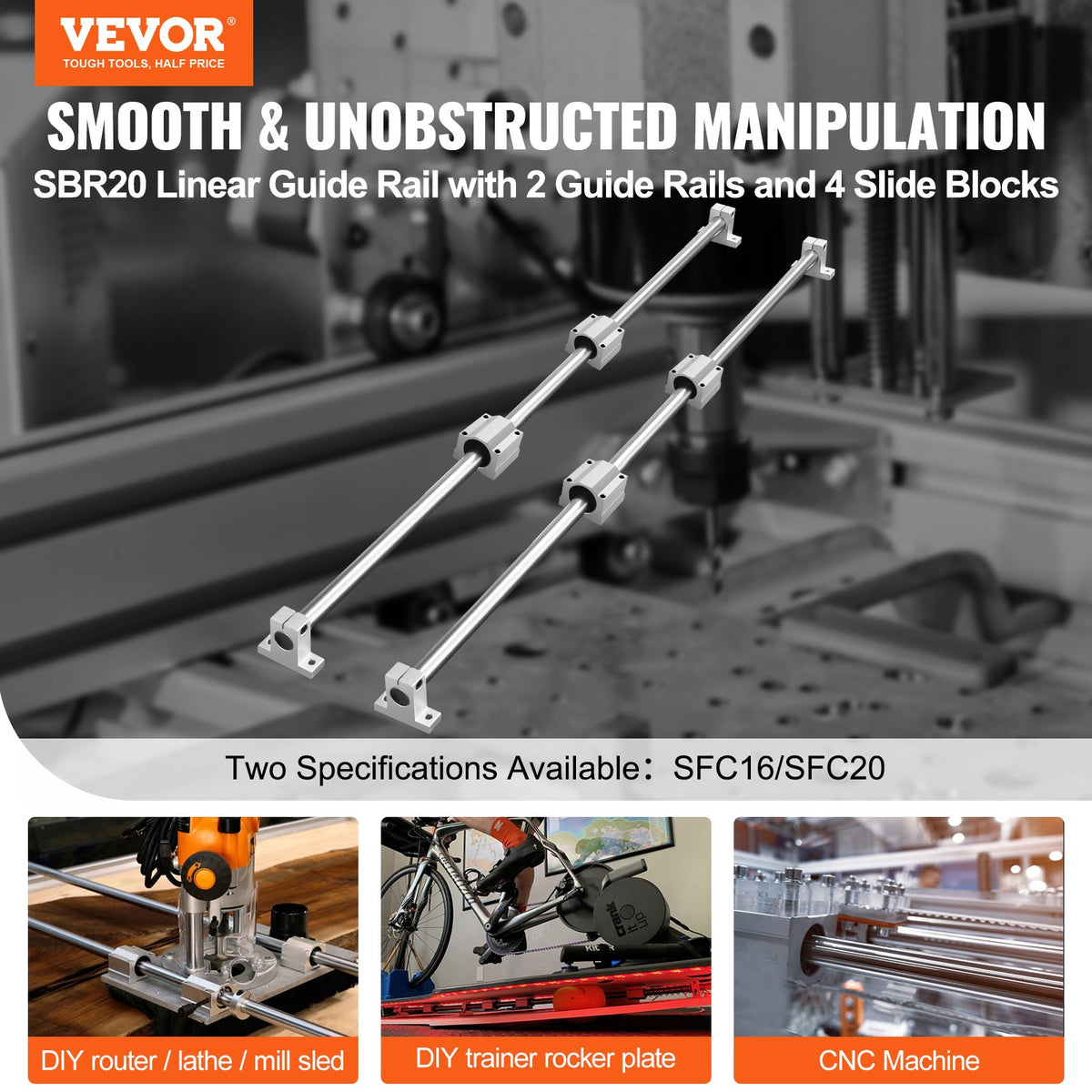

- SFC Linear Guide Rail Set: SFC20-1200 mm Linear motion guide rail includes 2 x 47.2 in/1200 mm length SFC20 linear shafts, 4 x SC20 slide blocks and 4 x rail supports. Dynamic Load Per Block: 882 N, Static Load Per Block: 1370 N.
- Durable & Long-lasting: The linear rail is made of carbon steel and aluminum with a chrome-plated surface for rust resistance and high durability. Built-in 4 aluminum slide blocks and ball bearings for smooth and unobstructed sliding.
- Low Noise Sliding: Aluminum fully sealed SC slide blocks and carbon steel linear shaft are perfectly paired. The built-in ball bearing provides low friction movement and is smooth and not tilted, allowing you to control more labor-saving.
- High Precision: Precise circular shaft dimensions and straightness, ensuring high accuracy, repeatability, and stability in its motion. The sturdy aluminum base and slide block have accurate mounting holes, making it easy for users to perform reliable installation and connection.
- Wide Application: The SFC linear rail set is versatile and suitable for all kinds of high-load automation equipment and DIY project, such as router/mill/lathe sleds, 3D printers, laser engravers, CNC machines, trainer rocker plates, etc.
ZXH16MM1000MMWXUNV0 - 16mm; 1000 mm
- SFC Linear Guide Rail Set: Linear motion guide rail includes 2 x 39.4" / 1000mm length SFC16 linear shafts, 4 x SC16 slide blocks and 4 x rail supports. Dynamic Load Per Block: 774N, Static Load Per Block: 1180N.
- Durable & Long-lasting: The linear rail is made of carbon steel and aluminum with a chrome-plated surface for rust resistance and high durability. Built-in 4 aluminum slide blocks and ball bearings for smooth and unobstructed sliding.
- Low Noise Sliding: Aluminum fully sealed SC slide blocks and carbon steel linear shaft are perfectly paired. The built-in ball bearing provides low friction movement and is smooth and not tilted, allowing you to control more labor-saving.
- High Precision: Precise circular shaft dimensions and straightness, ensuring high accuracy, repeatability, and stability in its motion. The sturdy aluminum base and slide block have accurate mounting holes, making it easy for users to perform reliable installation and connection.
- Wide Application: The SFC linear rail set is versatile and suitable for all kinds of high-load automation equipment and DIY project, such as router/mill/lathe sleds, 3D printers, laser engravers, CNC machines, trainer rocker plates, etc.
ZXDGSFCTZ25M5IAZ8001V0 - 25mm; 1000 mm

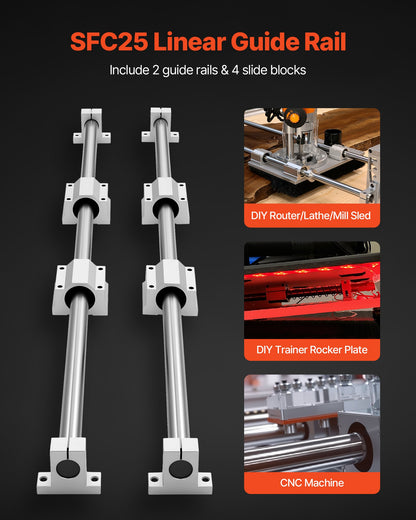

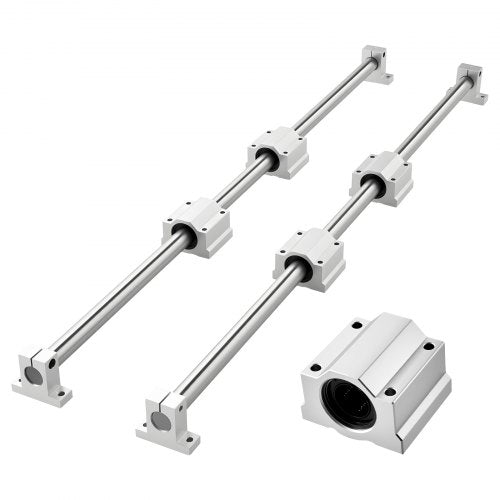

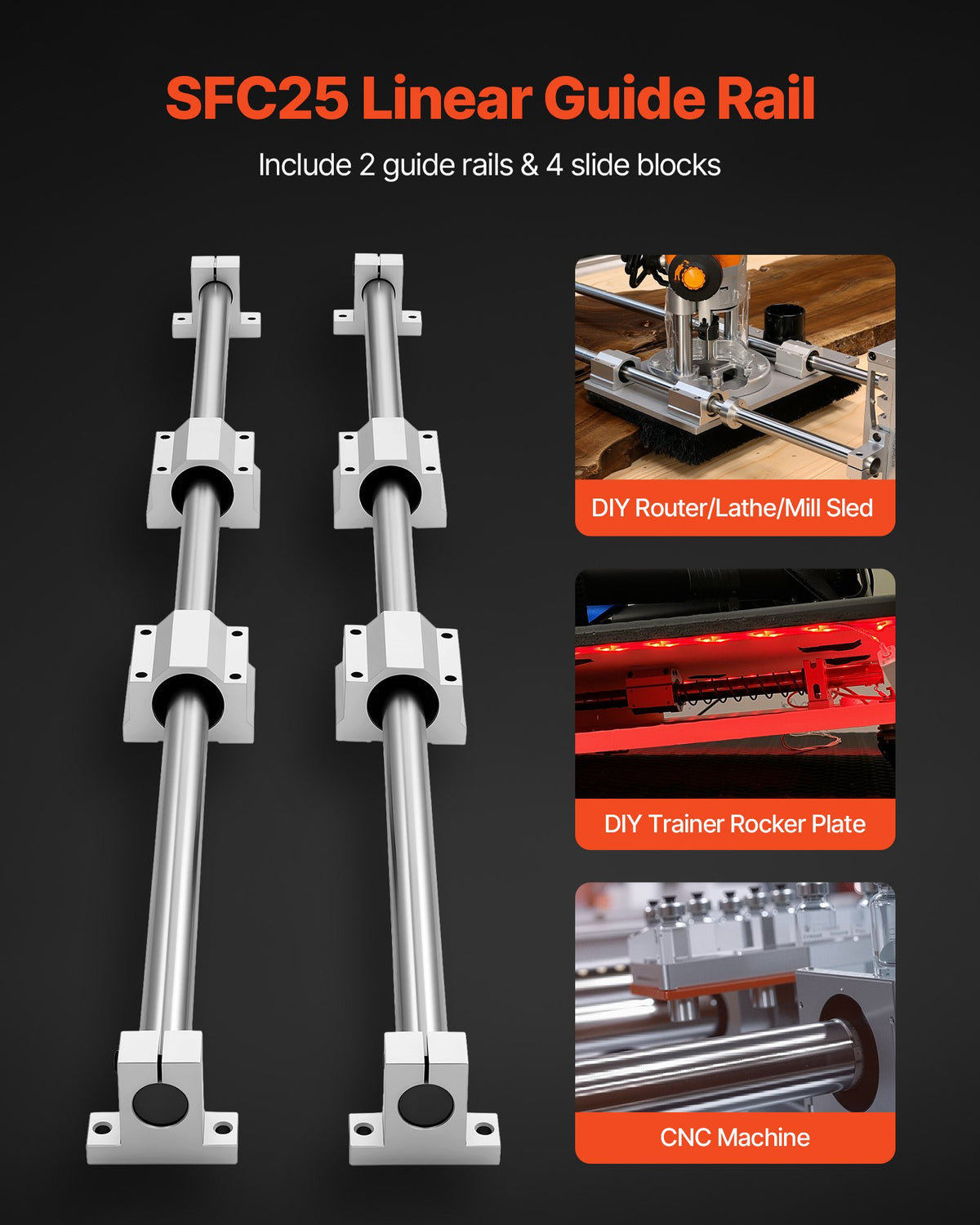

- SFC25 Linear Rail Kit: Includes two 39.37 in (1000 mm) linear rails and four slide blocks. It is compatible with DIY engraving machine/lathe/milling machine slides, DIY training rocker plate, CNC machine tools and other fields

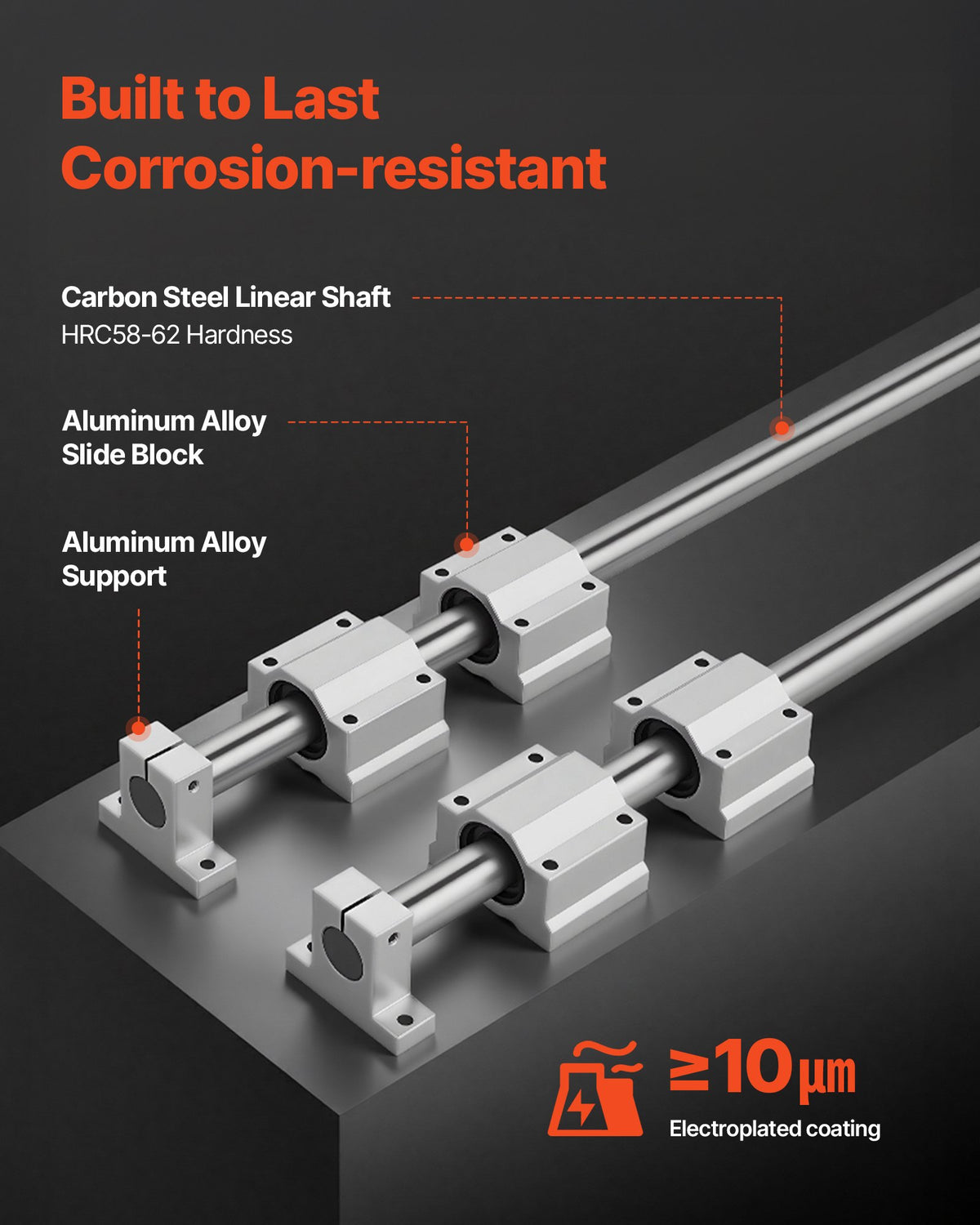

- Rust & Corrosion Protection: Crafted from high-hardness carbon steel shafts (HRC58–62) and aluminum alloy blocks and supports. Each linear rail is coated with a more than 10 μm electroplated layer to resist rust and corrosion, even in humid basements
- Silent & Smooth Sliding: Built-in ball-bearing slide blocks deliver quiet, low-friction motion while gripping the shaft tightly for stable linear travel. Less noise, less wear, more precision—every time you move
- High Precision, No Deviation: Feature a 0.1–0.22 μm surface finish and 5 mΩ straightness, paired with precise hole diameter and spacing, this linear slide rail set ensures easy installation and repeatable positioning, even over long travel distances
- Installation Made Easy: No extra installation tools are required. Designed with simplicity in mind, this linear motion guide rail kit installs quickly. It is suitable for DIY assembly or rail replacements
