Product overview

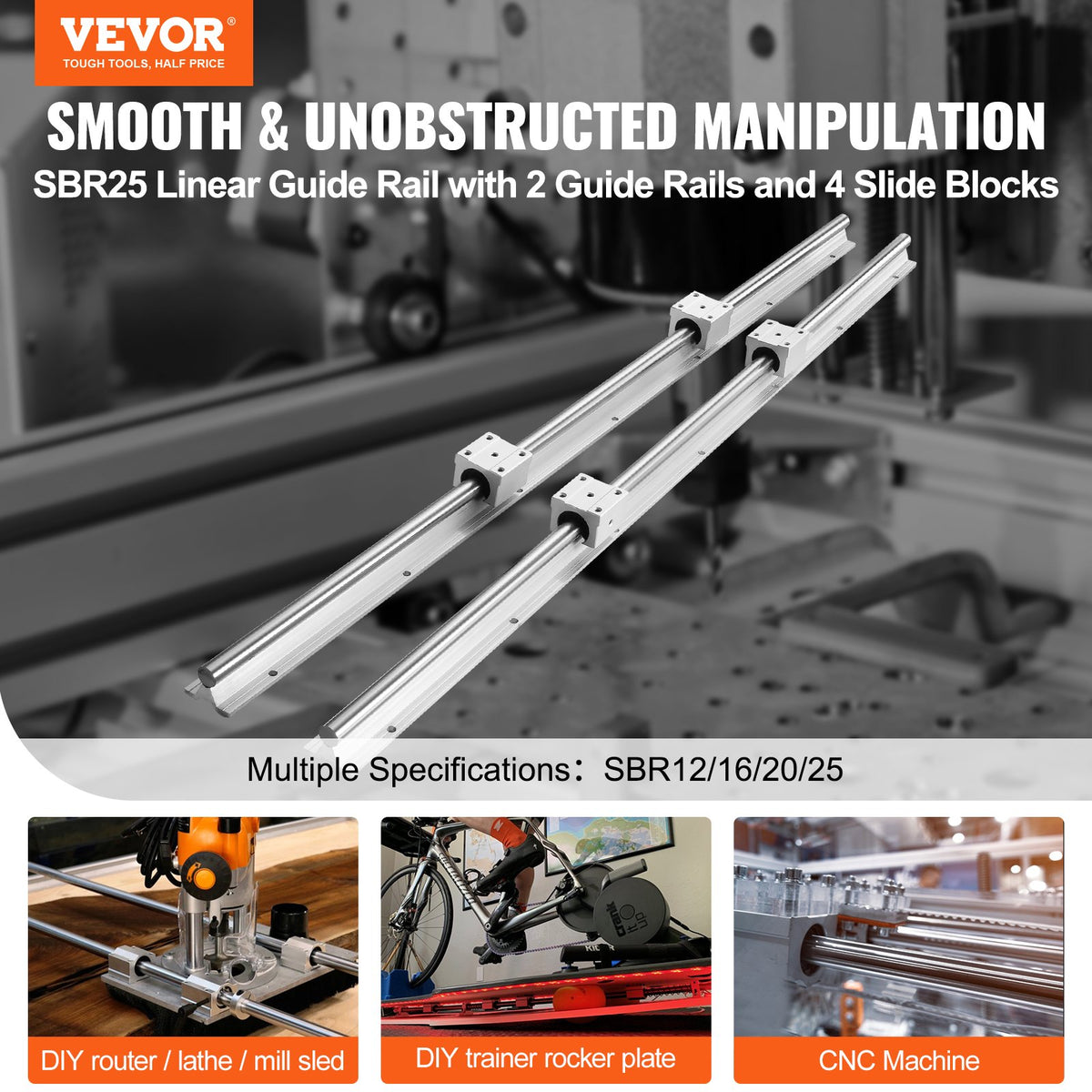

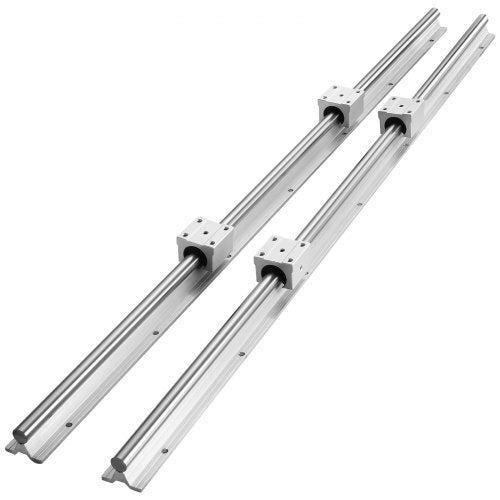

VEVOR Linear Track Kit, SBR25 1200mm, Includes 2 Units of 47.2 in/1200mm SBR25 Rails & 4 SBR25UU Sliding Units, Linear Motion Guides for Automation DIY CNC Projects
Compare exact SKUs
| SKU | Selection | Specifications | Package contents |
|---|---|---|---|
| ZXDGSBR25MM12ERY0V0 | Diameter of Rail: 25 mm | Shaft Diameter: Φ25 mm; Material: High Carbon Steel & Aluminum; Model Number: SBR25-C 1200L; Product Dimensions(L x W x H): 47.2 x 4.3 x 2.3 in/1200 x 110 x 58.5 mm; Package Size(L x W x H): 52.8 x 5.5 x 3.5 in/1340 x 140 x 90 mm; Dynamic Load (per block): 980 N; Mounting Hole Distance B: 1.6 in/40 mm; Mounting Hole Distance A: 1.6 in/40 mm; Slide Block Size(L x W x H): 2.6 x 2.4 x 1.9 in/65 x 60 x 47 mm; Static Load (per block): 1570 N; Slide Block Model: SBR25UU; Net Weight: 28.9 lbs/13.1 kg; Guide Rail Length: 47.2 in/1200 mm |
Details by SKU
ZXDGSBR25MM12ERY0V0 - 25 mm
- SBR Linear Guide Rail Set: SBR25-1200 mm Linear motion guide rail includes 2 x 47.2 in/1200mm mm length SBR25 guide rails and 4 x SBR25UU slide blocks. Dynamic Load Per Block: 980 N, Static Load Per Block: 1570 N.

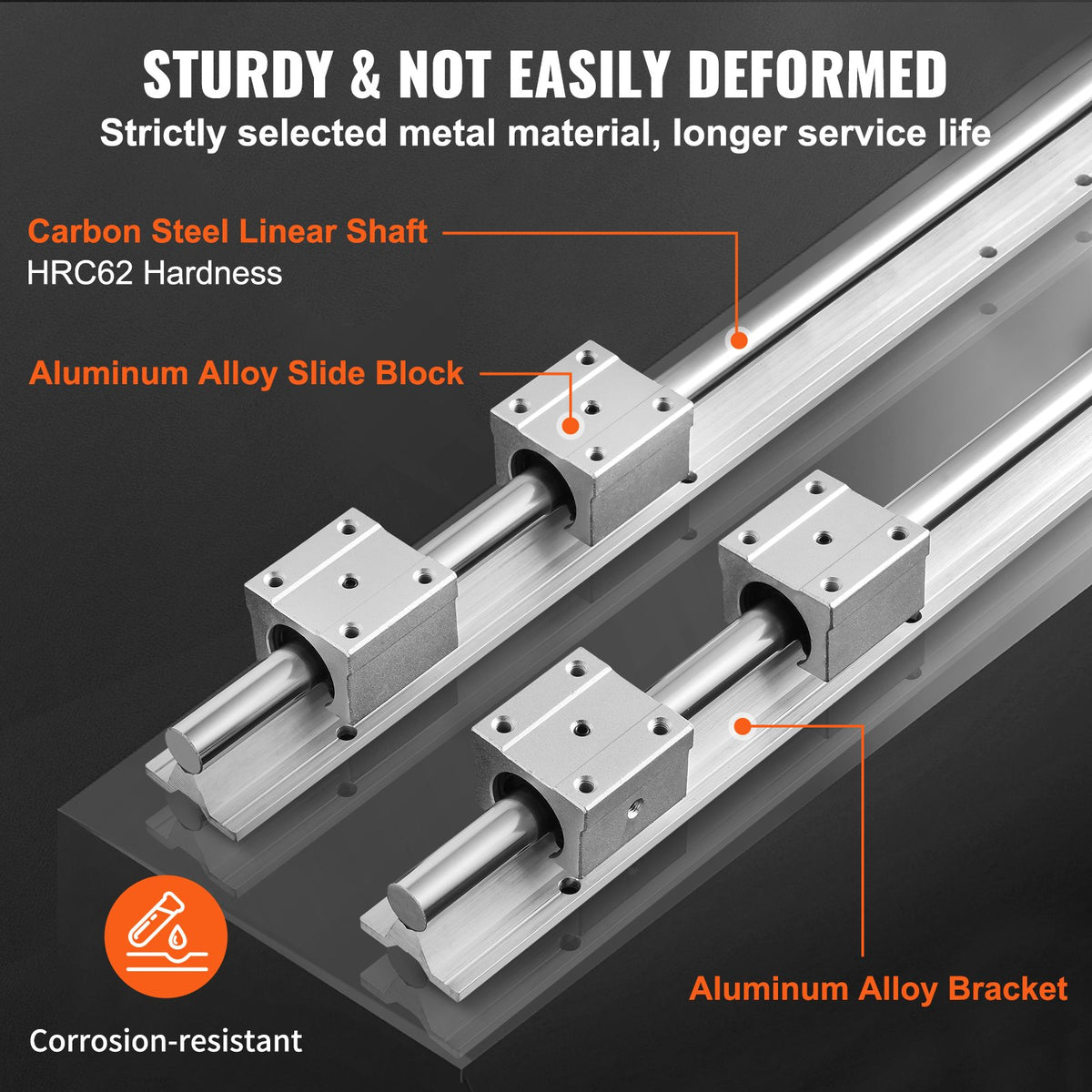

- Durable & Long-lasting: The linear rail is made of carbon steel and aluminum with a chrome-plated surface for rust resistance and high durability. Built-in 4 aluminum slide blocks and ball bearings for smooth and unobstructed sliding.
- Low Noise Sliding: Aluminum SBR slide blocks and carbon steel linear shaft are perfectly paired. The built-in ball bearing provides low friction movement and is smooth and not tilted, allowing you to control more labor-saving.
- High Precision: Precise circular shaft dimensions and straightness, ensuring high accuracy, repeatability, and stability in its motion. The sturdy aluminum base and slide block have accurate mounting holes, making it easy for users to perform reliable installation and connection.
- Wide Application: The SBR linear rail set is versatile and suitable for all kinds of high-load automation equipment and DIY project, such as router/mill/lathe sleds, 3D printers, laser engravers, CNC machines, trainer rocker plates, etc.
