Product details
What to know before you buy
Core information, use cases, and key selling points for this item.
About this item
Product overview
Choose the exact VEVOR configuration listed below. Specifications and package contents are recorded per SKU.
Compare exact SKUs
| SKU | Selection | Specifications | Package contents |
|---|---|---|---|
| YBGMBQBY4-25PP001V0 | Title: Default Title | Model: QBY4-25PP; Type: Double diaphragm; Body Material: Polypropylene; Inlet Port: DN25PN10 Flange Connection; Outlet Port: DN25PN10 Flange Connection; Air Inlet Size: 1/2 inch (12.7 mm); Max Flow Rate: 79.2 GPM; Suction: 0-5 m (0-16.4 ft); Max Suspended Solids: 3 mm (1/8 inch); Max Head: 84 m (275.59 ft); Max PSI: 120 psi; Self-Priming Dry: 3 m (10 ft); Self-Priming Wet: 4.6 m (15 ft) | 1 x Air-Operated Double Diaphragm Pump QBY4-25PP; 1 x Product Manual |
Details by SKU
YBGMBQBY4-25PP001V0 - Title: Default Title
- Premium Double PTFE Diaphragms: Our air-operated double diaphragm pump adopts PTFE diaphragms, durable, corrosion-proof, and long-lasting. Max. Temperature: 150 ℉/66 ℃; Max. Pressure: 120 psi; Max. Flow Rate：79.6 GPM; Max Head Lift：275.6 ft/84 m.

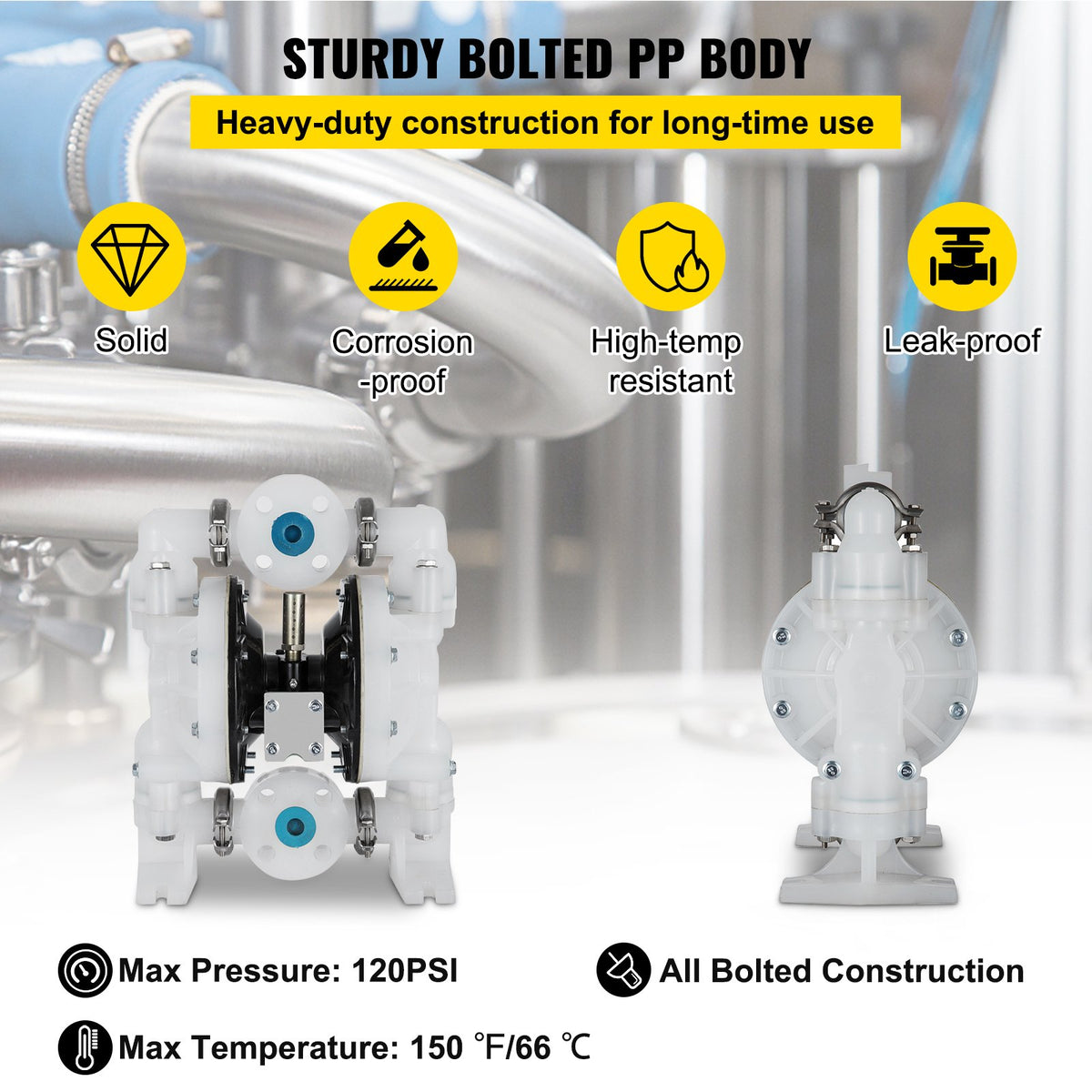

- Sturdy & Leak-proof Construction: The diaphragm pump housing is made of polypropylene material, bolted against leakage, sturdy, and corrosion-proof for long-time use.
- Excellent Air-operated Performance: Inlet/Outlet Port: DN25PN10 Flange Connection; Air Inlet Size: FNPT 1/2 inch. A high-quality glyd ring, the double-acting sealing, strengthens air performance.
- Unique & Professional Designs: Our double diaphragm pump features an externally available air distribution system. The modular air valve is stainless. This low pulsation air valve provides smooth and rapid changeover for increased efficiency and minimizes downtime.
- Wide Applications: This diaphragm pump can handle various fluids, such as waste oil, alcohol, hydraulic fluid, gasoline, diesel, detergent, drink, and so on. It is widely used in many industries, such as petroleum, metallurgy, mining, coating, printing, water treatment, and automobile.
