Product overview
Choose the exact VEVOR configuration listed below. Specifications and package contents are recorded per SKU.
Compare exact SKUs
| SKU | Selection | Specifications | Package contents |
|---|---|---|---|
| YBGMBQBY4-25LF461V0 | Title: Default Title | Model: QBY4-25L F46; Type: Air-operated Double diaphragm; Diaphragm Material: PTFE; Body Material: Aluminum Alloy; Inlet/Outlet Port: 1 inch (25 mm); Air Inlet Size: NPT 1/2 inch (12.7 mm); Max Flow Rate: 24 GPM; Max Head: 229.6 ft/70 m±15%; Valve Type: Ball; Suction: 0-5 m (0-16.4 ft); Max Suspended Solids: 3 mm (1/8 inch); Average Air Consumption: 38 CFM; Self-Priming Dry: 3 m (10 ft); Self-Priming Wet: 4.6 m (15 ft); Max Head: 229.6 ft/70 m±15% </li | 1 x Air-Operated Double Diaphragm Pump; 1 x Product Manual |
Details by SKU
YBGMBQBY4-25LF461V0 - Title: Default Title

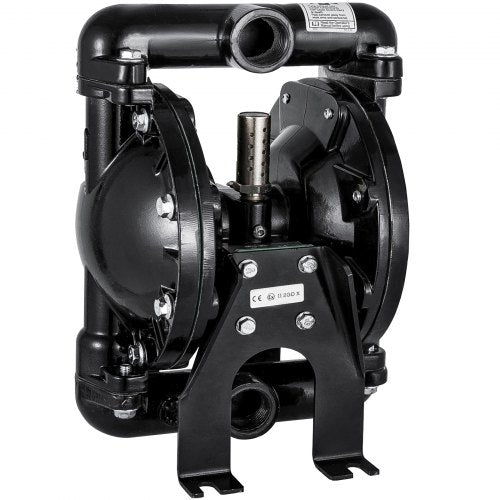

- Premium Double PTFE Diaphragms: Our air-operated double diaphragm pump adopts PTFE diaphragms, durable, corrosion-proof, and long-lasting. Max. Temperature: 150 ℉/66 ℃; Max. Pressure: 100 psi; Max. Flow Rate: 24 GPM; Max Head Lift: 229.6 ft/70 m±15%.
- Sturdy & Leak-proof Construction: The diaphragm pump housing is made of aluminum alloy material, bolted against leakage, sturdy, and corrosion-proof for long-time use.
- Excellent Air-operated Performance: Inlet/Outlet Port Size: 1 inch; Air Inlet Size: FNPT 1/2 inch. A high-quality glyd ring, the double-acting sealing, strengthens air performance.
- Unique & Professional Designs: Our double diaphragm pump features an externally available air distribution system. The modular air valve is stainless. This low pulsation air valve provides smooth and rapid changeover for increased efficiency and minimizes downtime.
- Wide Applications: This diaphragm pump can handle various fluids, such as waste oil, alcohol, hydraulic fluid, gasoline, diesel, detergent, drink, and so on. It is widely used in many industries, such as petroleum, metallurgy, mining, coating, printing, water treatment, and automobile.
