About this item
Product overview
VEVOR Hydraulic Steering - Select Your Configuration
Compare exact SKUs
| SKU | Selection | Specifications | Package contents |
|---|---|---|---|
| XYYYZXBJXZXBTJ001V0 | Size: 12ft | Steering Shaft: 3/4"; Steering Cable: 12'/3.36 m; Material: Cast Steel, Stainless Steel; Steering Wheel: 13.5"; Reference Number: SS13712 | |
| JXZXTJDFXPXWER5Z0001V0 | Size: 16ft*2 | Hose Quantity: 2 pcs; Item Model Number: HLX-YYG-16ft*2; Product Dimensions: Ø0.5 x 191.9 in / Ø13.2 x 4875 mm; Net Weight: 2.6 lbs / 1.2 kg | |
| JXZXTJDFXPXWN0UF4001V0 | Size: 17ft | Full Rudder Turns: 3; Cable Quantity: 1 pc; Item Model Number: 100HL; Net Weight: 13.2 lbs / 6 kg |
Details by SKU
XYYYZXBJXZXBTJ001V0 - 12ft
- High-Performance Rotary Steering System: The VEVOR boat steering system kit is specially designed and developed for marine use. It comes with a 12 ft steering cable, a standard 3/4" tapered shaft, a swivel helmet, a 13.5" steering wheel, a 90-degree bezel kit, and hardware. Enables the vessel to steer accurately and improves work efficiency. Take control of your boat, and create waves all summer long.
- 12 Feet Steering Cable: Our marine flat steering design allows for a firmer control that outshines the competition. And the steering cable meets the precise steering requirements of different types of rudders and cylinders. Please verify if the cable length matches your application.
- Durable & Robust Rotary Helm: Characterized by its premium alloy material, the rotary helm is rust-proof and resistant to wear. Heavy-duty material ensures longevity and easy maintenance. Adjustable nuts are used to secure the rudder and wheels.
- Quick Installation: With complete accessories, the marine steering kit is easy and quick to assemble as you don't have to configure the parts separately. Besides, a simple snap-in cable connection and different mounting hardware are provided to ensurefast installation. Get ready to set sail and conquer all waters.
- Wide Application: Traditional mechanical steering is still the choice for sterndrives, inboards, and other power-assisted applications. Our rotary steering system kit is suitable for mechanical/manual steering for yachts, fishing boats, and other waterborne vehicles.
JXZXTJDFXPXWER5Z0001V0 - 16ft*2

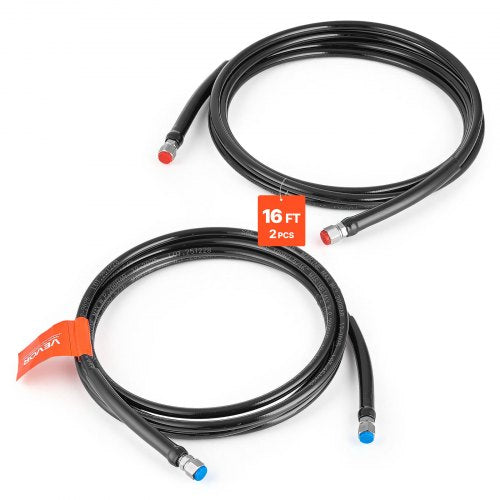

- 2 x 16 ft Hoses: This hydraulic hose kit includes two 16 ft / 4875 mm steering hoses for flexible installation on boats of various sizes. The extended length provides additional routing space and enhances the driver's control over steering
- Wide Compatibility: The outboard hydraulic steering hose kit connects the steering cylinder and helm pump. It fits hydraulic steering systems on lifeboats, speedboats, fishing boats, and small sailboats. Measure the required hose length before replacement
- High-Pressure Resistance: Rated for up to 20 MPa working pressure, our boat steering hoses for outboard ensure stable and efficient hydraulic oil transfer. They help avoid bursting or leakage under heavy loads, responding quickly to steering commands

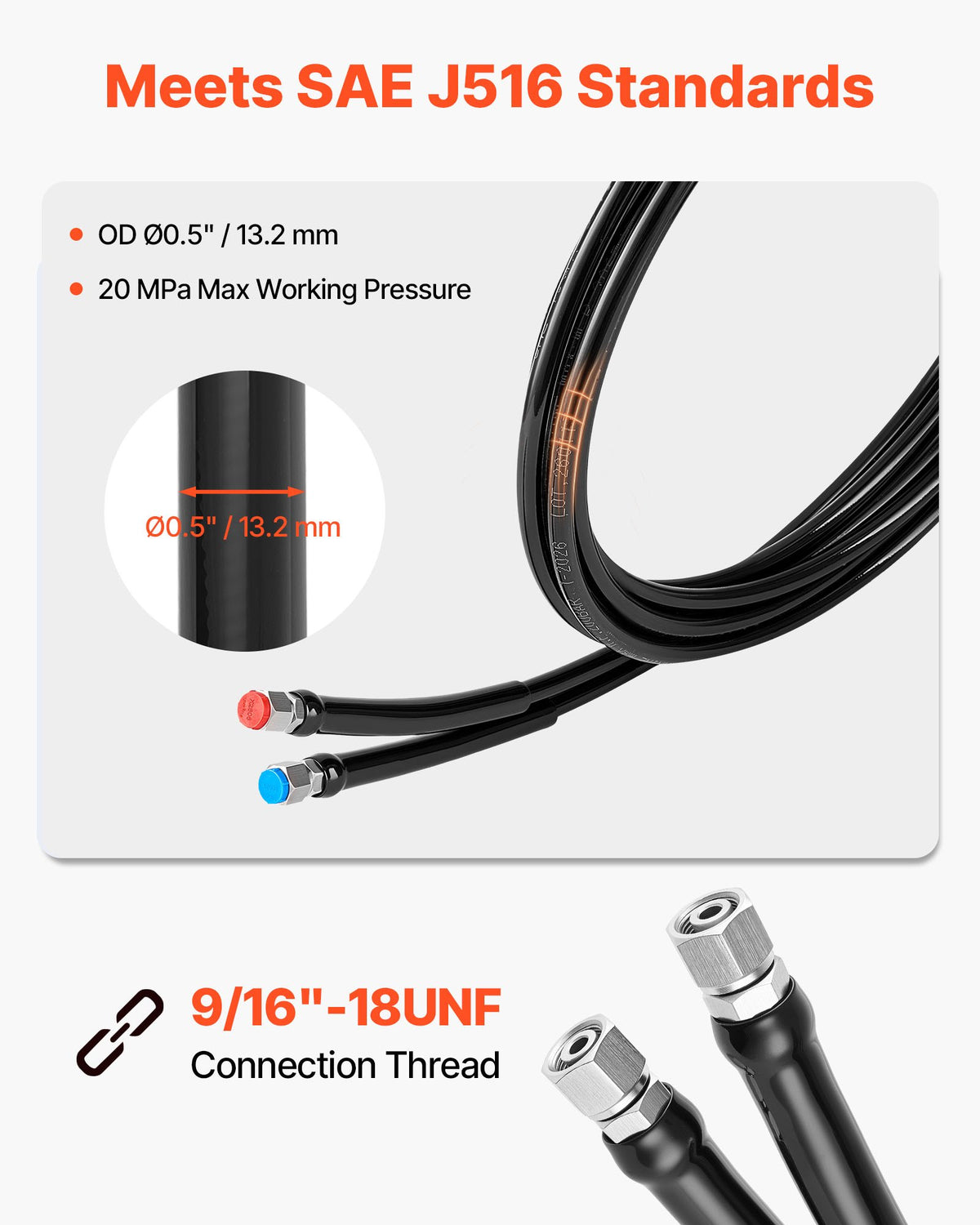

- SAE J516 Standard Fittings: These hydraulic outboard steering hoses feature SAE J516 standard fittings with 9/16"-18 UNF threads. Each fitting is thoroughly tested for precision and durability. The tight fit avoids cross-threading, jamming, or fluid leaks
- Durable & Weather-Resistant: Made from flexible TPEE, this outboard hose kit provides excellent heat and wear resistance. A stainless steel fitting on one end reduces rust. The hoses are built to withstand seawater exposure and harsh marine conditions
JXZXTJDFXPXWN0UF4001V0 - 17ft

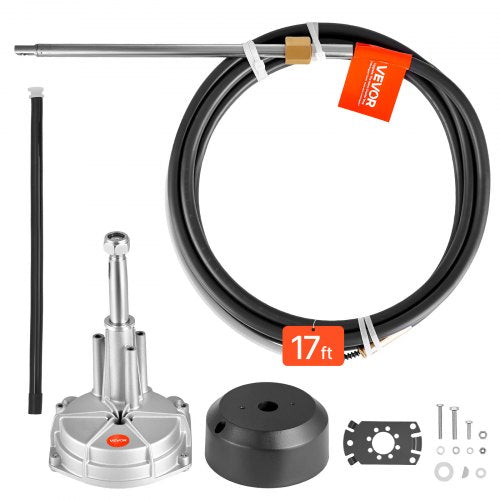

- High-Performance System: This boat steering system includes a 17 ft steering cable, an aluminum alloy steering helm, and complete mounting hardware. It is designed to replace worn components and restore smooth, precise, and responsive control
- 17 ft Steering Cable: The 17 ft outboard steering cable kit features a machined flat end for easy insertion into the outboard motor. It delivers fast and accurate steering response during operation. Measure the required cable length before replacement

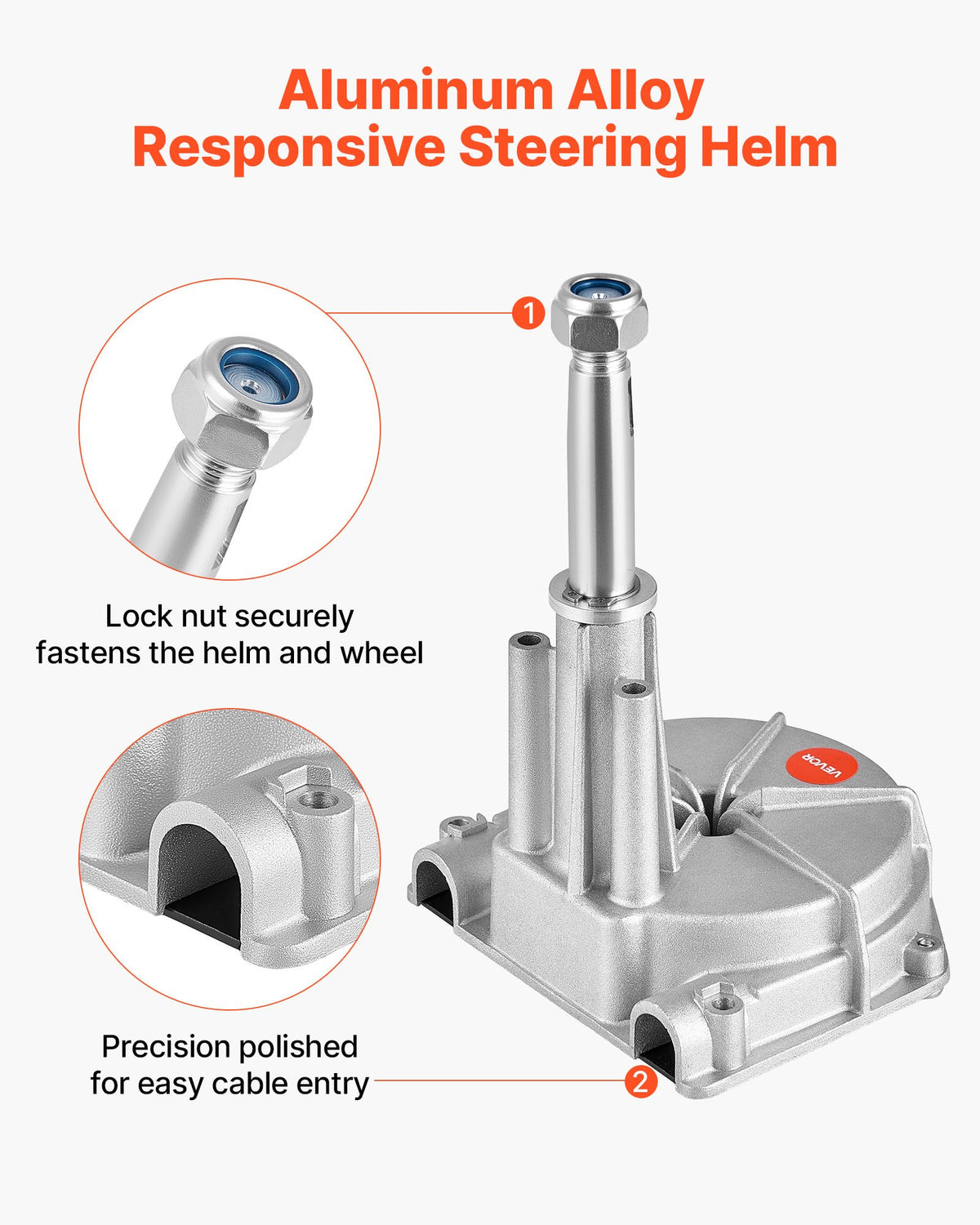

- Aluminum Alloy Helm: The helm in our boat steering kit is made from corrosion-resistant aluminum alloy for long-lasting marine durability. As a mechanical helm, it requires no hydraulic oil. This design helps reduce maintenance costs
- Easy Installation: This steering system for boat includes a mounting plate, bolts, and essential hardware for secure installation. The helm connects firmly to the wheel for stable operation. It is built to withstand harsh marine environments over time
- Wide Compatibility: Designed for outboard engines up to 90 HP, our boat steering system kit supports mechanical or manual steering applications. It is suitable for yachts, fishing boats, and various recreational watercraft
