Product details
What to know before you buy
Core information, use cases, and key selling points for this item.
About this item
Product overview
VEVOR Hydraulic Steering - Select Your Configuration
Compare exact SKUs
| SKU | Selection | Specifications | Package contents |
|---|---|---|---|

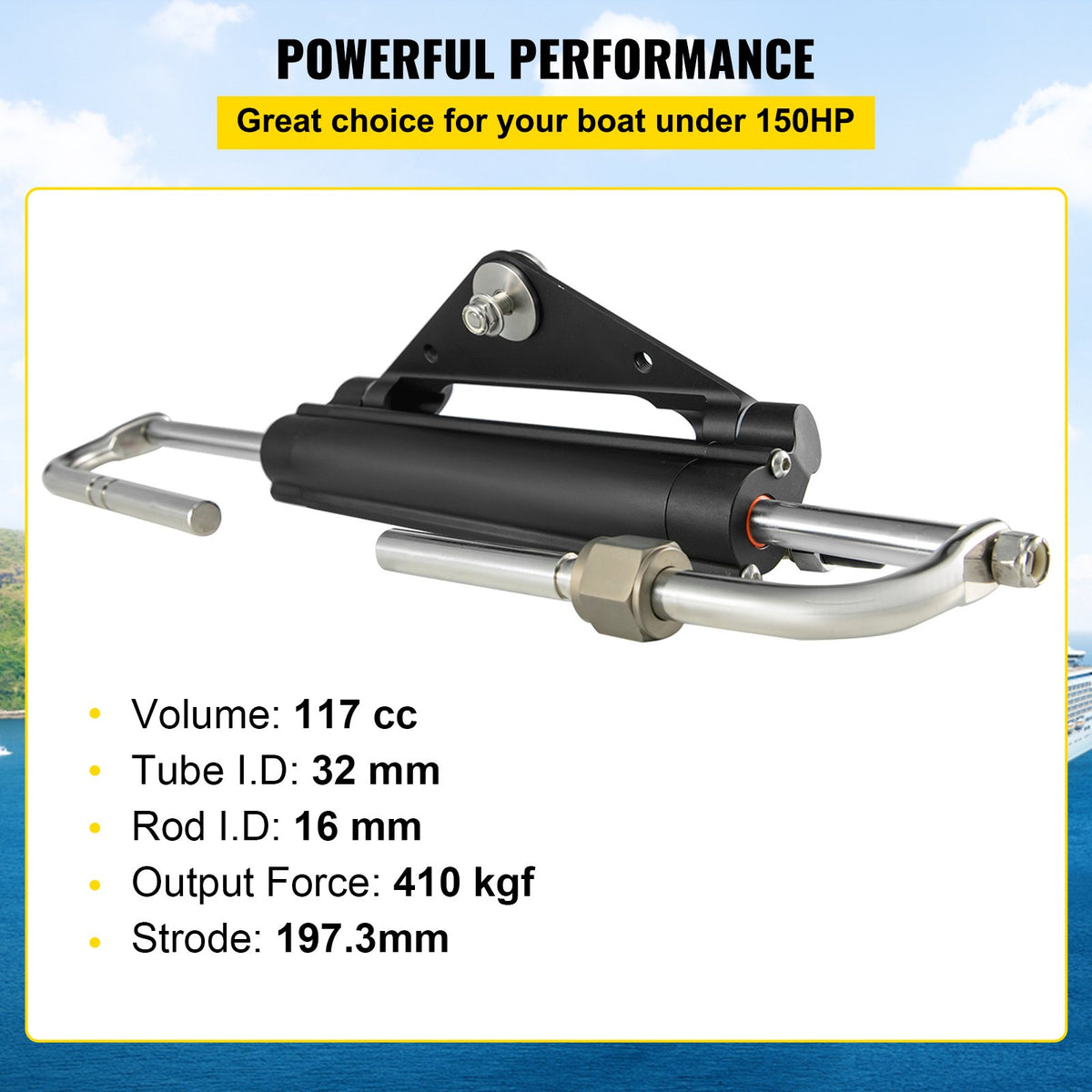

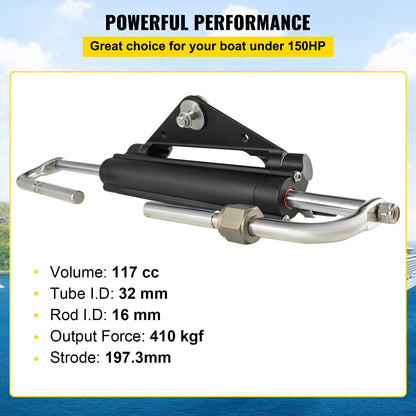

| XWYYFXBHC4645HFXGV0 | Power: 150 hp; Product Type: Hydraulic Steering Cylinder | Cylinders: HC4645H; Applicable: Up to 150HP; Volume: 117CC; Tube I.D: 32mm; Rod I.D: 16mm; Output Force: 409.7kgf; Strode: 197.3mm | 1 x Outboard Steering Cylinder |
| XWYYFXBTJ300HP001V0 | Power: 300 hp; Product Type: Hydraulic Steering Kit | Note: It's compatible with Yamaha, Honda, Suzuki below 300HP, not for Mercury.; Model: Hydraulic Boat Steering Kit; Application: Up to 300HP; Max Pressure: 6.9Mpa (1000psi); Output Force: 470 kgf; Volume: 141cc; Tube I.D: Φ35 mm; Rod I.D: Φ18 mm; Strode: 214 mm | 1 x Hydraulic Pump; 2 x 20ft Hose; 1 x Cylinder; 1 x Accessory Kit |
Details by SKU
XWYYFXBHC4645HFXGV0 - 150 hp; Hydraulic Steering Cylinder

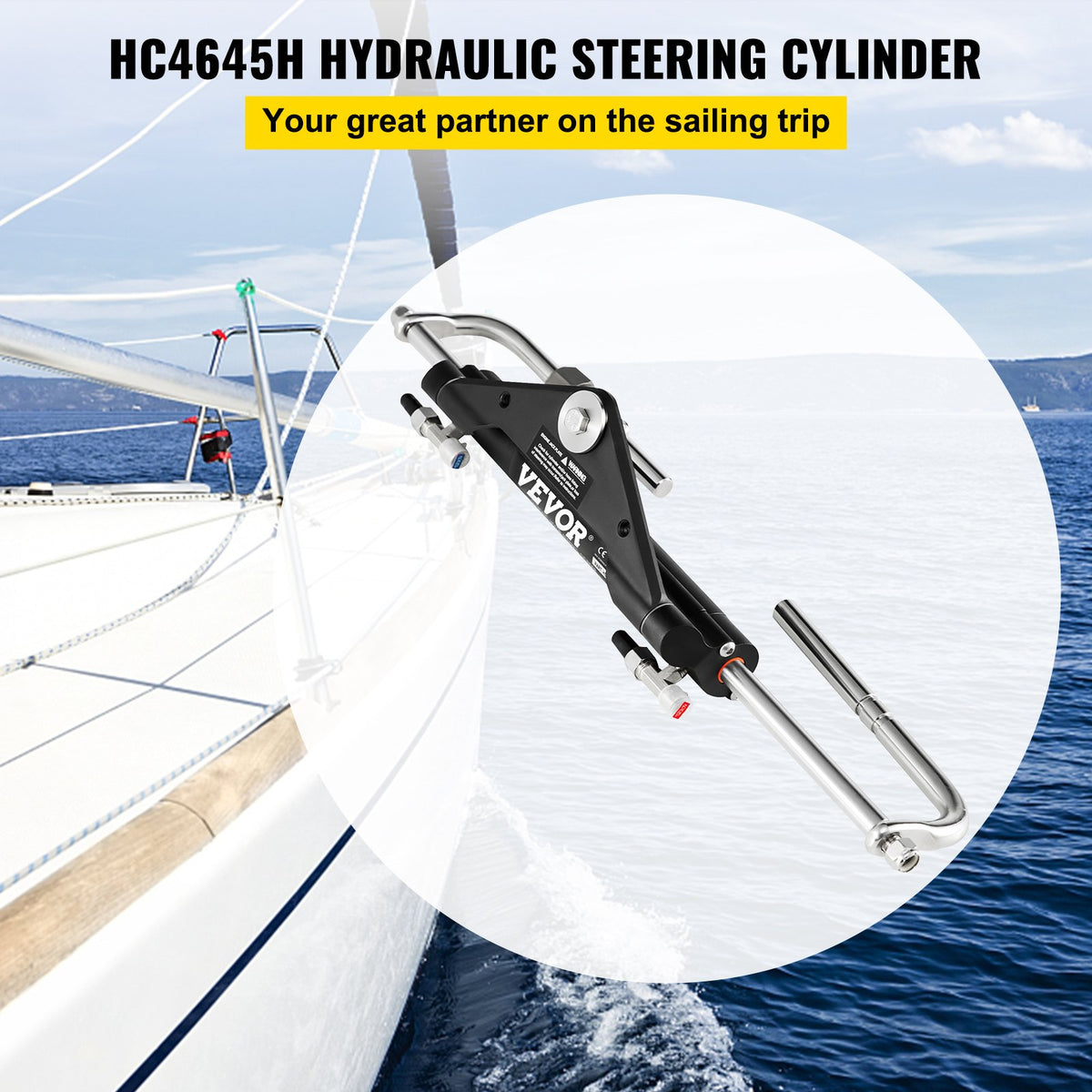

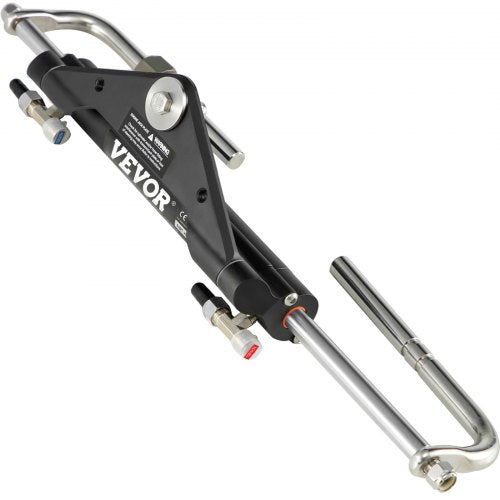

- HC4645H Front Mount Cylinder: HC4645H steering cylinder is ideal for outboard powered boats like center console, offshore fishing, bass boats, flats boats and many more. For use with Yamaha applications where it is necessary to mount the steering cylinder underneath the steering arm.
- Advanced Crush Resistance: Our hydraulic outboard steering cylinder provides excellent resistance to repeated compression set and is designed to better withstand the harsh marine environment.
- Built-In Two-Way Lock: The hydraulic steering cylinder is equipped with a built-in two-way locking valve which eliminates rebound torque during torsion.
- ORB Fitting: The Positionable Stainless Steel O-Ring (ORB) Fittings for easy hose routing.
- Sturdy Aluminum Alloy: The hydraulic steering cylinder is made from a high-strength aluminum alloy material, which is corrosion-resistant, and high-density to effectively prevent seawater erosion. Enjoy the steering helm for years to come.
XWYYFXBTJ300HP001V0 - 300 hp; Hydraulic Steering Kit

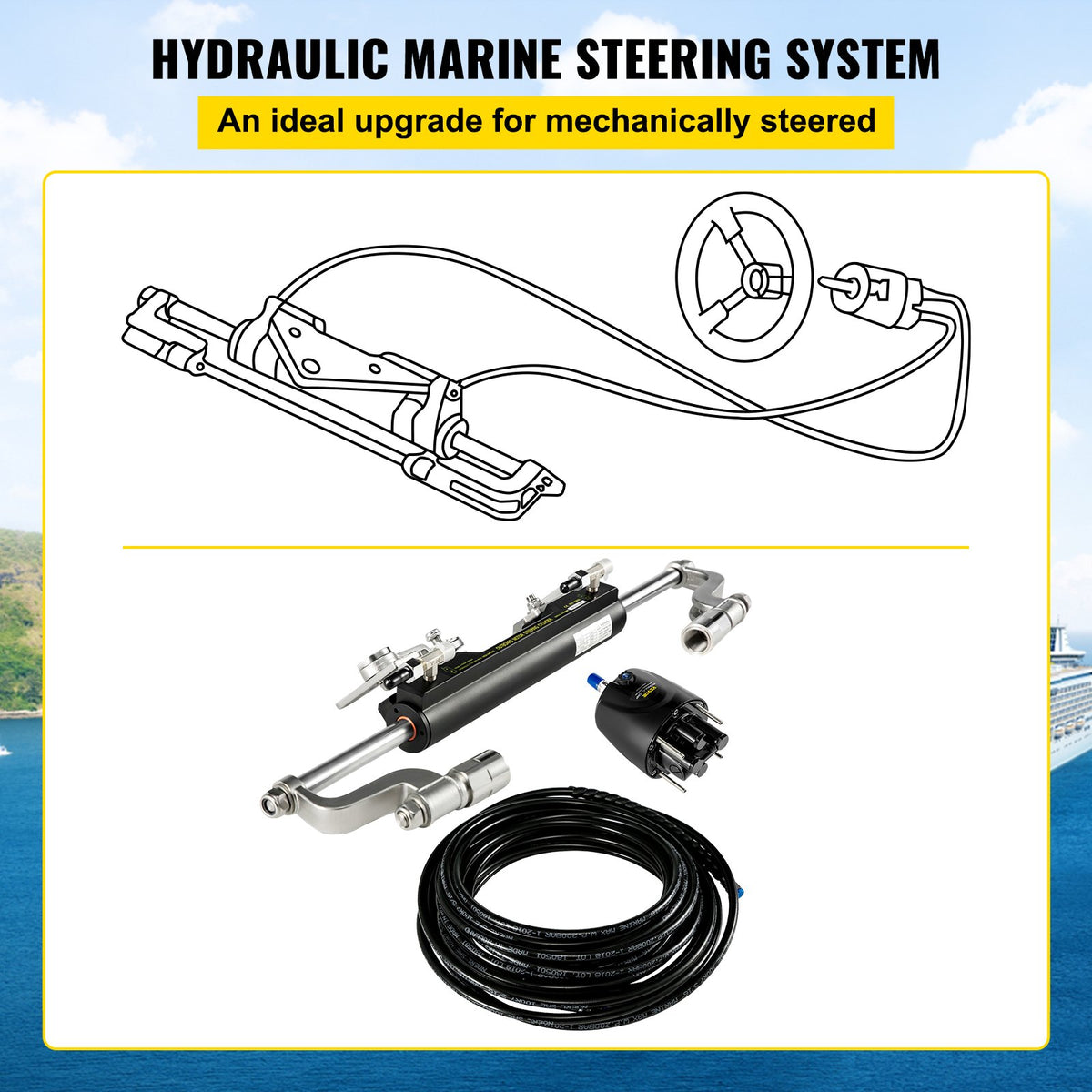

- 300 HP Hydraulic Steering Kit: The hydraulic outboard boat steering kit includes a balanced steering cylinder, a low-friction helm, two lengths of 20ft hose, and a fill kit. It will perfectly replace your aging or broken equipment. Note: It's compatible with Yamaha, Honda, Suzuki below 300HP, not for Mercury.
- Built-in Two-way Lock Cylinder: Output force: 470 kgf. The cylinder has a built-in two-way locking valve, which eliminates rebound torque during torsion. With robust barrel design and efficient sealing, the system can withstand the harsh environment.
- Max. 300HP Helm Pump: Max. Working pressure: 6.9 Mpa/1000 psi. The low friction helm ensures smooth and comfortable steering. And it has a replaceable shaft seal that can be easily replaced.
- Cut-to-length Hoses: Our high-strength nylon hose is equipped with quick-fit 1/4'' pipe fitting for easy and fast installation and multiple re-uses. Each hose is 20' long and can be cut for your specific installation, accommodating most boats.
- Great Partner for Your Boat: Our hydraulic steering kit is for single-outboard powered boats rated up to 300 HP, including runabouts and inflatables — and outboard engines with ABYC standard engine tilt tubes up to 300 HP (total). For single station, single-engine use only.
