VEVOR Powder Coat Machine - Select Your Configuration

Out of stock

$430.99 USD

Sale Sold out

Color Gray White

SKU:WX-101PTJ00000001V1

Product details

What to know before you buy

Core information, use cases, and key selling points for this item.

About this item

Product overview

Choose the exact VEVOR configuration listed below. Specifications and package contents are recorded per SKU.

Compare exact SKUs

SKU	Selection	Specifications	Package contents
WX-101PTJ00000001V1	Color: Gray	Power Voltage: AC110V; Frequency: 50/60Hz; Spraying Rate: 550g/min.; Input Power: 50W; Electromagnetic Valve Control Power Voltage: DC 24V; Maximum Output Current: 200Ua; Input Air Pressure: 0-0.6Mpa; Output Air Pressure: 0-0.5Mpa; Max. Air Consumption: 13.2m³/H; Output Powder Volume: Max. 1.2 lbs/Min; Output Power Voltage: 0-100kv; Polarity: Negative; Length Of Gun Cable: 157.5 inch/ 4 m; Powder Hopper Volume: 47.5 qt/ 45 L; Item Dimension: 18.3x 25.6x 38.7 inch/ 46.5 x 65 x 98.2 cm; Bucket Dimension: 13.6 x 21.5 inch/ 34.5 x 54.7 cm; Control Panel Dimension: 16.8 x 11 x 4.1 inch/ 42.8 x 27.8 x 10.5 cm; Weight: 61.7 lbs/ 28 kg	1 x Powder Coating System; 1 x Powder Bucket; 1 x Trolley; 1 x Manual Powder Gun With Gun Cable; 1 x Powder Gun Spare Parts; 1 x Gun Bracket; 1 x Oil-Water Separator; 1 x Pressure Regulating Valve; 1 x Powder Pump; 1 x Powder Hose, Air Tubes, Grounding Line
WX-958PTJ00000001V1	Color: White	Power Voltage: AC110V; Frequency: 50/60Hz; Input Power: 40W; Electromagnetic Valve Control Power Voltage: DC110V; Maximum Output Current: 150Ua; Output Power Voltage: 0-100kv; Work Temperature: 14-113℉/ -10℃~45℃; Output Powder Volume: Max. 1 lbs/Min; Polarity: Negative; Gun Weight: 1.1 lbs/ 480 g; Length Of Gun Cable: 157.5 inch/ 4 m; Powder Hopper Volume: 47.5 qt/ 45 L; Item Dimension: 16.2 x 21.6 x 36.3 inch/ 41.2 x 55 x 92.2 cm; Bucket Dimension: 13.6 x 21.5 inch/ 34.5 x 54.7 cm; Bucket Material: Stainless Steel; Weight: 61.7 lbs/ 28 kg	1 x Powder Coating System; 1 x Powder Bucket; 1 x Trolley; 1 x Manual Powder Gun with Gun Cable; 1 x Powder Gun Spare Parts; 1 x Gun Bracket; 1 x Oil-Water Separator; 1 x Pressure Regulating Valve; 1 x Powder Pump; 1 x Powder Hose, Air Tubes, Grounding Line

Details by SKU

WX-101PTJ00000001V1 - Color: Gray

High Efficiency Powder Coating System: The electrostatic powder coating system machine is designed for DIYers and handy persons. Perfect for spraying big projects like a ship, bridge, hardware, garage, fitness equipment, and more. It features two interior gas designs so that the needle is no longer needle-guided fluid powder to enhance the discharge effect and improve the powder's rate.

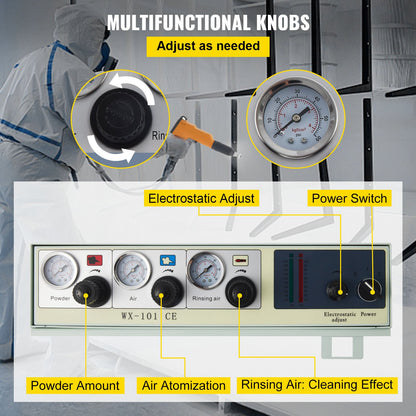

Simple Control Panel: Each function is clearly labeled, so you can conveniently adjust the powder, air, rinsing air, electrostatic through the knobs. The rinsing air can clean the machine and extend the service life. It is also easy to operate with an OFF/ ON switch. This control panel ensures the perfect spray effect and satisfies your work's various needs.
Powder Coating Gun: This Coating machine features a strong electrostatic spraying effect, providing a consistent and smooth finish. Meanwhile, it is powder-saving. With different nozzles, you can spray diffusion and fan-shaped coatings. Also, you can adjust the spraying distance by using big or small nozzles.
Excellent Quality: The 45L powder bucket adopts high-quality stainless steel; it has rust prevention and corrosion resistance advantages. Large capacity supports uninterrupted work. Its thickened construction helps the stability and increases the load capacity. One of the advantages of this machine is it features 4 flexible universal wheels, which can erase fatigue and increase maneuverability around projects.
Considerate Details: This user-friendly design helps the beginner to work more quickly. Electrostatic manual powder coating has an oil-water separator. Filter water, oil, and clean gas in the compressor to ensure an efficient separation effect. A spray grab bracket reduces the pressure caused by long-term spraying force on the arm. A high-quality powder pump and pressure regulator features a superior atomization effect.

WX-958PTJ00000001V1 - Color: White

High Efficiency Powder Coating System: The electrostatic powder coating system machine is designed for DIYers and handy persons. Perfect for spraying big projects like a ship, bridge, hardware, garage, fitness equipment, and more. It features two interior gas designs so that the needle is no longer needle-guided fluid powder to enhance the discharge effect and improve the powder's rate.

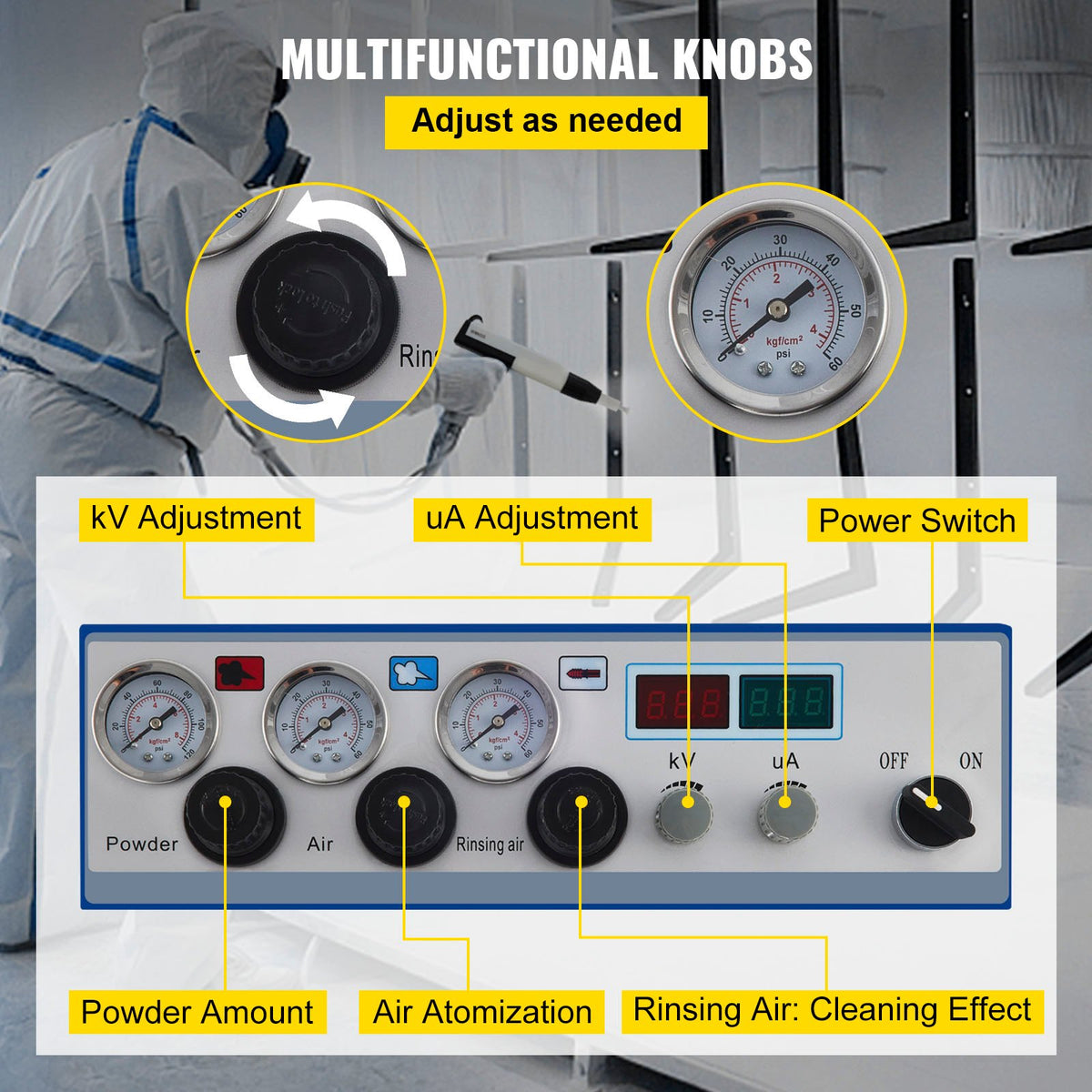

Simple Control Panel: Each function is clearly labeled, so you can conveniently adjust the powder, air, rinsing air, kV, uA through the knobs. The rinsing air can clean the machine and extend the service life. It is also easy to operate with an OFF/ ON switch. This control panel ensures the perfect spray effect and satisfies your work's various needs.
Powder Coating Gun: This Coating machine features a strong electrostatic spraying effect, providing a consistent and smooth finish. Meanwhile, it is powder-saving. With different nozzles, you can spray diffusion and fan-shaped coatings. Also, you can adjust the spraying distance by using big or small nozzles.
Excellent Quality: The 45L powder bucket adopts high-quality stainless steel; it has rust prevention and corrosion resistance advantages. Large capacity supports uninterrupted work. Its thickened construction helps the stability and increases the load capacity. One of the advantages of this machine is it features 4 flexible universal wheels, which can erase fatigue and increase maneuverability around projects.
Considerate Details: This user-friendly design helps the beginner to work more quickly. Electrostatic manual powder coating has an oil-water separator. Filter water, oil, and clean gas in the compressor to ensure an efficient separation effect. A spray grab bracket reduces the pressure caused by long-term spraying force on the arm. A high-quality powder pump and pressure regulator features a superior atomization effect.

Configuration
