About this item
Key Features

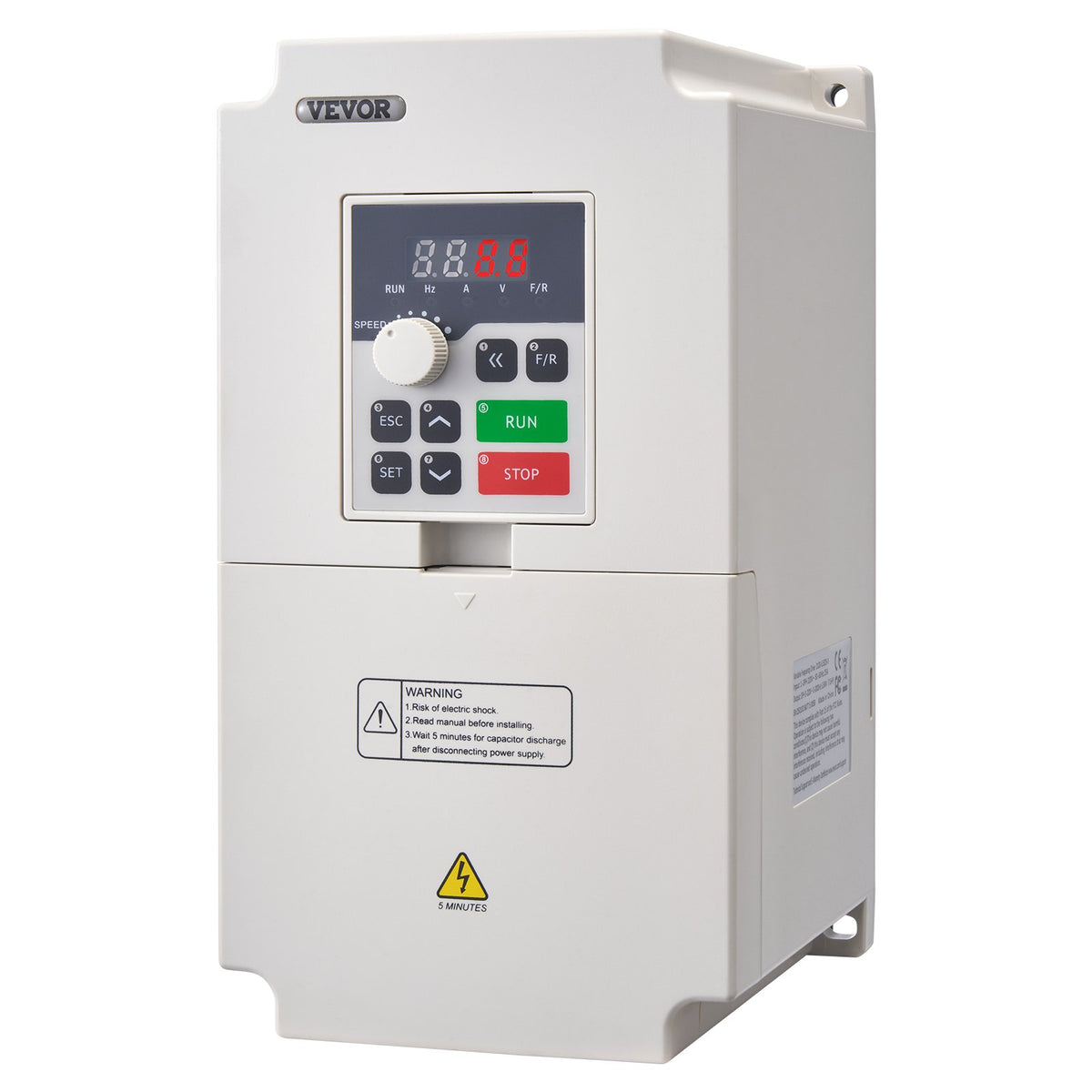

- Powerful Function: This variable frequency drive has a 1 or 3 phase input and 3 phase output. Control mode: V/F control and vector control. Frequency setting mode: digital setting, analog setting, RS485 serial communication setting (standard MODBUS main circuit control), PID setting (advanced calculus PID closed-loop arithmetic, quick responding speed, and high suitability), etc. Various control techniques by both synchronization and non-synchronization dynamically realize fast starting without changing brakes. Heavy load high torque, 1Hz up to full torque.
- Low-Noise Operation: The phase converter features low noise and low electromagnetic interference through the optimization of PWM control technology and electromagnetic compatibility of the overall design. There is enough space for heat dissipation between electronic components, and the shell adopts porous heat dissipation, which has a longer service life.
- Smart Digital Display: The VFD adopts a user-friendly keyboard design & reasonable layout, easy to operate; digital display, intuitive and clear. The detachable design is convenient for remote control.
- Multiple Protection: We adopt various protection ways to ensure the stable and reliable operation of the CNC variable frequency drive inverter. Such as overload protection, fuse protection, over-voltage (DC voltage>400V), or under-voltage (DC voltage<200V) protection, restart protection, stall protection, short-circuit protection, and over-heat protection.
- Versatile Use: The main application area involves a spindle motor, CNC engraving machine, CNC milling machine, CNC machine tool, milling machine, drilling machine, trimming machine, mixer, extruder, slitting machine, rewinder, compressor, ventilator, pump, grinder, conveyor. Speed regulators such as elevators (cannot be used for passenger elevators), centrifuges, etc.
Specifications
| Brand | VEVOR |
|---|---|
| Product Type | Electrical > Power Distribution > Voltage Transformers > Variable Frequency Drive |
| Power | 3 kW (4 HP) or 4 kW (5.5 HP) - see the variant selector |
| Model | H100-3S2-1B (3 kW) / H100-4S2-1B (4 kW) |
| Input Phase | 1 or 3 phase |
| Output Phase | 3 phase |
| Input Voltage | 220 V AC |
| Output Voltage | 0-220 V |
| Input Current | 0-14 A (3 kW) / 0-17 A (4 kW) |
| Output Current | 0-14 A (3 kW) / 0-17 A (4 kW) |
| Input Frequency | 50/60 Hz |
| Output Frequency | 0-1000 Hz |
| Control Mode | V/F control and vector control |
| Communication | RS485 port with standard MODBUS main circuit control |
| Vibration | Below 0.5 G |
| Working Temperature | 23-104 F / -5 to 40 C |
| Humidity | 0-90% relative humidity (without dew) |
| Product Size | 5.9 x 3.54 x 4.6 in / 150 x 90 x 118 mm (3 kW); 8.7 x 4.6 x 5.8 in / 220 x 118 x 148 mm (4 kW) |
| Net Weight | 2.43 lbs / 1.1 kg (3 kW); 5.73 lbs / 2.6 kg (4 kW) |
| Shipping Weight | 2.98 lbs / 1.35 kg (3 kW); 6.5 lbs / 2.95 kg (4 kW) |
| Applications | Spindle motors, CNC engraving and milling machines, machine tools, mixers, extruders, pumps, conveyors, centrifuges and similar speed control equipment |
| Available Options | Power: 3 kW, 4 kW |
