Product overview
VEVOR Level 2 Electric Vehicle Charging Station, 0-48A Adjustable, 11.5 kW 240V NEMA14-50 Plug Smart EV Charger with WiFi, 24-Foot TPE Charging Cable for Indoor/Outdoor Use, ETL &
Compare exact SKUs
| SKU | Selection | Specifications | Package contents |
|---|---|---|---|
| MGJLCD48A1450XA1MV4 | Plug Type: 14-50; Max. Current: 48A | Standard of Reference: CCS1 (combo/Type 1) AC Level 2 charging; Operating Temperature: -22 to 122℉/-30 to 50℃; Item Dimensions(H x W x D): 13.11 x 8.39 x 3.62 in / 333 x 213 x 92 mm; Gross Weight: 18.74 lbs / 8.5 kg; Relative Humidity: 5% to 95% No Condensation; Maximum Output Current: 48A; Charging Cable: 24 ft / 7.3 m(2*8AWG+1*10AWG, TPE); Protection Function: Over Voltage, Under Voltage, Over Charge, Over Current Protection, Lightning Protection, Emergency Stop Protection; Input Cable: 5 ft / 1.5 m(2*8AWG+1*10AWG, PVC); Certification: ETL Certified; Energy Star Certified; Power Output: 11.5 kW; Indicator Light: Standby - Green on; Charging - Yellow blinking; Alarm - Red on; Indication of Status: 3*LED Light Indicator & 4.3-inch Touchscreen; Packing Size(H x W x D): 20.87 x 16.54 x 7.68 in / 53 x 42 x 19.5 cm; Input Plug: NEME14-50P; IP Rating: IP66; Mechanical Timing: 1-24 Hours; Voltage: Level II 240V±15%, 60 Hz; Model: EV-A01-US011B; Charging Interface: SAE J1772; Enclosure Material: PC+ABS; Charging Mode: Swipe Card Charging / APP Charging / Password Charging / Appointment Charging; Net Weight: 17.61 lbs / 7.99 kg |
Details by SKU
MGJLCD48A1450XA1MV4 - 14-50; 48A

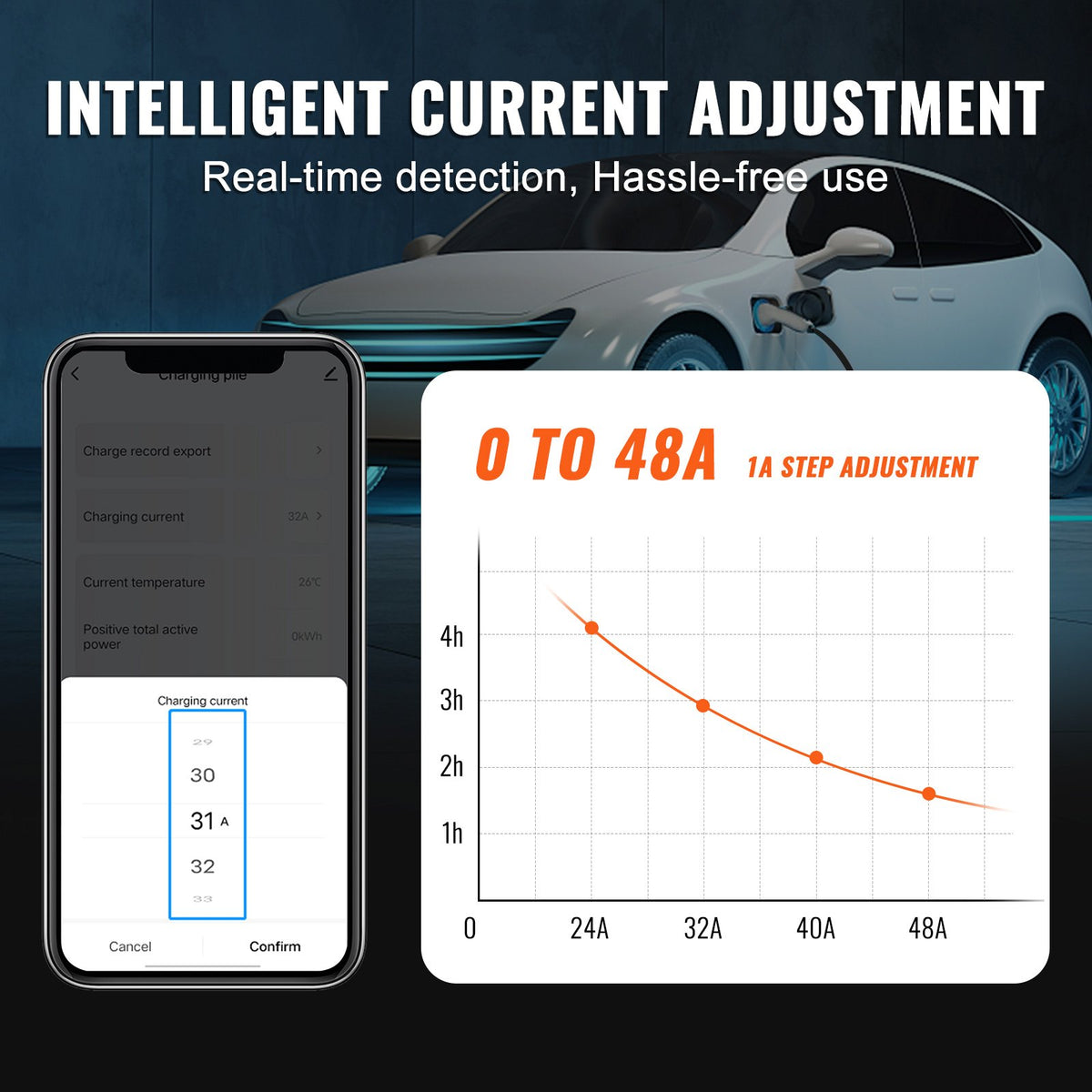

- Intelligent Recognition Function: Our EV charging station level 2 can intelligently identify the user's home circuit. If the circuit can not withstand the charging power, it will automatically switch to the appropriate power charging. You won't have anything to worry about! Adjustment Unit: 1A, adjustment Range: 0-48A.
- TPE That Does More: Our charging cable is made of high-quality TPE, which is flexible even at -22℉/-30℃. The extra-long charging cable reaches as far as 24 feet, meeting all your needs. Besides, the enclosure features PC+ABS material, with an IP66 protection level to withstand harsh weather conditions. No matter where you are, you will be ready for anything!
- Your Security Comes First: Your security is our primary concern! That is why this smart EV charger is ETL-certified and energy star certified. It is equipped with various protection features to keep users and equipment secure. Features include over voltage / under voltage / over charge / over current / emergency stop protection / lightning protection.

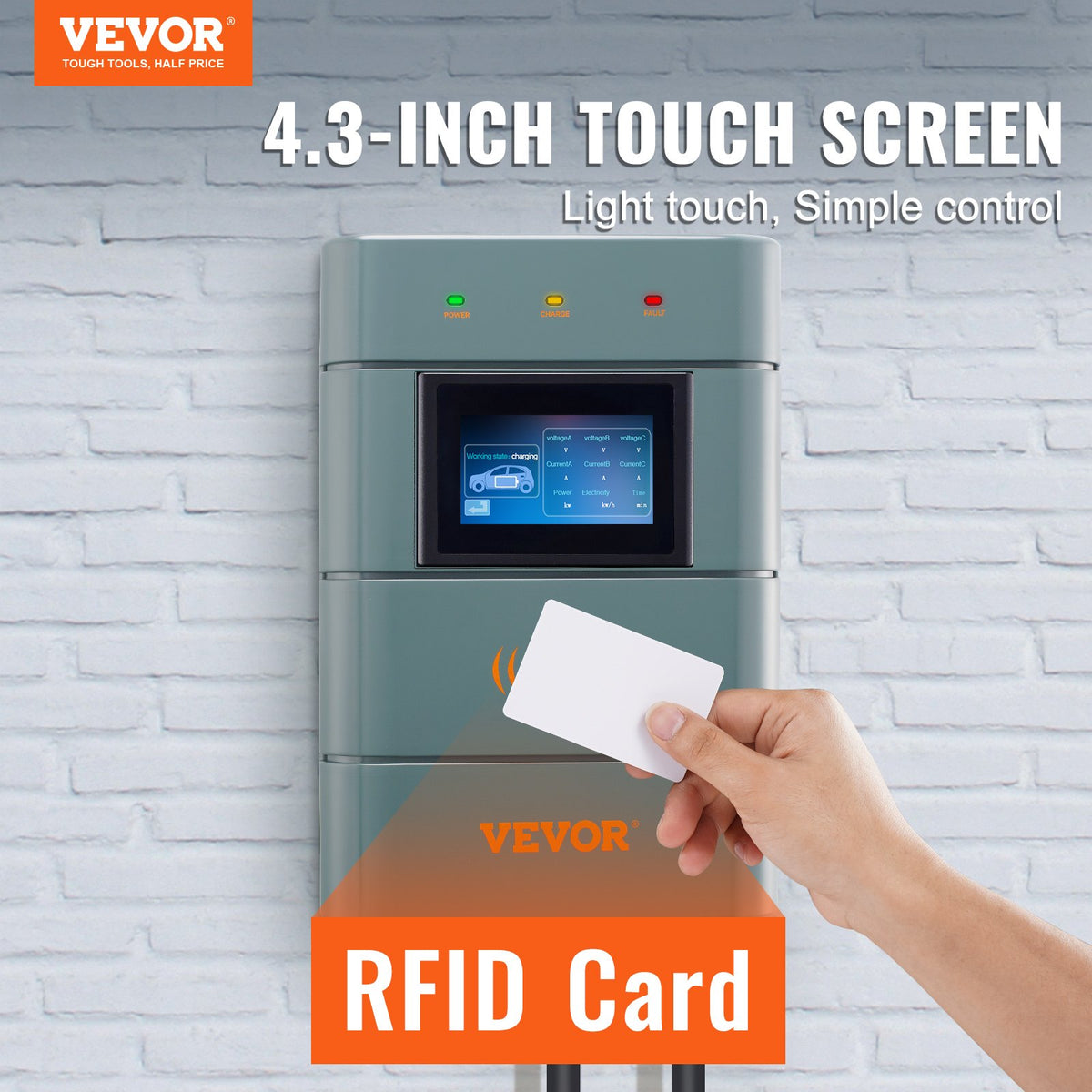

- Real-Time Monitoring: This home vehicle charging station has a built-in intelligent App to directly monitor the charge status and power consumption. Designed with a 4.3-inch touch screen and 3-LED indicator light to easily control the current / mode setting, order / password charging, etc.

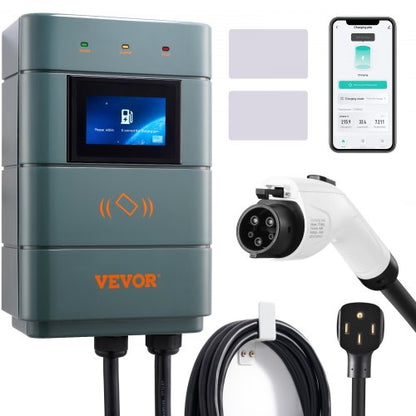

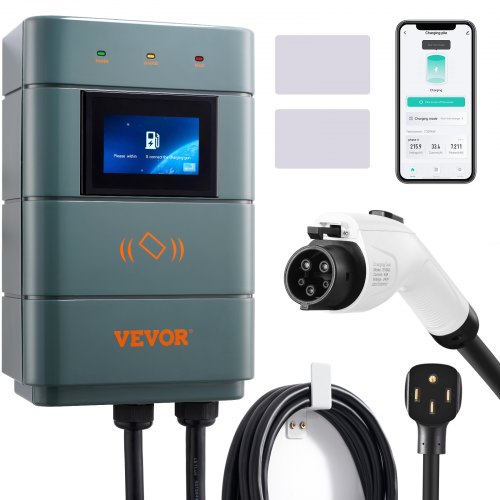

- Everything You Need: We provide you with complete accessories to make installation effortless, including 2 x RFID cards(M1 card), 6 x M8*60 expansion screws, 1 x charging cable hook, 1 x wall hanging fixed plate, and 1 x certificate of conformity. The electric car charger is compatible with most electric vehicles and plug-in hybrid vehicles that comply with the J1772 standard. Get ready to charge up and hit the road again!
