Product details
What to know before you buy
Core information, use cases, and key selling points for this item.
About this item
Product overview
VEVOR Woodworking Lathe Chuck - Select Your Configuration
Compare exact SKUs
| SKU | Selection | Specifications | Package contents |
|---|---|---|---|
| MGCCKP275YC0517OZV0 | Size: 2.75 in; Jaw Quantity: 1 PCS | Clamping Range (Inner): 1.18-1.85 inches (30-47 mm); Outer Diameter Runout: ≤0.15 mm; Test Bar Radial Runout: ≤0.40 mm at a distance of 50 mm; Surface Treatment and Color: ≤Ra1.6, chrome-plated natural color; Test Ring End Face Runout: ≤0.15 mm; Model: KP2-3/4; Support Range (Outer): 1.5-2.24 inches (38-56 mm); Chuck Internal Thread: 1*8TPI; Product Dimensions: φ70 x 65 mm; Chuck Outer Diameter: 2.75 inches / φ70 mm; Net Weight: 3.2 pounds / 1.47 kg; Main Material: 45# | |
| MGCCKP375YC0FQLQ0V0 | Size: 3.75 in; Jaw Quantity: 1 PCS | Clamping Range (Inner): 1.26-2.75"" (32-70 mm); Outer Diameter Runout: ≤0.15 mm; Test Bar Radial Runout: ≤0.40 mm at a distance of 50 mm; Surface Treatment and Color: ≤Ra1.6, chrome-plated natural color; Test Ring End Face Runout: ≤0.15 mm; Item Model Number: KP96; Support Range (Outer): 1.77-3.4"" (45-86 mm); Chuck Internal Thread: M33*3.5TPI; Product Dimensions: φ96 x 80 mm; Chuck Outer Diameter: 3.75"" / φ96 mm; Net Weight: 4.8 lb / 2.2 kg; Main Material: 45# | |
| MGCCKPTZ375YV7TVVV0 | Size: 3.75 in; Jaw Quantity: 5 PCS | Clamping Range (Inner): 1.26-2.75" (32-70 mm); Outer Diameter Runout: ≤0.15 mm; Test Bar Radial Runout: ≤0.40 mm at a distance of 50 mm; Surface Treatment and Color: ≤Ra1.6, chrome-plated natural color; Test Ring End Face Runout: ≤0.15 mm; Model: KP965; Support Range (Outer): 1.77-3.4" (45-86 mm); Chuck Internal Thread: M33*3.5TPI; Product Dimensions: φ96 x 80 mm; Chuck Outer Diameter: 3.75 inch / φ96 mm; Net Weight: 10.3 lb / 4.7 kg; Main Material: 45# | |
| MGCCKPTJ3JT4IBZ0X001V0 | Size: 4 in; Jaw Quantity: 3 PCS | Item Model Number: CK4-4K-3SET-SS; Product Dimensions: 4 x 4 x 3.1 in / 102 x 102 x 78 mm; Net Weight: 7.4 lbs / 3.36 kg | |
| MGCCKPDJ4GKZGB730001V0 | Size: 4 in; Jaw Quantity: 1 PCS | Item Model Number: CK4-4S-SS; Product Dimensions: 4 x 4 x 2.8 in / 100 x 100 x 72 mm; Net Weight: 5.4 lbs / 2.45 kg | |
| MGCCKPTJ4JT4H21PA001V0 | Size: 4 in; Jaw Quantity: 4 PCS | Small Round Jaws Dimensions: 4 x 4 x 2.8 in / 100 x 100 x 72 mm; Carrying Case Dimensions: 14.8 x 10.8 x 4.1 in / 375 x 275 x 105 mm; Item Model Number: CK4-4S-4SET-SS; Net Weight: 9.9 lbs / 4.47 kg | |
| MGCCKPTJ5JT4WWS7T001V0 | Size: 4 in; Jaw Quantity: 5 PCS | Small Round Jaws Dimensions: 4 x 4 x 3.1 in / 102 x 102 x 78 mm; Carrying Case Dimensions: 14.8 x 10.8 x 4.1 in / 375 x 275 x 105 mm; Item Model Number: CK4-4K-5SET-SS; Net Weight: 11.8 lbs / 5.37 kg |
Details by SKU
MGCCKP275YC0517OZV0 - 2.75 in; 1 PCS
- High-Strength #45 Material: To meet the demanding requirements of production environments, we utilize #45 material that has undergone quenching and hardening techniques. This imparts exceptional hardness and rust-resistant properties, ensuring outstanding performance and reliability for both small and large workpieces held by the chuck.
- High Precision: In the manufacturing of our chucks, we employ high-precision machining processes to ensure structural stability and machining accuracy. The lathe components feature a refined bevel gear and three small gears, aiding in precise machining progress. Bearing tolerance is ≤ 0.3 mm / 0.01 inch, guaranteeing excellent machining results.
- Versatile Single Jaw: Our chuck features an adjustable jaw design, providing enhanced flexibility. Operators can easily adjust the clamping range using a T-handle wrench, accommodating workpiece sizes and shapes such as bowls, plates, vases, cups, and more with precise gripping and securing.
- Simple & User-Friendly: The chuck boasts a streamlined design, striking the optimal balance between functionality and reliability. By eliminating unnecessary complex components and mechanical structures, the chuck's design becomes simple and compact. Installation and removal only require screws and handles, and clamping and spreading are achieved by rotating the T-handle wrench.
- Wide Range of Applications: Whether you're involved in woodworking, drilling, grinding, or other fields, the chuck's broad adaptability meets your requirements. By using our lathe chuck, you can enhance processing efficiency, increase operational flexibility, and achieve accurate and stable machining outcomes. Whether for personal use or industrial production, this lathe chuck delivers outstanding performance and reliability to cater to your needs.
MGCCKP375YC0FQLQ0V0 - 3.75 in; 1 PCS
- High-Strength #45 Material: To meet the demanding requirements of production environments, we utilize #45 material that has undergone quenching and hardening techniques. This imparts exceptional hardness and rust-resistant properties, ensuring outstanding performance and reliability for both small and large workpieces held by the chuck.
- High Precision:In the manufacturing of our chucks, we employ high-precision machining processes to ensure structural stability and machining accuracy. The lathe components feature a refined bevel gear and three small gears, aiding in precise machining progress. Bearing tolerance is ≤ 0.3 mm / 0.01 inch, guaranteeing excellent machining results.
- Versatile Single Jaw: Our chuck features an adjustable jaw design, providing enhanced flexibility. Operators can easily adjust the clamping range using a T-handle wrench, accommodating workpiece sizes and shapes such as bowls, plates, vases, cups, and more with precise gripping and securing.
- Simple & User-Friendly: The chuck boasts a streamlined design, striking the optimal balance between functionality and reliability. By eliminating unnecessary complex components and mechanical structures, the chuck's design becomes simple and compact. Installation and removal only require screws and handles, and clamping and spreading are achieved by rotating the T-handle wrench.
- Wide Range of Applications: Whether you're involved in woodworking, drilling, grinding, or other fields, the chuck's broad adaptability meets your requirements. By using our lathe chuck, you can enhance processing efficiency, increase operational flexibility, and achieve accurate and stable machining outcomes. Whether for personal use or industrial production, this lathe chuck delivers outstanding performance and reliability to cater to your needs.
MGCCKPTZ375YV7TVVV0 - 3.75 in; 5 PCS
- High-Strength #45 Material: To meet the demanding requirements of production environments, we have utilized #45 material that has undergone quenching and tempering techniques. This process imparts exceptional hardness and rust-resistant properties. Whether it's for small-scale or large-scale workpieces, this lathe chuck delivers outstanding performance and reliability.
- 5-Piece Jaw Set: This comprehensive lathe chuck set includes dovetail jaws, round jaws, flat jaws, step jaws, and taper jaws – a total of 5 different types of jaws along with the necessary installation tools. From slender items like pen blanks to larger items such as plates and bowls, this assortment of jaws enables a variety of clamping options, providing you with greater flexibility.
- Wide Clamping Range: Each jaw of our lathe chuck can be adjusted to accommodate a broader range of clamping sizes, enhancing its versatility. Operators can easily rotate the jaws for clamping or expanding using a T-handle wrench. This allows for precise clamping and secure fastening of items like bowls, plates, vases, and cups.
- Simple & Easy Operation: The lathe chuck features a streamlined design that strikes the perfect balance between functionality and reliability. By eliminating unnecessary complex components and mechanical structures, the chuck's design remains straightforward and compact. Installation and removal only require screws and a handle, making clamping and expanding achievable with a simple twist of the T-handle wrench.
- Wide Range Of Applications: Whether you're involved in woodworking, drilling, grinding, or other fields, the lathe chuck's versatility caters to your needs. By using our lathe chuck, you can enhance processing efficiency, increase operational flexibility, and achieve precise and consistent results. Whether for personal use or industrial production, this lathe chuck offers exceptional performance and reliability.
MGCCKPTJ3JT4IBZ0X001V0 - 4 in; 3 PCS
- Fits 1" x 8 TPI Wood Lathes: This 4-jaw wood lathe chuck features a 4-inch outer diameter and an M33 x 3.5 mm internal thread. The 1" x 8 TPI adapter fits 1" x 8 TPI lathe spindles, making it ideal for most medium and large woodworking lathes
- 3-Piece Multi-Purpose Chuck Set: This 3-piece woodworking lathe chuck set includes small round jaws, large round jaws, and step jaws. All four jaws can be adjusted with one hand using the included T-wrench, and are easy to replace and install
- Bevel-Gear Self-Centering Design: Our bevel-gear self-centering lathe chuck automatically keeps your workpiece centered during high-speed rotation. It minimizes misalignment without repeated manual adjustments, improving machining efficiency
- Wood Screw Mounting: The wood turning lathe chuck includes a tapered screw designed for large, flat wooden workpieces. You can quickly secure the workpiece by drilling a 1 in deep, 0.3 in diameter hole at its center
- Heavy-Duty Durability: Made of high-hardness steel with a corrosion-resistant nickel-plated finish, the lathe chuck for woodturning reduces the damage caused by dampness or dust. It stays strong through long-term cutting and carving tasks
MGCCKPDJ4GKZGB730001V0 - 4 in; 1 PCS
- Fits 1" x 8 TPI Wood Lathes: This 4-jaw wood lathe chuck features a 4-inch outer diameter and an M33 x 3.5 mm internal thread. The 1" x 8 TPI adapter fits 1" x 8 TPI lathe spindles, making it ideal for most medium and large woodworking lathes
- Inside Clamping, Outside Support: 4-jaw adjustment via two locking bars. With a 1.5-2.8 in/39-72 mm inside clamping range and a 2-3.5 in/50.5-89 mm outside support range, this wood lathe chuck holds different workpiece shapes firmly
- Self-Centering Design: Our self-centering lathe chuck automatically keeps your workpiece centered during high-speed rotation. It minimizes misalignment without repeated manual adjustments, improving machining efficiency
- Wood Screw Mounting: The wood turning lathe chuck includes a tapered screw designed for large, flat wooden workpieces. You can quickly secure the workpiece by drilling a 1 in deep, 0.3 in diameter hole at its center
- Heavy-Duty Durability: Made of high-hardness steel with a corrosion-resistant nickel-plated finish, the lathe chuck for woodturning reduces the damage caused by dampness or dust. It stays strong through long-term cutting and carving tasks
MGCCKPTJ4JT4H21PA001V0 - 4 in; 4 PCS
- Fits 1" x 8 TPI Wood Lathes: This 4-jaw wood lathe chuck features a 4-inch outer diameter and an M33 x 3.5 mm internal thread. The 1" x 8 TPI adapter fits 1" x 8 TPI lathe spindles, making it ideal for most medium and large woodworking lathes
- 4-Piece Multi-Purpose Chuck Set: This 4-piece woodworking lathe chuck set includes small round jaws, large round jaws, pin jaws, and step jaws. It supports 4-jaw adjustment via two locking bars and comes with wood screws for large, flat wood pieces
- Self-Centering Design: Our self-centering lathe chuck automatically keeps your workpiece centered during high-speed rotation. It minimizes misalignment without repeated manual adjustments, improving machining efficiency
- Portable Carrying Case: Our wood turning lathe chuck includes a carrying case that keeps the chuck, wrench, and other accessories neatly organized. The case enables quick installation and change, while keeping the chuck from being damaged when not in use
- Heavy-Duty Durability: Made of high-hardness steel with a corrosion-resistant nickel-plated finish, the lathe chuck for woodturning reduces the damage caused by dampness or dust. It stays strong through long-term cutting and carving tasks

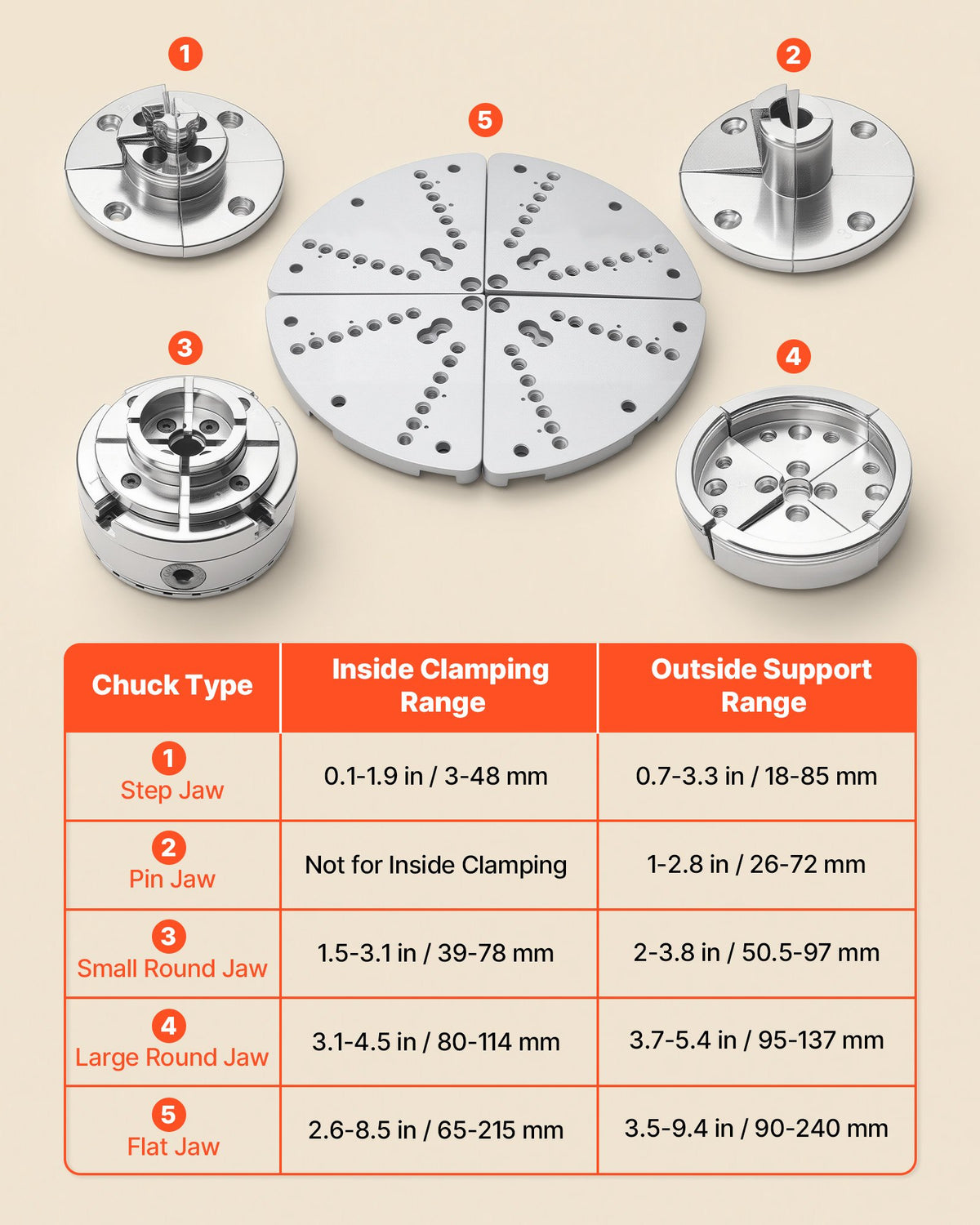

MGCCKPTJ5JT4WWS7T001V0 - 4 in; 5 PCS
- Fits 1" x 8 TPI Wood Lathes: This 4-jaw wood lathe chuck features a 4-inch outer diameter and an M33 x 3.5 mm internal thread. The 1" x 8 TPI adapter fits 1" x 8 TPI lathe spindles, making it ideal for most medium and large woodworking lathes
- 5-Piece Multi-Purpose Chuck Set: This 5-piece woodworking lathe chuck set includes small round jaws, large round jaws, step jaws, pin jaws, and flat jaws. It supports 4-jaw adjustment via a T-wrench and comes with wood screws for large, flat wood pieces
- Bevel-Gear Self-Centering Design: Our bevel-gear self-centering lathe chuck automatically keeps your workpiece centered during high-speed rotation. It minimizes misalignment without repeated manual adjustments, improving machining efficiency
- Portable Carrying Case: Our wood turning lathe chuck includes a carrying case that keeps the chuck, wrench, and other accessories neatly organized. The case enables quick installation and change, while keeping the chuck from being damaged when not in use
- Heavy-Duty Durability: Made of high-hardness steel with a corrosion-resistant nickel-plated finish, the lathe chuck for woodturning reduces the damage caused by dampness or dust. It stays strong through long-term cutting and carving tasks
