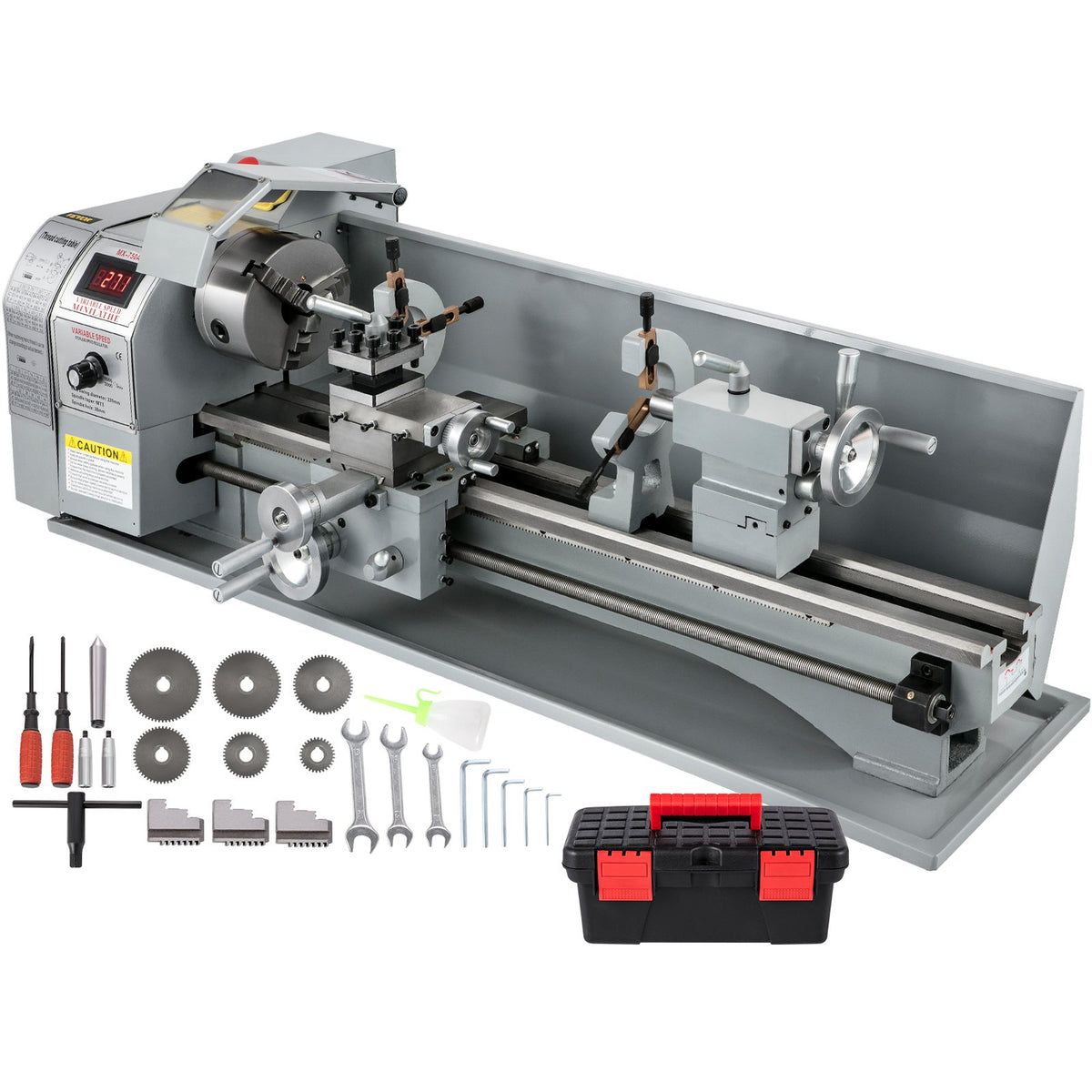

VEVOR Metal Lathe 8.7 x 29.5 Inch / 220 x 750 mm Mini Metal Lathe 1.1 kW Infinitely Variable Speed with LED Screen for Counter Face Turning & Drilling

About this item

Key Features

• Infinitely Variable Speed: The mini metal lathe is driven by DC motor with Power: 1100W. Variable Speed(Rpm): 50-2250±10%. Taper in Spindle Nose: MT5. LED screen shows you the clear and accurate speed for accurate working. Soft start, change-over switch for clockwise or counter-clockwise spindle rotation. Operate either manually or with the adjustable auto feed rate.
• 750 mm Distance Between Centers: The bench top lathe brings a 3-jaw Chuck with Diameter: 4.9"/125 mm. Swing Over Bed: 8.7"/220 mm and Distance Between Centers: 29.5"/750 mm offers more possibilities for large size or/and heavy workpieces. Taper in Spindle Nose: MT5. Range of Imperial Threads: 8-44 T.P.I.
• Professional Compound Rest: The mini lathe machine quick change tool post can achieve positions of internal cutting, face cutting and bevel cutting by changing the tool post angle and adjusting the compound rest, moving blades freely with feed rod. Heat hardening lead screw.
• Supportive & Protective: Steady rest works as an end support, ensuring chatter-free operation. Follow rest is used for turning operations on long, slender workpieces. Backsplash guard included.
• Adjustable Tailstock: Taper in Tailstock Spindle: MT2. Rotate the lever clockwise to lock the spindle, and rotate clockwise to advance the handwheel. To off-set the tailstock for cutting tapers by adjusting the four set screws located on the tailstock base.

Specifications

Product Images
