Product details
What to know before you buy
Core information, use cases, and key selling points for this item.
About this item
Product overview
Choose the exact VEVOR configuration listed below. Specifications and package contents are recorded per SKU.
Compare exact SKUs
| SKU | Selection | Specifications | Package contents |
|---|---|---|---|
| LJSJZDHCZQSDQM65RV0 | Compression Stroke: 11 in; Clamping Structure: Locking Jaw+Security Clip | Bracket Adjustable Range: 8.6"-12.2"/220-310 mm; Max. Load-bearing Capacity: 2646 lbs/1200 kg; Tool Box Size: 13.4 x 8.7 x 2.7 inch/340 x 220 x 68 mm; Item Model Number: XC6455; Material: 45# Steel; Max Compression Stroke: 11 inch/280mm; Net Weight: 10 lbs/4.55 kg | |
| LJSJZDHCZQ30X7BIIV0 | Compression Stroke: 10.4 in; Clamping Structure: Anti-Loosening Pin | Item Model Number: XC9113; Product Dimensions: 2.5 x 2 x 12.8 in / 64 x 50 x 324 mm(single sided); Net Weight: 7.9 lbs/3.6 kg (including all accessories); Max Compression Stroke: 10.4 in / 265 mm; Max pressure: 1.2 Ton / 1200 kg |
Details by SKU

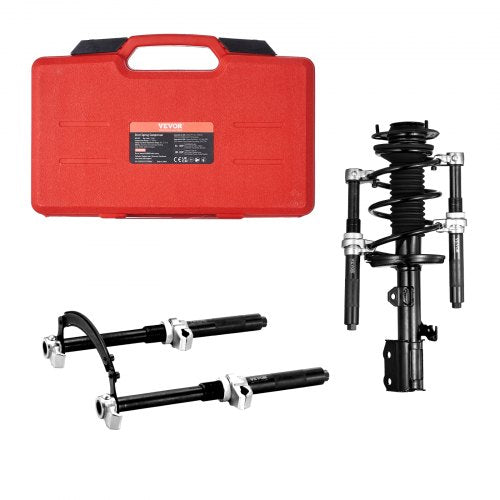

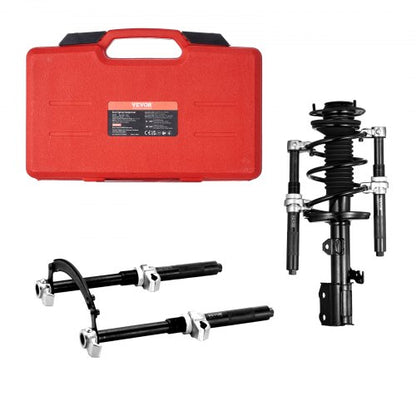

LJSJZDHCZQSDQM65RV0 - Compression Stroke: 11 in; Clamping Structure: Locking Jaw+Security Clip

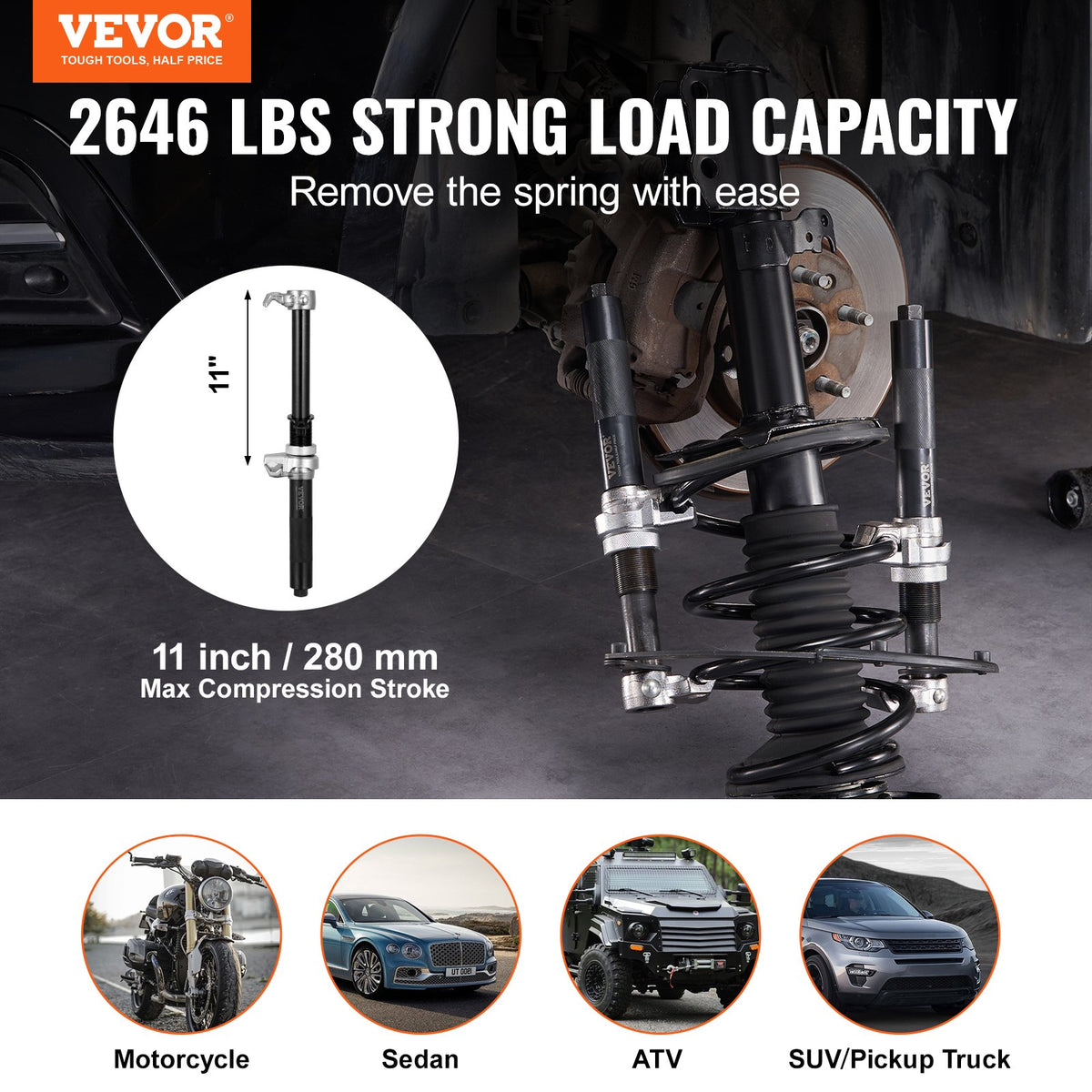

- High Load-Bearing Capacity: Our strut spring compressor can bear a weight of up to 2646 lbs / 1200 kg, making it more suitable for disassembling shock springs of different vehicle models such as motorcycles, cars, ATVs, pickups, and SUVs. It can firmly compress even high-resilience springs, securely gripping them without easy bending or deformation.

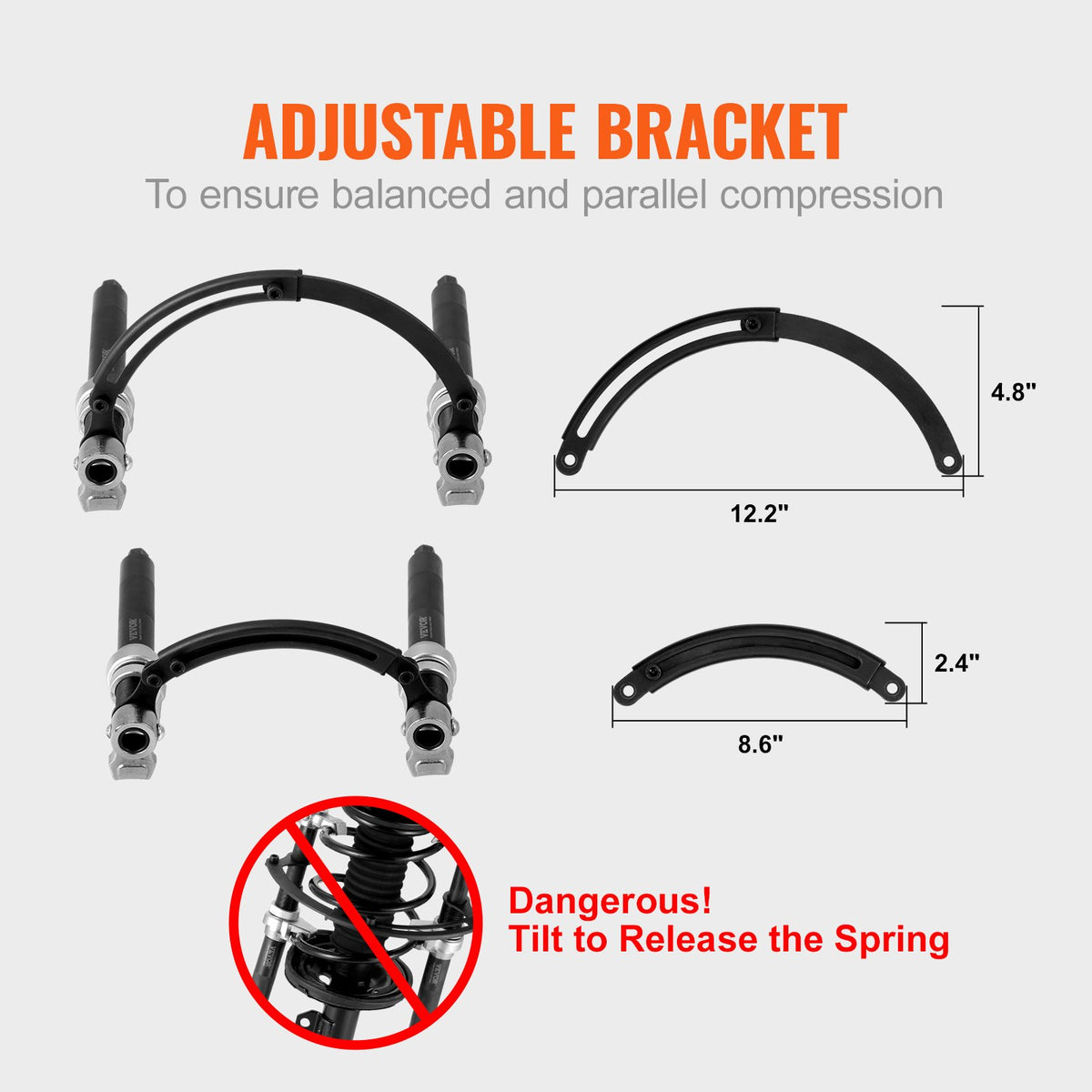

- Adjustable Safety Brackets: The safety brackets can be adjusted within a range of 8.6 to 12.2 inches, ensuring a closer fit to different sizes of coil springs. The threaded rods on both sides remain as parallel as possible during compression, with an appropriate distance. This coil strut spring compressor prevents spring rebound due to tilting on one side, ensuring a smoother and safer compression process.
- Secure Locking Ring: A safety locking ring is added to the clamp's mouth, ensuring a firm and secure attachment to the spring without easy detachment. This enhancement increases safety, preventing anxious moments during the compression process.
- Higher Hardness: The strut spring compressor is made from high-hardness #45 steel, which has been heat-treated to form a thick and integral structure, ensuring that the compressor is highly resistant to deformation and breakage. Additionally, the clamps have been forged and coated with a layer of rust-resistant nickel to prevent corrosion and rust.
- Compatible with 3/4" Socket: The compressive stroke is 11 inches / 280 mm. You can use a socket to compress the hex bolt at the bottom of the threaded rod. Note: 1. Apply grease lubrication to the threaded rod before operation. 2. Compress and release the spring alternately on both sides to maintain consistent compression length. 3. Use both hands during compression; impact wrenches are not recommended.

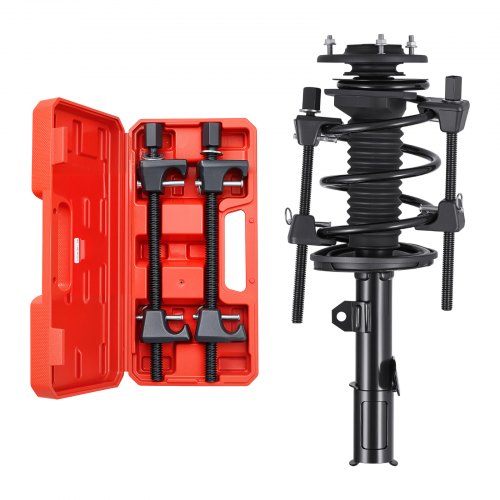

LJSJZDHCZQ30X7BIIV0 - Compression Stroke: 10.4 in; Clamping Structure: Anti-Loosening Pin

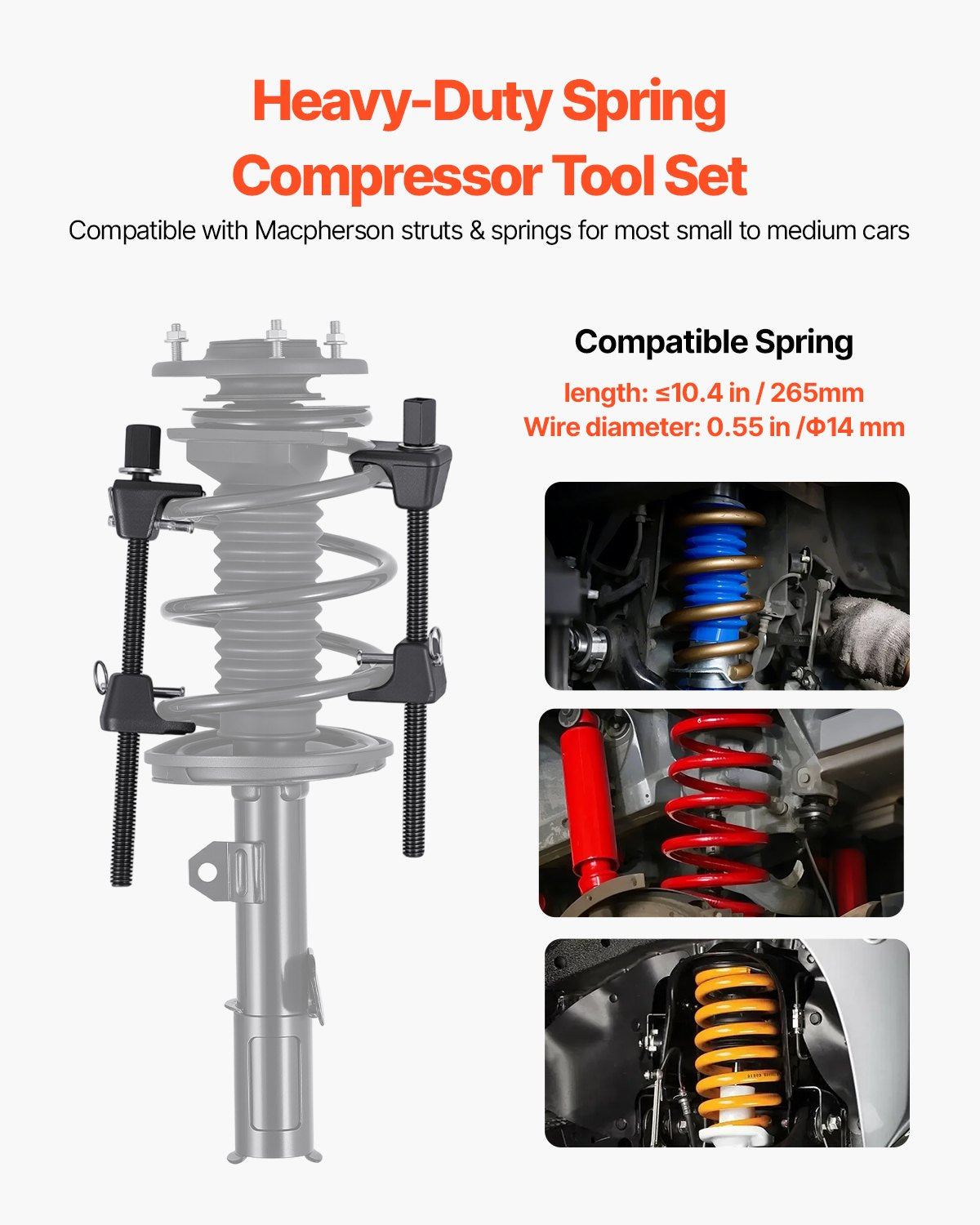

- Applicability: With a 10.4-inch max compression stroke, this spring compressor tool fits most medium and small cars with MacPherson struts and springs—making suspension maintenance super easy!

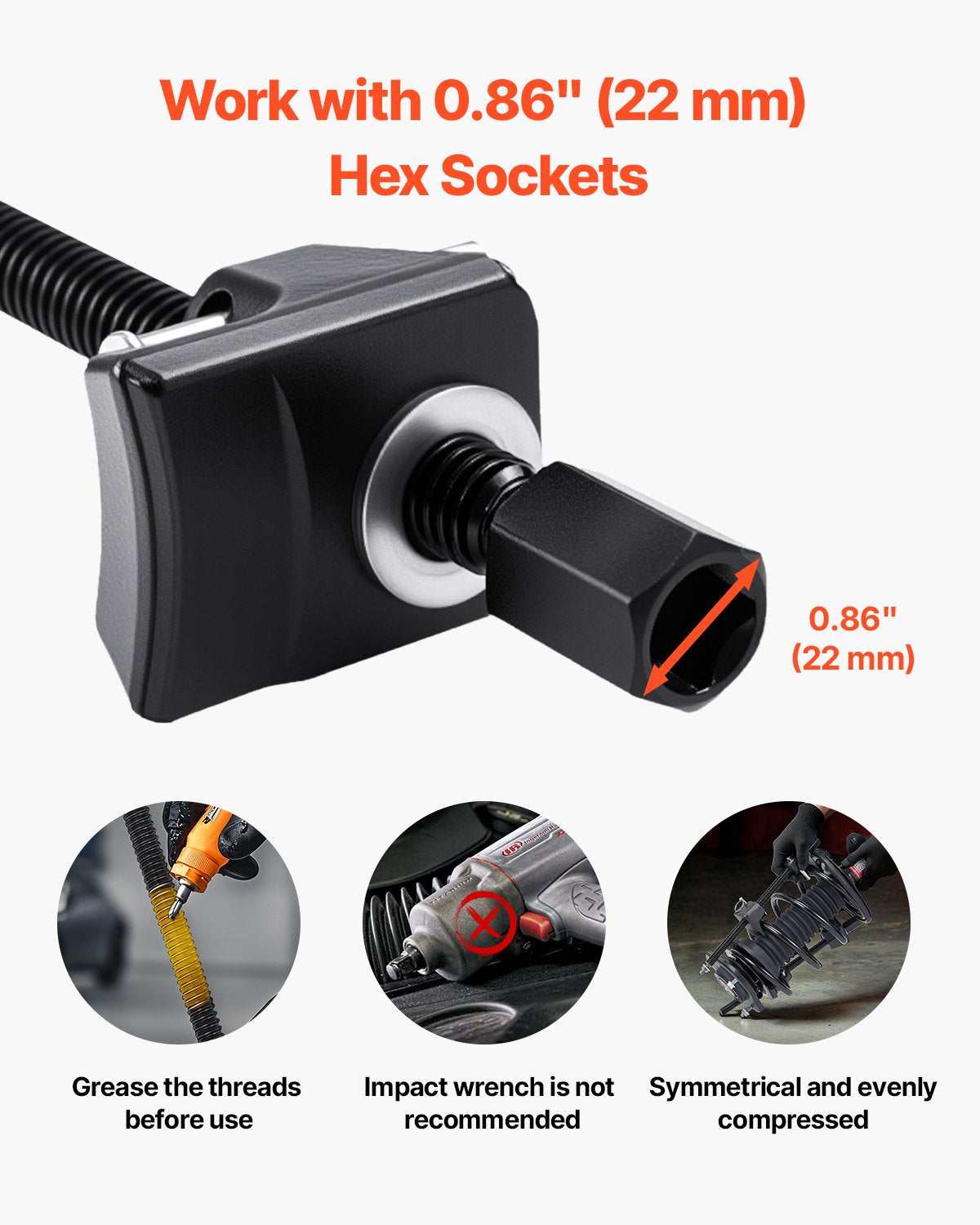

- Secure Compression: The hexagonal end fits 0.86 in / 22 mm sockets or manual wrenches. Avoid using impact wrenches when compressing the spring for security!
- 4 Security Pins: Four security pins lock the spring in place for extra secure compression. Just tighten slowly and apply even pressure on both sides for secure operation.
- Sturdy Steel Construction: Made of high-strength steel that can handle up to 1.2 tons! Rust-resistant coating and heat-treated screw ensure it works like a charm under pressure.
- Storage Box: Comes with a durable, dust-proof storage case to keep everything organized and ready for action. No more messy tool boxes—just grab and go!
