VEVOR Hydraulic Control Valves - Select Your Configuration

Product details

What to know before you buy

Core information, use cases, and key selling points for this item.

About this item

Product overview

VEVOR Hydraulic Control Valves - Select Your Configuration

Compare actual configurations

SKU	Selection	Specifications	Package contents
KZF2S11GPMYY00001V0	SAE / 11 GPM / 2 Sliding Valves	Max operating pressure: 3600psi; Nominal flow: 11gpm (40l/min); Relief valve: Adjustable; Center system: Open; A, B ports: 1/2" BSPP; P, T, N port: 1/2" BSPP; Weight: 14lb (6.3 kg); Dimensions: 12.2''x8x5.1'' / 31x20.3x12.95 cm	1 x 2 Spool Hydraulic Directional Control Valve 11 GPM Double Acting Cylinder Spool
KZF2S11GPMYYDG001V0	BSPP / 11 GPM / 2 Sliding Valves	Max operating pressure: 3600psi; Nominal flow: 11gpm (40l/min); Relief valve: Adjustable; Center system: Open; P, T, N port: G 1/2; Dimension: 16.1''x5.1''x2.6'' (41x13x6.5 cm)	1 x 2 Spool Hydraulic Joystick Control Valve 11gpm, Double Acting Cylinder Spool
KZF3ZYY11GPMSZY01V0	NPT / 11 GPM / 3 Sliding Valves	Nominal flow: 11gpm (40l/min); Spool count: 3 Spool; PABTN: 1/2 " Unthreaded sealed cylindrical pipe threads; PTN: 1/2"; AB: G3/8; Relief valve: Adjustable; Center system: Open; Weight: 14.6 lb (6.6 kg); Dimensions (L* W* H): 12.2"8"6.6" (312016.8 cm)	1 x 3 Spool Hydraulic Directional Control Valve Double Acting 11 GPM
KZFHFJK121GPMZAYGV0	NPT / 21 GPM / 1 Sliding Valve	Model: 121GPM3625; Max operating pressure: 3625 PSI; Flow Rating: 21gpm; Relief Valve: Adjustable; Center system: Open; Spool Count: 1-Spool; Valve Operation: Manual; A, B ports: 1/2" BSPP; T, N port: 3/4" BSPP; P port: 1/2" BSPP	1 x 1 Spool Hydraulic Directional Control Valve
KZFHFJK121GPMSQBNV0	NPTF / 21 GPM / 1 Sliding Valve	Model: 121GPM4300; Max operating pressure: 4300 PSI; Flow Rating: 21gpm; Relief Valve: Adjustable; Center system: Open; Spool Count: 1-Spool; Valve Operation: Manual; A, B ports: 1/2-12" NPTF; P, T, N port: 3/4-14" NPTF	1 x 1 Spool Hydraulic Directional Control Valve
KZFHFJK121GPMFVJSV0	SAE / 21 GPM / 1 Sliding Valve	Model: 121GPM3600; Max operating pressure: 3600 PSI; Flow Rating: 21gpm; Relief Valve: Adjustable; Center system: Open; Spool Count: 1-Spool; Valve Operation: Manual; A, B ports: 1/2" BSPP; P port: 1/2" BSPP; T, N port: 3/4" BSPP	1 x 1 Spool Hydraulic Directional Control Valve
KZFFXYC611GPMFJ1GV0	BSPP / 11 GPM / 6 Sliding Valves	Model: 6spool113600; Max operating pressure: 3600psi; Flow Rating: 11gpm (40l/min); Relief Valve: Adjustable; Center System: Open; Spool Count: 6-Spool; Valve Operation: Manual; A, B port: 1/2" BSPP; P, T, N port: 1/2" BSPP	1 x 6 Spool Hydraulic Directional Control Valve

Details by SKU

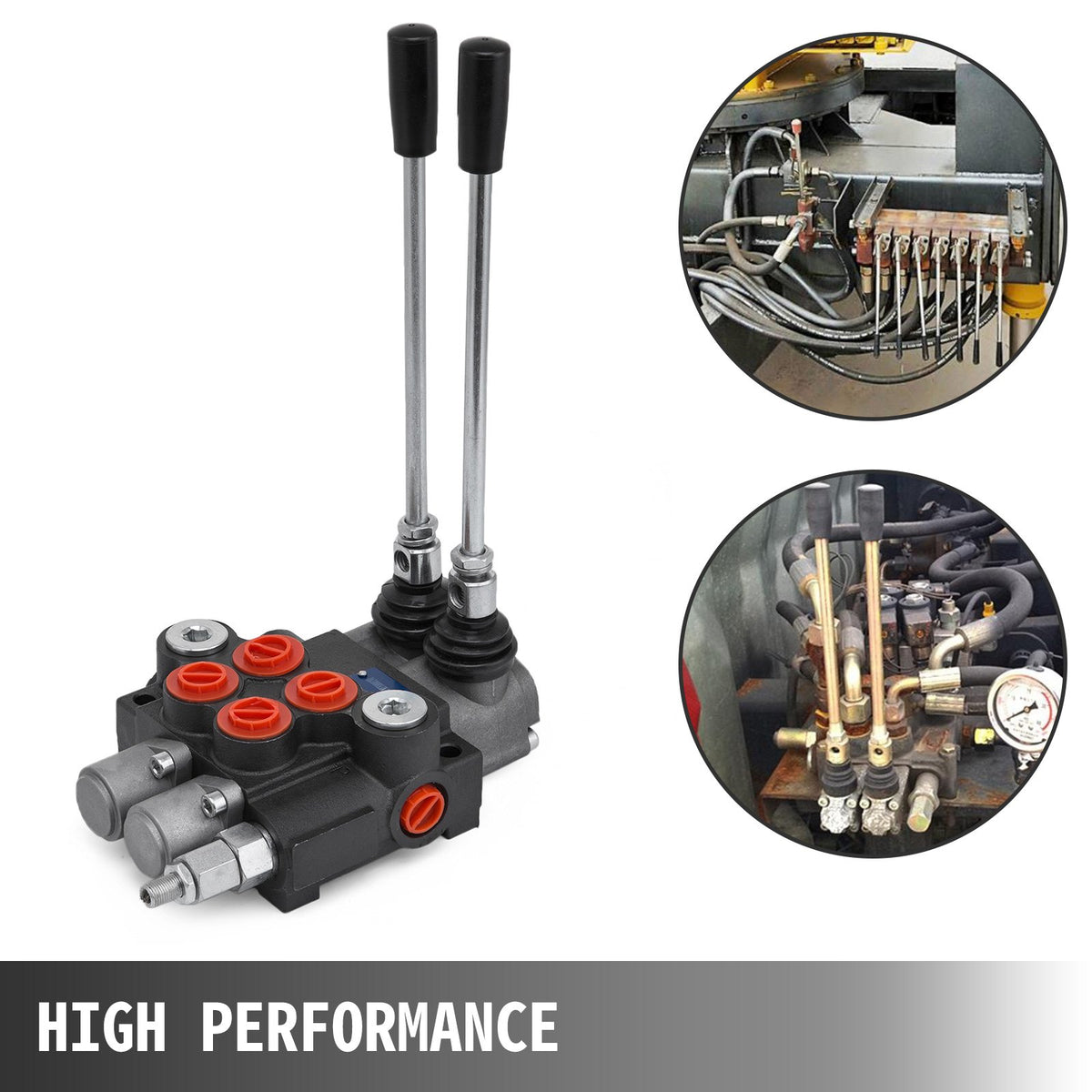

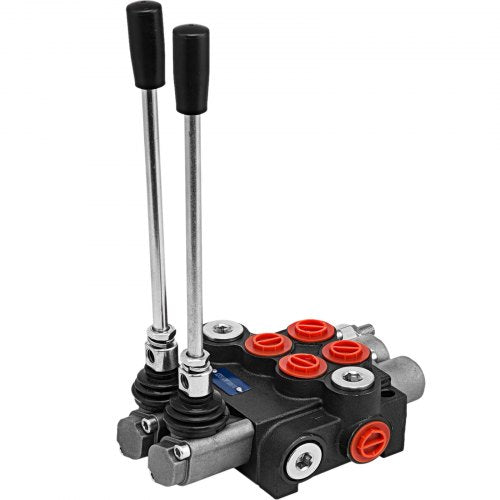

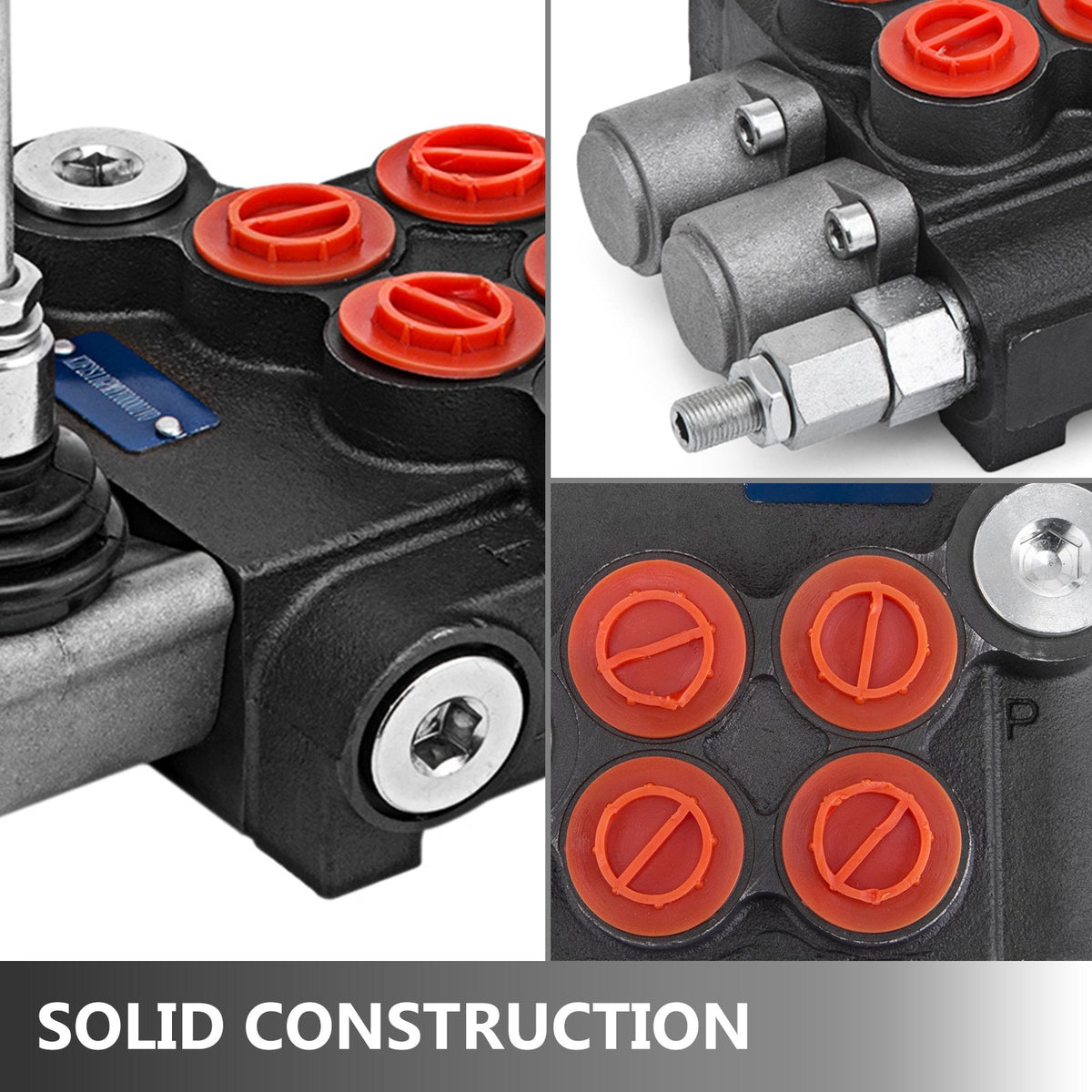

SAE / 11 GPM / 2 Sliding Valves - KZF2S11GPMYY00001V0

VEVOR Hydraulic Valve 2 Spool Hydraulic Directional Control Valve 11gpm Hydraulic Control Valve Double Acting for Tractors Loaders Tanks

【DOUBLE ACTING】- Our hydraulic control valve is made for operating double-acting cylinders.
【DURABLE QUALITY】- This hydraulic directional control valve comes with 2 spools and 1/2 BSPP O-ring in/out ports, with cast iron construction for long-time use.
【HIGH PERFORMANCE】- This hydraulic relief valve range can reach up to 3600 PSI and the maximum flow is up to 11 GPM.
【SPRING RETURN】- All spool valves come with spring return, which can return to the neutral position.
【WIDELY USED】- This hydraulic directional valve is suitable for small tractors, tractors loaders, log splitters, etc.

Package: 1 x 2 Spool Hydraulic Directional Control Valve 11 GPM Double Acting Cylinder Spool

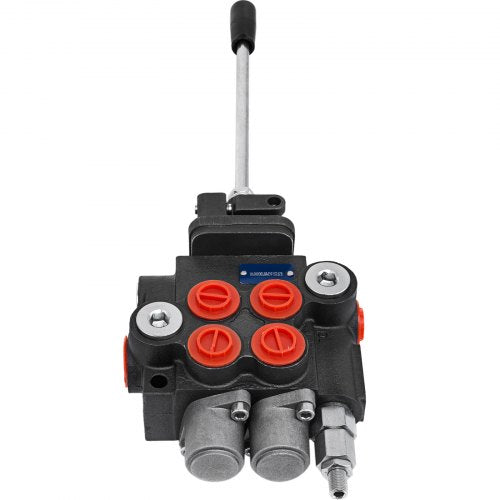

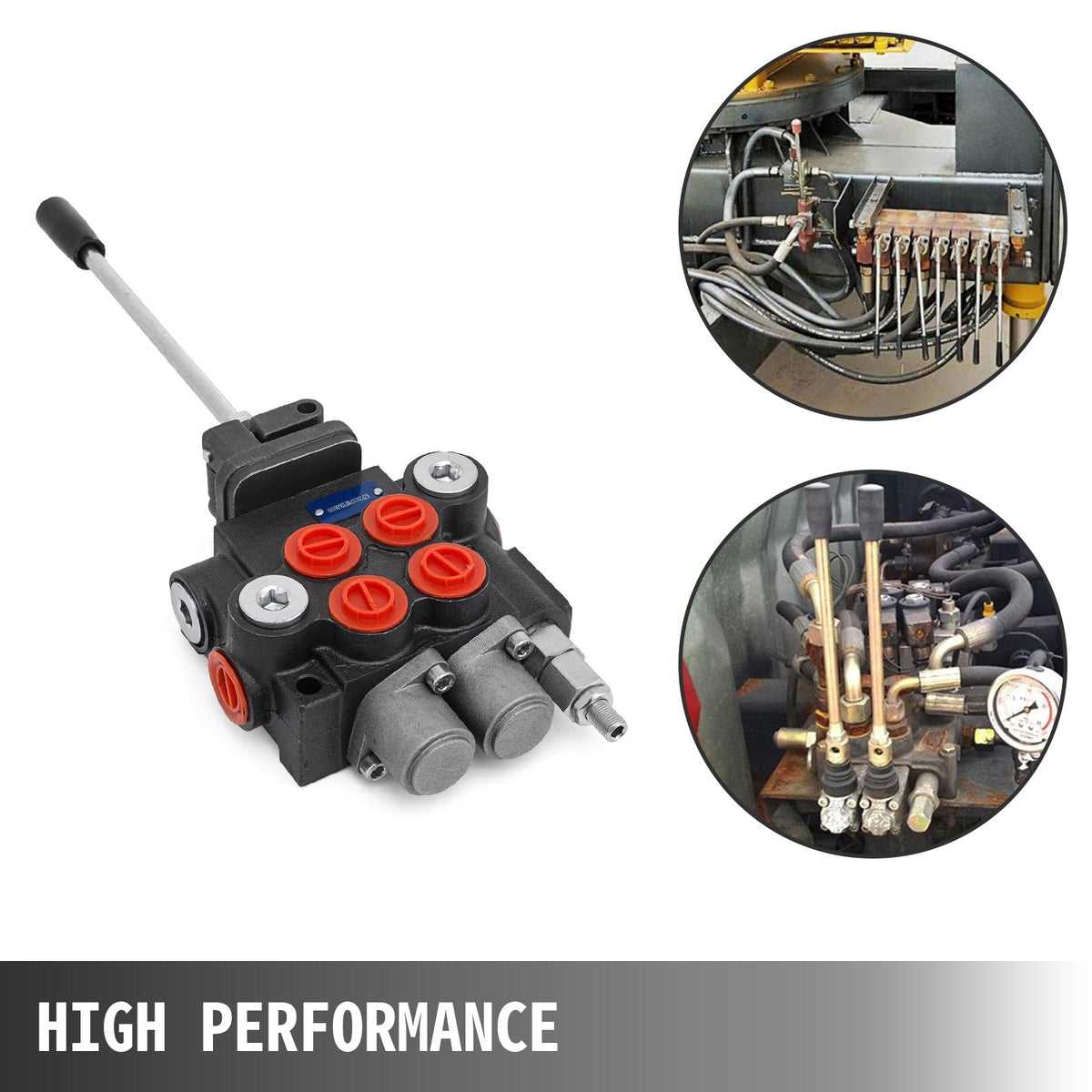

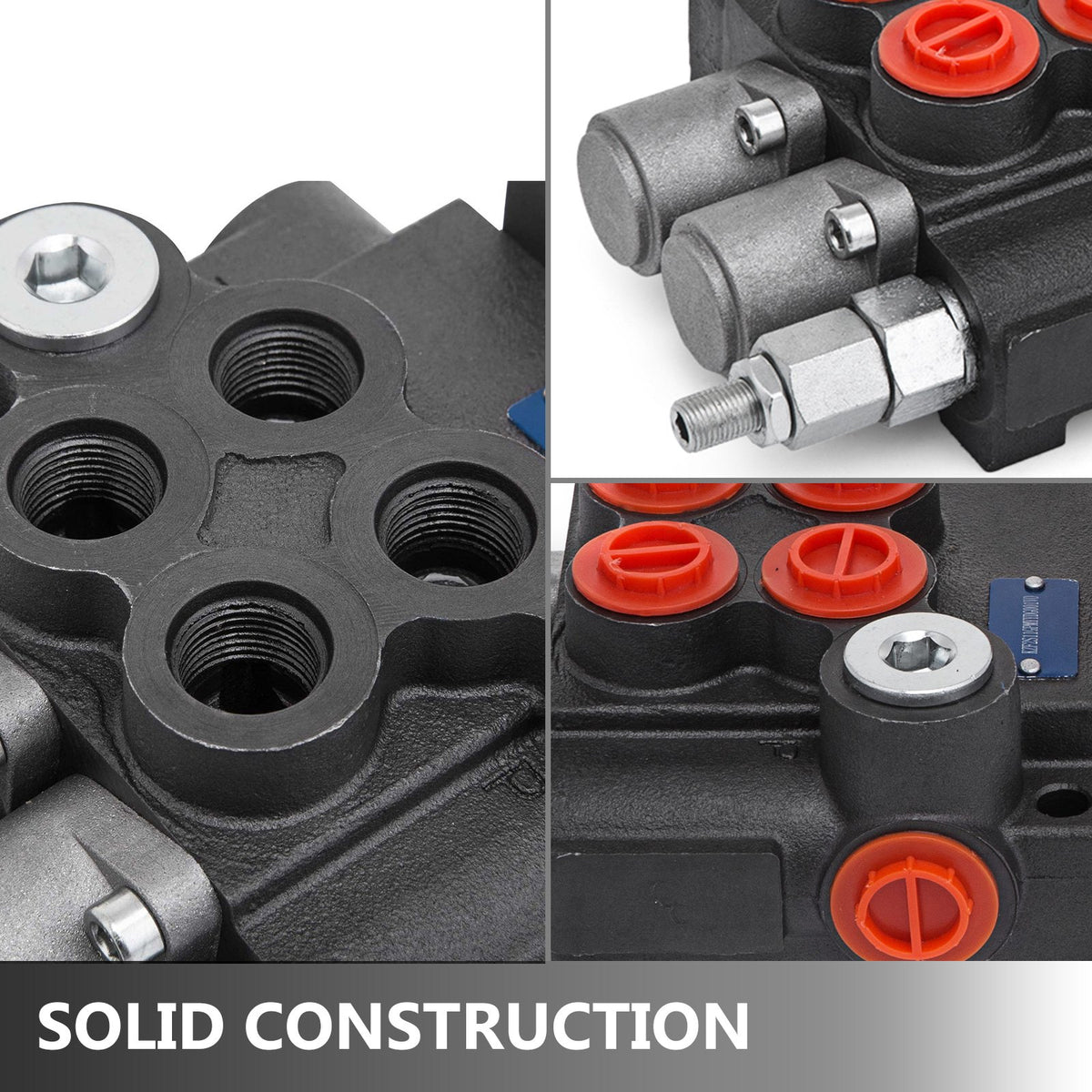

BSPP / 11 GPM / 2 Sliding Valves - KZF2S11GPMYYDG001V0

VEVOR Hydraulic Valve 2 Spool Hydraulic Joystick Control Valve 11gpm Hydraulic Directional Control Valve Double Acting for Tractors Loaders Tanks

【DOUBLE ACTING】- Our hydraulic control valve is made for operating double-acting cylinders.
【DURABLE QUALITY】- This hydraulic directional control valve comes with 2 spools and G 1/2 O-ring in/out ports, with cast iron construction for long-time use.
【HIGH PERFORMANCE】- This hydraulic relief valve range can reach up to 3600 PSI and the maximum flow is up to 11 GPM.
【SPRING RETURN】- All spool valves come with spring return, which can return to the neutral position.
【WIDELY USED】- This hydraulic directional valve is suitable for small tractors, tractors loaders, log splitters, etc.

Package: 1 x 2 Spool Hydraulic Joystick Control Valve 11gpm, Double Acting Cylinder Spool

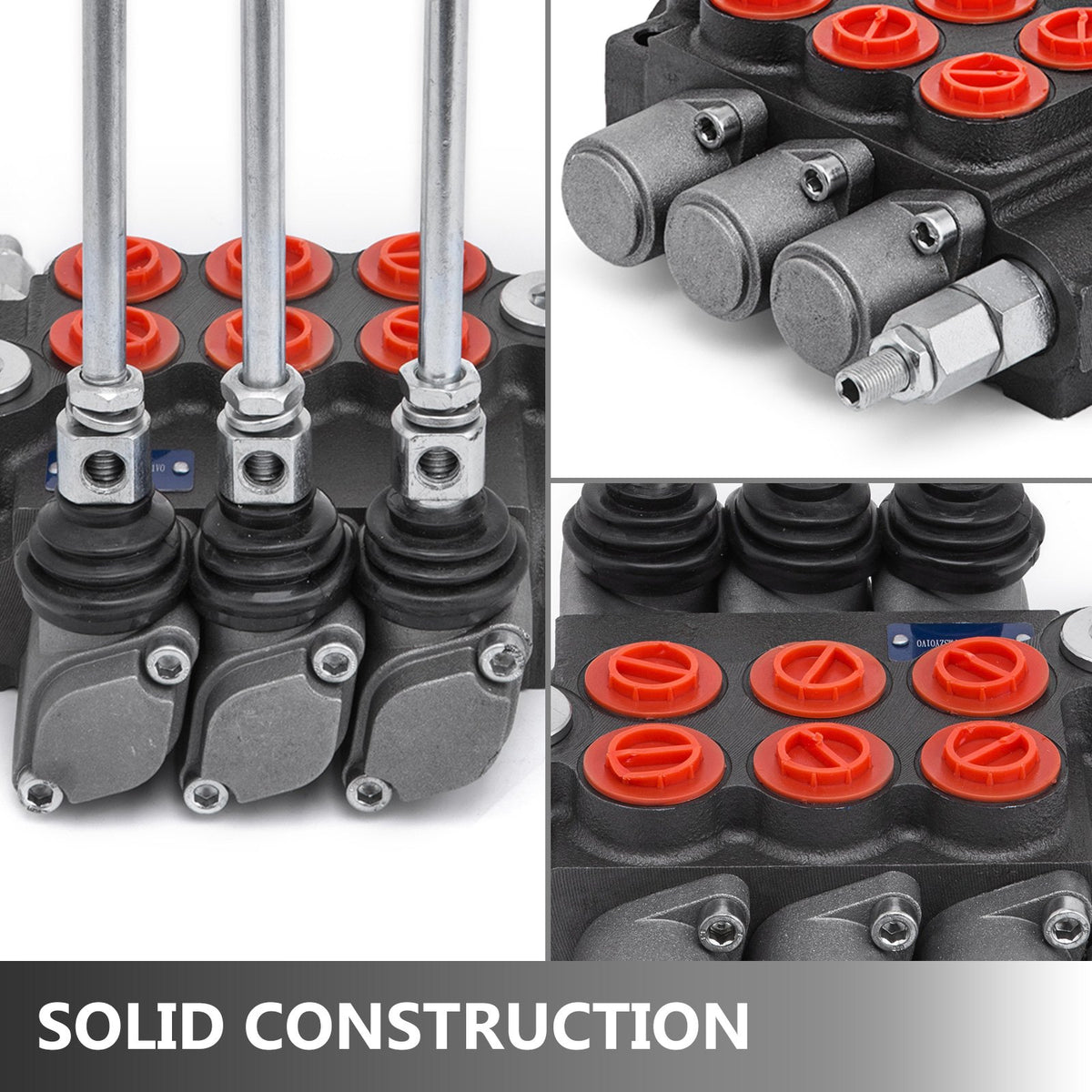

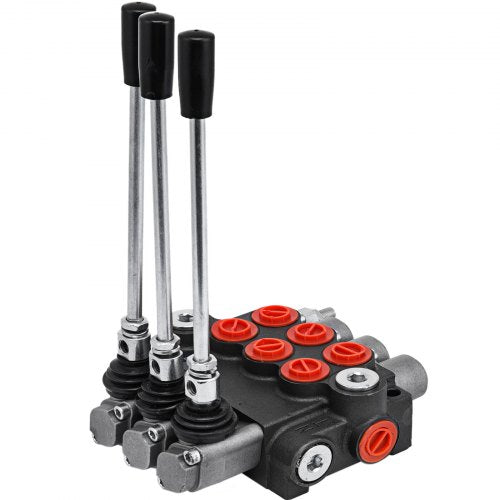

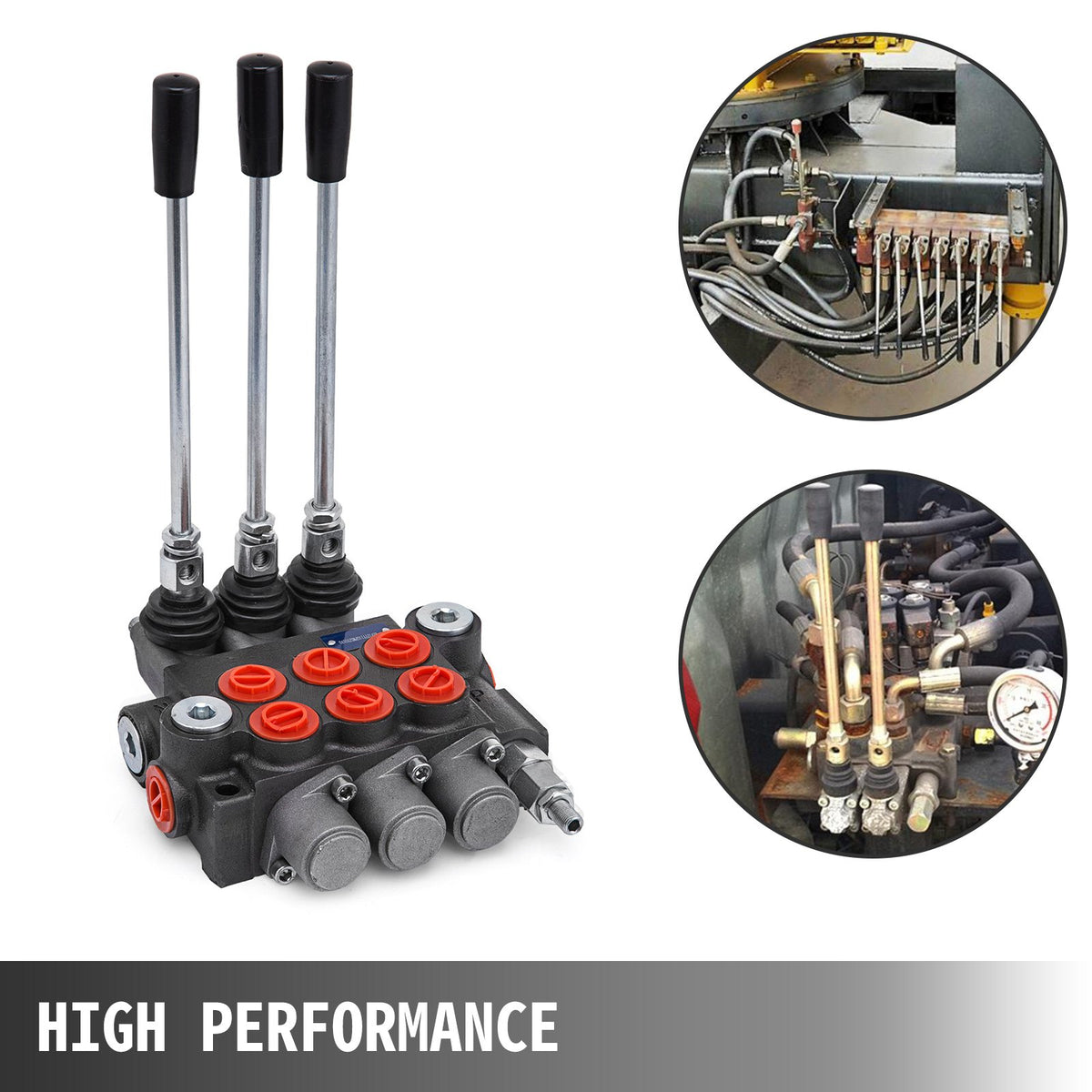

NPT / 11 GPM / 3 Sliding Valves - KZF3ZYY11GPMSZY01V0

3 Spool Hydraulic Directional Control Valve Double Acting 11 GPM

【DOUBLE ACTING】- Our hydraulic control valve is made for operating double-acting cylinders.
【DURABLE QUALITY】- This control valve comes with 3 spools and 1/2 " Unthreaded sealed cylindrical pipe threads O-ring in/out ports, with cast iron construction for long-time use.
【HIGH PERFORMANCE】- This hydraulic relief valve range can reach up to 3600 PSI and the maximum flow is up to 11 GPM.
【SPRING RETURN】- All spool valves come with spring return, which can return to the neutral position.
【WIDELY USED】- This hydraulic directional valve is suitable for small tractors, tractors loaders, log splitters, etc.

Package: 1 x 3 Spool Hydraulic Directional Control Valve Double Acting 11 GPM

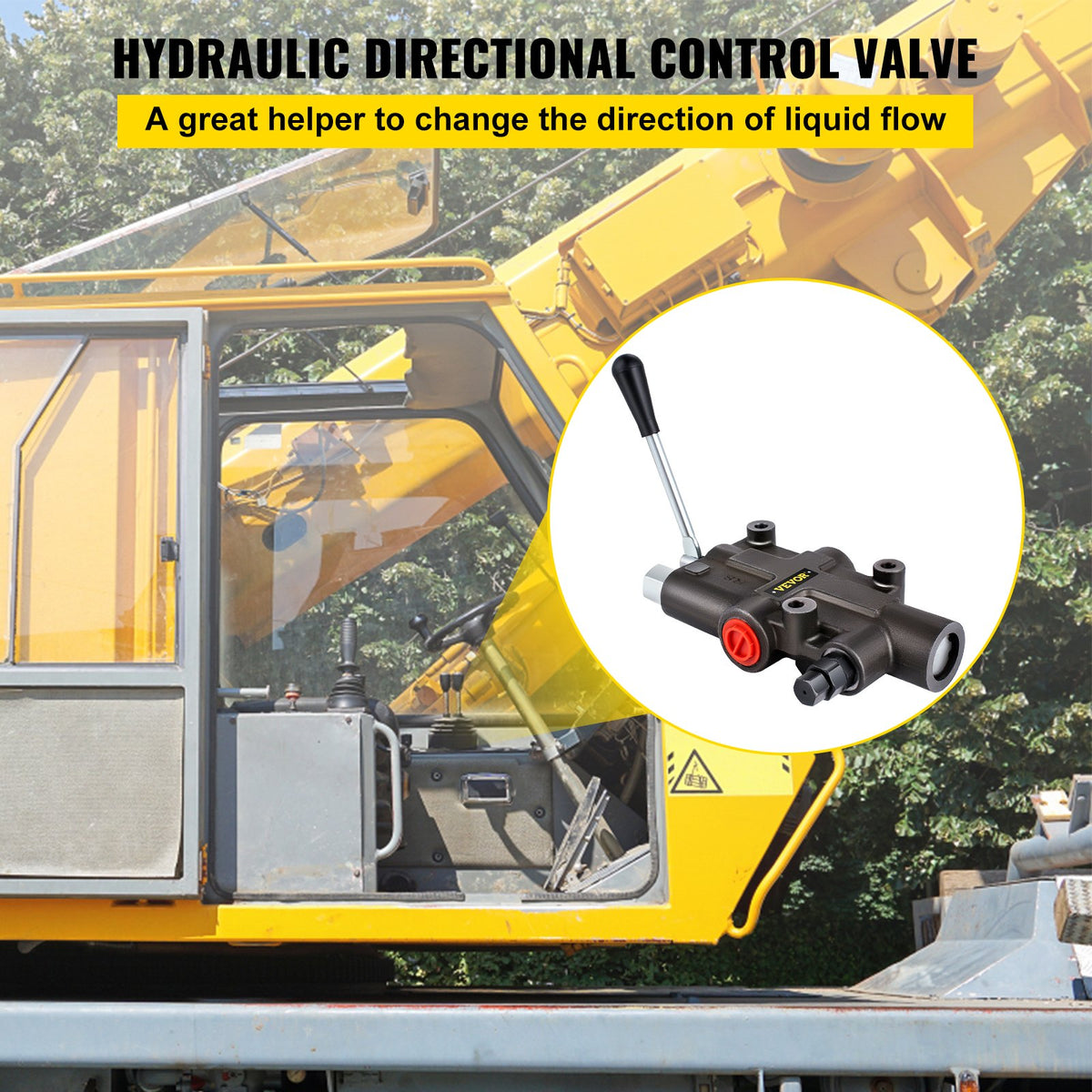

NPT / 21 GPM / 1 Sliding Valve - KZFHFJK121GPMZAYGV0

VEVOR Hydraulic Directional Control Valve, 1 Spool Hydraulic Spool Valve, 21 GPM Hydraulic Loader Valve, 3625 PSI Directional Control Valve, Hydraulic Valves And Controls For Tractors Loaders Tanks

Hydraulic Spool Valve: Equipped with 1 spool and 1/2" BSPP P port, A port, B port. 3/4" BSPP T port, N port. The maximum pressure of this hydraulic is 3625 PSI, and the maximum flow can reach 21 GPM. The opening and disconnection of hydraulic oil are controlled by connecting the valve to the oil line.
Automatically Reset: The standard spool is spring-returned and can be reset to the neutral position. In addition, there is a spring at the bottom of the handle that makes the joystick easy to control.
Great Inner Valve: The check valve in the valve body ensures that the hydraulic oil does not return, and the overflow valve in the valve body can adjust the working pressure of the hydraulic system.
Compact Structure: 1 spool hydraulic valve is made of aluminum and iron, and the solid structure can provide long-term service. The compact design allows it to install in narrow areas and maximizes its control capabilities.
Widely Used: It is used in hydraulic systems in agriculture, horticulture, forestry, construction, and industry. The distributor is adapted to different types of machines: agricultural machines, tractors, sprayers, construction machines, loaders, excavators, sweepers, industrial machines, and for other applications hydraulically controlled.

Package: 1 x 1 Spool Hydraulic Directional Control Valve

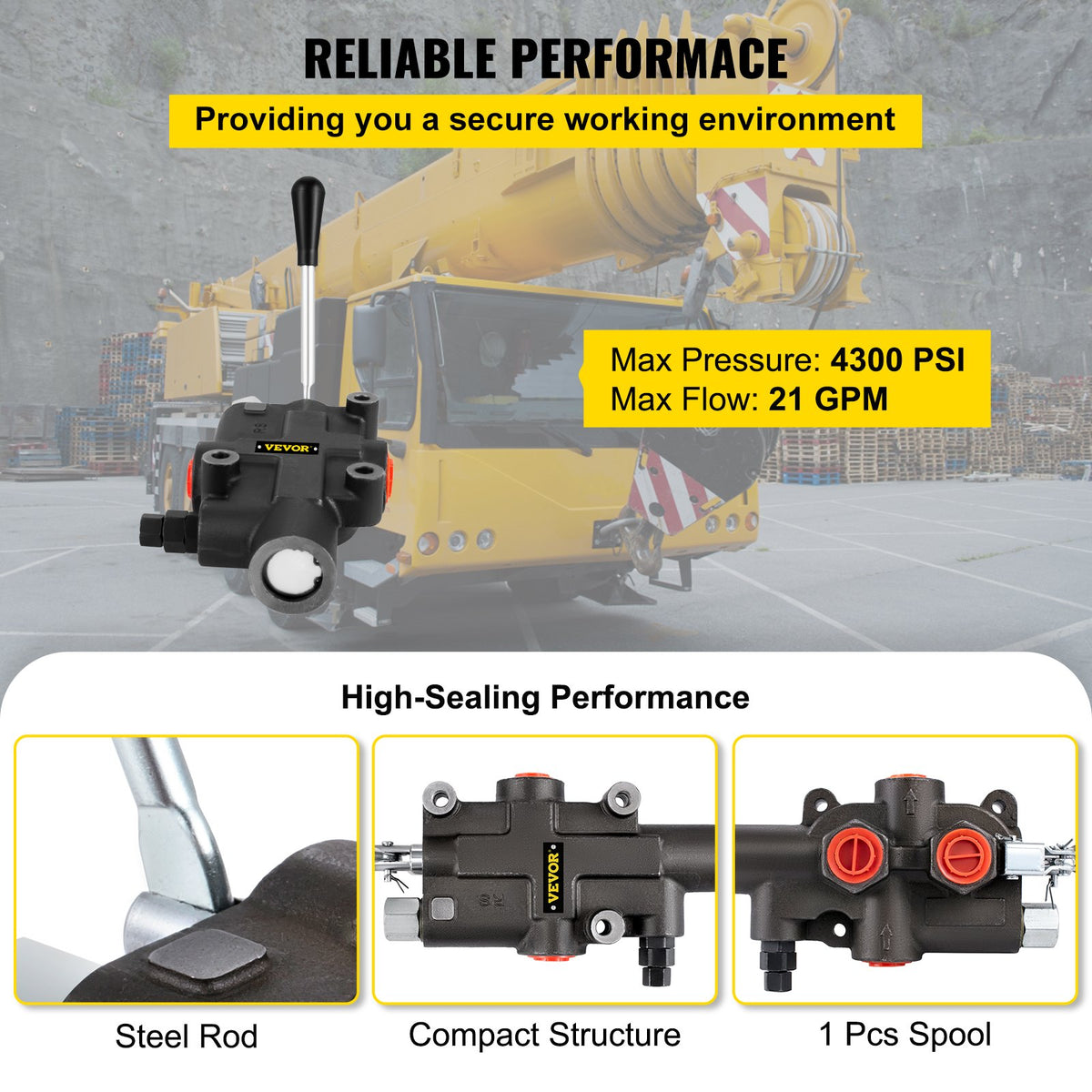

NPTF / 21 GPM / 1 Sliding Valve - KZFHFJK121GPMSQBNV0

VEVOR Hydraulic Directional Control Valve, 1 Spool Hydraulic Spool Valve, 21 GPM Hydraulic Loader Valve, 4300 PSI Directional Control Valve, Hydraulic Valves And Controls For Tractors Loaders Tanks

Hydraulic Spool Valve: Equipped with 1 spool . The maximum pressure of this hydraulic is 4300 PSI, and the maximum flow can reach 21 GPM. The opening and disconnection of hydraulic oil are controlled by connecting the valve to the oil line.
Automatically Reset: The standard spool is spring-returned and can be reset to the neutral position. In addition, there is a spring at the bottom of the handle that makes the joystick easy to control.
Great Inner Valve: The check valve in the valve body ensures that the hydraulic oil does not return, and the overflow valve in the valve body can adjust the working pressure of the hydraulic system.
Compact Structure: 1 spool hydraulic valve is made of aluminum and iron, and the solid structure can provide long-term service. The compact design allows it to install in narrow areas and maximizes its control capabilities.
Widely Used: It is used in hydraulic systems in agriculture, horticulture, forestry, construction, and industry. The distributor is adapted to different types of machines: agricultural machines, tractors, sprayers, construction machines, loaders, excavators, sweepers, industrial machines, and for other applications hydraulically controlled.

Package: 1 x 1 Spool Hydraulic Directional Control Valve

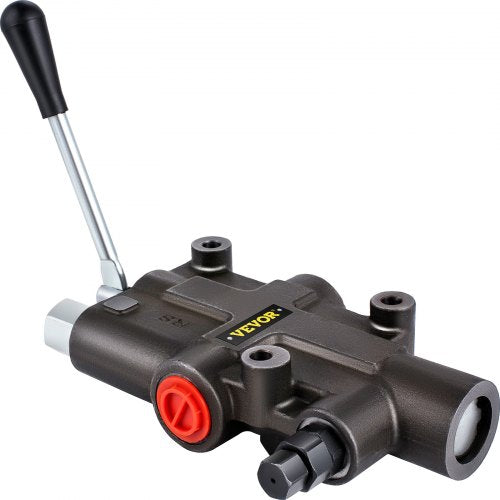

SAE / 21 GPM / 1 Sliding Valve - KZFHFJK121GPMFVJSV0

VEVOR Hydraulic Directional Control Valve, 1 Spool Hydraulic Spool Valve, 21 GPM Hydraulic Loader Valve, 3600 PSI Directional Control Valve, Hydraulic Valves And Controls For Tractors Loaders Tanks

Hydraulic Spool Valve: Equipped with 1 spool and 1/2" BSPP P port, A port, B port. 3/4" BSPP T port, N port. The maximum pressure of this hydraulic is 3600 PSI, and the maximum flow can reach 21 GPM. The opening and disconnection of hydraulic oil are controlled by connecting the valve to the oil line.
Automatically Reset: The standard spool is spring-returned and can be reset to the neutral position. In addition, there is a spring at the bottom of the handle that makes the joystick easy to control.
Great Inner Valve: The check valve in the valve body ensures that the hydraulic oil does not return, and the overflow valve in the valve body can adjust the working pressure of the hydraulic system.
Compact Structure: 1 spool hydraulic valve is made of aluminum and iron, and the solid structure can provide long-term service. The compact design allows it to install in narrow areas and maximizes its control capabilities.
Widely Used: It is used in hydraulic systems in agriculture, horticulture, forestry, construction, and industry. The distributor is adapted to different types of machines: agricultural machines, tractors, sprayers, construction machines, loaders, excavators, sweepers, industrial machines, and for other applications hydraulically controlled.

Package: 1 x 1 Spool Hydraulic Directional Control Valve

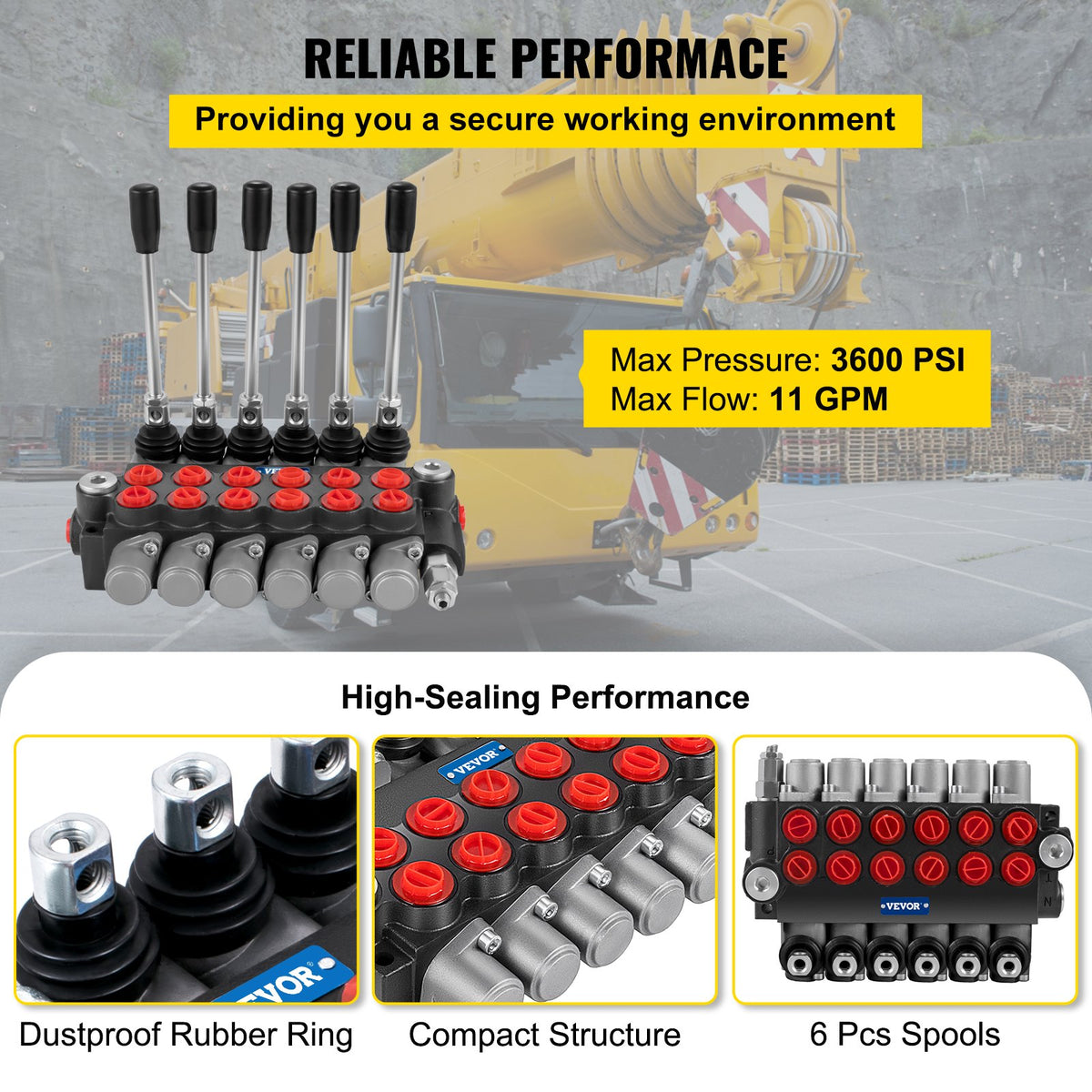

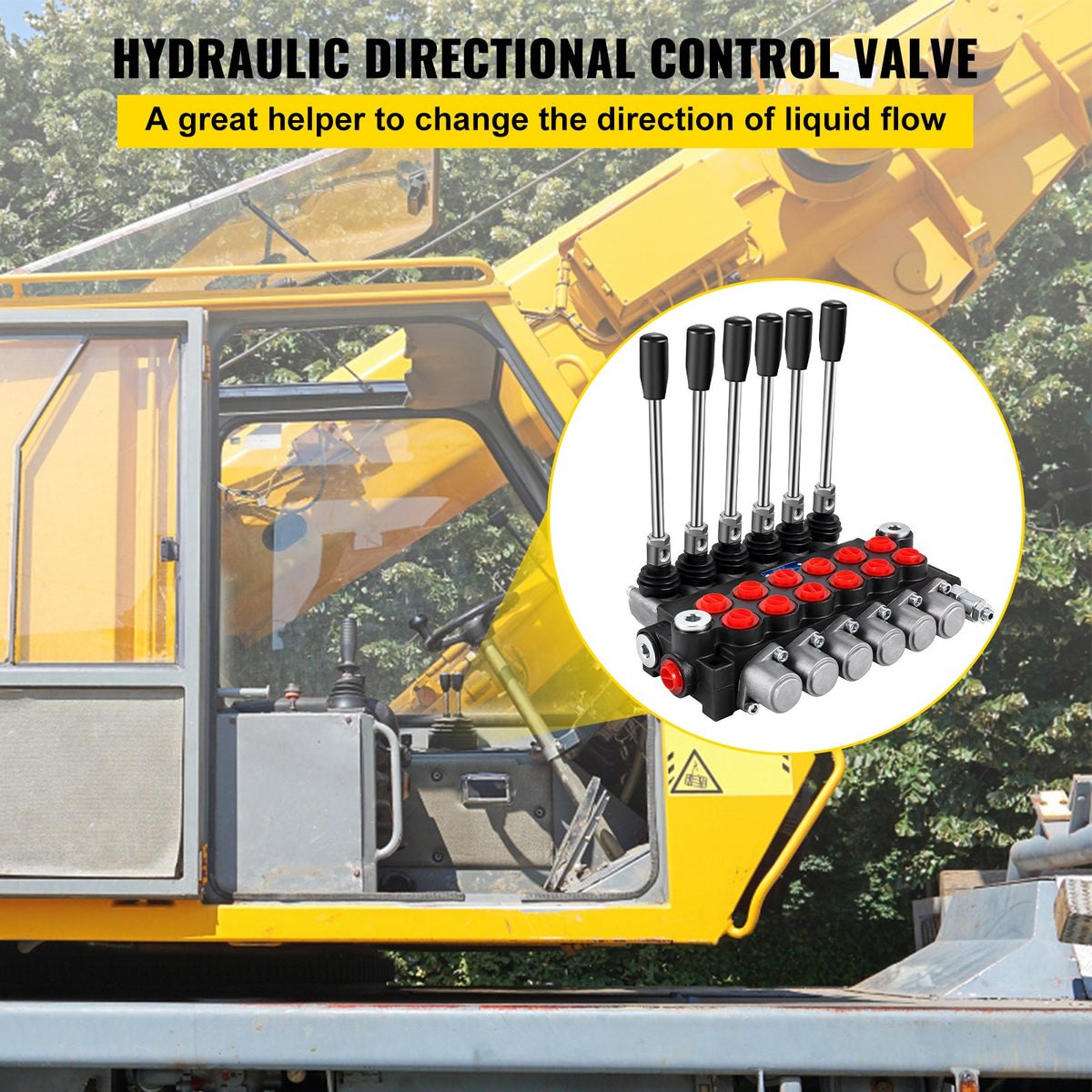

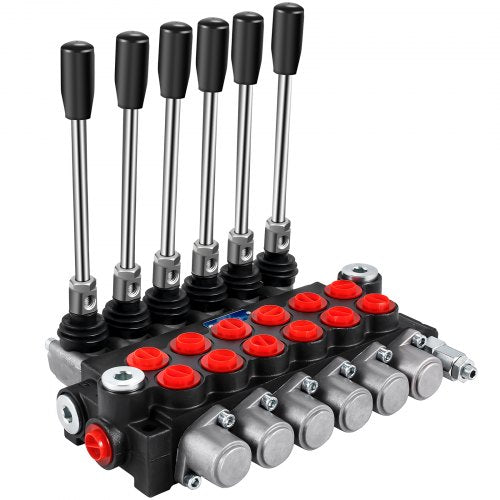

BSPP / 11 GPM / 6 Sliding Valves - KZFFXYC611GPMFJ1GV0

VEVOR Hydraulic Directional Control Valve, 6 Spool Hydraulic Spool Valve, 11 GPM Hydraulic Loader Valve, 3600 PSI Directional Control Valve, Hydraulic Valves And Controls For Tractors Loaders Tanks

HYDRAULIC SPOOL VALVE - Equipped with 6 spools and 1/2" BSPP type ring inlet/outlet port. Maximum pressure of this hydraulic is 3600 PSI, and maximum flow can reach 11 GPM. The opening and disconnection of hydraulic oil are controlled by connecting the valve to the oil line.
DOUBLE ACTING CYLINDERS - Hydraulic control valve used to operate double-acting cylinders. All standard spools are spring-returned and can be reset to the neutral position. There are springs at the bottom of the handles that make the joysticks easy to control.
GREAT INNER VALVE - The check valve in the valve body ensures that the hydraulic oil does not return, and the overflow valve in the valve body can adjust the working pressure of the hydraulic system.
COMPACT STRUCTURE - 6 spool hydraulic valve is made of aluminum and iron, and the solid structure can provide long-term service. The compact design allows it to install in narrow areas and maximizes its control capabilities.
WIDELY USED - It is used in hydraulic systems in agriculture, horticulture, forestry, construction, and industry. The distributor is adapted to different types of machines: agricultural machines, tractors, sprayers, construction machines, loaders, excavators, sweepers, industrial machines, and for other applications hydraulically controlled.

Package: 1 x 6 Spool Hydraulic Directional Control Valve
