VEVOR Hinge Jig Drilling Hole - Select Your Configuration

Out of stock

$20.99 USD

Sale Sold out

Functional Specifications With Fixed Clamp adjustable With Self-Lock

SKU:JLDWKKQMINIS40G22V0

Product details

What to know before you buy

Core information, use cases, and key selling points for this item.

About this item

Product overview

VEVOR Hinge Jig Drilling Hole - Select Your Configuration

Compare exact SKUs

SKU	Selection	Specifications
JLDWKKQMINIS40G22V0	Functional Specifications: With Fixed Clamp	Compatible Hinge Types: Φ1.02''/26mm and Φ1.38''/35mm hinges; Main Materials: PA66 Nylon (Main Panel and Stand) + Steel; Product Color: Vibrant Orange; Item Model Number: SXRJL-2301; Product Weight: 1.54 lbs / 0.7 kg; Product Dimensions: 8.86x3.74x3.35 inch / 225x95x85 mm
JLDWKKQTSJLKNLYWYV0	Functional Specifications: adjustable	Width Range: 2.17-4.72 inch / 55-120 mm; Main Materials: Aluminum Alloy (Body) + Steel; Item Model Number: SXRJL-2303; Length Range: 5.51-10.04 inch / 140-255 mm; Product Weight: 3.64 lbs / 1.65 kg; Middle Pre-slotted Size: 7.2 x 1.81 inch / 183 x 46 mm; Side Pre-slotted Size: 1.97 x 0.79 inch / 50 x 20 mm; Product Dimensions: 13.39 x 8.07 x 2.56 inch / 340 x 205 x 65 mm; Maximum Clamping Range: 2.36 inch / 60 mm
JLDWKKQTS35MMM9D7V0	Functional Specifications: With Self-Lock	Main Materials: Aluminum Alloy (Body) + Steel; Item Model Number: SXRJL-2302; Product Weight: 1.43 lbs / 0.65 kg; Compatible Hinge Type: Φ1.38inch / 35mm hinge; Drilling Depth: 0.39-0.59 inch / 10-15mm; Clamping Thickness Range: 0.47-0.98 inch / 12-25mm; Product Dimensions: 6.50 x 2.95 x 5.31 inch / 165 x 75 x 135 mm

Details by SKU

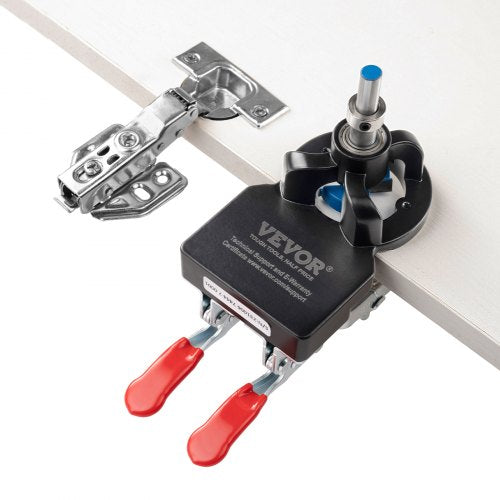

JLDWKKQMINIS40G22V0 - With Fixed Clamp

Wide Application: The hinge jig suits 1.38'' and 1.02'' hinges. It is primarily designed for precise hinge hole positioning in wood and can be used with power tools like drills for easy angled drilling. It is ideal for everyday household equipment installations and repairs, such as cabinets, wardrobes, and door locks. It has a 1.38''/35 mm drill bit for drilling holes. The distances between hinge screws are 1.81'' (46 mm), 1.89'' (48 mm) or 2.05'' (52 mm).
Sturdy and Durable: The main panel of our door hinge jig is made of high-strength engineering PA66 material, while the drilling tools are made of carbon steel and YG8 hard alloy. Its overall structure is stable, ensuring durability and adaptability to harsh weather conditions, high temperatures, and moisture. It maintains strength and stability, with minimal risk of deformation or damage, even with prolonged use.
Precision Drilling: Our hinge jig kit can precisely position holes without marking. The C-type clamp, limit positioning accessories, and the 4-stage adjustable dial (0.12''/0.16''/0.20''/0.24'') prevent hole deviation, making it easy to accomplish accurate and quick drilling work.
User-Friendly: The concealed hinge jig is easy to operate and install without professional assistance. Just follow the 4-step instructions in the manual: Step 1, install the drilling tool and tighten the limit positioning accessories; Step 2, adjust the dial and insert the positioning rod; Step 3, secure the drill bit with the C-type clamp; Step 4, drill the 1.38'' hole and side holes in sequence, then install the hinge. You can complete the installation in just a few minutes.

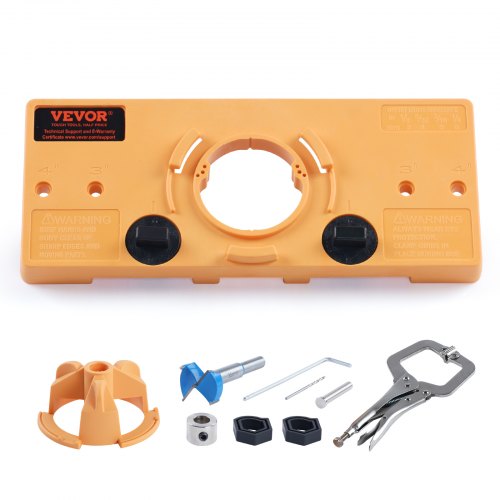

Comprehensive Accessories: The 35mm cabinet hinge jig kit comes with a rich set of accessories, including 1 x main panel, 1 x φ35mm hole cutter, 1 x hex wrench, 1 x φ2mm twist drill bit, 1 x positioning rod, 1 x stand, 1 x positioning ring, 1 x c-type clamp, 2 x 26mm hinge hole positioning assistants. This comprehensive kit provides everything you need to handle hinge-hole drilling tasks effortlessly.

JLDWKKQTSJLKNLYWYV0 - adjustable

Two-in-One Functionality: This hinge jig is designed for both hinge groove and door lock fixture installation, catering to different usage needs. With a dual-purpose design, it allows you the freedom to choose based on specific requirements without the need for other devices. This brings a more efficient and convenient slotting and positioning experience.
Sturdy and Durable: The entire door hinge jig is constructed using high-strength materials, with the main panel made of aluminum alloy 6061. It is wear-resistant, rust-resistant, and features a stable structure, ensuring excellent durability. It can withstand various environmental conditions, including harsh weather, high temperatures, and humidity. It is resistant to deformation or damage even with prolonged use.
Precision Slotting: This tabletop hinge jig kit supports flexible adjustments in four directions, with adjustable length and width positioning for precise alignment. It has built-in scales to provide specific slotting positions, enabling accurate and rapid hinge slotting and lock plate installation.
User-Friendly: The concealed hinge jig is simple and convenient to operate, requiring no tools. Tighten the screws manually for quick clamping. The clamping parts feature a rubber anti-slip design to prevent damage to wooden door surfaces. Just follow the instructions, and you can complete the installation in minutes.

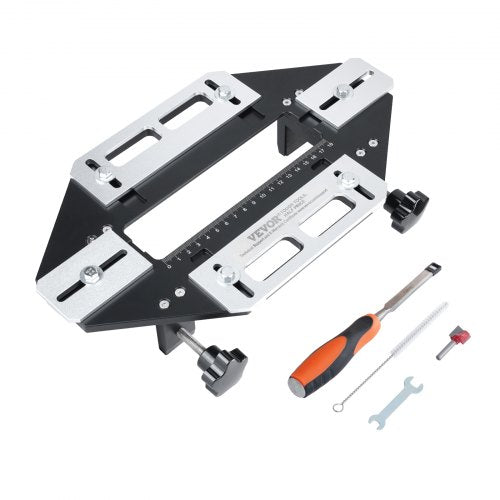

Complete Accessories: This cabinet hinge jig comes with a comprehensive set of accessories, including 1 x slotting locator, 1 x side cutter(clamping diameter: 0.25''/6.3 mm), 1 x woodworking chisel (0.47''/12mm), 1 x open-end wrench, 1 x hairbrush, and 1 x user manual. This all-in-one kit makes hinge slotting positioning a breeze.

JLDWKKQTS35MMM9D7V0 - With Self-Lock

Dual-Clamp Fixation: This adjustable dual-clamp hinge jig ensures precise alignment, unlike single-clamp versions, providing superior stability and preventing slippage. Its built-in dual-clamp design quickly and securely holds workpieces in place, preventing displacement of hole positions and ensuring drilling accuracy and stability. It also minimizes drilling deviations caused by workpiece movement, reducing errors and maintaining drilling precision.
Sturdy and Durable: The door hinge jig frame is made of high-strength aluminum alloy, while the drilling tools are made of carbon steel and YG8 hard alloy. The overall structure is stable, ensuring durability and adaptability to different environments, including harsh weather conditions, high temperatures, and moisture. It maintains its strength and stability, with minimal risk of deformation or damage even with prolonged use.
Precision Drilling: This tabletop concealed hinge jig achieves quick and precise hole alignment through the adjustable positioning plate for edge spacing and the top-bearing depth adjustment. You can easily adjust the edge spacing by loosening the screws, with a range of 0.12-0.28 inches (3-7 mm), and the drilling depth ranges from 0.39-0.59 inches (10-15 mm). The higher the top-bearing height, the more precise the holes it drills.
User-Friendly: Our hinge jig kit is easy to operate and install without professional assistance. Just follow the 4-step instructions in the manual: Step 1, replace the top nut with a butterfly nut; Step 2, install the tools, top bearing, and limit ring in sequence; Step 3, adjust the hole spacing and clamp the workpiece securely; Step 4, use an electric drill to fix, drill the holes and side holes, and install the hinge. You can complete the installation in just a few minutes.
Wide Application: This cabinet hinge jig is designed for 1.38'' hinges and can be used with various drill bits to meet different usage scenarios. It is ideal for everyday household equipment installations and repairs, such as cabinets, wardrobes, and door locks. It has a 1.38''/35 mm drill bit for drilling holes. The distances between hinge screws are 1.81'' (46 mm), 1.89'' (48 mm) or 2.05'' (52 mm).
