Product details
What to know before you buy
Core information, use cases, and key selling points for this item.
About this item
Product overview

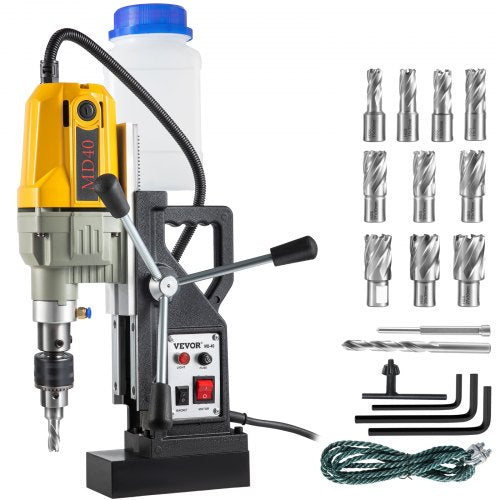

VEVOR Magnetic Drill, 1100W 1.57\" Boring Diameter, 2697lbf/12000N Portable Electric Mag Drill Press with 12 Drilling Bits, 580 RPM Max Speed Drilling Machine for any Surface and
Compare exact SKUs
| SKU | Selection | Specifications | Package contents |
|---|---|---|---|
| JBLJ11PCS110VBD11V1 | Quantity: 11 pcs; Diameter: 40 mm; Bit Function: Core Drill | Model: VV-MD-US12; Power: 1100W, 50/60Hz, 110V, 10A; Max. Boring Diameter(Coring Drill): 1.57"/40 mm; Max. Boring Diameter(Twist Drill): 0.63"/16 mm; Max. Travel Distance: 5.90"/150mm; Max. Rotate Speed: 580 rpm; Magnetic Force: 2697lbf/12000N; Magnetic Base Size: 6.54" x 3.15" x 1.97"/166 x 80 x 50 mm; Max. Boring Depth: 2.17"/55 mm; Product Size: 14.2" x 11" x 4.7"/36 x 28 x 12 cm; Product Weight: 24.25lb/11kg | 11 x Coring Bits (Φ0.47"/12 mm, Φ0.51"/13 mm, Φ0.59"/15 mm, Φ0.63"/16 mm, Φ0.71"/18 mm, Φ0.79"/20 mm, Φ0.83"/21 mm, Φ0.91"/23 mm, Φ0.94"/24 mm, Φ1"/26 mm, Φ1.1"/27 mm); 1 x Twist Drill (Φ0.4"/10 mm); 1 x Coolant Tank; 1 x Drill Chuck; 1 x Thimble (0.25"x 4"/6.34 x 102 mm); 1 x Rope; 1 x Manual |
Details by SKU
JBLJ11PCS110VBD11V1 - 11 pcs; 40 mm; Core Drill

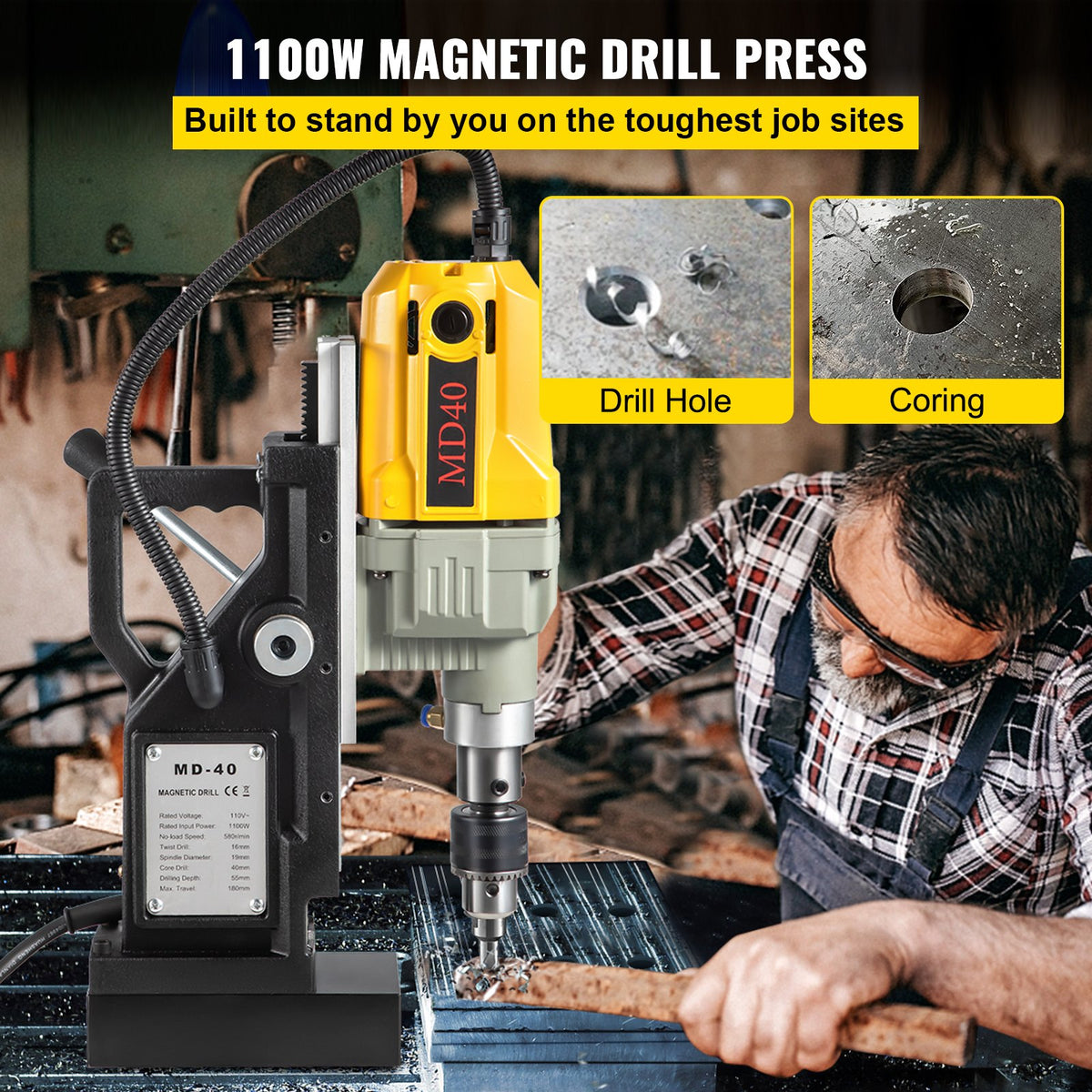

- Superior Performance: This 1100W heavy-duty mag drill bores at 580 RPM up to a maximum 2" depth and a maximum 1.6" across. With its 10A powerful motor, the magnetic drill press drills through industry quality steel with ease.

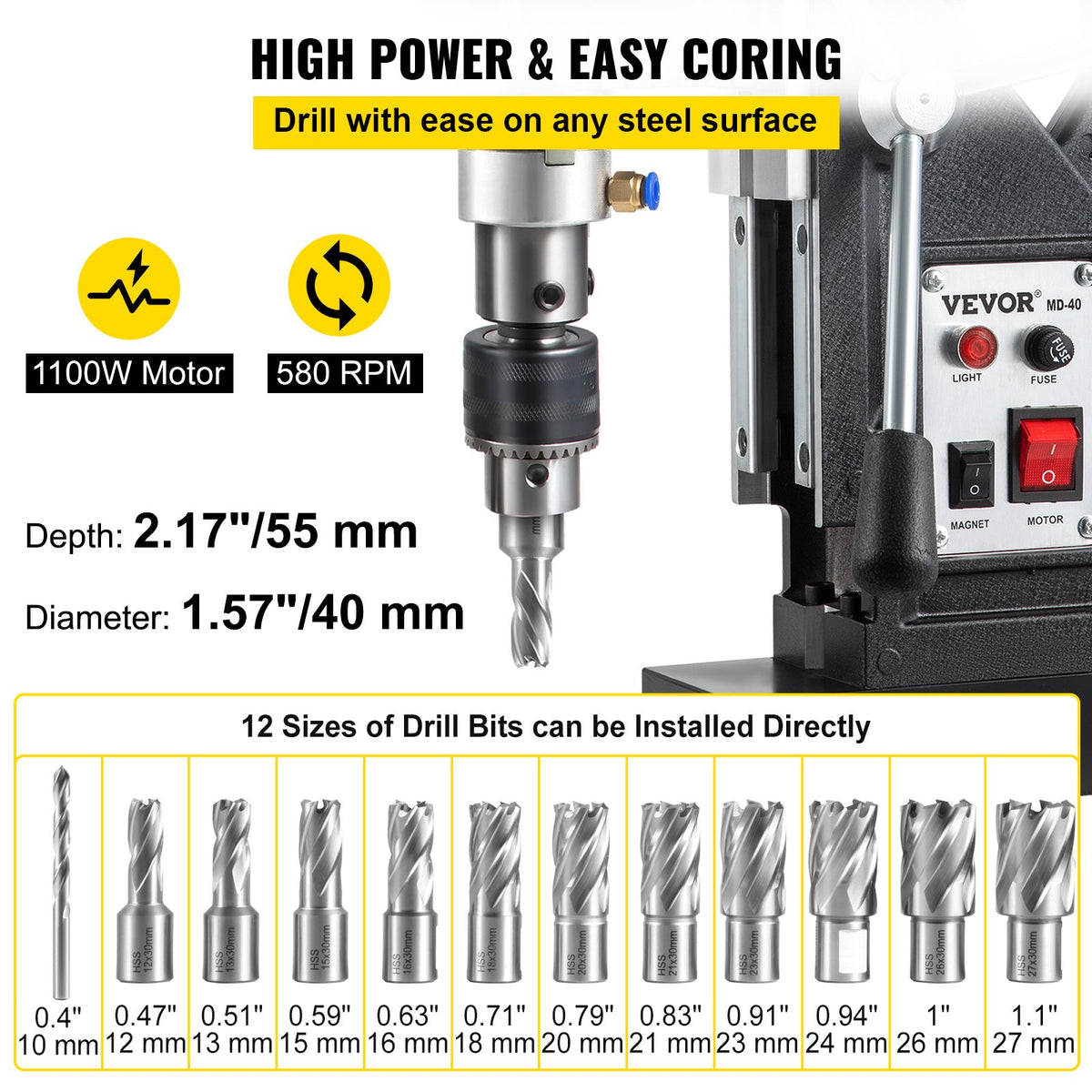

- Premium Coring & Twist Bits: The mag press is best used with the included drill bits, allowing you to create holes in most common sizes. 11 Coring bits: Φ0.47"/12 mm, Φ0.51"/13 mm, Φ0.59"/15 mm, Φ0.63"/16 mm, Φ0.71"/18 mm, Φ0.79"/20 mm, Φ0.83"/21 mm, Φ0.91"/23 mm, Φ0.94"/24 mm, Φ1"/26 mm, Φ1.1"/27 mm. Twist Bits: Φ0.4"/10 mm.
- 12,000 N Magnetic Force: The electromagnetic base is made of almost pure iron, which is sturdy and durable. It has a powerful magnetic force up to 2697lbf/12000N, allowing you to accurately position the machine for precision drilling.
- Cooling System & User-friendly Designs: The ergonomic handle provides a comfortable grip during transport. These 3 extended crank handles ensure laborsaving operation. Coolant tank is used for fast heat dissipation. Clear panel for easy read and operation.
- Wide Applications: This versatile magnetic drill allows you to bore into almost any surface you can think of. It is ideal for ship & bridge building, industrial and steel fabrication, windmill & power-plant construction, railway manufacture, equipment installation, and many other fields.
