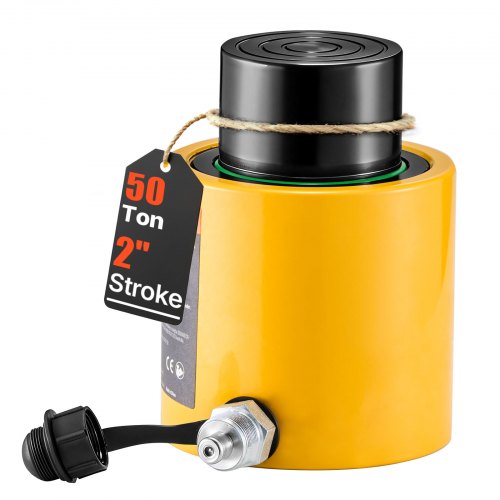

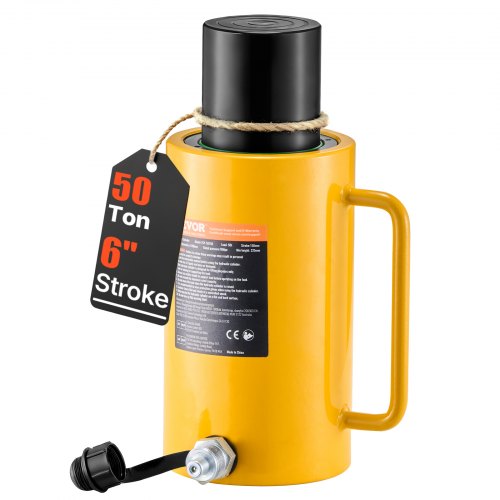

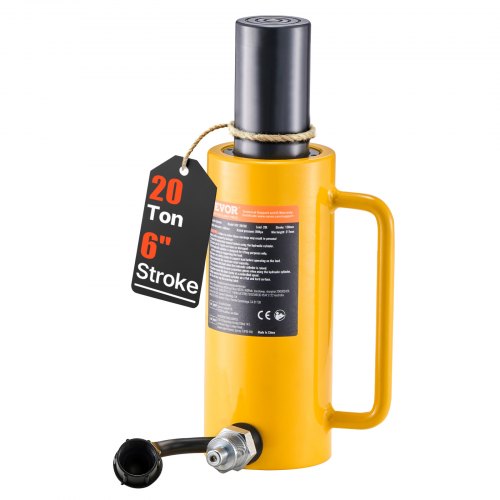

VEVOR Hydraulic Cylinder Jack, Single Acting Solid Ram Hydraulic Jack with Quick Connector and Portable Handle for Auto Body and Frame Shops

In stock

$89.14 USD

Sale Sold out

Load Capacity 20 T 50 T

Stroke 6 inch 2 inch

SKU:QJD20T150MMSXYY01V0

Product details

What to know before you buy

Core information, use cases, and key selling points for this item.

Heavy Duty Construction: The body, the ram and the base are made of heavy duty metal; the head and the bottom are quenched for extra hardness, and the painted or electroplated surface resists scratches, wear and corrosion.
Large Lifting Capacity: The single acting ram lifts without sticking, and the tonnage, the ram stroke and the diameters of each size are listed in the specification table so you can match the jack to the load and to the gap you have to work in.
Convenient Use: The quick connecting head has a dust cover that keeps dirt out of the cylinder and seals without leaking, and the portable handle makes the jack easy to carry and place under the load.

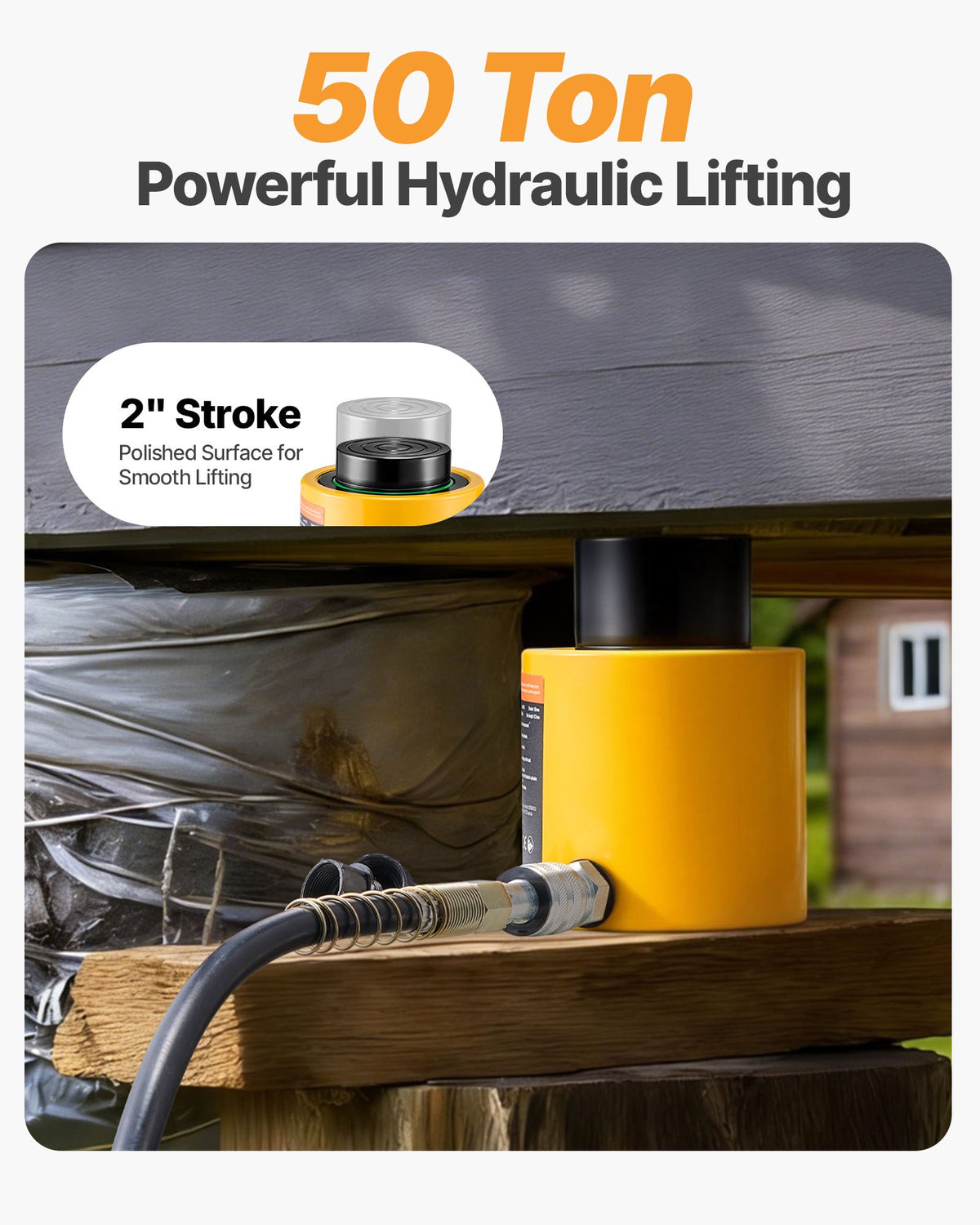

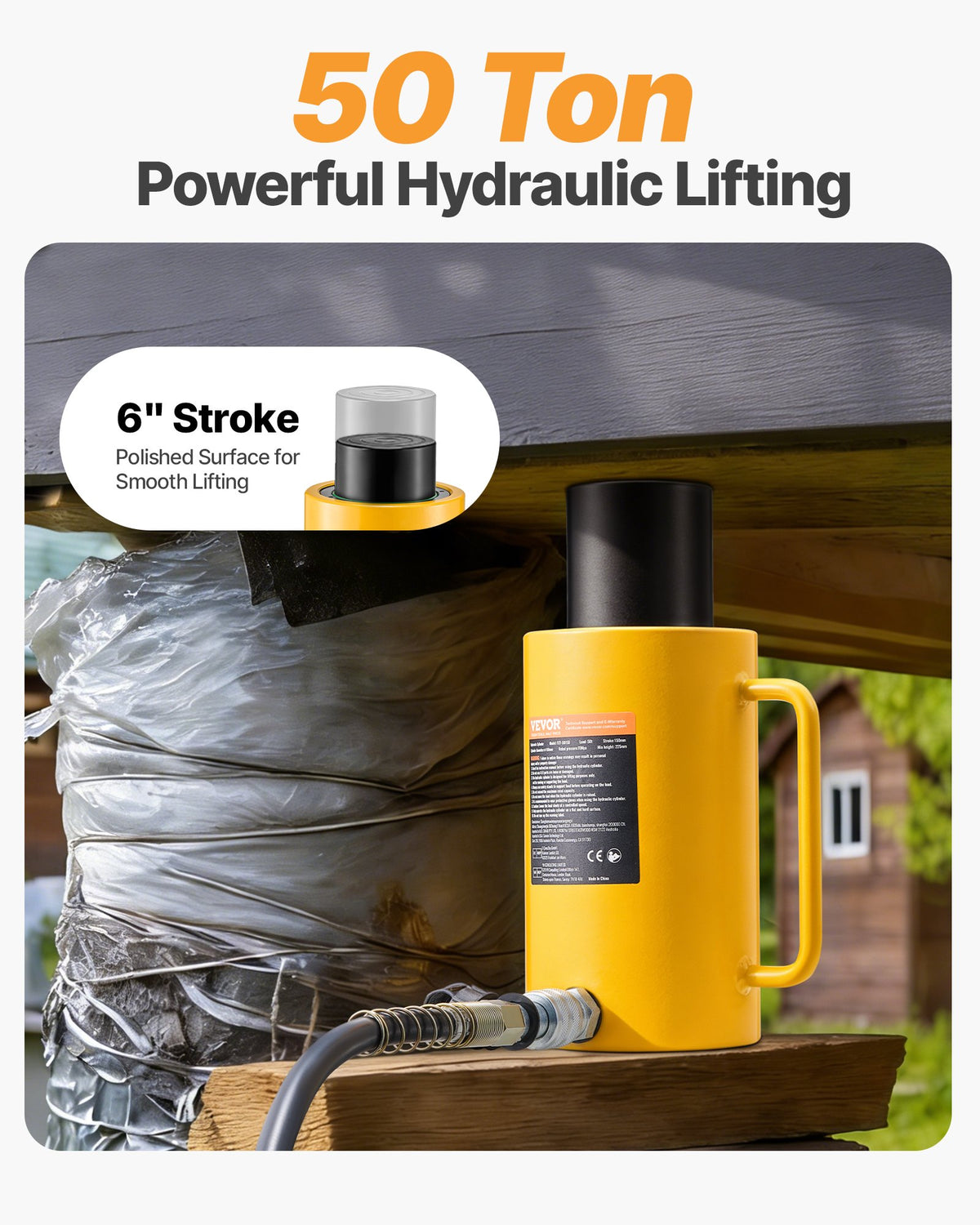

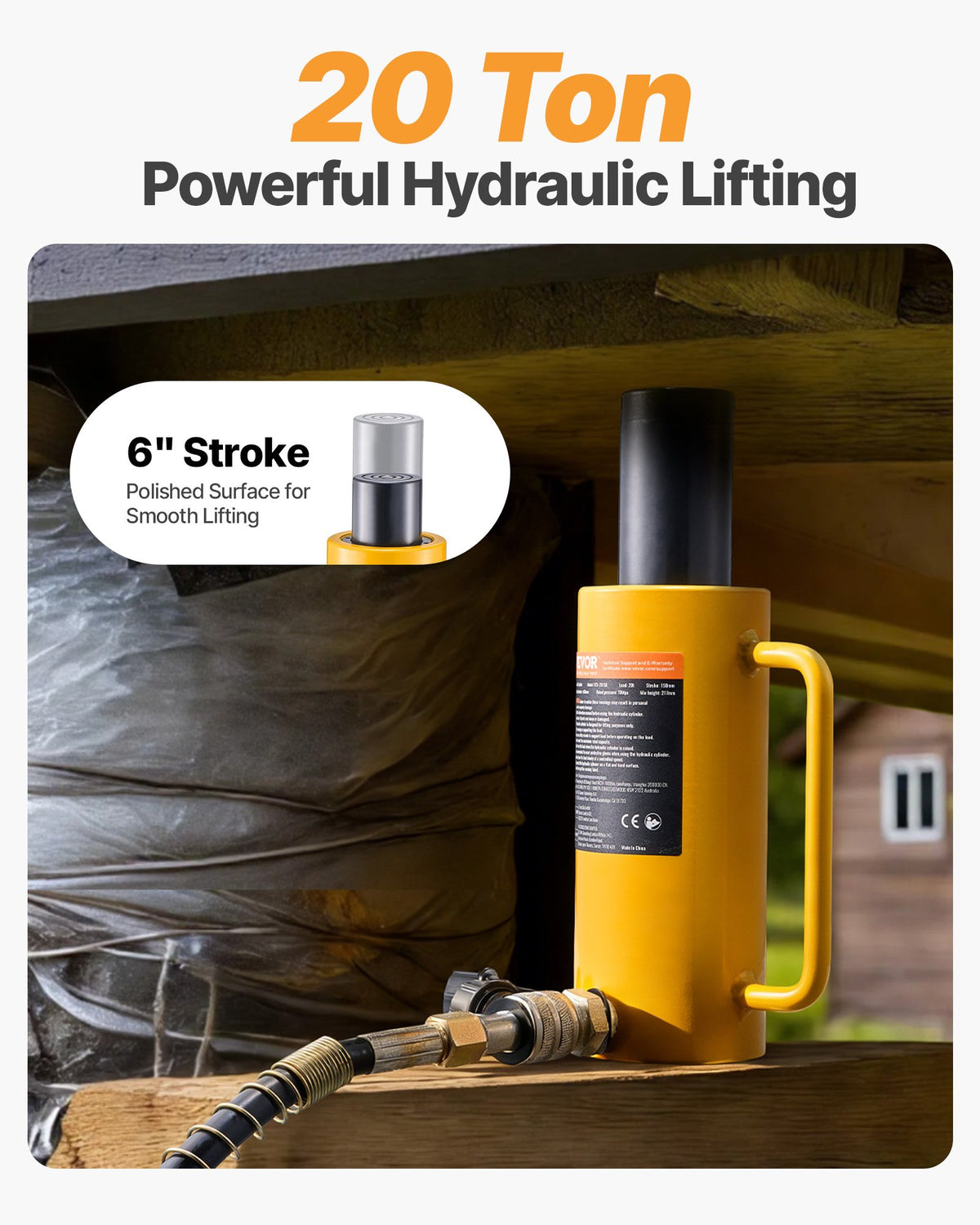

Smooth Surface: The ram has a smooth surface with a circular texture that gives reliable support during the lift, and the compact body fits narrow spaces such as body panels, frames and machine beds.
Wide Usage: A helper for riggers, fabricators, welders and automotive body and frame shops in electric power, chemical, steel, bridge, machinery and maintenance work.

Brand	VEVOR
Product Type	Business & Industrial > Material Handling > Lifts & Hoists > Jacks & Lift Trucks > Bottle Jacks
Material	Heavy duty metal
Type	Single acting solid ram hydraulic cylinder jack
Capacity	20 T / 44000 lbs (20 T model) or 50 T / 110000 lbs (50 T models)
Ram Stroke	150 mm / 6 inch (6 inch models) or 50 mm / 2 inch (2 inch model)
Working Pressure	10000 PSI
Inner Diameter	50 mm / 2 inch (20 T model) or 80 mm / 3.1 inch (50 T models)
Outside Diameter	84 mm / 3.3 inch (20 T model) or 128 mm / 5 inch (50 T models)
Active Area	33.16 cm2 / 5 square inch (20 T model)
Total Height	210 mm / 8.3 inch (20 T 6 inch), 214 mm / 8.4 inch (50 T 6 inch) or 112 mm / 4.4 inch (50 T 2 inch)
Item Weight	10 kg / 22 lbs (20 T), 21.7 kg / 47.8 lbs (50 T 6 inch) or 9.8 kg / 21.6 lbs (50 T 2 inch)
Shipping Weight	9.55 kg (20 T), 19.05 kg (50 T 6 inch) or 10.95 kg (50 T 2 inch)
Package Dimensions	20 x 16 x 26 cm (20 T), 24 x 22 x 32 cm (50 T 6 inch) or 17 x 17 x 21 cm (50 T 2 inch)
Quick Connector	Quick connecting head with dust cover
Application	Lifting and pressing in automotive body and frame shops, rigging, fabrication, welding, steel, bridge and machinery work
Available Options	Load Capacity: 20 T, 50 T; Stroke: 2 inch, 6 inch
