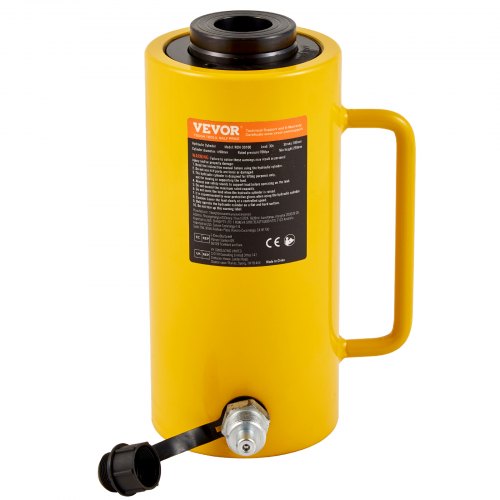

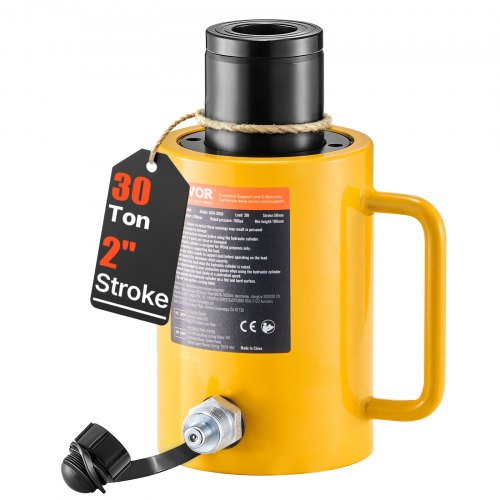

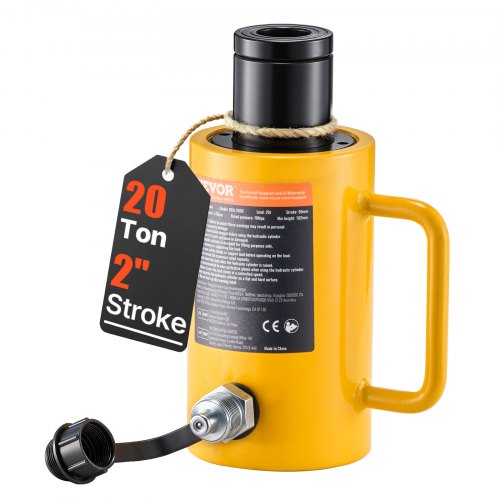

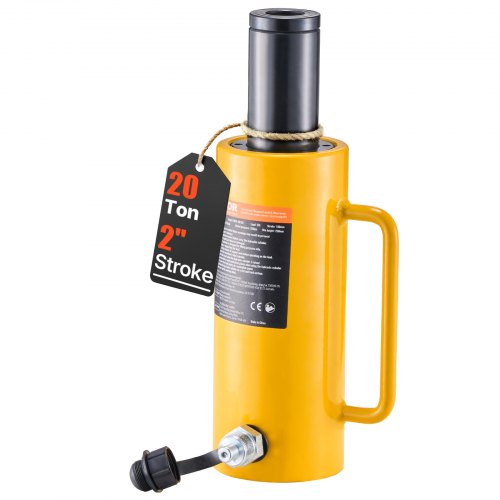

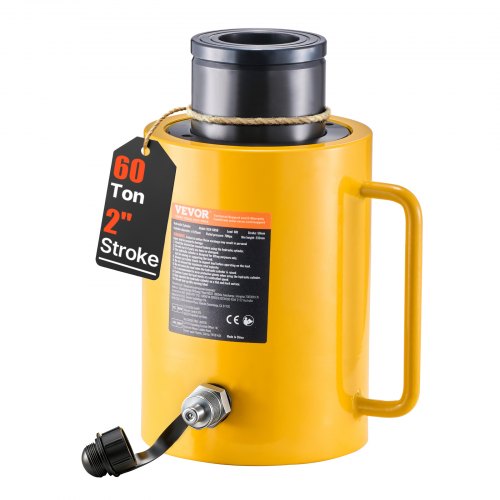

VEVOR Hollow Plunger Hydraulic Cylinder Jack, Single Acting Hydraulic Ram Jack with Quick Connector and Portable Handle for Auto Body and Frame Shops

In stock

$144.43 USD

Sale Sold out

Plunger Stroke 100 mm 50 mm

Capacity 20 T 30 T 60 T

SKU:QJD20T100MMKXYY01V0

Product details

What to know before you buy

Core information, use cases, and key selling points for this item.

About this item

Key Features

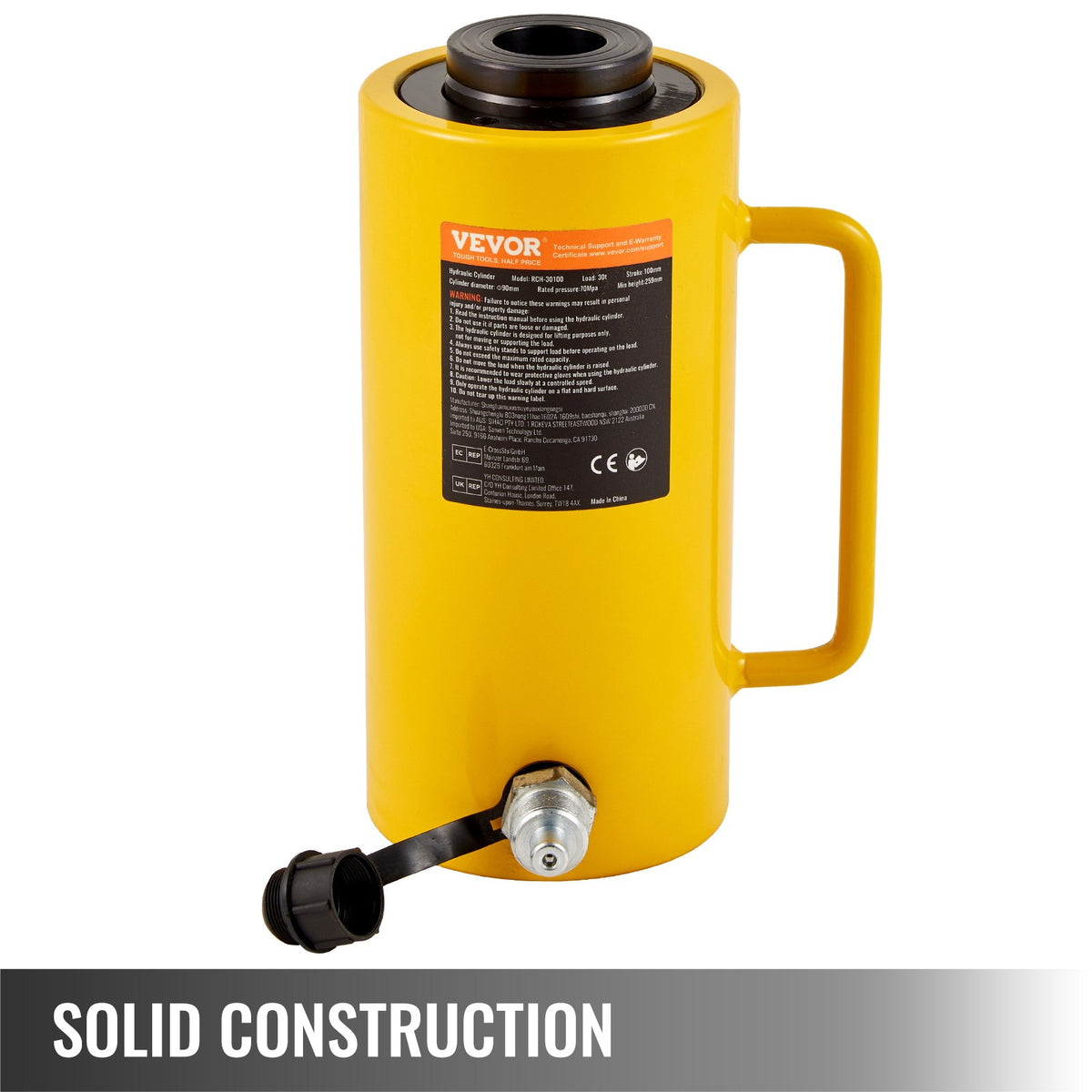

Heavy Duty Construction: The body, the hollow ram and the base are made of heavy duty metal; the painted surface resists scratches, wear and corrosion, so the jack keeps working through long service.
Large Lifting Capacity: The single acting hollow plunger lifts without sticking, and the capacity, the ram stroke and the main dimensions of every size are listed in the specification table so you can match the jack to the load and to the gap you have to work in.
Convenient Use: The quick connecting head has a dust cover that keeps dirt out of the cylinder and seals without leaking, and the portable handle makes the jack easy to carry and to place under the load.

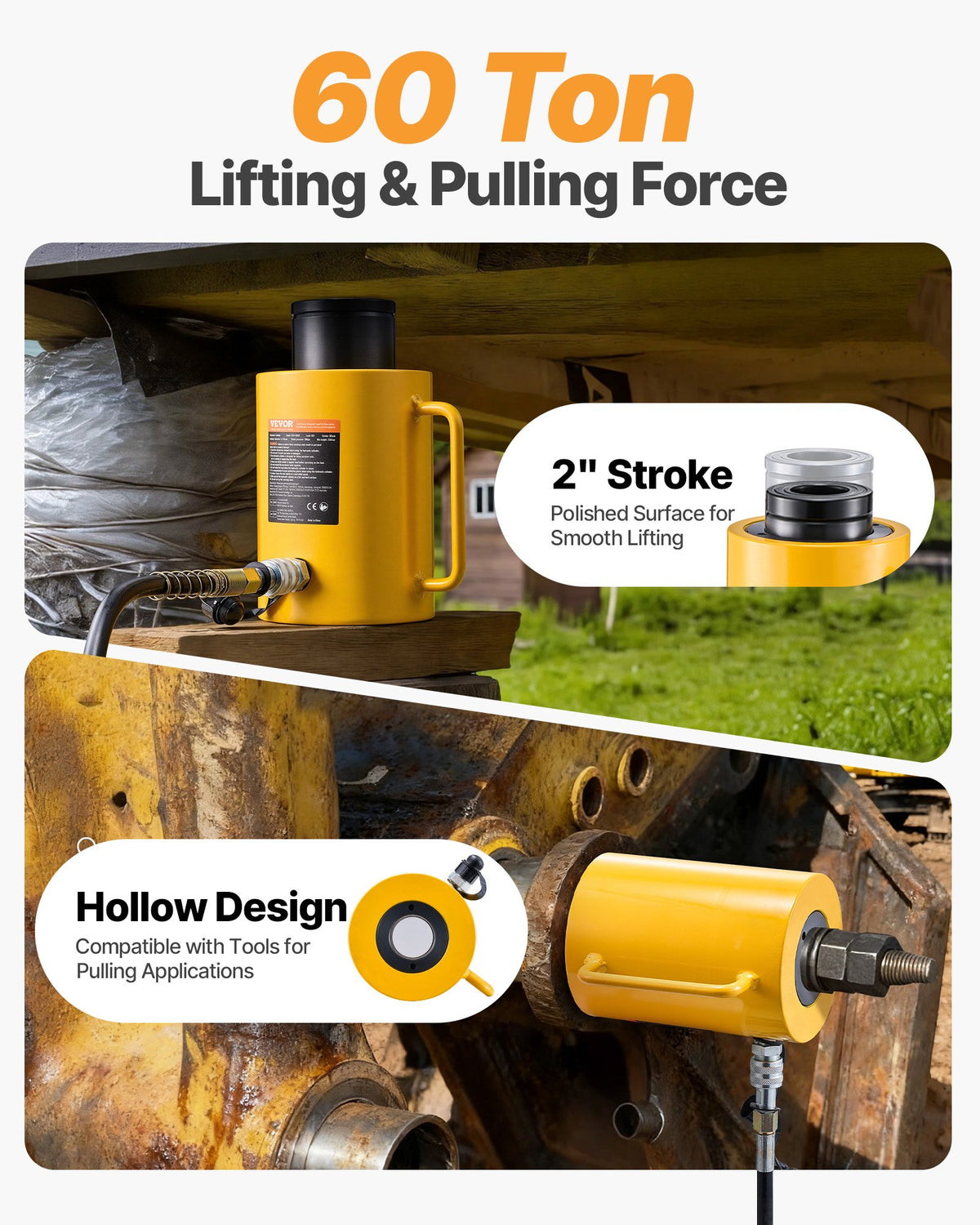

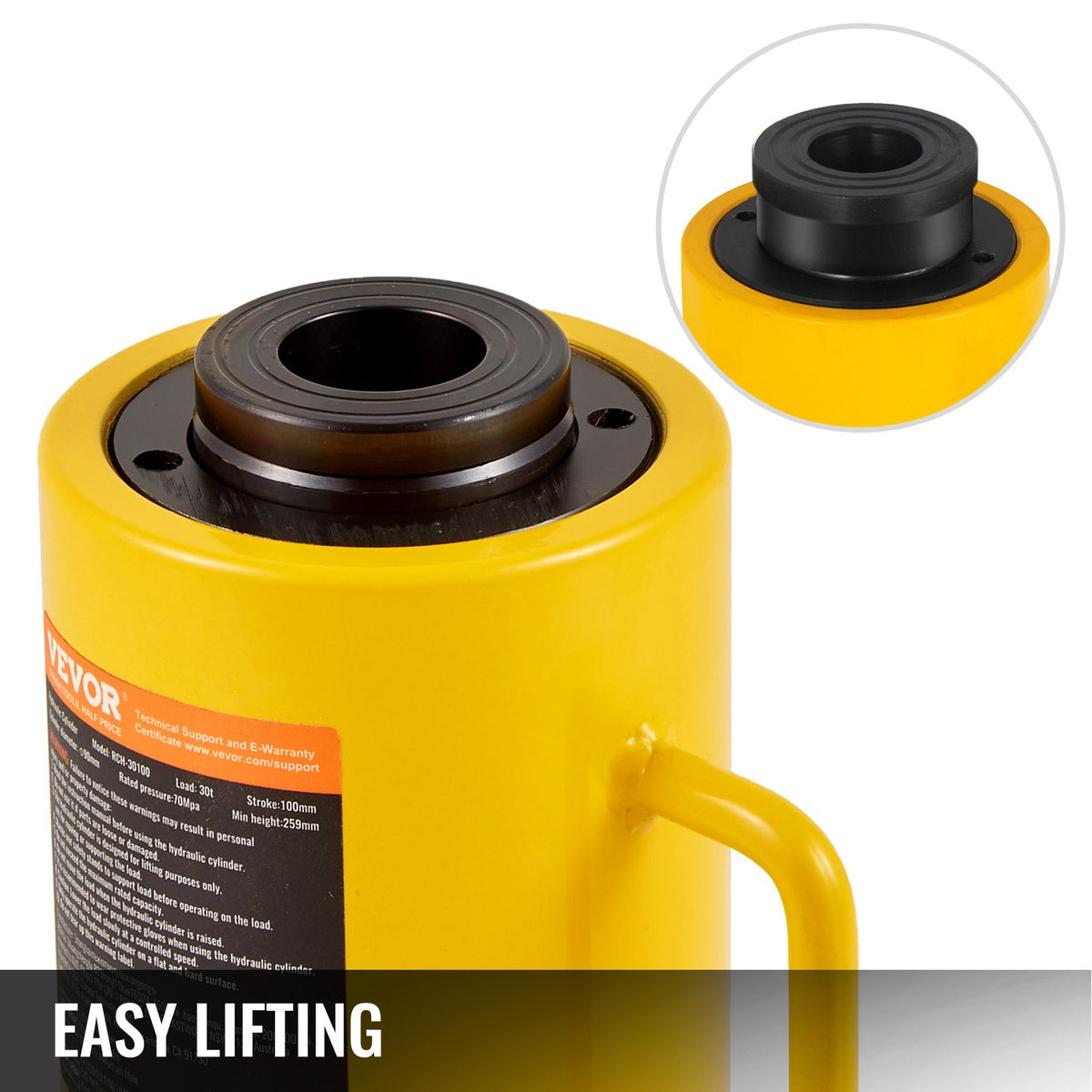

Smooth Surface: The ram has a smooth surface with a circular texture that gives reliable support during the lift, and the hollow centre also lets a rod or a cable pass straight through the jack.
Wide Usage: A helper for riggers, fabricators, welders and automotive body and frame shops, and for lifting and pressing work in electric power, chemical, steel, bridge, machinery and maintenance jobs.

Specifications

Brand	VEVOR
Product Type	Business & Industrial > Material Handling > Lifts & Hoists > Jacks & Lift Trucks > Bottle Jacks
Type	Single acting hollow plunger hydraulic cylinder jack
Material	Heavy duty metal
Capacity	20 T / 44000 lbs (20 T models), 30 T / 66000 lbs (30 T models) or 60 T / 130000 lbs (60 T model)
Ram Stroke	100 mm / 4 inch (100 mm models) or 50 mm / 2 inch (50 mm models)
Inner Diameter	58 mm / 2.3 inch (20 T models), 66 mm / 2.6 inch (30 T models) or 94 mm / 3.7 inch (60 T model)
Outside Diameter	98 mm / 3.8 inch (20 T models), 113 mm / 4.3 inch (30 T models) or 158 mm / 6.2 inch (60 T model)
Total Height	202+12 mm / 8+0.5 inch (20 T 100 mm), 220+12 mm / 8.7+0.5 inch (30 T 100 mm), 152+12 mm / 6+0.5 inch (20 T 50 mm), 170+12 mm / 6.7+0.5 inch (30 T 50 mm) or 230+12 mm / 9+0.5 inch (60 T)
Item Weight	9 kg / 19.8 lbs (20 T 100 mm), 14.5 kg / 32 lbs (30 T 100 mm), 6.9 kg / 15.2 lbs (20 T 50 mm) or 10.8 kg / 23.8 lbs (30 T 50 mm)
Shipping Weight	11.35 kg (20 T 100 mm), 17.1 kg (30 T 100 mm), 8.4 kg (20 T 50 mm), 12.6 kg (30 T 50 mm) or 27.1 kg (60 T)
Package Dimensions	20 x 17 x 30 cm (20 T 100 mm), 24.5 x 21.5 x 32.5 cm (30 T 100 mm), 22 x 17.5 x 17 cm (20 T 50 mm), 23 x 22 x 19 cm (30 T 50 mm) or 26 x 24 x 28.5 cm (60 T)
Quick Connector	Quick connecting head with dust cover
Handle	Portable handle
Application	Lifting and pressing in automotive body and frame shops, rigging, fabrication, welding, steel, bridge and machinery work
Available Options	Plunger Stroke: 100 mm, 50 mm; Capacity: 20 T, 30 T, 60 T
