About this item
Product overview
VEVOR Relay - Select Your Configuration
Compare exact SKUs
| SKU | Selection | Specifications | Package contents |
|---|---|---|---|

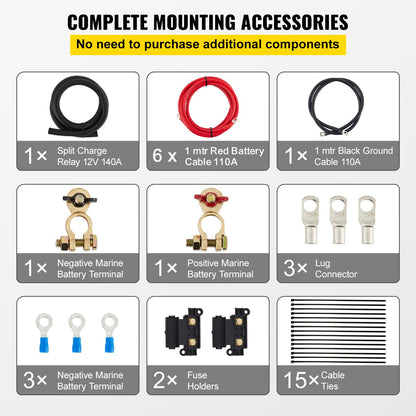

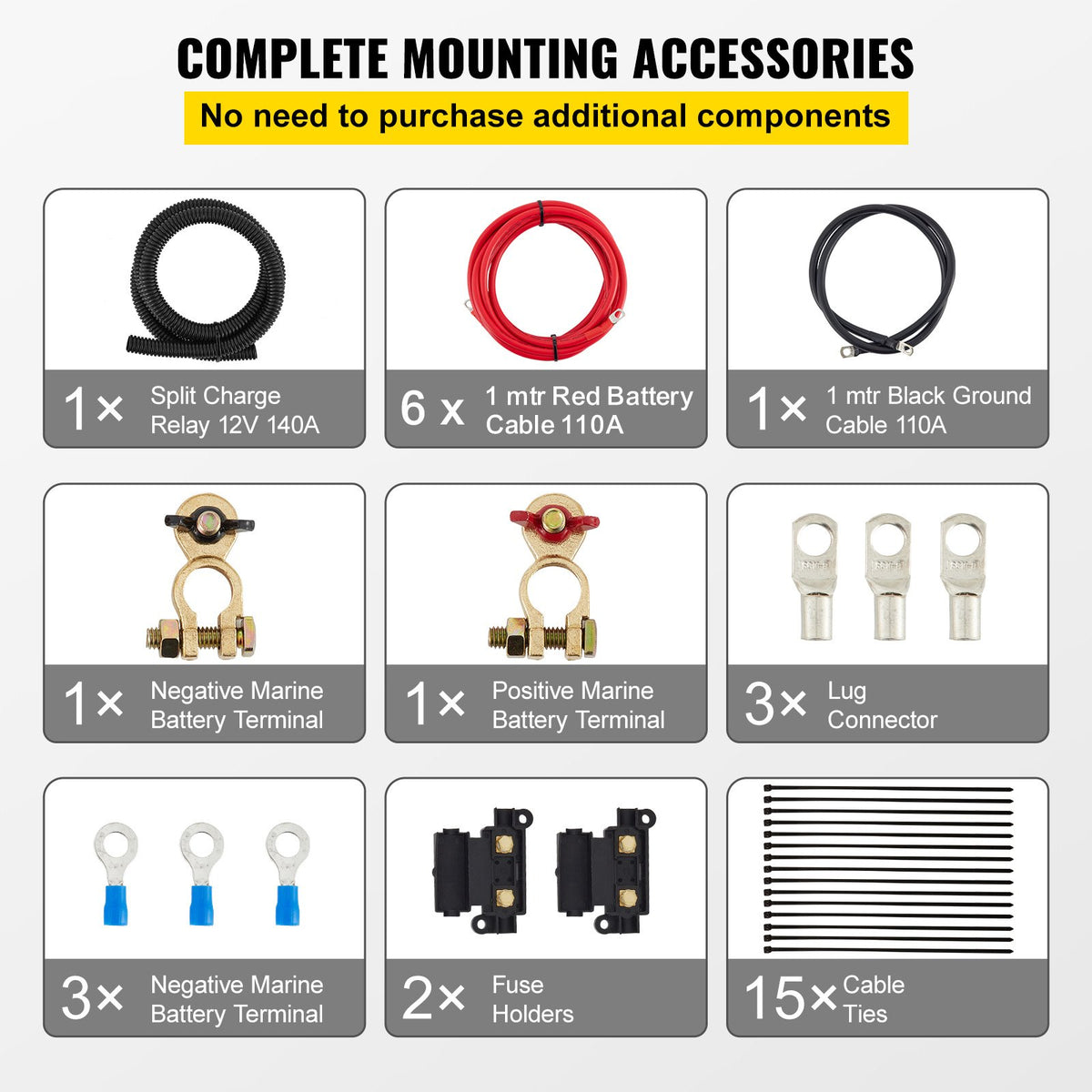

| FDCDJDQTJMMYYIMPBV0 | Functionality Level: Auto-only; Package Type: Complete Kit | Model: JDQTJ-6M; Rating Voltage: 12V DC; Continuous Current: 140A; Intermittent Current: 160A; Cut-in Voltage: 13.3V; Cut-out Voltage: 12.8V; IP Rating: IP65; Material: Nylon Plastic; Current Draw-Charging: 280mA; Current Draw-Standby: 8mA; Power Studs: M6 Stainless Steel; Delay Time: 5 Seconds; Disengage Delay: About 5-10 Seconds; Operation Temperature Range: -30 to 105℃ / -22 to 221℉; Item Dimensions(L x W x H): 2.66 x 2.11 x 2.66 in / 6.76 x 5.36 x 6.76 cm; Net Weight: 4.14 lbs / 1.88 kg | 1 x Split Charge Relay; 6 x 1 mtr Red Battery Cable 110A; 1 x 1 mtr Black Ground Cable 110A; 1 x Negative Marine Battery Terminal; 1 x Positive Marine Battery Terminal; 2 x Fuse Holders; 3 x Lug Connector; 3 x Insulated Blue Ring Terminal; 15 x Cable Ties; 2 x 250 mm Red 110A Cable; 2 x Shrink Tube; 1 x Drill Bit; 1 x Black Split Conduit; 1 x Set of Screws |
| FDCDJDQTJ1000SUV7V9 | Functionality Level: Dual-Mode with LCD; Package Type: Complete Kit | Cut-In Charging Voltage: ≥12.3V; Maximum Charging Current: 140A (within 5 minutes); Applicable Battery Voltage System: 12V Storage Battery; Voltage Sensitive Relay Dimensions (L x W x H): 2.7 x 2.7 x 2.2 in/ 68 x 68 x 56 mm; Item Model Number: VSR002; Cut-Out Charge Voltage: ≥12.6V,Continuous Charging Current ≥100A:; Product Weight (with all accessories): 3.3 lb/1.5 kg; Main Material: ABS |
Details by SKU
FDCDJDQTJMMYYIMPBV0 - Auto-only; Complete Kit
- Dual Battery Isolator: The smart battery isolator cuts in at 13.3 volts and cuts out at 12.8 volts to ensure your primary battery is always charged and ready to start your vehicle. It can charge two batteries simultaneously and isolate them from each other when the vehicle is turned off. Note: This product is not suitable for lithium batteries.

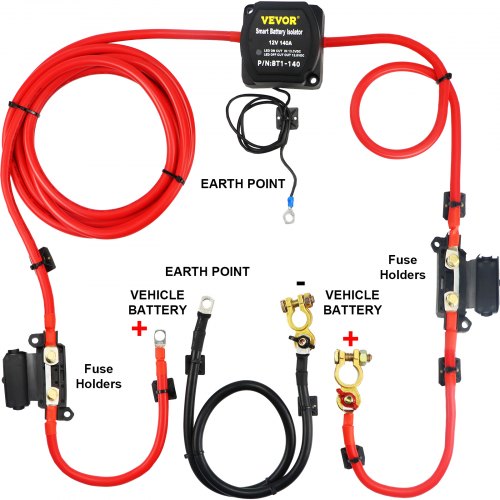

- Easy to Install: This split charge relay kit comes with complete accessories, allowing you to start installing directly without purchasing additional components. Besides, we have detailed instructions for you to complete the installation easily and flawlessly.
- Rugged & Durable: Split charge relay is made of a premium plastic material, which is shockproof and dustproof, ensuring maximum strength and durability for long-lasting usage. You will always be prepared and confident to take on any challenge.
- Superb IP65 Waterproof: Voltage sensitive relay is waterproof up to IP65, which means that your isolator is secure for use even in dusty, wet, and unexpected extreme weather environments. Great for extreme vibration applications as well.

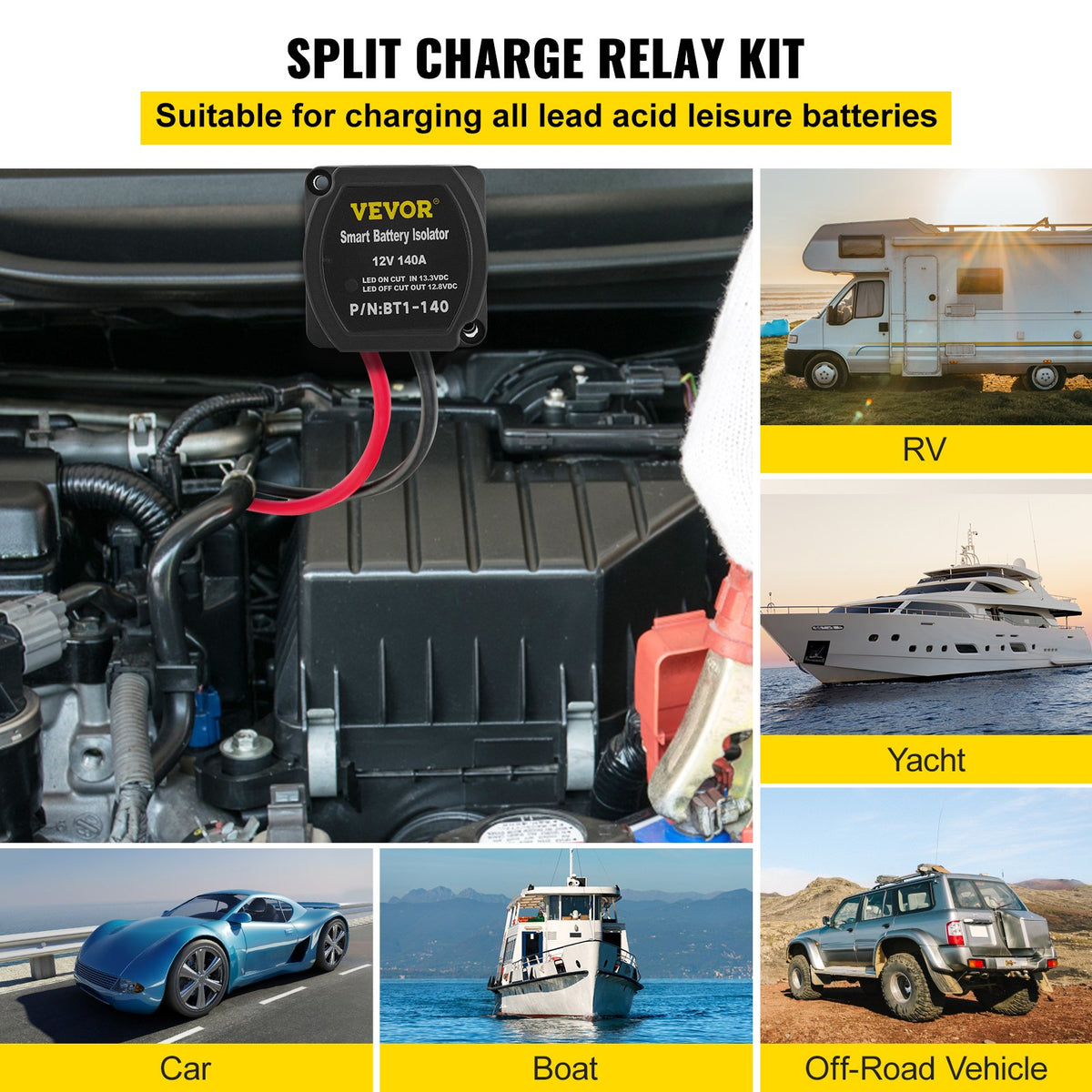

- Fit Various Vehicles: This isolator kit 12v has a compact size of 2.66" x 2.11" x 2.66", suitable for almost anywhere. Mainly used in off-road vehicles, camper vans, RVs, caravans, 4x4s, leisure vehicles, ships, yachts, marine applications, etc.
FDCDJDQTJ1000SUV7V9 - Dual-Mode with LCD; Complete Kit

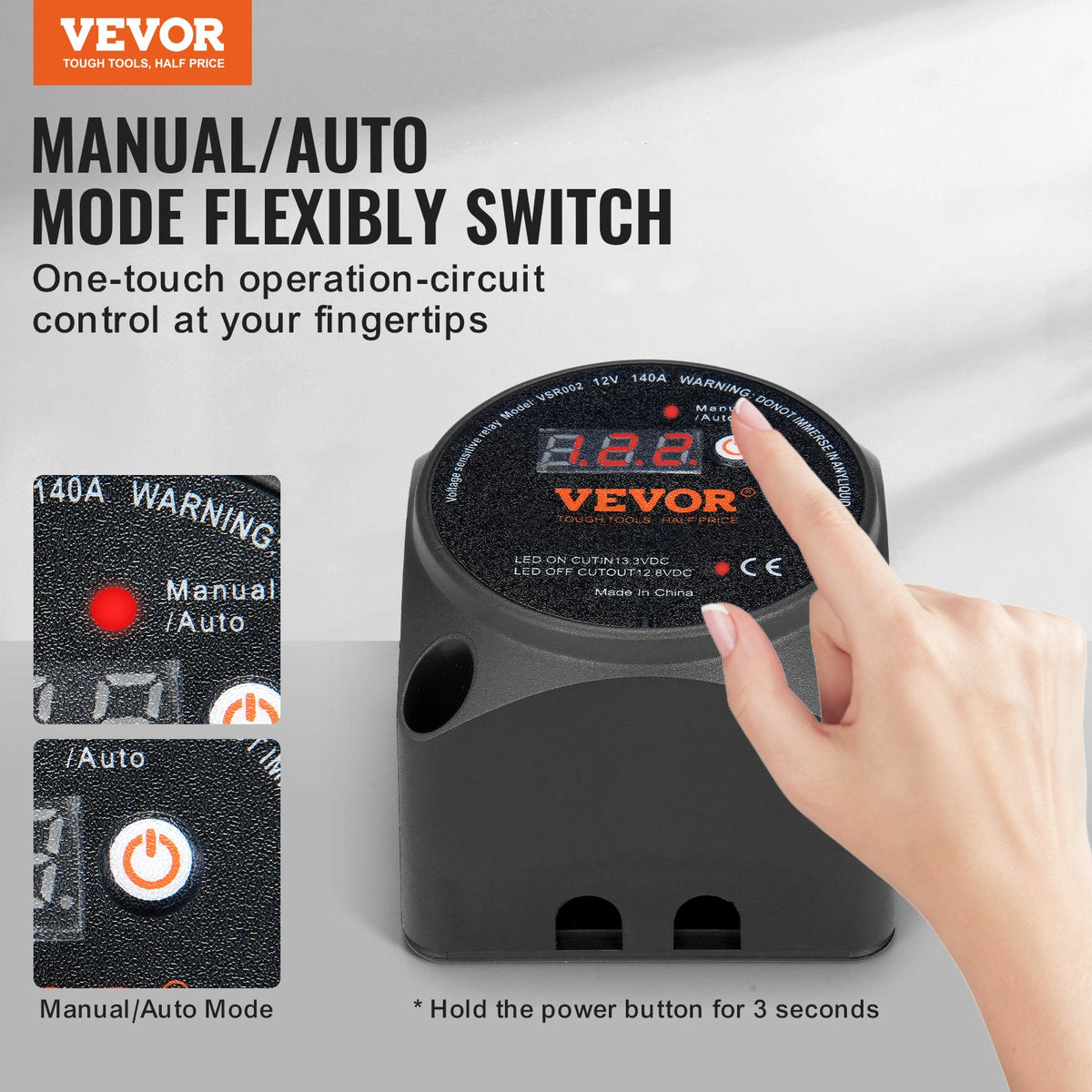

- Manual/Automatic Modes, Seamless Switching: Say goodbye to complicated setups with our 12V 140A dual battery isolator kit! In manual mode, a single button press connects or disconnects your circuit. Switch to automatic mode, providing smart switching without the need for manual intervention. Bid farewell to circuitry woes and upgrade to smoother operations with our voltage sensitive relay (VSR)!

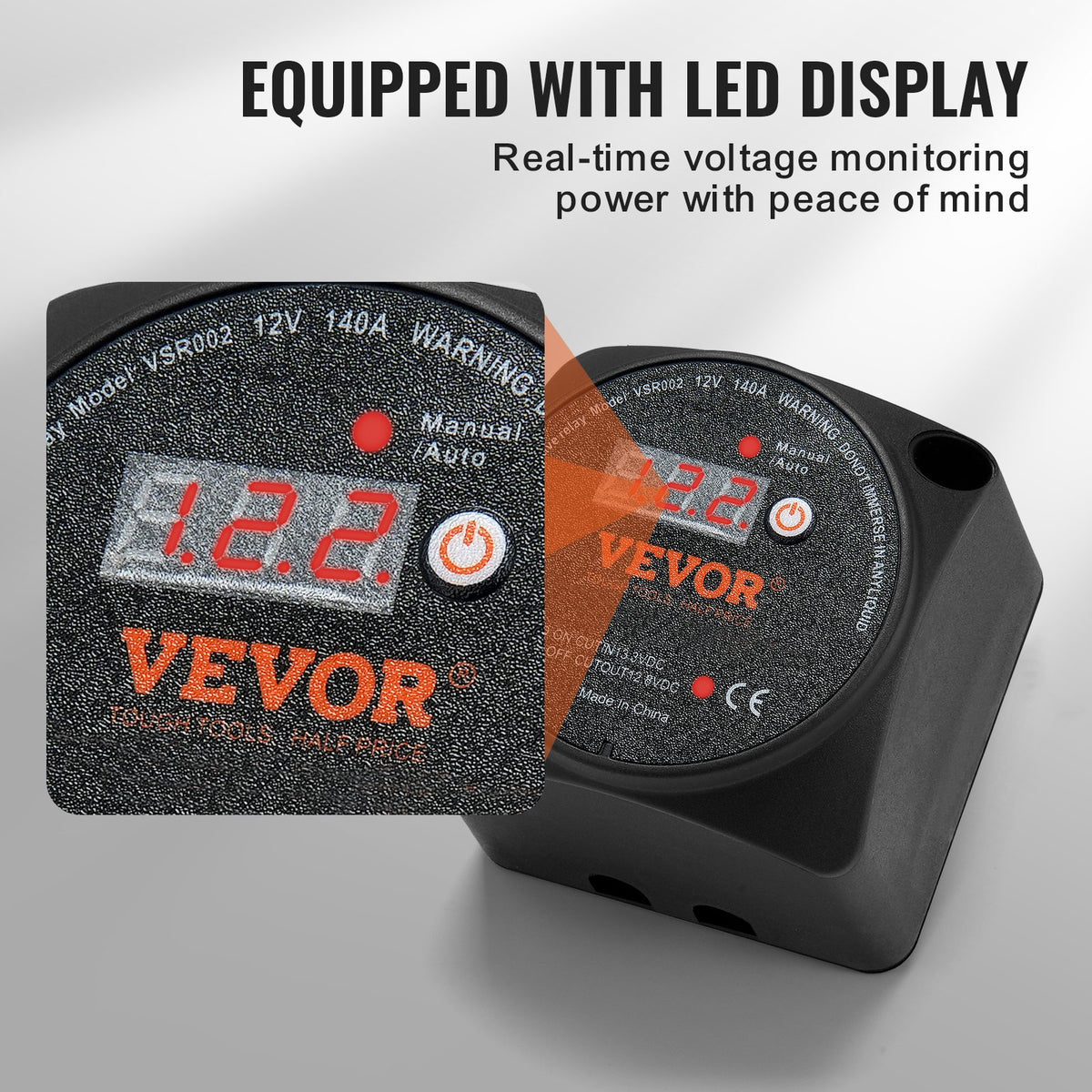

- Real-Time Monitoring, Voltage at Your Fingertips: Stay informed and in control with our smart battery isolator, featuring an LED display that provides immediate status updates on your high-voltage battery's health. Keep tabs on your battery's condition at all times, ensuring reliable support throughout your journeys. Enjoy peace of mind and more secure energy usage wherever you go.
- Comprehensive Protection, Dual Security: Trust in the smart, secure operation of our voltage sensitive relay isolator, equipped with advanced high and low voltage protection. Anytime voltage is below 11V or above 17V, it automatically disconnects the circuit, protecting your primary battery from deep discharge and your secondary battery from overcharging. Experience enhanced security and lasting performance with every use.
- Installation Made Easy

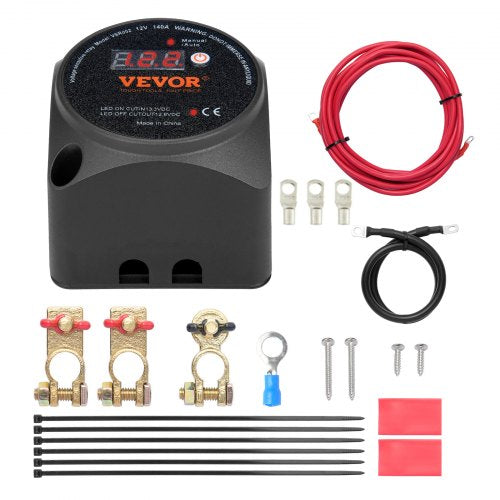

- Complete Kit, Installation Made Easy: Enjoy hassle-free setup with our all-in-one package, which includes every essential you need: red heat shrink tubing, lug cable ends, positive & negative battery connection cables, screws, and cable ties. No need for additional purchases, ensuring you have everything at your fingertips for a quick and easy installation.
