About this item
Key Features

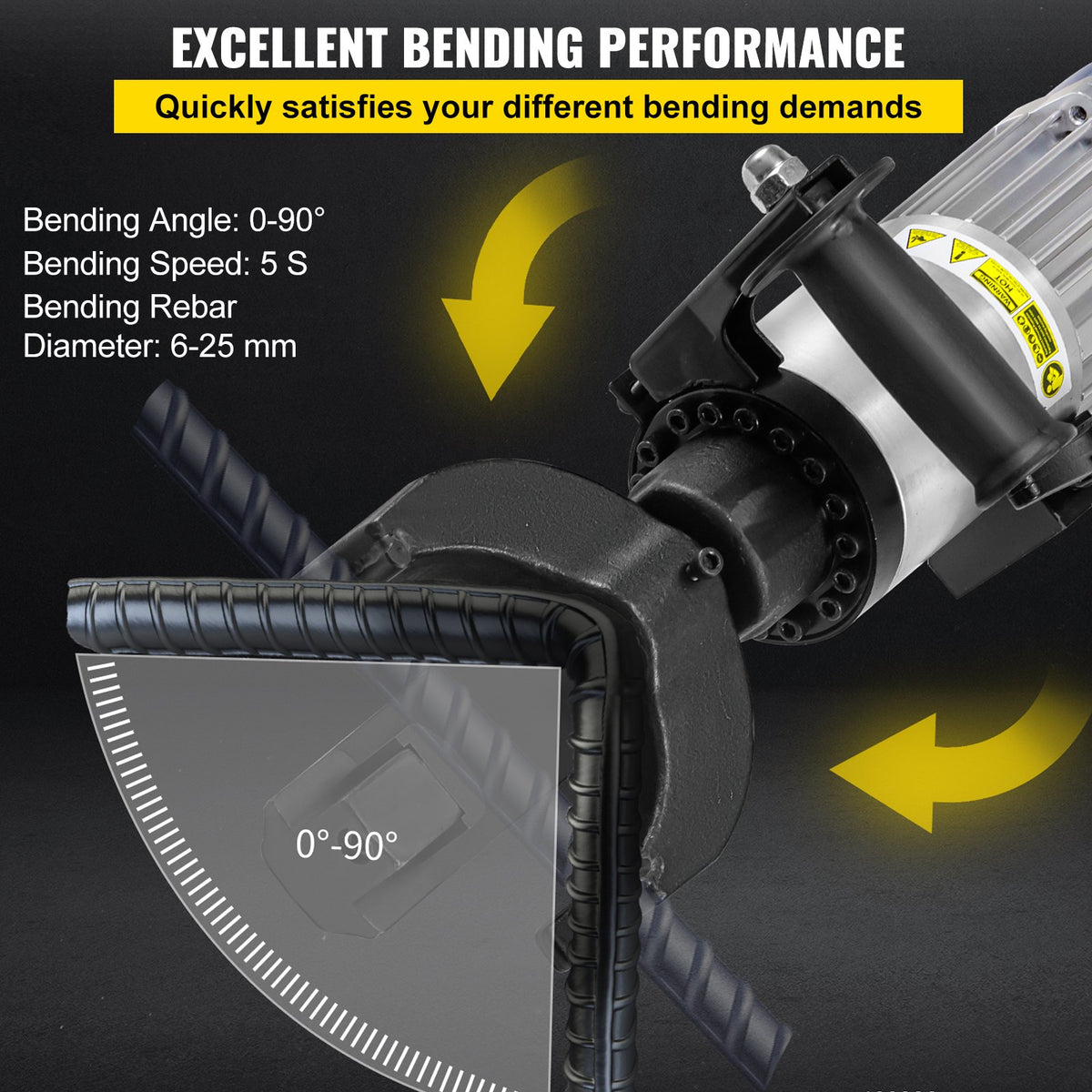

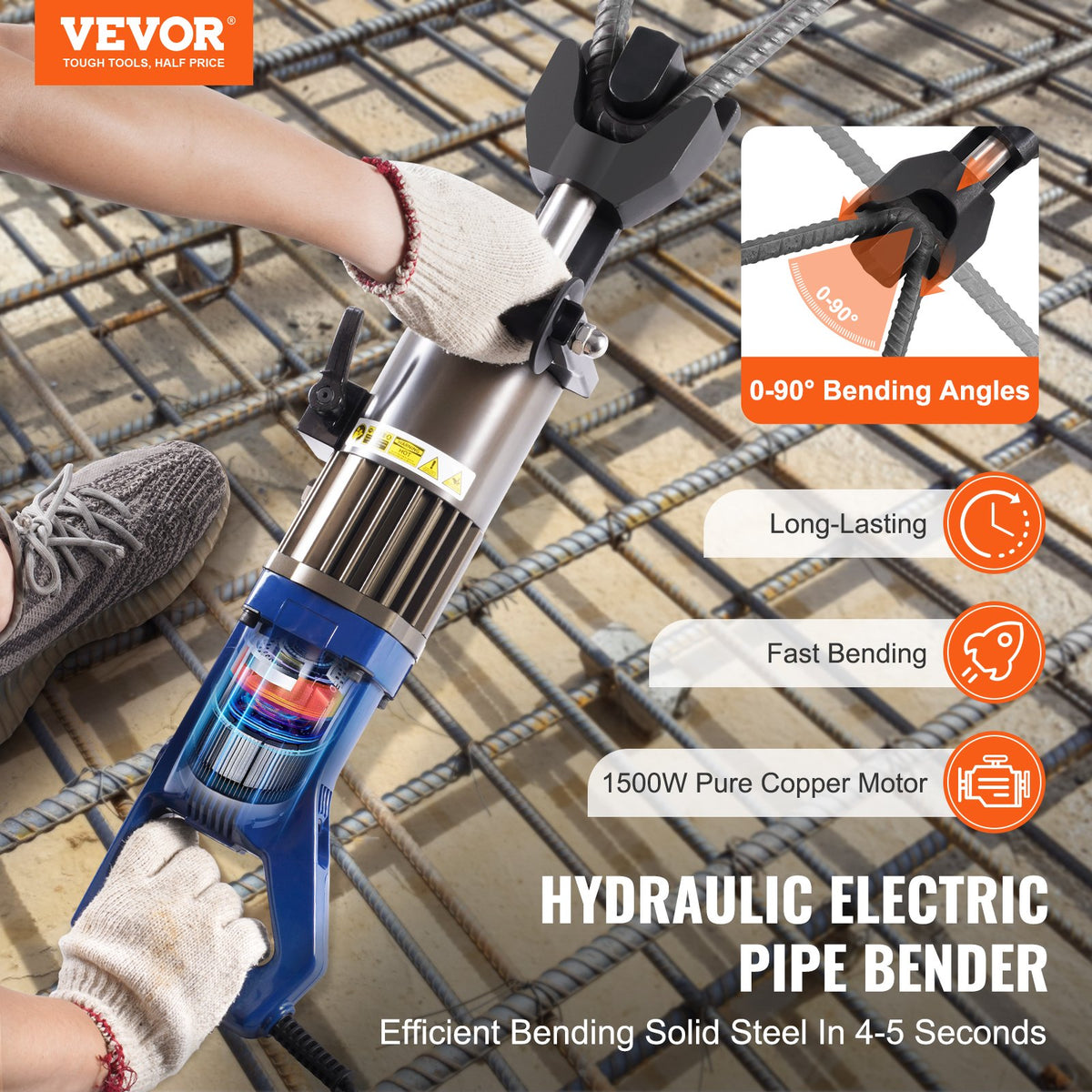

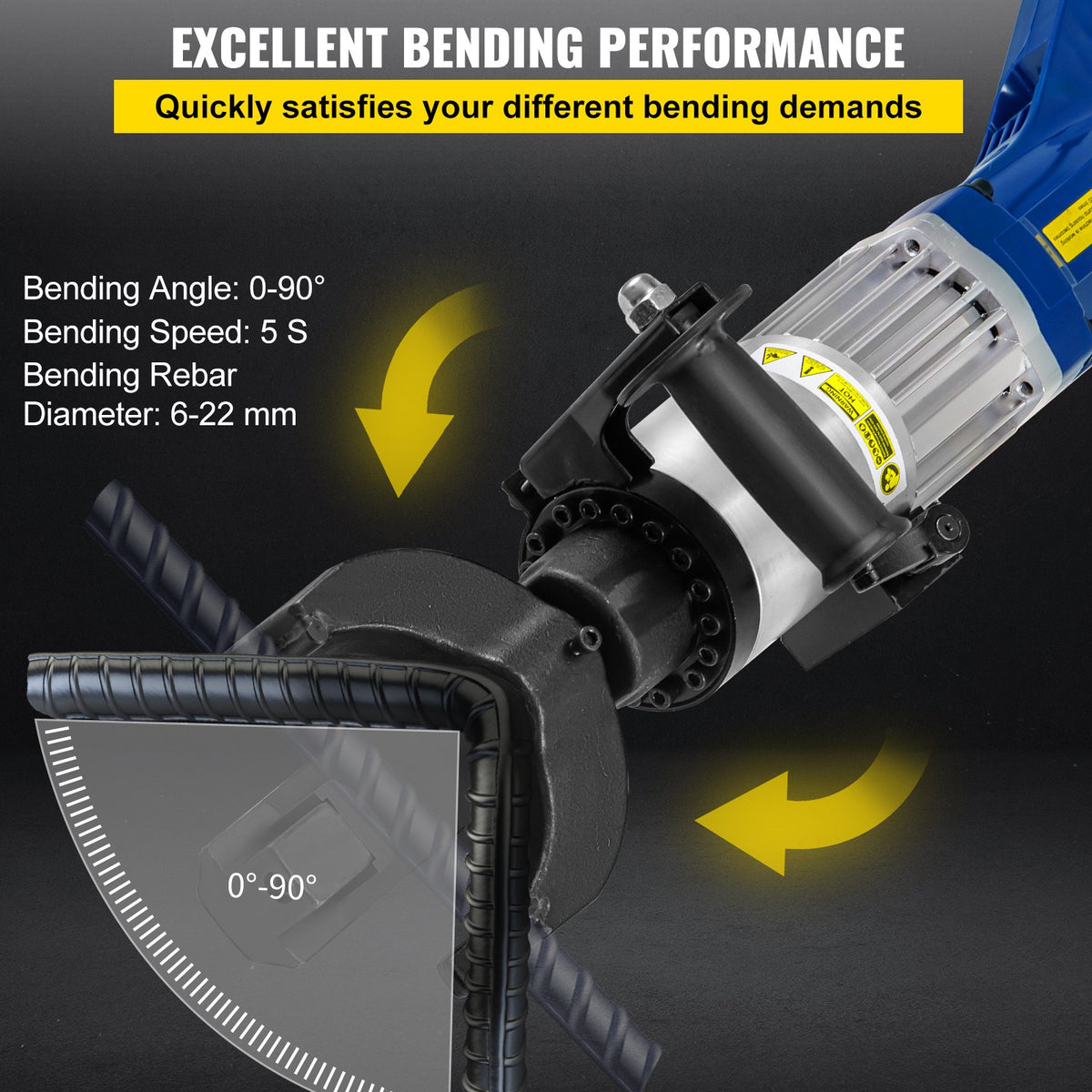

- Excellent Bending Performance: The hydraulic machine bends solid rebar angle by angle within a few seconds, and the bending angle of every size is listed in the specification table so you can match the machine to the bar you have to bend.

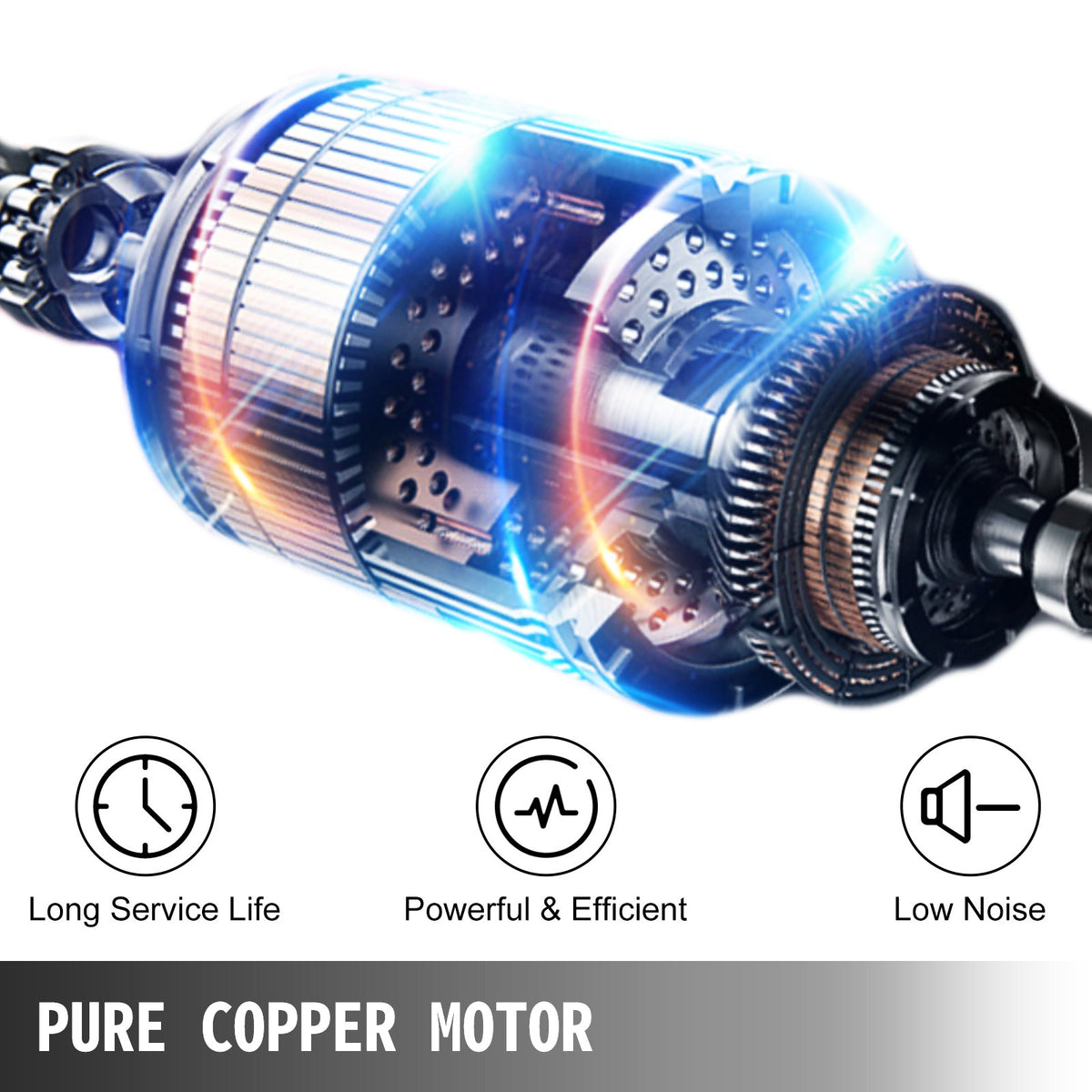

- Pure Copper Coil Motor: The portable rebar bender runs quietly with low noise and keeps a steady working efficiency, which reduces unnecessary wear and extends the service life of the machine.
- Precision Pressure Relief Valve: A precision relief valve and a hydraulically driven piston give strong thrust with low power consumption; once a bar is bent, pull the relief valve to release the steel and the piston returns to its start position.

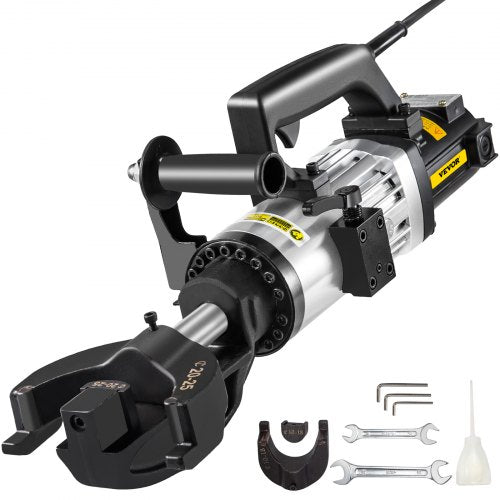

- Sturdy Body and Detachable Positioning Bolt: The cast head with high strength hooks holds hard rebar with a strong clamping force, and the adjustable positioning bolt lets you preset an angle and repeat the same bend accurately.

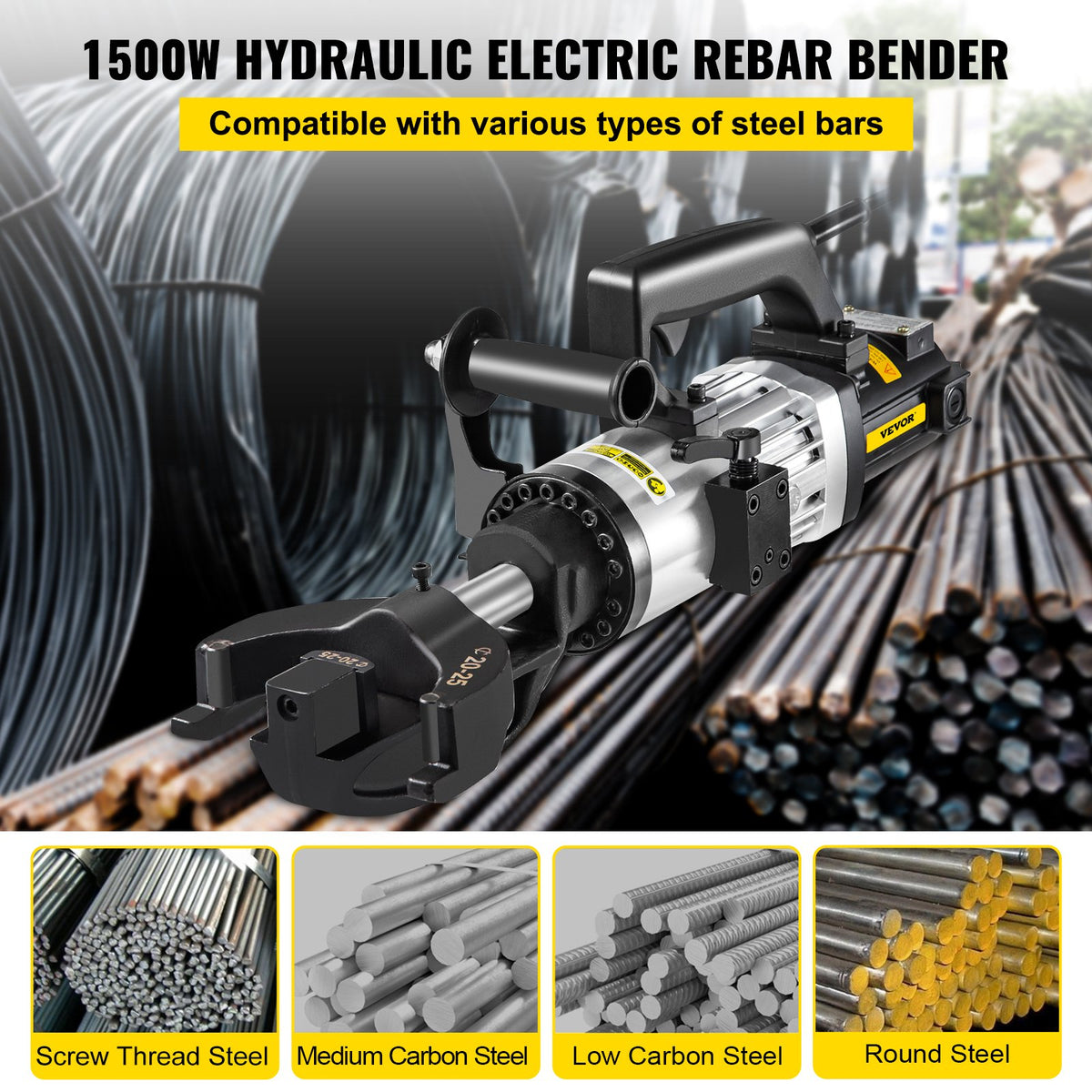

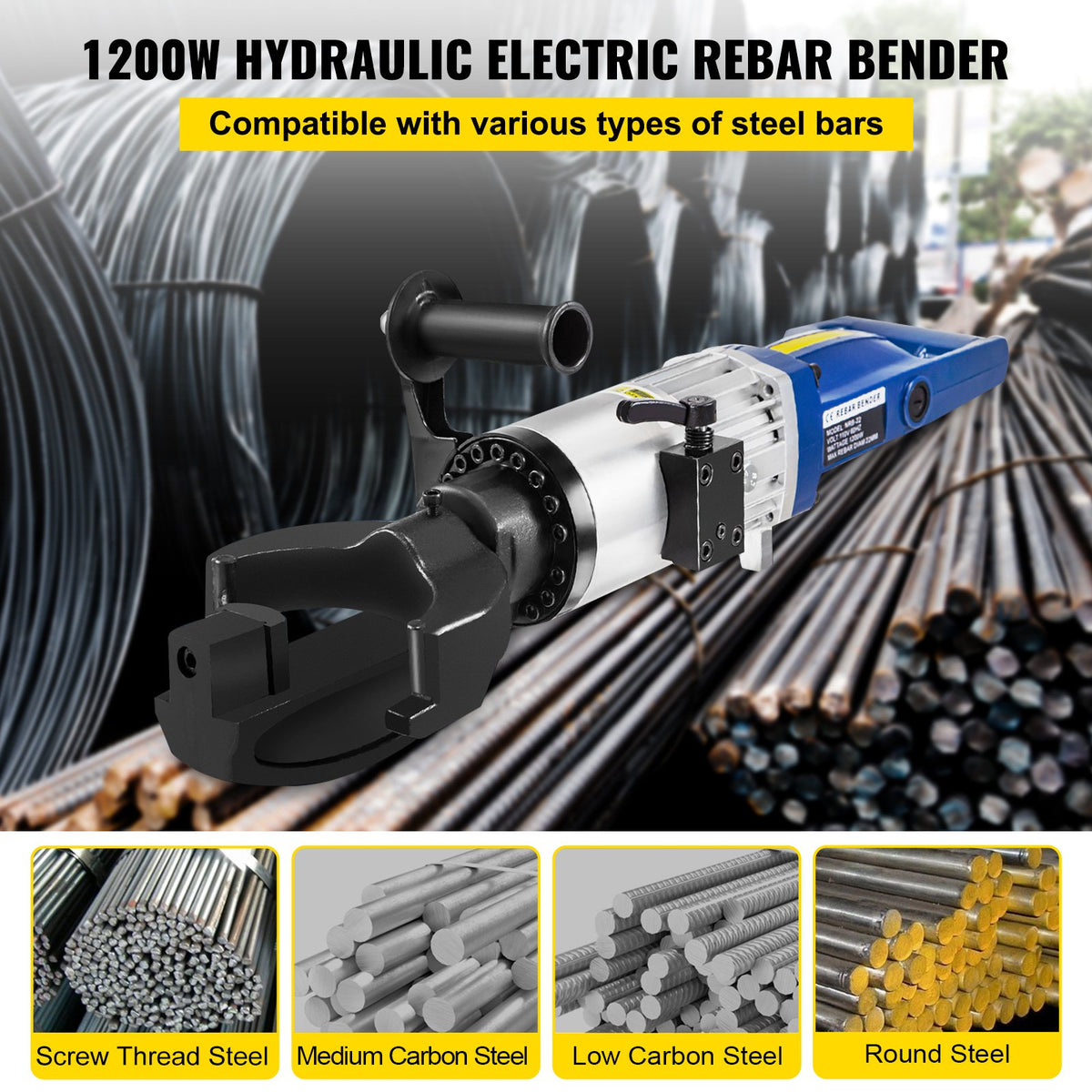

- One Button Operation: The back grip keeps the machine easy to steer; hold the switch down and the bending block pushes forward. Suitable for rebar, round steel, flat iron, screw thread steel and carbon steel in construction, bridge and steel bar processing work.
Specifications
| Brand | VEVOR |
|---|---|
| Product Type | Hardware & Tools > Pipe & Bar Benders > Hydraulic Benders |
| Type | Electric hydraulic rebar bender, hand held |
| Material | Metal body with a cast iron head and an aircraft aluminium pump cylinder |
| Rated Power | 900 W (16 mm model), 1200 W (22 mm model) or 1500 W (25 mm and 20 mm models) |
| Max. Rebar Diameter | 5/8 inch / 16 mm #5 (16 mm model), 3/4 inch / 20 mm #6 (20 mm model), 7/8 inch / 22 mm #7 (22 mm model) or 1 inch / 25 mm #8 (25 mm model) |
| Min. Rebar Diameter | 3/20 inch / 4 mm (16 mm model) or 1/4 inch / 6 mm (20 mm, 22 mm and 25 mm models) |
| Bending Angle | 0 to 130 degrees (16 mm model) or 0 to 90 degrees (20 mm, 22 mm and 25 mm models) |

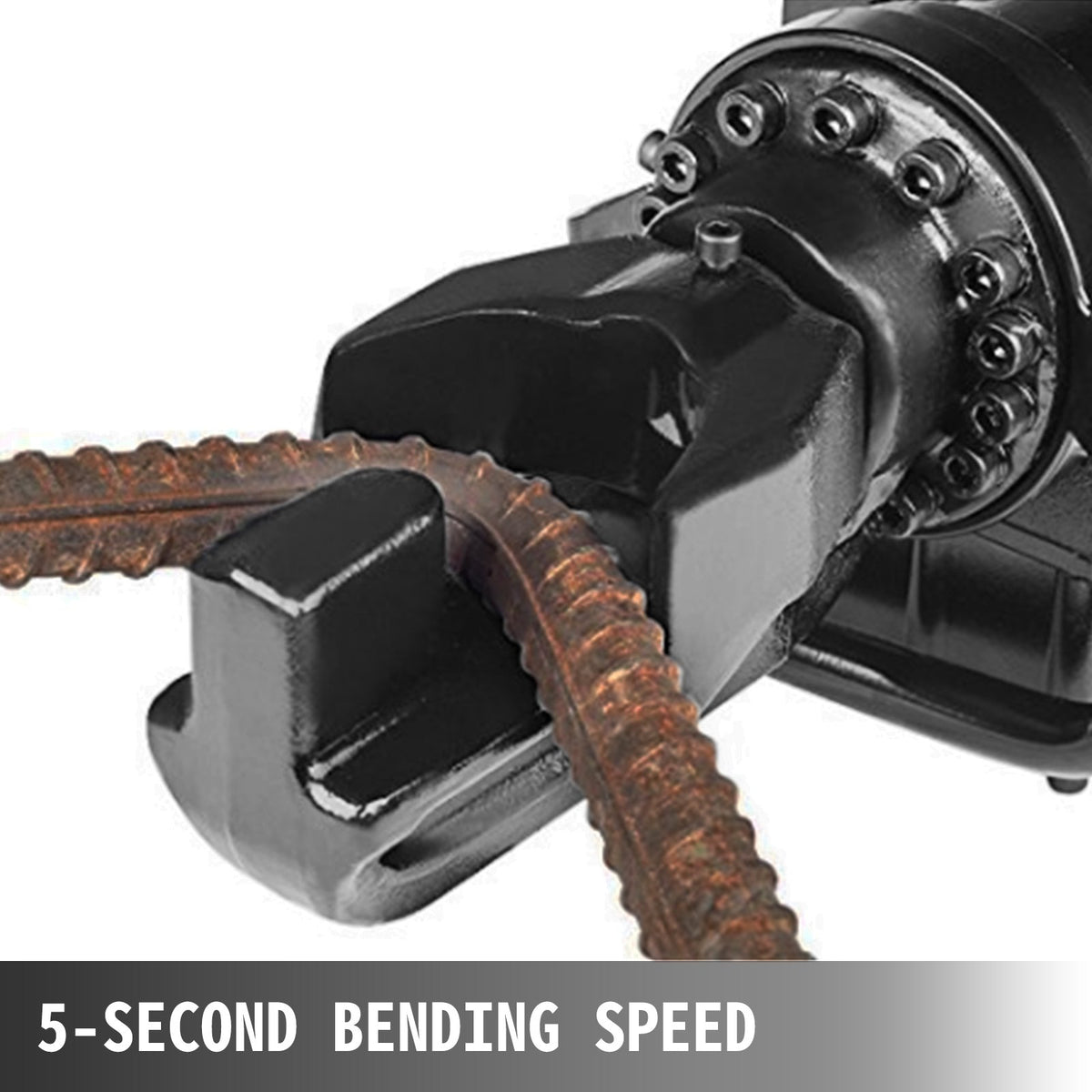

| Bending Speed | 4 to 5 seconds (16 mm and 20 mm models) or 5 seconds (22 mm and 25 mm models) |
| Max. Rebar Hardness | HRC30 (16 mm model) or 650 N/mm2 (22 mm and 25 mm models) |
| Hydraulic Oil | VG46 (16 mm model) or HL46 (22 mm and 25 mm models) |
| Voltage | 110 V, 60 Hz |
| Model | RB-16 (16 mm), RN-22 (20 mm), STGJWQJ-D22 (22 mm) or STGJWQJ-D25 (25 mm) |
| Item Weight | 15 kg (16 mm model), 12.5 kg (20 mm model), 13.5 kg (22 mm model) or 13.8 kg (25 mm model) |
| Shipping Weight | 15.65 kg (16 mm model), 20.2 kg (20 mm model), 21 kg (22 mm model) or 24.5 kg (25 mm model) |
| Package Dimensions | 66 x 26 x 25 cm (16 mm model), 72.5 x 25.5 x 27 cm (20 mm model), 72 x 25 x 27 cm (22 mm model) or 62 x 25 x 29 cm (25 mm model) |
| Application | Bending rebar, round steel, flat iron and screw thread steel in construction, bridge and steel bar processing work |
| Available Options | Max. Diameter: 16 mm, 20 mm, 22 mm, 25 mm |
