About this item
Key Features
- Premium Melting Furnace: This electric melting furnace with 3 kg capacity has a high temp proof ceramic melting chamber, the quartz lid and inner tank, and graphite crucible. It can be heated quickly, up to 2102 F / 1150 C within 45 minutes to melt metals entirely.
- High-Quality Crucible: The crucible is made of pure graphite to melt high-purity precious metals. With excellent thermal conductivity properties, this crucible significantly shortens the melting time. Besides, the groove design facilitates the pouring and filling of the melts.
- Highly Advanced PID Module: The gold melting furnace is equipped with an advanced PID module, digital control system, and a K-type thermocouple to provide you with accurate and convenient metal melting. The current temperature in the melting furnace is monitored every two seconds without overheating or cooling.

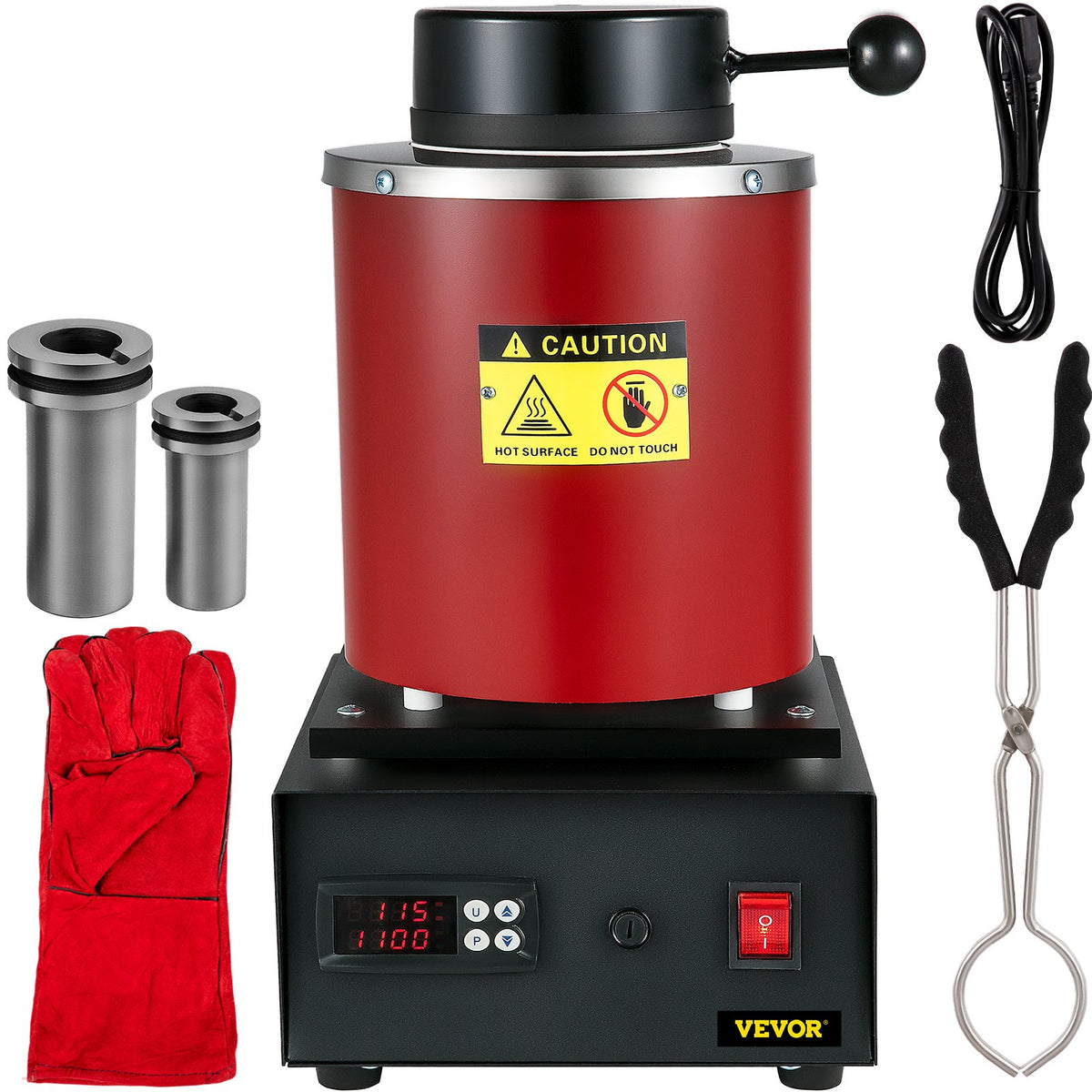

- Complete Melting Kit: In this electric smelter set, we provide everything you need: a 1 kg and 3 kg graphite crucible, graphite ingot die, crucible tongs, power cable, and protective gloves. It's perfect for everyone, even for the beginner.
- Wide Application: Our digital electric melting furnace can meet industry and workshops' requirements and is suitable for processing precious metals such as gold, silver, and copper.
Specifications
| Brand | VEVOR |
|---|---|
| Product Type | Appliances > Crafts & Sewing > Crafting Machines > Jewelry Making Kits > Electric Melting Furnace |
| Crucible Capacity | 3 kg (6.6 lbs) main crucible plus a 1 kg (2.2 lbs) extra crucible |
| Model | GF1100ND3 |
| Power Input | 1750 W |
| Input Voltage | 110 V |
| Max. Heating Temperature | 2102 F / 1150 C |
| Heating Time | Heats up to 1150 C (2102 F) in about 45 minutes |
| Temperature Control | PID module with digital control and K-type thermocouple, +/-1 C accuracy, temperature monitored every 2 seconds |
| Melting Chamber | High temp proof ceramic chamber with quartz lid and inner tank |
| Item Dimensions | 14.96 x 9.45 x 8.27 in / 38 x 24 x 21 cm |
| 3 KG Crucible Internal Dimensions | 1.97 x 6.3 in / 5 x 16 cm |
| 3 KG Crucible External Dimensions | 2.95 x 6.7 in / 7.5 x 17 cm |
| 1 KG Crucible Internal Dimensions | 1.5 x 4.53 in / 3.8 x 11.5 cm |
| 1 KG Crucible External Dimensions | 2.56 x 4.92 in / 6.5 x 12.5 cm |
| Net Weight | 15.65 lbs / 7.1 kg |
| Shipping Weight | 20.61 lbs / 9.35 kg |
| Package Dimensions | 16.93 x 12.01 x 12.2 in / 43 x 30.5 x 31 cm |
| Included Accessories | 3 kg and 1 kg graphite crucibles, graphite ingot die, crucible tongs, power cable and protective gloves |
| Applications | Melting gold, silver, copper and other precious metals for jewelry making, workshops and small foundries |
| Available Options | Weight of Molten Gold: 3 kg+1 kg |
