VEVOR Condenser Fan Motor - Select Your Configuration

In stock

$59.80 USD

Sale Sold out

Size 48Y 1/5 48Y 1/4 48Y 1/6 48Y 1/3 48Y 1/10

SKU:DSLNQDJ15HP10J7VVV7

Product details

What to know before you buy

Core information, use cases, and key selling points for this item.

About this item

Product overview

VEVOR Condenser Fan Motor - Select Your Configuration

Compare exact SKUs

SKU	Selection	Specifications
DSLNQDJ15HP10J7VVV7	Size: 48Y 1/5	Rotational Speed: 1075 RPM; Horsepower: 1/5 HP; Voltage: 208-230V; Product Weight: 9.5 lbs/4.3 kg; Frequency: 60Hz; Shaft Diameter: 0.5"/12.7 mm; Stud Pattern: 5.2" x 5.2"/132x132 mm; Current: 1.3A; Power: 150W
DSLNQDJ14HP110TNZV7	Size: 48Y 1/4	Rotational Speed: 1100 RPM; Horsepower: 1/4 HP; Voltage: 208-230V; Product Weight: 11.4 lbs/5 kg; Frequency: 60Hz; Shaft Diameter: 0.5"/12.7 mm; Stud Pattern: 5.2" x 5.2"/132x132 mm; Current: 1.4A; Power: 180W; Package Size: 13.4x7.5x7.1 in/340x190x180 mm
DSLNQDJ16HP102HKHV7	Size: 48Y 1/6	Rotational Speed: 1075 RPM; Horsepower: 1/6 HP; Voltage: 208-230V; Product Weight: 9.04 lbs / 4.1 kg; Frequency: 60Hz; Shaft Diameter: 0.5" /12.7 mm; Stud Pattern: 5.2" x 5.2"/132x132 mm; Current: 1.0A; Power: 120W
DSLNQDJ15HP82YM93V7	Size: 48Y 1/3	Rotational Speed: 825 RPM; Horsepower: 1/5 HP; Voltage: 208-230V; Product Weight: 12.1 lbs/5.5 kg; Frequency: 60Hz; Shaft Diameter: 0.5"/12.7 mm; Stud Pattern: 5.2" x 5.2"/132x132 mm; Current: 0.95A; Power: 150W
DSLNQDJ110HP1HRDTV7	Size: 48Y 1/10	Rotational Speed: 1100 RPM; Horsepower: 1/10 HP; Voltage: 208-230V; Product Weight: 8.2 lbs/3.7 kg; Frequency: 60Hz; Shaft Diameter: 0.5"/12.7 mm; Stud Pattern: 5.2" x 5.2"/132x132 mm; Current: 0.75A; Power: 75W

Details by SKU

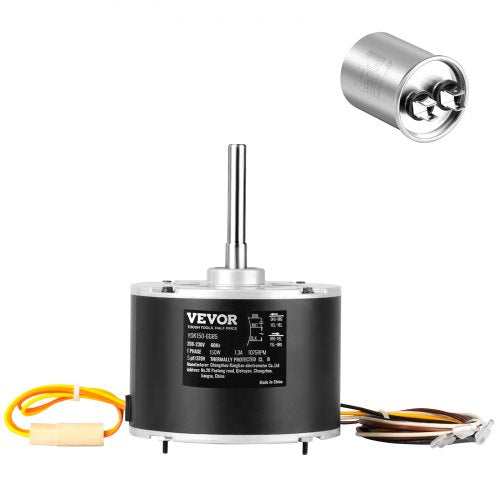

DSLNQDJ15HP10J7VVV7 - 48Y 1/5

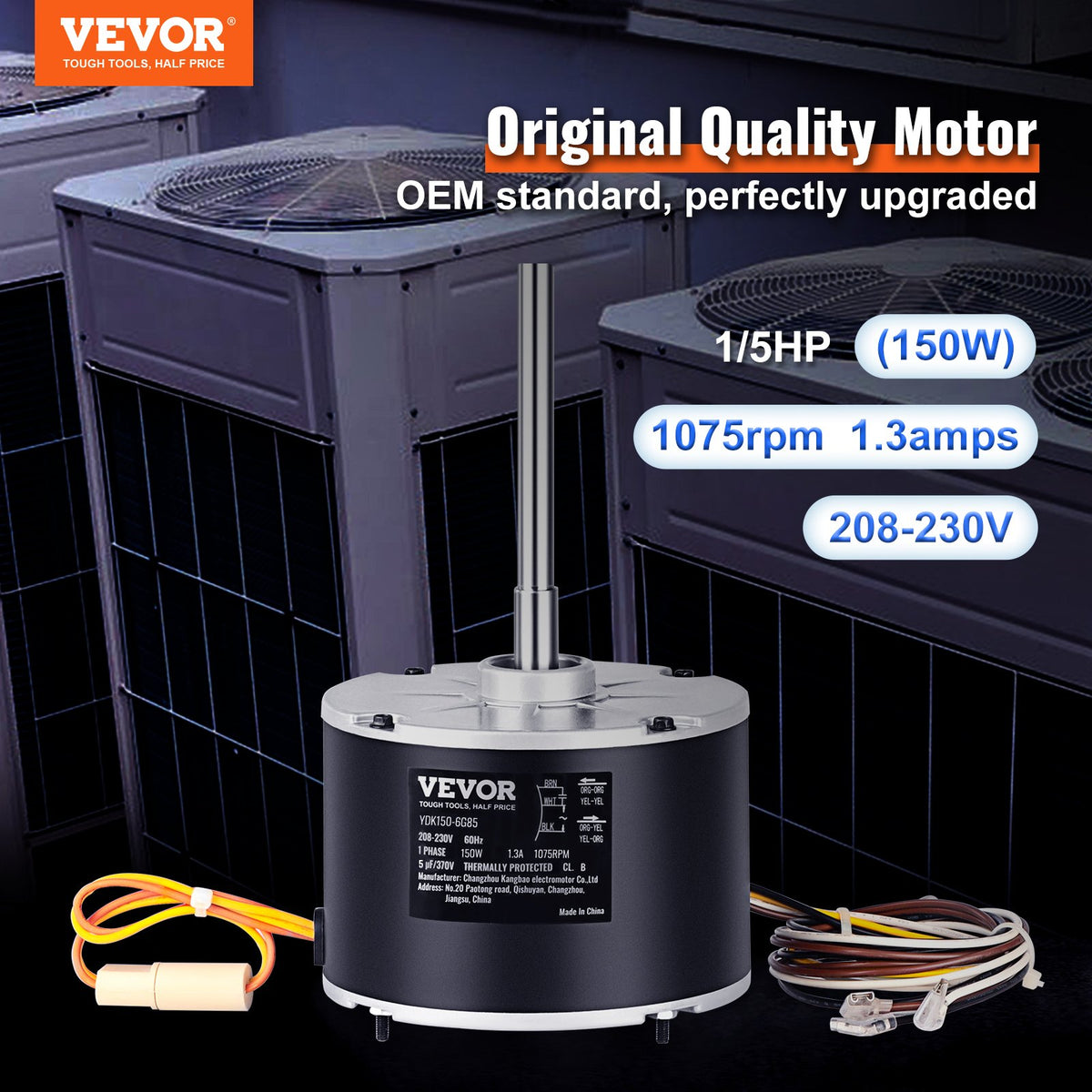

Perfect Fit: Your condenser fan motor may be at fault if your AC system is underperforming. Upgrade to our high-powered replacement motor boasting 1/5hp (150W) horsepower, 1075 RPM rotating speed, and 1.3amps (208-230V) current. It's compatible with models like K55HXJKL-2918, 51-23055-11. Get ready to chill out with our top-notch motor!

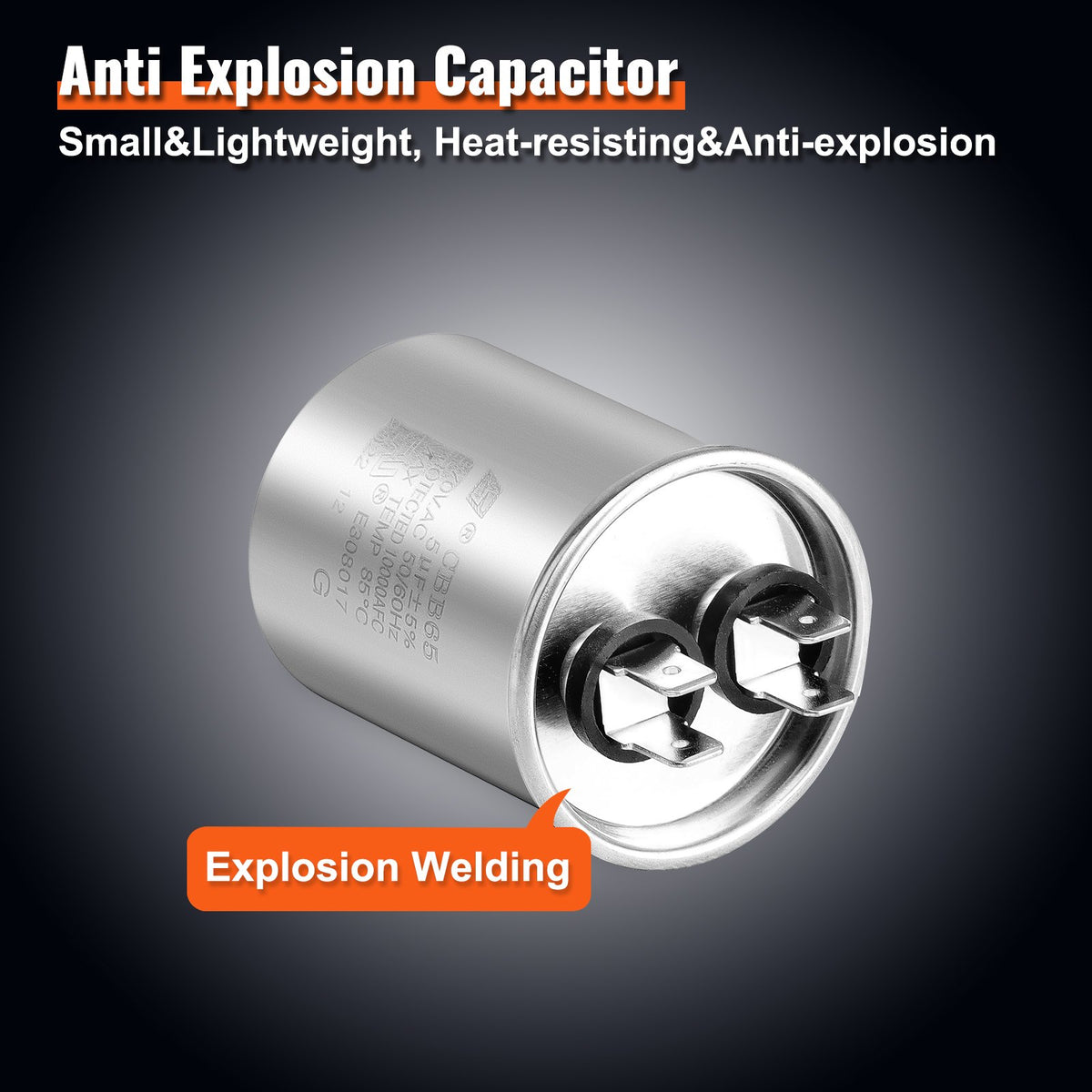

Go Above And Beyond: With an CBB65 5μF explosion-proof capacitor and reversible rotation technology, our CW & CCWSE motor is the reliable choice for long-term use. It can rotate in both directions and the extended wire makes it easy to install and use. Don't settle for less - choose our motor for perfect performance every time.
Hassle-Free Installation: Shaft: 1/2" x 4.2". With a motor case length of 4" and a stud pattern of 5.2" by 5.2", our product provides high reliability and mechanical stability. Plus, regular maintenance will keep it running smoothly for years to come. Choose VEVOR for OEM-standard quality you can trust!
Superior Performance: Say goodbye to annoying noise and vibration with our stable and strong motor. With high efficiency and all-round protection, you can trust it to handle whatever you throw its way without overheating, weakening, or breaking down.
Your Satisfaction is Our Goal: We stand behind our product 100%! If you're not completely satisfied with what you received, don't hesitate to reach out to us. We'll work quickly to find a solution that leaves you happy and satisfied.

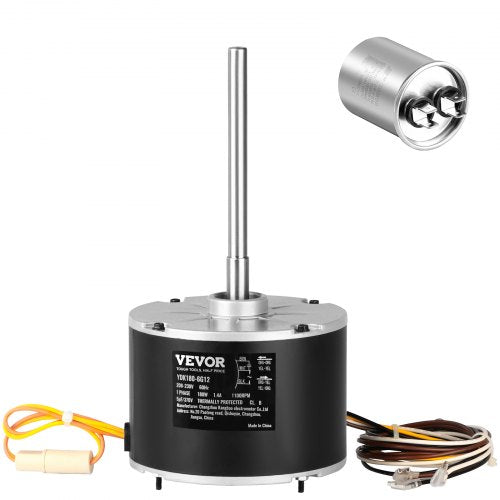

DSLNQDJ14HP110TNZV7 - 48Y 1/4

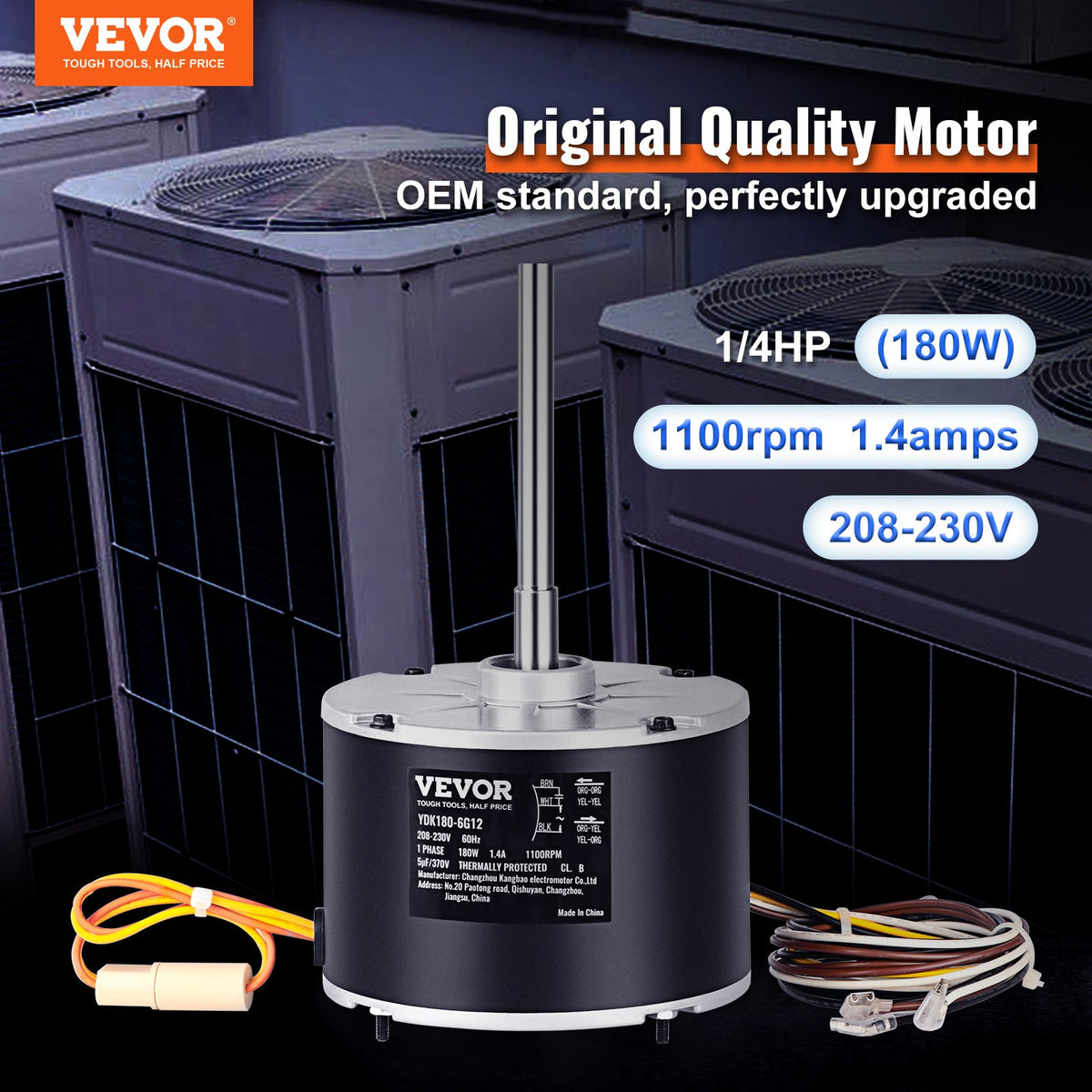

Perfect Fit: Your condenser fan motor may be at fault if your AC system is underperforming. Upgrade to our high-powered replacement motor boasting 1/4hp (180W) horsepower, 1100 RPM rotating speed, and 1.4amps (208-230V) current. It's compatible with models like 5KCP39EGS070S, 5KCP39EGY823S, 3905, HC39GE237, HC39GE237A, and 6DLL0. Get ready to chill out with our top-notch motor!

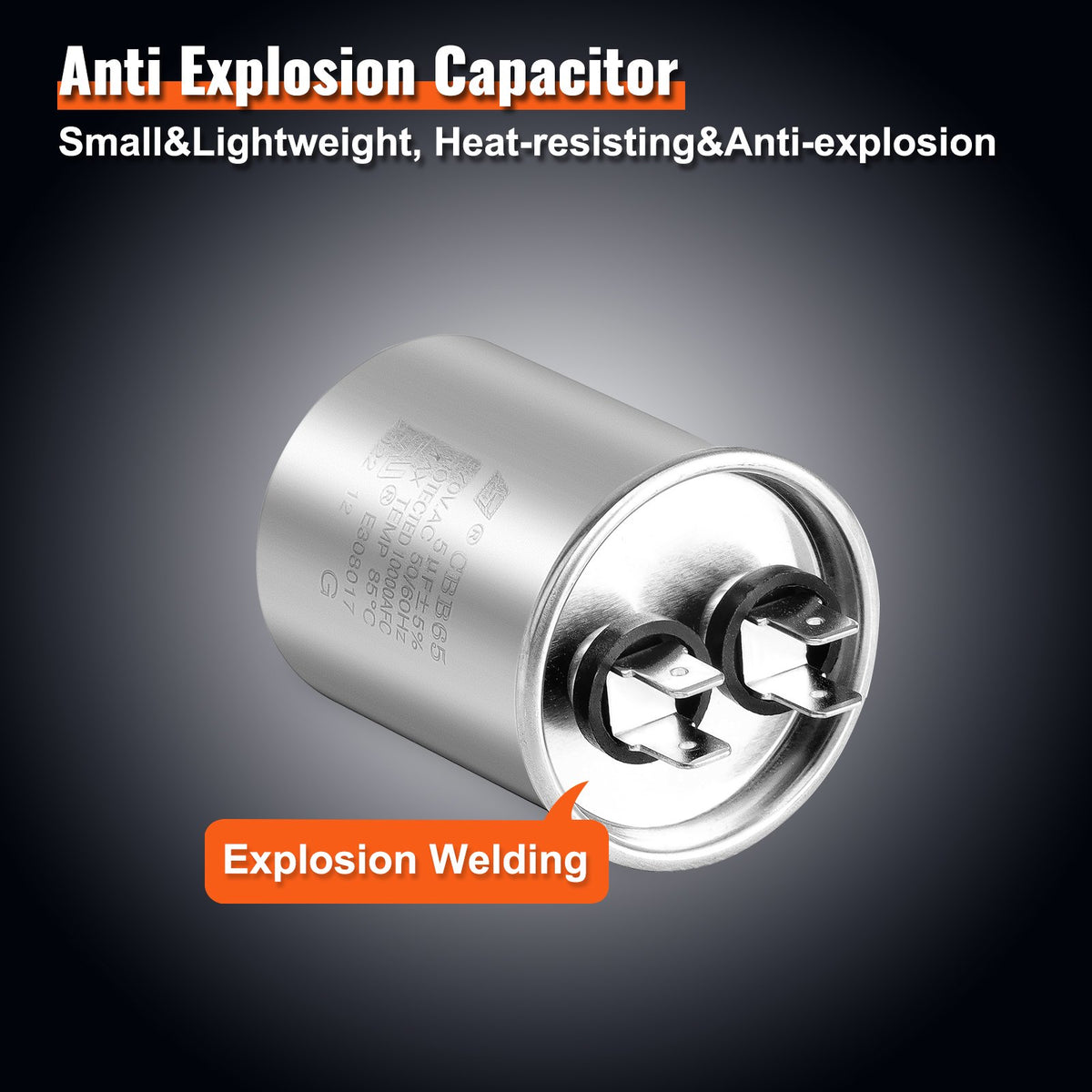

Go Above And Beyond: With an CBB65 5μF explosion-proof capacitor and reversible rotation technology, our CW & CCWSE motor is the reliable choice for long-term use. It can rotate in both directions and the extended wire makes it easy to install and use. Don't settle for less - choose our motor for perfect performance every time.
Hassle-Free Installation: Shaft: 1/2" x 6.8". With a motor case length of 4" and a stud pattern of 5.2" by 5.2", our product provides high reliability and mechanical stability. Plus, regular maintenance will keep it running smoothly for years to come. Choose VEVOR for OEM-standard quality you can trust!
Superior Performance: Say goodbye to annoying noise and vibration with our stable and strong motor. With high efficiency and all-round protection, you can trust it to handle whatever you throw its way without overheating, weakening, or breaking down.
Your Satisfaction is Our Goal: We stand behind our product 100%! If you're not completely satisfied with what you received, don't hesitate to reach out to us. We'll work quickly to find a solution that leaves you happy and satisfied.

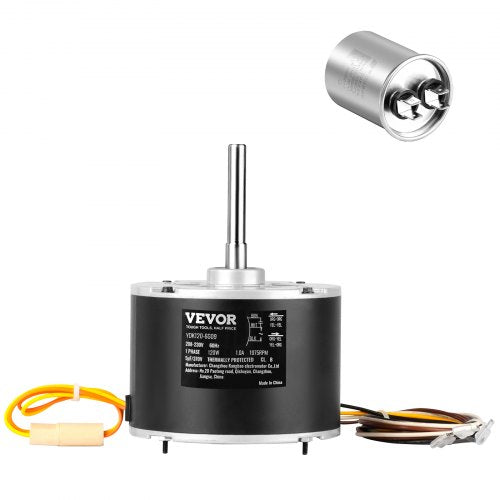

DSLNQDJ16HP102HKHV7 - 48Y 1/6

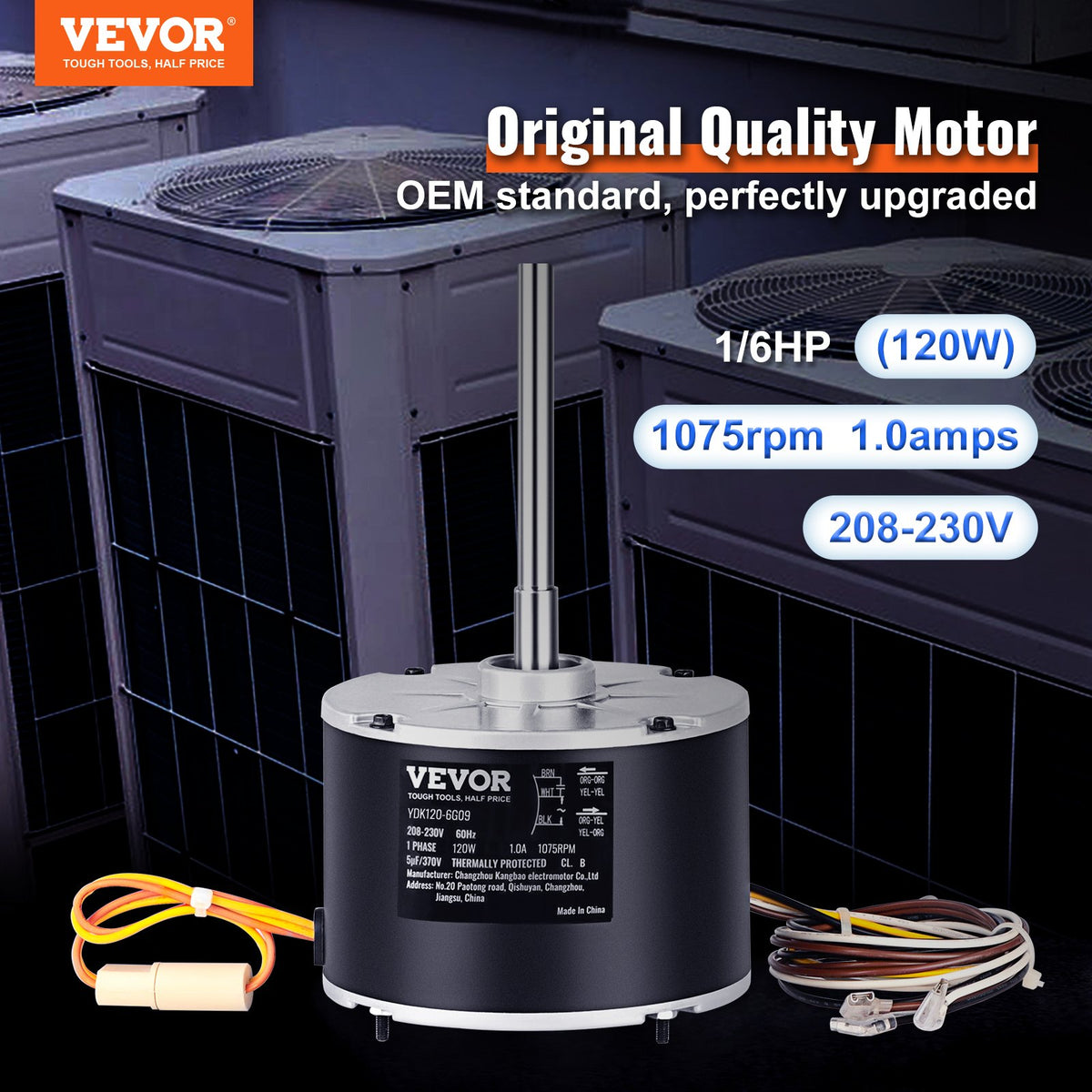

Perfect Fit: Your condenser fan motor may be at fault if your AC system is underperforming. Upgrade to our high-powered replacement motor boasting 1/6hp (120W) horsepower, 1075 RPM rotating speed, and 1.0amps (208-230V) current. It's compatible with models like OGD1016. Get ready to chill out with our top-notch motor!

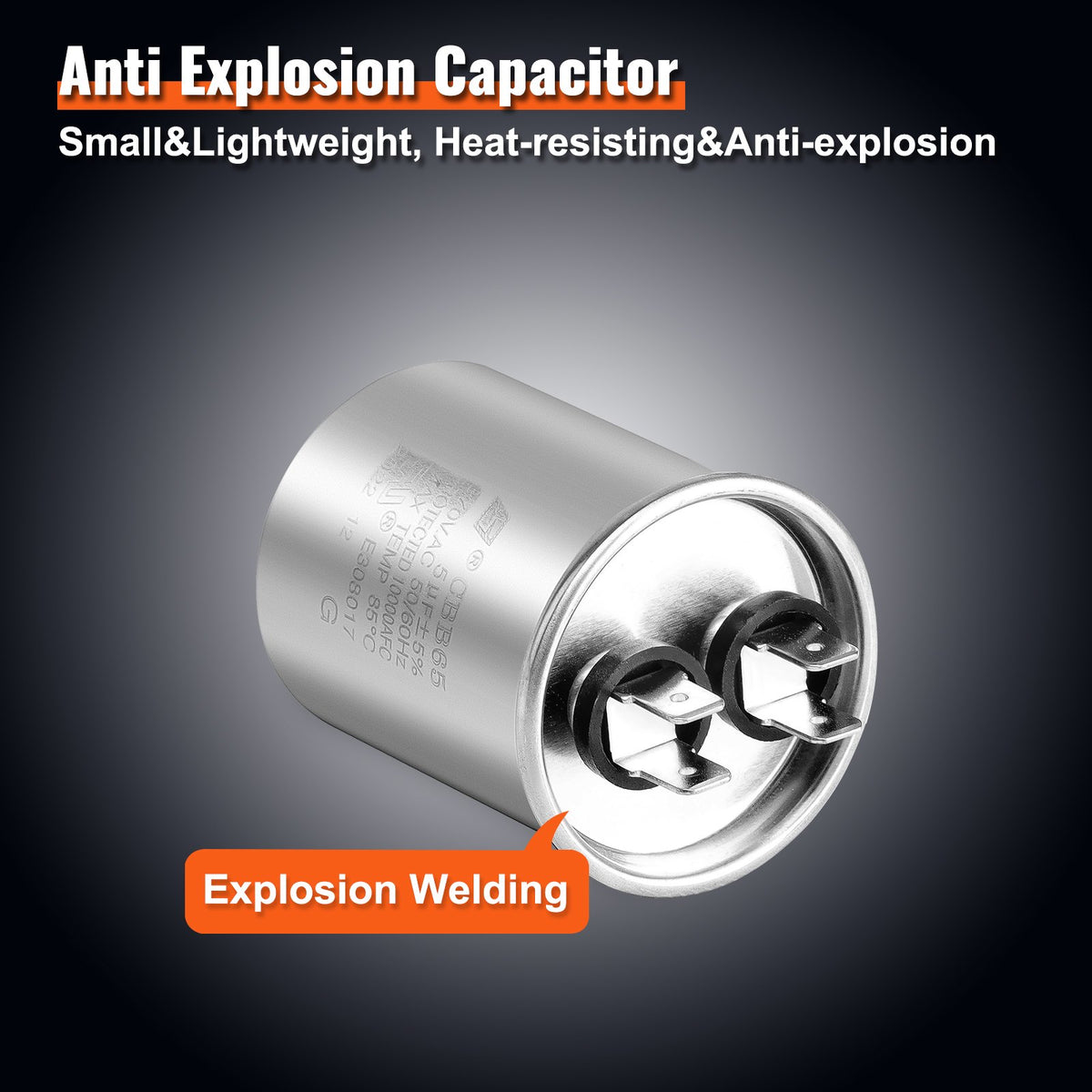

Go Above And Beyond: With an CBB65 5μF explosion-proof capacitor and reversible rotation technology, our CW & CCWSE motor is the reliable choice for long-term use. It can rotate in both directions and the extended wire makes it easy to install and use. Don't settle for less - choose our motor for perfect performance every time.
Hassle-Free Installation: Shaft: 1/2" x 3.7". With a motor case length of 4" and a stud pattern of 5.2" by 5.2", our product provides high reliability and mechanical stability. Plus, regular maintenance will keep it running smoothly for years to come. Choose VEVOR for OEM-standard quality you can trust!
Superior Performance: Say goodbye to annoying noise and vibration with our stable and strong motor. With high efficiency and all-round protection, you can trust it to handle whatever you throw its way without overheating, weakening, or breaking down.
Your Satisfaction is Our Goal: We stand behind our product 100%! If you're not completely satisfied with what you received, don't hesitate to reach out to us. We'll work quickly to find a solution that leaves you happy and satisfied.

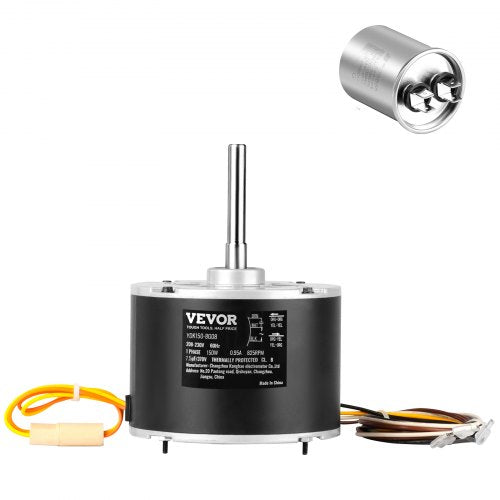

DSLNQDJ15HP82YM93V7 - 48Y 1/3

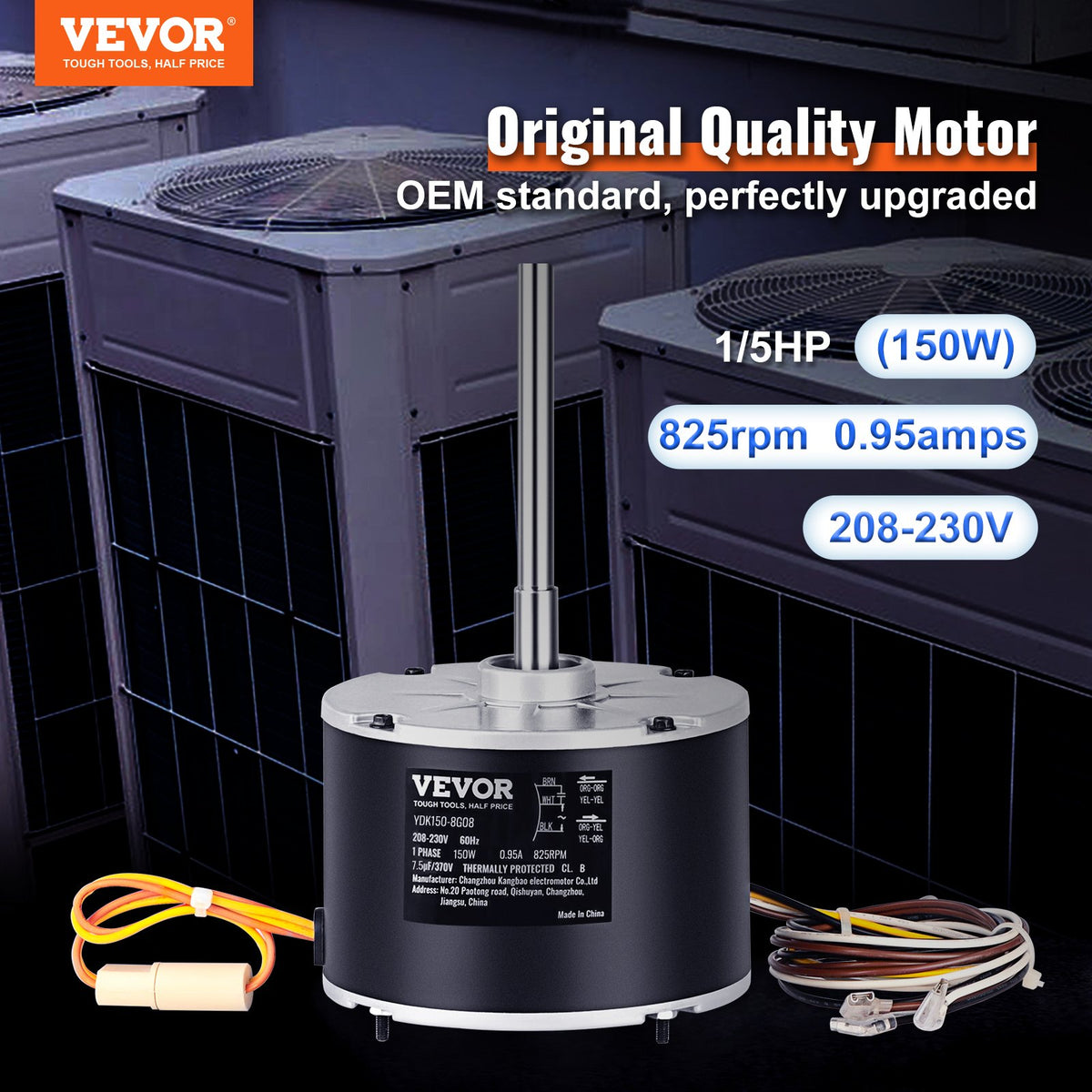

Perfect Fit: Your condenser fan motor may be at fault if your AC system is underperforming. Upgrade to our high-powered replacement motor boasting 1/5hp (150W) horsepower, 825 RPM rotating speed, and 0.95amps (208-230V) current. It's compatible with models like 5KCP39GFS166S, 3S003. Get ready to chill out with our top-notch motor!

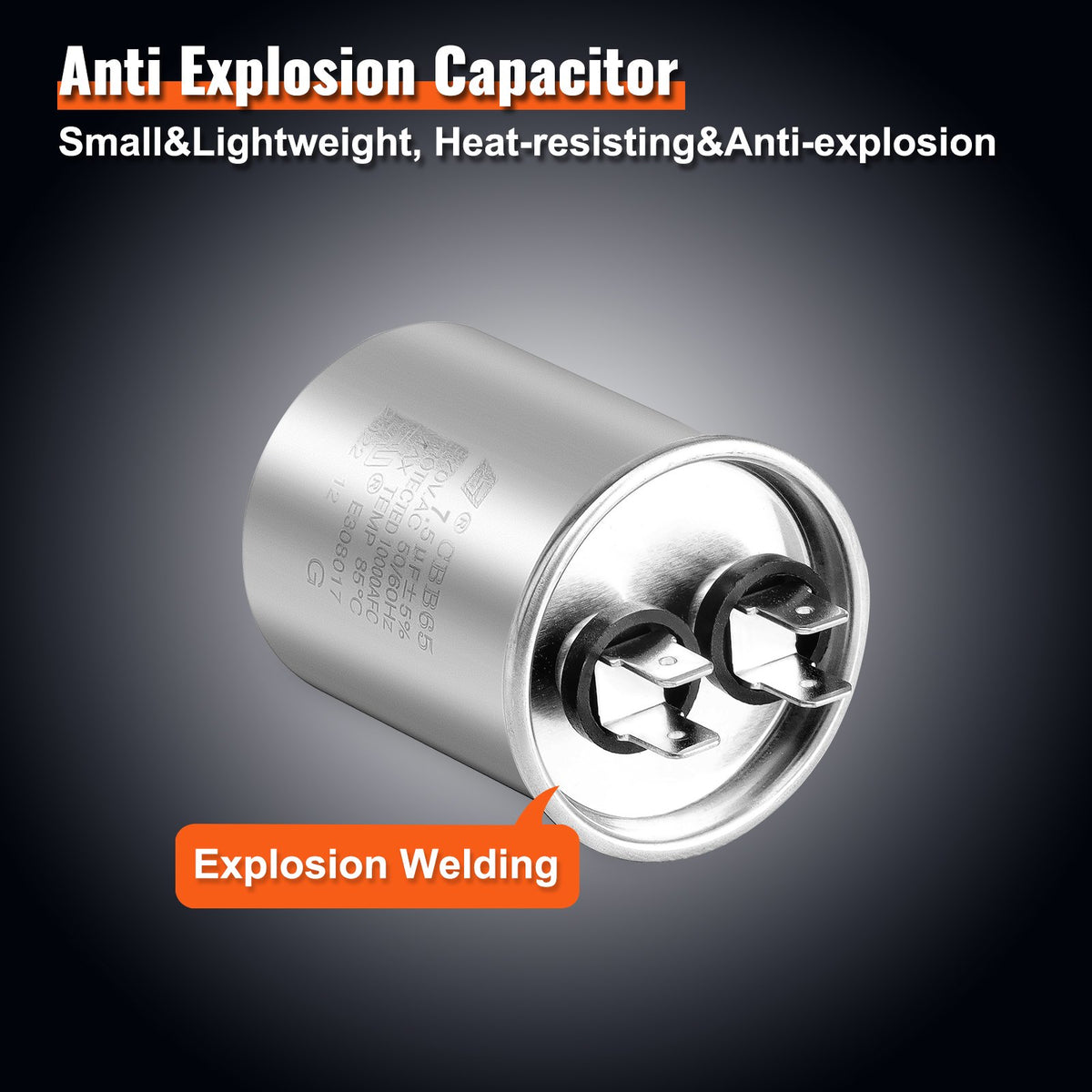

Go Above And Beyond: With an CBB65 7.5μF explosion-proof capacitor and reversible rotation technology, our CW & CCWSE motor is the reliable choice for long-term use. It can rotate in both directions and the extended wire makes it easy to install and use. Don't settle for less - choose our motor for perfect performance every time.
Hassle-Free Installation: Shaft: 1/2" x 2.0". With a motor case length of 4.4" and a stud pattern of 5.2" by 5.2", our product provides high reliability and mechanical stability. Plus, regular maintenance will keep it running smoothly for years to come. Choose VEVOR for OEM-standard quality you can trust!
Superior Performance: Say goodbye to annoying noise and vibration with our stable and strong motor. With high efficiency and all-round protection, you can trust it to handle whatever you throw its way without overheating, weakening, or breaking down.
Your Satisfaction is Our Goal: We stand behind our product 100%! If you're not completely satisfied with what you received, don't hesitate to reach out to us. We'll work quickly to find a solution that leaves you happy and satisfied.

DSLNQDJ110HP1HRDTV7 - 48Y 1/10

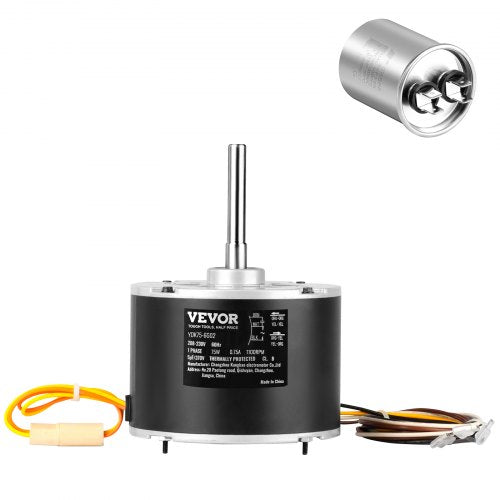

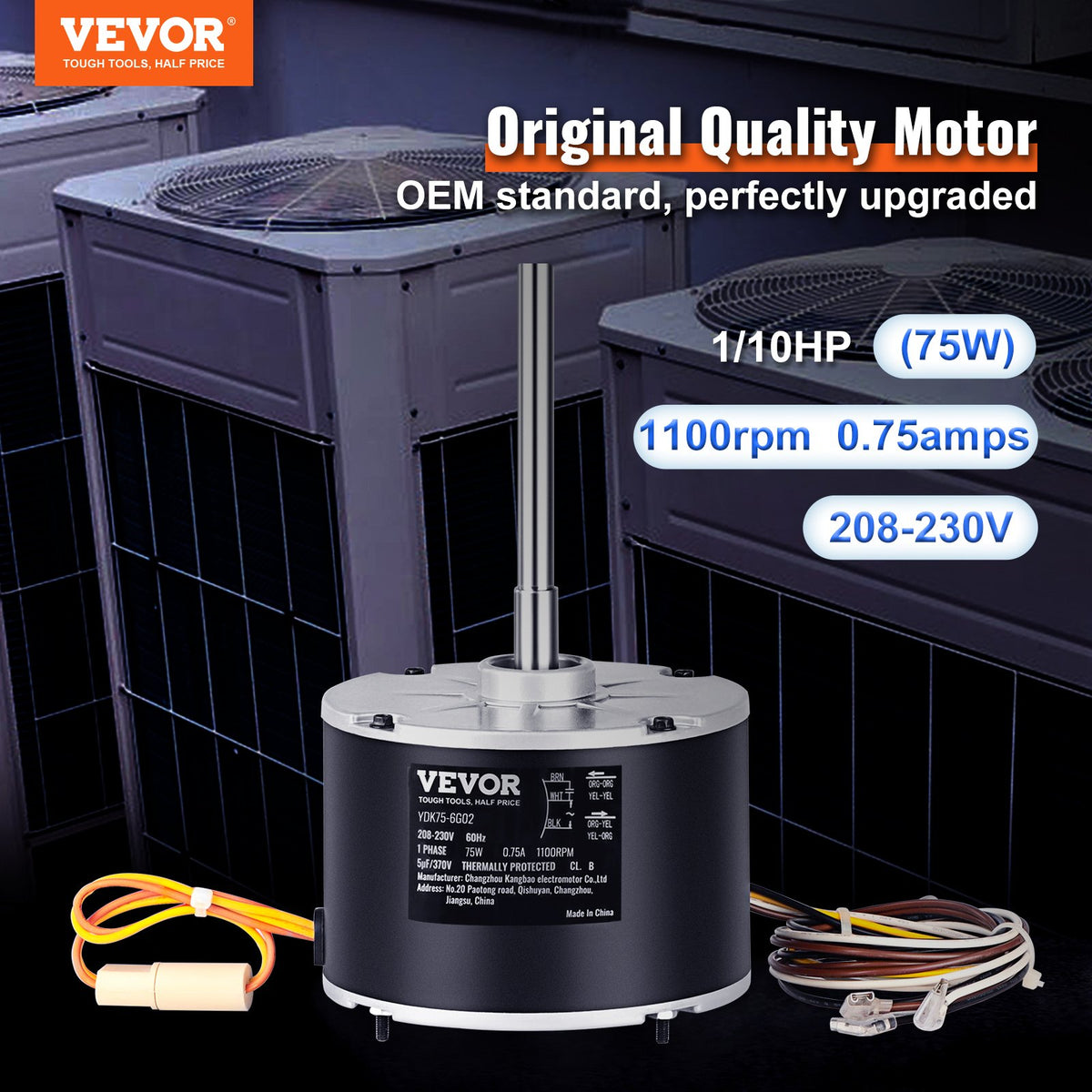

Perfect Fit: Your condenser fan motor may be at fault if your AC system is underperforming. Upgrade to our high-powered replacement motor boasting 1/10hp (75W) horsepower, 1100 RPM rotating speed, and 0.75amps (208-230V) current. It's compatible with models like 5KCP39BGS069S, 5KCP39BGY915S, 3S001, and 6DLL7. Get ready to chill out with our top-notch motor!

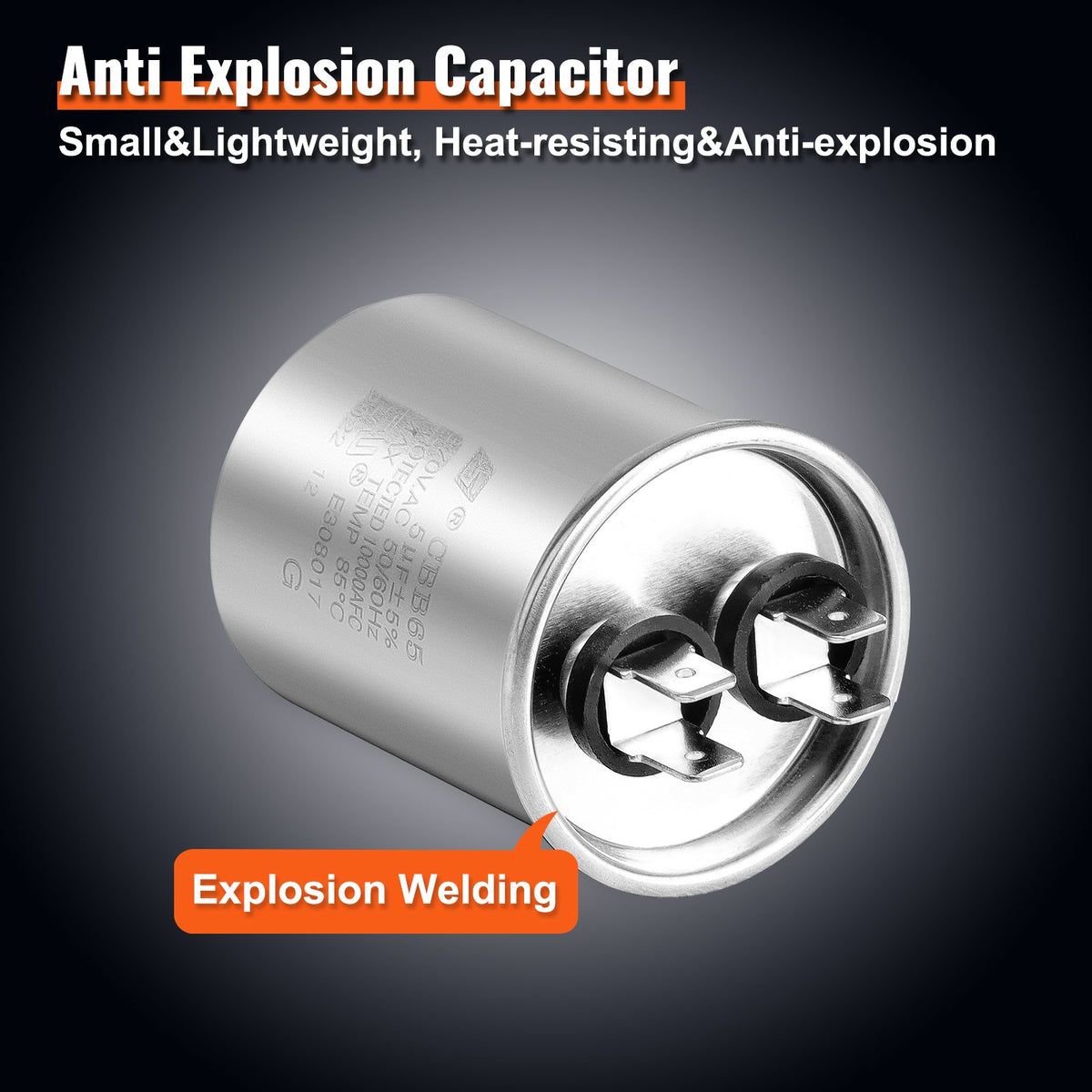

Go Above And Beyond: With an CBB65 5μF explosion-proof capacitor and reversible rotation technology, our CW & CCWSE motor is the reliable choice for long-term use. It can rotate in both directions and the extended wire makes it easy to install and use. Don't settle for less - choose our motor for perfect performance every time.
Hassle-Free Installation: Shaft: 1/2" x 1.8". With a motor case length of 4" and a stud pattern of 5.2" by 5.2", our product provides high reliability and mechanical stability. Plus, regular maintenance will keep it running smoothly for years to come. Choose VEVOR for OEM-standard quality you can trust!
Superior Performance: Say goodbye to annoying noise and vibration with our stable and strong motor. With high efficiency and all-round protection, you can trust it to handle whatever you throw its way without overheating, weakening, or breaking down.
Your Satisfaction is Our Goal: We stand behind our product 100%! If you're not completely satisfied with what you received, don't hesitate to reach out to us. We'll work quickly to find a solution that leaves you happy and satisfied.
