VEVOR Electrical Enclosures - Select Your Configuration

Product details

What to know before you buy

Core information, use cases, and key selling points for this item.

About this item

Product overview

VEVOR Electrical Enclosures - Select Your Configuration

Compare exact SKUs

SKU	Selection	Specifications	Package contents
DQXJSTCFS40X30X15V0	Size: 16x12x6 inches	Model: SPT; Color: Gray White(RAL7035); Material: 0.059'' / 1.5 mm Carbon Steel; Coating: Epoxy Polyester Powder Coating; Mounting Plate: 0.079'' / 2 mm Detachable Galvanized Backplate; IP Rating: Designed to meet IP66 and NEMA 1, 2, 4, 4X, & 12 specifications; Connection Type: Hinged; Feature: Lockable, Waterproof; Galvanized Backplate Dimensions: 13.8" x 9.8" / 35 x 25 cm; Outer Dimensions (H x W x D): 16'' x 12'' x 6'' / 40 x 30 x 15 cm; Inner Dimensions (H x W x D): 15.6'' x 11.7'' x 4.6'' / 39.7 x 29.7 x 11.65 cm; Product Weight: 18.08 lbs / 8.2 kg; Certification: CE / ROHS Certification	1 x Electrical Box; 2 x Keys; 1 x Mounting Plate (The mounting plate has been assembled in the box); 1 x Set of Wall Mounting Pendants; 1 x Bottom Sealing Plate
DQXJSTCFS40X30X20V0	Size: 16x12x8 inches	Model: SPT; Color: Gray White(RAL7035); Material: 0.059'' / 1.5 mm Carbon Steel; Coating: Epoxy Polyester Powder Coating; Mounting Plate: 0.079'' / 2 mm Detachable Galvanized Backplate; IP Rating: Designed to meet IP66 and NEMA 1, 2, 4, 4X, & 12 specifications; Connection Type: Hinged; Feature: Lockable, Waterproof; Galvanized Backplate Dimensions: 13.8" x 9.8" / 35 x 25 cm; Outer Dimensions (H x W x D): 16'' x 12'' x 8'' / 40 x 30 x 20 cm; Inner Dimensions (H x W x D): 15.6'' x 11.7'' x 6.6'' / 39.7 x 29.7 x 16.65 cm; Product Weight: 16.98 lbs / 7.7 kg; Certification: CE / ROHS Certification	1 x Electrical Box; 2 x Keys; 1 x Mounting Plate(The mounting plate has been assembled in the box); 1 x Set of Wall Mounting Pendants; 1 x Bottom Sealing Plate
DQXJSTCFS30X20X15V0	Size: 12x8x6 inches	Model: SPT; Color: Gray White(RAL7035); Material: 0.059'' / 1.5 mm Carbon Steel; Coating: Epoxy Polyester Powder Coating; Mounting Plate: 0.079'' / 2 mm Detachable Galvanized Backplate; IP Rating: Designed to meet IP66 and NEMA 1, 2, 4, 4X, & 12 specifications; Connection Type: Hinged; Feature: Lockable, Waterproof; Galvanized Backplate Dimensions: 9.8" x 6" / 25 x 15 cm; Outer Dimensions (H x W x D): 12'' x 8'' x 6'' / 30 x 20 x 15 cm; Inner Dimensions (H x W x D): 11.7'' x 7.8'' x 4.6'' / 29.7 x 19.7 x 11.65 cm; Product Weight: 11.24 lbs / 5.1 kg; Certification: CE / ROHS Certification	1 x Electrical Box; 2 x Keys; 1 x Mounting Plate(The mounting plate has been assembled in the box); 1 x Set of Wall Mounting Pendants; 1 x Bottom Sealing Plate
DQXJSTCFS30X25X15V0	Size: 12x10x6 inches	Model: SPT; Color: Gray White(RAL7035); Material: 0.059'' / 1.5 mm Carbon Steel; Coating: Epoxy Polyester Powder Coating; Mounting Plate: 0.079'' / 2 mm Detachable Galvanized Backplate; IP Rating: Designed to meet IP66 and NEMA 1, 2, 4, 4X, & 12 specifications; Connection Type: Hinged; Feature: Lockable, Waterproof; Galvanized Backplate Dimensions: 9.8" x 7.9" / 25 x 20 cm; Outer Dimensions (H x W x D): 12'' x 10'' x 6'' / 30 x 25 x 15 cm; Inner Dimensions (H x W x D): 11.7'' x 9.7'' x 4.6'' / 29.7 x 24.7 x 11.65 cm; Product Weight: 12.79 lbs / 5.8 kg; Certification: CE / ROHS Certification	1 x Electrical Box; 2 x Keys; 1 x Mounting Plate (The mounting plate has been assembled in the box); 1 x Set of Wall Mounting Pendants; 1 x Bottom Sealing Plate
DQXJSTCFS30X30X15V0	Size: 12x12x6 inches	Model: SPT; Color: Gray White(RAL7035); Material: 0.059'' / 1.5 mm Carbon Steel; Coating: Epoxy Polyester Powder Coating; Mounting Plate: 0.079'' / 2 mm Detachable Galvanized Backplate; IP Rating: Designed to meet IP66 and NEMA 1, 2, 4, 4X, & 12 specifications; Connection Type: Hinged; Feature: Lockable, Waterproof; Galvanized Backplate Dimensions: 9.8" x 9.8" / 25 x 25 cm; Outer Dimensions (H x W x D): 12'' x 12'' x 6'' / 30 x 30 x 15 cm; Inner Dimensions (H x W x D): 11.7'' x 11.7'' x 4.6'' / 29.7 x 29.7 x 11.65 cm; Product Weight: 14.55 lbs / 6.6 kg; Certification: CE / ROHS Certification	1 x Electrical Box; 2 x Keys; 1 x Mounting Plate (The mounting plate has been assembled in the box); 1 x Set of Wall Mounting Pendants; 1 x Bottom Sealing Plate
DQXJSTCFS50X40X25V0	Size: 20x16x10 inches	Model: SPT; Color: Gray White(RAL7035); Material: 0.059'' / 1.5 mm Carbon Steel; Coating: Epoxy Polyester Powder Coating; Mounting Plate: 0.079'' / 2 mm Detachable Galvanized Backplate; IP Rating: Designed to meet IP66 and NEMA 1, 2, 4, 4X, & 12 specifications; Connection Type: Hinged; Feature: Lockable, Waterproof; Galvanized Backplate Dimensions: 17.7" x 13.8" / 45 x 35 cm; Outer Dimensions (H x W x D): 20'' x 16'' x 10'' / 50 x 40 x 25 cm; Inner Dimensions (H x W x D): 19.6'' x 15.6'' x 8.5'' / 49.7 x 39.7 x 21.65 cm; Net Weight: 32.63 lbs / 14.8 kg; Certification: CE / ROHS Approved	1 x Electrical Box; 2 x Keys; 1 x Mounting Plate(The mounting plate has been assembled in the box); 1 x Set of Wall Mounting Pendants; 1 x Bottom Sealing Plate
DQXJSTCFS40X40X20V0	Size: 16x16x8 inches	Model: SPT; Color: Gray White(RAL7035); Material: 0.059'' / 1.5 mm Carbon Steel; Coating: Epoxy Polyester Powder Coating; Mounting Plate: 0.079'' / 2 mm Detachable Galvanized Backplate; IP Rating: Designed to meet IP66 and NEMA 1, 2, 4, 4X, & 12 specifications; Connection Type: Hinged; Feature: Lockable, Waterproof; Galvanized Backplate Dimensions: 13.8" x 13.8" / 35 x 35 cm; Outer Dimensions (H x W x D): 16'' x 16'' x 8'' / 40 x 40 x 20 cm; Inner Dimensions (H x W x D): 15.6'' x 15.6'' x 6.6'' / 39.7 x 39.7 x 16.65 cm; Product Weight: 24.69 lbs / 11.2 kg; Certification: CE / ROHS Certification	1 x Electrical Box; 2 x Keys; 1 x Mounting Plate(The mounting plate has been assembled in the box); 1 x Set of Wall Mounting Pendants; 1 x Bottom Sealing Plate
DQXJSTCFS60X40X25V0	Size: 24x16x10 inches	Model: SPT; Color: Gray White(RAL7035); Material: 0.059'' / 1.5 mm Carbon Steel; Coating: Epoxy Polyester Powder Coating; Mounting Plate: 0.079'' / 2 mm Detachable Galvanized Backplate; IP Rating: Designed to meet IP66 and NEMA 1, 2, 4, 4X, & 12 specifications; Connection Type: Hinged; Feature: Lockable, Waterproof; Galvanized Backplate Dimensions: 21.7" x 13.8" / 55 x 35 cm; Outer Dimensions (H x W x D): 24'' x 16'' x 10'' / 60 x 40 x 25 cm; Inner Dimensions (H x W x D): 23.5'' x 15.6'' x 8.5'' / 59.7 x 39.7 x 21.65 cm; Product Weight: 37.48 lbs / 17 kg; Certification: CE / ROHS Certification	1 x Electrical Box; 2 x Keys; 1 x Mounting Plate(The mounting plate has been assembled in the box); 1 x Set of Wall Mounting Pendants; 1 x Bottom Sealing Plate
DQXJSTCFS60X60X20V0	Size: 24x24x8 inches	Model: SPT; Color: Gray White(RAL7035); Material: 0.059'' / 1.5 mm Carbon Steel; Coating: Epoxy Polyester Powder Coating; Mounting Plate: 0.079'' / 2 mm Detachable Galvanized Backplate; IP Rating: Designed to meet IP66 and NEMA 1, 2, 4, 4X, & 12 specifications; Connection Type: Hinged; Feature: Lockable, Waterproof; Galvanized Backplate Dimensions: 21.7" x 21.7" / 55 x 55 cm; Outer Dimensions (H x W x D): 24'' x 24'' x 8'' / 60 x 60 x 20 cm; Inner Dimensions (H x W x D): 23.5'' x 23.5'' x 6.6'' / 59.7 x 59.7 x 16.65 cm; Product Weight: 47.18 lbs / 21.4 kg; Certification: CE / ROHS Certification	1 x Electrical Box; 2 x Keys; 1 x Mounting Plate(The mounting plate has been assembled in the box); 1 x Set of Wall Mounting Pendants; 1 x Bottom Sealing Plate
DQXJSTCFS50X30X25V0	Size: 20x12x10 inches	Model: SPT; Color: Gray White(RAL7035); Material: 0.059'' / 1.5 mm Carbon Steel; Coating: Epoxy Polyester Powder Coating; Mounting Plate: 0.079'' / 2 mm Detachable Galvanized Backplate; IP Rating: Designed to meet IP66 and NEMA 1, 2, 4, 4X, & 12 specifications; Connection Type: Hinged; Feature: Lockable, Waterproof; Galvanized Backplate Dimensions: 17.7" x 9.8" / 45 x 25 cm; Outer Dimensions (H x W x D): 20'' x 12'' x 10'' / 50 x 30 x 25 cm; Inner Dimensions (H x W x D): 19.6'' x 11.7'' x 8.5'' / 49.7 x 29.7 x 21.65 cm; Product Weight: 28.22 lbs / 12.8 kg; Certification: CE / ROHS Certification	1 x Electrical Box; 2 x Keys; 1 x Mounting Plate(The mounting plate has been assembled in the box); 1 x Set of Wall Mounting Pendants; 1 x Bottom Sealing Plate
DQXJSTCFS40X40X15V0	Size: 16x16x6 inches	Model: SPT; Color: Gray White(RAL7035); Material: 0.059'' / 1.5 mm Carbon Steel; Coating: Epoxy Polyester Powder Coating; Mounting Plate: 0.079'' / 2 mm Detachable Galvanized Backplate; IP Rating: Designed to meet IP66 and NEMA 1, 2, 4, 4X, & 12 specifications; Connection Type: Hinged; Feature: Lockable, Waterproof; Galvanized Backplate Dimensions: 13.8" x 13.8" / 35 x 35 cm; Outer Dimensions (H x W x D): 16'' x 16'' x 6'' / 40 x 40 x 15 cm; Inner Dimensions (H x W x D): 15.6'' x 15.6'' x 4.6'' / 39.7 x 39.7 x 11.65 cm; Product Weight: 22.27 lbs / 10.1 kg; Certification: CE / ROHS Certification	1 x Electrical Box; 2 x Keys; 1 x Mounting Plate(The mounting plate has been assembled in the box); 1 x Set of Wall Mounting Pendants; 1 x Bottom Sealing Plate
DQXJSTCFS50X50X15V0	Size: 20x20x6 inches	Model: SPT; Color: Gray White(RAL7035); Material: 0.059'' / 1.5 mm Carbon Steel; Coating: Epoxy Polyester Powder Coating; Mounting Plate: 0.079'' / 2 mm Detachable Galvanized Backplate; IP Rating: Designed to meet IP66 and NEMA 1, 2, 4, 4X, & 12 specifications; Connection Type: Hinged; Feature: Lockable, Waterproof; Galvanized Backplate Dimensions: 17.7" x 17.7" / 45 x 45 cm; Outer Dimensions (H x W x D): 20'' x 20'' x 6'' / 50 x 50 x 15 cm; Inner Dimensions (H x W x D): 19.6'' x 19.6'' x 4.6'' / 49.7 x 49.7 x 11.65 cm; Product Weight: 31.75 lbs / 14.4 kg; Certification: CE / ROHS Certification	1 x Electrical Box; 2 x Keys; 1 x Mounting Plate(The mounting plate has been assembled in the box); 1 x Set of Wall Mounting Pendants; 1 x Bottom Sealing Plate
DQXJSTCFS50X40X20V0	Size: 20x16x8 inches	Model: SPT; Color: Gray White(RAL7035); Material: 0.059'' / 1.5 mm Carbon Steel; Coating: Epoxy Polyester Powder Coating; Mounting Plate: 0.079'' / 2 mm Detachable Galvanized Backplate; IP Rating: Designed to meet IP66 and NEMA 1, 2, 4, 4X, & 12 specifications; Connection Type: Hinged; Feature: Lockable, Waterproof; Galvanized Backplate Dimensions: 17.7" x 13.8" / 45 x 35 cm; Outer Dimensions (H x W x D): 20'' x 16'' x 8'' / 50 x 40 x 20 cm; Inner Dimensions (H x W x D): 19.6'' x 15.6'' x 6.6'' / 49.7 x 39.7 x 16.65 cm; Product Weight: 29.32 lbs / 13.3 kg; Certification: CE / ROHS Certification	1 x Electrical Box; 2 x Keys; 1 x Mounting Plate(The mounting plate has been assembled in the box); 1 x Set of Wall Mounting Pendants; 1 x Bottom Sealing Plate
DQXJSTCFS60X60X30V0	Size: 24x24x12 inches	Model: SPT; Color: Gray White(RAL7035); Material: 0.059'' / 1.5 mm Carbon Steel; Coating: Epoxy Polyester Powder Coating; Mounting Plate: 0.079'' / 2 mm Detachable Galvanized Backplate; IP Rating: Designed to meet IP66 and NEMA 1, 2, 4, 4X, & 12 specifications; Connection Type: Hinged; Feature: Lockable, Waterproof; Galvanized Backplate Dimensions: 21.7" x 21.7" / 55 x 55 cm; Outer Dimensions (H x W x D): 24'' x 24'' x 12'' / 60 x 60 x 30 cm; Inner Dimensions (H x W x D): 23.5'' x 23.5'' x 10.5'' / 59.7 x 59.7 x 26.65 cm; Product Weight: 54.23 lbs / 24.6 kg; Certification: CE / ROHS Certification	1 x Electrical Box; 2 x Keys; 1 x Mounting Plate(The mounting plate has been assembled in the box); 1 x Set of Wall Mounting Pendants; 1 x Bottom Sealing Plate
DQXJSTCFS20X20X15V0	Size: 8x8x6 inches	Model: SPT; Color: Gray White(RAL7035); Material: 0.059'' / 1.5 mm Carbon Steel; Coating: Epoxy Polyester Powder Coating; Mounting Plate: 0.079'' / 2 mm Detachable Galvanized Backplate; IP Rating: Designed to meet IP66 and NEMA 1, 2, 4, 4X, & 12 specifications; Connection Type: Hinged; Feature: Lockable, Waterproof; Galvanized Backplate Dimensions: 6" x 6" / 15 x 15 cm; Outer Dimensions (H x W x D): 8'' x 8'' x 6'' / 20 x 20 x 15 cm; Inner Dimensions (H x W x D): 7.8'' x 7.8'' x 4.6'' / 19.7 x 19.7 x 11.65 cm; Product Weight: 7.72 lbs / 3.5 kg; Certification: CE / ROHS Certification	1 x Electrical Box; 2 x Keys; 1 x Mounting Plate(The mounting plate has been assembled in the box); 1 x Set of Wall Mounting Pendants; 1 x Bottom Sealing Plate
DQXJSTCFS30X30X20V0	Size: 12x12x8 inches	Model: SPT; Color: Gray White(RAL7035); Material: 0.059'' / 1.5 mm Carbon Steel; Coating: Epoxy Polyester Powder Coating; Mounting Plate: 0.079'' / 2 mm Detachable Galvanized Backplate; IP Rating: Designed to meet IP66 and NEMA 1, 2, 4, 4X, & 12 specifications; Connection Type: Hinged; Feature: Lockable, Waterproof; Galvanized Backplate Dimensions: 9.8" x 9.8" / 25 x 25 cm; Outer Dimensions (H x W x D): 12'' x 12'' x 8'' / 30 x 30 x 20 cm; Inner Dimensions (H x W x D): 11.7'' x 11.7'' x 6.6'' / 29.7 x 29.7 x 16.65 cm; Product Weight: 16.31 lbs / 7.4 kg; Certification: CE / ROHS Certification	1 x Electrical Box; 2 x Keys; 1 x Mounting Plate(The mounting plate has been assembled in the box); 1 x Set of Wall Mounting Pendants; 1 x Bottom Sealing Plate
DQXJSTCFS50X40X15V0	Size: 20x16x6 inches	Model: SPT; Color: Gray White(RAL7035); Material: 0.059'' / 1.5 mm Carbon Steel; Coating: Epoxy Polyester Powder Coating; Mounting Plate: 0.079'' / 2 mm Detachable Galvanized Backplate; IP Rating: Designed to meet IP66 and NEMA 1, 2, 4, 4X, & 12 specifications; Connection Type: Hinged; Feature: Lockable, Waterproof; Galvanized Backplate Dimensions: 17.7" x 13.8" / 45 x 35 cm; Outer Dimensions (H x W x D): 20'' x 16'' x 6'' / 50 x 40 x 15 cm; Inner Dimensions (H x W x D): 19.6'' x 15.6'' x 4.6'' / 49.7 x 39.7 x 11.65 cm; Product Weight: 26.68 lbs / 12.1 kg; Certification: CE / ROHS Certification	1 x Electrical Box; 2 x Keys; 1 x Mounting Plate(The mounting plate has been assembled in the box); 1 x Set of Wall Mounting Pendants; 1 x Bottom Sealing Plate
DQXJSTCFS25X20X15V0	Size: 10x8x6 inches	Model: SPT; Color: Gray White(RAL7035); Material: 0.059'' / 1.5 mm Carbon Steel; Coating: Epoxy Polyester Powder Coating; Mounting Plate: 0.079'' / 2 mm Detachable Galvanized Backplate; IP Rating: Designed to meet IP66 and NEMA 1, 2, 4, 4X, & 12 specifications; Connection Type: Hinged; Feature: Lockable, Waterproof; Galvanized Backplate Dimensions: 7.9" x 6" / 20 x 15 cm; Outer Dimensions (H x W x D): 10'' x 8'' x 6'' / 25 x 20 x 15 cm; Inner Dimensions (H x W x D): 9.7'' x 7.8'' x 4.6'' / 24.7 x 19.7 x 11.65 cm; Product Weight: 9.48 lbs / 4.3 kg; Certification: CE / ROHS Certification	1 x Electrical Box; 2 x Keys; 1 x Mounting Plate(The mounting plate has been assembled in the box); 1 x Set of Wall Mounting Pendants; 1 x Bottom Sealing Plate
TGDQX28X20X10THVHV0	Size: 27.6x19.7x9.8 inches	Interior Dimensions: 27.48 x 19.57 x 9.17 in/697 x 497 x 233 mm; Installation: Wall-mounted; Item Model Number: SPT-705025; Protection Grade: NEMA 4/NEMA 4X/IP66; Net Weight: 43.6 lbs/19.8 kg; Main Material: Cold Rolled Steel; Overall Dimensions: 28 x 20 x 10 in/711.2 x 508 x 254 mm

Details by SKU

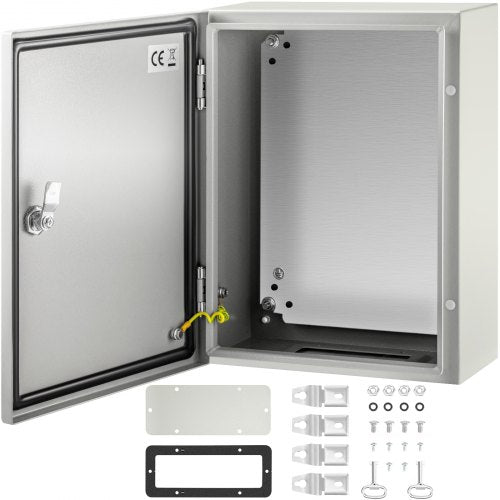

DQXJSTCFS40X30X15V0 - 16x12x6 inches

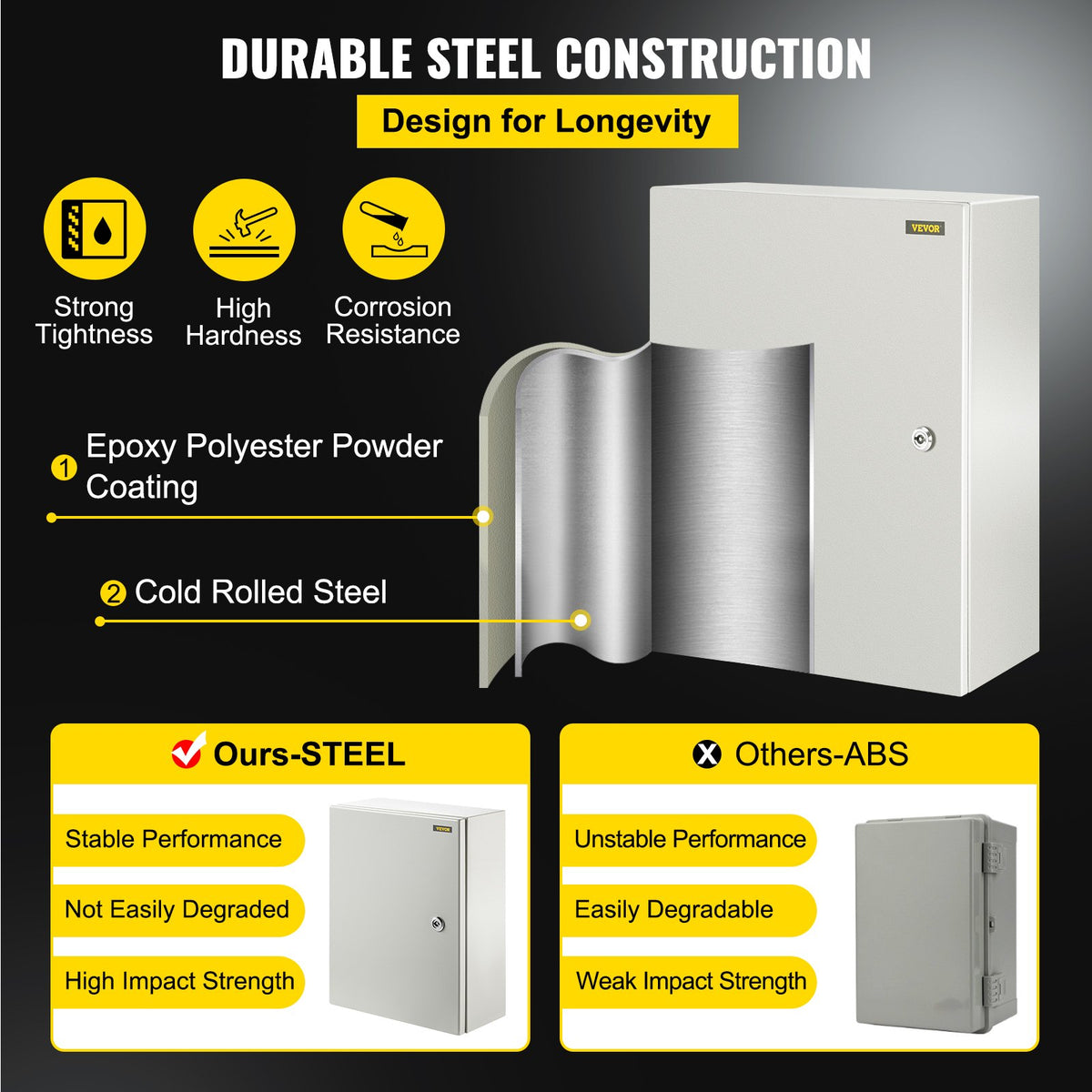

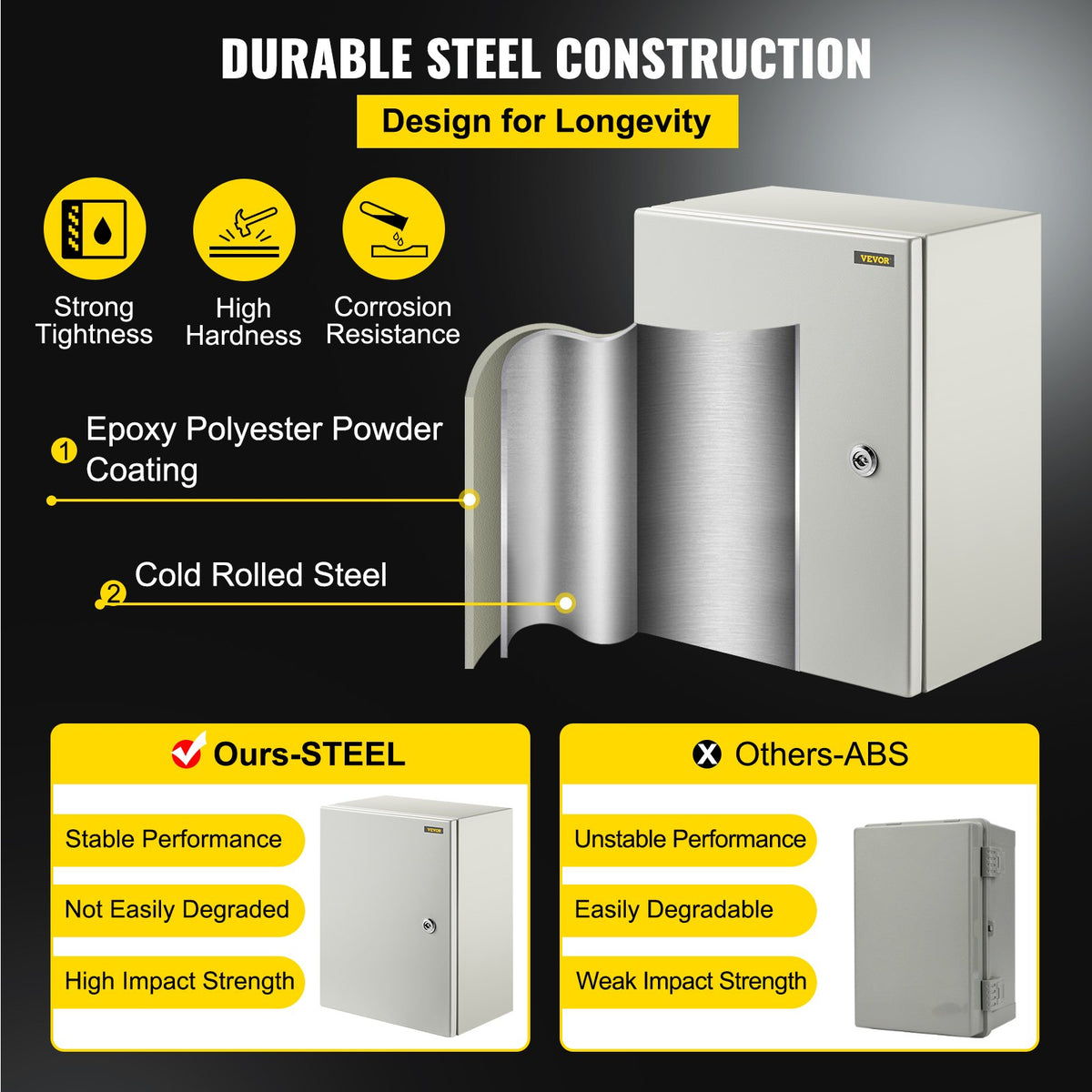

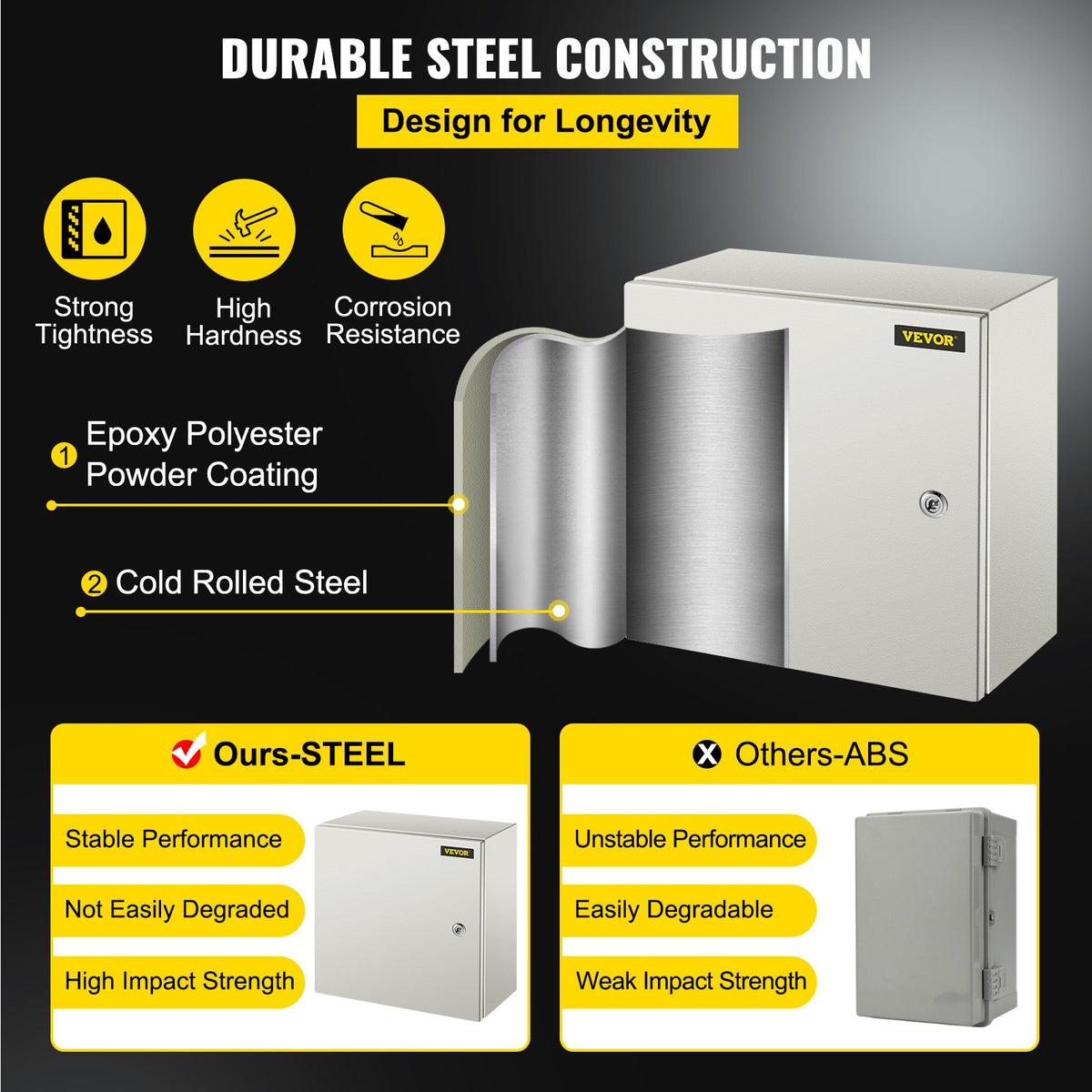

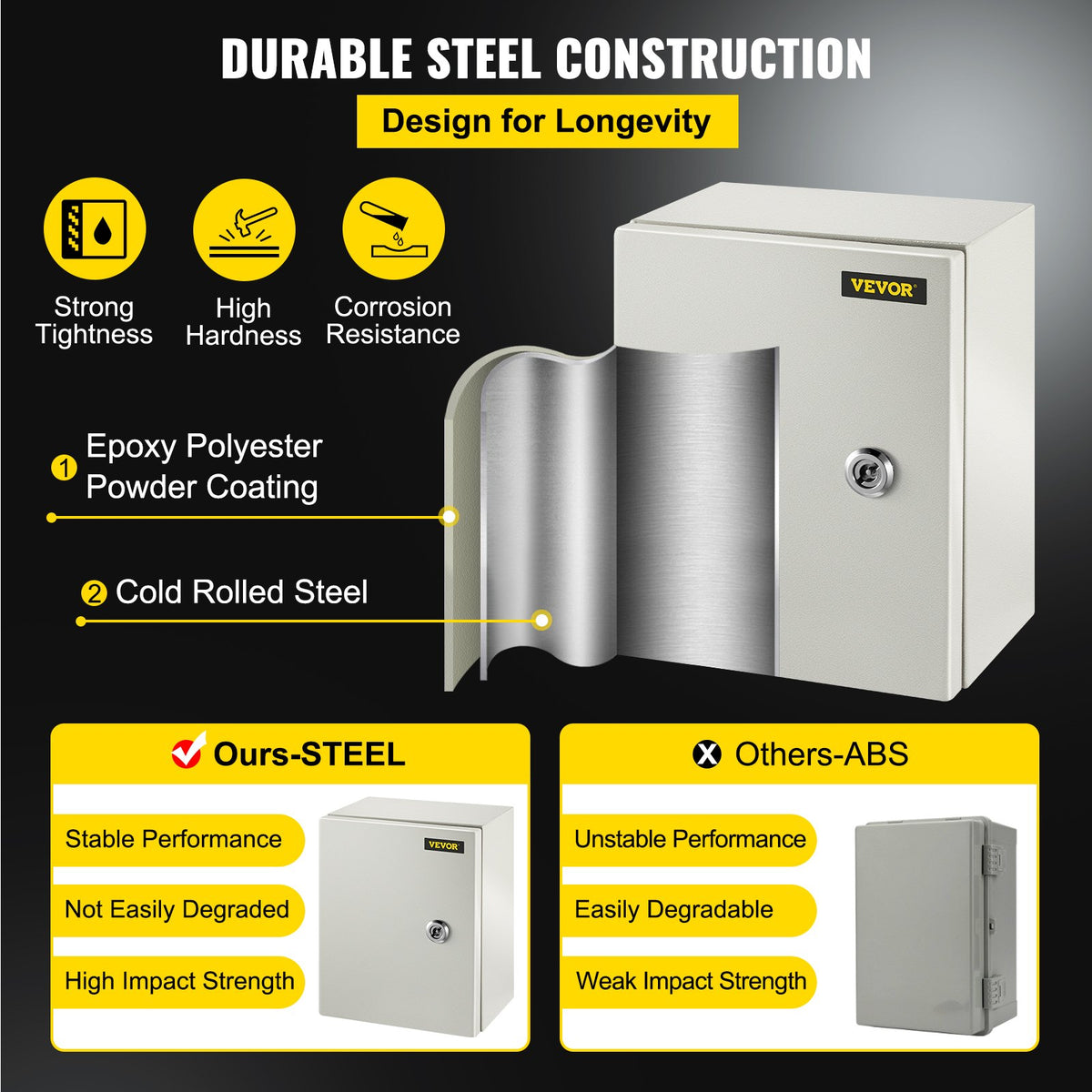

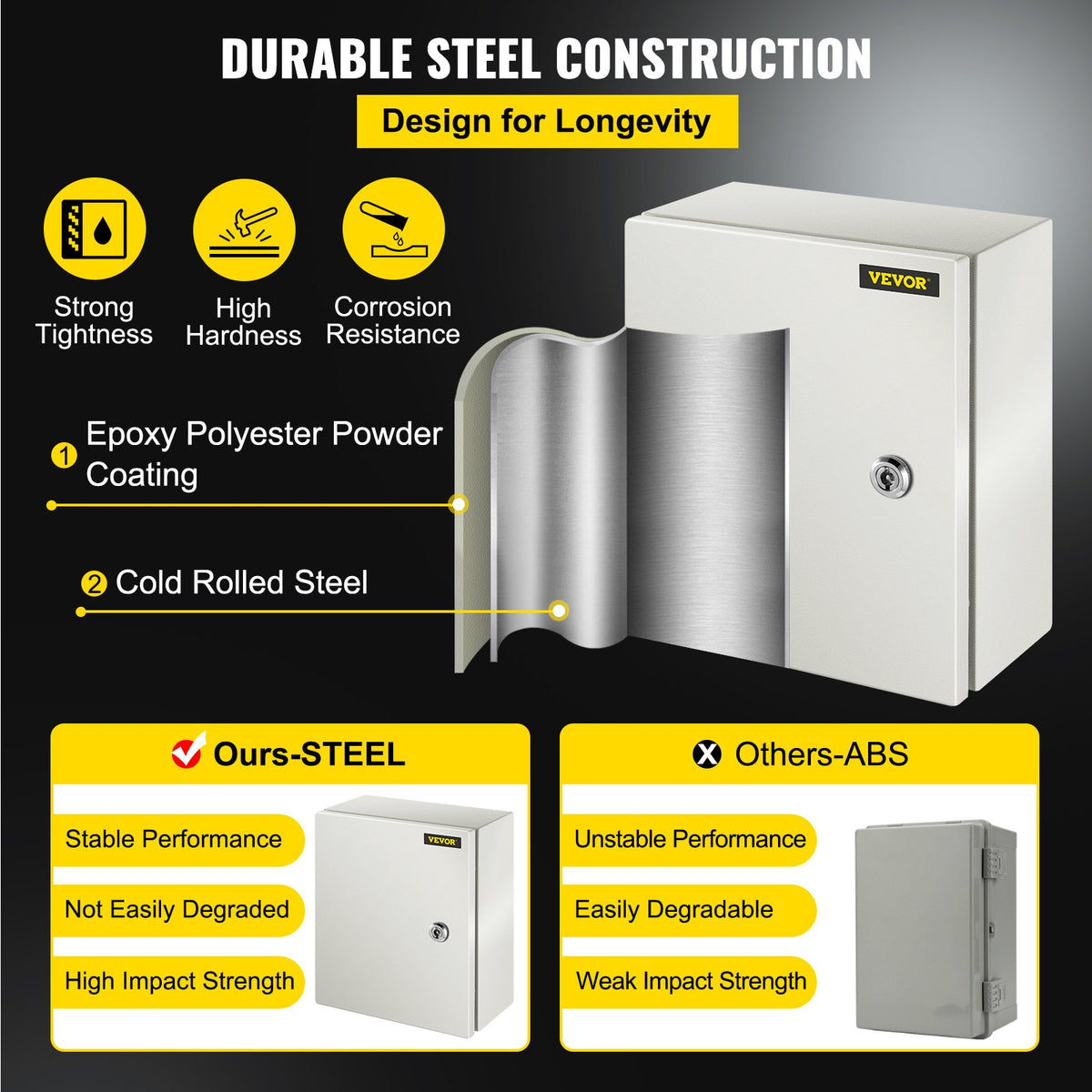

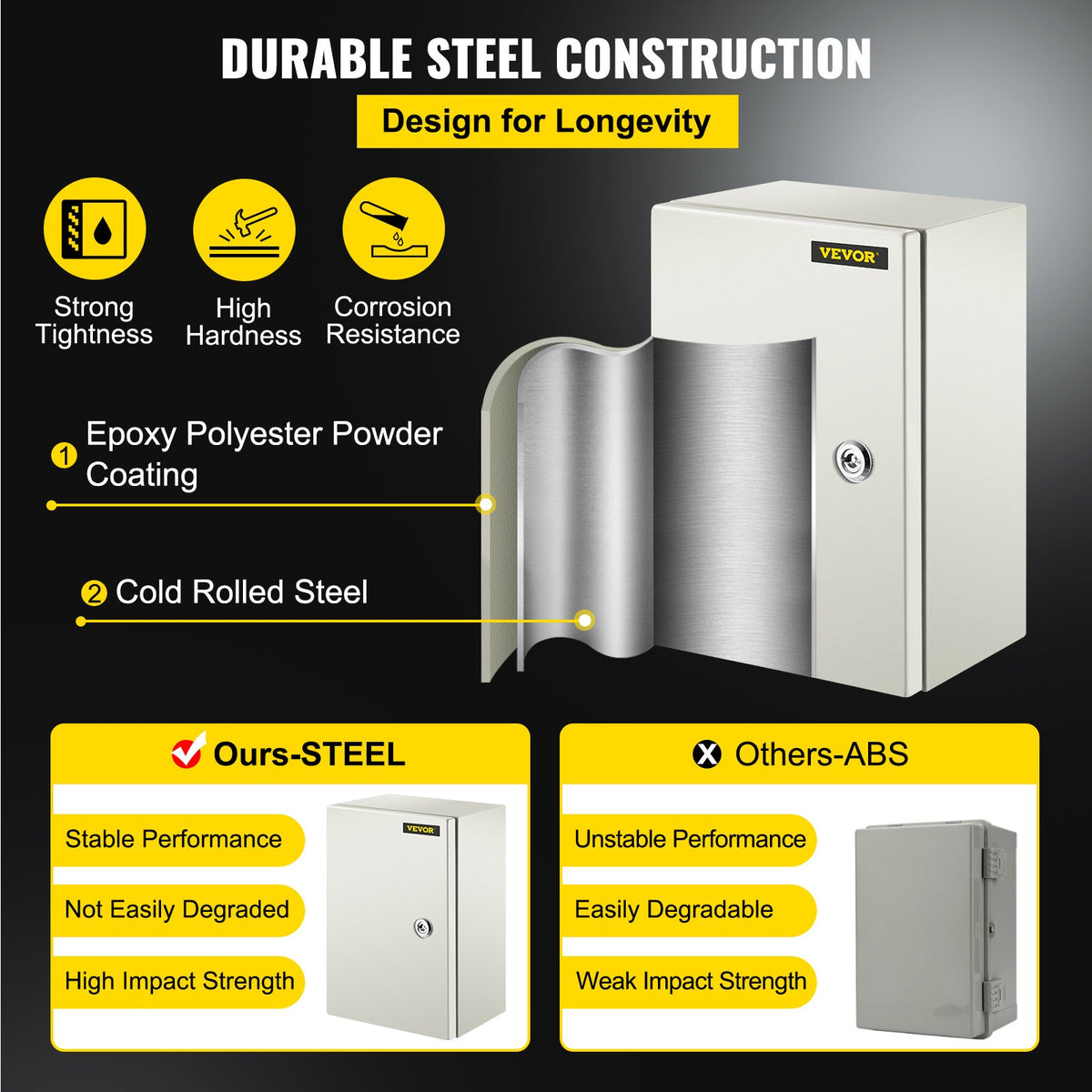

Sturdy Steel Construction: Made of 1.5 mm cold-rolled steel, precision cut and welded. Our electrical enclosures got CE, ROHS certificates, have stronger wear resistance, keep your equipment is well protected in harsh environments.
IP66 Waterproof Grade: The sealing strip of foam plastic has excellent sealing performance, and the enclosed box body is guaranteed to reach the protection level of IP66, which can prevent dirt and water from entering the box when the lid is opened. Ideal Choice for factories, construction sites, malls, squares, residential areas, courtyards, etc.
Reinforced Lock & Hinge: The high-strength hinged cover is designed to ensure that the door is not easily damaged or broken due to squeezing. The shell box adopts a high-quality lock core to increase safety and lockability.
Convenient Operation: The junction box is equipped with a detachable galvanized mounting backplate for easy installation of electrical components. The four wall-mounted mounting holes on the back can quickly fix the electrical box on the wall.
Exquisite Details Design: The bottom of the electrical box is designed to facilitate threading. The grounding screws have been installed in advance, and the cutouts are smooth to avoid damage to the cables.

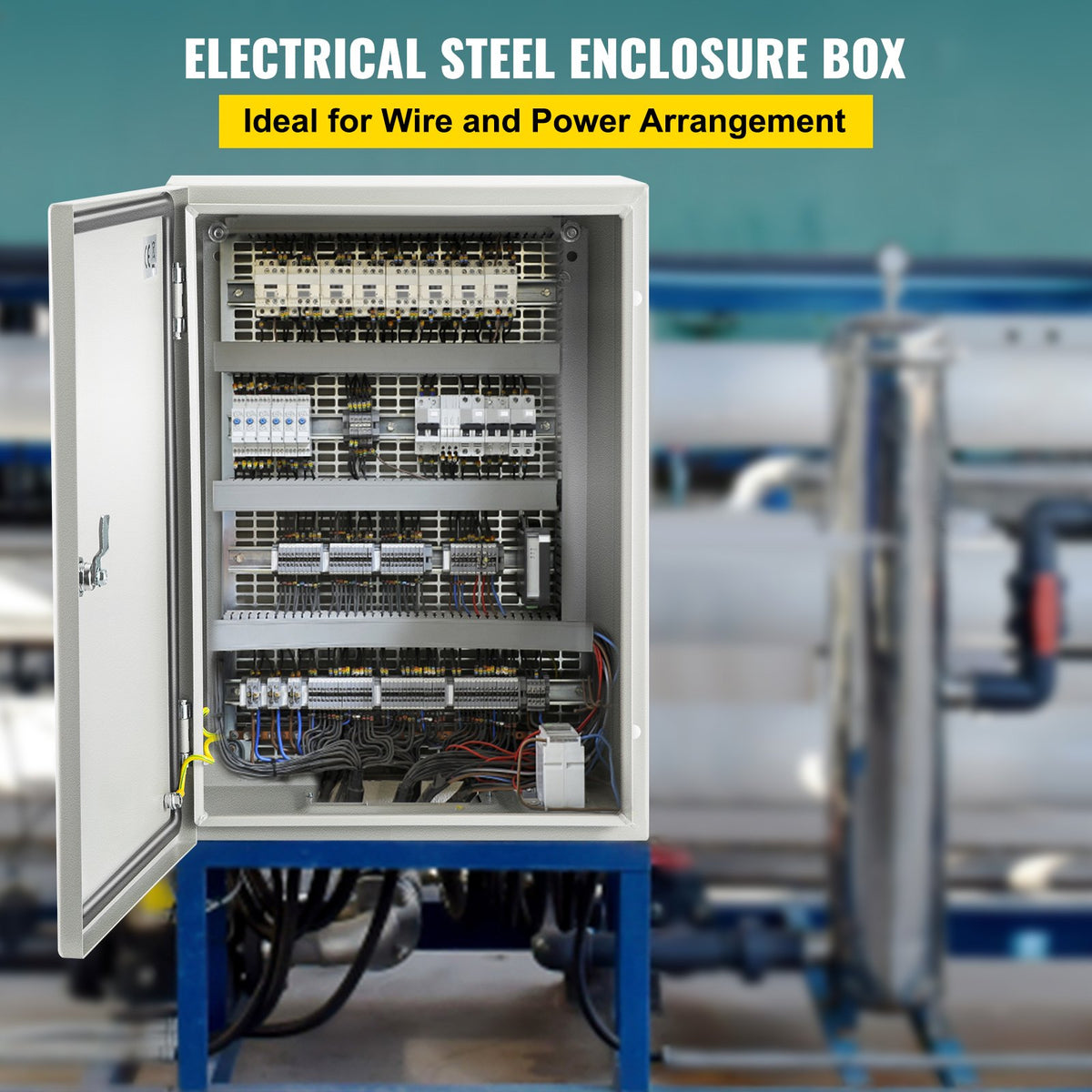

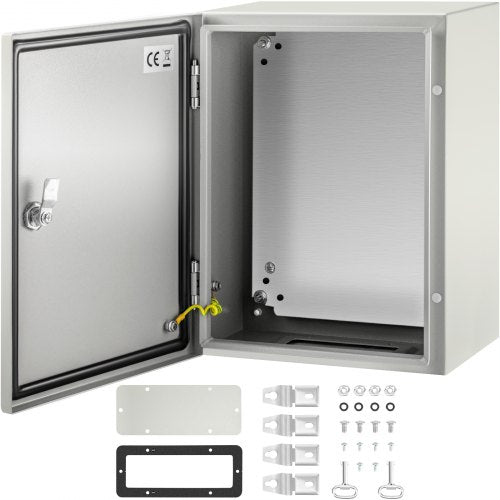

DQXJSTCFS40X30X20V0 - 16x12x8 inches

Sturdy Steel Construction: Made of 1.5 mm cold-rolled steel, precision cut and welded. Our electrical enclosures got CE, ROHS certificates, have stronger wear resistance, keep your equipment is well protected in harsh environments.
IP66 Waterproof Grade: The sealing strip of foam plastic has excellent sealing performance, and the enclosed box body is guaranteed to reach the protection level of IP66, which can prevent dirt and water from entering the box when the lid is opened. Ideal choice for factories, construction sites, malls, squares, residential areas, courtyards, etc.
Reinforced Lock & Hinge: The high-strength hinged cover is designed to ensure that the door is not easily damaged or broken due to squeezing. The shell box adopts a high-quality lock core to increase safety and lockability.
Convenient Operation: The junction box is equipped with a detachable galvanized mounting backplate for easy installation of electrical components. The four wall-mounted mounting holes on the back can quickly fix the electrical box on the wall.
Exquisite Details Design: The bottom of the electrical box is designed to facilitate threading. The grounding screws have been installed in advance, and the cutouts are smooth to avoid damage to the cables.

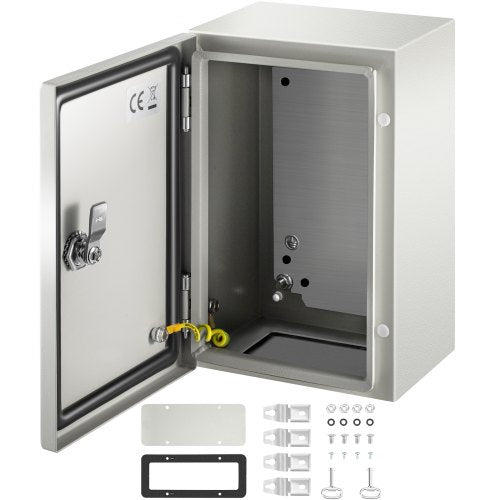

DQXJSTCFS30X20X15V0 - 12x8x6 inches

Sturdy Steel Construction: Made of 1.5 mm cold-rolled steel, precision cut and welded. Our electrical enclosures got CE, ROHS certificates, have stronger wear resistance, keep your equipment is well protected in harsh environments.
IP66 Waterproof Grade: The sealing strip of foam plastic has excellent sealing performance, and the enclosed box body is guaranteed to reach the protection level of IP66, which can prevent dirt and water from entering the box when the lid is opened. Ideal Choice for factories, construction sites, malls, squares, residential areas, courtyards, etc.
Reinforced Lock & Hinge: The high-strength hinged cover is designed to ensure that the door is not easily damaged or broken due to squeezing. The shell box adopts a high-quality lock core to increase safety and lockability.
Convenient Operation: The junction box is equipped with a detachable galvanized mounting backplate for easy installation of electrical components. The four wall-mounted mounting holes on the back can quickly fix the electrical box on the wall.
Exquisite Details Design: The bottom of the electrical box is designed to facilitate threading. The grounding screws have been installed in advance, and the cutouts are smooth to avoid damage to the cables.

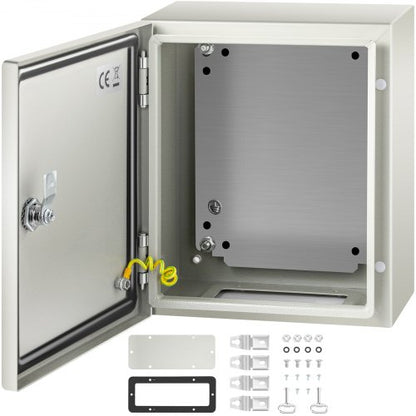

DQXJSTCFS30X25X15V0 - 12x10x6 inches

Sturdy Steel Construction: Made of 1.5 mm cold-rolled steel, precision cut and welded. Our electrical enclosures got CE, ROHS certificates, have stronger wear resistance, keep your equipment is well protected in harsh environments.
IP66 Waterproof Grade: The sealing strip of foam plastic has excellent sealing performance, and the enclosed box body is guaranteed to reach the protection level of IP66, which can prevent dirt and water from entering the box when the lid is opened. Ideal choice for factories, construction sites, malls, squares, residential areas, courtyards, etc.
Reinforced Lock & Hinge: The high-strength hinged cover is designed to ensure that the door is not easily damaged or broken due to squeezing. The shell box adopts a high- quality lock core to increase safety and lockability.
Convenient Operation: The junction box is equipped with a detachable galvanized mounting backplate for easy installation of electrical components. The four wall-mounted mounting holes on the back can quickly fix the electrical box on the wall.
Exquisite Details Design: The bottom of the electrical box is designed to facilitate threading. The grounding screws have been installed in advance, and the cutouts are smooth to avoid damage to the cables.

DQXJSTCFS30X30X15V0 - 12x12x6 inches

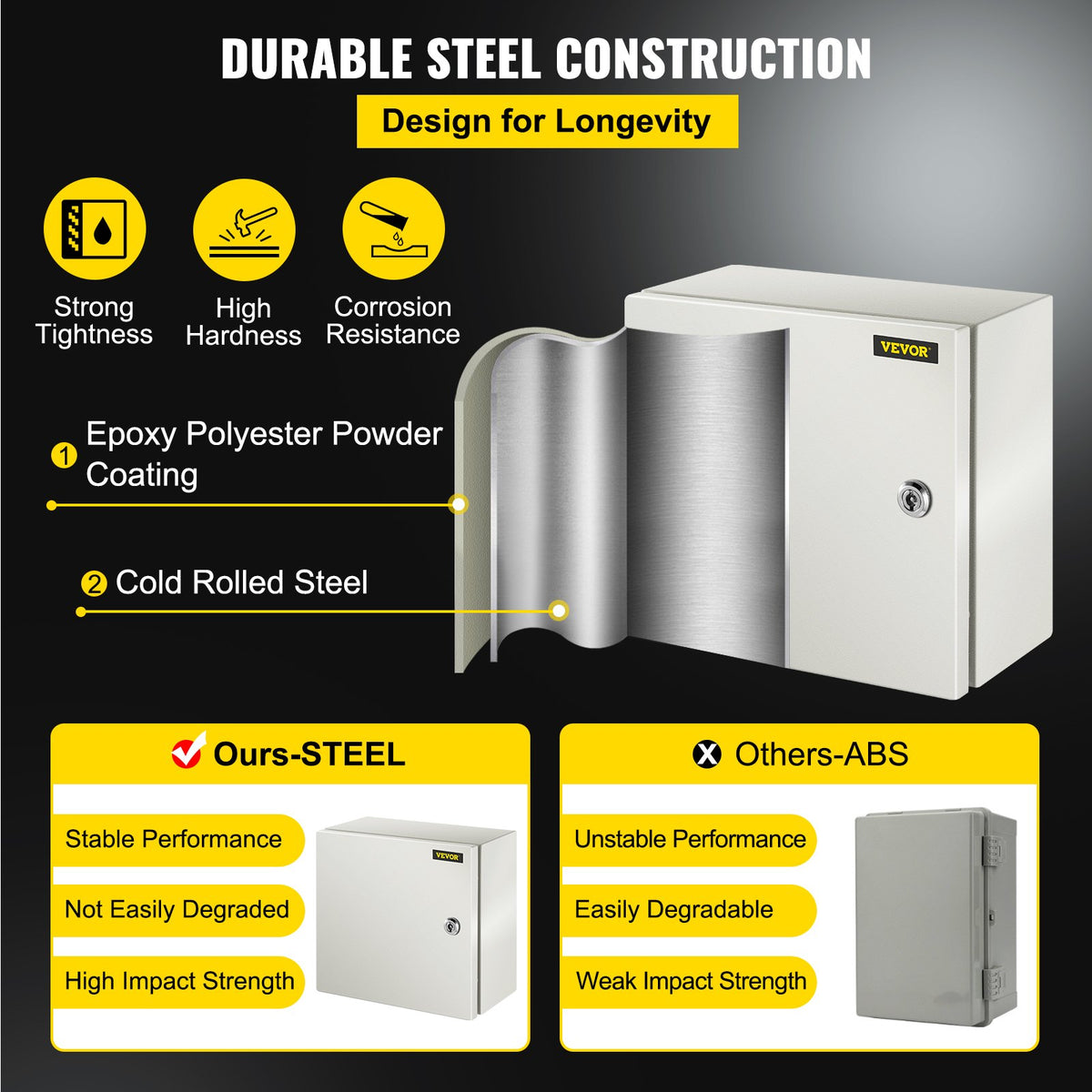

Sturdy Steel Construction: Made of 1.5 mm cold-rolled steel, precision cut and welded. Our electrical enclosures got CE, ROHS certificates, have stronger wear resistance, keep your equipment is well protected in harsh environments.
IP66 Waterproof Grade: The sealing strip of foam plastic has excellent sealing performance, and the enclosed box body is guaranteed to reach the protection level of IP66, which can prevent dirt and water from entering the box when the lid is opened. Ideal choice for factories, construction sites, malls, squares, residential areas, courtyards, etc.
Reinforced Lock & Hinge: The high-strength hinged cover is designed to ensure that the door is not easily damaged or broken due to squeezing. The shell box adopts a high-quality lock core to increase safety and lockability.
Convenient Operation: The junction box is equipped with a detachable galvanized mounting backplate for easy installation of electrical components. The four wall-mounted mounting holes on the back can quickly fix the electrical box on the wall.
Exquisite Details Design: The bottom of the electrical box is designed to facilitate threading. The grounding screws have been installed in advance, and the cutouts are smooth to avoid damage to the cables.

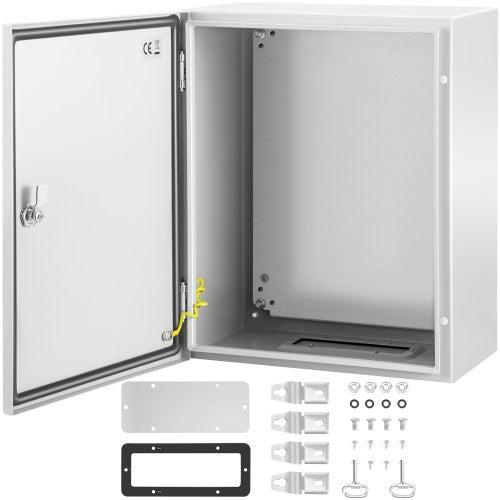

DQXJSTCFS50X40X25V0 - 20x16x10 inches

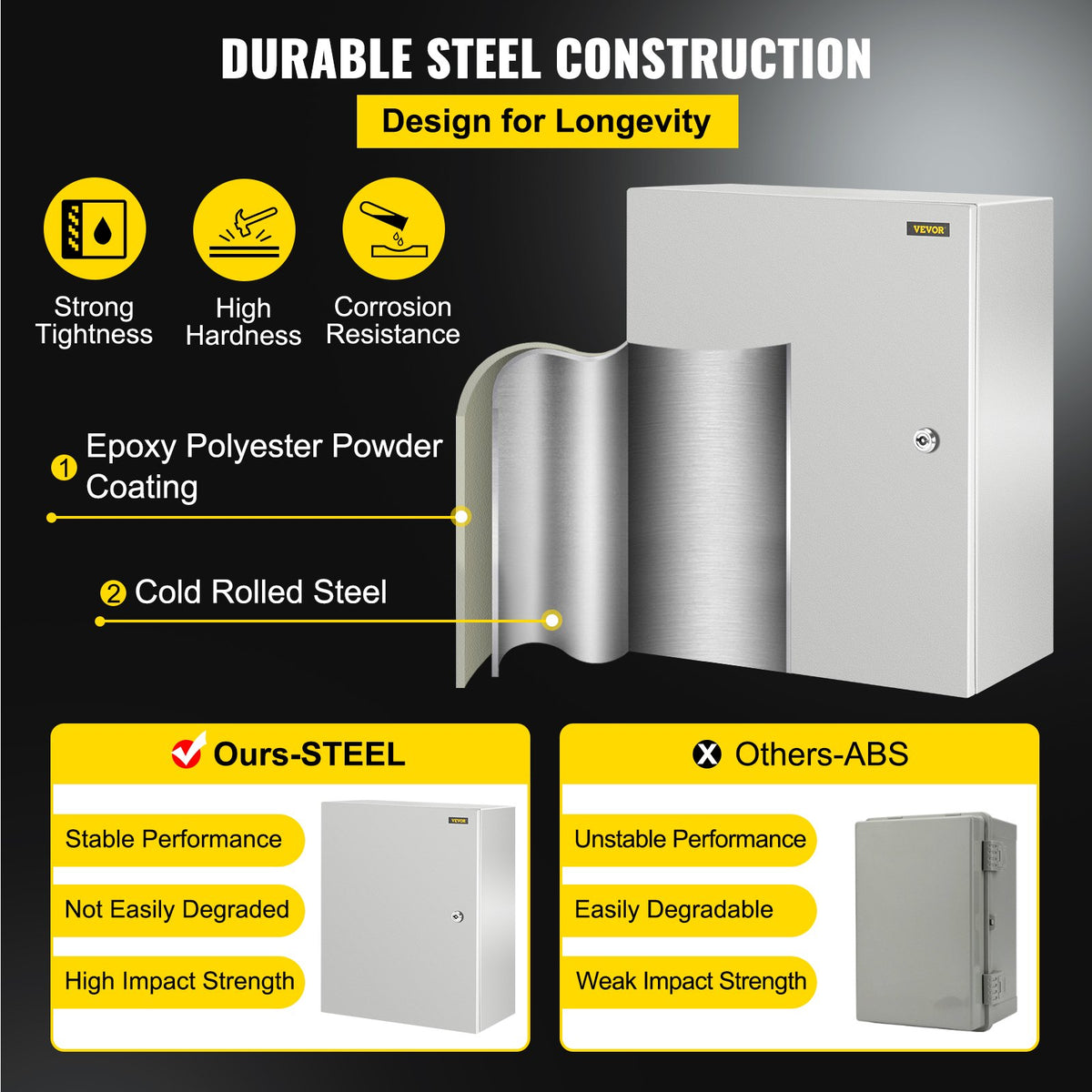

Sturdy Steel Construction: Made of 1.5 mm cold-rolled steel, precision cut and welded. Our electrical enclosures got CE, ROHS certificates, have stronger wear resistance, keep your equipment is well protected in harsh environments.
IP66 Waterproof Grade: The sealing strip of foam plastic has excellent sealing performance, and the enclosed box body is guaranteed to reach the protection level of IP66, which can prevent dirt and water from entering the box when the lid is opened. Ideal choice for factories, construction sites, malls, squares, residential areas, courtyards, etc.
Reinforced Lock & Hinge: The high-strength hinged cover is designed to ensure that the door is not easily damaged or broken due to squeezing. The shell box adopts a high-quality lock core to increase safety.
Convenient Operation: The junction box is equipped with a detachable galvanized mounting backplate for easy installation of electrical components. The four wall-mounted mounting holes on the back can quickly fix the electrical box on the wall.
Exquisite Details Design: The bottom of the electrical box is designed to facilitate threading. The grounding screws have been installed in advance, and the cutouts are smooth to avoid damage to the cables.

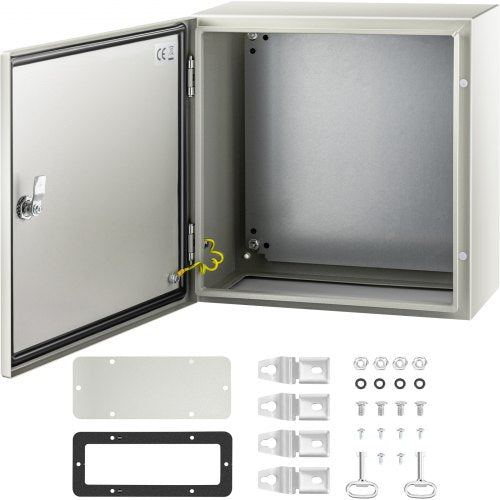

DQXJSTCFS40X40X20V0 - 16x16x8 inches

Sturdy Steel Construction: Made of 1.5 mm cold-rolled steel, precision cut and welded. Our electrical enclosures got CE, ROHS certificates, have stronger wear resistance, keep your equipment is well protected in harsh environments.
IP66 Waterproof Grade: The sealing strip of foam plastic has excellent sealing performance, and the enclosed box body is guaranteed to reach the protection level of IP66, which can prevent dirt and water from entering the box when the lid is opened. Ideal choice for factories, construction sites, malls, squares, residential areas, courtyards, etc.
Reinforced Lock & Hinge: The high-strength hinged cover is designed to ensure that the door is not easily damaged or broken due to squeezing. The shell box adopts a high-quality lock core to increase safety and lockability.
Convenient Operation: The junction box is equipped with a detachable galvanized mounting backplate for easy installation of electrical components. The four wall-mounted mounting holes on the back can quickly fix the electrical box on the wall.
Exquisite Details Design: The bottom of the electrical box is designed to facilitate threading. The grounding screws have been installed in advance, and the cutouts are smooth to avoid damage to the cables.

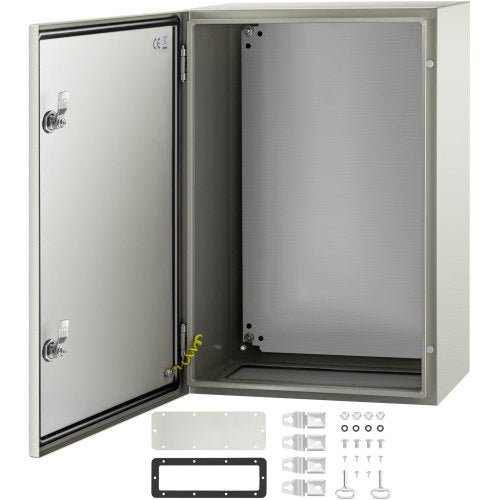

DQXJSTCFS60X40X25V0 - 24x16x10 inches

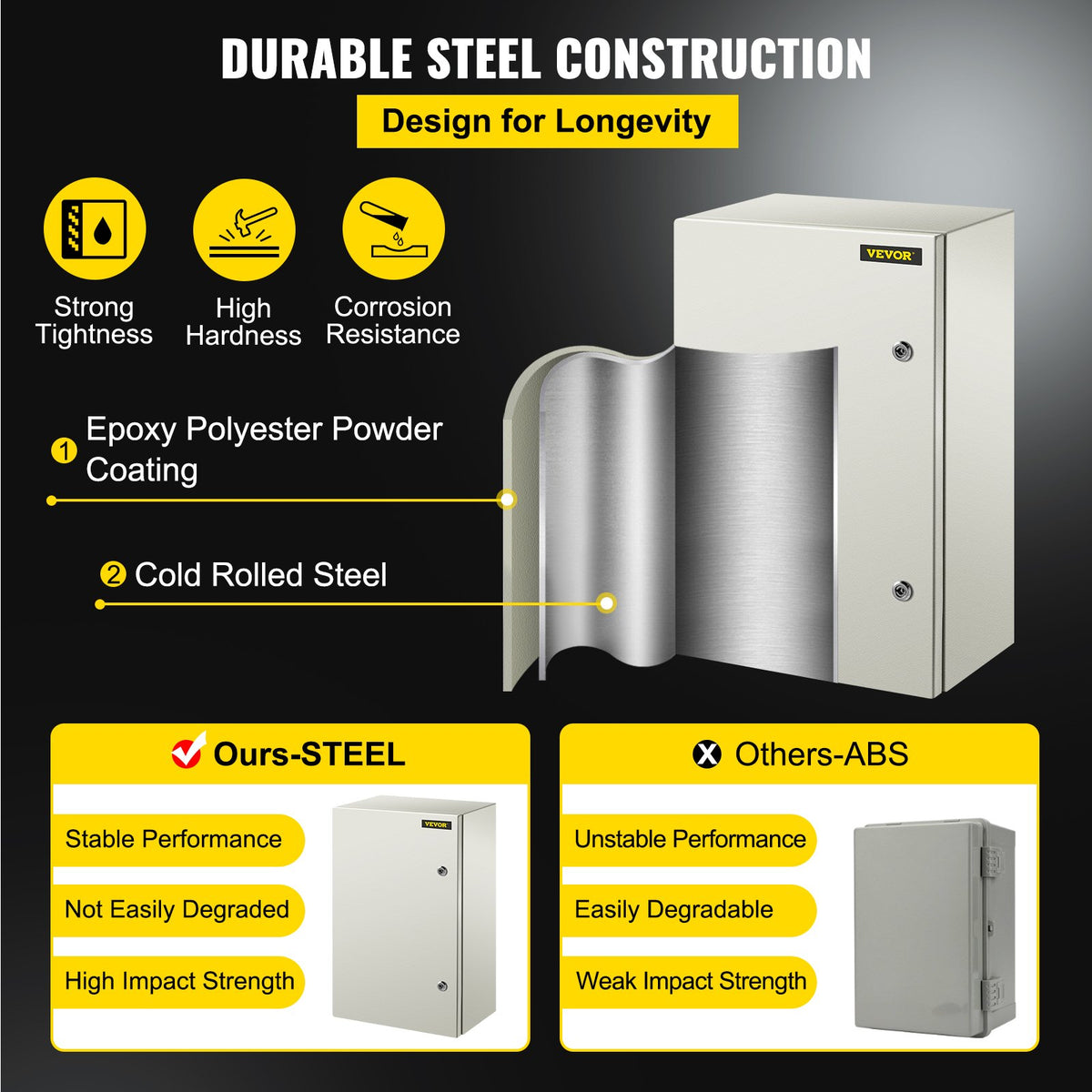

Sturdy Steel Construction: Made of 1.5 mm cold-rolled steel, precision cut and welded. Our electrical enclosures got CE, ROHS certificates, have stronger wear resistance, keep your equipment is well protected in harsh environments.
IP66 Waterproof Grade: The sealing strip of foam plastic has excellent sealing performance, and the enclosed box body is guaranteed to reach the protection level of IP66, which can prevent dirt and water from entering the box when the lid is opened. Ideal choice for factories, construction sites, malls, squares, residential areas, courtyards, etc.
Reinforced Lock & Hinge: The high-strength hinged cover is designed to ensure that the door is not easily damaged or broken due to squeezing. The shell box adopts a high-quality lock core to increase safety and lockability.
Convenient Operation: The junction box is equipped with a detachable galvanized mounting backplate for easy installation of electrical components. The four wall-mounted mounting holes on the back can quickly fix the electrical box on the wall.
Exquisite Details Design: The bottom of the electrical box is designed to facilitate threading. The grounding screws have been installed in advance, and the cutouts are smooth to avoid damage to the cables.

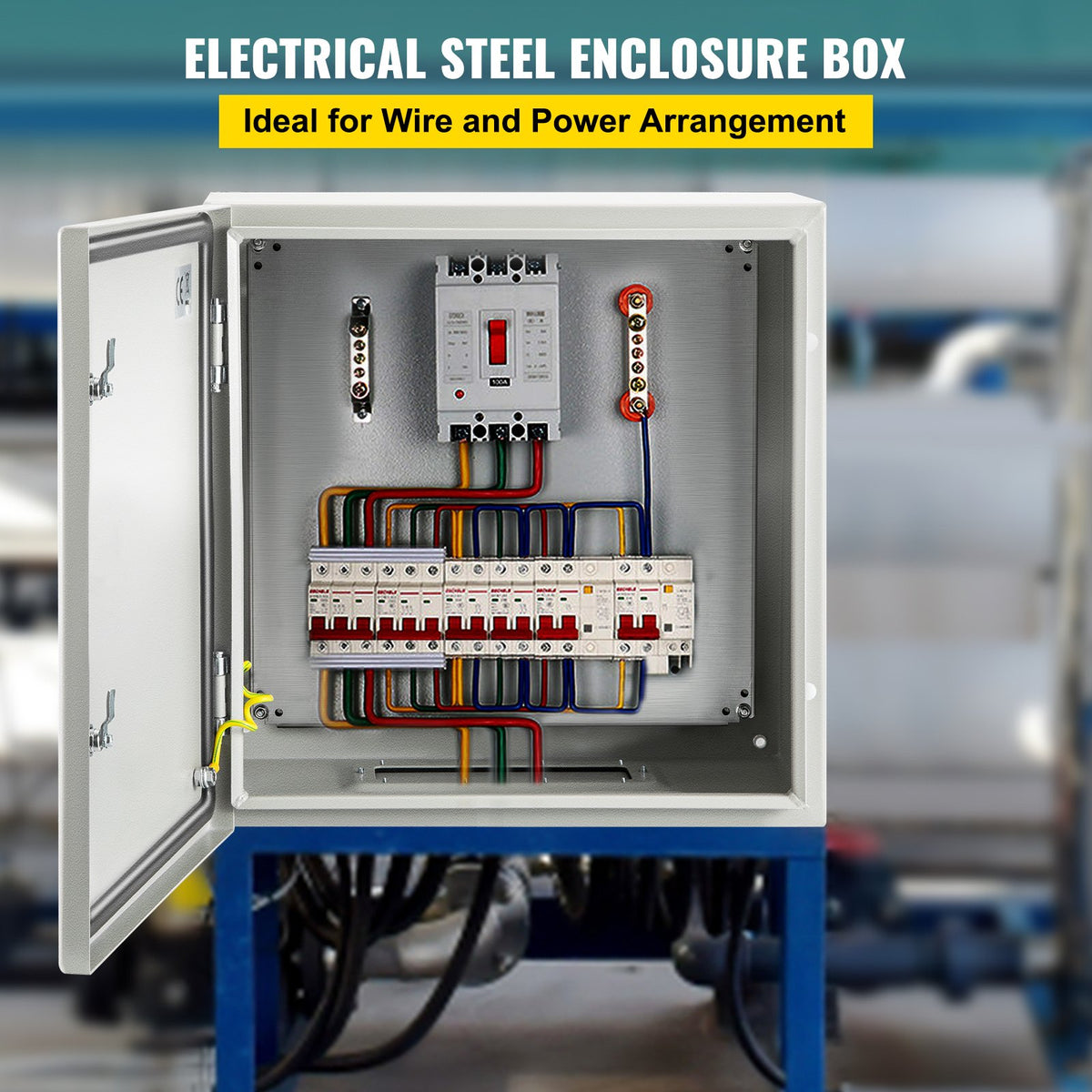

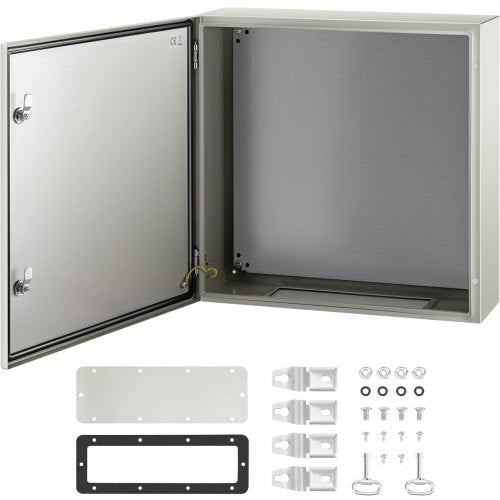

DQXJSTCFS60X60X20V0 - 24x24x8 inches

Sturdy Steel Construction: Made of 1.5 mm cold-rolled steel, precision cut and welded. Our electrical enclosures got CE, ROHS certificates, have stronger wear resistance, keep your equipment is well protected in harsh environments.
IP66 Waterproof Grade: The sealing strip of foam plastic has excellent sealing performance, and the enclosed box body is guaranteed to reach the protection level of IP66, which can prevent dirt and water from entering the box when the lid is opened. Ideal choice for factories, construction sites, malls, squares, residential areas, courtyards, etc.
Reinforced Lock & Hinge: The high-strength hinged cover is designed to ensure that the door is not easily damaged or broken due to squeezing. The shell box adopts a high-quality lock core to increase safety and lockability.
Convenient Operation: The junction box is equipped with a detachable galvanized mounting backplate for easy installation of electrical components. The four wall-mounted mounting holes on the back can quickly fix the electrical box on the wall.
Exquisite Details Design: The bottom of the electrical box is designed to facilitate threading. The grounding screws have been installed in advance, and the cutouts are smooth to avoid damage to the cables.

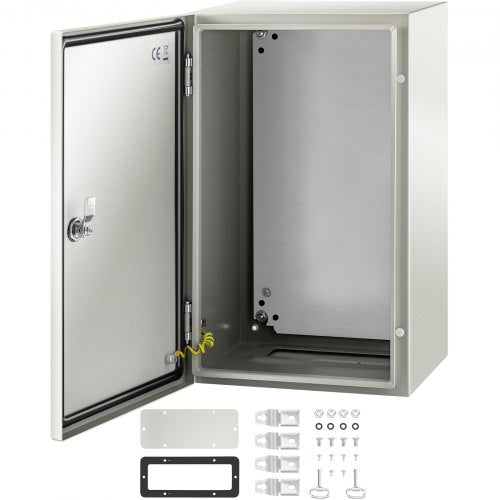

DQXJSTCFS50X30X25V0 - 20x12x10 inches

Sturdy Steel Construction: Made of 1.5 mm cold-rolled steel, precision cut and welded. Our electrical enclosures got CE, ROHS certificates, have stronger wear resistance, keep your equipment is well protected in harsh environments.
IP66 Waterproof Grade: The sealing strip of foam plastic has excellent sealing performance, and the enclosed box body is guaranteed to reach the protection level of IP66, which can prevent dirt and water from entering the box when the lid is opened. Ideal choice for factories, construction sites, malls, squares, residential areas, courtyards, etc.
Reinforced Lock & Hinge: The high-strength hinged cover is designed to ensure that the door is not easily damaged or broken due to squeezing. The shell box adopts a high-quality lock core to increase safety and lockability.
Convenient Operation: The junction box is equipped with a detachable galvanized mounting backplate for easy installation of electrical components. The four wall-mounted mounting holes on the back can quickly fix the electrical box on the wall.
Exquisite Details Design: The bottom of the electrical box is designed to facilitate threading. The grounding screws have been installed in advance, and the cutouts are smooth to avoid damage to the cables.

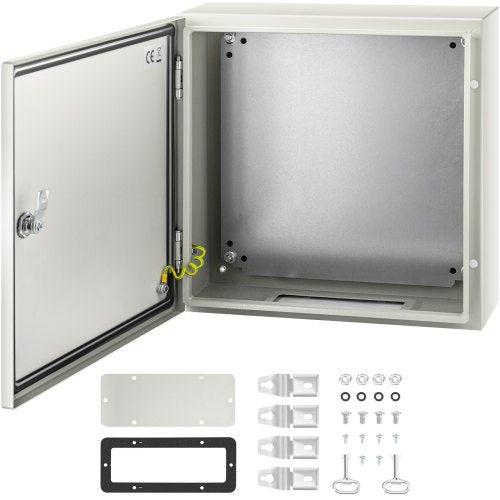

DQXJSTCFS40X40X15V0 - 16x16x6 inches

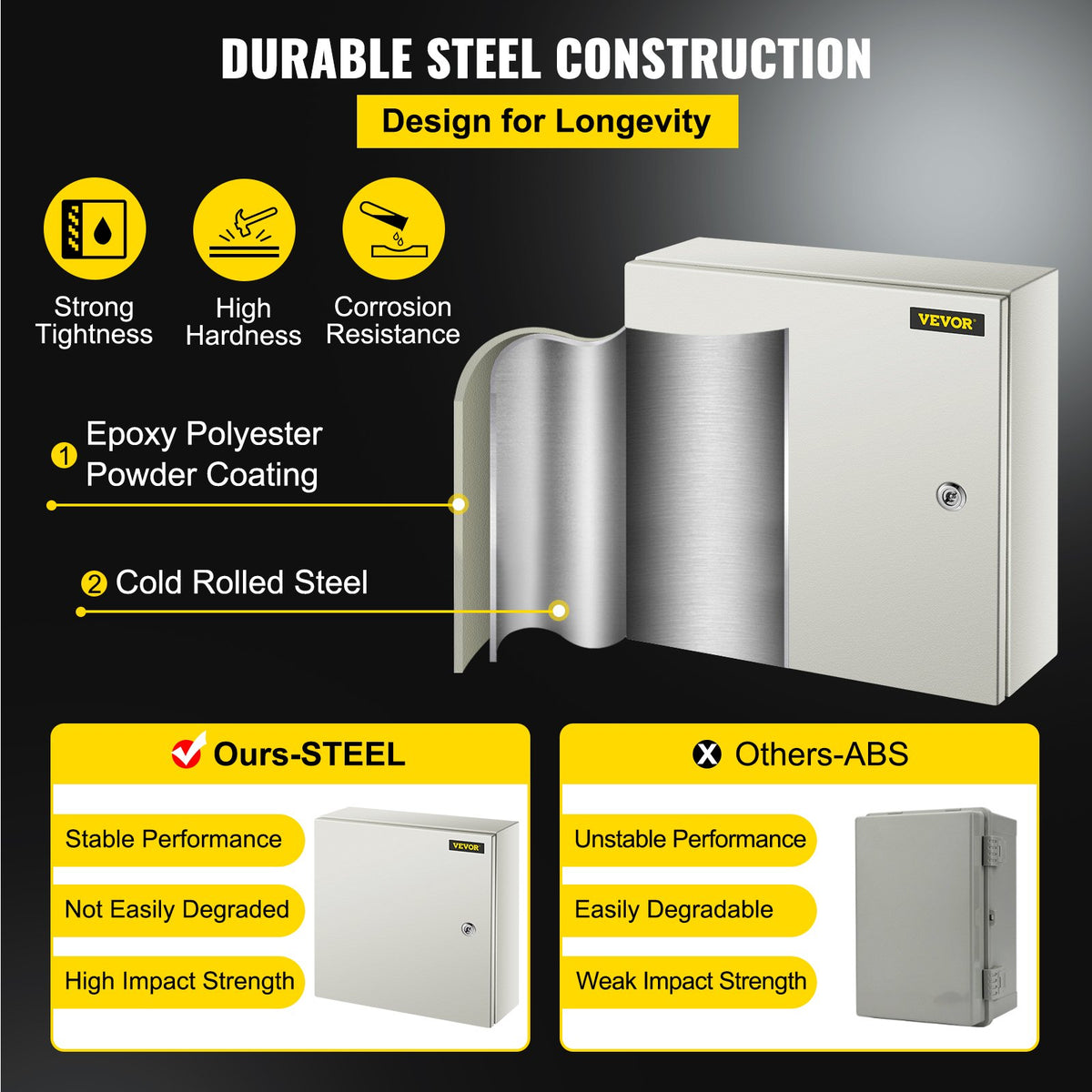

Sturdy Steel Construction: Made of 1.5 mm cold-rolled steel, precision cut and welded. Our electrical enclosures got CE, ROHS certificates, have stronger wear resistance, keep your equipment is well protected in harsh environments.
IP66 Waterproof Grade: The sealing strip of foam plastic has excellent sealing performance, and the enclosed box body is guaranteed to reach the protection level of IP66, which can prevent dirt and water from entering the box when the lid is opened. Ideal choice for factories, construction sites, malls, squares, residential areas, courtyards, etc.
Reinforced Lock & Hinge: The high-strength hinged cover is designed to ensure that the door is not easily damaged or broken due to squeezing. The shell box adopts a high-quality lock core to increase safety and lockability.
Convenient Operation: The junction box is equipped with a detachable galvanized mounting backplate for easy installation of electrical components. The four wall-mounted mounting holes on the back can quickly fix the electrical box on the wall.
Exquisite Details Design: The bottom of the electrical box is designed to facilitate threading. The grounding screws have been installed in advance, and the cutouts are smooth to avoid damage to the cables.

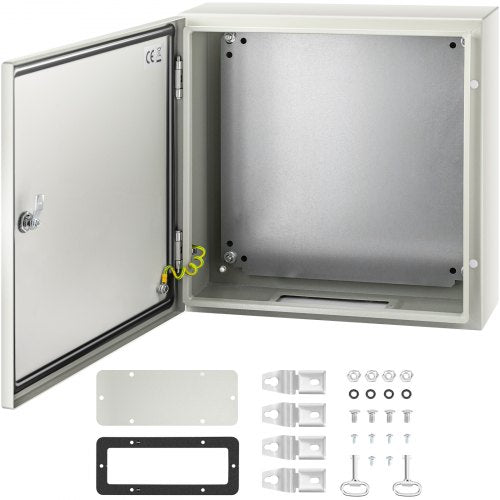

DQXJSTCFS50X50X15V0 - 20x20x6 inches

Sturdy Steel Construction: Made of 1.5 mm cold-rolled steel, precision cut and welded. Our electrical enclosures got CE, ROHS certificates, have stronger wear resistance, keep your equipment is well protected in harsh environments.
IP66 Waterproof Grade: The sealing strip of foam plastic has excellent sealing performance, and the enclosed box body is guaranteed to reach the protection level of IP66, which can prevent dirt and water from entering the box when the lid is opened. Ideal choice for factories, construction sites, malls, squares, residential areas, courtyards, etc.
Reinforced Lock & Hinge: The high-strength hinged cover is designed to ensure that the door is not easily damaged or broken due to squeezing. The shell box adopts a high-quality lock core to increase safety and lockability.
Convenient Operation: The junction box is equipped with a detachable galvanized mounting backplate for easy installation of electrical components. The four wall-mounted mounting holes on the back can quickly fix the electrical box on the wall.
Exquisite Details Design: The bottom of the electrical box is designed to facilitate threading. The grounding screws have been installed in advance, and the cutouts are smooth to avoid damage to the cables.

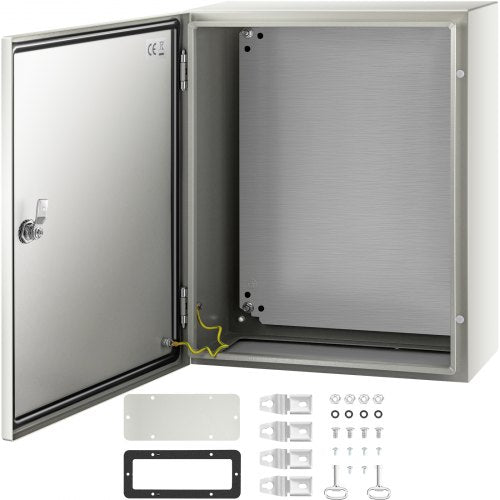

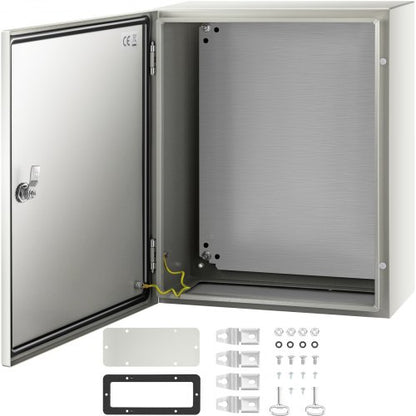

DQXJSTCFS50X40X20V0 - 20x16x8 inches

Sturdy Steel Construction: Made of 1.5 mm cold-rolled steel, precision cut and welded. Our electrical enclosures got CE, ROHS certificates, have stronger wear resistance, keep your equipment is well protected in harsh environments.
IP66 Waterproof Grade: The sealing strip of foam plastic has excellent sealing performance, and the enclosed box body is guaranteed to reach the protection level of IP66, which can prevent dirt and water from entering the box when the lid is opened. Ideal choice for factories, construction sites, malls, squares, residential areas, courtyards, etc.
Reinforced Lock & Hinge: The high-strength hinged cover is designed to ensure that the door is not easily damaged or broken due to squeezing. The shell box adopts a high-quality lock core to increase safety and lockability.
Convenient Operation: The junction box is equipped with a detachable galvanized mounting backplate for easy installation of electrical components. The four wall-mounted mounting holes on the back can quickly fix the electrical box on the wall.
Exquisite Details Design: The bottom of the electrical box is designed to facilitate threading. The grounding screws have been installed in advance, and the cutouts are smooth to avoid damage to the cables.

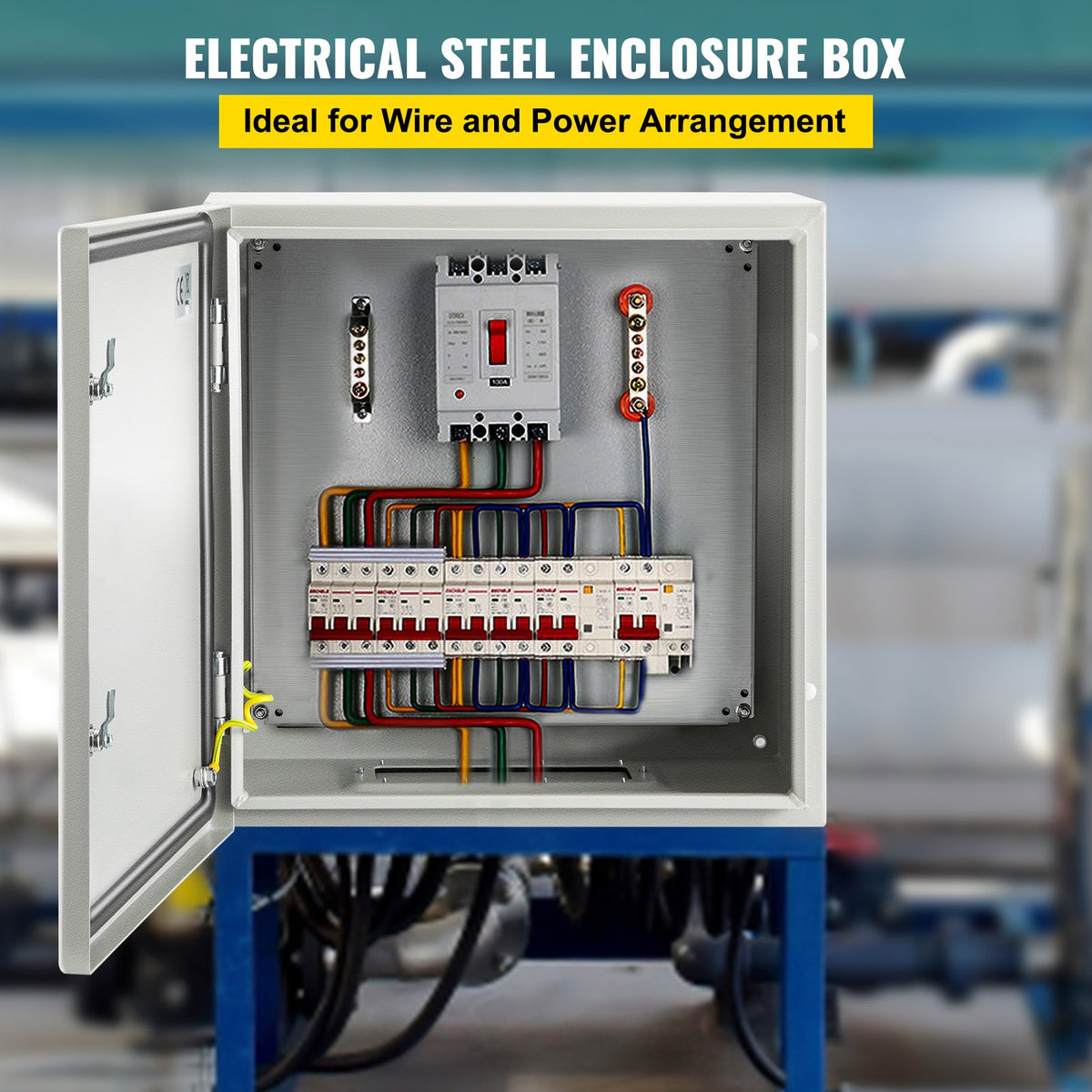

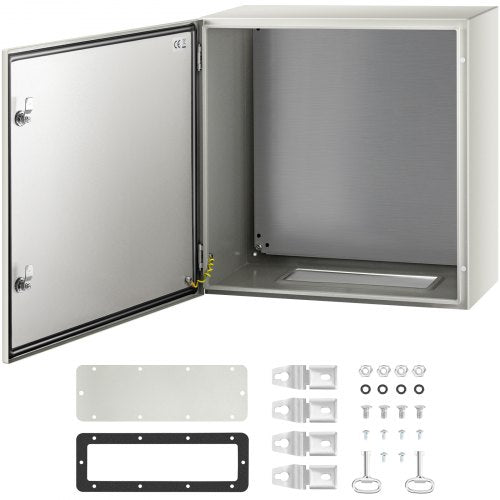

DQXJSTCFS60X60X30V0 - 24x24x12 inches

Sturdy Steel Construction: Made of 1.5 mm cold-rolled steel, precision cut and welded. Our electrical enclosures got CE, ROHS certificates, have stronger wear resistance, keep your equipment is well protected in harsh environments.
IP66 Waterproof Grade: The sealing strip of foam plastic has excellent sealing performance, and the enclosed box body is guaranteed to reach the protection level of IP66, which can prevent dirt and water from entering the box when the lid is opened. Ideal choice for factories, construction sites, malls, squares, residential areas, courtyards, etc.
Reinforced Lock & Hinge: The high-strength hinged cover is designed to ensure that the door is not easily damaged or broken due to squeezing. The shell box adopts a high-quality lock core to increase safety and lockability.
Convenient Operation: The junction box is equipped with a detachable galvanized mounting backplate for easy installation of electrical components. The four wall-mounted mounting holes on the back can quickly fix the electrical box on the wall.
Exquisite Details Design: The bottom of the electrical box is designed to facilitate threading. The grounding screws have been installed in advance, and the cutouts are smooth to avoid damage to the cables.

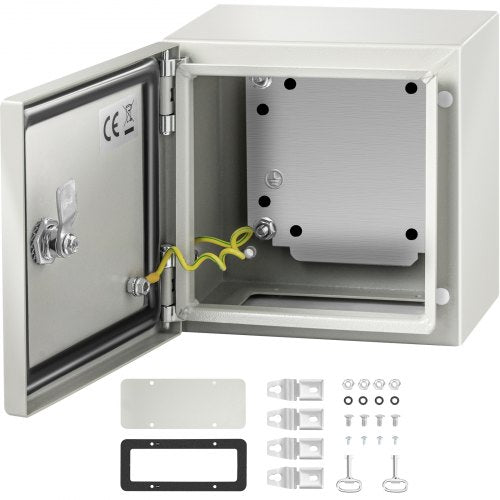

DQXJSTCFS20X20X15V0 - 8x8x6 inches

Sturdy Steel Construction: Made of 1.5 mm cold-rolled steel, precision cut and welded. Our electrical enclosures got CE, ROHS certificates, have stronger wear resistance, keep your equipment is well protected in harsh environments.
IP66 Waterproof Grade: The sealing strip of foam plastic has excellent sealing performance, and the enclosed box body is guaranteed to reach the protection level of IP66, which can prevent dirt and water from entering the box when the lid is opened. Ideal Choice for factories, construction sites, malls, squares, residential areas, courtyards, etc.
Reinforced Lock & Hinge: The high-strength hinged cover is designed to ensure that the door is not easily damaged or broken due to squeezing. The shell box adopts a high-quality lock core to increase safety and lockability.
Convenient Operation: The junction box is equipped with a detachable galvanized mounting backplate for easy installation of electrical components. The four wall-mounted mounting holes on the back can quickly fix the electrical box on the wall.
Exquisite Details Design: The bottom of the electrical box is designed to facilitate threading. The grounding screws have been installed in advance, and the cutouts are smooth to avoid damage to the cables.

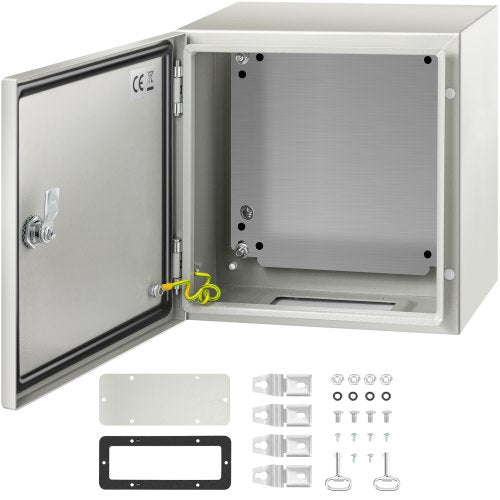

DQXJSTCFS30X30X20V0 - 12x12x8 inches

Sturdy Steel Construction: Made of 1.5 mm cold-rolled steel, precision cut and welded. Our electrical enclosures got CE, ROHS certificates, have stronger wear resistance, keep your equipment is well protected in harsh environments.
IP66 Waterproof Grade: The sealing strip of foam plastic has excellent sealing performance, and the enclosed box body is guaranteed to reach the protection level of IP66, which can prevent dirt and water from entering the box when the lid is opened. Ideal choice for factories, construction sites, malls, squares, residential areas, courtyards, etc.
Reinforced Lock & Hinge: The high-strength hinged cover is designed to ensure that the door is not easily damaged or broken due to squeezing. The shell box adopts a high-quality lock core to increase safety and lockability.
Convenient Operation: The junction box is equipped with a detachable galvanized mounting backplate for easy installation of electrical components. The four wall-mounted mounting holes on the back can quickly fix the electrical box on the wall.
Exquisite Details Design: The bottom of the electrical box is designed to facilitate threading. The grounding screws have been installed in advance, and the cutouts are smooth to avoid damage to the cables.

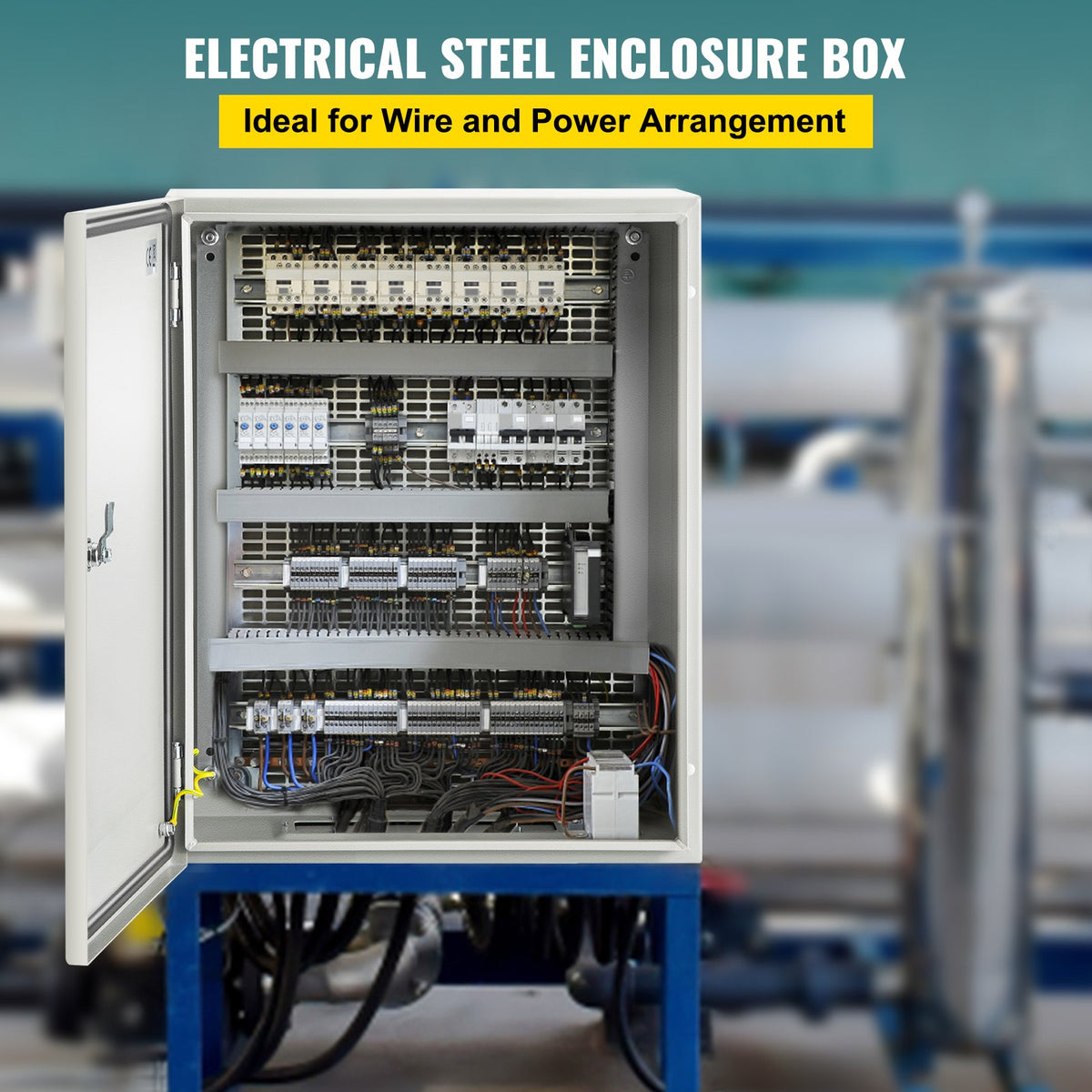

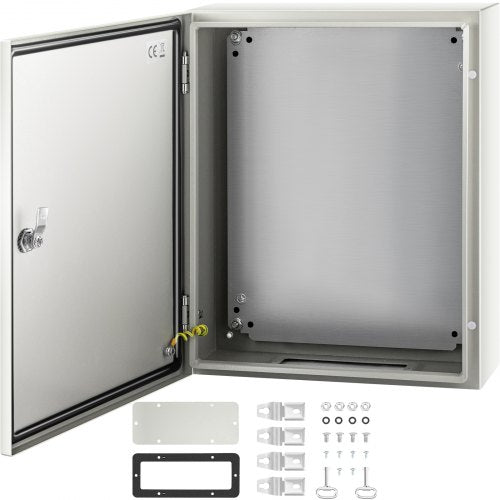

DQXJSTCFS50X40X15V0 - 20x16x6 inches

Sturdy Steel Construction: Made of 1.5 mm cold-rolled steel, precision cut and welded. Our electrical enclosures got CE, ROHS certificates, have stronger wear resistance, keep your equipment is well protected in harsh environments.
IP66 Waterproof Grade: The sealing strip of foam plastic has excellent sealing performance, and the enclosed box body is guaranteed to reach the protection level of IP66, which can prevent dirt and water from entering the box when the lid is opened. Ideal choice for factories, construction sites, malls, squares, residential areas, courtyards, etc.
Reinforced Lock & Hinge: The high-strength hinged cover is designed to ensure that the door is not easily damaged or broken due to squeezing. The shell box adopts a high-quality lock core to increase safety and lockability.
Convenient Operation: The junction box is equipped with a detachable galvanized mounting backplate for easy installation of electrical components. The four wall-mounted mounting holes on the back can quickly fix the electrical box on the wall.
Exquisite Details Design: The bottom of the electrical box is designed to facilitate threading. The grounding screws have been installed in advance, and the cutouts are smooth to avoid damage to the cables.

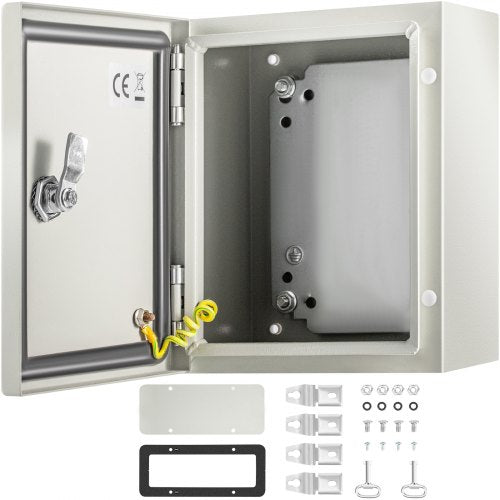

DQXJSTCFS25X20X15V0 - 10x8x6 inches

Sturdy Steel Construction: Made of 1.5 mm cold-rolled steel, precision cut and welded. Our electrical enclosures got CE, ROHS certificates, have stronger wear resistance, keep your equipment is well protected in harsh environments.
IP66 Waterproof Grade: The sealing strip of foam plastic has excellent sealing performance, and the enclosed box body is guaranteed to reach the protection level of IP66, which can prevent dirt and water from entering the box when the lid is opened. Ideal Choice for factories, construction sites, malls, squares, residential areas, courtyards, etc.
Reinforced Lock & Hinge: The high-strength hinged cover is designed to ensure that the door is not easily damaged or broken due to squeezing. The shell box adopts a high-quality lock core to increase safety and lockability.
Convenient Operation: The junction box is equipped with a detachable galvanized mounting backplate for easy installation of electrical components. The four wall-mounted mounting holes on the back can quickly fix the electrical box on the wall.
Exquisite Details Design: The bottom of the electrical box is designed to facilitate threading. The grounding screws have been installed in advance, and the cutouts are smooth to avoid damage to the cables.

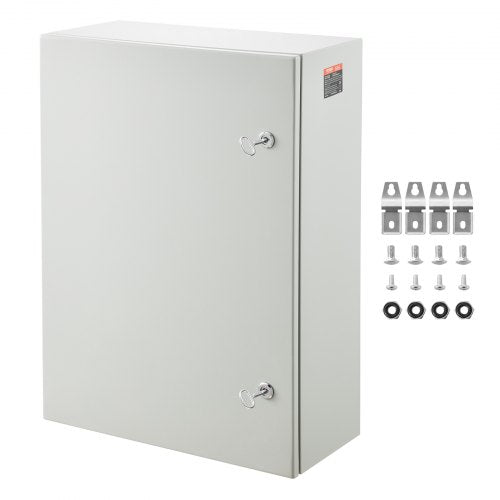

TGDQX28X20X10THVHV0 - 27.6x19.7x9.8 inches

Available in Multiple Sizes: Our steel electrical boxes come in multiple specifications, ensuring you find the ideal fit for your storage requirements. With ample space inside and a galvanized mounting plate, you can arrange your electrical components just the way you need, all while maintaining a secure storage environment
Sturdy Construction, Built to Last: Crafted from 0.059-inch (1.5mm) cold-rolled steel, our electrical enclosure box features precise cutting and welding for a flawless structure. The surface is coated with an epoxy polyester powder for exceptional wear resistance and corrosion protection. High-strength metal hinges ensure smooth door operation while avoiding damage or breakage under pressure

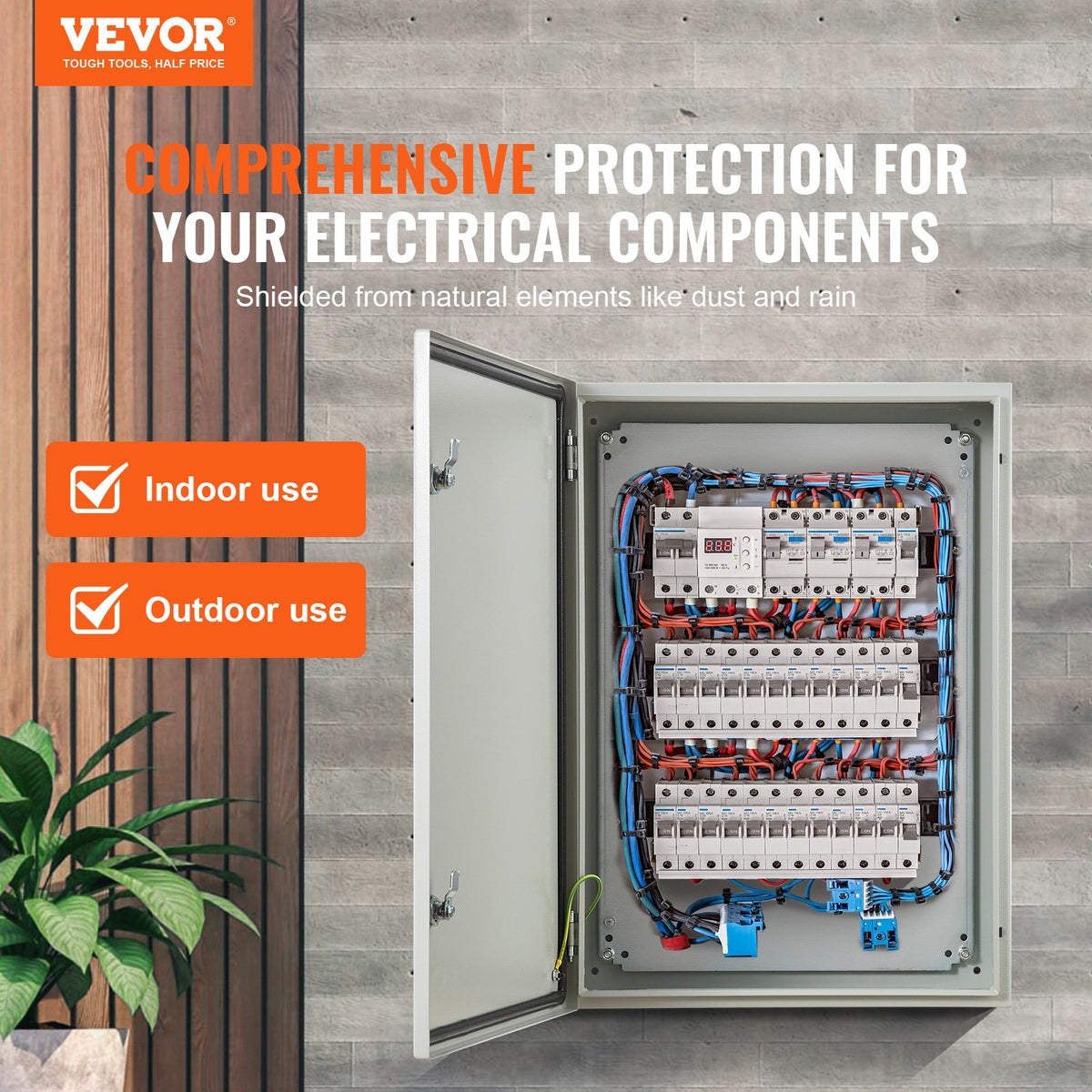

Excellent Sealing, Reliable Protection: Inside the electrical box, a PU sealing strip ensures a tight seal, while efficiently directing rainwater away from the enclosure. With an IP66 dust and water resistance rating, your electrical components remain safeguarded and in optimal condition, no matter the weather
Flexible Design, Easy Wiring: The electrical enclosure box comes with a detachable galvanized mounting plate, making it easy to secure electrical components, cables, and power supplies. Plus, pre-drilled outlet holes at the bottom allow for convenient cable entry and exit, streamlining the wiring process (Bottom outlet size varies by product specification, so please refer to the size description and the actual product for accuracy)
Installation is A Breeze: Our outdoor electrical enclosure boxes is designed with four wall-mounting holes on the back for hassle-free installation on any wall. Widely used in indoor and outdoor environments, it brings unparalleled convenience to your electrical projects, ideal for home, industrial, commercial, or agricultural applications
