Product overview
VEVOR Electric Chain Hoists, Capacity and Power Options. Compare the listed dimensions, material and package contents for each available configuration.
Product highlights
- Chain-driven lifting with remote operation.
- Select the required rated capacity.
- Power supply and chain configuration are shown per SKU.
- Lifting height and control-cable length differ between configurations.
- Check the exact installation and electrical requirements before use.
Compare the available configurations
| SKU | Selection | Key specifications | Package contents |
|---|---|---|---|

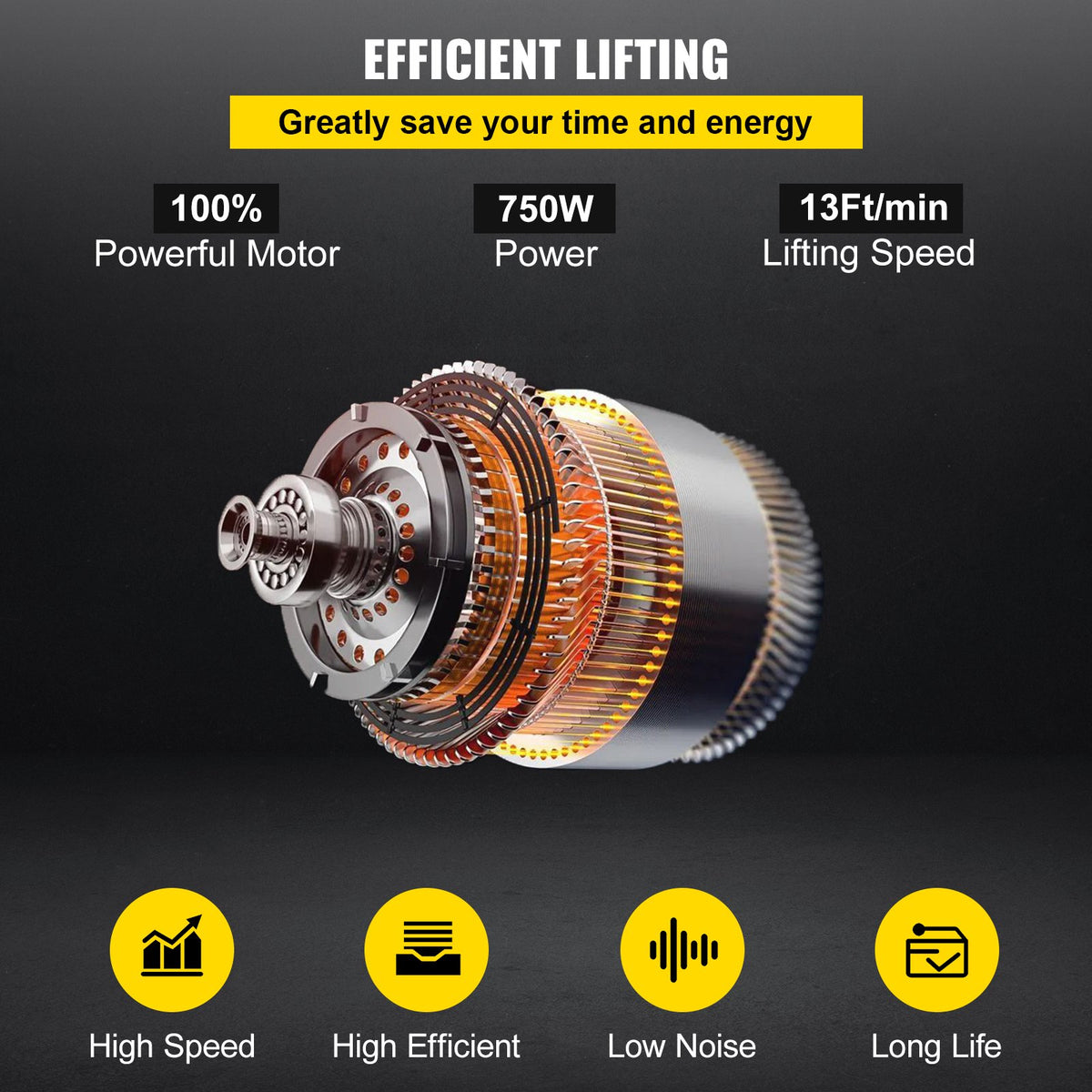

| DDHL1TDXSLHHBBHL1V1 | 2200 lbs / Single-Phase 110 V, 60 Hz / Double Chain | Model: HHBD01-02; Capacity: 1T/2200lbs; Lifting Height: 3m/10Ft; Lifting Speed: 3.9m/min / 13Ft/min; Length of Wired Remote Control: 1.5m/5Ft; Power: 0.75kw; Rotation Speed: 1440r/min; Phases: 1; Voltage: 110V/60Hz; Lifting Chain: G80 Double Chains | 1 x Electric Chain Hoist |
| DDHLHLSXDDLCS5G71V5 | 4400 lbs / Three-Phase 220 V, 60 Hz / Single Chain | Item Model Number: WX4400LBS-2; Power: 3000W; Voltage: 220V AC, 60Hz; Lifting Load Capacity: 4400 lbs/2 ton; Lifting Height: 20 ft/6.1 m; Lifting Speed: 26 ft/min (7.9 m/min); Control Mode: Wireless Remote Control; Chain: 8620 (G100), Φ0.4 in/10 mm; Rated Rotation Speed: 1440 rpm; Rated Torque: 20 NM; Product Size (L x W x H): 24.4 x 16.9 x 31.5 in/62 x 43 x 80 cm | 1 x Electric chain hoist with remote control |
| DDHLHLDXDDLCSN1NYV5 | 1100 lbs / Single-Phase 120 V, 60 Hz / Single Chain | Lifting Speed: 10 ft/min (3 m/min); Chain: G100, Φ0.25 in/6.3 mm; Lifting Height: 15 ft/4.5 m; Control Mode: Wired Remote Control (10 ft); Product Size (L x W x H): 15 x 8.2 x 20.1 in/380 x 208 x 510 mm; Rated Rotation Speed: 3500 rpm; Voltage: 120V AC, 60Hz; Item Model Number: BDH500B; Lifting Load Capacity: 1100 lbs/499 kg; Rated Torque: 0.9 NM; Power: 700W | 1 x Electric chain hoist with remote control |
| DDHLHLDXDDLCSBBYAV5 | 2200 lbs / Single-Phase 120 V, 60 Hz / Single Chain | Lifting Speed: 10 ft/min (3 m/min); Chain: G100, Φ0.28 in/7.1 mm; Lifting Height: 10 ft/3 m; Control Mode: Wired Remote Control (10 ft); Product Size (L x W x H): 16.9 x 10.1 x 24.1 in/430 x 257 x 612 mm; Rated Rotation Speed: 3500 rpm; Voltage: 120V AC, 60Hz; Item Model Number: BDH1000B; Lifting Load Capacity: 2200 lbs/1 ton; Rated Torque: 2.2 NM; Power: 1400W | 1 x Electric chain hoist with remote control |
Details by SKU

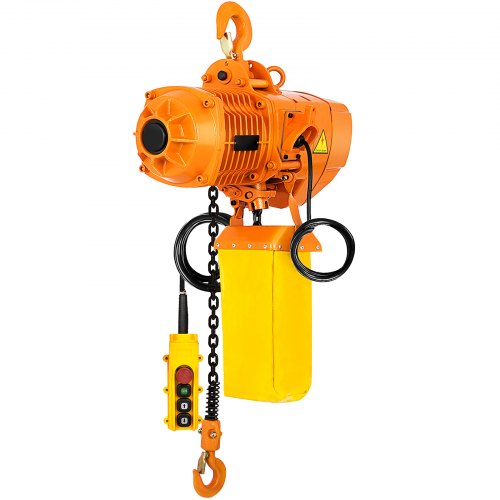

2200 lbs / Single-Phase 110 V, 60 Hz / Double Chain — DDHL1TDXSLHHBBHL1V1
VEVOR Electric Chain Hoist - 1T, Single-Phase. Rated lifting capacity: 1T/2200lbs. Listed lifting height: 3m/10Ft.
- Rated lifting capacity. Rated lifting capacity: 1T/2200lbs.
- Defined lift height. Listed lifting height: 3m/10Ft.
- Chain-driven lifting. Chain specification: G80 Double Chains.
- Remote control. Control: Wired remote, 1.5 m / 5 ft.
- Configuration-specific power. Supply requirement: 110V/60Hz, Single-Phase.
Confirm the exact supply voltage and phase, rated support structure and installation requirements in the supplied manual. Installation and operation require appropriate lifting-equipment competence.

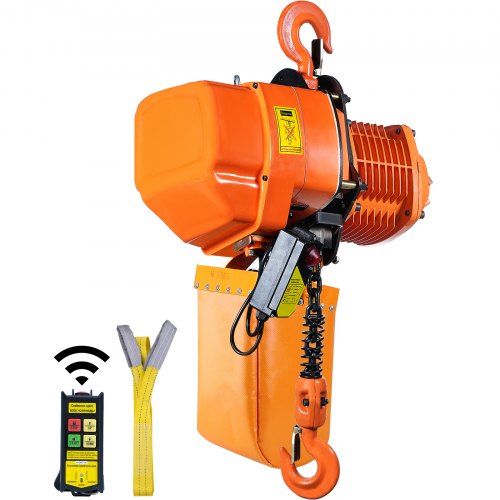

4400 lbs / Three-Phase 220 V, 60 Hz / Single Chain — DDHLHLSXDDLCS5G71V5
VEVOR Electric Chain Hoist - 4400 lbs, Three-Phase. Rated lifting capacity: 4400 lbs/2 ton. Listed lifting height: 20 ft/6.1 m.
- Rated lifting capacity. Rated lifting capacity: 4400 lbs/2 ton.
- Defined lift height. Listed lifting height: 20 ft/6.1 m.
- Chain-driven lifting. Chain specification: 8620 (G100), Φ0.4 in/10 mm.
- Remote control. Control: Wireless Remote Control.
- Configuration-specific power. Supply requirement: 220 V AC, 60 Hz, three-phase, as identified by the official product title and voltage specification.
Confirm the exact supply voltage and phase, rated support structure and installation requirements in the supplied manual. Installation and operation require appropriate lifting-equipment competence.

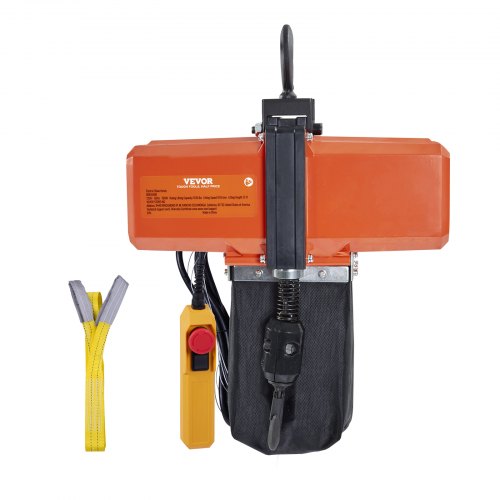

1100 lbs / Single-Phase 120 V, 60 Hz / Single Chain — DDHLHLDXDDLCSN1NYV5

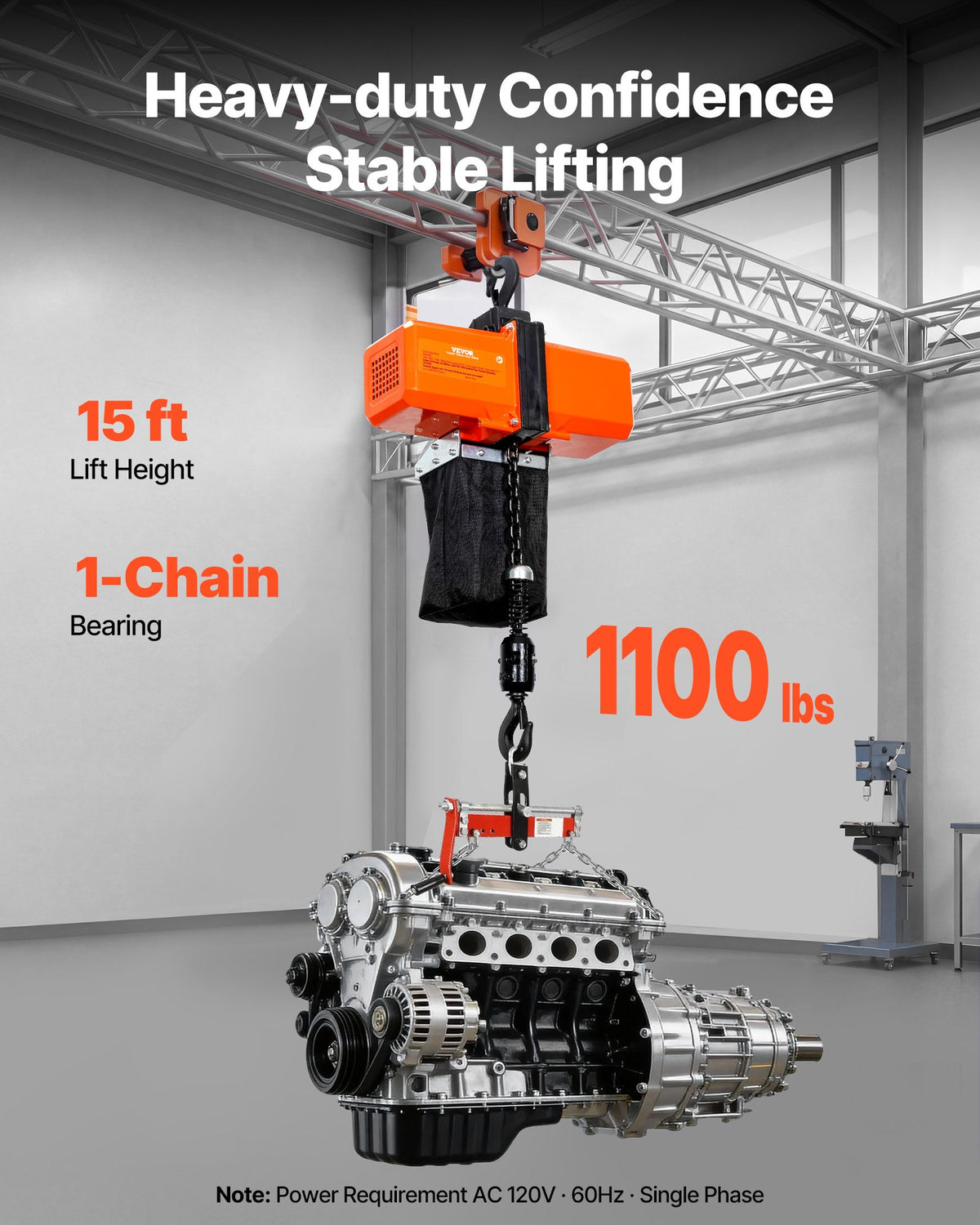

VEVOR Electric Chain Hoist - 1100 lbs, Single-Phase. Rated lifting capacity: 1100 lbs/499 kg. Listed lifting height: 15 ft/4.5 m.
- Rated lifting capacity. Rated lifting capacity: 1100 lbs/499 kg.
- Defined lift height. Listed lifting height: 15 ft/4.5 m.
- Chain-driven lifting. Chain specification: G100, Φ0.25 in/6.3 mm.

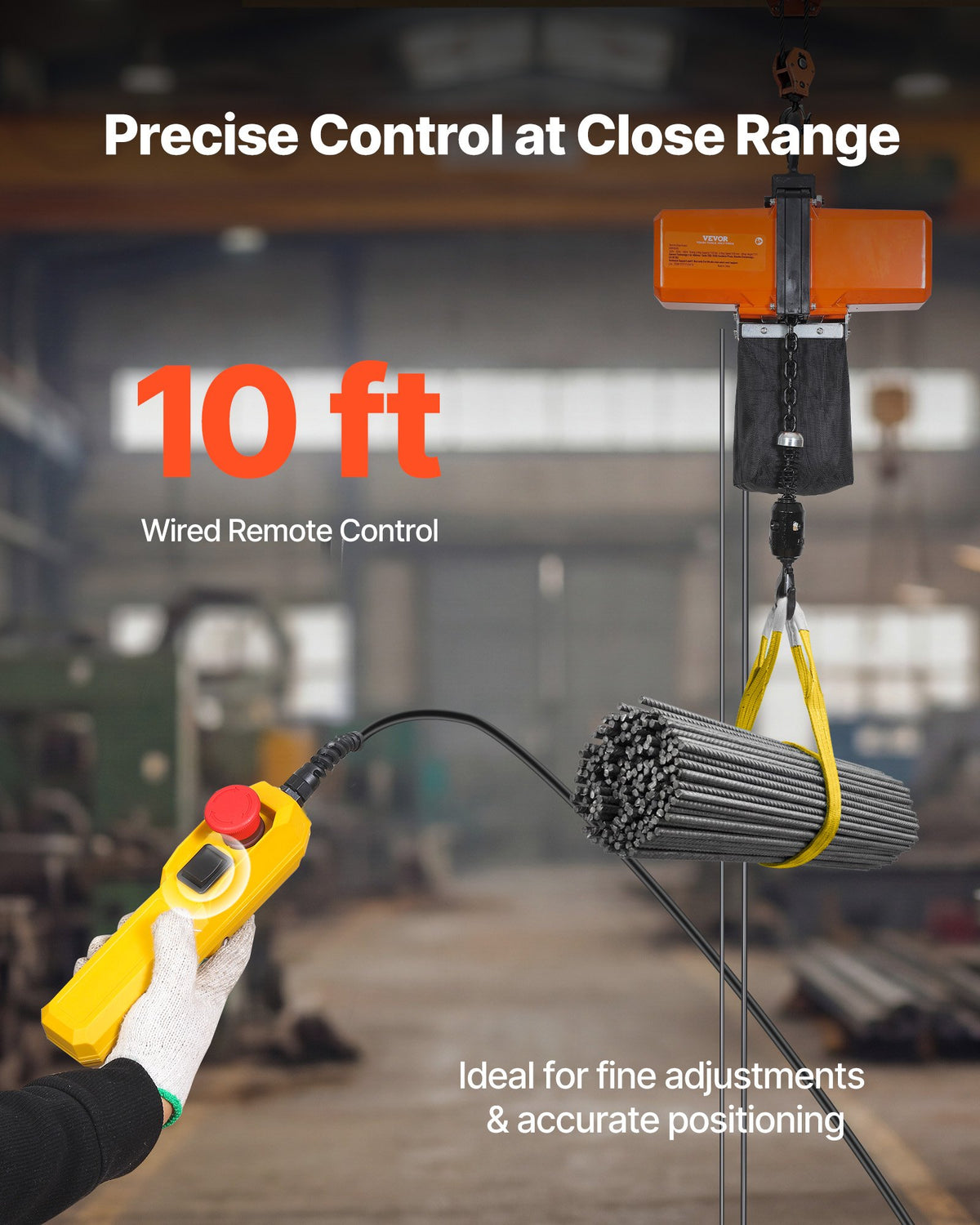

- Remote control. Control: Wired Remote Control (10 ft).
- Configuration-specific power. Supply requirement: 120V AC, 60Hz, Single-Phase.
Confirm the exact supply voltage and phase, rated support structure and installation requirements in the supplied manual. Installation and operation require appropriate lifting-equipment competence.

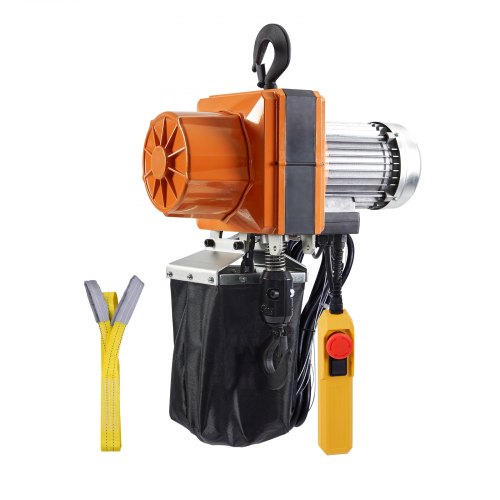

2200 lbs / Single-Phase 120 V, 60 Hz / Single Chain — DDHLHLDXDDLCSBBYAV5
VEVOR Electric Chain Hoist - 2200 lbs, Single-Phase. Rated lifting capacity: 2200 lbs/1 ton. Listed lifting height: 10 ft/3 m.
- Rated lifting capacity. Rated lifting capacity: 2200 lbs/1 ton.
- Defined lift height. Listed lifting height: 10 ft/3 m.
- Chain-driven lifting. Chain specification: G100, Φ0.28 in/7.1 mm.

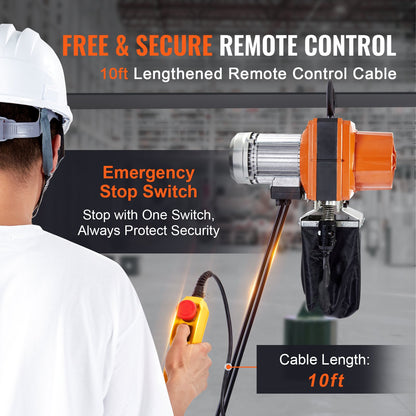

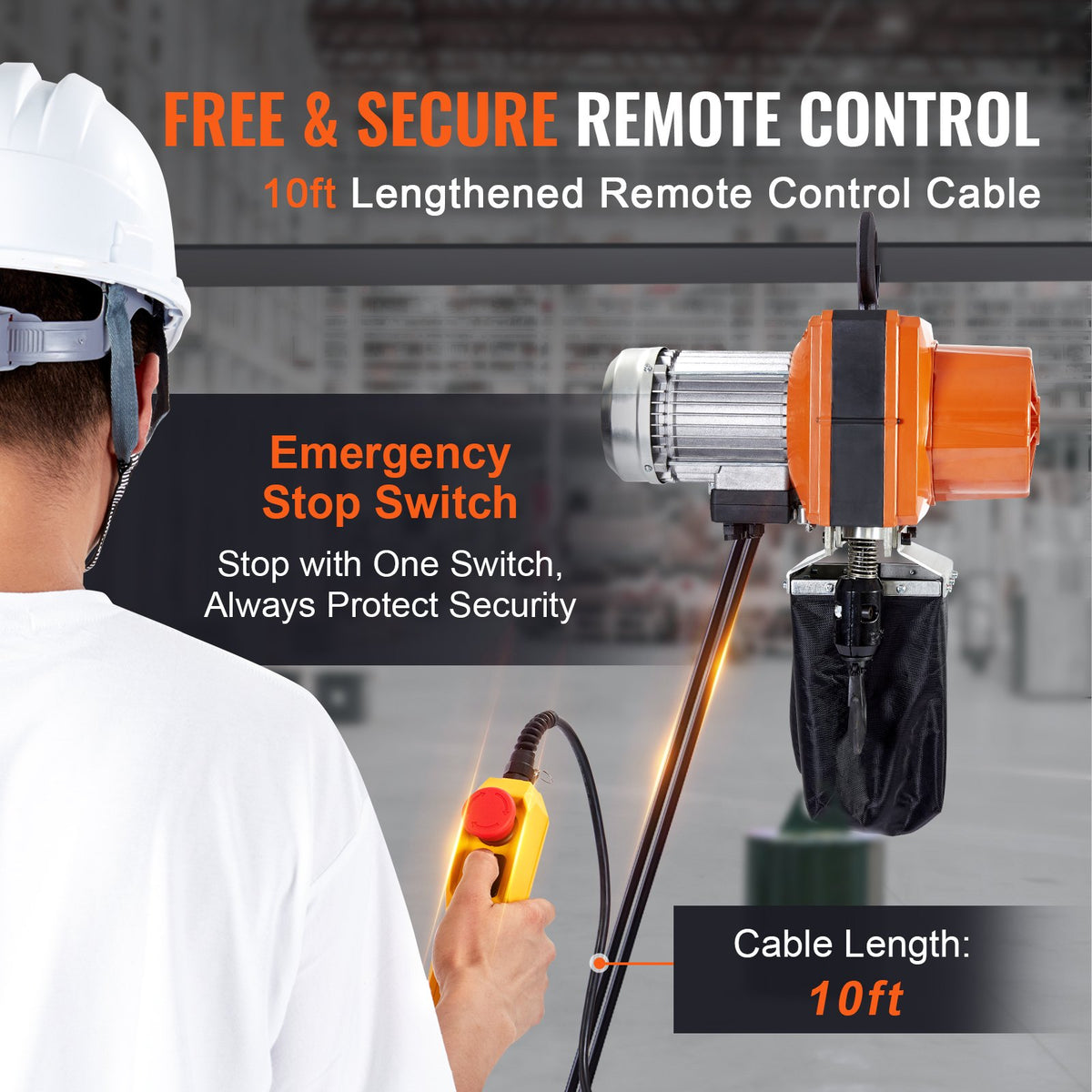

- Remote control. Control: Wired Remote Control (10 ft).
- Configuration-specific power. Supply requirement: 120V AC, 60Hz, Single-Phase.
Confirm the exact supply voltage and phase, rated support structure and installation requirements in the supplied manual. Installation and operation require appropriate lifting-equipment competence.
Questions and answers
Which configuration will I receive?
The selected options and SKU identify your configuration. Compare the corresponding row in the specification table before ordering.
Are all pictured accessories included?
Only the items listed in the selected SKU package contents are included. Decorative props and other equipment are not included.
Which store policies apply?
Dekuch Living shipping and return policies apply. Review the store policy pages and checkout eligibility for your address.
