VEVOR Tank Hydraulic Pump - Select Your Configuration

In stock

$459.90 USD

Sale Sold out

Operation Mode Single Acting Double Acting

SKU:CZYYB6LDDCFSZY001V0

Product details

What to know before you buy

Core information, use cases, and key selling points for this item.

Choose the exact VEVOR configuration listed below. Specifications and package contents are recorded per SKU.

SKU	Selection	Specifications	Package contents
CZYYB12KDDCDB0001M2	Operation Mode: Single Acting	Quart: 12 Quart; Reservoir: Metal Reservoir; Motor voltage: DC12V; Acting: Double-acting; Connector: SAE6 (9/16")	1 x 12V DC 12 Quart double-acting power unit (with a pressure gauge); 1 x Remote controlled pendant; 1 x set of sae6 interface
CZYYB6LDDCFSZY001V0	Operation Mode: Double Acting	Item Model Number: TDDC12V-1.6KW-S-6LS; Net Weight: 35.1 lbs/16 kg (Include all accessories); Product Dimensions: 21.9 x 8.9 x 9.1 in/555 x 225 x 230 mm; Voltage: DC12V; Reservoir Capacity: 6 Quart / 1.5 Gal; Power: 1.6kW; Traffic: 2.1 mL/r; Flow Rate: 0.91GPM (3.4L/min); Speed: 2600 r/min; Function: Double Acting	1 x Hydraulic Power Unit; 6 x SAE#6 Connectors

CZYYB12KDDCDB0001M2 - Operation Mode: Single Acting

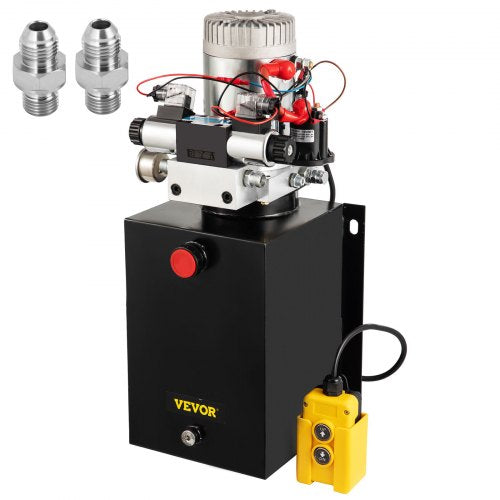

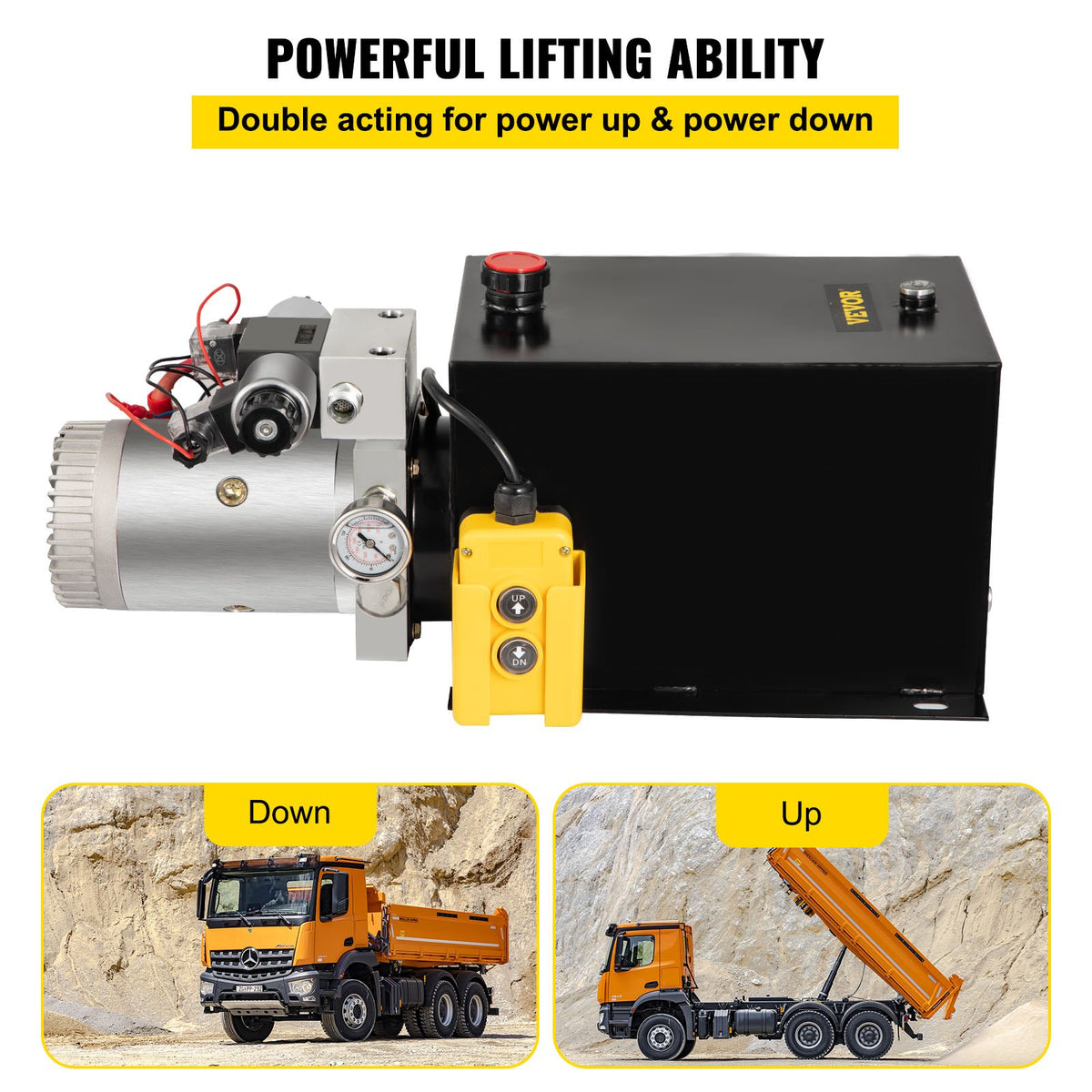

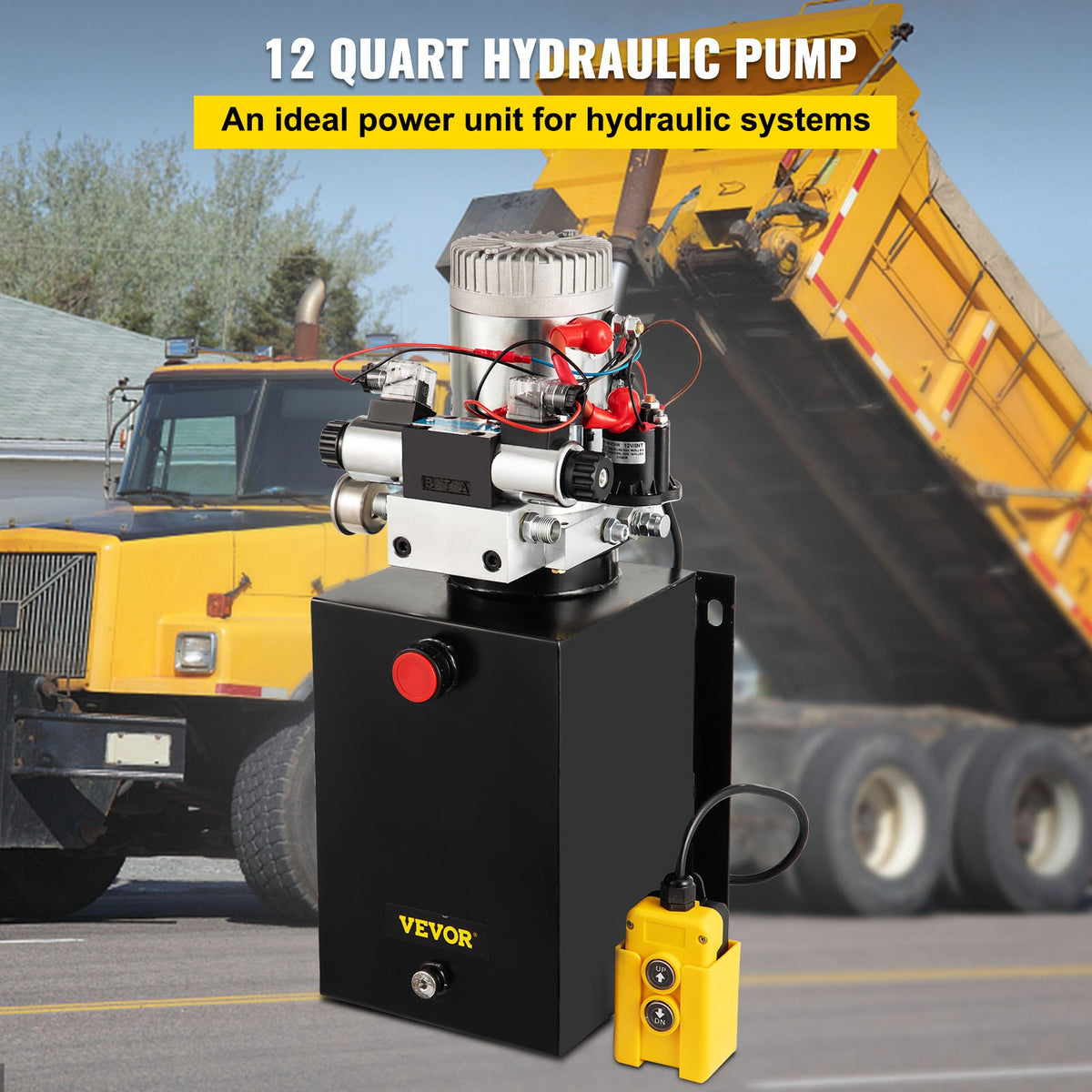

Product Details: This hydraulic pump is designed with a 12V DC motor (Power: 1.6-3.0kw), a 12-quart reservoir and a start solenoid. The max relief pressure on A port (SAE#6) is 3200 PSI, and on B port (SAE#6) is 1500 PSI; it is a double-acting pump for both power up and power down.
Easy to Use: Our hydraulic power unit has been fully assembled. The wiring is simple with operating instructions. The hydraulic gauge gives clear value of the pressure and the 15ft remote allows you to control in a long distance. In addition, we offer you 2 additional SAE#6 connectors for replacement.
Reliable Quality: The dump trailer pump is made of sturdy metal; thus, the oil tank is not easy to crack or be damaged. As a power unit, this is a perfect replacement pump for remote hydraulic systems. Equipped with a relief valve, it can avoid overpressure, safer and reliable.
Rapid Start: With its powerful motor, this hydraulic electric pump is quick to start and quick to output oil; it can provide strong power for hydraulic systems like dump trailers, dump beds and is able to complete lifting in a short time.
Wide Application: This power unit is widely used in stackers, small, and medium-sized lifting platforms. It is compatible with many dump trailers and movers and is a direct replacement for 12V DC remotely controlled hydraulic systems.

CZYYB6LDDCFSZY001V0 - Operation Mode: Double Acting

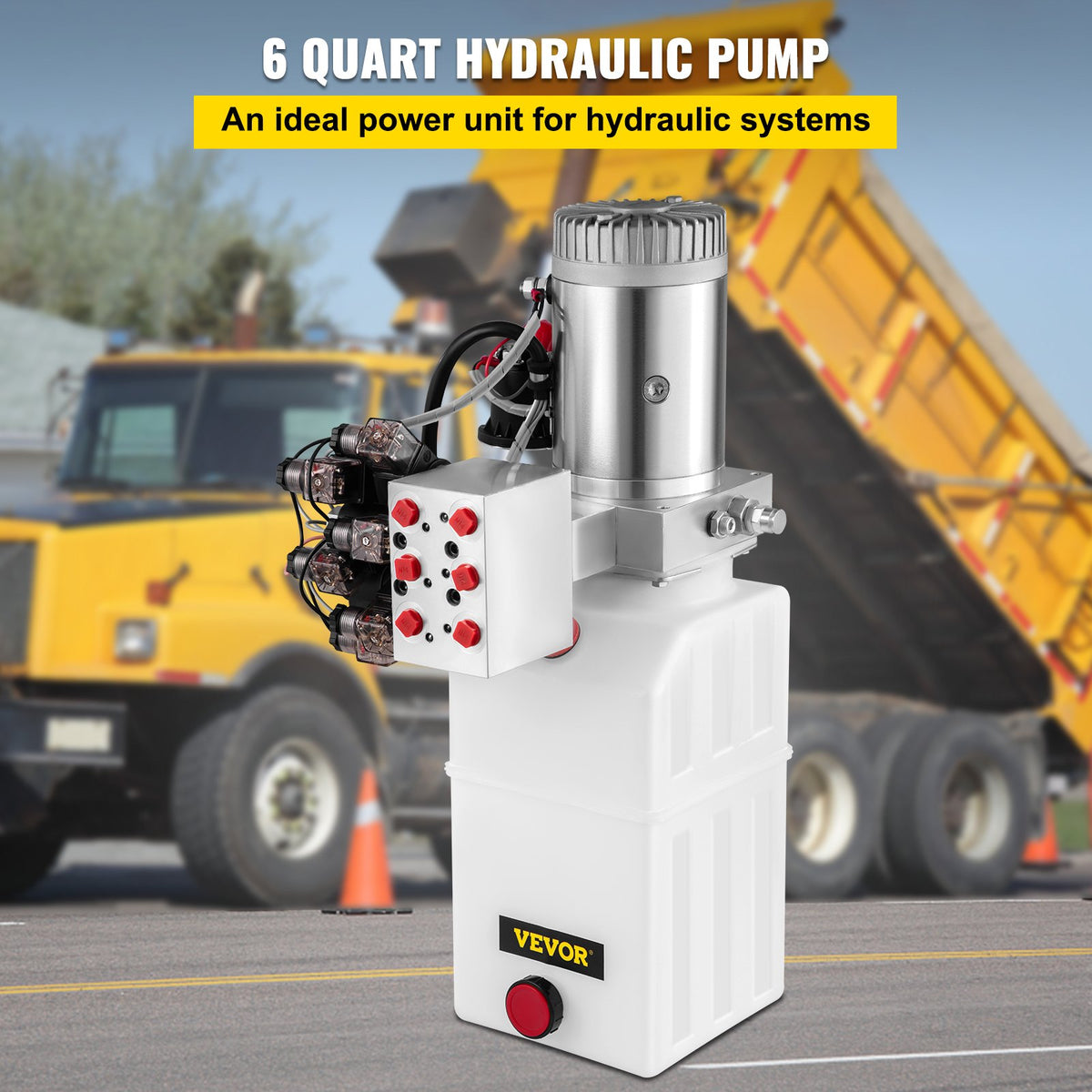

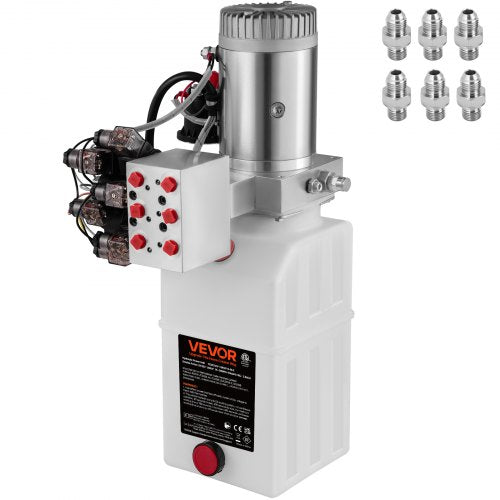

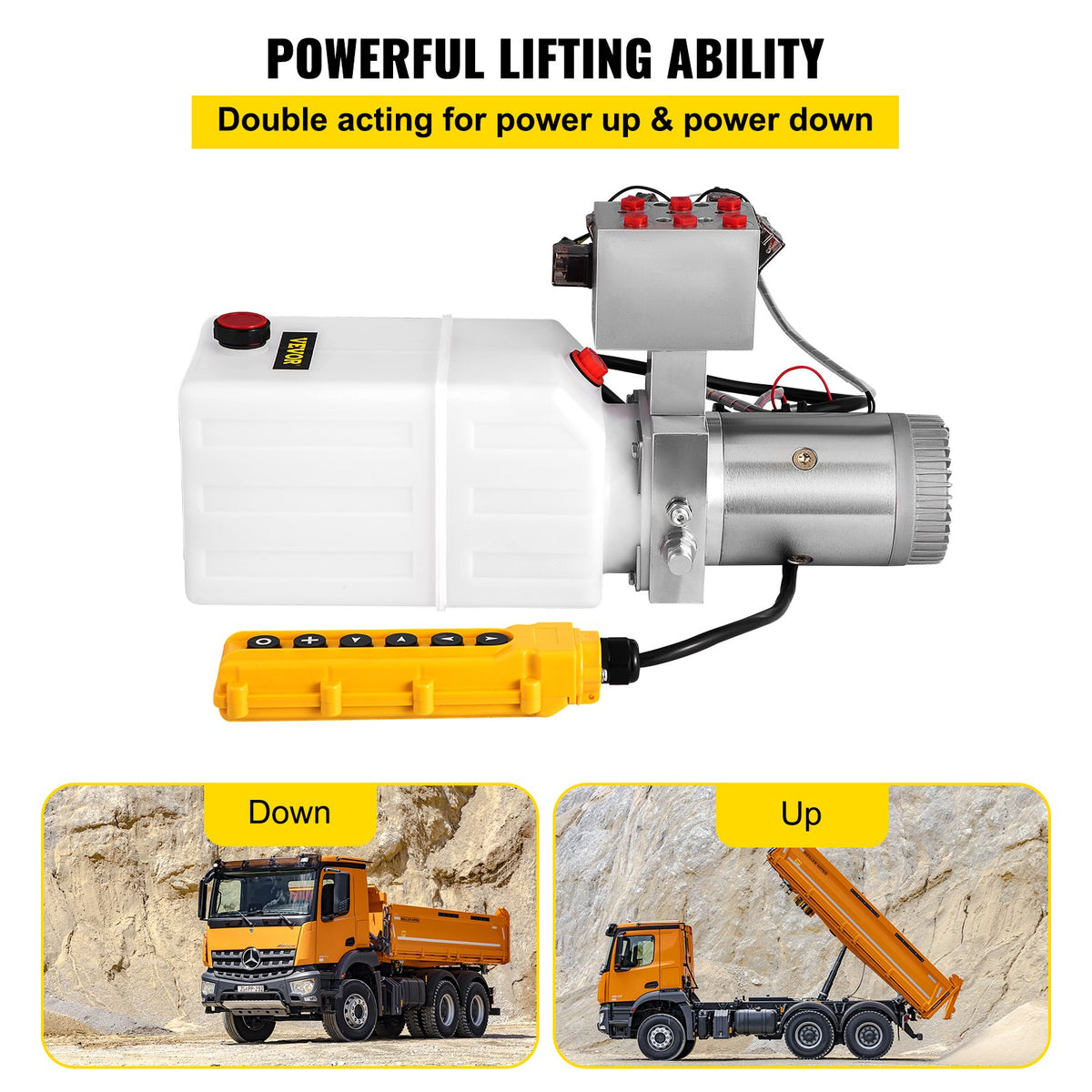

Hydraulic Pump Specifications: 12V, 1.6kW DC motor for quick startup and oil output. 6-quart oil tank with pressure up to 16-20 MPa, max release pressure of 22 MPa (3200 psi), and a flow rate of 0.91 GPM for powerful hydraulic performance
Dual-Action Power Unit: The hydraulic power unit features a dual-action power unit for stable, reliable lifting, with a built-in security relief valve that automatically releases pressure to reduce failure rates and improve operational security
6-Way Solenoid Valve: Controls up to 3 hydraulic cylinders, paired with a 6-direction remote control for precise control in multiple directions, allowing you to work more efficiently and accurately
Durable Oil Tank: The hydraulic pump for dump trailer features strong sealing to avoid oil leaks. The tank is made of sturdy plastic, designed to withstand impact and daily use without damage, ensuring long-lasting durability
Versatile Application: This hydraulic pump comes with a battery label sticker and six SAE#6 connectors, allowing easy installation on small to medium hydraulic equipment like small excavators, dump trailers, and agricultural dump trucks
