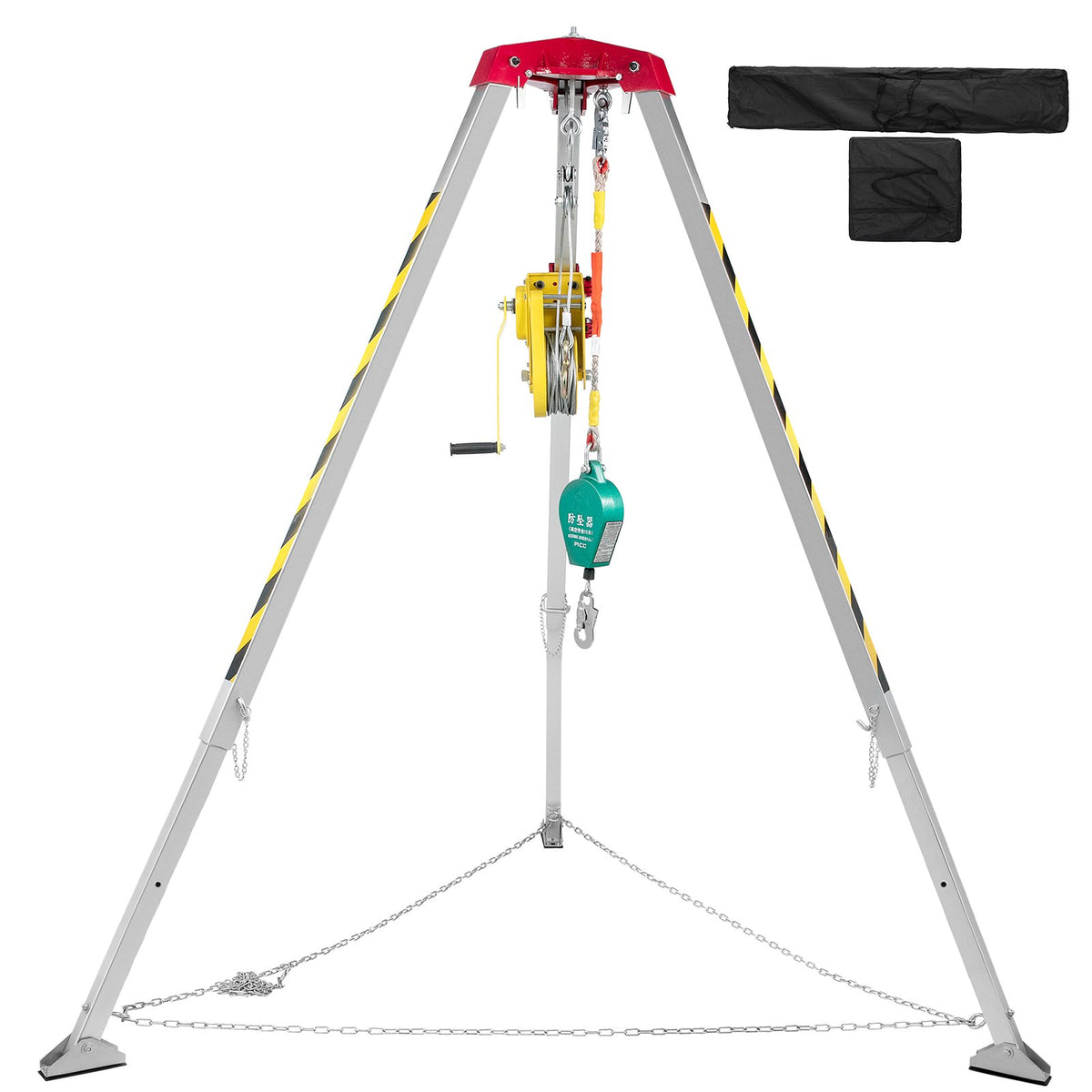

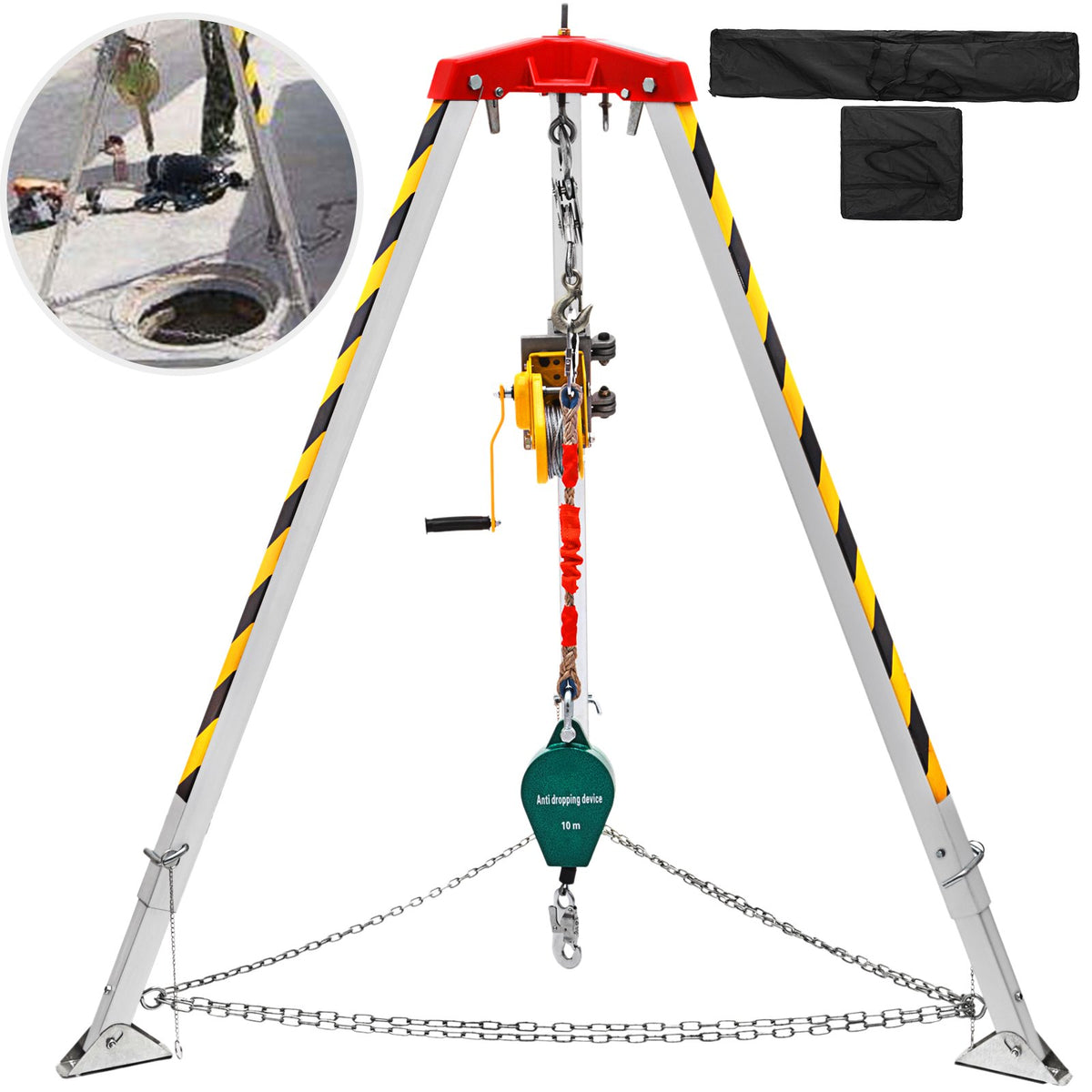

VEVOR Confined Space Rescue Tripod, 7 ft & 8 ft Adjustable Legs with 1200 / 1800 / 2600 lbs Winch, 99 ft Cable & Fall Protection for Well Sewer Rescue

About this item

Key Features

• LARGE LOAD CAPACITY: Every model is rated to lift and lower a 390 lbs / 180 kg person, with the winch sized to the job - pick 1200, 1800 or 2600 lbs. Manual handle force is 500 N or less depending on the model, so one operator can raise and lower a casualty steadily.
• ALUMINUM ALLOY CONSTRUCTION: A die-cast top plate combined with premium iron and aluminum alloy legs keeps the tripod rigid and stable. Yellow and black reflective stickers make the tripod visible on site.
• SELF-LOCKING WINCH & FALL PROTECTOR: Galvanized steel wire runs 99 ft / 30 m on every model, in 4, 5 or 6 mm diameter on the 8 ft models depending on winch size. The man winch uses a self-locking device for raising and lowering, and the fall protector with a durable hook gives a second line of safety. Winch ratio is 4:1 or 8:1 depending on model.
• ADJUSTABLE LEGS: Choose a 7 ft model with legs that adjust from 4-7 ft / 1.34-2.15 m, or an 8 ft model with legs from 5.2-8 ft / 1.6-2.45 m. The three rubberized feet are angle adjustable and anti-slip, and ring protection chains keep the legs from splaying. It all packs down for storage and transport.
• VARIOUS APPLICATION: Built for confined space entry and rescue - wells, sewers, underground pipes, tunnels and tanks. Use it to lower a worker in, keep the line tensioned, and winch them back out in an emergency.
